Product type	Professional amplifier (receiver)
Brand	Vonyx
Model	172.058 (VXA-3000)
Stereo output power (4 Ω)	2 x 1500 W
Stereo output power (8 Ω)	2 x 900 W
Bridged output power (8 Ω)	3000 W
Frequency response	10 Hz ~ 20 kHz (±1.2 dB)
Signal-to-noise ratio (SNR)	>90 dB
Damping factor	>250
Slew rate	30 V/µs
Input sensitivity	0.77 V
Input impedance	20 kΩ
Audio inputs	2 x 6.35 mm jack, 2 x RCA
Audio outputs	6.35 mm jack, NL4 (Speakon), screw terminals
Operating modes	Stereo, Bridged
Protection functions	Thermal protection, short circuit, clipping
Power supply	220-240 V~, 50 Hz
Dimensions (W x H x D)	482 x 88 x 269 mm
Weight	Approx. 15 kg
Ventilation	Front and rear ventilation grilles
Internal battery type	Rechargeable lead-acid battery (recharge every 3 months if unused)
Operating temperature	5 °C to 35 °C (indoor)
Maintenance	Clean with a dry cloth, do not use chemicals
Fuse	Replace with a fuse of the same type and rating
Warranty	Warranty conditional on following the instructions in the manual

Frequently Asked Questions - 172.058 Vonyx

How to connect speakers to the Vonyx VXA-3000?

Speakers can be connected via the 6.35 mm jack outputs, NL4 (Speakon) connectors, or screw terminals. Make sure the amplifier is turned off before connecting. Observe the minimum impedance: 4 Ω per channel in stereo mode, 8 Ω in bridged mode.

How to switch between stereo and bridged modes?

Use the Mode switch located on the rear. Position Stereo for standard left/right operation. Position Bridged to combine both channels into one: connect the signal to the CH1 input and adjust the volume with the CH1 potentiometer. The output is via the (+) screw terminals.

What does the illuminated Protect LED mean?

The Protect LED illuminates when the amplifier detects a problem: poor ventilation, too low impedance (<4 Ω), short circuit, or defective fan. The amplifier enters protection mode and cuts the output. Check the connections and ventilation, then restart.

How to clean the Vonyx VXA-3000 amplifier?

Use a dry, soft cloth. Never use chemicals, aerosols, or liquids that could damage the coating or penetrate the interior.

What is the procedure for replacing the fuse?

Unplug the device. Locate the fuse holder on the rear. Replace the fuse only with an identical model (same type and rating). If the fuse blows again, consult a technician.

Can I use the amplifier outdoors or in a humid room?

No, the device is designed for indoor use only. Avoid humidity, rain, and extreme temperatures. The permitted operating range is 5°C to 35°C.

How to avoid ground loops (hum)?

Use the Ground Lift switch on the rear. It separates the circuit ground from the chassis ground to eliminate ground loops. Try both positions to reduce noise.

Does the amplifier have an internal battery?

Yes, it contains a rechargeable lead-acid battery. If you do not use it for a long period, recharge it every three months to prevent damage.

What to do if the Clip LED lights up continuously?

The Clip LED indicates signal clipping. If it stays on continuously, reduce the volume to avoid damaging the amplifier or speakers. Random illuminations are normal.

How to transport the amplifier safely?

Use the original packaging if possible. Before moving the device, turn it off and disconnect all cables. Avoid shocks and vibrations.

USER MANUAL 172.058 Vonyx

VXA Amplifier Series

Ref. nr.: 172.050 / 172.052 / 172.054 / 172.056 / 172.058

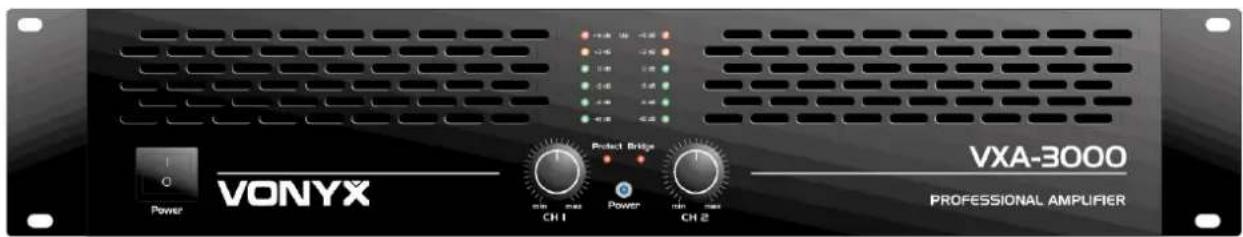

VXYA-3000 PROFESSIONAL AMPLIFIER Power VONYX Protect Bridge CH 1 Power CH 2

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V1.0

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!d

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

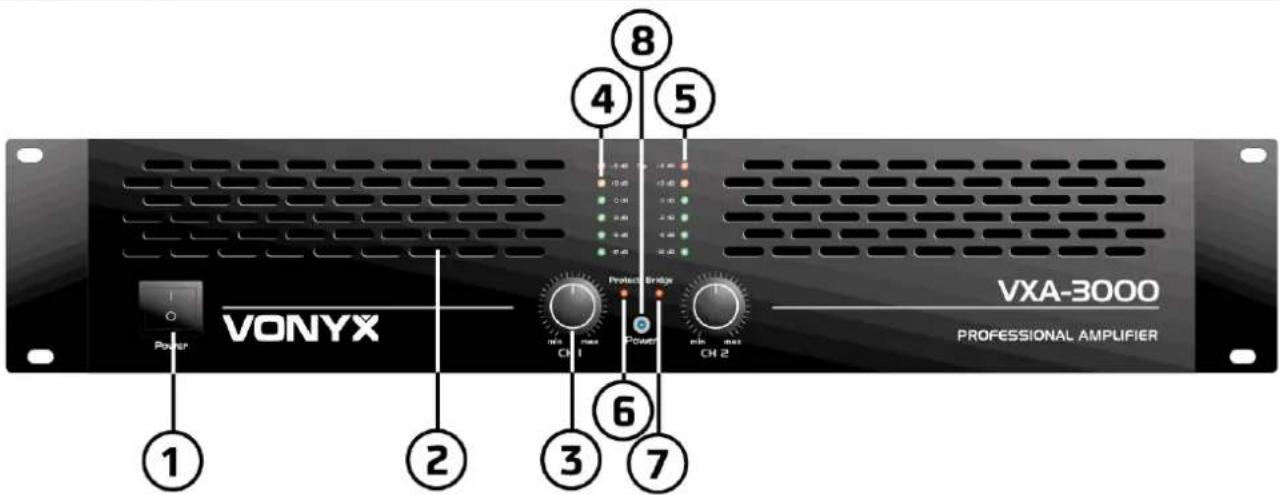

FRONT PANEL

VONYX VXA-3000 PROFESSIONAL AMPLIFIER 1 2 3 4 5 6 7 8 Power Power Bridge Power min max CH 1 CH 2

1. On/Off Switch.

For switching the amplifier on and off. Always adjust the volume down to its minimum before switching this amplifier on.

2. Cooling Vents.

Front to rear forced airflow.

3. Volume Controls.

These controls adjust the volume level of both channels. Turn slightly to the left when the clip indicators (4) light up.

4. Signal indicators.

Three orange LEDs indicate the amplifiers output signal levels.

5. Clip Indication.

These LEDs will light up when one or both channels are on max power. It can occur that these LEDs will lit up now and then, this is not a problem. But if it lights up continually you need to adjust the volume down, otherwise permanent damage to equipment might occur

6. Protect Indication.

When on any given point, something damaging might occur to your amplifier, it will switch in protect mode. The amplifier will disconnect the point where the damage is about to occur and switch on the protection led to indicate to you that something is wrong. Reasons might be: Bad ventilation, A low impedance (< 4 Ohm), Defect fan(s), A short circuit in cables.

7. Bridge Mode Indication.

8. Power Indication.

This clear blue indicator will light when the amplifier is turned on.

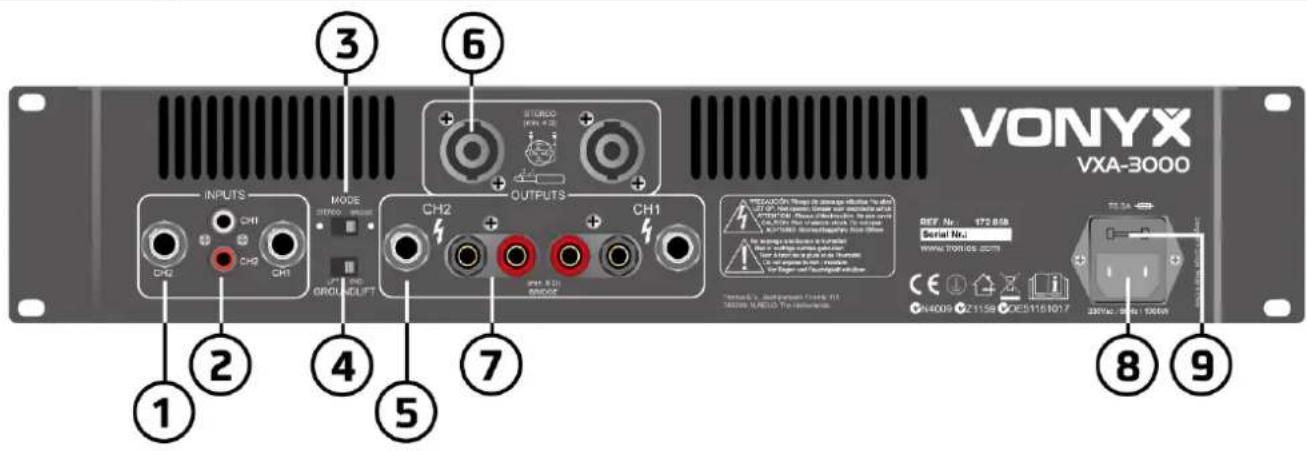

REAR PANEL

VONYX VXA-3000 1 2 3 4 5 6 OUTPUTS CH1 CH2 CH3 CH4 OUTPUTS CH2 CH1 OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS OUTPUTS

1. 6.3mm Jack inputs.

Two 6.3mm jack female input connector for connecting a signal source (mixer etc.).

2. RCA inputs.

Two RCA input connector for connecting a signal source (mixer etc.).

3. Mode Switch.

The amplifier can use 2 different modes: stereo & bridge.

Choose one of these functions:

Stereo mode: Standard left/right stereo mode.

Bridge mode: This mode combines both amps on one channel which results in double power on this channel.

Connects the signal to the left input channel and the output level can now be adjusted with the left volume control.

4. Ground Lift Switch.

Allows circuit and chassis grounds to be separated in case of problems with earth loops (hum)..

5. 6.3mm Jack Outputs.

Maximum load in stereo mode 4 Ohm per channel.

6. Speaker Outputs NL4.

Maximum load in stereo mode 4 Ohm per channel.

Pin +1 & +2 = + output, Pin -1 & -2 = - output

7. Binding Post Output Jacks.

Maximum load in stereo mode 4 Ohm per channel. Maximum load in bridge mode 8 Ohm.

8. Mains Power Connector

9. Fuse

This main fuse secures the amplifier and wires against defects. Replace this only with a fuse of same type and value.

INSTALLATION

Connecting Output

Make sure the amplifier is turned off before you wire the system. Speakers can be connected using speaker NL4 plugs or bare wire for your binding post output connectors. Using the guidelines below select the appropriate size of wire bases on the distance between the amplifier and speaker.

Distance Wire Size

<10m 1.5mm2

10m <20m 2.5mm2

20m <30m 4.0mm2

Setup operation mode

Amplifier can used in 2 modes:

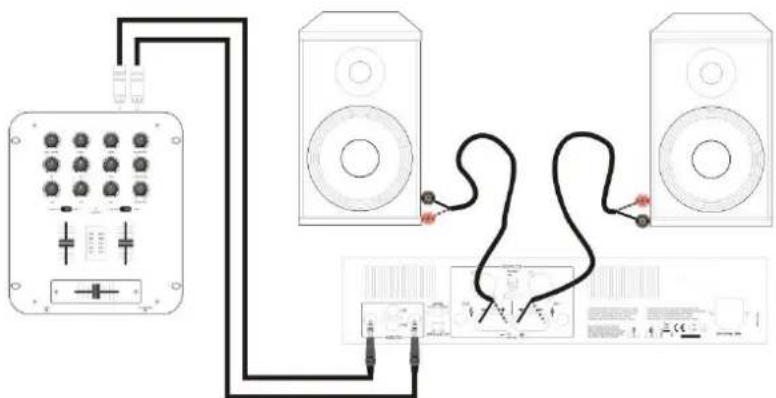

1. Stereo operation

Set the mode selector (3) to the 'stereo' position.

In this mode the amplifier have two in depended channels with their own inputs and volume controls.

Diagram showing connections between audio equipment, speakers, and a device with labeled components

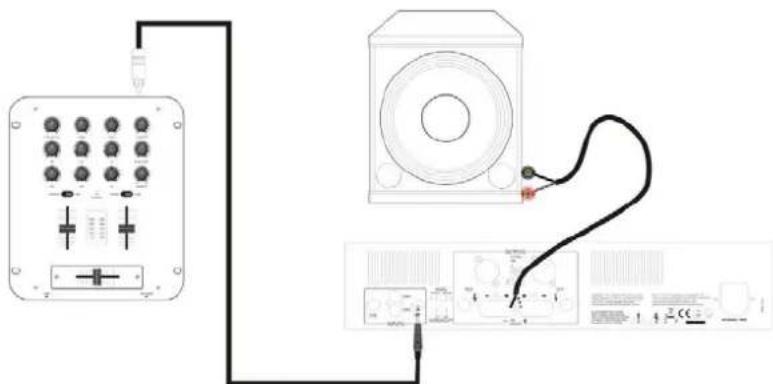

2. Bridge operation

Set the mode selector (3) to the 'bridged' position.

This mode combines both amps on one channel which results in double power on this channel. Connects the signal to the A input channel and the output level can now be adjusted with the A volume control.

Connect the speaker across the positive (+) output terminals. Do not use the negative (-) terminals when the amplifier is being operated in bridged mode.

Pure electrical circuit lines without any symbols

NOTE: Never connect a hot (+) output to ground or (-) output and never connect the hot (+) to other hot outputs!

Connect to mains power

Before plugging the unit in always make sure that the power supply matches the product specification voltage. First connect the IEC end of the cord set to the IEC connector on the amplifier then plug the other end of the cord set to the AC mains.

Please read instructions below for reliable and problem free use:

• Be sure all connections made are made in the correct way.
• Check if the connected speakers are compatible with the amplifier.
• Ensure there is adequate ventilation.
• Prevent exposure to moisture.
• Never plug speakers in/or out while in use, this can result in serious damage.

NEDERLANDS

7. Bridge Mode indicator

8. Aan/Uit-indicator.

VONYX VXA-3000 1 2 3 4 5 6 OUTPUTS CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 OUTPUTS CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 OUTPUTS CH1 PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUCTIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUATIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSIONS PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S. PRODUSSION S.

1. 6.3mm Jack -ingangen.

Diagram showing connections between audio equipment, speakers, and a device with labeled components and wiring.

Pure electrical circuit lines without any symbols

7. Schraubanschlüsse

Diagram showing audio connection setup with speaker, audio jack, and audio recording device connected via cable

2. Brückenbetrieb

Pure electrical circuit lines without any symbols

1. Interruptor On/Off.

VONYX VXA-3000 INPUTS MODE STUDIO OUTPUTS CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 COSCOs: Please note that you are 2.2Pc (with 2.2Pc) or 2.2Pc (with 2.2Pc) in the user's device. See your own name at #1.2Pc. COSCOs will be used to use the #1.2Pc. COSCOs will be used to use the #1.2Pc. COSCOs will be used to use the #1.2Pc. COSCOs will be used to use the #1.2Pc. COSCOs will be used to use the #1.2Pc. COSCOs will be used to use the #1.2Pc. COCO Tested by: Aubasingan 1448-01 16000 MHz 100 MHz REF. Nr. 172.858 Serial No: www.tronios.com CE N4009 Z3159 XE51181017 2010/01/13000 TSA 8 9

1. Entradas RCA.

Diagram showing connections between audio equipment, speakers, and audio recording equipment with labeled components

2. Puente

Pure electrical circuit lines without any symbols

Distance Section câble

<10m 1.5mm2

10m <20m 2.5mm2

20m <30m 4.0mm2

Diagram showing connections between audio equipment, speakers, and audio recording devices with labeled components

2. Mode bridgé

Pure electrical circuit lines without any symbols

Note: Specifications and design are subject to change without notice for purpose of improvement.

Blue glossy circular logo with stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer:

TRONIOS BV

172.050, 172.052, 172.054, 172.056, 172.058

Product Description: VXA Amplifier Series

Trade Name:

V O N Y X

Regulatory Requirement:

EN 60065:2002+A1:2006+A11:2008

EN 55103-1:1996

EN 55103-2:1996

EN 61000-3-2:2006

EN 61000-3-3:1995+A1:2001+A2:2005

EN 55103-2:1996

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

Almelo,

01-02-2016

Name : B. Kosters

Controller regulations

Signature

signature

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2016 by TRONIOS the Netherlands
