MF350BD - Oven WHITE AND BROWN - Free user manual and instructions

Feature	Details
Product type	Oven
Capacity	350 liters
Power	3500 W
Cooking functions	Convection, grill, traditional cooking
Maximum temperature	250 6C
Dimensions (W x D x H)	60 x 60 x 60 cm
Weight	30 kg
Cavity material	Enamel
Cleaning system	Catalytic cleaning
Energy consumption	A
Interior lighting	Yes
Included accessories	Grill, baking tray
Warranty	2 years
Safety	Safety lock, overheating protection

Frequently Asked Questions - MF350BD WHITE AND BROWN

How do I preheat the WHITE AND BROWN MF350BD oven?

To preheat the oven, turn the temperature knob to the desired temperature and let it heat for about 10 minutes before placing your dishes inside.

What is the capacity of the WHITE AND BROWN MF350BD oven?

The WHITE AND BROWN MF350BD oven has a capacity of 35 liters, which is ideal for cooking meals for 4 to 6 people.

How do I clean the oven after use?

To clean the oven, let it cool down then wipe the interior with a damp cloth and a mild detergent. Avoid using abrasive sponges.

What is the power of the WHITE AND BROWN MF350BD oven?

The oven has a power of 1500 watts, allowing for fast and efficient cooking.

How do I set the oven timer?

To set the timer, turn the timer knob to the desired time. The oven will beep when the time is up.

What should I do if the oven does not turn on?

Check that the oven is properly plugged in and that the outlet is working. If the problem persists, consult the user manual or contact customer service.

Can I use metal utensils in the oven?

Yes, you can use metal utensils, but avoid those made of plastic or silicone as they can melt at high temperatures.

How do I adjust the oven temperature?

Use the temperature knob to select the desired temperature, usually between 100 6C and 250 6C.

Is the oven equipped with a convection cooking mode?

Yes, the WHITE AND BROWN MF350BD oven is equipped with a convection function for even cooking.

Where can I find the oven user manual?

The user manual is usually provided with the product. You can also download it from the official WHITE AND BROWN website.

USER MANUAL MF350BD WHITE AND BROWN

Front view of a white & brown microwave oven with digital display and control buttons (no visible text or symbols on the main device)

K A B C I J

G H D E F

17 18 21 23 24 19 20 22 888:00 188:00

1 230°C 45:00 3 4 6 7 9 10 ○ 13 15 2 5 8 12 11 14 16

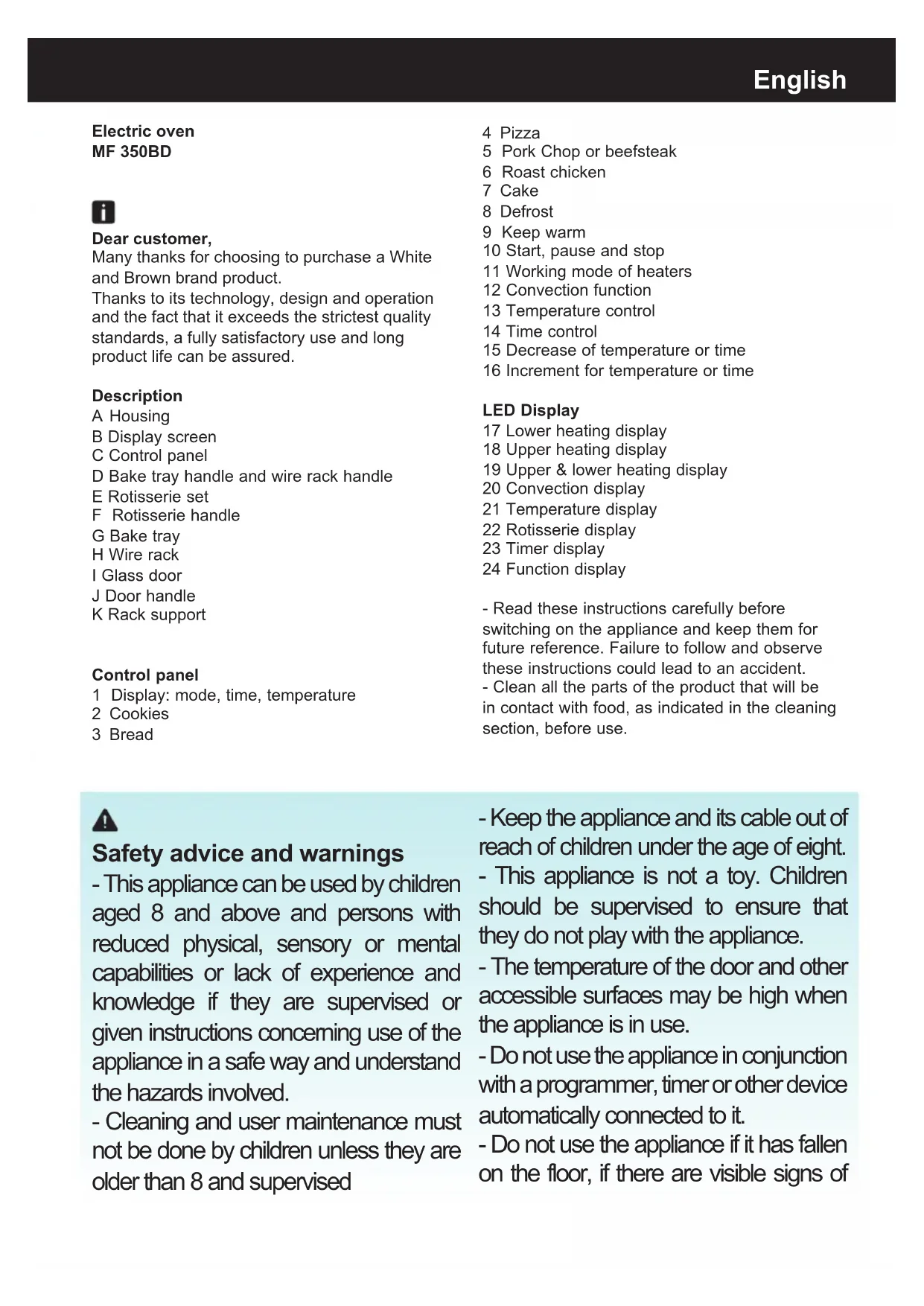

Many thanks for choosing to purchase a White and Brown brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

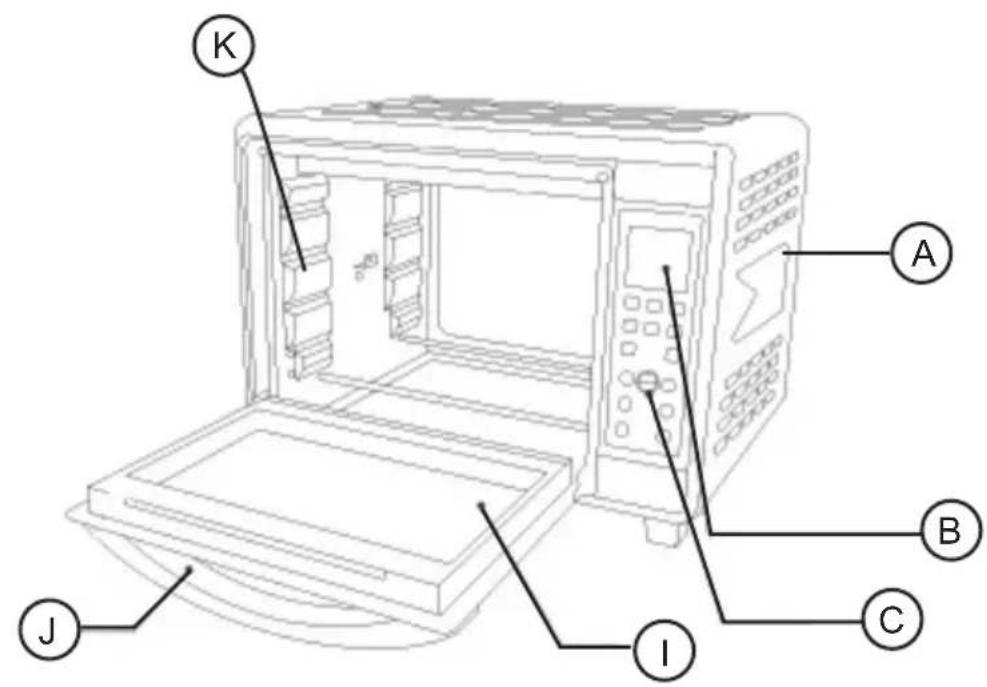

Description

A Housing

B Display screen

C Control panel

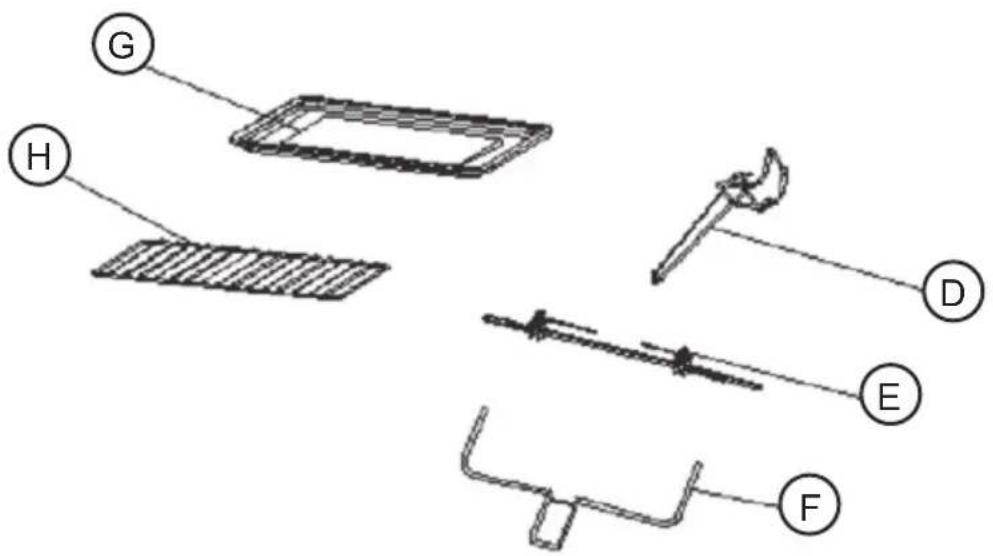

D Bake tray handle and wire rack handle

E Rotisserie set

F Rotisserie handle

G Bake tray

H Wire rack

I Glass door

J Door handle

K Rack support

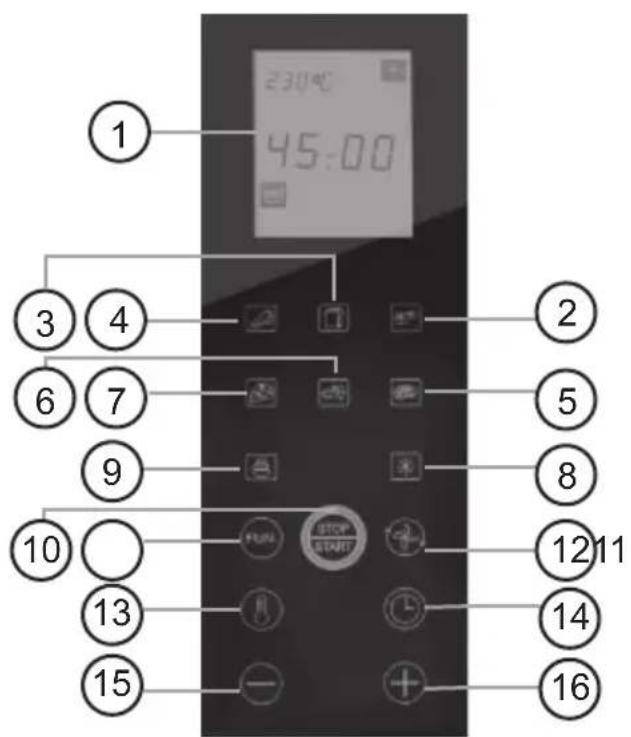

Control panel

1 Display: mode, time, temperature

2 Cookies

3 Bread

4 Pizza

10 Start, pause and stop

11 Working mode of heaters

12 Convection function

13 Temperature control

14 Time control

15 Decrease of temperature or time

16 Increment for temperature or time

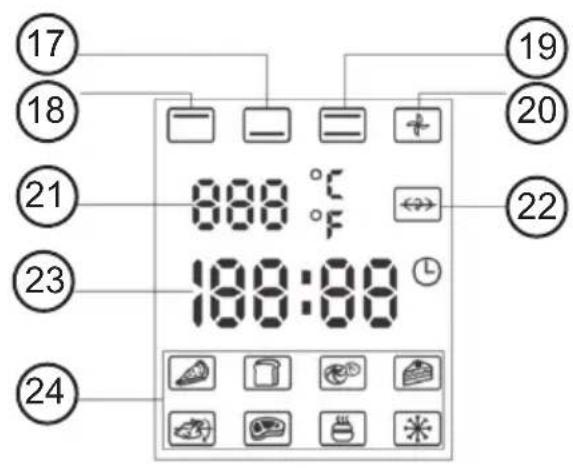

LED Display

17 Lower heating display

18 Upper heating display

19 Upper & lower heating display

20 Convection display

21 Temperature display

22 Rotisserie display

23 Timer display

24 Function display

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

!

Safety advice and warnings

- This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless they are older than 8 and supervised

- Keep the appliance and its cable out of reach of children under the age of eight.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- The temperature of the door and other accessible surfaces may be high when the appliance is in use.

- Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of

damage or if it has a leak.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• The appliance is not suitable for outdoor use.
• The appliance should be used and kept over a flat and stable surface.
• Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.
• WARNING: In order to prevent overheating do not cover the appliance.
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• Do not store or use the appliance outdoors.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if on/off button doesn't works

• Do not move the appliance while in use.

• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use.
  Do not store the appliance in a vertical position.
• Do not store the appliance if it is still hot.
• Keep the inside of the oven clean to avoid the carbonising of left over food, which may damage the appliance.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance to dry textiles of any kind.
• Do not use the inside of the oven for storage purposes.
• Use only utensils appropriate for ovens.
• Don't place heavy utensils or trays on the open door.
• WARNING: If the door or door seal is damaged, do not use the oven until it has been repaired by a qualified professional.
• WARNING: Do not use the appliance if the glass is cracked or broken.
• WARNING: Water condensation may appear on the surfaces and objects around this appliance.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and avoid.

Installation

• Be sure to remove all packaging material from inside the appliance.
• Do not remove the support feet of the appliance.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using this product for the first time, it is advisable to test it without food.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
• Prepare the appliance according to the function you wish to use:

Use:

• Unroll the cable completely before plugging it in.
• Insert the wire rack( H) or bake tray (G) on one of the rack support (K)
• Connect the appliance to the mains.
• Oven will be power on after 1 second buzzing.

Clock adjustment:

• The display will show the clock at 0:00.
• The left digit "0" will tinkle in the first 15 seconds; during this 15 sec, press "+" , "-" keys to adjust the clock in hours.
  -The unit is 1 hour for each press, it's 24 hours system.
• Press the key again to enter the adjustment of clock in minutes by pressing “+”, “-” keys; the unit is 1 min for each press, it’s 60 minutes system.
• After set up the clock, press the key to start the clock and the lamp of background will crush out in 20s; the oven will enter into standby mode.
• If no operation in the first 15s, then the clock will start from 0:00 at once and the symbol“:” will twinkle; each twinkle of the symbol “:”means 1s; the oven will enter into standby mode.
• During the standby mode, press any key could arouse the oven and the background lamp is on, it will automatic crush out in 20s without further operation.
  -During the standby mode, press Ⓞkey and use “+”, “-” keys to adjust the clock again.

Choose the default programs:

- Press the any symbol of below 8 programs, and

presskey to start working.

-Presskey again the oven pause and the background of the key twinkle.
-Presskey again, the program restart.
-Presskey more than 3s, the program cancel.

Choose the DIY mode:

• When the power is on, the display will show the clock at 0:00 with blue color background. 1) Press the key FUN. to select the working mode for heaters: ,the default time is 0:00 and default temperature is 40°C.
• Press ✗ the key to select the convection function, press again to cancel it. This key only work together with the ⏻key.
• Press the ⏻ key to start the adjustment for temperature, and then press “+”, “-” keys to adjust the time; the unit is 5, for each press; when keep pressing “+”, “-” keys more than 2s, enter into the mode of Fast forward mode or Rewind mode in 2 units/s speed. The adjustment range is 40\~230°C.
• Press the key to start the adjustment for time, and then press “+”, “-” keys to adjust the time; the unit is 1min for each press when below 30mins; when keep pressing “+”, “-” keys more than 2s, enter into the mode of Fast forward mode or Rewind mode in 2 units/s speed; the unit is 5min for each press when over 30mins; when keep pressing “+”, “-” keys more than 2s, enter into the mode of Fast forward mode or Rewind mode in 2 units/s speed. The adjustment range is 0\~180mins.
• After set up all the data, then press the Ⓞ key to start working.
• Presskey again the oven pause and the background of the ⏻ key twinkle.
• Presskey again, the program restart.
• Presskey more than 3s, the program cancel.

Stand by mode:

• During the standby mode, press any key could arouse the oven and the background lamp is on, it will automatic crush out in 20s without further operation.
• During the standby mode, press Ⓛ key and use "+",-"keys to adjust the clock again.
• During the standby mode, press any symbol of 8 default programs or FUN key to enter the set up of working mode.
• During the standby mode, press key or key or "+",-"keys,just arouse the background lamp of display only, without buzzer and any action

Convection Function:

This oven is equipped with an internal fan. This function, called convection cooking, allows the heat to be better distributed inside the oven.

• Convection fan will turn on automatically if the cooking function includes it.
• In DIY mode, you can press the convection button to turn on that function.
• Press that convection button again to turn it off.

Rotisserie Set:

USING THE SPIT e.g., to roast a chicken:

• Do not preheat the oven.
• Position the first butterfly bolt on the skewer and fix it in place using a screwdriver. Stick the spit through the middle of the chicken then position the second butterfly screw on the spit and fix it in place using a screwdriver.
• Place the frying pan below.
• Insert the spit by inserting the right end first then sliding it in to insert the left end.
• Start the spit turning by selecting the desired cooking mode and cooking time.
• Set the thermostat to the desired temperature (recommended temperature for a roast chicken: 210^ C). If the appliance gives off excessive smoke during cooking, lower the temperature.
• When cooking is finished, turn the appliance off.
• Remove the spit using the special handle, taking the necessary precautions to avoid possible burns: position the handle in the grooves. Gently lift the spit, sliding it to the right to release it and then take the skewer out completely

RECOMMENDATIONS TO OBTAIN OPTIMUM RESULTS FROM THE OVEN.

• Do not overload the oven.
• Place food in the middle of the appliance insofar as this is possible.
• In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes.
• Open the door as little as possible during cooking to avoid loss of heat.

- Supervise cooking when trying new recipes.

Once you have finished using the appliance:

• Unplug the appliance to the mains.
• Clean the appliance

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Do not immerse the appliance in water or any other liquid, or place it under a running tap.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.
• None of the parts of this appliance are suitable for cleaning in the dishwasher.

Anomalies and repair

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

To determine the compliance with the requirements of ecological design and to calculate the energy labelling parameters, the European Regulation EN 60350-2 is taken as reference.

-This symbol indicates that the surface

may heat up during use.

This appliance complies with Directive 2014/95/EU on Low Voltage, Directive 2014/108/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
