HB75 - Heated blanket/cushion INVENTUM - Free user manual and instructions

Technical Specifications	Dimensions: 75 x 30 cm, Material: polyester, Power: 100 W, Adjustable temperature: 3 levels
Usage	Ideal for relieving muscle and joint pain, to be used on the bed or sofa.
Maintenance and Repair	Machine washable at 30°C, do not use fabric softener, regularly check the condition of the cable and plug.
Safety	Equipped with an automatic shut-off system after 90 minutes of use, compliant with CE safety standards.
General Information	2-year warranty, available in several colors, lightweight and easy to carry.

Frequently Asked Questions - HB75 INVENTUM

How do I turn on the INVENTUM HB75 heating pad?

To turn on the heating pad, plug it into an electrical outlet and press the power button located on the control panel.

How do I adjust the temperature of the pad?

Use the temperature adjustment button on the control panel to select the desired heat. The available levels are usually low, medium, and high.

Is the heating pad washable?

Yes, the pad can be washed, but it is important to disconnect the power cord and follow the washing instructions provided in the user manual.

What should I do if the pad does not heat?

Check that the pad is properly plugged in and that the power supply is working. Also, make sure the power button is in the "ON" position. If the problem persists, contact customer service.

Can the heating pad be used overnight?

It is recommended not to use the heating pad overnight to avoid any risk of overheating. Use the timer if your model is equipped with one.

Are there any precautions to take when using it?

Yes, avoid folding or bending the pad during use. Do not use it if the cover is damaged. Consult the manual for more precautions.

How long does it take for the pad to heat up?

The heating time may vary depending on the temperature setting, but it is generally quick, reaching the desired temperature within a few minutes.

How should I store the heating pad when not in use?

Unplug the pad and store it flat or rolled up in a dry, cool place, away from any heat source.

Is the pad safe for elderly people?

The pad can be used by elderly people, but it is advisable to supervise them during use to avoid any risk of burns.

How do I contact customer service if there is a problem?

You can contact customer service via the manufacturers website, by phone, or by email. Contact details are usually provided in the user manual.

USER MANUAL HB75 INVENTUM

Folded fabric with beige bandage, no visible text or symbols

explanation of symbols page 10
1. safety instructions page 11
2. appliance description page 13
3. intended use page 13
4. operation page13
5. cleaning & maintenance page 14
6. storage page 15
7.disposal page15
8. problems & solutions page 15
9. technical data page 15
general terms and conditions of service and warranty page 29

Deutsch

Diagram of a medical device with numbered parts and labeled parts, including a magnified inset showing internal components.

Technical line drawing of mechanical components including a cylindrical bearing and a threaded connector (no text or symbols)

4.3 Inschakelen

	Read the instruc-tions!		Machine-washable on an extra-delicate cycle at 30°C.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chem-ically.
			The textiles used for this device meet stringent human ecological requirements of Oeko -Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Non-observance of the following instructions may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heated overblanket must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heated overblanket may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This heated overblanket may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the heated overblanket safely.
• This heated overblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the heated overblanket.
• Cleaning and user maintenance shall not be made by children without supervision.
• This heated overblanket is not intended for use in hospitals.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.
• Before using on an adjustable bed, check that the heated overblanket and the cables are not, for example, trapped in a hinge or bunched up.
• This heated overblanket may only be used in conjunction with the

controller specified on the label.

• The electrical and magnetic fields emitted by this heated overblanket may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heated overblanket.
• Do not pull, twist or make sharp bends in the cables.
• This heated overblanket must be examined frequently for signs of wear or damage. If there are such signs, if the heated overblanket has been mis-used or does not work, return it to the supplier before switching it on again.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• While this heated overblanket is switched on

- never place any objects on it (e.g. suitcase or washing basket)

- never place any heat source on it (e.g. hot water bottle, heating pad or similar).

• When in use, the electronic components in the controll of the heated overblanket make the controll slightly warm. The controll should therefore never be covered or placed on the heated overblanket when it is in operation.
• If you should have any questions about using our devices, please contact Customer Services.
  • Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

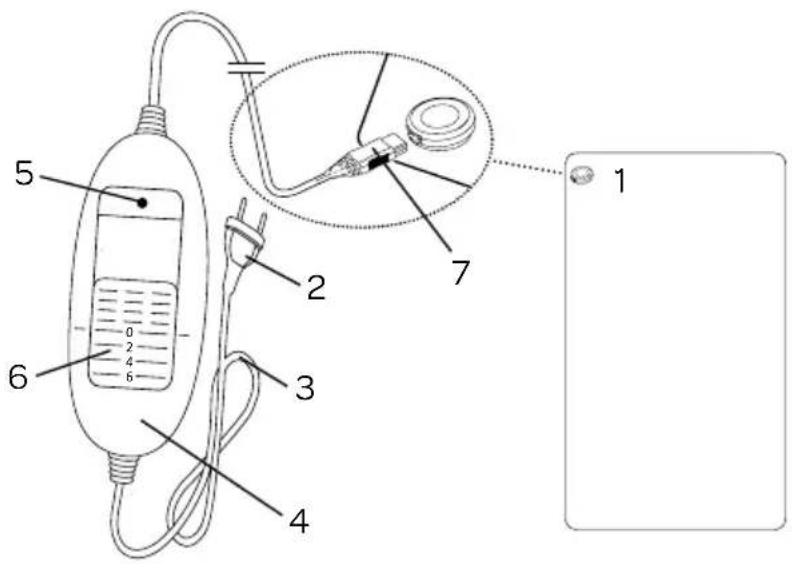

2 appliance description

1. Heated overblanket
2. Mains plug
3. Mains cable
4. Controller
5. Indicator light
6. Sliding switch for ON/OFF and temperature settings
7. Plug-in coupling

Diagram of a medical device with numbered parts and labeled parts, including a magnified inset showing internal components.

3 intended use

CAUTION

This heated overblanket is only designed to warm up the human body.

4 operation

4.1 Safety

CAUTION

This heated overblanket is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the heated overblanket from overheating by automatically switching off in the event of a fault. If the safety system switches off the heated overblanket automatically as a result of a fault, the settings are no longer illuminated even when the heated overblanket is switched on.

Please note that, after a fault has occurred, the heated overblanket can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

• First, connect the controller to the heated overblanket by inserting the plug-in coupling.
• Then plug in the supply plug into the mains outlet.

4.3 Switching on

Technical line drawing of a mechanical component with a threaded connector and a circular housing (no text or symbols)

To switch on the heated overblanket, set the slider for ON/OFF and temperature settings to setting 1, 2, 3, 4, 5 or 6. The temperature setting is illuminated when switched on [5].

4.4 Setting the temperature

Setting 0: OFF

Setting1: minimum heat

Setting 2-5: individual heat setting

Setting 6: maximum heat

WARNING

If the heated overblanket is used continuously (for several hours) it is recommended to use the lowest setting (1) of the control to avoid overheating the person using the blanket.

NOTE

- The quickest way to heat up the heated overblanket is to select the highest temperature setting of the controller, first.

4.5 Switching off

To switch off the heated overblanket, set the slider for ON/OFF and temperature settings to the OFF (0) position. The temperature settings are then no longer illuminated.

NOTE

If the heated overblanket is not being used for several days, slide the sliding switch for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket.

Then disconnect the controller from the heated overblanket by unplugging the plug-in coupling.

4.6 Automatic Switch off

This heated overblanket switches off automatically after 3 hours. Once the heated overblanket has switched off, it is no longer heated and the indicator lamp flashes.

To switch on the heated overblanket again, first set the sliding switch for ON/OFF and temperature settings to the OFF (0) position for 5 seconds. After about 5 seconds it is possible to switch it on again.

5 cleaning & maintenance

WARNING

Always remove the supply plug from the mains outlet and remove the controller from the heated overblanket by disconnecting it at the connector.

CAUTION

- The controller must never get in contact to water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

Small marks on the heated overblanket can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

- Note that the electric blanket must not be dry-cleaned, wrung out, machine dried, pressed or ironed.

In case of heavier soiling, this electric blanket can be washed in a washing machine. Set the washing machine to a particularly gentle, 30°C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION

- Please note that frequent washing of the heated overblanket has a negative effect on the product.

The heated overblanket should therefore be washed in a washing machine a maximum of 5 times during its life.

Immediately after washing, reshape the heated overblanket to its original dimensions while it is still wet and spread it out flat over a clothes horse to dry.

CAUTION

• Do not attach the heated overblanket to washing lines with washing pegs or similar. Otherwise the heated overblanket may be damaged.
• Only reconnect the controller to the heated overblanket after the connector and the heated overblanket are completely dry. Otherwise the heated overblanket may be damaged.
• Under no circumstances switch on the heated overblanket to dry it. Otherwise, there is a risk of an electric shock.

6 storage

If you do not plan to use the heated overblanket for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the heated overblanket by unplugging the plug-in coupling.

CAUTION

Allow the heated overblanket to cool down before folding.

Otherwise the heated overblanket may be damaged.

Do not crease the heated overblanket by placing items on top of it during storage.

7 disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8 problems & solutions

Problem Cause Remedy
The temperature settings are not illuminated while- the controller is fully connected to the heated overblanket;- the supply plug is connected to the mains outlet with correct function;- the setting is 1, 2, 3, 4, 5 or 6.	The safety system switched off the heated overblanket irreversible.	Send the heated overblanket together with the controller to the service department.

9 technical data

See the type plate label on the heated overblanket.

Diagram of a medical device with numbered parts and labeled parts, including a magnified inset showing internal components.

Technical line drawing of a mechanical component with a cylindrical housing and a threaded connector (no text or symbols)

4.3 Einschalten

Diagram of a medical device with numbered parts and labeled parts, including a magnified inset showing internal components.

Technical line drawing of mechanical components including a cylindrical bearing and a threaded connector (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
