USER MANUAL IAN 288627 AURIOL

WRIST WATCH JEWELRY SET

WRIST WATCH JEWELRY SET

Operation and Safety Notes

WRIST WATCH JEWELRY SET

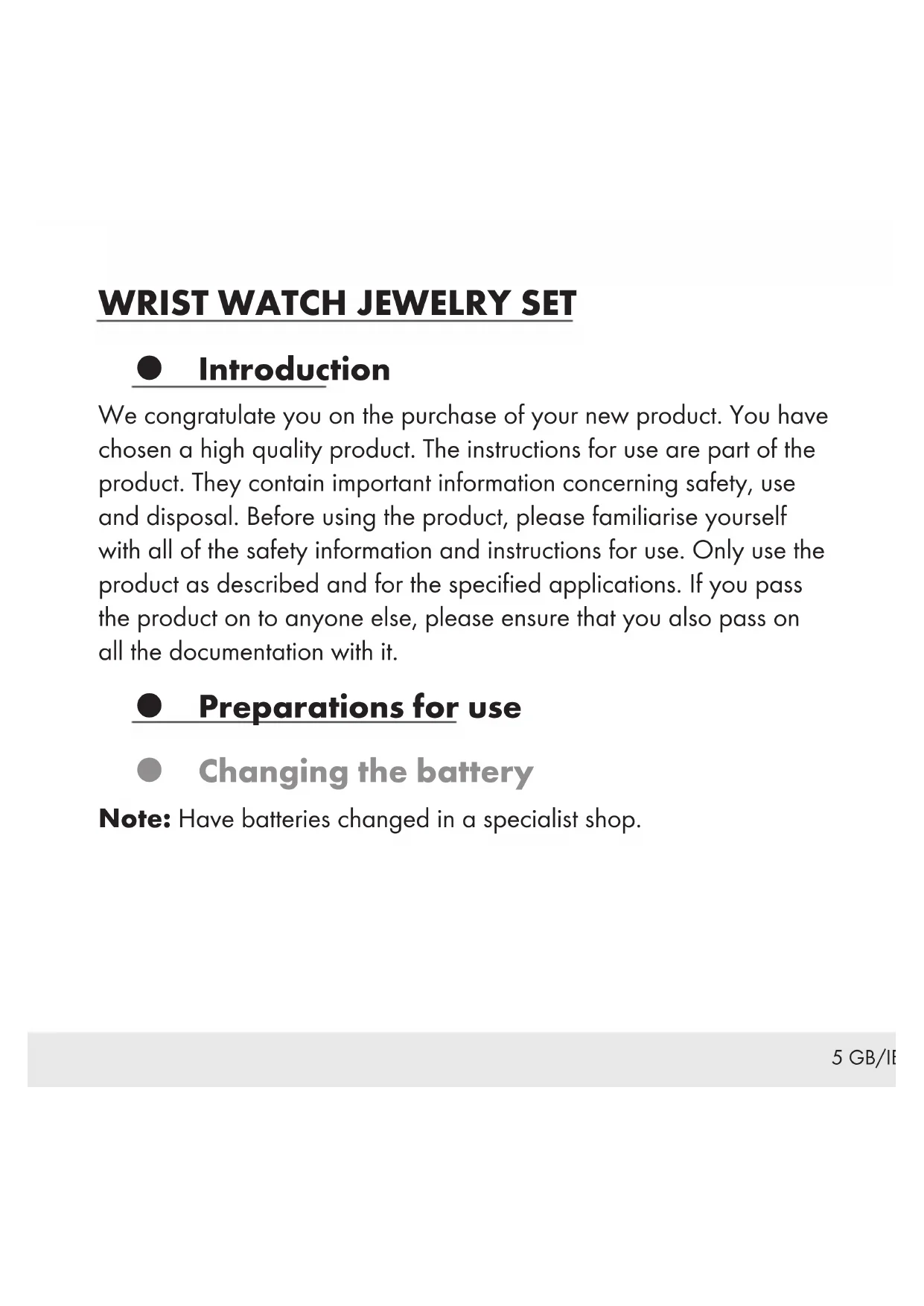

Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Preparations for use Changing the battery Note: Have batteries changed in a specialist shop.6 GB/IE/NI Display

Bottom cover Setting the time

1. To set the time, pull the crown

out to the 1st position

to set the hour and minute hands

is pushed back to the normal position the second hand

begins to run. Watertightness This watch is watertight to 5 bar in accordance with DIN 8310. Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature.7 GB/IE/NI It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use. Shortening the watch strap Model No. HG02743B / HG02743C

Note: The watch strap can be shortened by removing segments

(2 spare units are included). To this purpose you should use the repair set

supplied. Removing Segments (Fig. C) Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set

Use a pair of tweezers if necessary in order to remove the pins. Place the watch with the dial facing downwards in the repair set

Remove the pins of the segment that you wish to remove (as described above) and take out the segment

.8 GB/IE/NI Note: If you would like to take out more than one consecutive segment

, it is sufficient to remove the two outer pins. Connect the watch strap together again by joining the loose segments

with a pin. Press this pin against the direction of the arrow into the adjacent segments

How to exchange the pin inside the slider (Fig. D, E, F) Take out the slider

, open the bottom cover

inside. You will need pliers to carefully remove the old pin from the slider. Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed. Cleaning and maintenance Clean the product on the outside only with a soft, dry cloth. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.9 GB/IE/NI Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.10 GB/IE/NI Environmental damage through incorrect disposal of the batteries / rechargeable batteries! Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.11 GB/IE/NI The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts. The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.12 DK
