USER MANUAL BTCHT002 Batavia

1. Front Impact Guard
   2.Cutting Blade
2. Hand Guard
3. Safety Bar Switch
4. Front Grip
5. On/off Switch
6. Peer Handle
7. Battery PolCase
8. Battery (not included)
9. Charge Indicator

OVERZICH

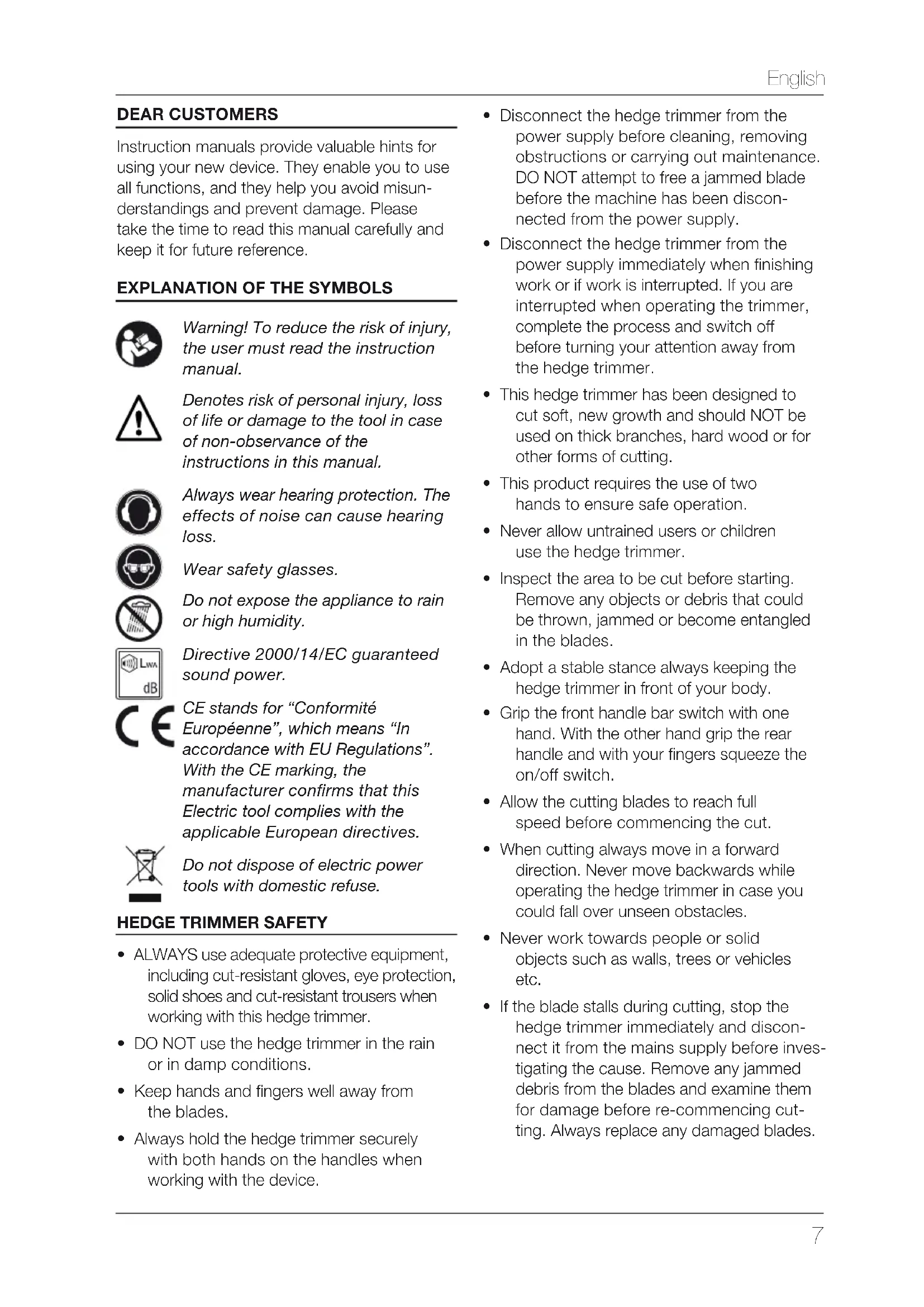

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

EXPLANATION OF THE SYMBOLS

Warning! To reduce the risk of injury, the user must read the instruction manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Always wear hearing protection. The effects of noise can cause hearing loss.

Wear safety glasses.

Do not expose the appliance to rain or high humidity.

Directive 2000/14/EC guaranteed sound power.

CE stands for "Conformité Européenne", which means "In accordance with EU Regulations". With the CE marking, the manufacturer confirms that this Electric tool complies with the applicable European directives.

Do not dispose of electric power tools with domestic refuse.

HEDGE TRIMMER SAFETY

• ALWAYS use adequate protective equipment, including cut-resistant gloves, eye protection, solid shoes and cut-resistant trousers when working with this hedge trimmer.
  DO NOT use the hedge trimmer in the rain or in damp conditions.
• Keep hands and fingers well away from the blades.

• Always hold the hedge trimmer securely with both hands on the handles when working with the device.

• Disconnect the hedge trimmer from the power supply before cleaning, removing obstructions or carrying out maintenance. DO NOT attempt to free a jammed blade before the machine has been disconnected from the power supply.

• Disconnect the hedge trimmer from the power supply immediately when finishing work or if work is interrupted. If you are interrupted when operating the trimmer, complete the process and switch off before turning your attention away from the hedge trimmer.
• This hedge trimmer has been designed to cut soft, new growth and should NOT be used on thick branches, hard wood or for other forms of cutting.
• This product requires the use of two hands to ensure safe operation.
• Never allow untrained users or children use the hedge trimmer.
• Inspect the area to be cut before starting. Remove any objects or debris that could be thrown, jammed or become entangled in the blades.
• Adopt a stable stance always keeping the hedge trimmer in front of your body.
• Grip the front handle bar switch with one hand. With the other hand grip the rear handle and with your fingers squeeze the on/off switch.
• Allow the cutting blades to reach full speed before commencing the cut.
• When cutting always move in a forward direction. Never move backwards while operating the hedge trimmer in case you could fall over unseen obstacles.
• Never work towards people or solid objects such as walls, trees or vehicles etc.
• If the blade stalls during cutting, stop the hedge trimmer immediately and disconnect it from the mains supply before investigating the cause. Remove any jammed debris from the blades and examine them for damage before re-commencing cutting. Always replace any damaged blades.

English

BEFORE FIRST USE

Remove the machine and the accessories from the packaging. Check the machine for transport damage and do not use the machine in case of damages. Keep the packing materials away from children, risk of suffocation!

INTENDED USE

Battery-powered, portable, light-duty garden tool for cutting and trimming soft, new growth of hedges, bushes and shrubs. The device is unsuitable for cutting thicker branches, hard wood or other materials.

WARNING: If this device is used for any other purpose, there may be a risk of damage to the hedge trimmer or serious injury to the user.

UNPACKING YOUR TOOL

Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions.
- Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool.

OPERATION

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

WARNING: If it is used for any other purpose not expressly permitted by these operating instructions, there may be a risk of damage to the hedge trimmer or serious injury to the user.

WARNING: DO NOT use the hedge trimmer in the rain or store the hedge trimmer in wet conditions.

WARNING: Do not let the blade come into contact with fencing wire or any other object that could damage it.

Switching on and off

Note: This hedge trimmer is fitted with a two-hand safety switch.

1. To switch the hedge trimmer on, press the Safety Bar Switch (4) on the front grip (5) with one hand and the on/off Switch (6) with the other hand.

2. To stop the hedge trimmer, move the hedge trimmer away from the cutting area and release either one or both of the switches.

Cutting

WARNING: If the blade stails during cutting, stop the hedge trimmer immediately and disconnect it from the power supply, before investigating the cause. Then remove any jammed debris from the blades and examine the blades for any damage before recommending cutting.

1. Assume a secure position, using two hands to hold the trimmer, and switch on (see 'Switching on and off').

2. ALWAYS allow the blade to reach full speed before commencing the cut.

3. Always move in a forward direction.

WARNING: DO NOT move backwards, as you may fall over unseen obstacles. DO NOT cut towards solid objects such as walls, trees or vehicles.
4. Trim both sides of the hedge, starting at the bottom.
5. Pass the blade lightly through the surface of the hedge. Do not attempt to cut too deep.
6. Trim the top of the hedge last.

Note: For older hedges that require cutting back substantially, use pruning shears or a suitable saw to cut the thicker branches, and then finish the job with the hedge trimmer.

Shaping

• Trim a hedge so that it is wider at the bottom than the top. This improves light penetration and promotes healthy growth.
• Narrow the hedge approximately 100mm for every metre in height.

Pruning

• For optimum trimming performance, guide the blade teeth at an angle of approx. 15^ to the hedge.
  To achieve a hedge with a uniform height, it is recommended that you stretch a piece of string along the edge of the hedge for guidance. Then simply cut away all twigs projecting above the line.

English

MAINTENANCE AND CLEANING

WARNING: Always disconnect from the mains power supply, before carrying out any maintenance/ cleaning of the charger. Remove the battery before carrying out any maintenance/ cleaning of the tool.

Maintenance

There are no inner parts of the tool which need maintenance.

Cleaning

• Keep safety devices, ventilation openings and the motor housing as free as possible from dirt and dust. Rub the electric power tool with a clean cloth or blow over it with low pressure compressed air.
  We recommend that you clean your electric power tool immediately after each use.
  Clean the electric power tool regularly with a damp cloth and somewhat soft soap. Do not use any cleaning or solvent materials; these can attack the device's plastic components. Make sure that no water can get inside the electric power tool.
  The cutters should be cleaned and lubricated at regular intervals in order to ensure best performance at all times. Remove deposits with a brush and apply a thin film of oil.

TECHNICAL DATA

No Load Speed.	2200 min-1
Cutter roll length.	450 mm
Total blade length.	510 mm
Max. cutting capacity.	a14.5 mm
Weight	21 kg
Sound Pressure Level Lpa	75.19 dB(A)
Uncertainty Kwa	3 dB
Sound Power Level Lwa	86, 19 dB(A)
Uncertainty Kwa	3 dB
Hand Arm Vibration.	0.933 m/s2
Uncertainty K	15 ms2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DISPOSAL

Do not dispose of electric power tools with domestic refuse.

The electric power tool is shipped in packaging to reduce transport damage. This packaging is a raw material and as such can either be reused or can be fed back into the raw material cycle. The electric power tool and its accessories are made from various materials such as metals and plastics. Take defective components to a special refuse collection point. Ask about these at your specialist shop or local council. The product and the user manual may be subject to changes. Technical data may be changed without prior notice.

Batteries

Think of the environment when disposing of batteries. Contact your local authorities to find out where your nearest disposal area is. Do not dispose of batteries with domestic refuse.

Do not dispose of by burning, risk of explosion.

EC-DECLARATION OF CONFORMITY

We, the Batavia GmbH, Weth. Buitenhuisstraat 2a, NL-7951 SM Staphorst, declare by our own responsibility that the product Cordless hedge trimmer, Model BT-CHT002, Item-No 7062516 is according to the basic requirements, which are defined in the European Directives Electromagnetic Compatibility 2014/30/EU (EMC), 2006/42/EC (Machinery), 2011/65/EU (RoHS), 2000/14/EU and their amendments. For the evaluation of conformity, the following harmonized standards were consulted:

EN60335-1

EN62233

EN50636-2-91

EN55014-1

EN55014-2

Staphorst, 24 March 2017

Meino Seinen, QA Representative

CE-DECRACTION DE CONFORMITE

Cordless hedge trimmer

Akku Heckenschere

This product has got a 2 year warranty

Dear Client, if for any reason this product is not working, please ensure you contact our Client Service Centre. Ensure you have your original receipt of purchase. This warranty covers all defects in workmanship or materials in this Batavia product for a two year period from the date of purchase. The warranty does not cover any malfunction, or defect resulting from misuse, neglect, alteration, or repair.

Other European countries | Customer Services Monday till Friday from 8 am until 4 pm

00800 66477400
