USER MANUAL Lettino Linea

Line drawing of a metal-framed structure with vertical slats and horizontal supports (no text or symbols)

User guide

USER GUIDE IMPORTANT! KEEP FOR FUTURE USE. READ CAREFULLY

EN: Baby cot/bed

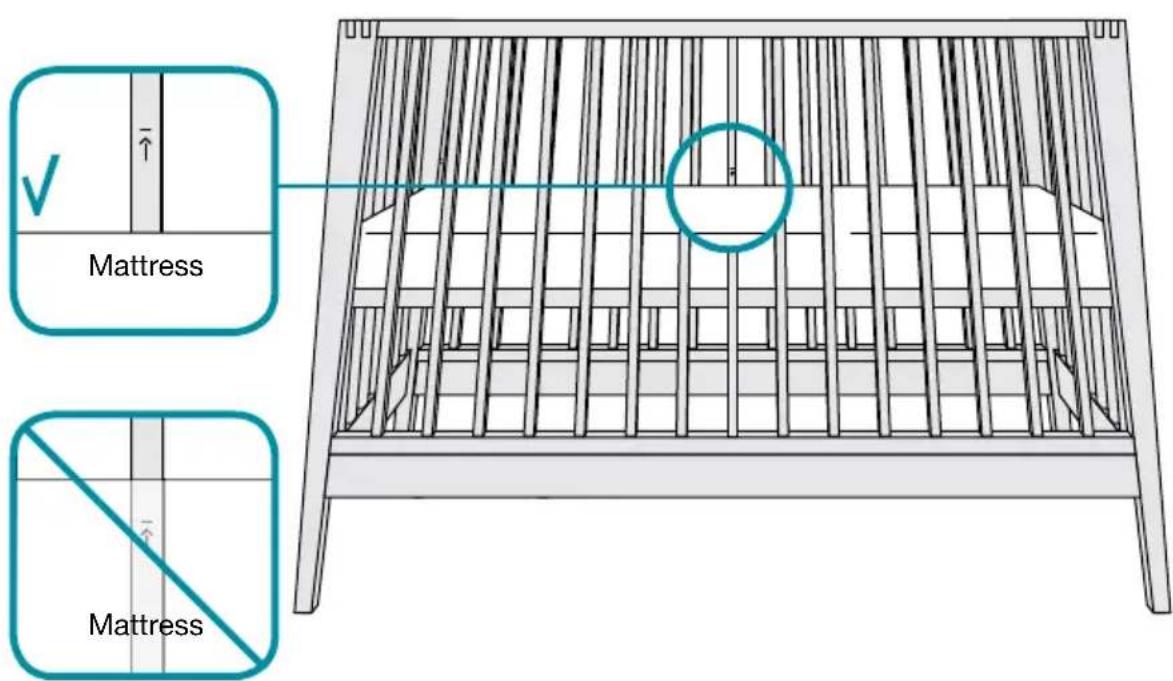

The cot/bed base can be set at two different heights. Upper position and lower position. Make sure that the distance from the mattress to the top of the bed frame is never less than 300 mm in the top position or 500 mm in the bottom position. This is marked with an “arrow” on the middle bar of one of the rail sections.

By using an original Leander® mattress, you are assured of the correct distance to top of the bed. It is always safest to place the bed base in the lower position.

As soon as your baby can sit up or stand up on his/her own, the cot/bed base must be placed in the lower position. See assembly for further instructions. (Position 2)

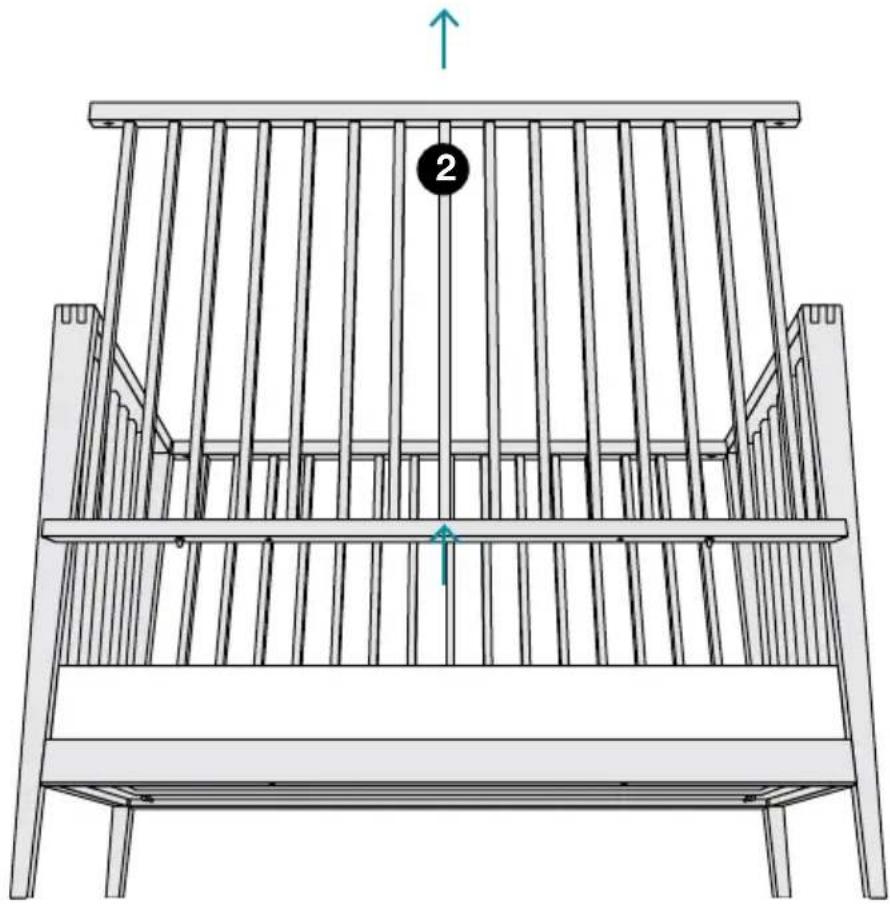

When the baby can crawl out of the cot/bed by himself/herself, one of the rail sections must be removed to avoid injuries from falling. Never use the cot/bed with both rail sections removed. See assembly for further instructions. (Day bed)

Make sure that medicines, strings, small toys, small objects such as coins, etc. are out of the baby's reach from any position in the cot/bed.

Always follow the assembly instructions in detail to ensure the safety features of the cot/bed are not compromised!

Recommended mattress size

This cot/bed has been manufactured for use with a mattress which measures 600 mm wide by 1200 mm long and maximum 105 mm in thickness. The width and length are specified because it is important that the gaps between the mattress and the sides and ends of the cot will not exceed 40 mm.

This is to minimize the risk of a child's limb becoming caught in the gap. The thickness of the mattress has been specified to ensure that the depth of the cot is greater than 500mm with the mattress base in the lower position to minimize the risk of a child climbing or falling out of the cot/bed.

Australia: See page 27 & 30 for additional warnings for the cot in the lower position.

Cleaning and maintenance

WOODWORK: Can be wiped off with a damp cloth. Surplus water must be wiped off. The colour may change when exposed to sunlight.

DAILY USE: Remove the quilt every morning allowing both bed and quilt to be aerated, cool off and dry.

Product information

Lacquer complies with the

European standard EN71-3.

DIN EN 716-1:2008 +1A: 2013

DESIGN No.:

PATENT No.:

WARNING

• Never place the child's bed by an open fire or source of strong heat such as electric heaters, gas heaters, power points etc. due to the risk of fire.
• Do not use the child's bed if any parts are damaged or missing and only use replacement parts that are approved by Leander.

• Never leave anything in the child's bed and never place the child's bed close to something the child can stand on, or which may pose a risk of suffocation or strangulation, such as ribbons, strings on blinds/curtains, etc.

• Never place more than one mattress in the child's bed.

• Always use the original Leander mattress, as it is designed to fit the bed's shape. The use of other mattresses can cause gaps between the mattress and bed in which the child can become trapped.
• To prevent falls, mattress base of this cot should be adjusted to the lowest position before the child can sit up.

• When assembling the child's bed, we do not recommend tightening the screws until the entire bed is assembled. This will make the assembly easier.

• After assembly, all fittings and screws must be checked and tightened. A poorly assembled bed and loose parts may lead to the child trapping a body part or to clothes (e.g. strings, necklaces, strings on dummies, etc.) becoming stuck and posing a risk of strangulation.

• Make sure the cot is placed on a level and stable surface.
• Remember to keep the Allen key after assembly. After 2 to 3 weeks of use, all screws should be tightened.

EN: All wooden and metal parts are covered by a 3 year guarantee. Textile parts are guaranteed for 2 years. All guarantees apply to material and construction defects only. The guarantee does not apply to defects resulting from normal wear and tear, incorrect use of the product, alterations to

the product after purchase, and the use of accessories that have not been approved and marketed by Leander. The guarantee does not apply if the product's instructions for assembly, use or maintenance have not been complied with.

Garantie

Illustration of a screw with a circular head and hex nut (no text or symbols)

Bx4

3D rendered image of a hexagonal bolt with threaded shaft (no text or symbols)

Cx8

Dx6

Ex6 Fx6

Gx10 Hx8

Ix8 Jx4 Ox4

Kx4 Lx6

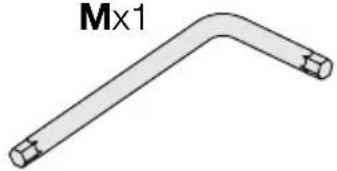

M×1

Simple L-shaped mechanical component with two end caps, labeled 'Mx1' (no other text or symbols)

Nx1

Simple line drawing of a bent pipe or support structure (no text or symbols)

Illustration of a hand holding a screwdriver with a checkmark (no text or symbols)

Icon of a handheld electric drill with a diagonal line crossing through it, enclosed in a square frame (no text or symbols)

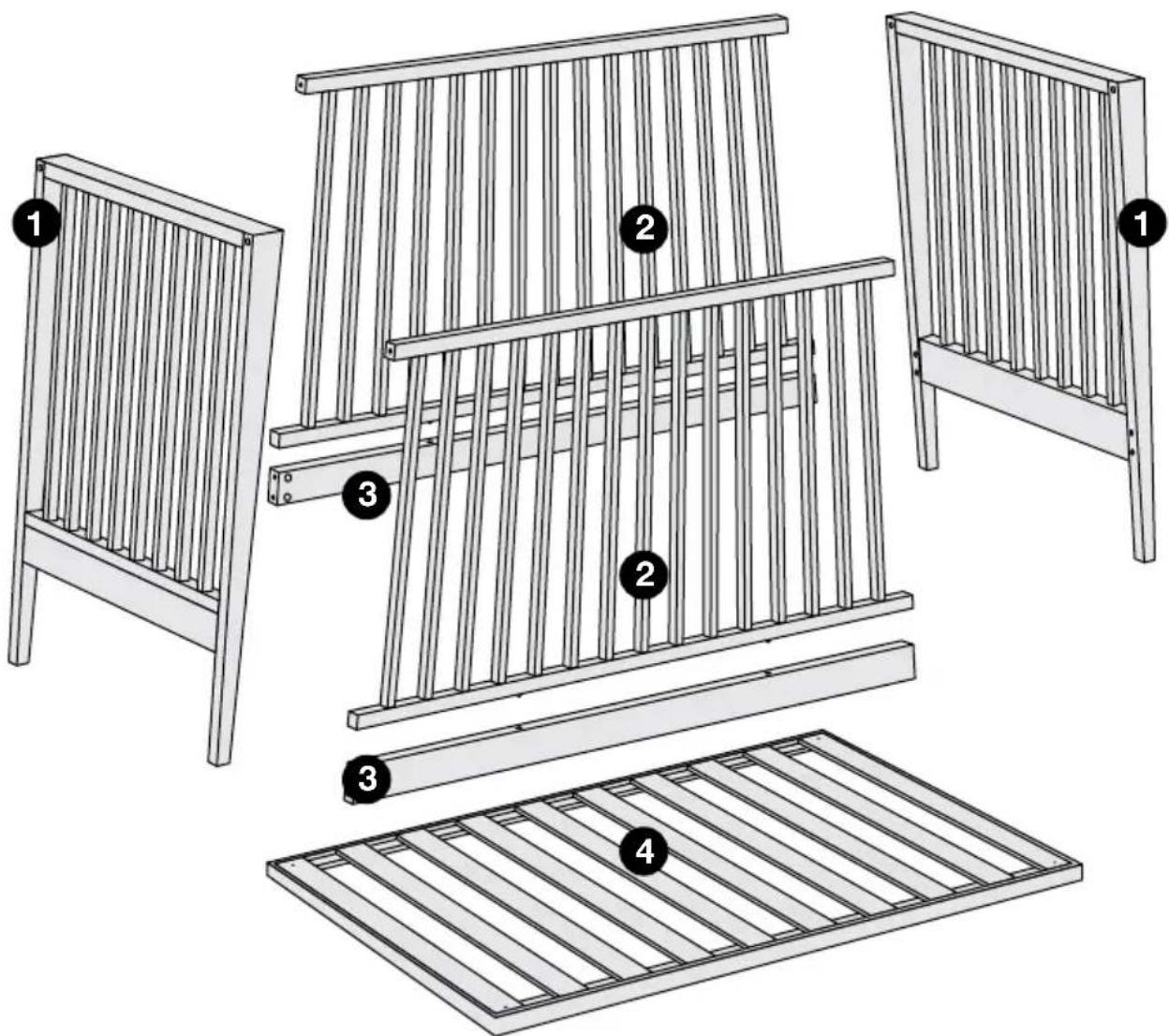

Parts list

Stückliste / Liste des pièces / Lista de piezas Lista de peças / Elenco dei componenti / Stykliste Onderdelenlijst / Список составных частей 部品リスト / 零件清单 / 부품 목록

1 2 × Bed end
2 x Rail section
3 2 x Sponde
4 1 x Bed base

Diagram of a baby crib with labeled parts including seats, ribs, and bedding

Assembly

WARNING Make sure bed base is turned with correct side up! Kx4 K K K K K

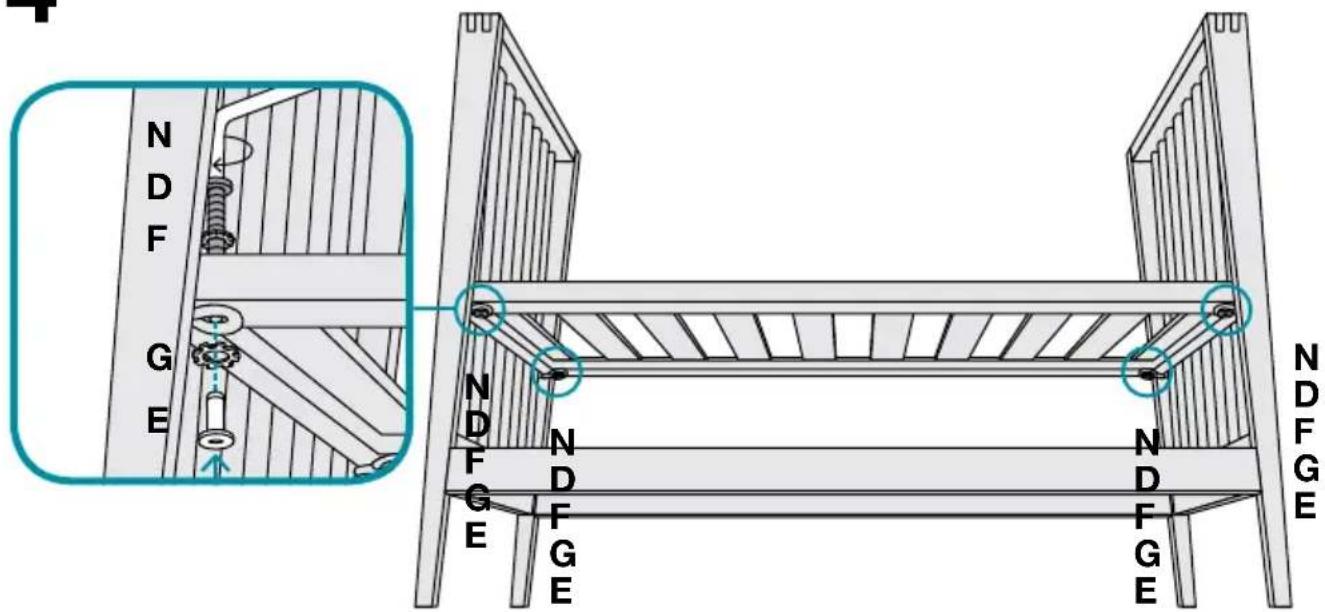

4

N D F G E N D F N D G E F G E N D F G E N D F G E

Dx4 Ex4 F

x4 Gx4

Nx1

5

Position1

2 2 Position

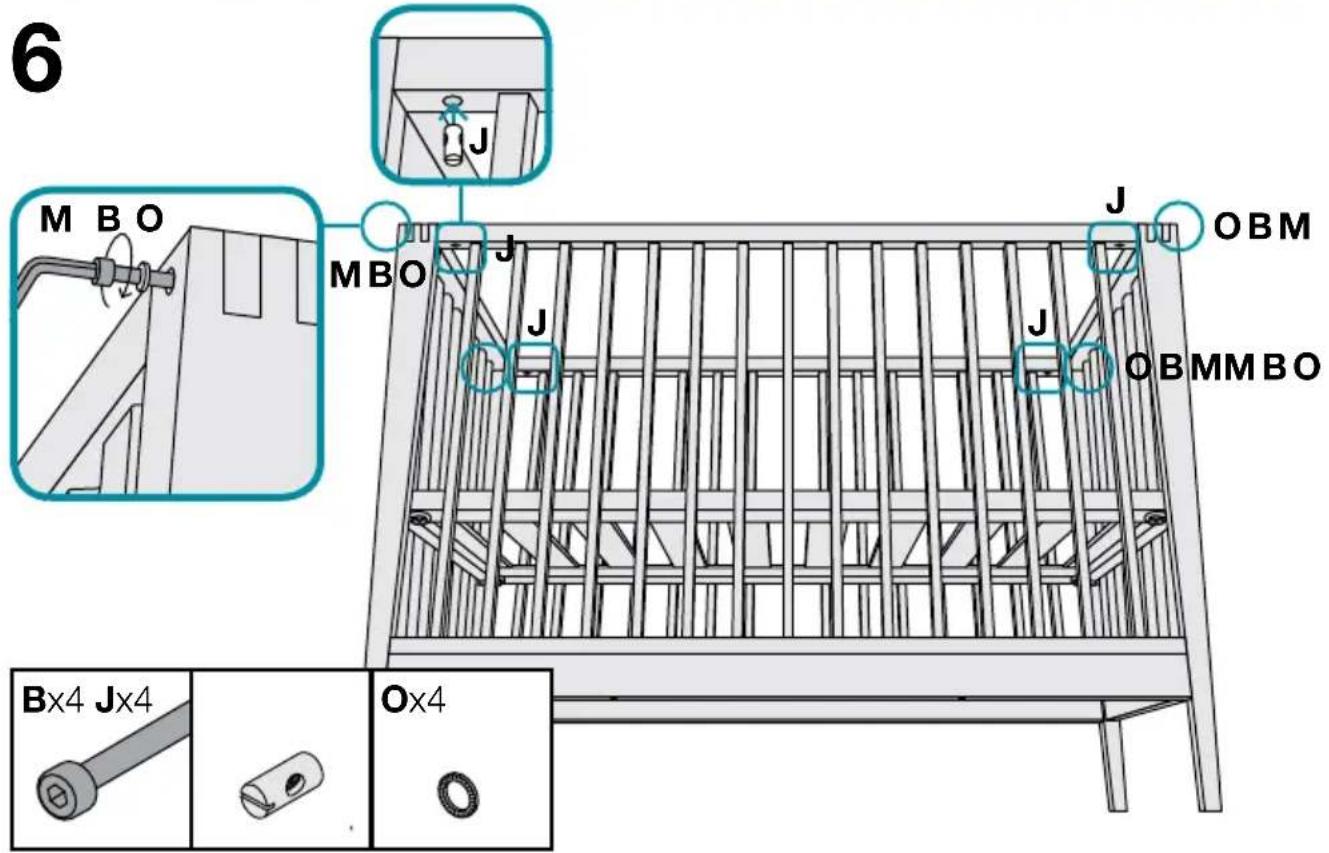

6 M BO MBO J J J OBMMBO OBMM Bx4 Jx4 Ox4

7

Position1

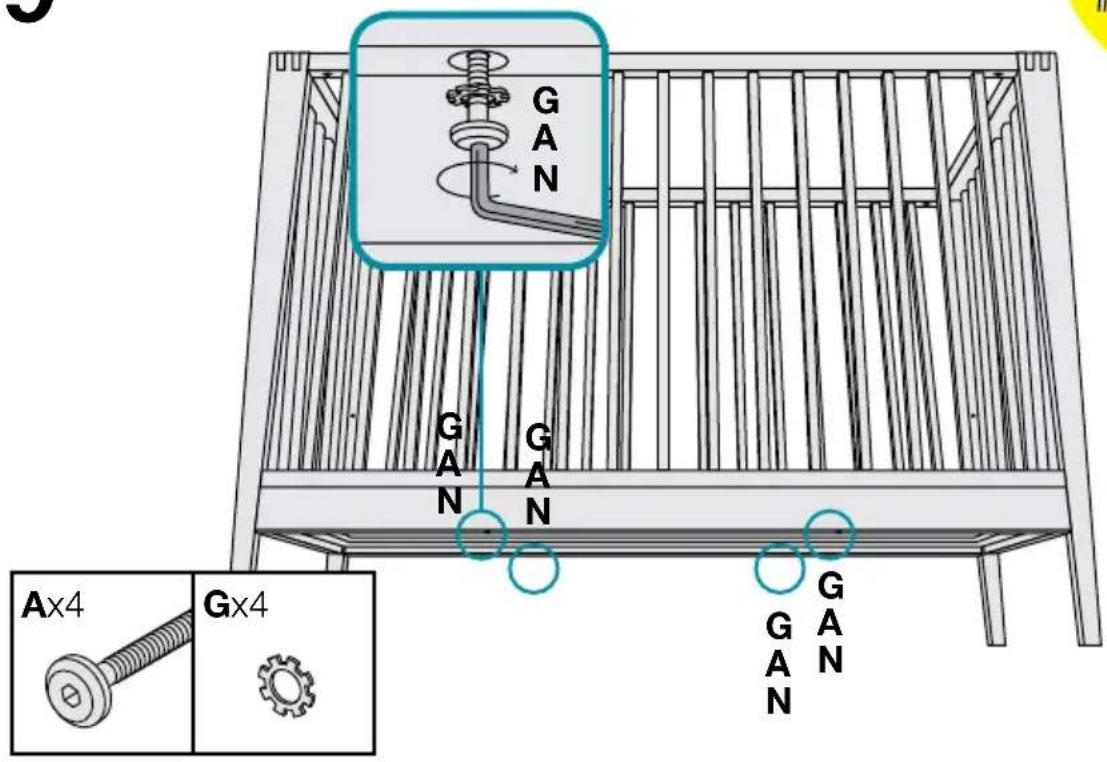

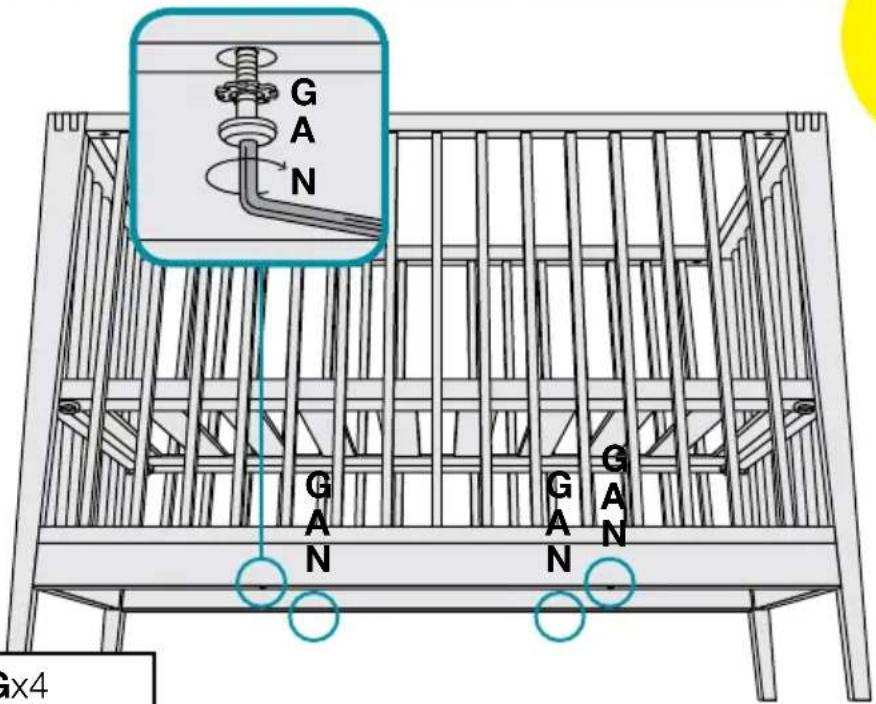

Ax4 Gx4

G A N G A N G A N G A N x4

8

Technical line drawing of a wooden fence structure with a curved roof and a downward arrow indicating force or displacement (no text or symbols)

9

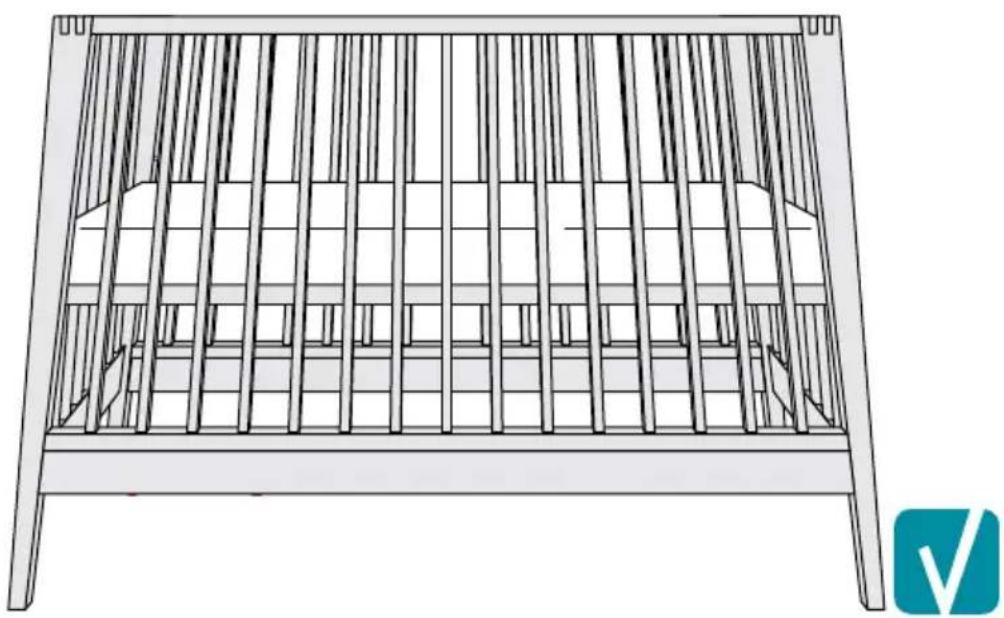

Position1

Line drawing of a simple wooden bench with vertical slats and a grid pattern (no text or symbols)

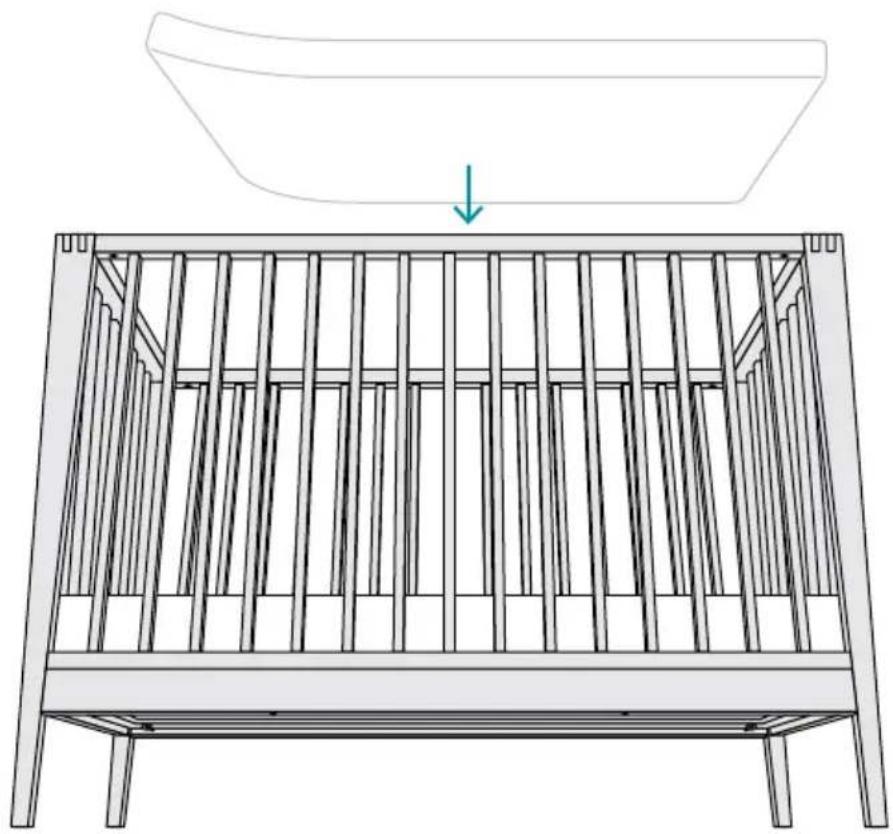

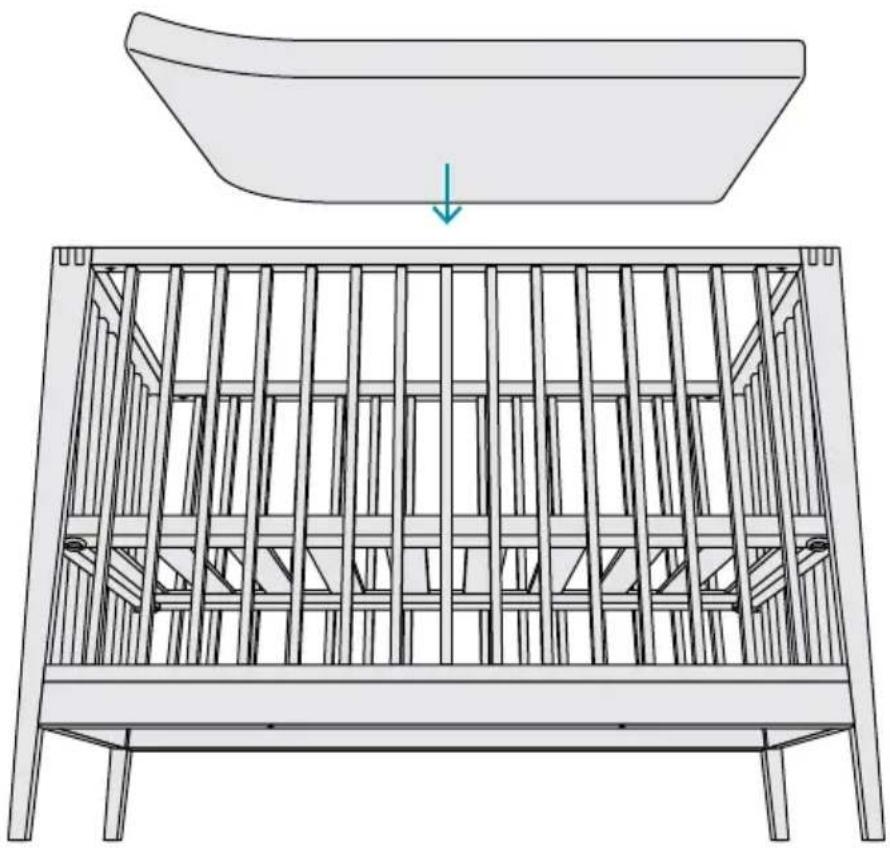

Mattress Mattress

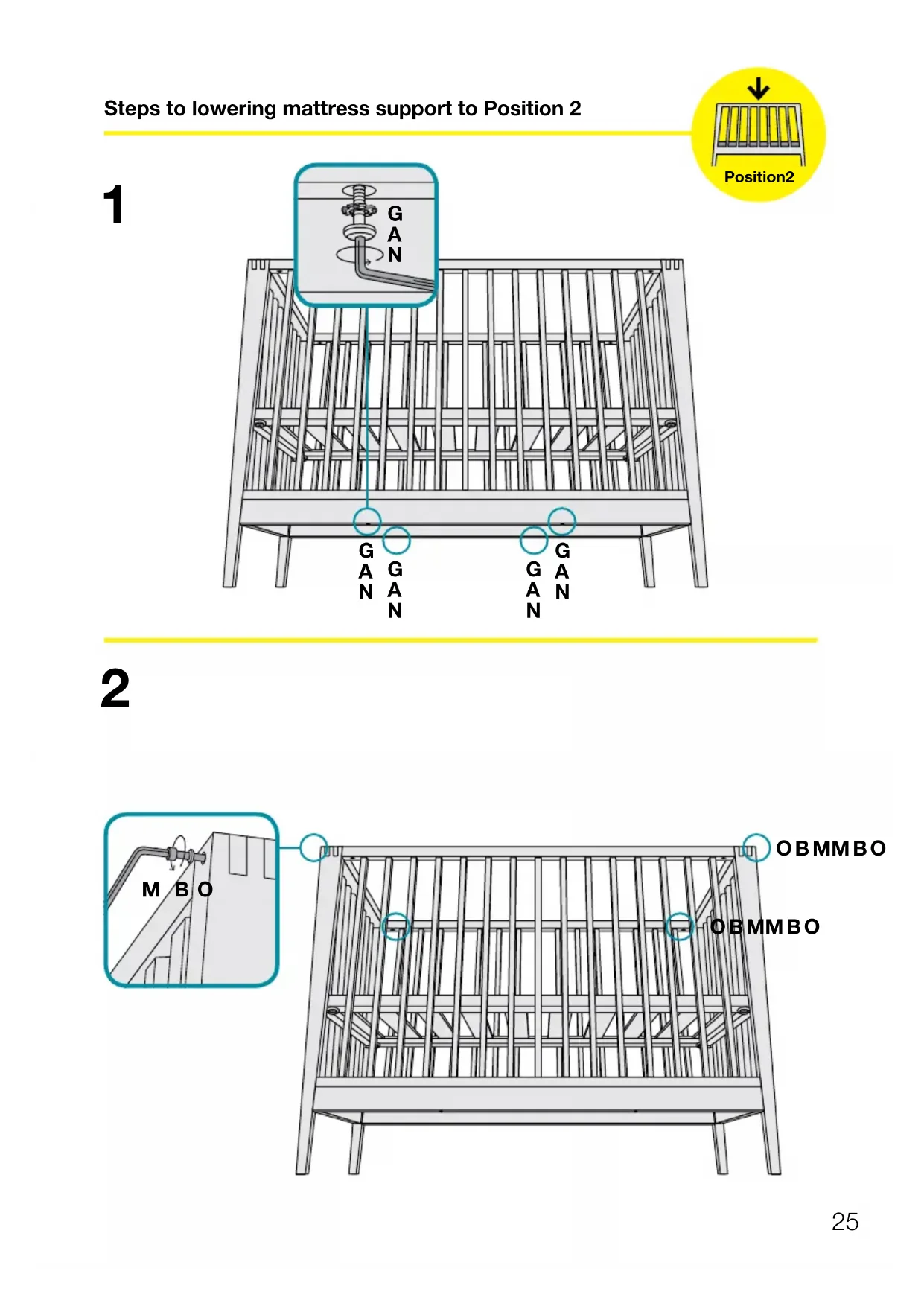

Position2

1

Technical diagram of a mechanical structure with labeled components and directional arrows

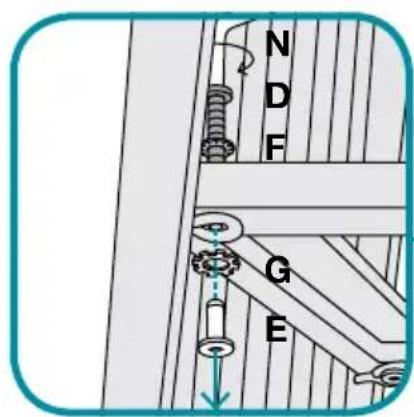

4

N D F G E

Loosen counterclockwise.

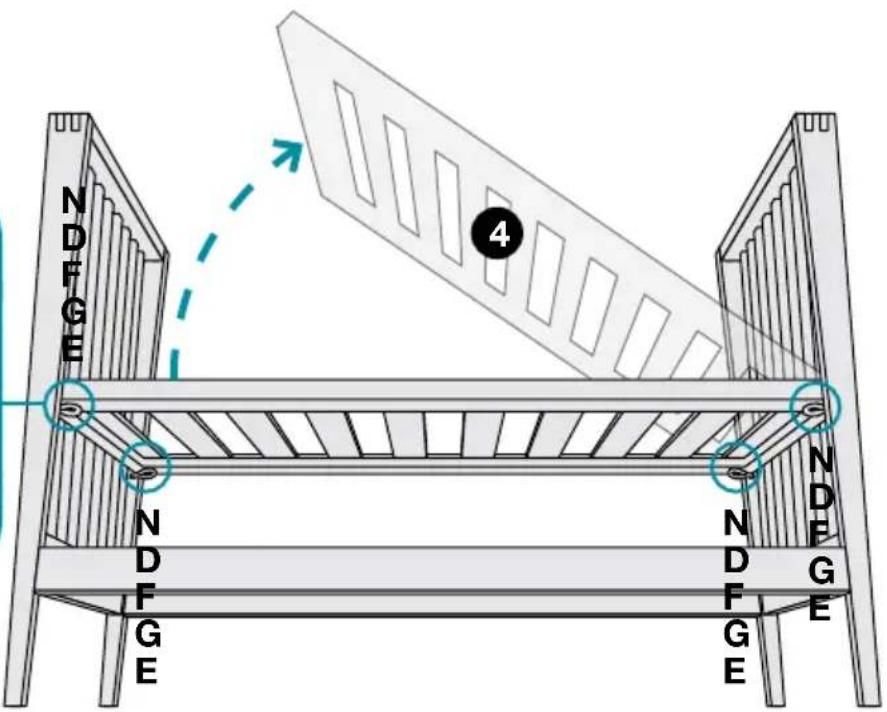

N D F G E 4 N D F G E N D F G E N D F G E

5

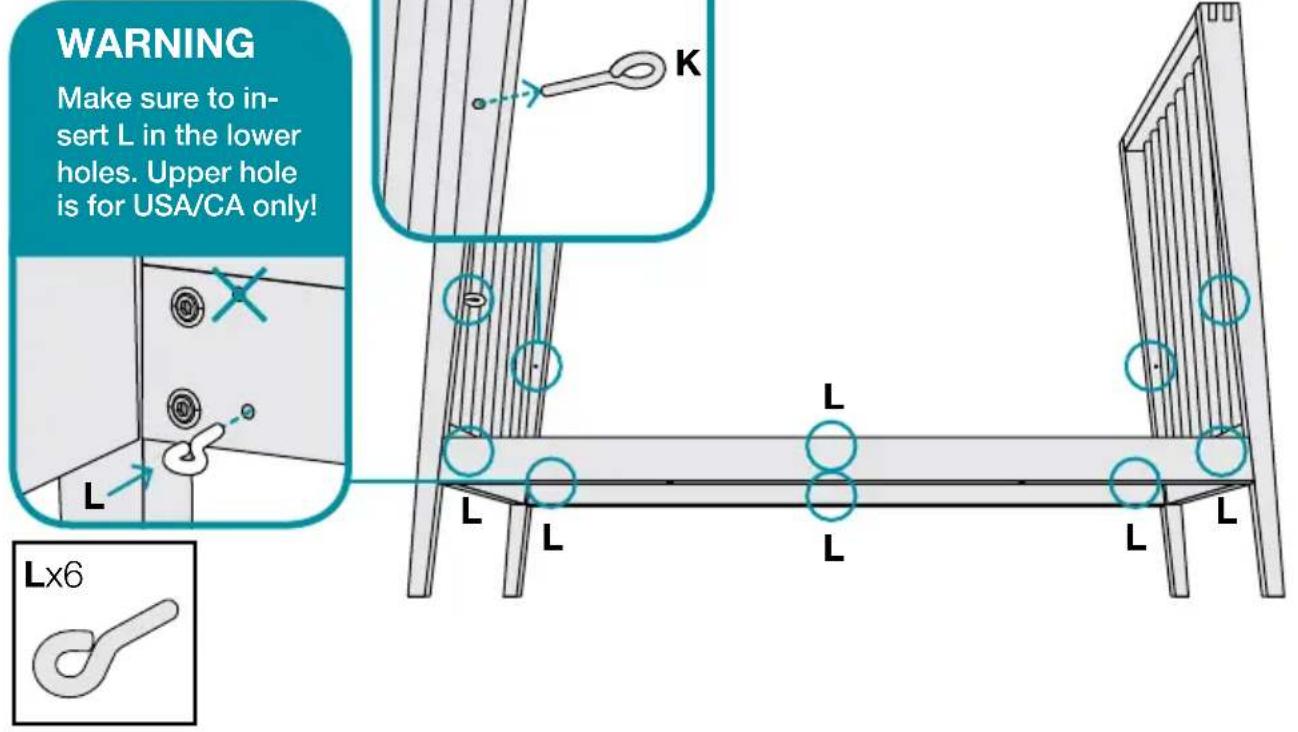

WARNING Make sure to insert L in the lower holes. Upper hole is for USA/CA only! Lx6

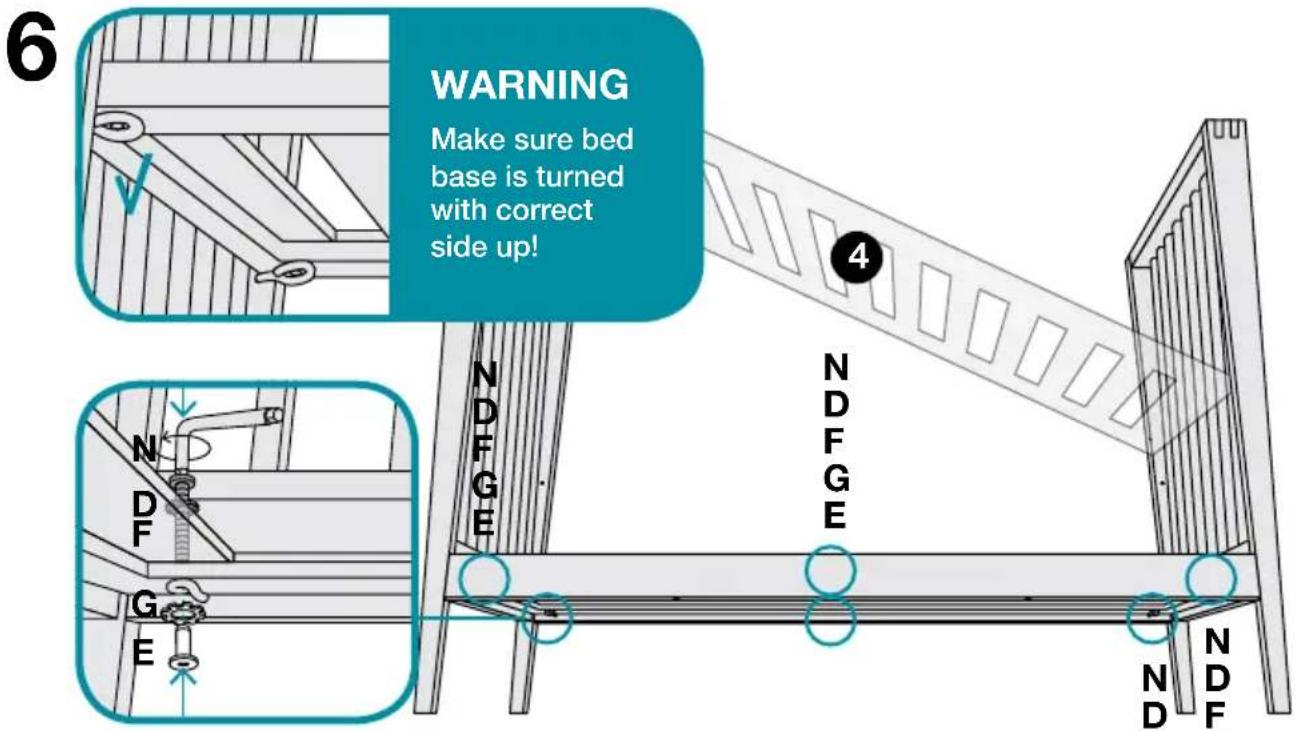

6 WARNING Make sure bed base is turned with correct side up! 4 NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFGE NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFG NDFGE

Dx6

Ex6 Fx6 G[xWH25]

x6 Nx1[wczw]

7

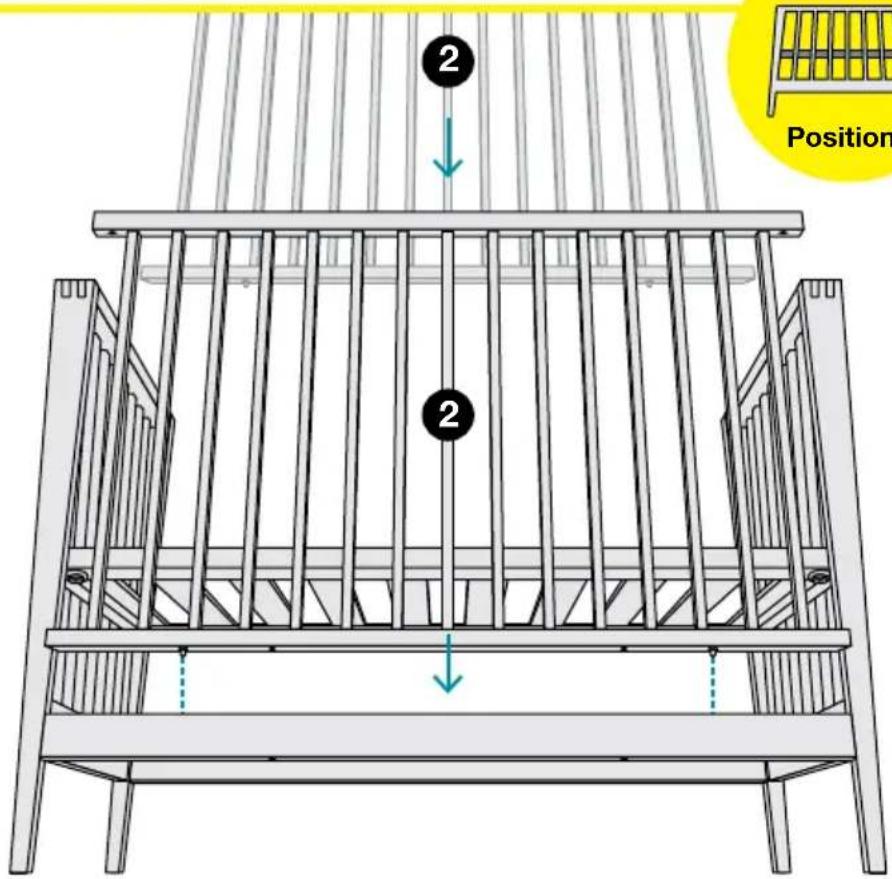

Position2

Technical diagram of a wooden structure with labeled components and directional arrows indicating assembly or force directions.

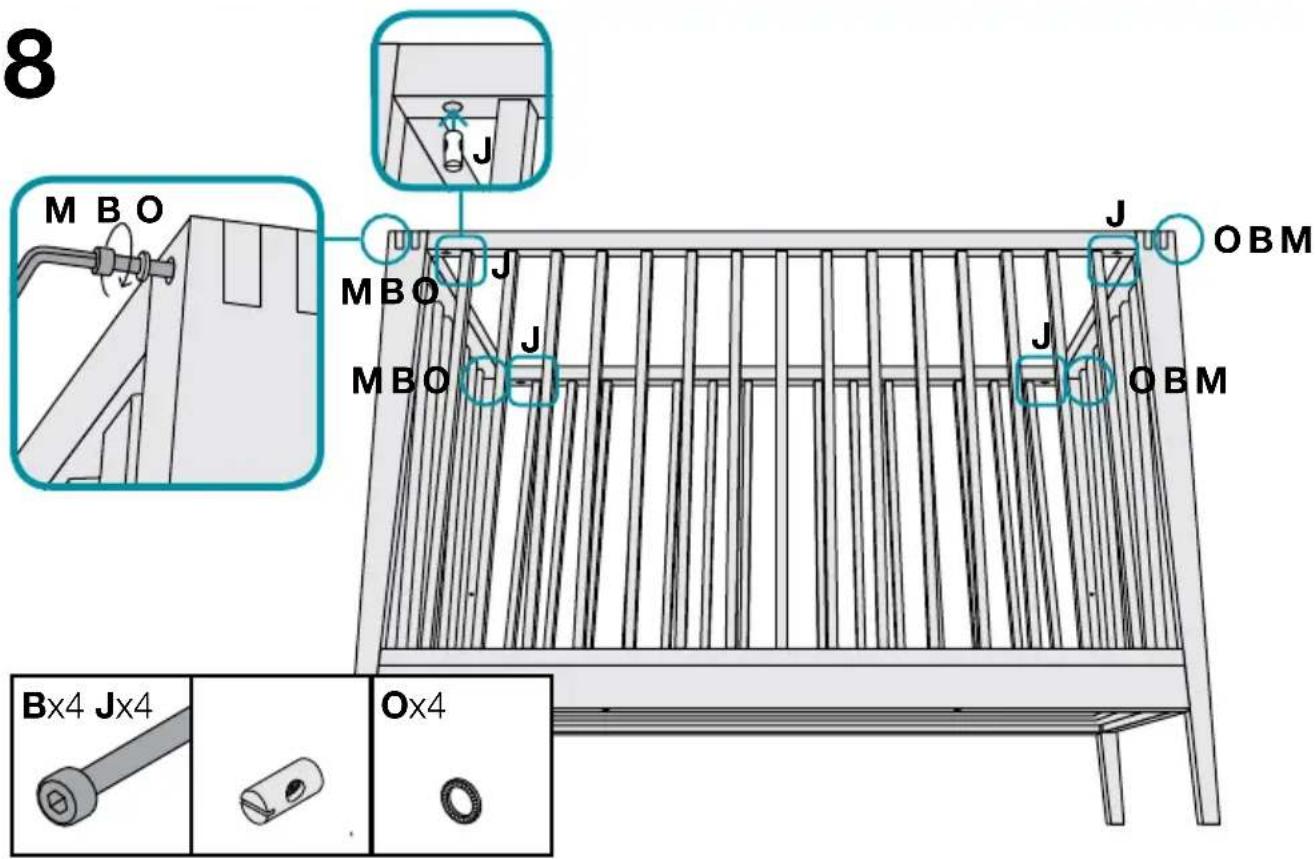

8 M B O J M B O J M B O J J O B M J O B M Bx4 Jx4 Ox4

9

Position2

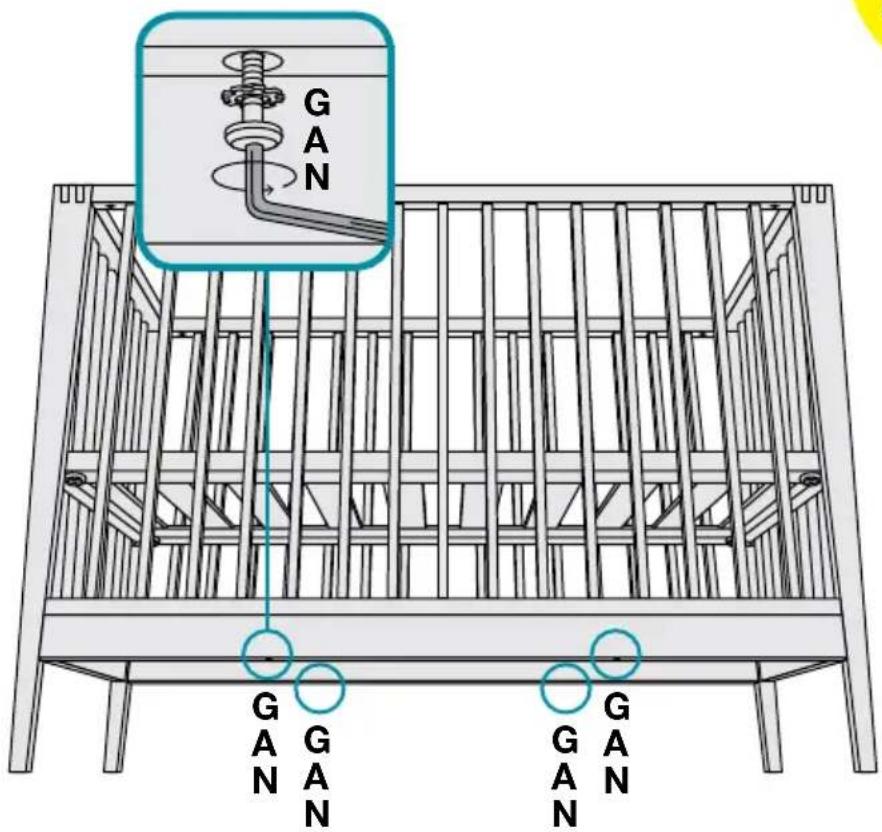

G A N G A G A N G A N Ax4 Gx4 G A N

10

Line drawing of a baby crib with vertical slats and a bowl top, showing structural details (no text or symbols)

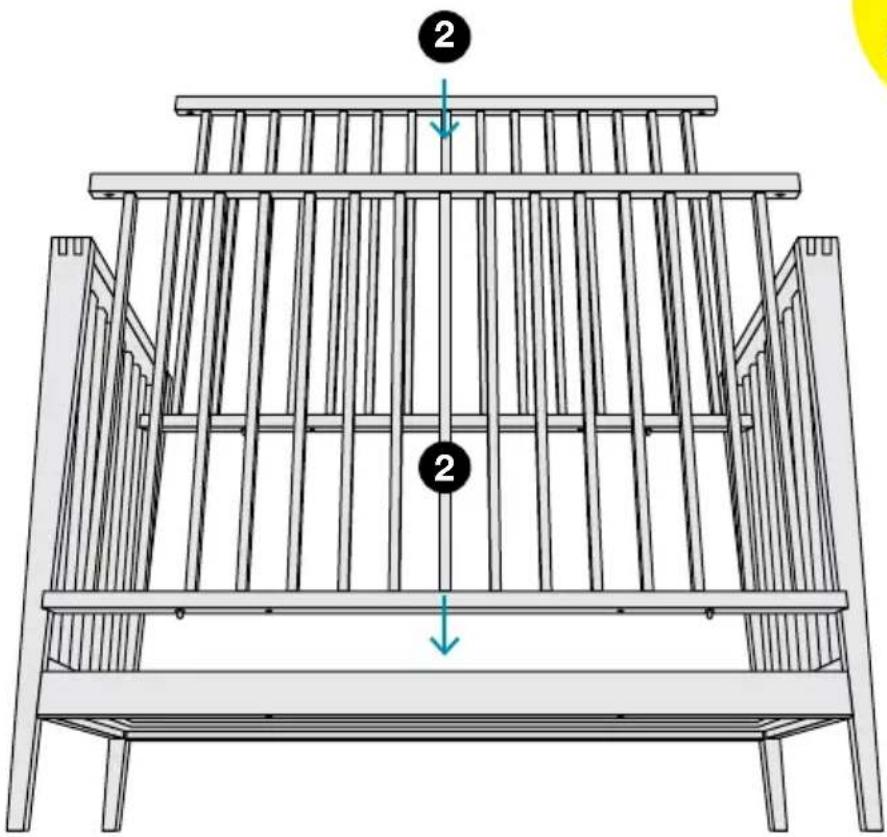

1

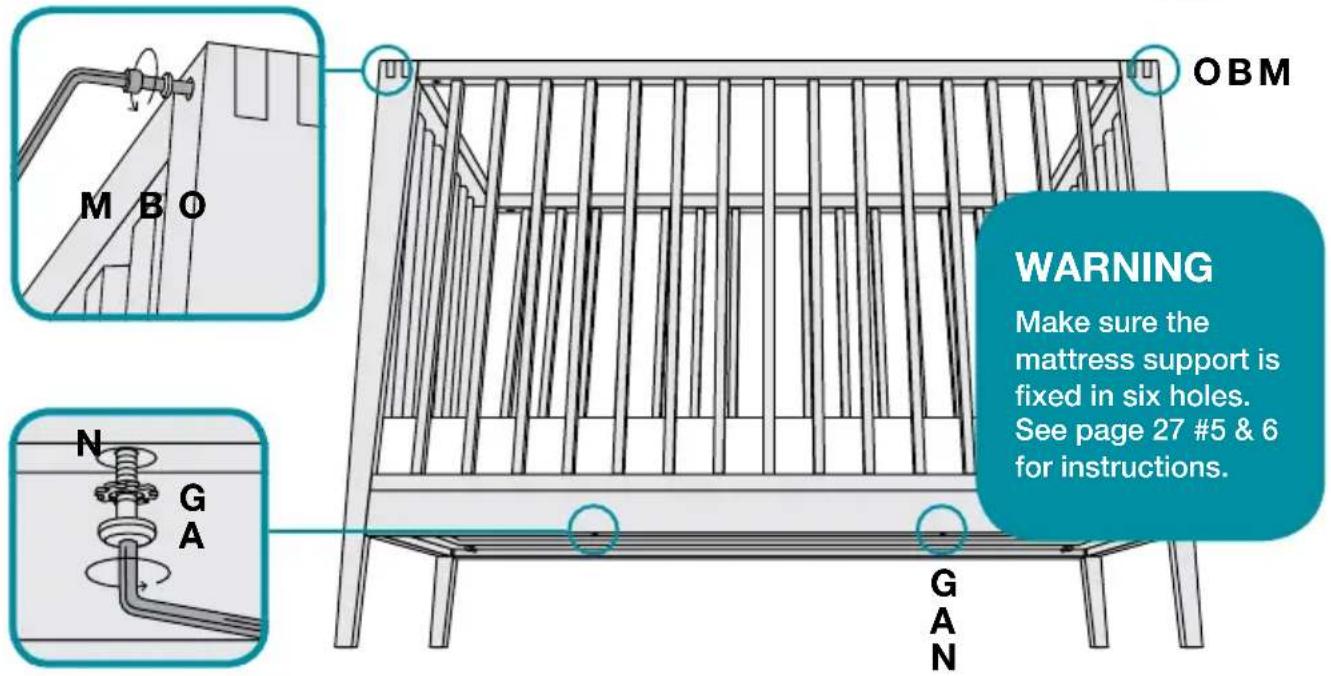

OBM M BO N G A G AN WARNING Make sure the mattress support is fixed in six holes. See page 27 #5 & 6 for instructions.

2

Technical line drawing of a wooden ladder structure with vertical supports and a numbered component (no text or symbols)

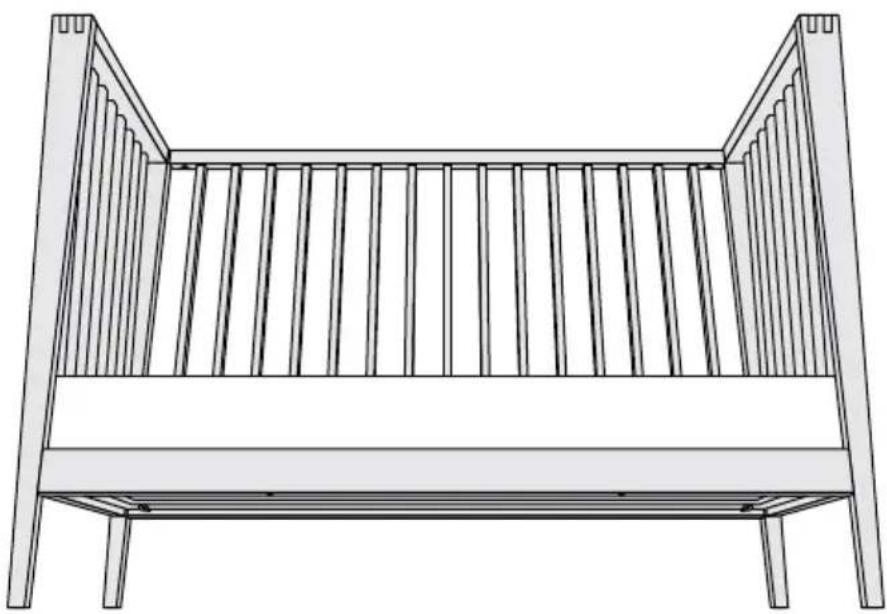

Day bed

Line drawing of a baby crib with vertical slats and two legs (no text or symbols)

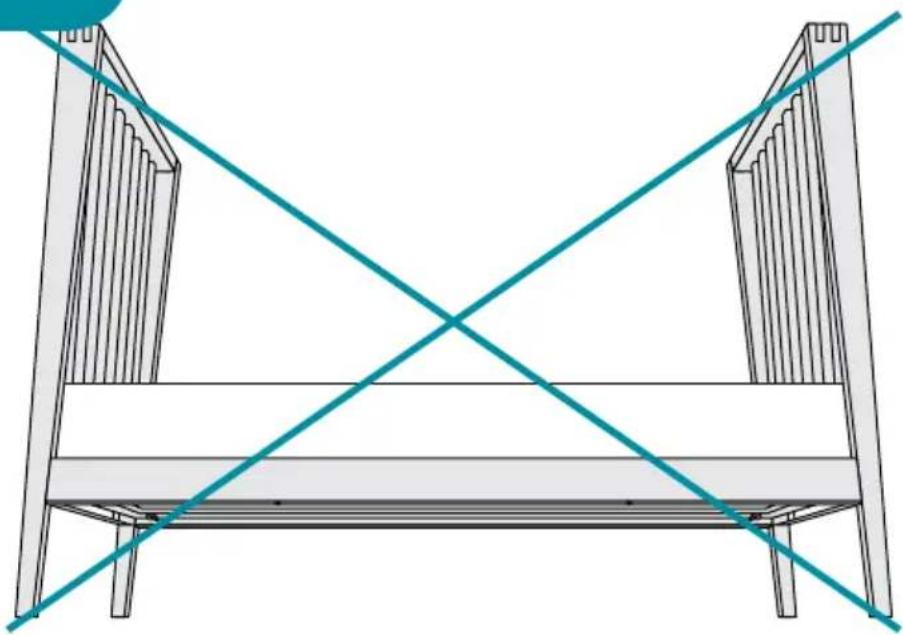

WARNING

Never use with both gates removed.

Diagram of a two-panel structure with diagonal lines crossing, no text or symbols present
