USER MANUAL Tremmeseng Linea
USER GUIDE IMPORTANT! KEEP FOR FUTURE USE. READ CAREFULLY
EN: Baby cot/bed

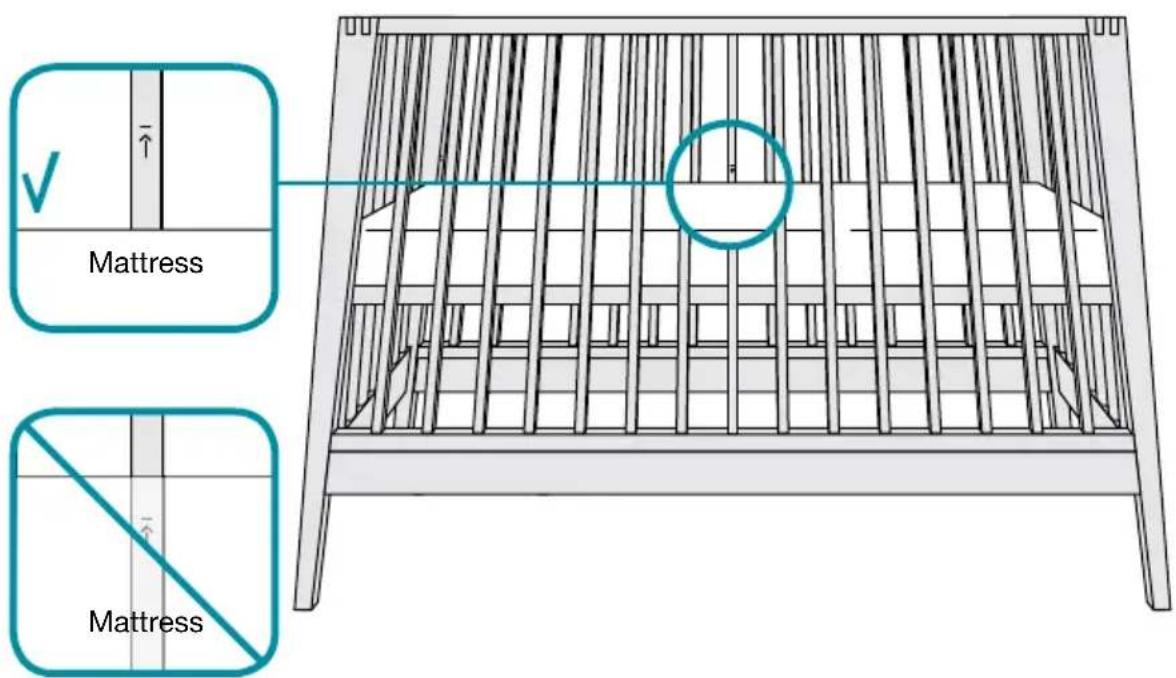

The cot/bed base can be set at two different heights. Upper position and lower position. Make sure that the distance from the mattress to the top of the bed frame is never less than 300mm in the top position or 500mm in the bottom position. This is marked with an "arrow" on the middle bar of one of the rail sections.

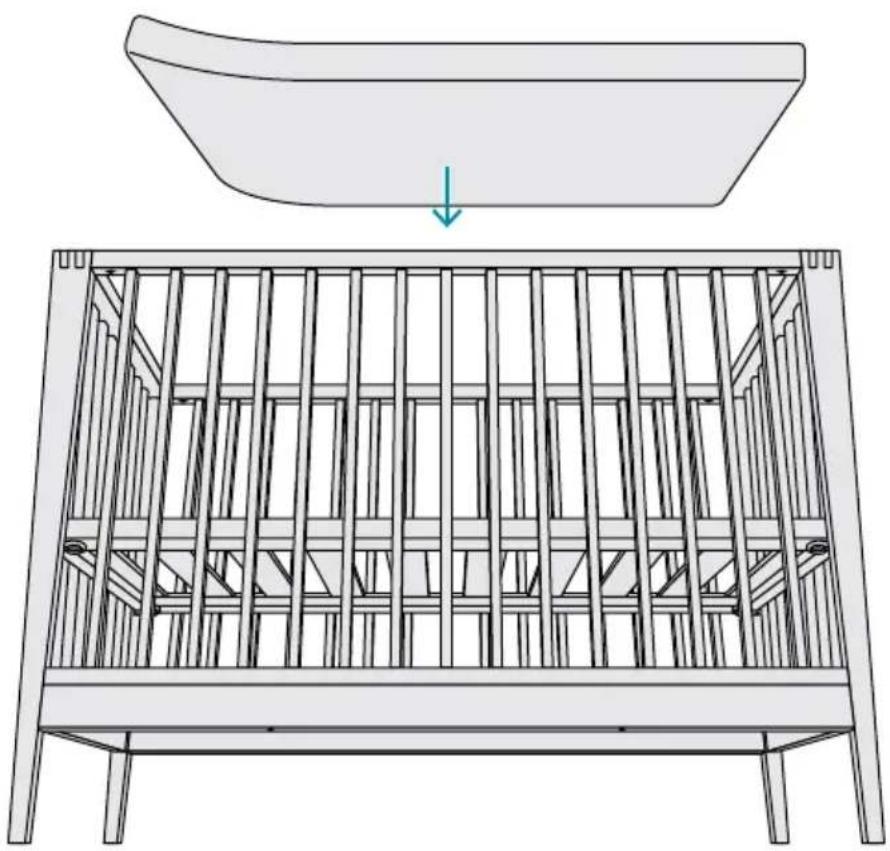

By using an original Leander® mattress, you are assured of the correct distance to top of the bed. It is always safest to place the bed base in the lower position.

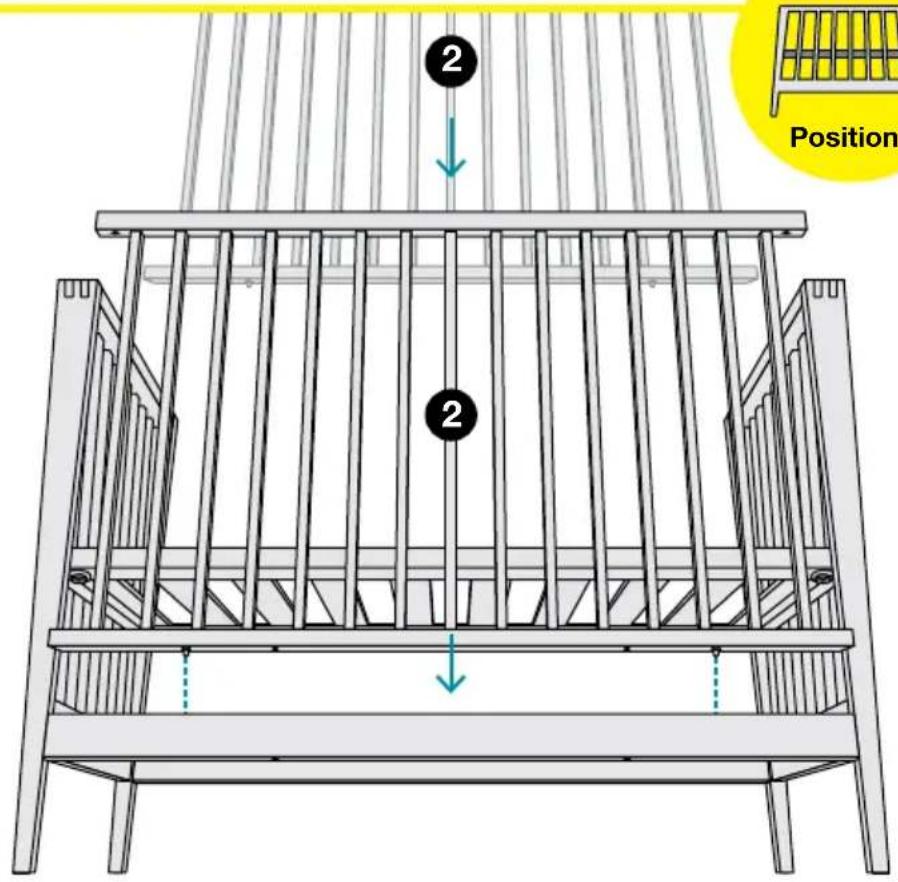

As soon as your baby can sit up or stand up on his/her own, the cot/bed base must be placed in the lower position. See assembly for further instructions. (Position 2)

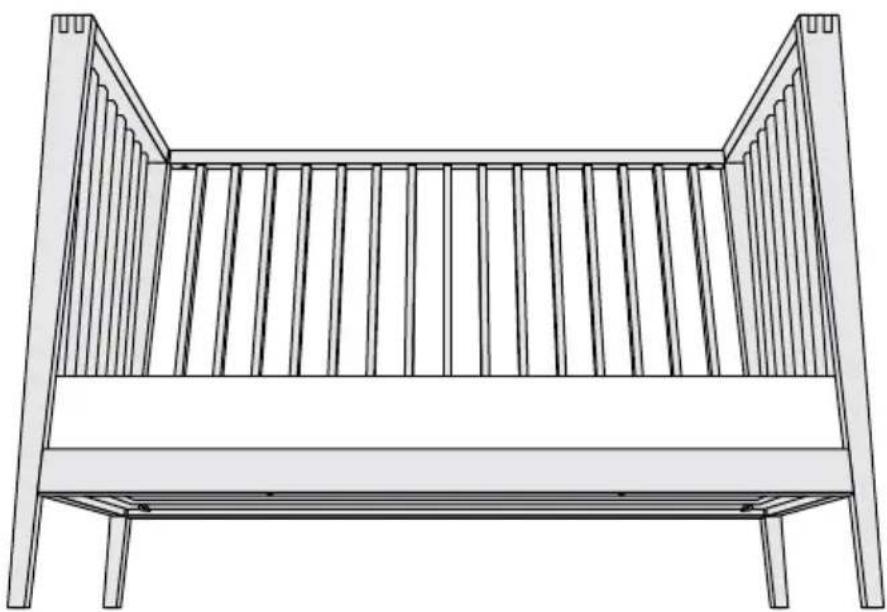

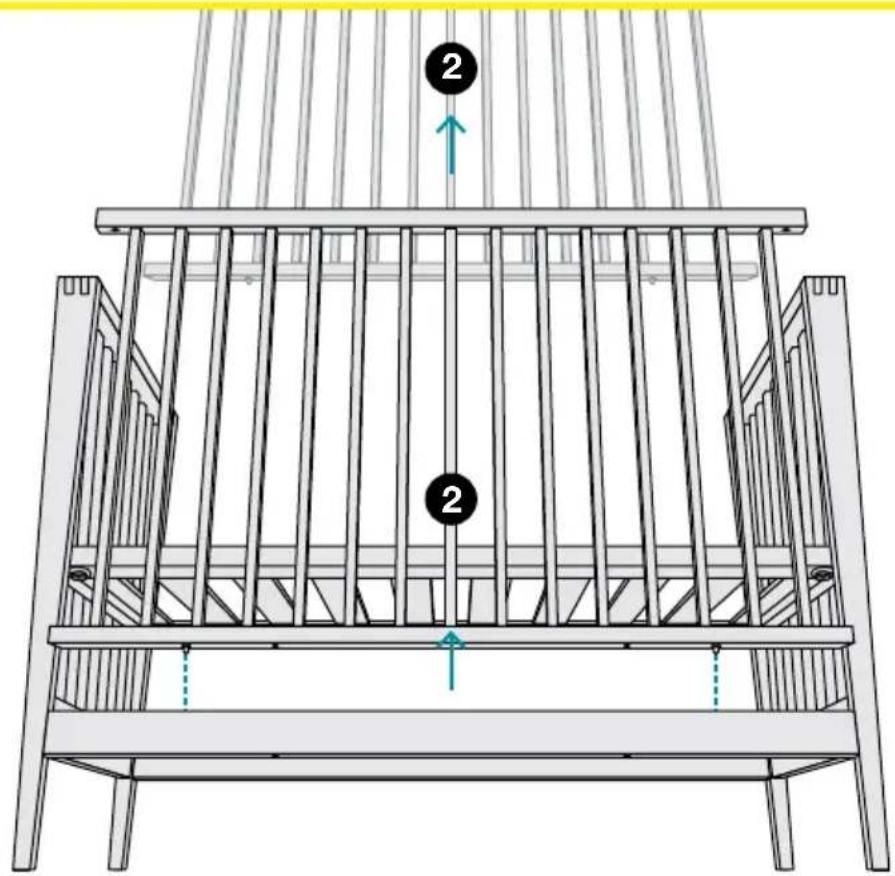

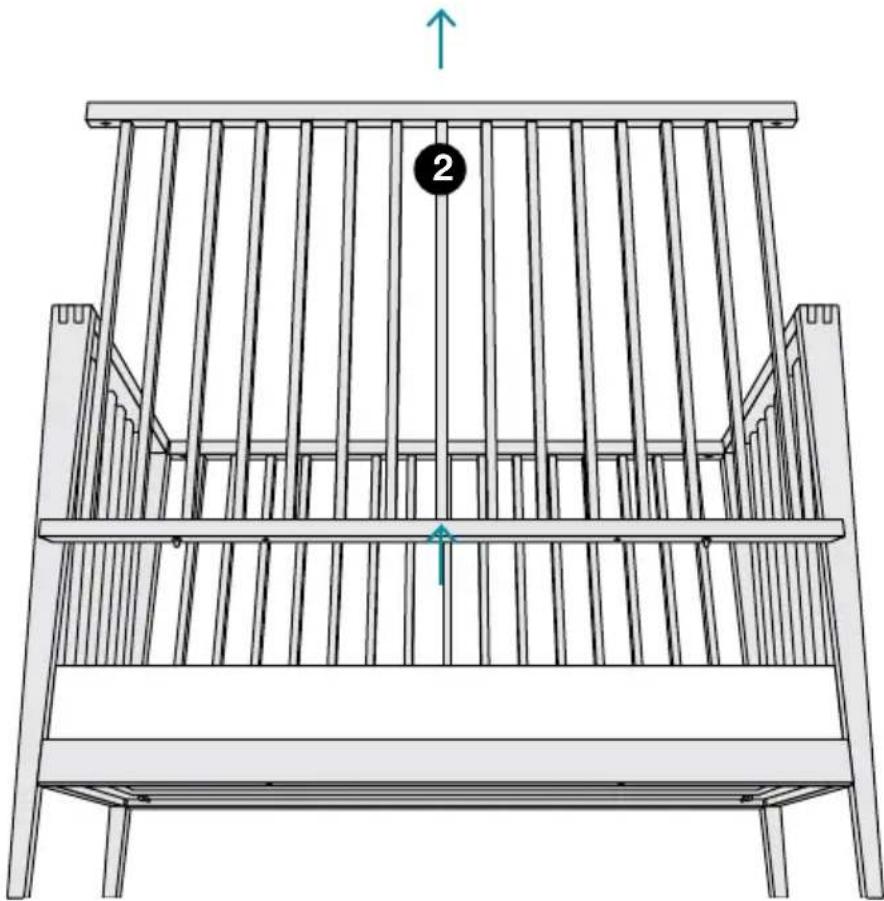

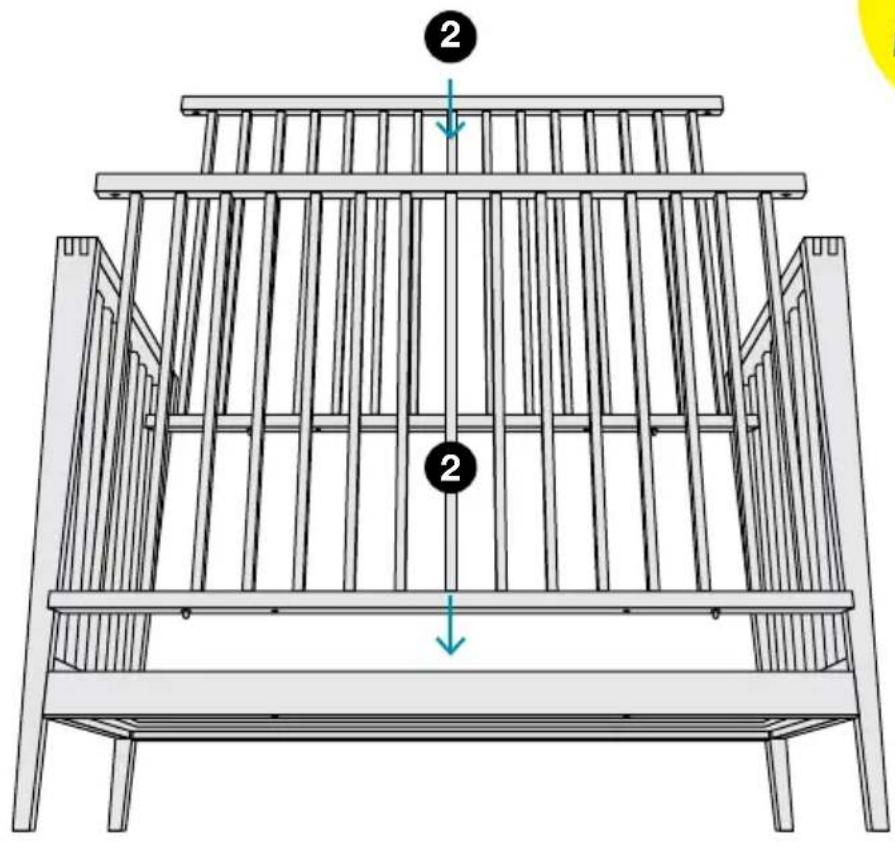

When the baby can crawl out of the cot/bed by himself/herself, one of the rail sections must be removed to avoid injuries from falling. Never use the cot/bed with both rail sections removed. See assembly for further instructions. (Day bed)
Make sure that medicines, strings, small toys, small objects such as coins, etc. are out of the baby's reach from any position in the cot/bed.
Always follow the assembly instructions in detail to ensure the safety features of the cot/bed are not compromised!
Recommended mattress size
This cot/bed has been manufactured for use with a mattress which measures 600~mm wide by 1200 mm long and maximum 105mm in thickness. The width and length are specified because it is important that the gaps between the mattress and the sides and ends of the cot will not exceed 40~mm .
This is to minimize the risk of a child's limb becoming caught in the gap. The thickness of the mattress has been specified to ensure that the depth of the cot is greater than 500mm with the mattress base in the lower position to minimize the risk of a child climbing or falling out of the cot/bed.
Australia: See page 27 & 30 for additional warnings for the cot in the lower position.
Cleaning and maintenance
WOODWORK: Can be wiped off with a damp cloth. Surplus water must be wiped off. The colour may change when exposed to sunlight.
DAILY USE: Remove the quilt every morning allowing both bed and quilt to be aerated, cool off and dry.
Product information
Lacquer complies with the
European standard EN71-3.
DIN EN 716-1:2008 +1A: 2013
DESIGN No.:
PATENT No.:
WARNING
- Never place the child's bed by an open fire or source of strong heat such as electric heaters, gas heaters, power points etc. due to the risk of fire.
- Do not use the child's bed if any parts are damaged or missing and only use replacement parts that are approved by Leander.
-
Never leave anything in the child's bed and never place the child's bed close to something the child can stand on, or which may pose a risk of suffocation or strangulation, such as ribbons, strings on blinds/curtains, etc.
-
Never place more than one mattress in the child's bed.
- Always use the original Leander mattress, as it is designed to fit the bed's shape. The use of other mattresses can cause gaps between the mattress and bed in which the child can become trapped.
- To prevent falls, mattress base of this cot should be adjusted to the lowest position before the child can sit up.
-
When assembling the child's bed, we do not recommend tightening the screws until the entire bed is assembled. This will make the assembly easier.
-
After assembly, all fittings and screws must be checked and tightened. A poorly assembled bed and loose parts may lead to the child trapping a body part or to clothes (e.g. strings, necklaces, strings on dummies, etc.) becoming stuck and posing a risk of strangulation.
- Make sure the cot is placed on a level and stable surface.
- Remember to keep the Allen key after assembly. After 2 to 3 weeks of use, all screws should be tightened.
ahigiha hao jia naii e 100000000000000000000000000000000000000000000000000000000000000000000000000
ahigihaeroyam/tildebkuro nalagsumfojntedre,
railehanaletzgerheakngsurorolhanbupsgoepabghe
ahcni.，taleiluolmootegeanhstaneuee
EN: All wooden and metal parts are covered by a 3 year guarantee. Textile parts are guaranteed for 2 years. All guarantees apply to material and construction defects only. The guarantee does not apply to defects resulting from normal wear and tear, incorrect use of the product, alterations to
the product after purchase, and the use of accessories that have not been approved and marketed by Leander. The guarantee does not apply if the product's instructions for assembly, use or maintenance have not been complied with.
Garantie

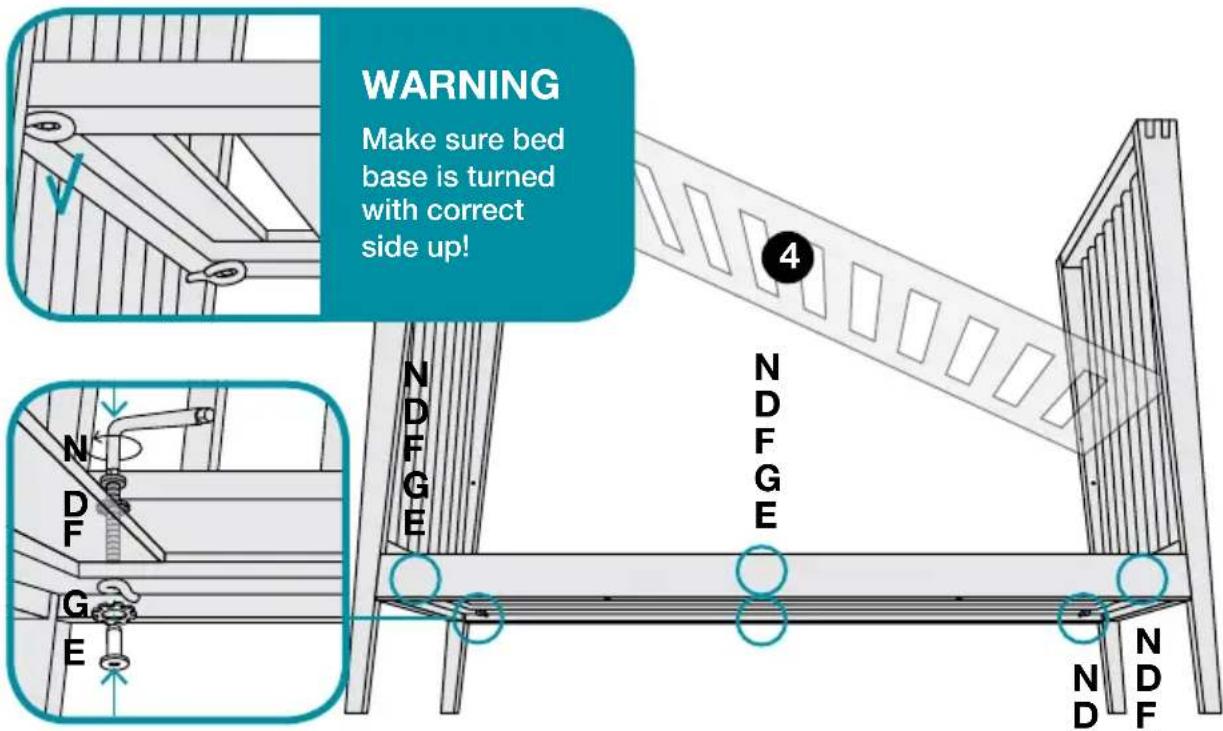

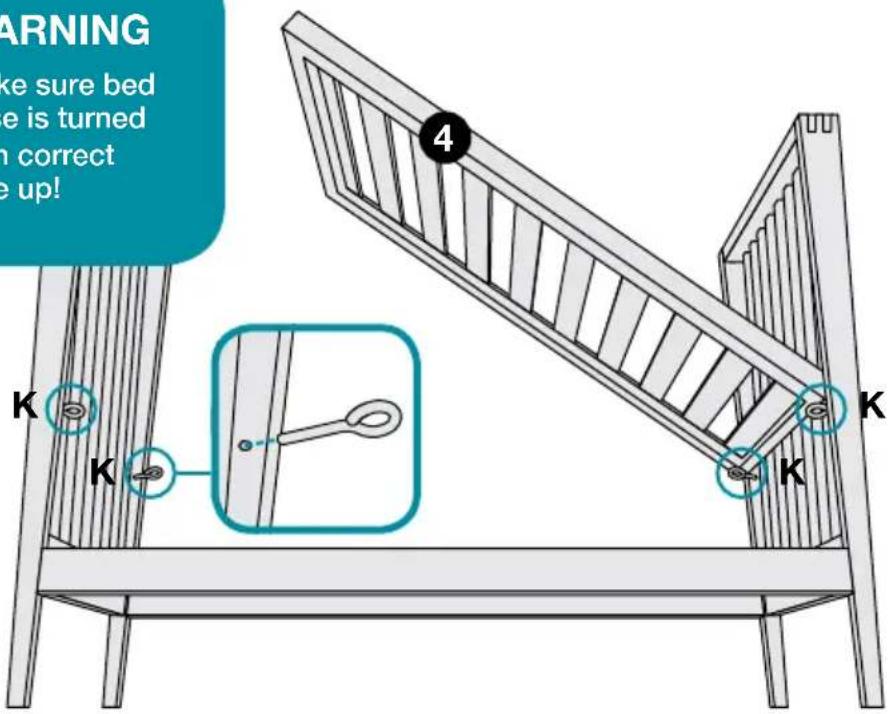

Make sure bed base is turned with correct side up!

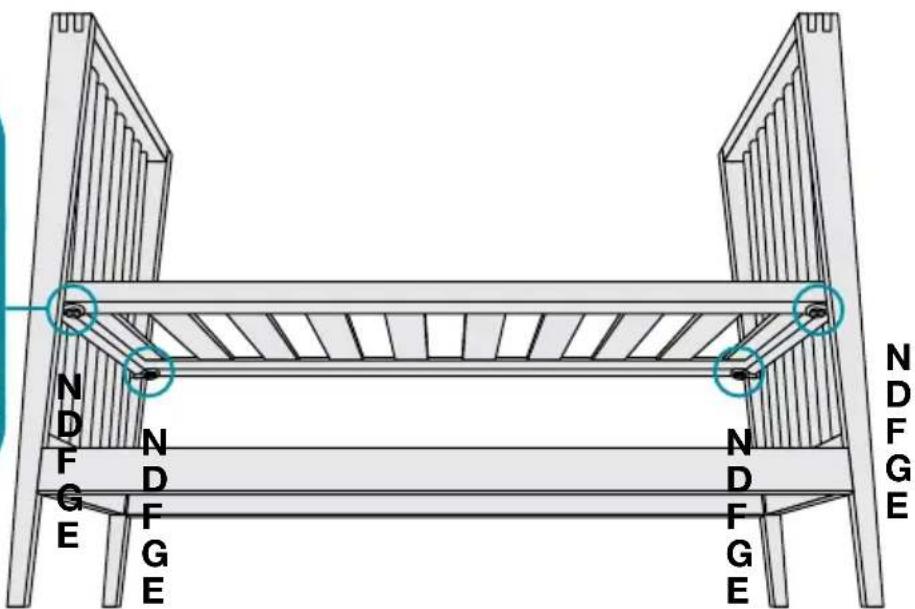

4

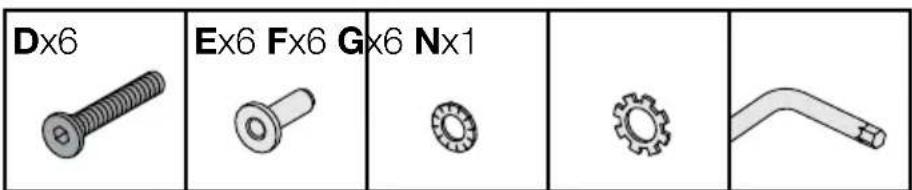

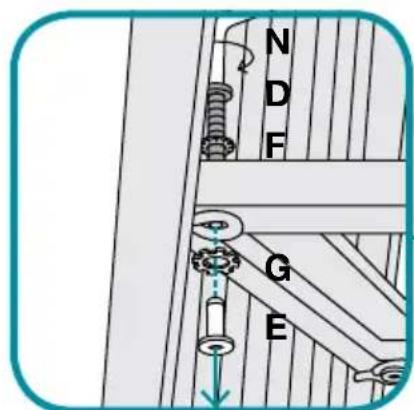

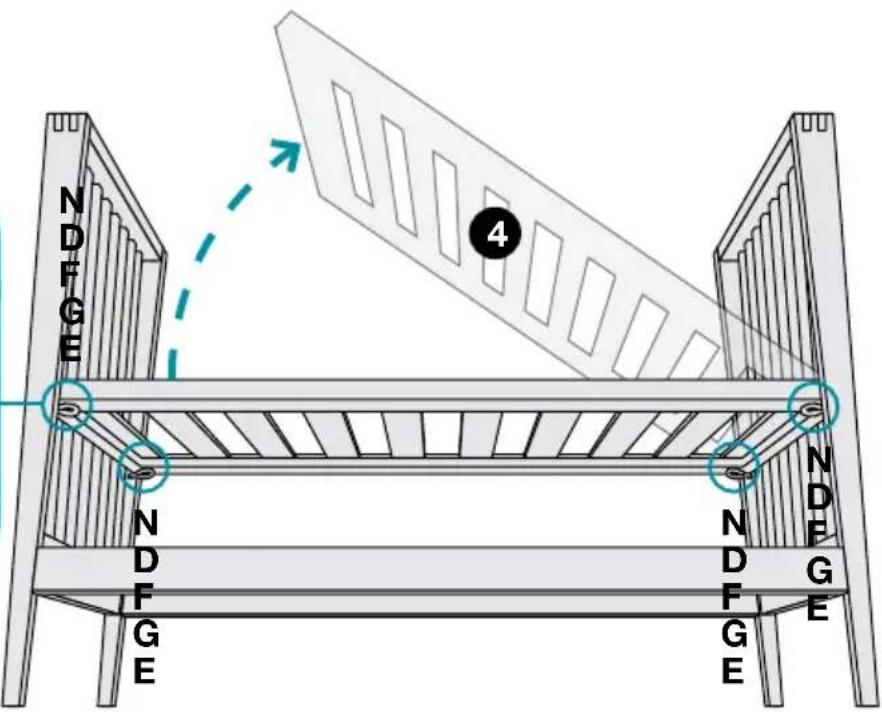

| Dx4 Ex4 F | x4 Gx4 | Nx1 |
5
7

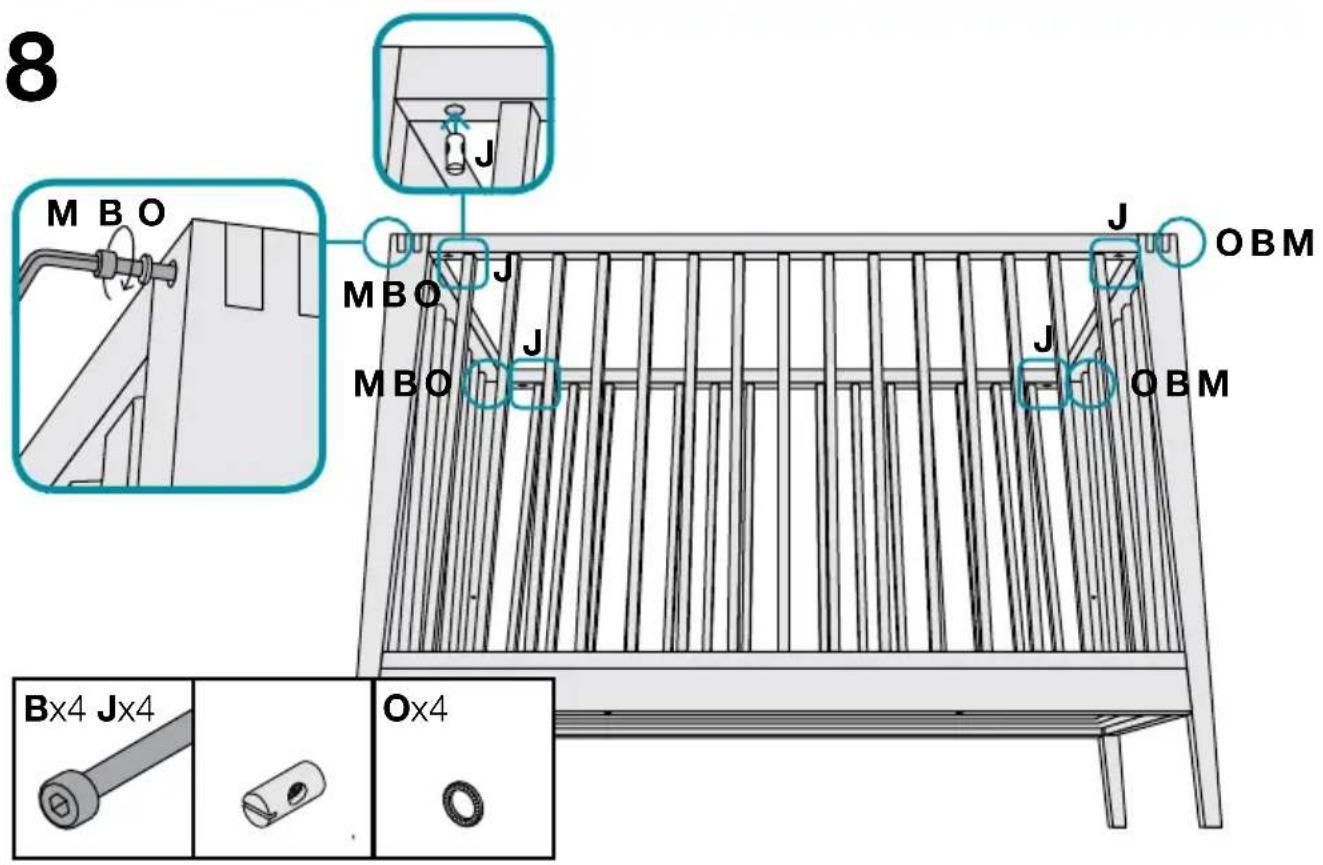

8
9
1
2
3
4

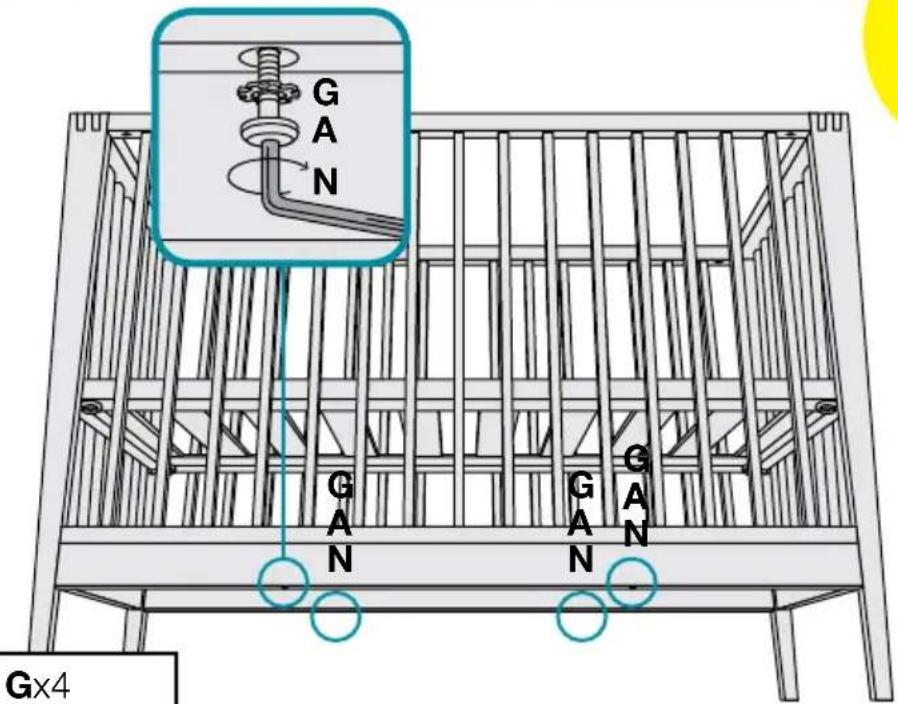

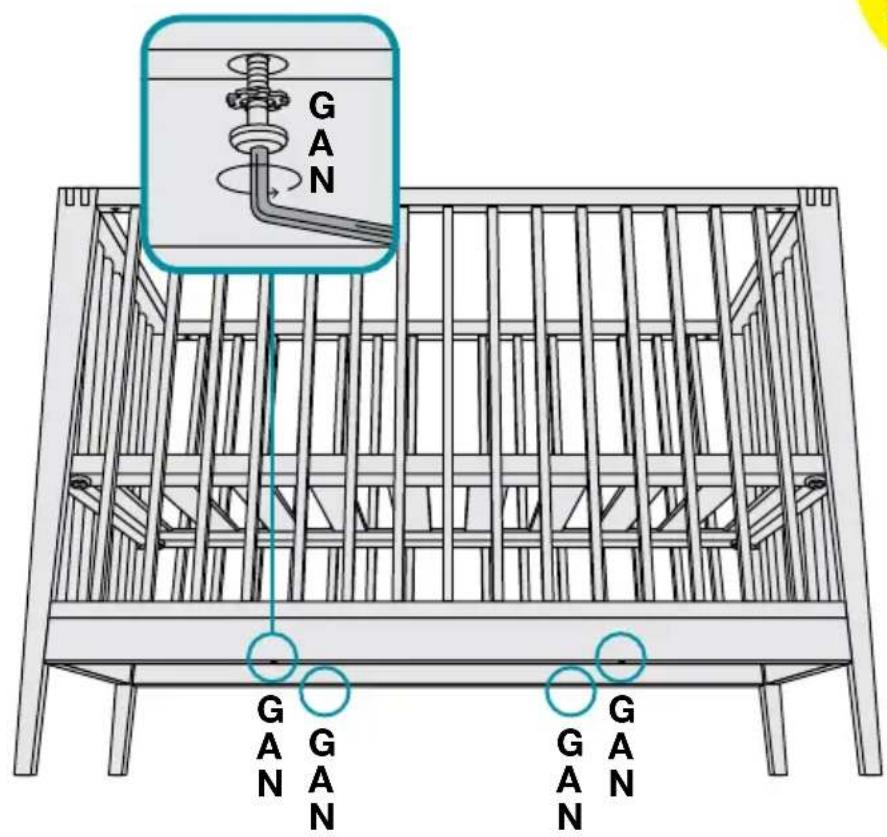

Loosen counterclockwise.

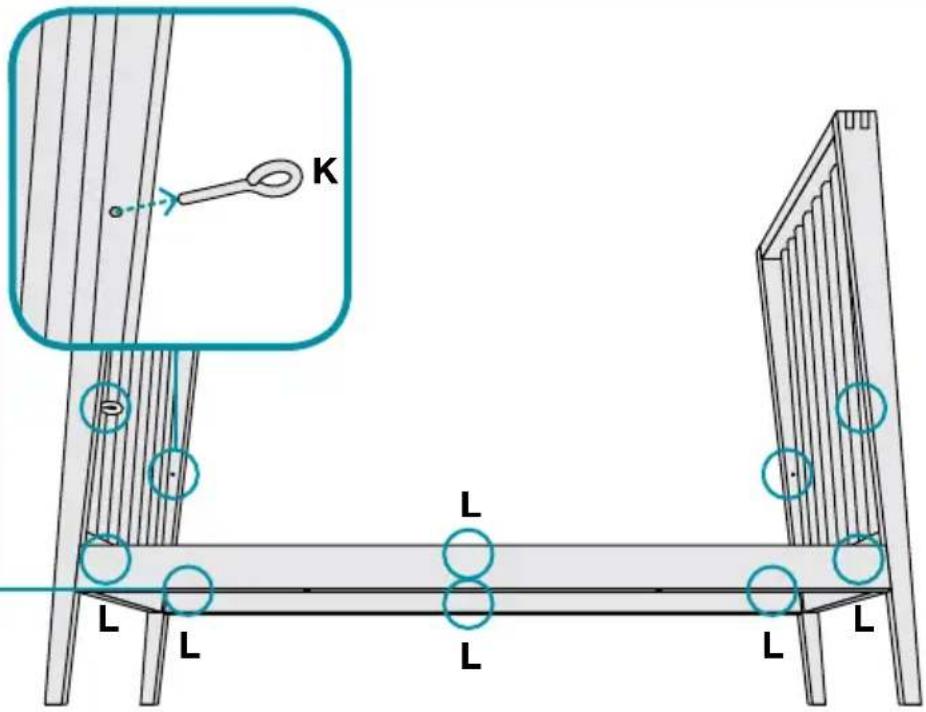

Make sure to insert L in the lower holes. Upper hole is for USA/CA only!
5
WARNING

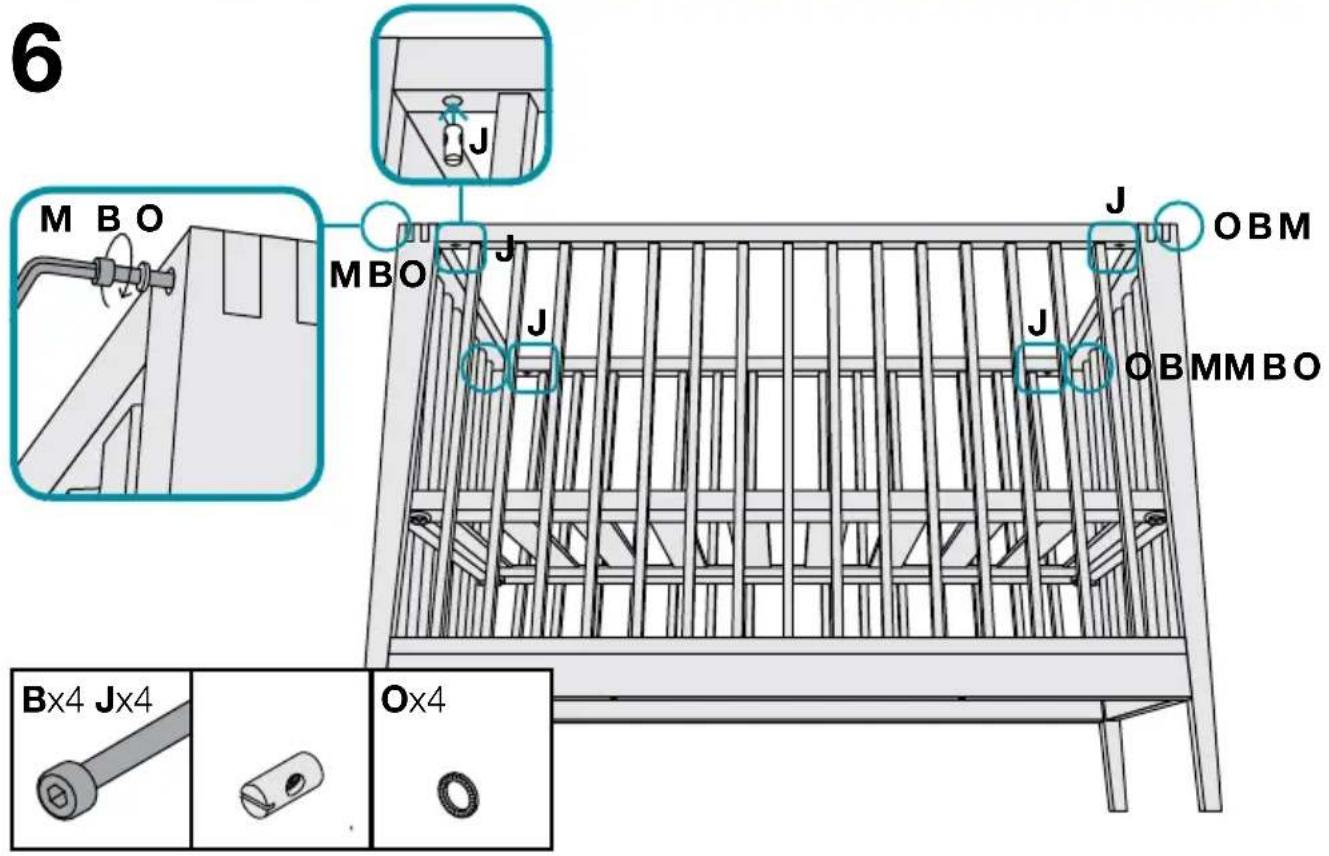

6
7
8
9
10
1
2
WARNING

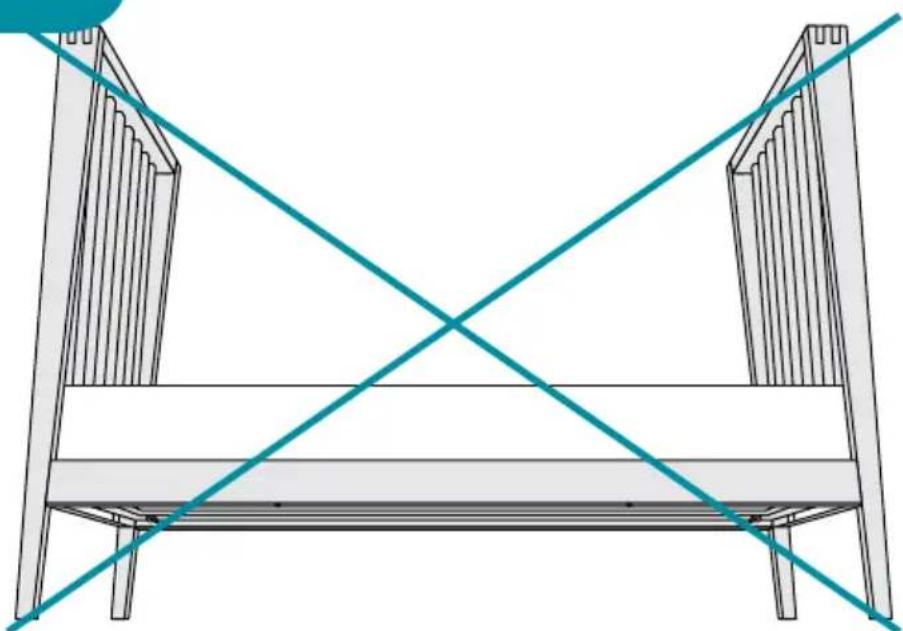

Never use with both gates removed.
