Please always place this device on a stable surface; otherwise, it may fall and be damaged. The altitude and the tropical environment the adapter fits depend on which adapter is used for the device. The rating plate on the back of the device with the above warning sign indicates that t h i s p r o d u c t i s app lica ble for the safe use of the region w i t h a l t i t u d e o f 2,000m and below. Do not hold the plug w i t h w e t h a n d ; otherwise, electric shock may occur. Make sure the plug has a good touch because poor touch may cause fire. Do not use a broken power plug nor keep a power cord near heat source; otherwise, e l e ct r i c s h oc k or fire may occur. When cleaning the device, be sure to remove the power plug, use a piece of soft cloth rather t h a n i n d u s t r i a l che mica l to cle an the device, be sure not to let water enter the device. Do not disassemble this device without permission. In case of failure, be sure to contact a professional servicing person to fix it. The unauthorized disassembly of this device may result in electric shock or fire. In case of rare smell or noise out of this device, be sure to immediately cut off the power supply and ask a professional servicing person to fix the problem. When this device is idle for long time, be sure to power it off; otherwise, electric shock or fire may occur. I.Safety Prevention Measures Note: The device with AC switch may use such AC switch as cut-off component. The device without AC switch may use power plug or coupler as cut-off component. In case of the normal use of the equipment, make sure the cut-off component can be accessed easily. English Française Español

CatalogAll specifications and informations are subject to change without notice.

Please always place this device on a stable surface; otherwise, it may fall and be damaged. The altitude and the tropical environment the adapter fits depend on which adapter is used for the device. The rating plate on the back of the device with the above warning sign indicates that t h i s p r o d u c t i s app lica ble for the safe use of the region w i t h a l t i t u d e o f 2,000m and below. Do not hold the plug w i t h w e t h a n d ; otherwise, electric shock may occur. Make sure the plug has a good touch because poor touch may cause fire. Do not use a broken power plug nor keep a power cord near heat source; otherwise, e l e ct r i c s h oc k or fire may occur. When cleaning the device, be sure to remove the power plug, use a piece of soft cloth rather t h a n i n d u s t r i a l che mica l to cle an the device, be sure not to let water enter the device. Do not disassemble this device without permission. In case of failure, be sure to contact a professional servicing person to fix it. The unauthorized disassembly of this device may result in electric shock or fire. In case of rare smell or noise out of this device, be sure to immediately cut off the power supply and ask a professional servicing person to fix the problem. When this device is idle for long time, be sure to power it off; otherwise, electric shock or fire may occur. I.Safety Prevention Measures Note: The device with AC switch may use such AC switch as cut-off component. The device without AC switch may use power plug or coupler as cut-off component. In case of the normal use of the equipment, make sure the cut-off component can be accessed easily. English Française Español

CatalogAll specifications and informations are subject to change without notice.

III. Connect the Monitor to PC

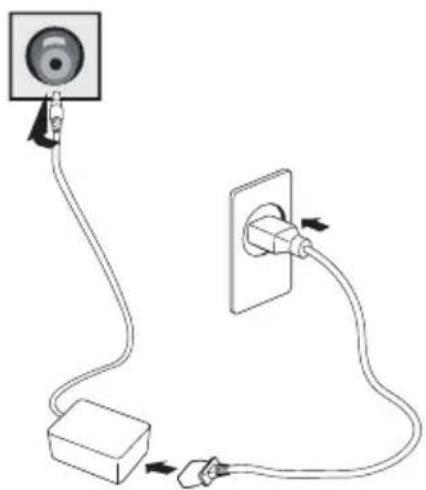

(The above pictures are for illustration only and the physical accessories shall govern.) Before connecting the LCD monitor to the PC, please power down the PC and the monitor. Power adapter

• Warning: Always use the power cord of standard configuration.

DVI Port Connect the DVI cable into the DVI IN port in the back of the monitor (this needs the support of the monitor). HDMI Port Connect the HD MI cab le into the HDMI IN port into the back of the monitor (this needs the support of the monitor). DP Port Connect the DP cable into the DP IN port of the monitor (this needs the support of the monitor). Power Plug Connect the power cord of the monitor into the POWER port in the back of the monitor.

All specifications and informations are subject to change without notice.

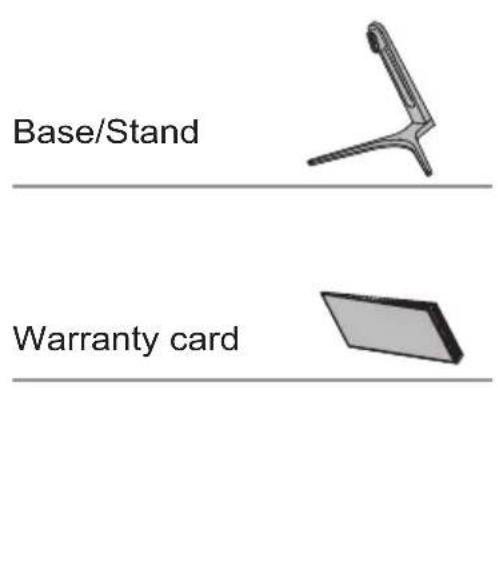

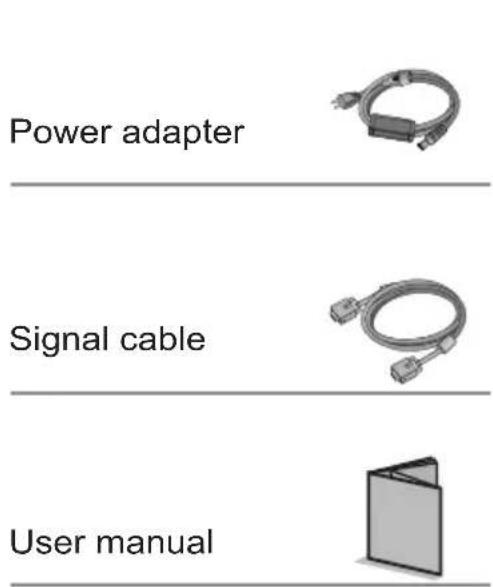

II.Installation Instructions 1.Accessories Power adapter Signal cable User manual Base/Stand Warranty card (The above pictures are for illustration only and the physical accessories shall govern.)

2.1 The screen can be adjusted by

inc linin g forw ard an d backward; however, the specific adjustment depends on the specific model of the de vic e. Generally, it ma y be inclined 5±2°f orw ard and 15±2 ° backward.

2.2 When adjusting the angle of the

monitor, be sure not to touch or press the area of the screen. (The above pictures are for illustration only and the physical accessories shall govern.)

See the assembly sketch on the cover of the packaging case.All specifications and informations are subject to change without notice.

III. Connect the Monitor to PC

(The above pictures are for illustration only and the physical accessories shall govern.) Before connecting the LCD monitor to the PC, please power down the PC and the monitor. Power adapter

• Warning: Always use the power cord of standard configuration.

DVI Port Connect the DVI cable into the DVI IN port in the back of the monitor (this needs the support of the monitor). HDMI Port Connect the HD MI cable into the HDMI IN port into the back of the monitor (this needs the support of the monitor). DP Port Connect the DP cable into the DP IN port of the monitor (this needs the support of the monitor). Power Plug Connect the power cord of the monitor into the POWER port in the back of the monitor.

All specifications and informations are subject to change without notice.

II.Installation Instructions 1.Accessories Power adapter Signal cable User manual Base/Stand Warranty card (The above pictures are for illustration only and the physical accessories shall govern.)

2.1 The screen can be adjusted by

inc linin g forw ard an d backward; however, the specific adjustment depends on the specific model of the de vic e. Generally, it ma y be inclined 5±2°f orw ard and 15±2 ° backward.

2.2 When adjusting the angle of the

monitor, be sure not to touch or press the area of the screen. (The above pictures are for illustration only and the physical accessories shall govern.)

See the assembly sketch on the cover of the packaging case.All specifications and informations are subject to change without notice.

V. Operation Menu (OSD) Function Descriptions

Note: The functions may be adjusted due to specific model or the upgrade of software version. The physical model shall govern. In no-signal state, automatically power off after 1min standby Activate FreeSync function, only AMD display card supported (the support from the display is needed) OD general mode, reducing motion vague (the support from the display is needed) OD top speed mode, reducing motion vague (the support from the display is needed) Slightly adjust green color temperature 10005010005050R G BInputDVIHDMIDisplayPort Inactivate the timed power-off function Restore to factory settings Exit from this function StandardMovieEye SaverRTSFPSOffOnOffOnAuto16：94：3NoneOffNormalExtremeWarmCoolUserFrançaise FrançaiseDeutsch DeutschItaliano ItalianoEspañol Español한국어 한국어 Русский Русский Português Português日本語 日本語繁體中文 繁體中文 English English OffOnNormal use mode Application mode of seeing film First person shooting game mode Strategic game mode Eye-protecting blue light filtered application mode Activate dynamic contrastInactivate dynamic contrastInactivate FreeSync function Automatic image scale adjustment Adjust image to be wind screen Adjust image to be 4:3 OD off mode (the support from the display is needed) Set as cold color temperature Set as warm color temperature Adjust display brightAdjust display contrast DVI (digital) signal input HDMI (digital) signal input DisplayPort (digital) signal input Inactivate sight bead function Slightly adjust red color temperature Slightly adjust blue color temperature OffOn Gamma Adjust color tone brightness grey 1.8 Adjust color tone brightness grey 2.2 LED offLED onOffOnLEDModeDCRFreeSyncAspect ratioCrosshair Response timeBrightnessContrastColor Temp.ImageGameSetupLanguagePower OffReset First level menu item Second level menu item Instructions Third level menu item Transparency 502All specifications and informations are subject to change without notice.

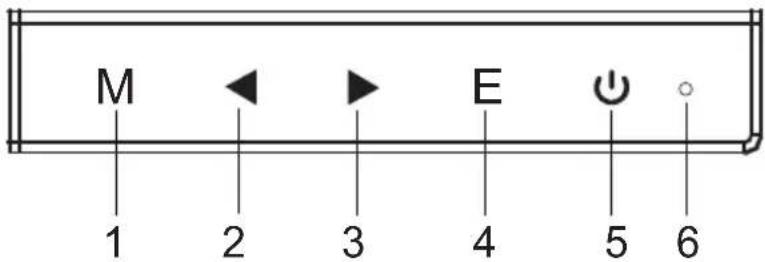

2. Description of Keys' Functions

Note: The physical keys of the specific model shall govern. LED indicator light

Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). When the menu is activated, used as the left function selection key, and decreases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (for sighting device). When the menu is activated, used as the right function selection key, and increases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (FPS/RTS mode).If the menu is activated, chooses the corresponding function. When no menu is open, press this key to switch to the desired signal input source. Power switch: Powers on/off the monitor.Blue: in normal switch-on state; flickering in blue: in power-saving state.

Switch to red Crosshair mode Switch to white Crosshair mode Adjust transparencyAll specifications and informations are subject to change without notice.

Note: The functions may be adjusted due to specific model or the upgrade of software version. The physical model shall govern. In no-signal state, automatically power off after 1min standby Activate FreeSync function, only AMD display card supported (the support from the display is needed)OD general mode, reducing motion vague (the support from the display is needed)OD top speed mode, reducing motion vague (the support from the display is needed)Slightly adjust green color temperature

Normal use modeApplication mode of seeing filmFirst person shooting game modeStrategic game modeEye-protecting blue light filtered application modeActivate dynamic contrastInactivate dynamic contrastInactivate FreeSync functionAutomatic image scale adjustmentAdjust image to be wind screenAdjust image to be 4:3OD off mode (the support from the display is needed)Set as cold color temperatureSet as warm color temperatureAdjust display brightAdjust display contrastDVI (digital) signal input HDMI (digital) signal input DisplayPort (digital) signal inputInactivate sight bead functionSlightly adjust red color temperatureSlightly adjust blue color temperature Off

GammaAdjust color tone brightness grey 1.8Adjust color tone brightness grey 2.2LED offLED on Off

All specifications and informations are subject to change without notice.

2. Description of Keys' Functions

Note: The physical keys of the specific model shall govern. LED indicator light

Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). When the menu is activated, used as the left function selection key, and decreases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (for sighting device). When the menu is activated, used as the right function selection key, and increases progressively the value of the progress bar; when the menu is inactivated, used as the specified shortcut mode hot key (FPS/RTS mode).If the menu is activated, chooses the corresponding function. When no menu is open, press this key to switch to the desired signal input source. Power switch: Powers on/off the monitor.Blue: in normal switch-on state; flickering in blue: in power-saving state.

Switch to red Crosshair mode Switch to white Crosshair mode Adjust transparencyAll specifications and informations are subject to change without notice.

Faults occurring The power indicator light is not on Possible solutions Dimming picture Flickering picture or picture with ripples Color shortage (red, green and blue) Picture with color difference (white looks not white)

Check if the power is on.

Check if the power cord is connected.

Adjust brightness and contrast.

with electronic disturbance. There may be electrical appliances or equipment The power indicator light is on (flickering), but the monitor has no pictures.

Check if the PC display card is inserted properly.

Check if the signal cable of the monitor is correctly connected with the PC.

Check the signal cable plug of the monitor and make sure every pin has no bending.

Observe the indicator light by pressing the Caps Lock key on the PC keyboard and check if the PC is working. Check if the PC power is on.

sure every pin has no bending. Check the signal cable of the monitor and make

is compatible with PC.

Check if the display card is compatible with the plug-and-play function. Check if the function of plug-and-play of the device Impossible plug-and-play Please confirm the default values of the output dynamic range and the pixel format in the graphics Settings is "all". when the brightness of the screen is higher than usual.All specifications and informations are subject to change without notice.

70Hz 720x400(60/120/144Hz)2560x1440 60/70/75/120Hz)1280x768(60/75/120Hz)1280x1024(60/120Hz)1440x900Aspect ratioDisplay dimensions Preset resolution/Refresh rate All specifications and informations are subject to change without notice.

Faults occurring The power indicator light is not on Possible solutions Dimming picture Flickering picture or picture with ripples Color shortage (red, green and blue) Picture with color difference (white looks not white)

Check if the power is on.

Check if the power cord is connected.

Adjust brightness and contrast.

with electronic disturbance. There may be electrical appliances or equipment The power indicator light is on (flickering), but the monitor has no pictures.

Check if the PC display card is inserted properly.

Check if the signal cable of the monitor is correctly connected with the PC.

Check the signal cable plug of the monitor and make sure every pin has no bending.

Observe the indicator light by pressing the Caps Lock key on the PC keyboard and check if the PC is working. Check if the PC power is on.

sure every pin has no bending. Check the signal cable of the monitor and make

is compatible with PC.
