Product Type	Cassette car stereo with FM/AM tuner and CD/MD input
Brand	Aiwa
Model	CTZ109
Dimensions (W × H × D)	182 × 53 × 155 mm
Power Supply	14,4 V DC (11 to 16 V tolerated), negative ground
Maximum Output Power	35 W × 4 channels
Load Impedance	4 ohms
FM Frequency Range	87.5 MHz to 108 MHz (in steps of 100 kHz or 50 kHz)
AM Frequency Range	530 kHz to 1 710 kHz (in steps of 10 kHz) or 522 kHz to 1 620 kHz (in steps of 9 kHz)
Cassette Playback	Yes, with auto reverse, fast forward/rewind
Auxiliary Input	CD/MD IN jack (3.5 mm) for portable CD/MD player
Station Preset	Up to 24 stations (6 per band FM1, FM2, FM3, AM) with automatic or manual memory
MY INFO Function	Programmable timer to turn on/off the device in radio mode at a set time
Sound Adjustments	Volume, bass (BASS), treble (TRE), balance (BAL), fader (FAD); H-BASS function for enhanced bass
FM Reception Control	ATRC (automatic noise reduction) and stereo/mono switching
Safety	Protection fuse, disconnect battery before installation, avoid metal objects near the playback head
Maintenance and Cleaning	Clean the front panel with a soft dry cloth; use a cleaning cassette for the playback head (monthly)
Operating Temperature	Avoid extreme temperatures; let the car interior cool down in summer before use
Memory Power Supply	Keeps settings even after power off (requires permanent battery connection)

Frequently Asked Questions - CTZ109 AIWA

How to set the clock on the Aiwa CTZ109 car stereo?

To set the clock, turn on the device with PWR, then press and hold DISP for more than 2 seconds until the hour flashes. Use TUNE ▼ for hours and TUNE ▲ for minutes. Press DISP to start the clock at 0 seconds.

How to manually preset a radio station?

After selecting the band (FM1, FM2, FM3 or AM) with BAND, tune the desired station with TUNE ▼ or TUNE ▲. Then, press and hold one of the preset buttons (1-6) for about 2 seconds until the number appears next to the frequency.

How to use the MY INFO function (radio timer)?

With the device off, press and hold MY INFO for 2 seconds. 'PO' flashes. Press SEL, then set the on time with TUNE ▼/▲. Press SEL again to set the station, then a third time to set the off time. Confirm by pressing and holding MY INFO for 2 seconds. To activate, briefly press MY INFO in radio mode.

How to connect a portable CD player to the car stereo?

First remove any inserted cassette. Connect the portable CD/MD player to the CD/MD IN jack (3.5 mm) on the front panel. Turn on the device with PWR, then press CD/MD IN to switch to CD mode. 'Cd' appears on the display.

What to do if the cassette does not play properly?

First check that the tape is tightly wound (use a pencil to take up slack). Avoid 90-minute or longer cassettes as they are too thin. If the problem persists, clean the playback head with a cleaning cassette. Also make sure to remove the protective tab (press EJECT).

How to adjust bass and treble?

Press SEL repeatedly until the BASS (bass) or TRE (treble) indicator flashes. Then use the + or - buttons to increase or decrease the level. The H-BASS function provides additional bass boost.

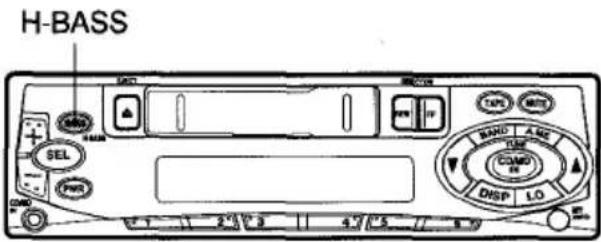

What is the H-BASS function?

The H-BASS (High Bass) function enhances bass for a more powerful sound. Press the H-BASS button to activate: the 'BASS' indicator lights up. Press again to deactivate.

How to switch from local mode to DX mode in radio?

In radio mode, press the LO button to activate local mode (LO), which only searches for strong stations. Press again to switch to DX (distance) mode to receive weaker signals. The 'LO' indicator lights up in local mode.

How to clean the playback head?

Use a special cleaning cassette about once a month. Insert it into the compartment and let it play for a few seconds. Regular cleaning prevents loss of treble and maintains sound quality.

The car stereo does not turn on, what to check?

First check the fuse: it must be the same amperage as the original (indicated on the device). Make sure the car has a negative ground and that the battery is properly connected. If the problem persists, consult a professional.

USER MANUAL CTZ109 AIWA

For your convenience, record the model number and serial number (you will find them on the right side of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty.

Model No. CT-Z109

Serial No.

Welcome

Thank you for your purchasing this AlWA product. To optimize the performance of this unit, please read through this manual carefully.

In addition to this operating instructions manual, be sure to refer to the separate installation and connections manuals as well.

PRECAUTIONS

This unit is designed to be operated on a 12-volt DC negative-ground electrical system only.
- To prevent short-circuiting, disconnect the negative car battery terminal until the unit has been mounted and connected completely.
- When replacing the fuse, be sure to use one whose amperage rating is identical. Use of a fuse of higher amperage may cause serious damage to the unit.
- Keep screwdrivers, etc. and other metallic or magnetic objects away from the playback head.
- When your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
- Keep the volume at such a level that you can hear outside warning sounds (horns, sirens, etc.).

Notes on cassettes

Do NOT expose cassettes to direct sunlight, extremely high or cold temperature or moisture. Keep cassettes away from equipment with built-in magnets to avoid unwanted noise or loss of sound quality.

Do NOT touch the tape of a cassette, as any dirt or dust will contaminate the heads.

Be sure to remove any cassette from the unit if you are not using it.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

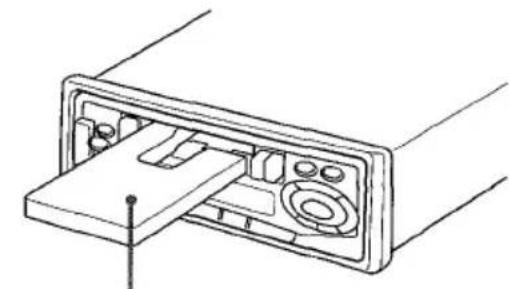

Caution on the transit protection pad

The unit is shipped with a transit protection pad in the cassette compartment.

Be sure to press EJECT to remove the pad before operating the unit.

Transit protection pad

TABLE OF CONTENTS

FRONT PANEL 3
SETTING THE CLOCK 4
RADIO OPERATION 4
PRESETTING STATIONS 5
MY INFORMATION SWITCH 7
TAPE PLAYBACK 8
SOUND ADJUSTMENTS 9

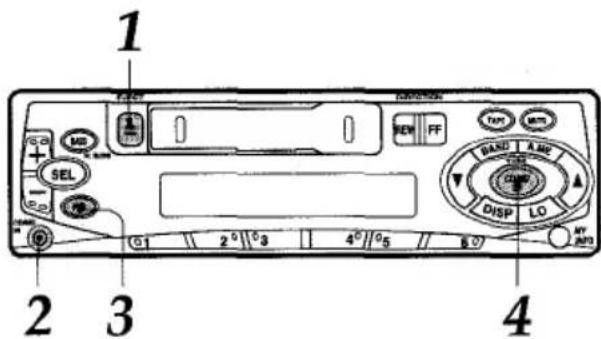

CONNECTING A PORTABLE CD/MD PLAYER OR OTHER EQUIPMENT 10

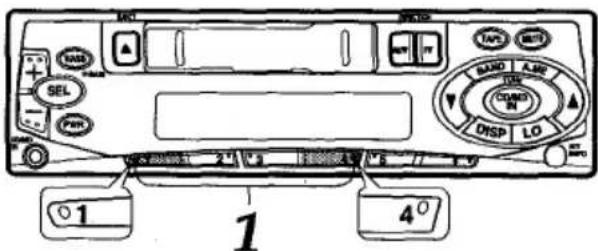

SETTING THE BEEP TONE 11
MAINTENANCE 11
SPECIFICATIONS 12

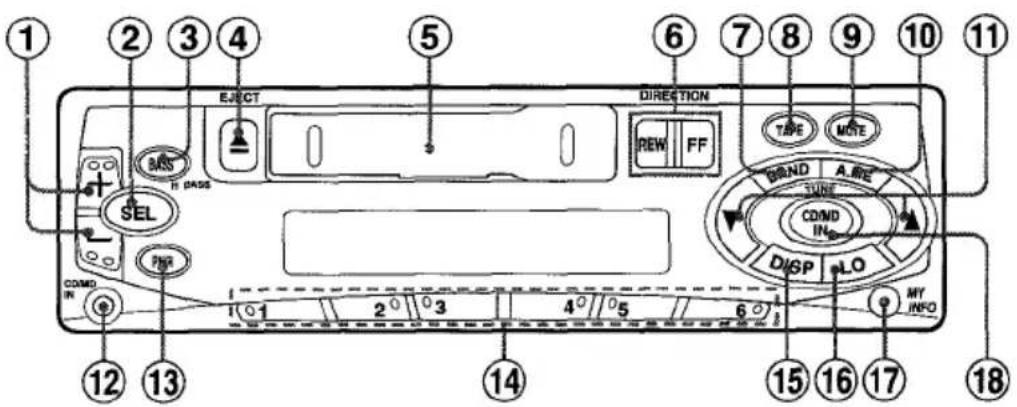

FRONT PANEL

Display window

①+/- (audio control) button
②SEL(select) button
③ H-BASS button
④EJECT button
⑤ Cassette compartment
⑥ DIRECTION REW/FF button
⑦ BAND button
⑧ TAPE button
MUTE button
A.ME (auto memory/preset scan) button
TUNE▼▲ buttons
CD/MD IN jack (3.5-mm dia.)
PWR (power on/off) button
4 Preset station buttons 1-6
DISP (display) button
LO (local/DX) button
MY INFO (my information) button
CD/MD IN button

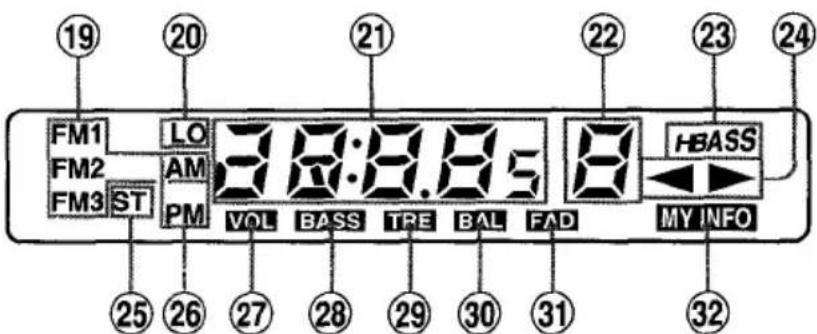

19 Band indicator
LO (local) indicator
2 Main display section
2 Subdisplay section
23 H BASS indicator
24 (tape direction) indicators
ST (stereo) indicator
26 AM/PM indicator
VOL (volume) indicator
BASS indicator
29 TRE (treble) indicator
BAL (balance) indicator
FAD (fader) indicator
MY INFO (my information) indicator

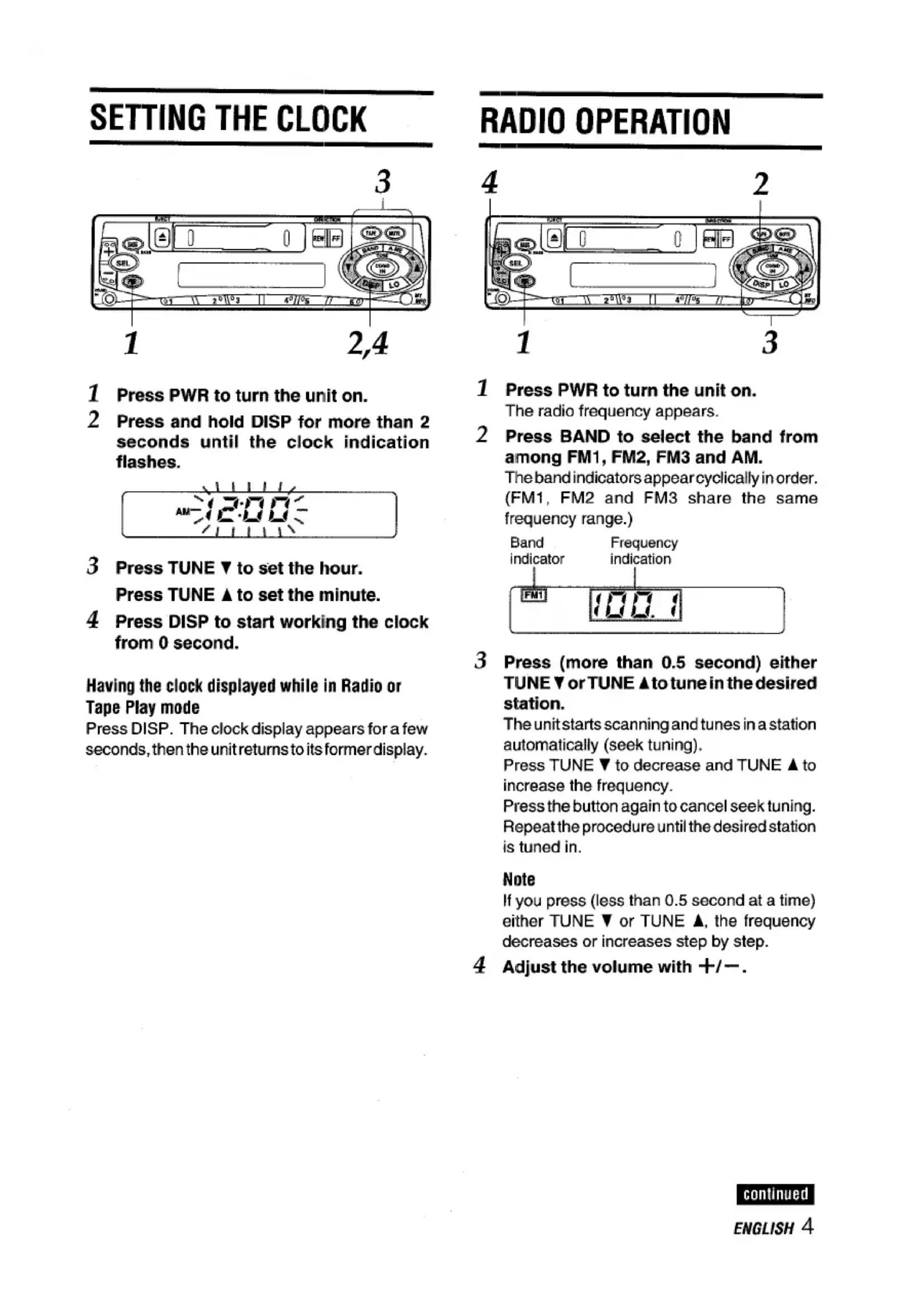

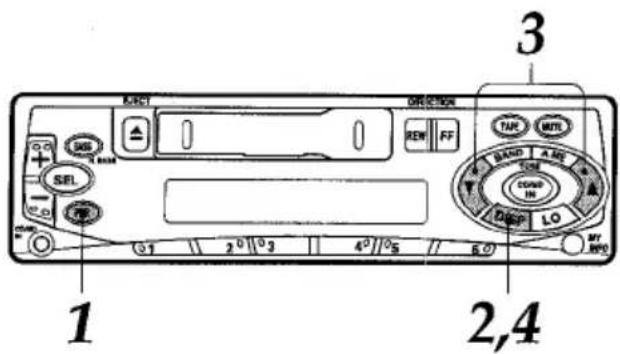

SETTING THE CLOCK

1 Press PWR to turn the unit on.
2 Press and hold DISP for more than 2 seconds until the clock indication flashes.

3 Press TUNE to set the hour. Press TUNE to set the minut
4 Press DISP to start working the clock from 0 second.

Having the clock displayed while in Radio or Tape Play mode

Press DISP. The clock display appears for a few seconds, then the unit returns to its former display.

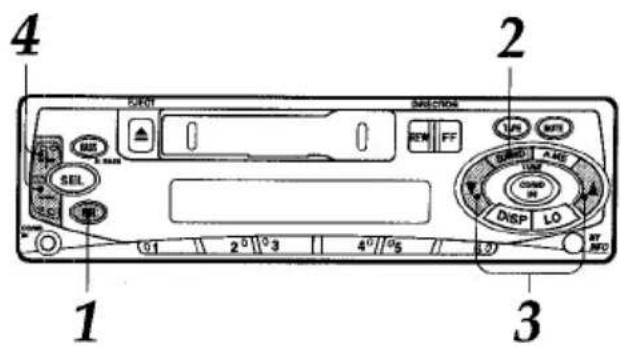

RADIO OPERATION

1 Press PWR to turn the unit on. The radio frequency appears.
2 Press BAND to select the band from among FM1, FM2, FM3 and AM. The band indicators appear cyclically in order. (FM1, FM2 and FM3 share the same frequency range.)

3 Press (more than 0.5 second) either TUNE or TUNE A to tune in the desired station.

The unit starts scanning and tunes in a station automatically (seek tuning).

Press TUNE to decrease and TUNE A to increase the frequency.

Press the button again to cancel seek tuning. Repeat the procedure until the desired station is tuned in.

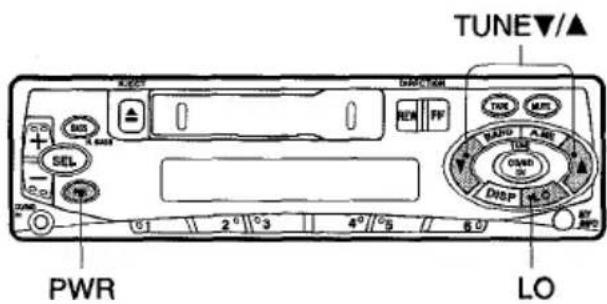

Note

If you press (less than 0.5 second at a time) either TUNE or TUNE , the frequency decreases or increases step by step.

4 Adjust the volume with + / -

To turn the unit off Press PwR.

Switching modes

When the unit is in Radio mode, inserting a cassette switches the unit to Tape Play mode automatically.

LO (local/DX) button

You can use Local mode when you wish to tune in only strong stations during seek tuning. In Radio mode, press LO to select Local mode. The "LO" indicator lights up.

• Press LO to cancel Local mode and switch to DX (distance) mode.
  The "ST" (stereo) indicator lights up when the tuned-in station is broadcasting in stereo and the reception is good.

PRESETTING STATIONS

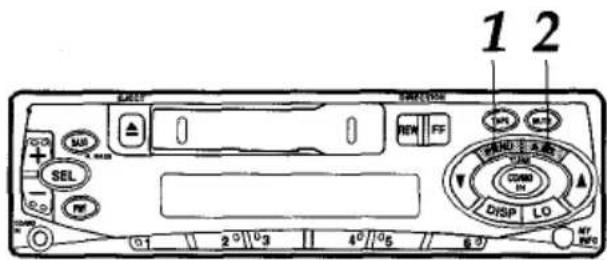

To preset stations automatically (auto memory)

1 Press BAND to select a desired band from among FM1, FM2, FM3 and AM.

2 Press and hold A.ME for more than 2 seconds to activate the automatic presetting function.

The six strongest available stations will be stored in memory on the preset station buttons 1 to 6 in order of their signal strength.

Use this function to automatically preset up to 6 stations each for FM1, FM2, FM3 and AM (up to a total of 24 stations).

• When auto memory is completed, the station stored in the preset station button 1 is tuned in.
• To stop auto memory, press A.ME again.

To check the preset stations (preset scan)

• If you wish to check the preset stations, press A.ME for less than 2 seconds. The preset stations stored in memory will be tuned in for 5 seconds each in order.
• To stop this function, press A.ME again or press any of the preset station buttons 1 to 6.

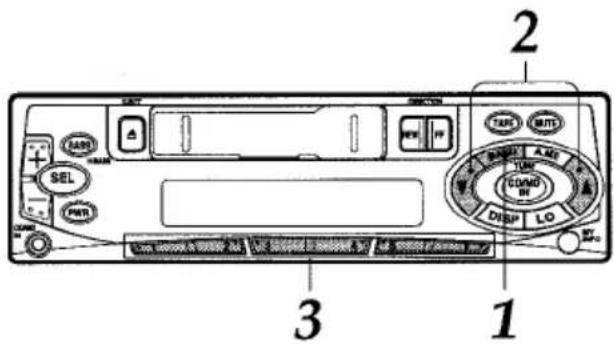

To preset stations manually

You can manually preset stations that have not been selected by auto memory.

1 Press BAND to select the band from among FM1, FM2, FM3 and AM.
2 Tune in the station that you wish to preset with TUNE or TUNE.
3 Press one of the preset station buttons 1 to 6 for approximately 2 seconds.

The number of the pressed preset station button appears next to the frequency indication.

Preset number

Repeat these procedures to preset up to 6 stations each for FM1, FM2, FM3 and AM.

• If you try to preset a station on a preset station button on which another station of the same band has already been preset, the previously preset station will be erased.

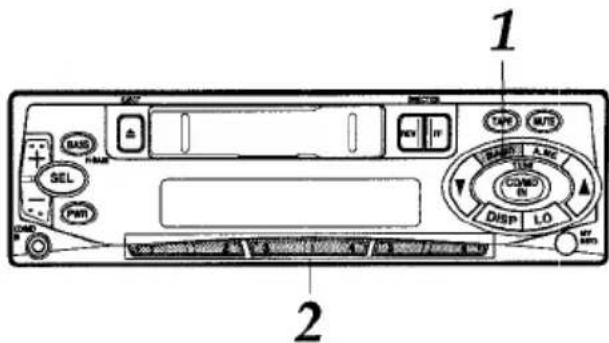

To tune in the preset stations

1 Press BAND to select a desired band from among FM1, FM2, FM3 and AM.
2 Press the desired preset station button. The number of the pressed preset station button is displayed next to the frequency indication.

Active tuning reception control (ATRC)

This unit automatically suppresses FM noise caused by varying signal strength resulting from movement of the car.

The built-in automatic blending circuit mixes the left and right channel signals according to the strength of the reception. At the same time, the high-cut circuit activates to maintain the sound quality.
- If the reception becomes even weaker, the unit automatically switches to Monaural mode to reduce noise.

MY INFORMATION SWITCH

You can timer-activate the radio for a daily radio program. The unit turns on and off in Radio mode at the preset time automatically.

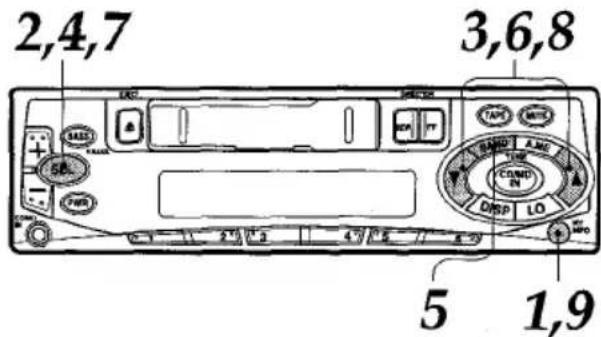

Setting the timer

1 With the unit off, press and hold MY INFO for more than 2 seconds.

The "PO" indication flashes in the display window.

2 Press SEL.

Timer indication flashes.

3 Set the time you wish the unit to turn on in Radio mode.

Press TUNE to set the hour.

Press TUNE to set the minute.

4 Press SEL.

Radio indication flashes.

Band indicator

5 Press BAND to select the band.
6 Tune in the station that you wish to preset with TUNE or TUNE A.

7 Press SEL.

Timer indication flashes.

8 Set the time you wish the unit to turn off.

Press TUNE to set the hour.

Press TUNE to set the minute.

9 Press and hold MY INFO for more than 2 seconds.

Your setting is stored in memory and the unit turns off.

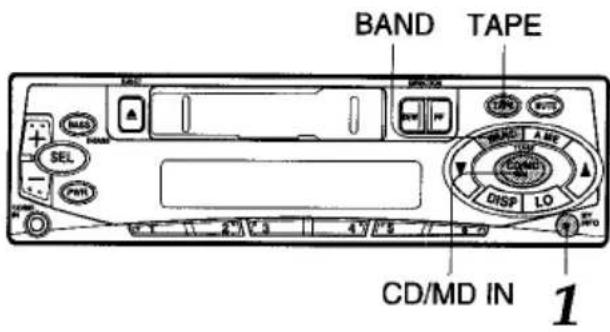

Activating the timer

1 With the unit on, press MY INFO.

The "MY INFO" indicator lights up and the timer is activated.

To cancel the timer

Press MY INFO again so that the "MY INFO" indicator disappears.

To check the setting

With the unit off, press MY INFO.

The turn-on time, followed by the radio frequency and the turn-off time, appears in the display window each for 1 second, then the unit turns off.

Notes

Even if the unit is in a mode other than Radio mode, the unit switches to Radio mode and tunes in the preset radio program at the preset time automatically.
Even if you are listening to a radio program with this function, pressing the following buttons switches the unit to other mode:

Pressing BAND changes the unit to Radio mode.
- Pressing TAPE changes the unit to Tape Play mode.
- Pressing CD/MD IN changes the unit to CD/ MD IN mode.

If you switch modes with these buttons, the unit does not turn off at the turn-off time of the timer.

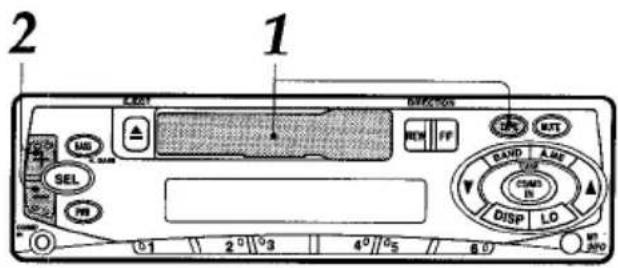

TAPE PLAYBACK

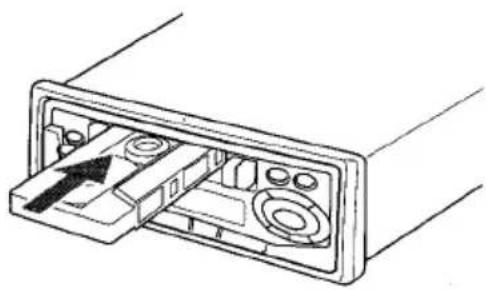

1 Insert a cassette to start playback.

If a cassette is already inserted, press TAPE to start playback.

Playback starts in the direction that the unit played back previously.

2 Adjust the volume with + / -

Press the following buttons to operate tape transport.

To do this	Press this button
Eject the cassette*	▲
Change the playback side	NEW and FF simultaneously
Fast-forward either side of the tape	FF
Rewind either side of the tape	NEW
Stop fast winding and resume playback	NEW or FF lightly**

• When you eject the cassette, the unit switches to Radio mode.
  When a cassette is inserted, comes out so that it can be pressed to eject the cassette.
  ** Do not press or all the way. Doing so may change the direction of tape transport.

continued

TAPE PLAYBACK

Auto reverse function

When the end of the tape is reached during playback or fast tape transport, the direction of the tape is automatically reversed, and playback starts again.

Tape transport side indications

The following indications are displayed to show the currently playing side.

Upper side	Lower side

Before turning the ignition off

Be sure to eject any cassette from the unit before turning the ignition off.

Switching modes

When the unit is in Radio mode, inserting a cassette switches the unit to Tape Play mode automatically.

To prevent tape problems

Before inserting a cassette into the unit, make sure that there is no slack in the tape. If necessary, take up the slack by inserting a pencil into the spindle hole and winding.

90-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.

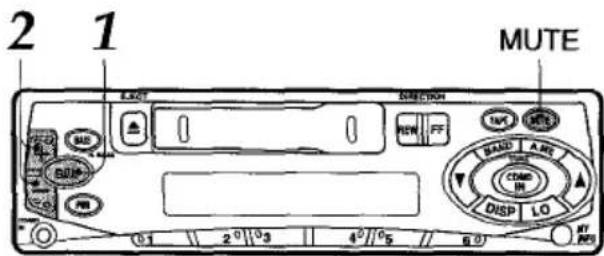

SOUND ADJUSTMENTS

1 Press SEL to select the mode that you wish to adjust from: VOL (volume), BASS (bass), TRE (treble), BAL (balance) and FAD (fader).

The following indicators appear in cyclic order.

If you do not proceed with step 2 within 5 seconds, the selected mode is canceled, and the indication returns to the current source mode.

2 Press + / - to adjust the level.

Press and hold either button to change the level rapidly.

	-	+
VOL	Decreases the volume level	Increases the volume level
BASS	Decreases the bass level	Increases the bass level
TRE	Decreases the treble level	Increases the treble level
BAL	Decreases the level of the right speaker(s)	Decreases the level of the left speaker(s)
FAD	Decreases the level of the front speakers	Decreases the level of the rear speakers

Without selecting any mode with SEL, only the volume level can be adjusted by pressing +/−.

MUTE button

Press this button to temporarily lower the volume. Press it again to restore the previous volume.

H-BASS (High BASS)

You can enjoy music with strong bass sound.

Press H-BASS to obtain powerful bass.

The "HBASS" indicator lights up.

Each time you press H-BASS, this function turns on or off.

CONNECTING A PORTABLE CD/MD PLAYER OR OTHER EQUIPMENT

This unit is equipped with the line-level input (CD/ MD IN) jack enabling high quality of the sound.

1 If a cassette is inserted, remove it to prevent possible damage to the unit.
2 Connect a portable CD/MD player, etc. via the CD/MD IN jack (3.5-mm dia.) on the unit.
3 Press PWR to turn the unit on.
4 Press CD/MD IN to listen to the connected equipment.

The "Cd" indication appears.

• For further information on the connected equipment, refer to the operating instructions for the equipment.

Note

Be sure to press CD/MD IN after you connect a portable CD/MD player, etc. to the CD/MD IN jack to listen to the connected equipment.

Even if equipment is connected to the CD/MD IN jack, you cannot listen to the connected equipment without switching the unit to CD/MD IN mode by pressing CD/MD IN.

SETTING THE BEEP TONE

The beep function is deactivated at the factory. To have a beep sound each time you press any button other than , REW, or FF, follow the procedure below.

1 With the unit on, press 1 and 4 at the same time.

Each time you press them, this function turns on or off.

The beep function is activated when you hear a beep.

MAINTENANCE

Cleaning the front panel

When the front panel is soiled, wipe the surface of the panel with a dry and soft cloth.

Cleaning the tape head

Use a cleaning cassette to clean the playback head and capstans approximately once a month. If the playback head is dirty, the high tones may not be reproduced properly.

SPECIFICATIONS

RADIO SECTION

(FM)

Frequency Range. 87.5 MHz-108 MHz (100-kHz steps)
87.5 MHz-108 MHz (50-kHz steps)

Usable Sensitivity: 12.7dBf

50 dB Quieting Sensitivity: 17.2

IF Rejection: 80 dB

Frequency Response: 30 Hz-15,000 Hz

S/N Ratio: 63 dB

Stereo Separation: 35 dB at 1 kHz

Alternate Channel Selectivity: 70 dB Capture Ratio: 3 dB

(AM)

Frequency Range: 530 kHz-1,710 kHz (10-kHz steps) 522 kHz-1,620 kHz (9-kHz steps)

Usable Sensitivity: 30 V (30 dB)

TAPE SECTION

Tape Speed: 4.8 cm/sec. (1 ^7/8 ips)

S/N Ratio: 50 dB

Frequency Response: 40 Hz-14,000 Hz

Stereo Separation: 40 dB

FF/REW Time 190 sec. (C-60)

AUDIO SECTION

Max. Power Output: 35 W × 4 channels

CD/MD IN input

Input sensitivity (load impedance)

CD/MD IN: 500 mV (10 kΩ)

GENERAL

Power-Supply Voltage: 14.4 V (11 to 16 V allowable), DC, negative ground Load Impedance: 4 Ω

Tone Control: Bass ± 10 dB at 100 Hz Treble ± 10 dB at 10 kHz

Preamp Output Voltage (load impedance): 2.2 V (10 kΩ)

Installation size. 182 (W) × 53 (H) × 155 (D) mm (7 ^1/4 (W) × 2 ^1/8 (H) × 6 ^1/8 (D) inches)

• Specifications and external appearance are subject to change without notice due to product improvement

Bienvenidos

H-BASS (graves altos)

Touche LO (local/DX)
