Tix 71033 - Hand blender Vice Versa - Free user manual and instructions

Product type	Immersion blender
Brand	Vice Versa
Model	Tix 71033
Power supply	220-240 V, 50-60 Hz
Rated power	600 W
Motor unit material	Plastic
Mixer shaft material	Stainless steel (estimated)
Power cable length	Approximately 1.2 m (estimated)
Weight	Approximately 0.8 kg (estimated)
Number of speeds	Variable (speed selector)
Main functions	Mix, blend, prepare purees, soups, smoothies, milkshakes, liquid batters
Intended use	Household use only
Splash protection	Integrated blade guard
Child safety	Keep appliance out of reach of children under 8; use by children over 8 only under supervision
Safety stop	Unplug before cleaning; do not use with an external timer
Cleaning the motor unit	Do not immerse; clean with a damp cloth
Cleaning the mixer shaft	Hand or dishwasher safe (caution with blades)
Spare parts	Original spare parts recommended; contact retailer
Repairability	Do not disassemble yourself; contact after-sales service
Warranty	2 years (upon presentation of proof of purchase)
Manufacturer	Vice Versa, Via Isonzo 10, 22078 Turate (CO), Italy
Country of manufacture	China
Safety device	On/off button and unlock button

Frequently Asked Questions - Tix 71033 Vice Versa

How to use the Tix 71033 immersion blender?

Place ingredients in a container, attach the shaft to the motor, then lower the blade guard into the food. Press the on/off button and adjust the speed with the selector. Move the appliance slowly in vertical and circular motions.

What are the important safety precautions?

Do not immerse the motor unit, do not touch the blades when the appliance is plugged in, and unplug before cleaning. Use only indoors and for household purposes. Keep the appliance out of reach of children under 8 years.

How to clean the immersion blender?

Unplug the appliance. Remove the shaft by pressing the unlocking buttons. Clean the motor unit with a damp cloth only. The shaft can be hand washed or placed in the dishwasher, but be careful of the sharp blades.

What to do if the blades get jammed?

Immediately unplug the appliance from the power outlet before removing any ingredients blocking the blades.

Can I use accessories not supplied by Vice Versa?

No. Using accessories or parts from other manufacturers voids the warranty and can be dangerous. Use only original spare parts.

How to adjust the speed?

Turn the speed selector located on the motor unit. It is advisable to start at low speed to avoid splashing, then increase gradually.

What to do if the appliance does not work?

Check that the plug is properly inserted and that the voltage matches that indicated on the rating plate. If the problem persists, unplug and contact your retailer or after-sales service.

Can I blend hot foods?

Yes, the blender is suitable for soups and other cooked foods, but allow to cool slightly before blending to avoid hot splashes.

How to replace the power cord?

Replacement of the power cord must be carried out by the manufacturer, its after-sales service, or a qualified person. Do not attempt to do it yourself.

Where to find the user manual?

The manual is available free of charge in PDF format on the notice-facile.com website. You can also download it or request a translation in your language.

USER MANUAL Tix 71033 Vice Versa

23078Lurale(CD)ITALY

www.viceversaet.com

Tix hand blender

model n° 71xxx

220-240Va,50-60Hz

600W

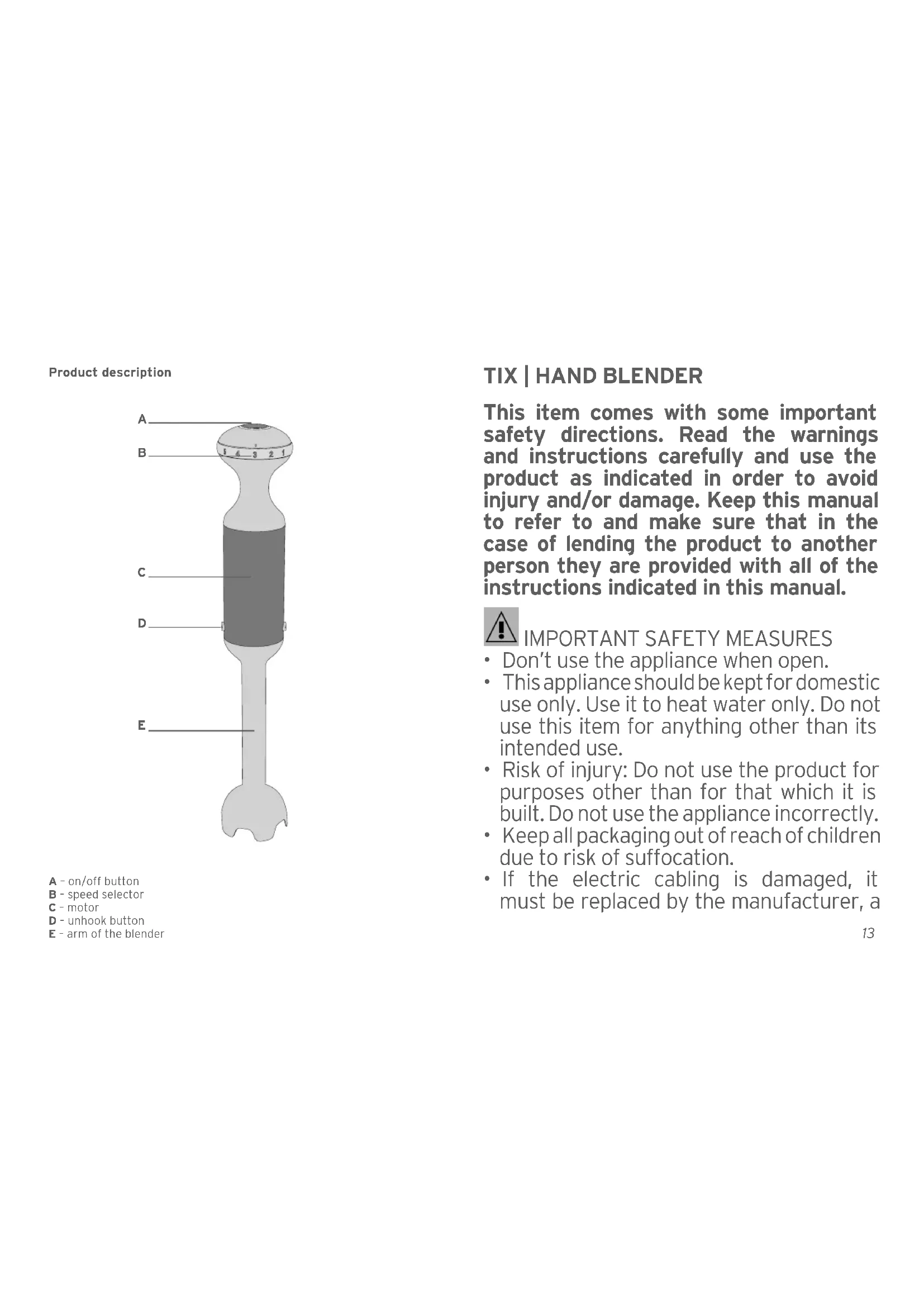

A-on/off button
B - speed selector
C-motor
D-unhook button
E - arm of the blender

TIX | HAND BLENDER

This item comes with some important safety directions. Read the warnings and instructions carefully and use the product as indicated in order to avoid injury and/or damage. Keep this manual to refer to and make sure that in the case of lending the product to another person they are provided with all of the instructions indicated in this manual.

IMPORTANT SAFETY MEASURES

• Don't use the appliance when open.
• This appliance should be kept for domestic use only. Use it to heat water only. Do not use this item for anything other than its intended use.
• Risk of injury: Do not use the product for purposes other than for that which it is built. Do not use the appliance incorrectly.
• Keep all packaging out of reach of children due to risk of suffocation.
• If the electric cabling is damaged, it must be replaced by the manufacturer, a

technical service assistant or by a similarly qualified person in order to prevent every possible risk.

• If the appliance is damaged, replace it only with original parts otherwise the warranty will no longer be valid.
• Do not immerse or rinse the motor under water or any other liquid. To clean the motor, use a wet cloth only.
• Do not touch the blades, especially when the appliance is plugged in. The blades are extremely sharp!
• If the blades stop spinning, remove the plug from the socket before removing the ingredients that have obstructed them.
• This appliance can be used by children of 8 years old providing they are supervised or have been given safety instructions on how to use the appliance and they understand the risk of danger.
• Maintenance and cleaning by the user must not be done by children, unless they are at least 8 years old and are supervised. Keep the appliance and cable out of reach of children who are 8 years

and under.

• This appliance can be used by people with physical, sensory or mental impairments or by people without experience or knowledge (of the product) providing they are supervised or have been given safety instructions on how to use the appliance and they understand the risk of danger.
  Children must not play with the appliance.
  Children must be supervised in order to make sure they do not play with the appliance.
• Disconnect the appliance from the power supply before servicing or cleaning.
• In the event of abnormal circumstances turn off the device immediately and contact the seller or customer services.
• Do not connect this appliance to any type of timer, control system or any other type of device that can switch it on automatically.

• It is absolutely prohibited to dismantle or repair the appliance due to the risk of electric shock; if it is necessary, contact the seller or customer services.

• Do not use the device near an open flame.

• Before connecting the appliance to a power supply, ensure that the voltage is correct according to the product label and that the electrical system conforms to standard regulations.
  Always remove the plug from the socket when the device is not in use.
• Turn off and disconnect the appliance from the power supply if left unattended and before assembling, disassembling or cleaning.

Warning:

This appliance must only be used for that which it is intended. Any other use is considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for damage caused by improper, inaccurate or unreasonable use. The use of any electrical appliance involves compliance with some fundamental rules. In particular:

• Do not touch the appliance with wet or moist hands;
• Do not use the appliance with bare feet
• Do not use accessories or parts of other products that have not been specifically recommended by VICEVERSA. In the event that said accessories or parts are used, the warranty will no longer be valid.
• This appliance is intended for domestic use only.
• Do not leave the device exposed to atmospheric agents (rain, sun, etc.).

INSTRUCTIONS FOR USE:

Before use

Before using the appliance for the first time, carefully read the instructions for installation, use and maintenance, in addition to all of the safety warnings.

1. Remove all of the packaging.
2. Check that the product is not visibly damaged, that it has all of its components and none of which are damaged.
3. Carefully wash all of the parts that come into contact with food (see Chapter "cleaning")

How to use the appliance

The blender is suitable for:

• blending liquids such as dairy products, cream, fruit juices, soups, milkshakes and smoothies;
• mixing soft ingredients like pancake batter or mayonnaise;

• preparing puree with cooked food (for example when preparing baby food).

• Put the ingredients in an appropriate container.

• Attach the arm of the blender to the motor and lock into place.
• Insert the plug into a wall socket.
• Immerse the blade guard completely into the ingredients.
• Push the on/off button; it is possible to change the speed settings by turning the speed selector. It is advised to start with a lower speed setting to avoid splashing.
• To blend the ingredients, move the appliance slowly around using vertical or circular movements.

CLEANING

• Do not immerse the motor in water.

• Remove the plug from the power source.

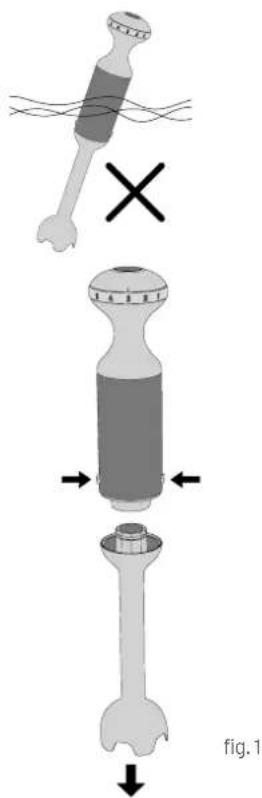

• Push the unhook button to remove the motor from the arm of the blender (fig. 1).

• 3.Pass a wet cloth over the motor.
• 1. The arm of the blender can be washed or in a dishwasher, pay careful attention to the blades.

IDENTIFICATION SEAL

The identification seal carries technical data, the serial number and the branding. The identification seal must never be removed.

The symbol of the crossed bin that appears on the appliance indicates that the product, at the end of its use of life, must be treated separately from domestic waste, it must be placed in a differentiated waste collection facility for electrical appliances and electronics or returned to the seller at the moment of a new purchase of an equivalent appliance.

The appropriate differentiated garbage disposal is needed in order to start the production of recycled appliances, with environmentally friendly treatment and disposal, which contributes to the prevention of negative environmental and health effects and favours the recycling of materials of which it is composed.

The user is responsible for disposing the appliance at the end of its life in the correct waste disposal facility. For more detailed information regarding waste classification, contact your local waste disposal service, or the place where the item was bought.

Whoever abandons or throws away this appliance and does not take it to a differentiated waste disposal facility for electric and electronic waste may be punished with financial administrative sanctions provided for by abusive waste disposal law.

WARRANTY

VICEVERSA guarantees the product for two years from the date of purchase.

The electrical appliance was made using the latest production techniques and has undergone quality controls. VICEVERSA guarantees the perfect conditions of the product.

We will repair all production or material defects before the warranty ends. In order for the warranty to be permitted, all claims must be accompanied with original proof of purchase.

In the event of malfunctioning and in particular, damages to the electric cable, contact the supplier VICEVERSA and during this period, do not use the hand blender.

Technical details

VICEVERSA

22078 196e (CO) ITALY www.vicgesa.ca

Tix hand blender

model n° 71xxx

220-240Va,50-60Hz

600W

In view of continuing improvement, VICEVERSA reserves the right to make changes and improvements to the product in question without prior notification.

Viceversa

Via Isonzo, 10 - Turate (CO) 22078, ITALY

www.viceversa.it
