Tix 71022 - Hand blender Vice Versa - Free user manual and instructions

Product type	Hand blender
Brand	Vice Versa
Model	Tix 71022
Power supply	220-240 V ~ 50-60 Hz
Power	600 W
Speeds	Variable with speed selector
Shaft material	Stainless steel
Cable length	Approximately 1.2 m
Dimensions (L x W x H)	Approximately 40 x 7 x 7 cm
Weight	Approximately 0.8 kg
Functions	Blend, mix, prepare purees, soups, smoothies, milkshakes
Safety	No automatic shut-off, sharp blades, do not immerse motor unit
Cleaning	Shaft dishwasher safe, wipe motor unit with a damp cloth
Warranty	2 years
Included accessories	Blending shaft
Country of manufacture	China
Intended use	Household use only
Control type	On/off button and speed selector
Maintenance	Unplug before cleaning, do not immerse motor unit
Repairability	Contact the retailer or after-sales service

Frequently Asked Questions - Tix 71022 Vice Versa

How to use the Tix 71022 hand blender?

Place the ingredients in a suitable container, attach the blending shaft, immerse the blade guard, then press the on/off button. Adjust the speed with the selector.Start at low speed to avoid splashes.

Can I wash the blender shaft in the dishwasher?

Yes, the blending shaft is dishwasher safe.Be careful of sharp blades. The motor unit must never be immersed.

What to do if the blades jam?

Always unplug the appliance before removing ingredients blocking the blades. Never touch the blades when the appliance is plugged in.

What is the power of the blender?

The Tix 71022 hand blender has a power of 600 W.

Is the blender suitable for hot preparations?

Yes, it can blend hot soups, but ensure you do not immerse the motor unit and use a heat-resistant container.

How to clean the motor unit?

Never immerse the motor unit. Clean it with a damp cloth. Before cleaning, unplug the appliance.

What is the warranty on the product?

Vice Versa offers a 2-year warranty from the date of purchase, covering manufacturing and material defects.

Can I use the blender to make mayonnaise?

Yes, the blender is ideal for mixing fluid ingredients like mayonnaise. Use a tall, narrow container for best results.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer, after-sales service, or a qualified person to replace it to avoid any hazard.

Can this appliance be used by children?

Yes, from 8 years old under supervision and if they have received safety instructions. Children under 8 years must be kept away.

USER MANUAL Tix 71022 Vice Versa

Simple line drawing of a medical or laboratory device with a cross mark, no text or symbols present.

Diagram showing two mechanical components with directional arrows indicating movement or force (no text or symbols present)

fig. 1

This item comes with some important safety directions. Read the warnings and instructions carefully and use the product as indicated in order to avoid injury and/or damage. Keep this manual to refer to and make sure that in the case of lending the product to another person they are provided with all of the instructions indicated in this manual.

IMPORTANT SAFETY MEASURES

• Don't use the appliance when open.
• This appliance should be kept for domestic use only. Use it to heat water only. Do not use this item for anything other than its intended use.
• Risk of injury: Do not use the product for purposes other than for that which it is built. Do not use the appliance incorrectly.
• Keep all packaging out of reach of children due to risk of suffocation.
• If the electric cabling is damaged, it must be replaced by the manufacturer, a

technical service assistant or by a similarly qualified person in order to prevent every possible risk.

• If the appliance is damaged, replace it only with original parts otherwise the warranty will no longer be valid.
• Do not immerse or rinse the motor under water or any other liquid. To clean the motor, use a wet cloth only.
• Do not touch the blades, especially when the appliance is plugged in. The blades are extremely sharp!
• If the blades stop spinning, remove the plug from the socket before removing the ingredients that have obstructed them.
• This appliance can be used by children of 8 years old providing they are supervised or have been given safety instructions on how to use the appliance and they understand the risk of danger.
• Maintenance and cleaning by the user must not be done by children, unless they are at least 8 years old and are supervised. Keep the appliance and cable out of reach of children who are 8 years

and under.

• This appliance can be used by people with physical, sensory or mental impairments or by people without experience or knowledge (of the product) providing they are supervised or have been given safety instructions on how to use the appliance and they understand the risk of danger.
  • Children must not play with the appliance.
  • Children must be supervised in order to make sure they do not play with the appliance.
• Disconnect the appliance from the power supply before servicing or cleaning.
• In the event of abnormal circumstances turn off the device immediately and contact the seller or customer services.
• Do not connect this appliance to any type of timer, control system or any other type of device that can switch it on automatically.

• It is absolutely prohibited to dismantle or repair the appliance due to the risk of electric shock; if it is necessary, contact the seller or customer services.

• Do not use the device near an open flame.

• Before connecting the appliance to a power supply, ensure that the voltage is correct according to the product label and that the electrical system conforms to standard regulations.
  • Always remove the plug from the socket when the device is not in use.
• Turn off and disconnect the appliance from the power supply if left unattended and before assembling, disassembling or cleaning.

Warning:

This appliance must only be used for that which it is intended. Any other use is considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for damage caused by improper, inaccurate or unreasonable use. The use of any electrical appliance involves compliance with some fundamental rules. In particular:

• Do not touch the appliance with wet or moist hands;
• Do not use the appliance with bare feet
• Do not use accessories or parts of other products that have not been specifically recommended by VICEVERSA. In the event that said accessories or parts are used, the warranty will no longer be valid.
  • This appliance is intended for domestic use only.
• Do not leave the device exposed to atmospheric agents (rain, sun, etc.).

INSTRUCTIONS FOR USE:

Before use

Before using the appliance for the first time, carefully read the instructions for installation, use and maintenance, in addition to all of the safety warnings.

1. Remove all of the packaging.

2. Check that the product is not visibly damaged, that it has all of its components and none of which are damaged.

3. Carefully wash all of the parts that come into contact with food (see Chapter "cleaning")

How to use the appliance

The blender is suitable for:

• blending liquids such as dairy products, cream, fruit juices, soups, milkshakes and smoothies;

• mixing soft ingredients like pancake batter or mayonnaise;
  • preparing puree with cooked food (for example when preparing baby food).

• Put the ingredients in an appropriate container.

• Attach the arm of the blender to the motor and lock into place.
• Insert the plug into a wall socket.
• Immerse the blade guard completely into the ingredients.
• Push the on/off button; it is possible to change the speed settings by turning the speed selector. It is advised to start with a lower speed setting to avoid splashing.
• To blend the ingredients, move the appliance slowly around using vertical or circular movements.

CLEANING

• Do not immerse the motor in water.
• Remove the plug from the power source.

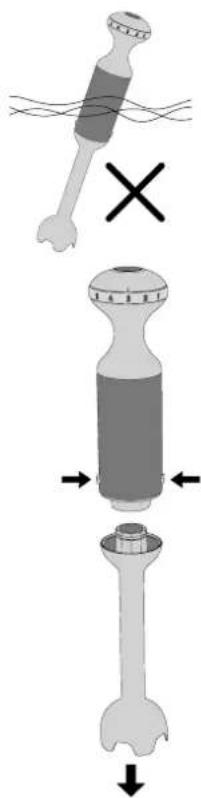

Diagram illustrating three stages of a mechanical device with cross mark indicating failure or error, showing step-by-step assembly.

1. Push the unhook button to remove the motor from the arm of the blender (fig. 1).
2. 1. Pass a wet cloth over the motor.
3. 1. The arm of the blender can be washed or in a dishwasher, pay careful attention to the blades.

IDENTIFICATION SEAL

The identification seal carries technical data, the serial number and the branding. The identification seal must never be removed.

The symbol of the crossed bin that appears on the appliance indicates that the product, at the end of its use of life, must be treated separately from domestic waste, it must be placed in a differentiated waste collection facility for electrical appliances and electronics or returned to the seller at the moment of a new purchase of an equivalent appliance.

The appropriate differentiated garbage disposal is needed in order to start the production of recycled appliances, with environmentally friendly treatment and disposal, which contributes to the prevention of negative environmental and health effects and favours the recycling of materials of which it is composed.

The user is responsible for disposing the appliance at the end of its life in the correct waste disposal facility. For more detailed information regarding waste classification, contact your local waste disposal service, or the place where the item was bought.

Whoever abandons or throws away this appliance and does not take it to a differentiated waste disposal facility for electric and electronic waste may be punished with financial administrative sanctions provided for by abusive waste disposal law.

WARRANTY

VICEVERSA guarantees the product for two years from the date of purchase. The electrical appliance was made using the latest production techniques and has undergone quality controls. VICEVERSA guarantees the perfect conditions of the product.

We will repair all production or material defects before the warranty ends. In order for the warranty to be permitted, all claims must be accompanied with original proof of purchase.

In the event of malfunctioning and in particular, damages to the electric cable, contact the supplier VICEVERSA and during this period, do not use the hand blender.

Technical details

VICEVERSA

via isonzo 10

22078 turate (CO) ITALY

www.viceversa.it

Tix hand blender

model n° 71xxx

220-240Va. 50-60Hz

600W

made in China

In view of continuing improvement, VICEVERSA reserves the right to make changes and improvements to the product in question without prior notification.

Viceversa

Via Isonzo, 10 - Turate (CO) 22078, ITALY

www.viceversa.it
