Technical Features	Details
Watch Type	Analog watch
Movement	Quartz movement
Case Material	Stainless steel
Case Diameter	38 mm
Water Resistance	3 ATM (30 meters)
Glass Type	Mineral glass
Strap	Genuine leather
Additional Features	No stopwatch or alarm function
Usage	Daily use, fashion, and special occasions
Maintenance	Battery replacement every 2-3 years
Safety	Avoid strong shocks and prolonged water exposure
General Information	2-year warranty against manufacturing defects

Frequently Asked Questions - Spacy Timeline Modell 3 Detomaso

How do I set the time on my Detomaso Spacy Timeline Model 3 watch?

To set the time, gently pull the crown out to the first position, then turn it clockwise or counterclockwise to adjust the time.

Is my Detomaso Spacy Timeline Model 3 watch waterproof?

Yes, the watch is waterproof up to 50 meters. This means it can withstand splashes, but it is recommended not to use it while swimming or diving.

How do I change the battery of my Detomaso Spacy Timeline Model 3 watch?

It is recommended to have the battery changed by a professional to avoid damaging the mechanism. You can take your watch to a jeweler or an authorized watchmaker.

What should I do if my watch is not working?

First, check if the battery is dead. If the watch still does not work after the battery replacement, contact customer service for further assistance.

How do I clean my Detomaso Spacy Timeline Model 3 watch?

Use a soft, dry cloth to clean the case and strap. Avoid harsh chemicals that could damage the materials.

Where can I find spare parts for my Detomaso Spacy Timeline Model 3 watch?

Spare parts can be ordered from Detomaso customer service or from an authorized dealer.

Can I adjust the strap of my Detomaso Spacy Timeline Model 3 watch myself?

It is possible to adjust the strap, but this requires specific tools. To avoid damaging the strap, it is recommended to consult a professional.

What is the warranty on my Detomaso Spacy Timeline Model 3 watch?

The watch is generally covered by a two-year warranty from the date of purchase. Keep your receipt for any warranty service requests.

How do I register my Detomaso Spacy Timeline Model 3 watch for the warranty?

You can register your watch by filling out the registration form on the official Detomaso website or by sending a letter with a copy of your receipt.

USER MANUAL Spacy Timeline Modell 3 Detomaso

Start Split Split release Stop Clear

["SPL"angezeigt]

Zwei Zeiten

Knopf D Knopf C Knopf D Knopf C Knopf C

Instructions for care 24

Various Models

SpacyTimelineModel1. 25

SpacyTimelineModel2 26

SpacyTimelineModel3 27

SpacyTimelineModel4 28

Digital/Analogue combination [DT1009] 29

Digital/Analogue combination 2. 33

Atomic watch 36

Guarantee 37

EN

Foreword

Congratulations on the purchase of your new watch. You are now the owner of a high precision time keeper characterised by its innovative design.

We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.

In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.

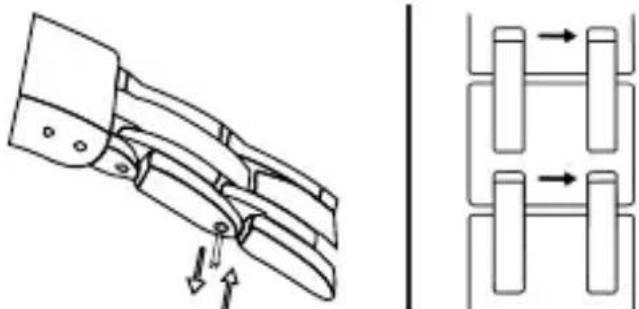

Shortening a metal link bracelet

Please have your metal bracelet shortened by a specialist. Improper adjustment of the bracelet may lead to your guarantee becoming void.

Bracelets with pins:

In order to shorten the bracelet, push out the pins on the side of the bracelet using a sharp object. Please observe the arrows engraved on the reverse of the metal bracelet or on the labels. After the bracelet has been shortened (links removed) simply push the pins back into place.

Bracelets with screws:

Use a suitable screwdriver to release the screws, shorten the bracelet [remove links] and then screw the bracelet back together.

Waterproof Properties

General Information on waterproof properties

Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use.

Specification Instructions
Case back Dial		Wash, Rain, Splash Shower	Water Bath Swirnming Skin-Divng
WATER-RESISTANT	no yes no no no no
WATER-RESISTANT 3 ATM	no yes no no no no
WATER-RESISTANT 5 ATM	50m yes no yes no no
WATER-RESISTANT 10 ATM	100m yes yes yes yes no
WATER-RESISTANT 20 ATM	200m yes yes yes yes yes

The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids. The level of waterproofness is given in ATM (atmosphere) and noted on the case back of the watch.

Watches are considered water resistant if they are resistant against sweat, water droplets, rain etc. They have to remain watertight for a period of 30 minutes when submerged in 1m of water. These watches are for normal everyday use and are not suitable for use in conditions where the water pressure and temperature vary considerably.

EN

An additional specification of pressure, such as "3 ATM", means the test conditions have been tightened. The specification "3 ATM" is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 3 ATM is reached at a depth of 30 meters.

In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.

Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage.

It is important to check and, if necessary, replace seals when the battery is replaced.

Instructions for care

Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.

Please note that your guarantee will be void in the event of improper use, unauthorised tampering and improper battery replacement and does not cover glass breakages.

In the event of a guarantee claim please submit your invoice and the guarantee card. Please keep your watch away from magnetic fi elds, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.

If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or the environment. Batteries should be replaced by a specialist at regular intervals of approx. 1 - 112 years.

The seals can then be checked and, if necessary, replaced at the same time.

In the event of condensation forming underneath the glass [misting], the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage. The crown should always be firmly pressed in or screwed tight during use. The leather watch strap is subject to normal wear and tear and, being a natural product, is particularly susceptible to moisture, perspiration, chemicals and abrasion.

It is not indefinitely durable and for reasons of hygiene should be replaced every 6-12 months, depending on how often it is worn. The retaining pins should be checked and, if necessary, replaced at the same time.

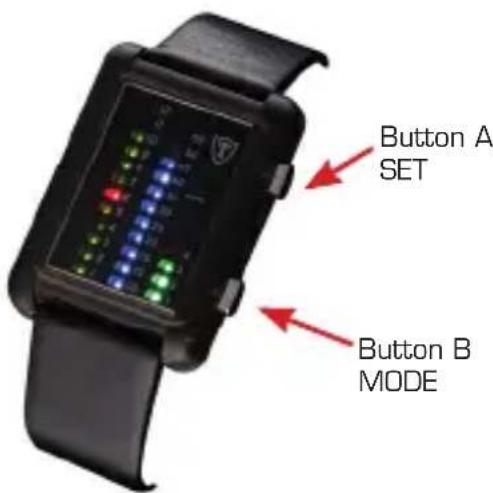

Spacy Timeline Model 1

C. EXAMPLES

Time display Date display

Yellow/green for am, red for pm. The LEDs for 5 and 10 o'clock are illuminated in a different colour for easy reading!

Model: G30723A, G30723B

A. FUNCTION

1. LED time display with hours, minutes, month and day
2. 24-hour time display with two-colour LED

B. INSTRUCTIONS

Time and date display

1. Press button A or B to activate the time display. Press button B to display month and day. Press button B again to return to the time display mode.
2. The LED display switches off automatically if nothing has been entered for 5 seconds.

Setting the time and date

1. Press and hold button A for 3 seconds while in the time display mode in order to enter the time/date setting mode. The hour LED flashes. Press button A again to enter the next setting.

1. While the LED is flashing, press button B to adjust the settings.
2. In the setting mode as well as later on in the set display the hour leds are shown in red for am and in yellow/green for pm.

Time display Date display
11:51 17:49

24. Dez

11.Aug

Yellow for am, blue for pm.

Model: G30723S, G30723R

EN

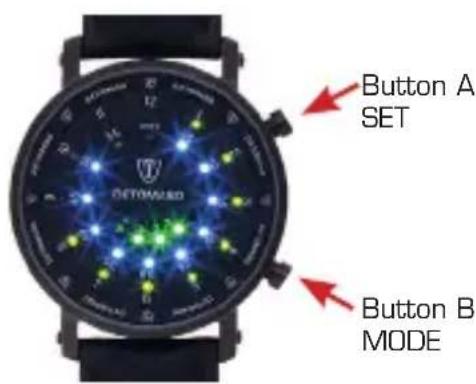

Spacy Timeline Model 2

A. FUNCTION

1. LED time display with hours, minutes, month and day
2. 24-hour time display with two-colour LED

B. INSTRUCTIONS

Time and date display

1. Press button A or B to activate the time display. Press button B to display month and day. Press button B again to return to the time display mode
2. The LED display switches off automatically if nothing has been entered for 5 seconds.

Setting the time and date

1. Press and hold button A for 3 seconds while in the time display mode in order to enter the time/date setting mode. The hour LED flashes. Press button A again to enter the next setting.

1. While the LED is flashing, press button B to adjust the settings.
2. In the setting mode as well as later on in the set display the hour leds are shown in red for am and in yellow/green for pm.

Examples

Time display Date display Time display Date display

6:34

16:47

8.Aug

31. Dez

6:34

16:47

8. Aug

31. Dez

Yellow/green for am, red for pm.

Yellow/green for am, blue for pm.

Modell: G-30730-BK, G-30730-S

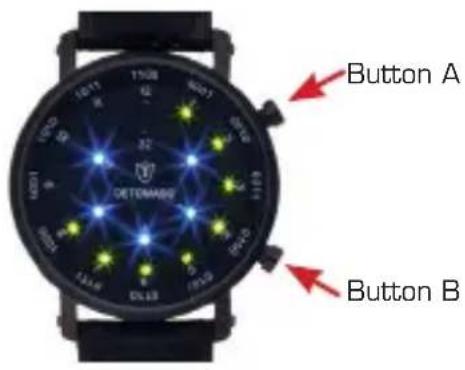

Spacy Timeline Model 3

A. Function

Binary LED time display with hours and minutes. Binary LED date display.

B. Display of time and date

Press button A or B to display the time. While time is displayed press button B to display the date. Press once more to display the time again. The last illuminated LED of the outer ring displays either the hour or the month. In order to gi gure out the minute or the date please add the digits of the inner ring. After 5 seconds without input the display will stop automatically.

C. Setting the time

Press button A for 3 seconds when you are in the time display setting. The LEDs for the hour will flash. Press button B to set the hour. Press button A to switch to the minute display and set with button B.

D. Setting the date

Press button A and B in sequence and then hold button A for 3 seconds. The LEDs for the month will flash. Press button B to set the month. Press button A to switch to the date display and set with button B.

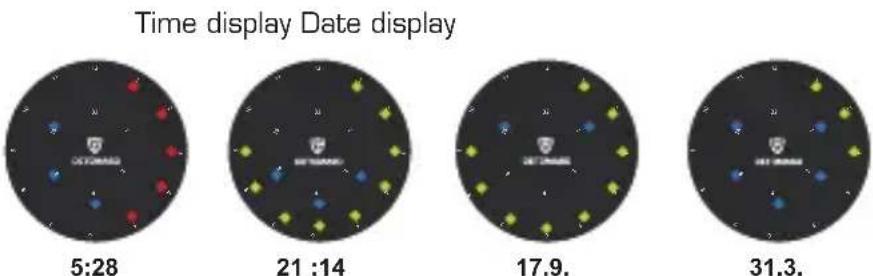

Examples

The hours are displayed in red for am and in yellow/green for pm.

EN

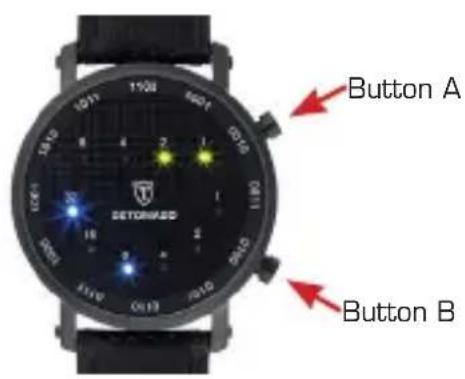

Spacy Timeline Model 4

A. Function

Binary LED time display with hours and minutes. Binary LED date display.

B. Display of time and date

Press button A or B to display the time. While time is displayed press button B to display the date. Press once more to display the time again. In order to fi gure out the hour, minute, month or date, please add the digits above the illuminated LEDs. After 5 seconds without input the display will stop automatically.

C. Setting the time

Press button A for 3 seconds when you are in the time display setting. The LEDs for the hour will flash. Press button B to set the hour. Press button A to switch to the minute display and set with button B.

D. Setting the date

Press button A and B in sequence and then hold button A for 3 seconds. The LEDs for the month will flash. Press button B to set the month. Press button A to switch to the date display and set with button B.

Examples

Time display Date display

21:17

27.9.

31.3.11:43

The hours are displayed in red for am and in yellow/green for pm.

On the watch model DT2016 the hours light up in yellow in the mornings and in blue in the afternoons

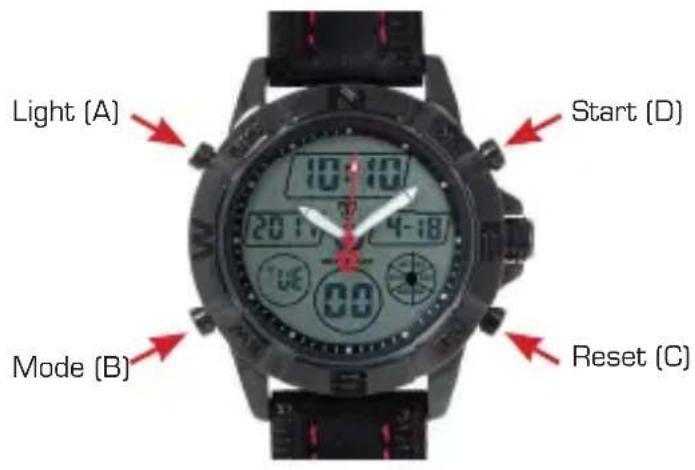

Digital/Analogue combination (DT1009)

A FEATURES

• 13 digit LCD display: hour, minute, second, month, day, week and year [2000 to 2099].
• 5 different alarms and hourly time signal
• Timer function.
• Snooze function
• Choice of 12 / 24 hour format
  Automatic calendar
  1/100 second chronograph
• Display of 2 time zones
  EL Backlight

EN

EN

B. OPERATION

1. Press the B key to choose a mode. Press the A key (in any mode/display) to turn on the EL backlight for 3 seconds.
2. Setting the digital time

In the time mode press and hold key C for 2 seconds until the seconds flash. Use key B to choose which feature you wish to set:

Hour -> Minute -> Year -> Month -> Day ->

• In each sequence use key D to make the required settings.
• Press key D to then return the seconds to D
• Press key C to return to time mode.
  12/24 hour format:

In time mode use key D to change between a 12-hour and 24-hour display.

3. Setting the analogue time

Pull out the crown on the right - the seconds hand stops moving. Turn the crown clockwise to move the hour and minute hands. When the crown is pushed back in the seconds hand starts to move again.

4. Alarm Function

You may choose up to 5 independent alarm functions. Start with the settings for hour, minute, month and day. When the alarm function is active a signal sounds for 10 seconds as soon as the current alarm time is reached. You may also activate an hourly time signal. In this case the watch bleeps twice on every full hour.

The alarm number (AL1 to AL5) is shown in the alarm display. In alarm mode press key C to turn this display ON / OFF.

In alarm AL1 mode press key C to select the snooze (SNZ) alarm. Press key C to turn the snooze function ON / OFF and activate the display. When the snooze function is turned ON the signal is repeated 5 minutes later in the AL-1 function and then stops automatically after 1 minute.

Press key C to turn off the snooze function.

The following alarm types may be selected:

1 One-off alarm [set hour, minute, month, day]:

Alarm signal sounds once at the preset date/time.

2 Daily alarm (set hour, minute):

Alarm signal sounds daily at the preset time.

3 One-month alarm [set hour, minute, month]:

Alarm signal sounds daily at the preset time, but only in the preset month.

4 Monthly alarm (set hour, minute, day):

Alarm signal sounds every month at the preset day/time.

Setting the alarm:

In alarm mode press key D to select which alarm is to be set.

a. After the alarm has been selected press and hold key D until the hour display flashes.
b. Press key B to make the following displays flash and make the settings:

Hour -> Minute -> Month -> Day ... [back to Hour]

c. While a display is flashing use key D to change the setting. To activate an alarm without a month (eg. daily alarm) press key D while the month display is flashing until the "- sign (between 12 and 1) appears. To activate an alarm without a day (eg. Daily alarm, one-month alarm) press kex D while the day display is flashing until the "- sign (between 31 and 1) appears. Press key C to return to alarm mode.

Turn ON / OFF snooze and time signal:

a. In the alarm mode (AL1) press key C to turn snooze function ON/OFF.
b. In the "AL:OO" mode press key C to turn the time signal [ON/OFF.
c. SNZ : shows that the snooze function is turned ON.
d. (()) shows that the hourly time signal is turned ON.
e. If any alarm type is activated this will be shown in the display when you change to a different mode.

5. Timer Function

The countdown timer can be set for any period between 1 minute and 24 hours. When the countdown reaches 0 a signal sounds. The final signal sounds for approx. 10 seconds or until any other key is pressed to stop it.

Setting the countdown timer

a. In countdown mode press and hold key C until the hour display of the countdown timer flashes.

Press key A to change between automatic repeat ON [ ] and OFF [ ] is not displayed].

EN

B. INSTRUCTIONS

b. Press key B to move the flashing displays in the following order and make the settings:
c. Press key D while a display is flashing to set it.
d. Press key C to return to countdown mode.
e. to set the start of the countdown time to 24.00 hrs set it at 0:00 00.

Timer operation

a. Press key D to start or stop the timer. Press key C to return to the initial start position when you are finished.
6. Chronograph

The display range of the Chronograph is 23 hours,59 minutes,59.99 seconds.

Elapsed time

D Key

D Key

D Key

D Key

C Key

Start Stop

Re-start

Stop

Clear

Spilt time

D Key

C Key

C Key

D Key

C Key

Start

Split

Split release

Stop

Clear

["SPL" displayed]

Two Finishes

D Key

C Key

D Key

C Key

C Key

Start

Split

Stop

Split release Clear

1. Two time zones

a. Press and hold key C for 2 seconds to enter the 2-time zone mode. The hour display flashes. Press key B to select the following sequence:
b. Press key D to set the flashing displays.
c. Press key C to return to 2-time zone mode.

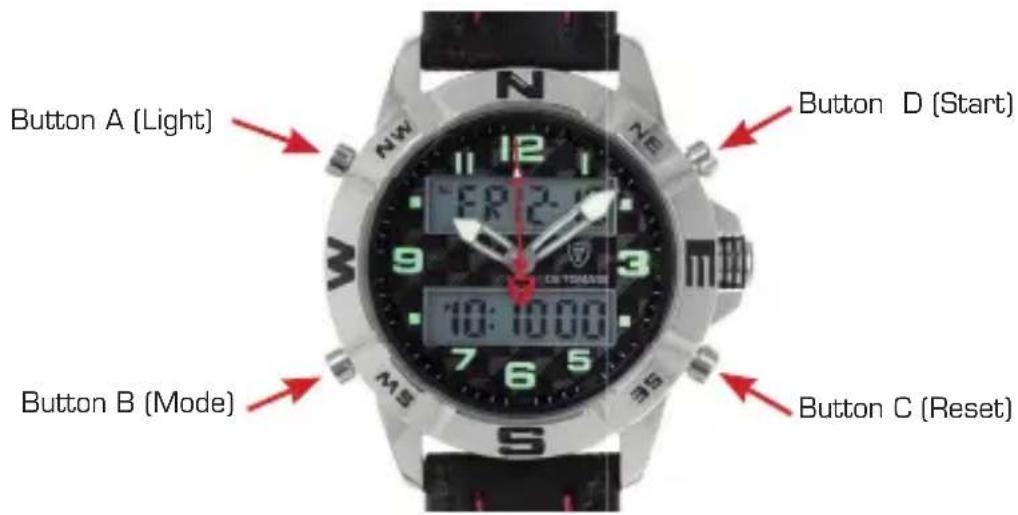

Digital/Analogue combination 2

FEATURES

12 digit LCD display: hour, minute, second, month, day, and week
- Alarm with snooze and hourly time signal [chime]
- Choice of 12 / 24 hour format
1/100 second Chronograph
EL Backlight

OPERATION

1. Press the B key to choose a mode (as pictured above)
2. Press the A key (in any mode/display) to turn on the EL backlight for 3 seconds
3. Setting the Time

EN

EN

To set the Digital time, first press the B key to change the mode to stopwatch mode, alarm mode and then the change time mode (seconds indicator will be flashing).

Hour -> Minute -> Month -> Day -> Day of week -> Second ->

In each sequence use key D to make changes

• SECONDS - When seconds are between 0-30, pressing D reduces back to zero. When seconds are in the 30-60 range, pressing D will increase the minutes by 1.

HOUR - H display is for 24 hour time, A & P are for AM/PM in 12 hour format

MINUTES - Press D to increase by 1

MONTH/DAY /DAY OF WEEK - Press D to increase by 1

When complete, press B to return to normal Time Mode.

To set the Analogue time pull out the crown on the right - the seconds hand stops moving. Turn the crown clockwise to move the hour and minute hands. When the crown is pushed back in the seconds hand starts to move again.

4. Chronograph

The display range of the Chronograph is 23 hours, 59 minutes, 59.99 seconds.

Elapsed time [as per DT1009]

DKey DKey DKey DKey CKey

Start Stop Re-start Stop Clear

Spilt time

DKey CKey CKey DKey CKey

Start Split Split release Stop Clear

Press the B key to exit to normal time display.

5. Setting the Alarm

To change the setting of the Alarm or hourly chime, first press the B key to move from time display into the Alarm time mode. Then press C to select either hours or minutes (indicated by flashing), and press the D key to adjust the hours or minutes. When the alarm is set, press key C to confirm. By pressing the D key in Alarm mode, you turn the Alarm and/or Chime function on and off. ON is indicated by AL [Alarm] and CH [Chime] next to the date on the left. Press the B key to return to normal time mode.

When the Alarm sounds, press C or D keys to stop, and the B key to Snooze. The Snooze function will sound the alarm 5 minutes later and auto stop after 20 seconds.

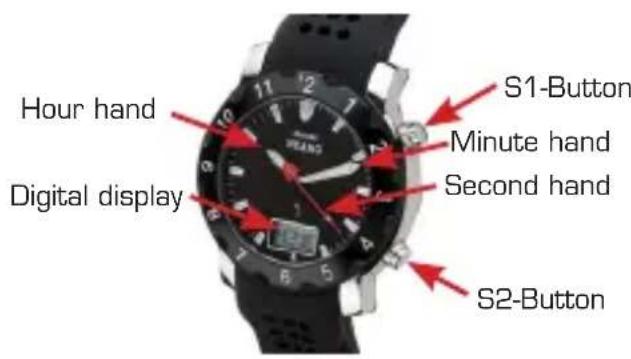

Atomic watch

Features

• Analogue time display showing h, min, sec
  Digital time display showing h, min, sec
• Fully automatic date display showing day, date, month
• Radio signal reception (DCF 77.5 KHz)
• Signal reception either manual or automatic
  24 hour time display

Digital display

There are four main feature modes.

Use the S1 button to display the various modes in the following order:

Time — Date — seconds/weekday — time zone

Automatic reception

The signal status is checked automatically every day at 3.00 am local time. If the signal cannot be found, the automatic check is repeated at 4.00 am and then again at 5.00 am. If the signal still cannot be found, the next check is the next day at 3.00 am again. Placing the watch near a window may improve signal reception.

Manual reception

In any mode, press and hold the S1 button for 3 seconds to start the manual reception search. The RC tower symbol fl ashes while the search is running and the bar symbol shows the signal strength. If the search is successful, the tower symbol remains in the display. If the reception is too weak or cannot be found within 3 minutes, the tower symbol disappears.

Setting/adjusting the time

Press and hold the S2 button until the digital display fl ashes. Press the S1 button until the desired time zone (EU) appears. Press the S2 button to choose the time zone. To set the year, press the S2 button five times. Use the S1 button to choose the year.

Press the S2 button again to show the month and date. Press the S1 button to change the month and date. Set your entry by pressing the S2 button. Press and hold the S1 button for at least 3 seconds to set the hands to the 12 o'clock position. The watch now searches for a signal and automatically sets the time zone.

IMPORTANT

Press and hold the S2 button for 7 seconds to return all three hands to the 12.00 position. Then use the S1 button to adjust the hands if necessary. Press S1 briefly to adjust slowly and press and hold to adjust quickly. Press the button again to stop the quick correction. Press the S2 button again to exit the correction and start the signal search. Once the signal has been found, the analogue hands move to the same position as the digital time and the two movements run synchronously. Place the watch near a window to improve signal reception.

GUARANTEE

We (see address on reverse of these instructions) guarantee that your watch is made with top quality materials. Extensive quality controls ensure that the watch is checked before it leaves our premises. Material defects cannot, however, be completely ruled out.

We issue a guarantee for a period of 24 months from date of purchase on all material and manufacturing faults. This guarantee is valid worldwide and any warranty claims prescribed by law shall remain unaffected by this guarantee. The guarantee covers the function of the clockwork and the proper workmanship of the watch.

The following are not covered by the guarantee: batteries, wear and tear of the casing, glass or wristband and damage due to improper use (accident, glass breakage, water damage, crown pulled right out).

Manufacturing faults will be rectified free of charge within the guarantee period. If the watch is irreparable we will replace it with a comparable model.

Liability for collateral or subsequent damage is excluded.

To make a guarantee claim please send the watch to the address stated on the reverse of these instructions, together with your name and address and a copy of the sales receipt.

Table des matieres

Généralités

Avant-propos 40

According to European guidelines [1], used electrical and electronic goods and batteries are not to be disposed of with unsorted community refuse, but must be collected separately.

The symbol displaying a dustbin on wheels advises of the necessity for separate collection. You can contribute to environment protection by ensuring that this item and batteries are disposed of correctly. The symbol displaying a dustbin on wheels advises of the necessity for separate collection. You can contribute to environment protection by ensuring that this item and batteries disposed of correctly. The public waste management organisations have special collection points for this purpose where you can dispose of old appliances from private households free of charge. Please check your refuse collection calendar or contact your local authorities for information on when and where old appliances can be collected or returned.

[1] GUIDELINE 2002/96/EG OF THE EUROPEAN PARLIAMENT AND COUNCIL on used electrical and electronic equipment.

GUIDELINE 2006/66/EG OF THE EUROPEAN PARLIAMENT AND COUNCIL from the 6th September about batteries and accumulators plus old-batteries and old-accumulators.
