USER MANUAL Redforce 2739 ARIETE

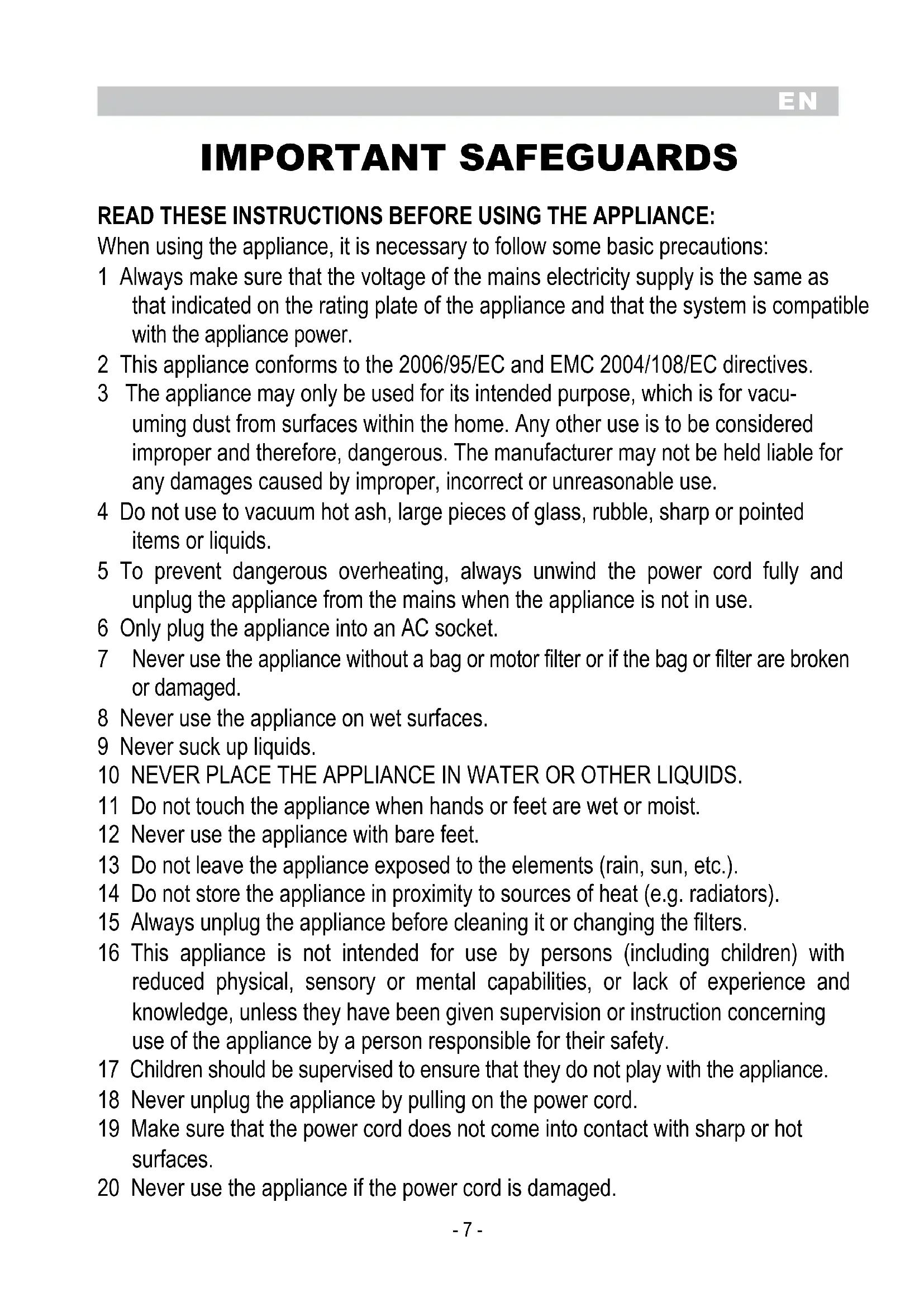

IMPORTANT SAFEGUARDS READ THESE INSTRUcTIONS BEFORE USING THE APPLIANcE: When using the appliance, it is necessary to follow some basic precautions: 1 Always make sure that the voltage of the mains electricity supply is the same as that indicated on the rating plate of the appliance and that the system is compatible with the appliance power. 2 This appliance conforms to the 2006/95/EC and EMC 2004/108/EC directives. 3 The appliance may only be used for its intended purpose, which is for vacu- uming dust from surfaces within the home. Any other use is to be considered improper and therefore, dangerous. The manufacturer may not be held liable for any damages caused by improper, incorrect or unreasonable use. 4 Do not use to vacuum hot ash, large pieces of glass, rubble, sharp or pointed items or liquids. 5 To prevent dangerous overheating, always unwind the power cord fully and unplug the appliance from the mains when the appliance is not in use. 6 Only plug the appliance into an AC socket.

Never use the appliance without a bag or motor filter or if the bag or filter are broken or damaged. 8 Never use the appliance on wet surfaces. 9 Never suck up liquids. 10 NEVER PLACE THE APPLIANCE IN WATER OR OTHER LIQUIDS. 11 Do not touch the appliance when hands or feet are wet or moist. 12 Never use the appliance with bare feet. 13 Do not leave the appliance exposed to the elements (rain, sun, etc.). 14 Do not store the appliance in proximity to sources of heat (e.g. radiators). 15 Always unplug the appliance before cleaning it or changing the filters. 16 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 17 Children should be supervised to ensure that they do not play with the appliance. 18 Never unplug the appliance by pulling on the power cord. 19 Make sure that the power cord does not come into contact with sharp or hot surfaces. 20 Never use the appliance if the power cord is damaged.EN

21 If the cord is damaged, it must be replaced by the Manufacturer, by an Authorised Technical Assistance Centre or in any case, by a similarly qualified person, in order to prevent any risks. 22 Always switch on the appliance with the power regulator set to minimum. 23 Unplug the appliance from the mains electricity after each use. 24 In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts. 25 Packaging must never be left within the reach of children since it is potentially dangerous.

To dispose of product correctly according to European Directive 2009/96/ CE, please refer to and read the provided leaet enclosed with the product.

DO NOT THROW AWAY THESE INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE (Fig. 1) ATTACHMENTS Telescopic tube (M) Insert the extension tube onto the handle and then fit the required attachment. Once the attachment has been fitted, it is possible to extend the telescopic tube using the lever (FIG.

4) to move it to the required length. Release the lever to stop the tube in the required position.

Floor brush (O) - Ideal for cleaning large areas as well as corners that are difficult to reach. - We advise against using the brush to clean carpets and resistant floors. The brush has wheels to allow it to glide over all surfaces. Select the required projection for the bristles by pressing the lever at the end of the brush. To retract the bristles, press the lever marked with the carpet symbol. - For better preservation and protection of smooth flooring such as PVC, parquet or tiles, it is better A Dust container B Appliance body C Foot-operated cord rewinder button D Small vacuum cleaner E Dust container lock/release button F Foot-operated on/off switch G Dust container handle H Suction device coupling I Handle L Slider device M Telescopic tube N Suction device O Floor brush P Hard floor / carpet selector switch Q Parquet brush R Release buttons S Narrow suction nozzle with brushEN

to use the brush. To lower the bristles, press the lever marked with the smooth flooring symbol. Parquet brush (Q) This can be used to clean delicate surfaces. Narrow suction nozzle with brush (S) This suction device is ideal for cleaning between the folds on fabrics, joints, corners or niches that are impossible to reach using the floor cleaning device. This attachment can also be fitted directly to the handle (I). Small vacuum cleaner (D) Useful to remove the dust from books or delicate objects, as picture frames, etc. Suitable for cleaning upholstered furniture, mattresses, pillows, curtains, etc. This attachment may be applied directly to the handle (I).

VACUMM CLEANER ASSEMBLY

IMPORTANT: Before fitting or removing attachments, always make sure that the vacuum cleaner has been unplugged from the power mains. - Insert the suction device coupling (N) into the air inlet opening (H) and press until it clicks into place. To remove it, it is necessary to press the two release buttons (R) at the same time and to pull it out (Fig. 2). - Insert the telescopic tube (M) into the handle (Fig. 3). - Push the slider device (L) forwards and pull the bottom section of the tube out to the required length (Fig. 4). To shorten the tube, push it back in the opposite direction. - Fit the required attachment to the telescopic tube.

CAUTION: Before using the vacuum cleaner, remove all large or sharp objects from the floor to avoid any possible damage to the cleaner itself. First of all, before using this appliance, unwind the power cord completely and plug the appliance into the mains socket. To switch on, press the foot switch (F) on the appliance. The cleaner is equipped with wheels to move it easily during use. IMPORTANT: The appliance might make a whistling sound that will stop after a few seconds.

WARNING: Switch off the vacuum cleaner immediately if the air inlets, brushes or telescopic tube

become blocked. Remove the cause of the blockage before switching the vacuum cleaner on again.EN

After using the cleaner Switch off the appliance using the foot switch (F). Then unplug the appliance from the mains power and hold down the foot pedal (C) on the appliance until the power cord is fully rewound.

WARNING: While rewinding the power cord, guide it in the right direction by hand to prevent any

risk of injury to yourself. Put away the appliance, placing the floor brush (O) on the special hook in the back (Fig. 5). Carrying the vacuum cleaner Only carry the appliance using the special handle on the top part (G).

CLEANING AND MAINTENANCE

WARNING: Before carrying out any cleaning or maintenance operation, switch off the appliance and

unplug it from the mains power. The dirt vacuumed up will enter the dust container (A). The air is cleaned by a permanent washable filter that is located inside the dust container, by a motor protection filter and an air outlet filter located under the appliance.

WARNING: Never use the vacuum cleaner if any filter is missing or damaged. Any dust cleaned up

will enter the appliance and damage the motor.

WARNING: Clean the filters regularly or in any case, whenever the suction power seems to be

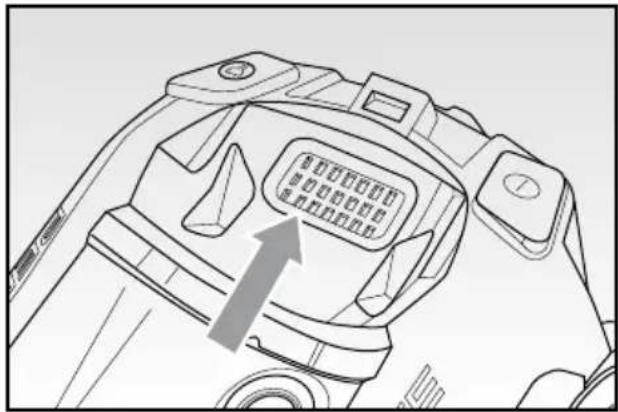

reduced. How to empty the dust container (A) - Press the release button (E) and at the same time take out the dust container (A) using the handle (G) (Fig. 6). - Empty the dust container (A), opening the lid with the release button (Fig. 7). IMPORTANT: To empty the container and prevent any dirt from leaking out, we recommend first placing it inside a plastic bag and emptying it there. - To clean the container (A) fully, it is necessary to disassemble it completely, as described here below: - press the appropriate button and open the lid of the container (A) (Fig. 8); extract the filter beneath (Fig. 9); - remove the complete filter by rotating it clockwise (Fig. 10). IMPORTANT: Wash the filter in clean water without soap or detergents. It is advisable to clean the filter at least every 6 months or in any case, when suction is visibly reduced. - Before using the appliance again, reassemble the container (A). - Place the filter inside the container (A) and lock it into place by turning it anticlockwise. - Now refit the whole dust container (A) onto the appliance body, pressing gently until it clicks into place (Fig. 11).EN

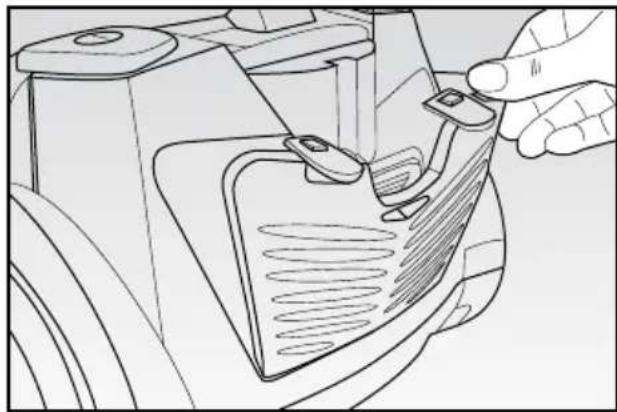

How to clean the motor filter The motor filter and its special covering need to be cleaned on a regular basis. - Take out the dust container (A) as described previously. - Remove the filter and clean it under running water (Fig. 12). Leave it to dry thoroughly. - Refit the filter and click the hatch shut.

WARNING: Only wash the filter in clean water, without using soap or detergents.

WARNING: It is advisable to clean the filter at least every 6 months or in any case, when suction is

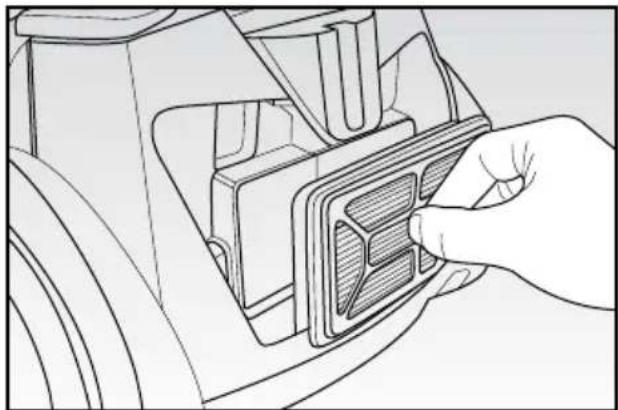

visibly reduced. Cleaning the air outlet filter This filter cleans the air one last time before it leaves the vacuum cleaner. To clean the filter proceed as follows: - Use the lever to remove the small hatch on the back of the appliance (Fig. 13). - Clean the filter in cold water and leave it to dry (Fig. 14). - Refit the clean (or new) air outlet filter into the grid and return this to the appliance, pressing it down until it clicks into place.

WARNING: Only wash the filter in clean water, without using soap or detergents.

Cleaning the vacuum cleaner The casing, dust container and filter seats can be wiped with a damp cloth if necessary. No liquid must enter the vacuum cleaner in the process. Never use heavy-duty cleaning substances (stain removers, thinners) because they can corrode the plastic surfaces. Only put the plug back into the mains socket when you are sure that all parts are thoroughly dry. IMPORTANT: Do not lubricate or oil any rotating parts, since this could cause dirt and fluff to stick even further

WARNING: It is advisable to clean the filter at least every 6 months or in any case, when suction is

visibly reduced. Cleaning the brushes While the appliance is switched on, move your hand between the bristles on the brush to free them of any trapped dust, which will then be sucked into the cleaner.

SERVICE AND CUSTOMER ASSISTANCE

In case of damage to the power cord of other parts of the appliance, please contact an ARIETE authorised assistance service. For assistance and repairs (under or post guarantee), please contact your local authorised ARIETE assistance centre. IMPORTANT: The serial number of the appliance can be found on its rating plate.FR
