USER MANUAL EOS Rebel SL2 CANON

Black Canon DSLR camera with visible lens and control buttons (no text-heavy elements)

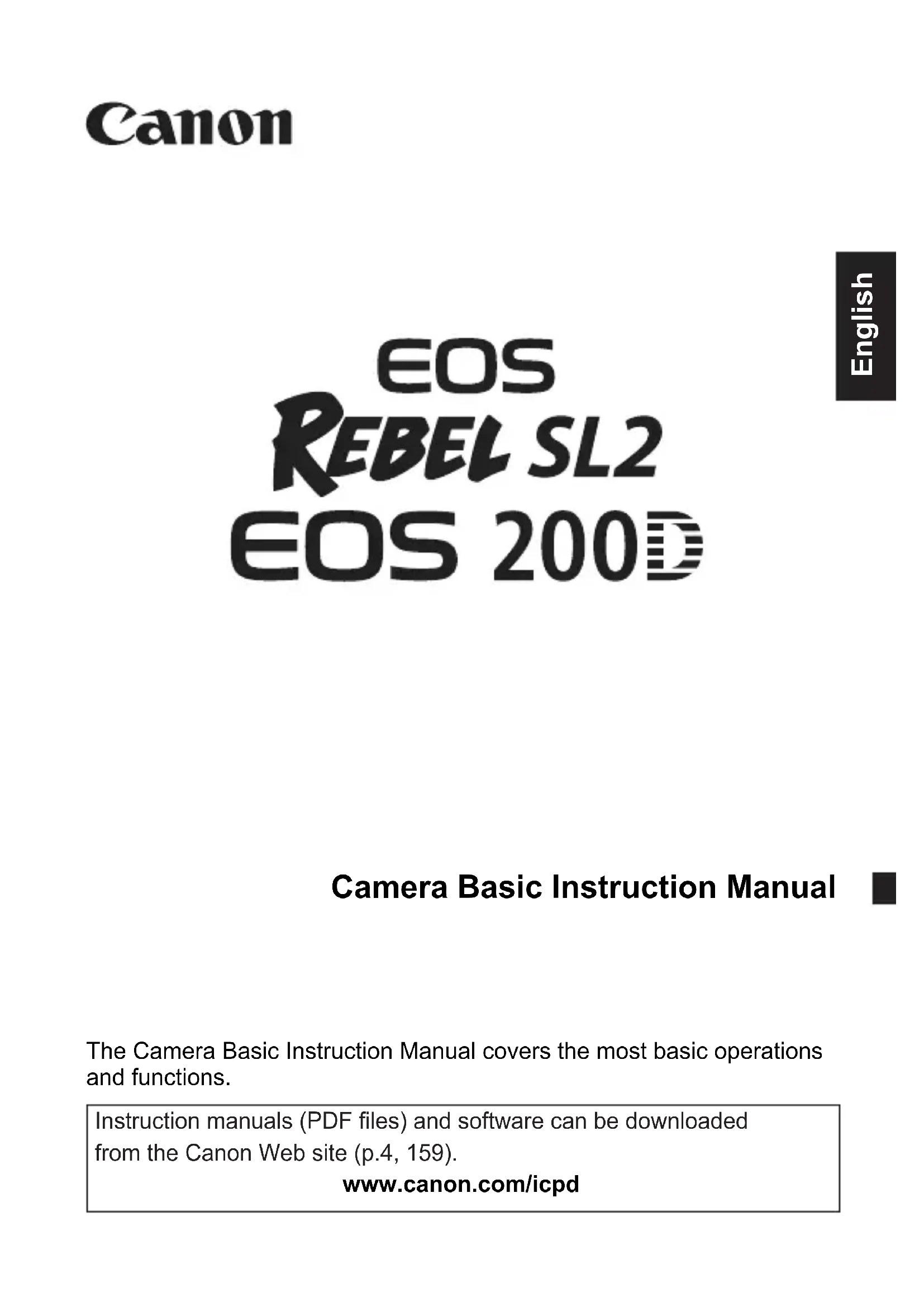

Basic Instruction Manual

The Camera Basic Instruction Manual covers the most basic operations and functions.

Instruction manuals (PDF files) and software can be downloaded from the Canon Web site (p.4, 159).

www.canon.com/icpd

Introduction

The EOS REBEL SL2 or EOS 200D is a digital single-lens reflex camera featuring a fine-detail CMOS sensor with approx. 24.2 effective megapixels, DIGIC 7, high-precision and high-speed 9-point AF, maximum continuous shooting speed of approx. 5.0 shots/sec., Live View shooting, Full High-Definition (Full HD) movie shooting, and Wi-Fi/NFC/Bluetooth (wireless communication) function.

Before Starting to Shoot, Be Sure to Read the Following

To avoid botched pictures and accidents, first read the “Safety Precautions” (p.15-17) and “Handling Precautions” (p.18-20). Also, read this manual carefully to ensure that you use the camera correctly.

Refer to This Manual while Using the Camera to Further Familiarize Yourself with the Camera

While reading this manual, take a few test shots and see how they come out. You can then better understand the camera. Be sure to store this manual safely, too, so that you can refer to it again when necessary.

Testing the Camera Before Use and Liability

After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and the images cannot be recorded or downloaded to a computer, Canon cannot be held liable for any loss or inconvenience caused.

Copyrights

Copyright laws in your country may prohibit the use of your recorded images or copyrighted music and images with music on the memory card for anything other than private enjoyment. Also be aware that certain public performances, exhibitions, etc. may prohibit photography even for private enjoyment.

Item Check List

Before starting, check that all the following items are included with your camera. If anything is missing, contact your dealer.

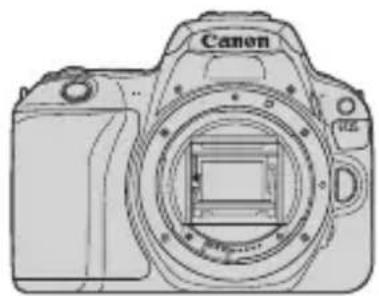

Line drawing of a Canon DSLR camera with no text or symbols on the body

Camera

(with eyecup and body cap)

Simple line drawing of a tool or tool with a handle and pointed tip (no text or symbols)

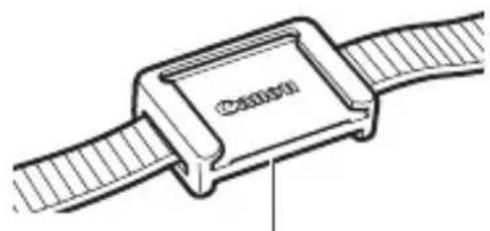

Strap

Battery Pack
LP-E17

(with protective cover)

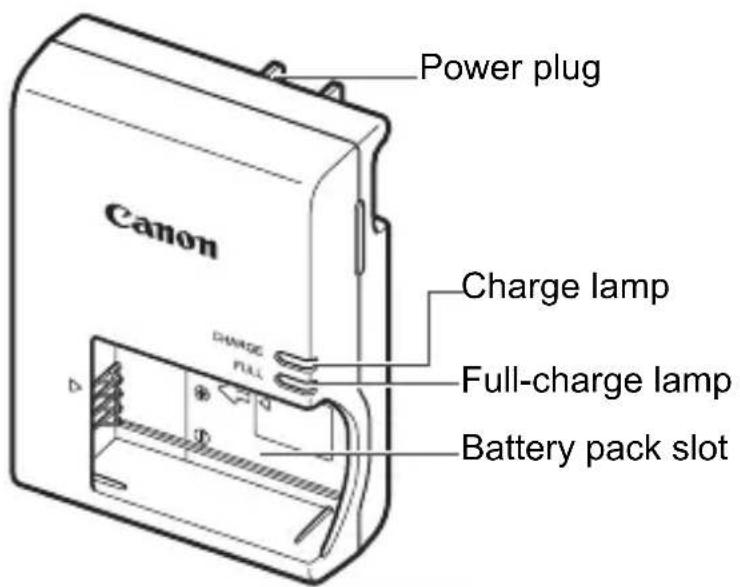

Battery Charger LC-E17/LC-E17E*

* Battery Charger LC-E17 or LC-E17E is provided. (The LC-E17E comes with a power cord.)
● The camera does not come with the Software CD-ROM, an interface cable or HDMI cable.
● The Instruction Manuals are listed on the next page.
- If you purchased a Lens Kit, check that the lenses are included.
- Be careful not to lose any of the above items.

When you need Lens Instruction Manuals, download them from the Canon Web site (p.4).

The Lens Instruction Manuals (PDF files) are for lenses sold individually. Note that when purchasing the Lens Kit, some of the accessories included with the lens may not match those listed in the Lens Instruction Manual.

Software can be downloaded from the Canon Web site (p.159).

Camera and Wi-Fi (Wireless Communication) Function Basic Instruction Manual

The booklet is the Basic Instruction Manual. More detailed Instruction Manuals (PDF files) can be downloaded from the Canon Web site.

Downloading and Viewing the Instruction Manuals (PDF Files)

1 Download the Instruction Manuals (PDF files).

- Connect to the Internet and access the following Canon Web site.

www.canon.com/icpd

- Select your country or region of residence and download the Instruction Manuals.

Instruction Manuals Available for Download

• Camera Instruction Manual
• Wi-Fi (Wireless Communication) Function Instruction Manual
• Camera and Wi-Fi (Wireless Communication) Function Basic Instruction Manual
• Lens Instruction Manuals
• Software Instruction Manuals

2View the Instruction Manuals (PDF files).

• Double-click the downloaded Instruction Manual (PDF file) to open it.
• To view the Instruction Manuals (PDF files), an Adobe PDF viewing software such as Adobe Acrobat Reader DC (most recent version recommended) is required.
• Adobe Acrobat Reader DC can be downloaded for free from the Internet.
• To learn how to use PDF viewing software, refer to the software's Help section, etc.

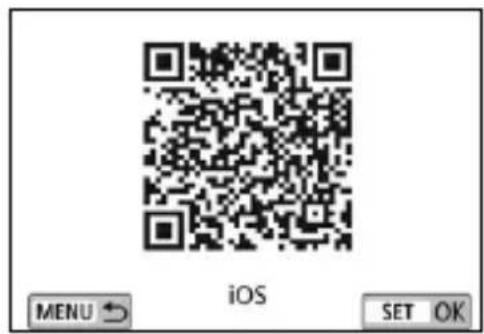

The Instruction Manuals (PDF files) can also be downloaded using the QR code.

QR code image containing encoded data, no visible human-readable text

www.canon.com/icpd

● A software application is required to read the QR code.
- Select your country or region of residence, then download the Instruction Manuals.
- The QR code can also be displayed under [¶4: Manual/software URL].

Quick Start Guide

1

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Technical diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

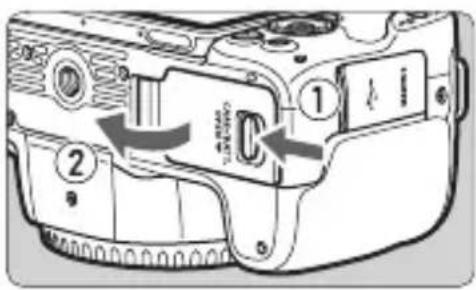

Insert the battery (p.32).

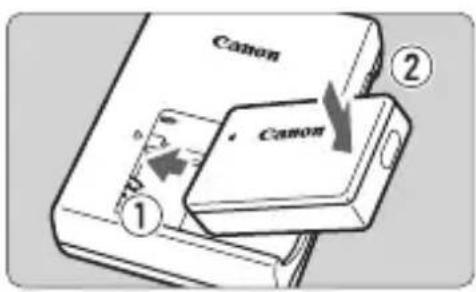

- Upon purchase, charge the battery to start using (p.30).

2

Technical line drawing of a device internal structure with no visible text or symbols

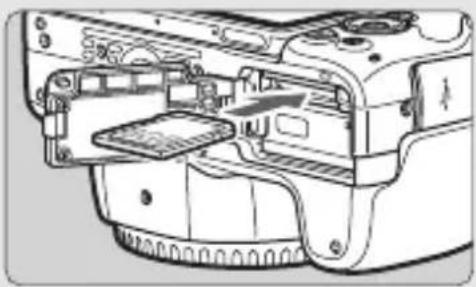

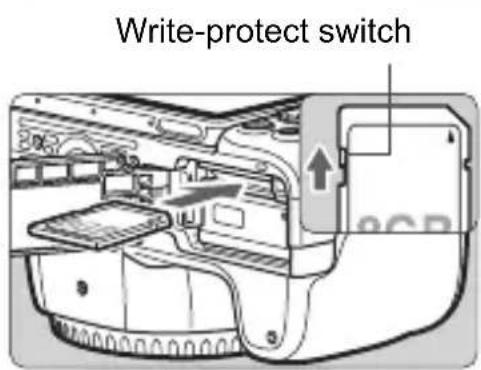

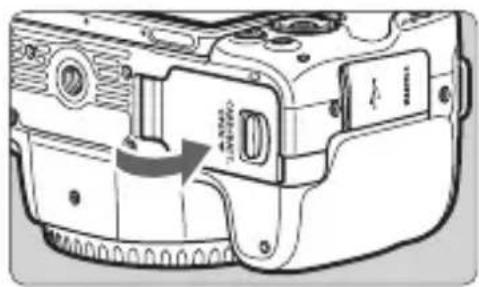

Insert the card (p.32).

- With the card's label facing toward the back of the camera, insert it into the card slot.

3

White index R

d index

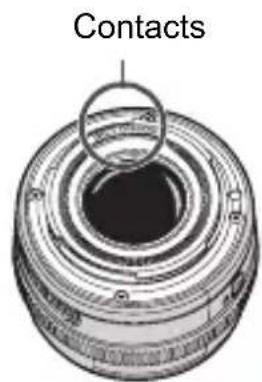

Attach the lens (p.41).

- Align the lens's white or red mount index with the camera's mount index of the same color to attach the lens.

4

Canon AF MF CONTROL USED

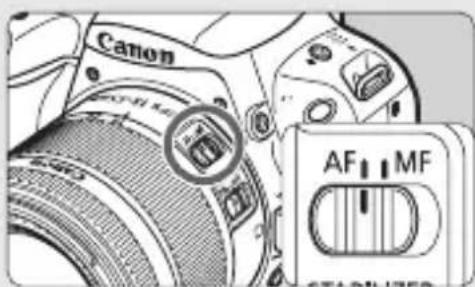

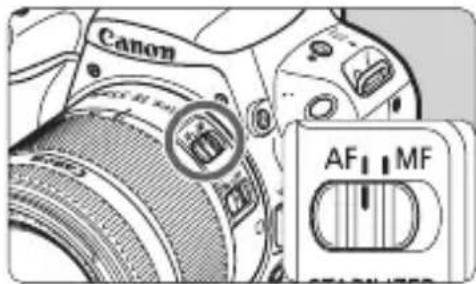

Set the lens's focus mode switch to <AF> (p.41).

5

DCG DISP CN FF +

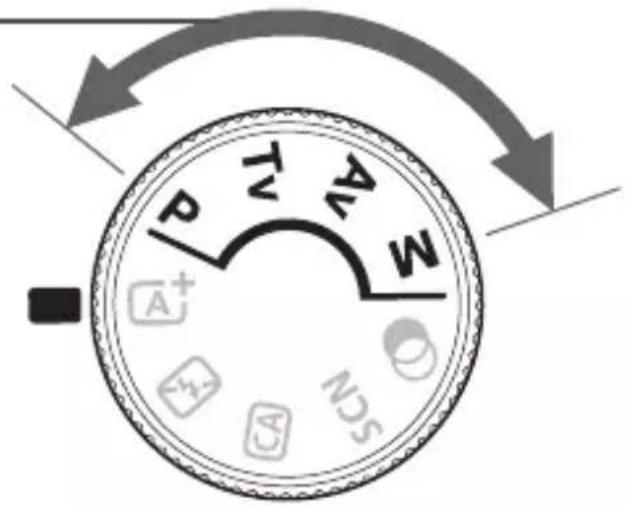

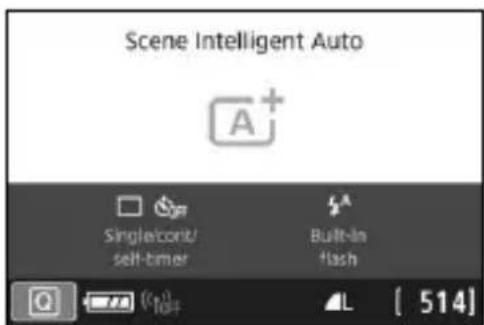

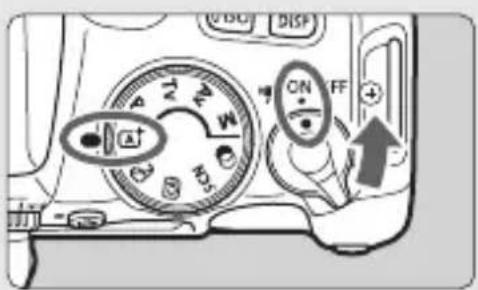

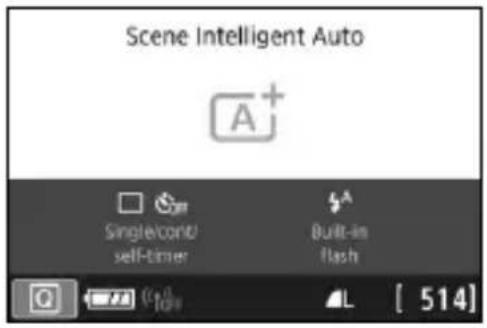

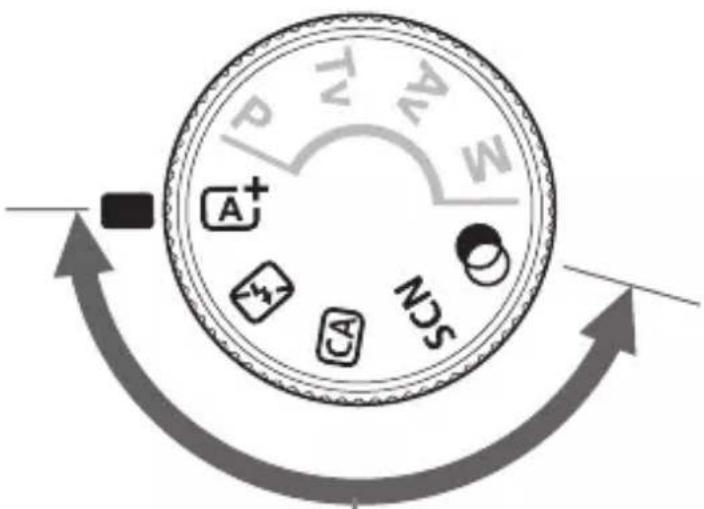

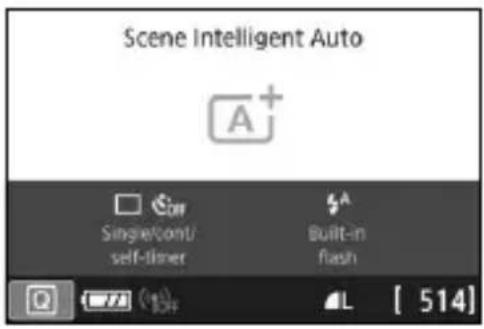

Set the power switch to , then set the Mode Dial to (Scene Intelligent Auto) (p.64).

- All the necessary camera settings will be set automatically.

6

Diagram showing a device being processed into a screen, with no visible text or symbols.

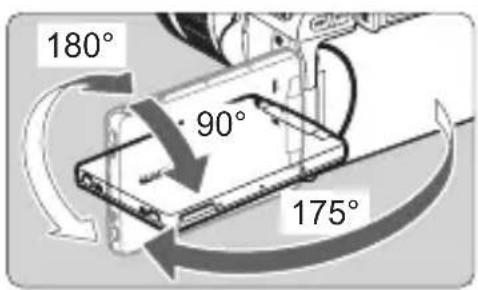

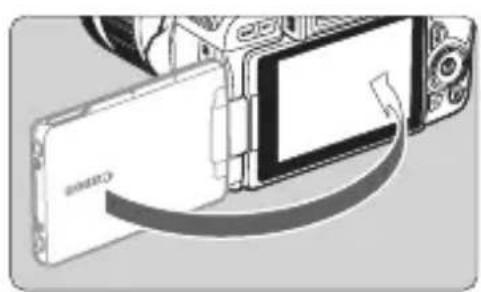

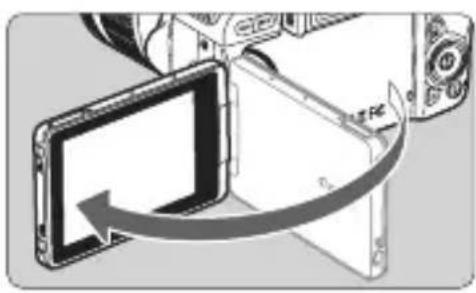

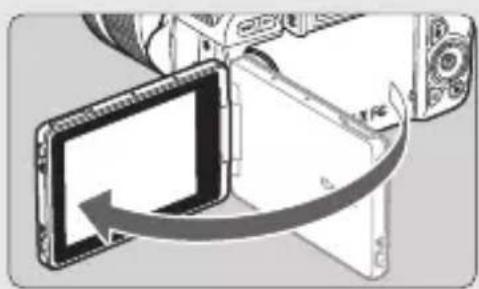

Flip out the LCD monitor (p.34).

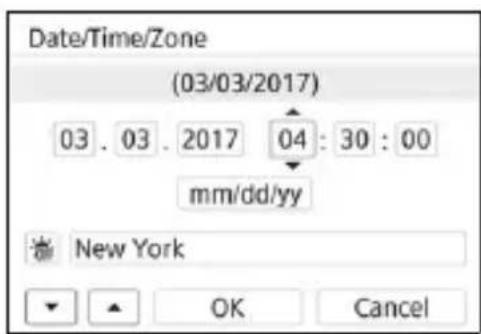

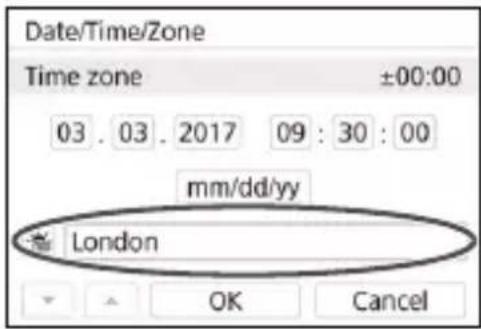

- When the LCD monitor displays the date/time/zone setting screen, see page 37.

7

Black-and-white photo of a smiling person outdoors with floral background (no visible text or symbols)

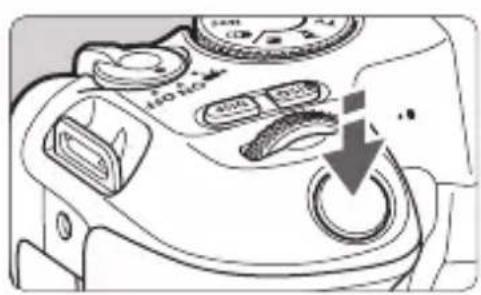

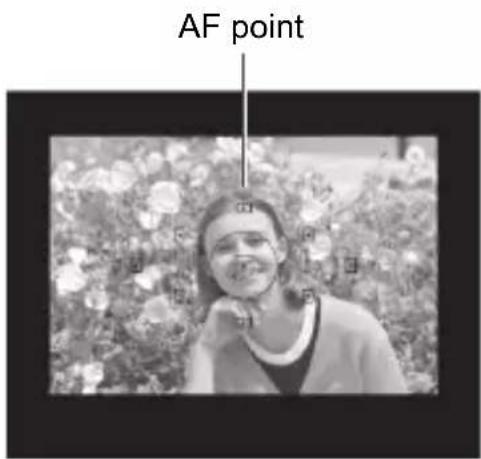

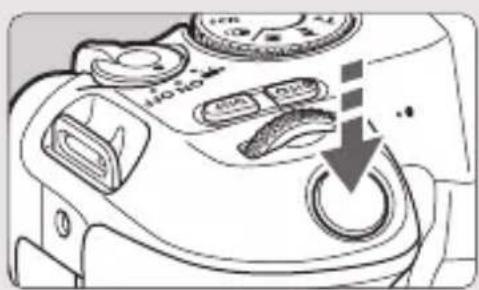

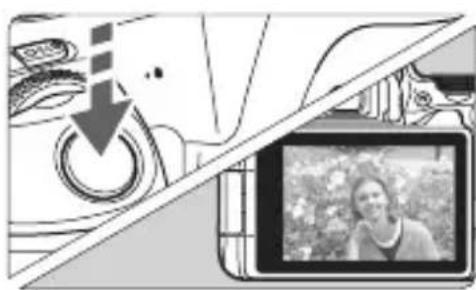

Focus on the subject (p.44).

• Look through the viewfinder and aim the viewfinder center over the subject.

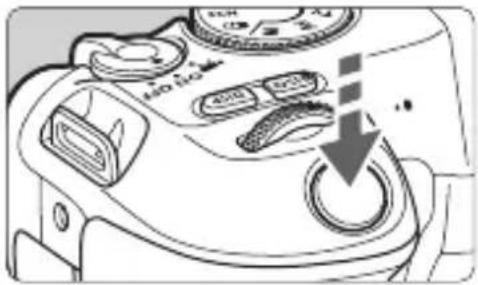

• Press the shutter button halfway, and the camera will focus on the subject.
  ● The built-in flash will be raised as necessary.

8

Diagram of a camera control panel with labeled buttons and a downward arrow indicating action or adjustment.

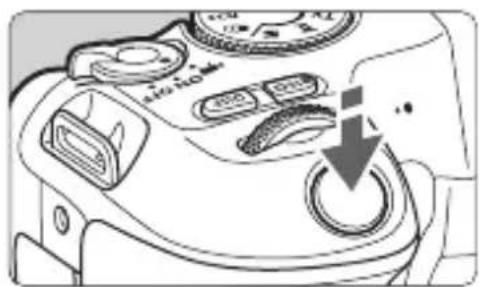

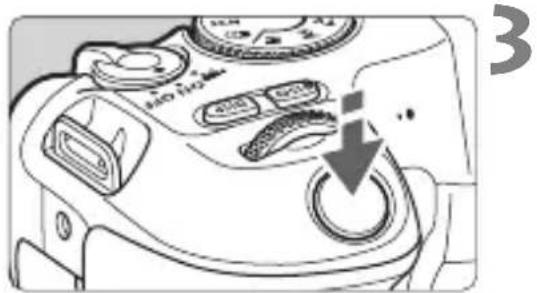

Take the picture (p.44).

- Press the shutter button completely to take the picture.

9

Black-and-white photo of a person holding a camera lens, displayed within a DSLR camera frame (no text or symbols visible)

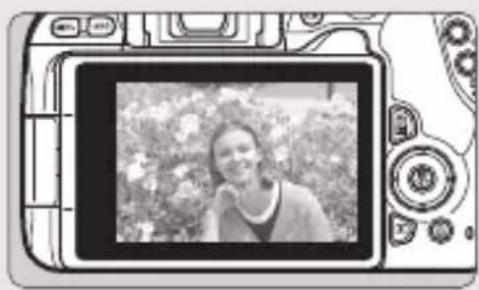

Review the picture.

● The image just captured will be displayed for approx. 2 sec. on the LCD monitor.
- To display the image again, press the <▶> button (p.89).

• To shoot while looking at the LCD monitor, see “Live View Shooting” (p.119).
  ● To view the images captured so far, see “Image Playback” (p.89).

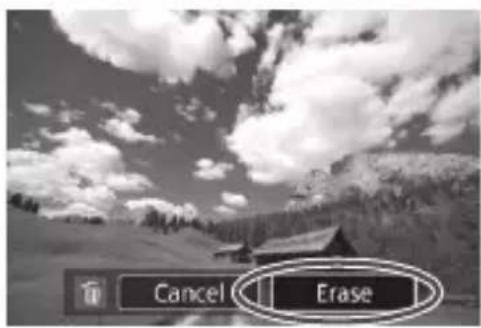

• To delete images, see "Erasing Images" (p.156).

Compatible Cards

The following cards can be used with the camera regardless of capacity. If the card is new or was previously formatted (initialized) by another camera or computer, format the card with this camera (p.60).

- SD/SDHC*/SDXC* memory cards

* UHS-I cards supported.

Cards that Can Record Movies

When shooting movies, use a large-capacity card with a writing/reading speed class at least as high as shown in the following table.

Movie Recording Size (p.138)		Recording Formats
		MOV MP4
ALL-I*		UHS Speed Class 3 or faster	-
IPB (Standard)	FHD: 59.94P 50.00P -		SD Speed Class 10 or faster
	Other than above	-	SD Speed Class 6 or faster
IPB (Light) -			SD Speed Class 4 or faster

* Image-recording quality that is automatically set for time-lapse movie shooting.

• If you use a slow-writing card when shooting movies, the movie may not be recorded properly. Also, if you play back a movie on a card with a slow reading speed, the movie may not be played back properly.
• To check the card's writing/reading speed, refer to the card manufacturer's Web site.

In this manual, “card” refers to SD memory cards, SDHC memory cards, and SDXC memory cards.

* The camera does not come with a card for recording photos/movies. Please purchase it separately.

Chapters

	Introduction	2
1	Getting Started and Basic Camera Operations	29
2	Basic Shooting and Image Playback	63
3	Setting the AF and Drive Modes	91
4	Image Settings	99
5	Advanced Operations for Photographic Effects	109
6	Shooting with the LCD Monitor (Live View Shooting)	119

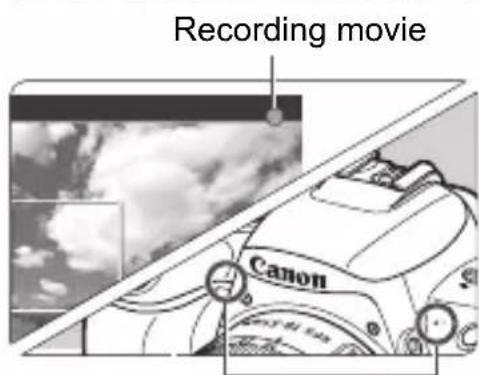

7	Shooting Movies	135
8	Handy Features	141
9	Image Playback	149
10	Software Start Guide / Downloading Images to a Computer	157

Conventions Used in this Manual

Icons in this Manual

<☀> : Indicates the Main Dial.

: Indicate up, down, left, and right on the <◆> cross keys respectively.

: Indicates the Setting button.

4/6/10/16

: Indicates that each function remains active for approx. 4 sec., 6 sec., 10 sec., or 16 sec. after you let go of the button.

* In addition to the above, the icons and symbols used on the camera's buttons and displayed on the LCD monitor are also used in this manual when discussing relevant operations and functionality.

MENU : Indicates a function that can be changed by pressing the

button to change its settings.

☆: This icon at the upper right of the page titles indicates that the function is available only in the Creative Zone modes (p.25).

(p.**): Reference page numbers for more information.

: Warning to prevent shooting problems.

: Supplemental information.

: Tips or advice for better shooting.

: Troubleshooting advice.

Basic Assumptions for Operational Instructions and Notes on Sample Photos

• All operations described in this manual assume that the power switch is set to <ON> (p.35).
• It is assumed that all the menu settings and Custom Functions are set to their defaults.
• The illustrations in this manual describe the camera attached with the EF-S18-55mm f/4-5.6 IS STM lens as an example.
• The sample photos displayed on the camera and used in this manual are only for illustrative purposes to show the effects more clearly.

Contents

Introduction 2

Item Check List ....3

Instruction Manuals....4

Quick Start Guide....6

Compatible Cards ....8

Chapters 9

Conventions Used in this Manual ....10

Safety Precautions....15

Handling Precautions....18

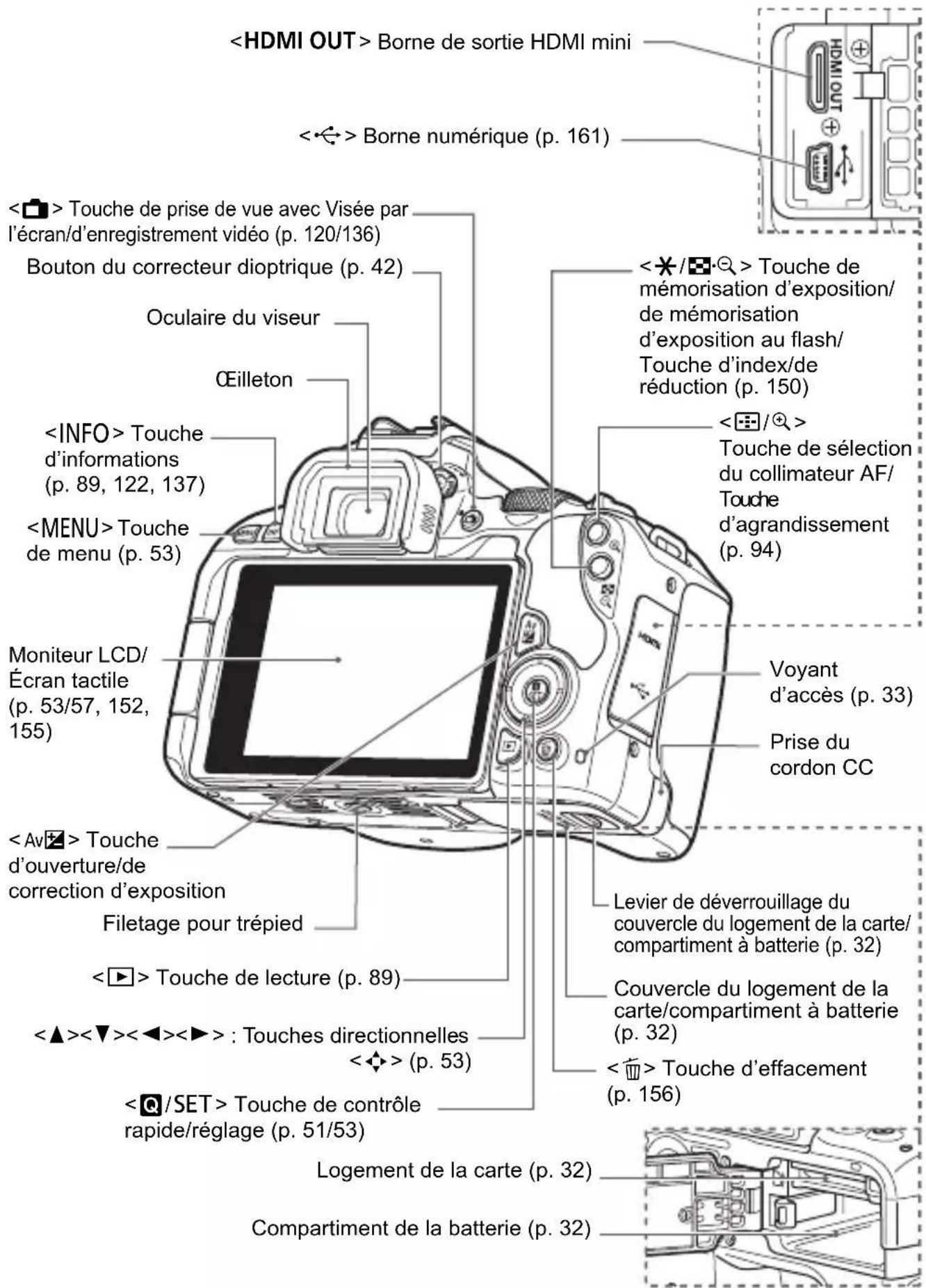

Nomenclature....21

1 Getting Started and Basic Camera Operations 29

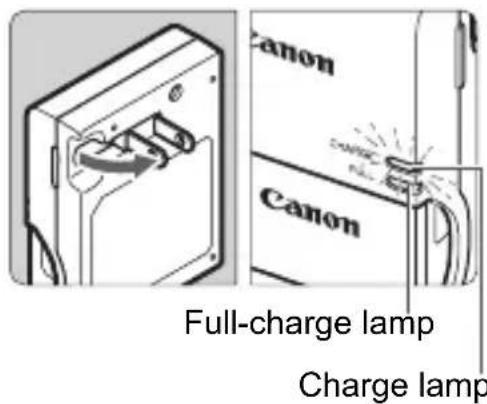

Charging the Battery ....30

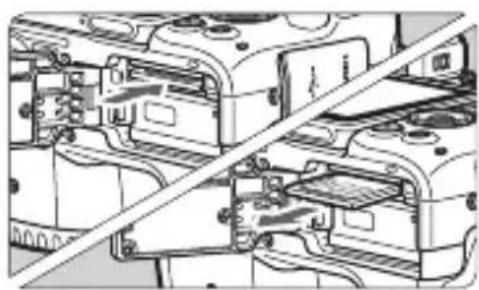

Installing and Removing the Battery and Card ....32

Using the LCD Monitor....34

Turning on the Power....35

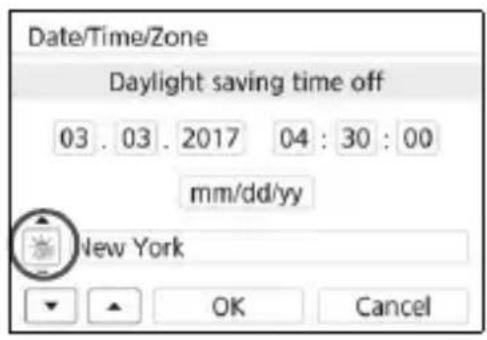

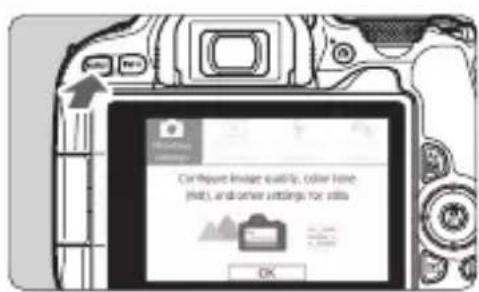

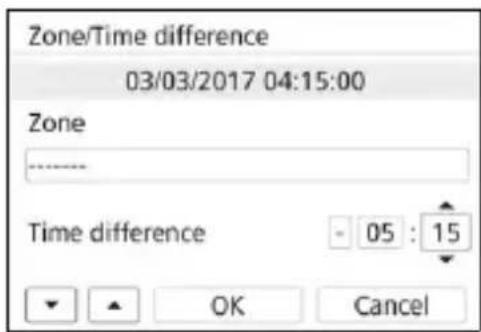

Setting the Date, Time, and Zone 37

Selecting the Interface Language ....40

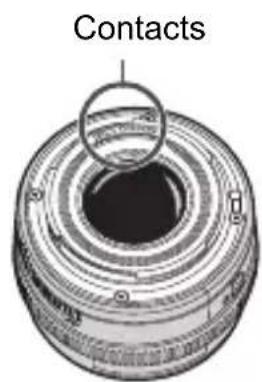

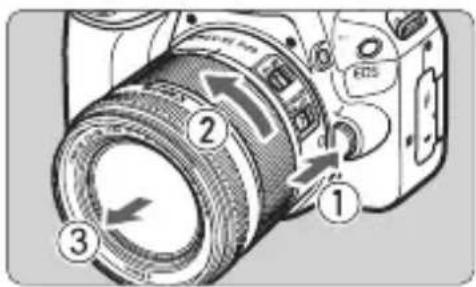

Attaching and Detaching a Lens 41

Basic Shooting Operations ....43

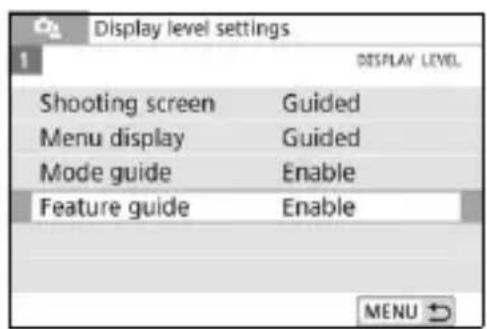

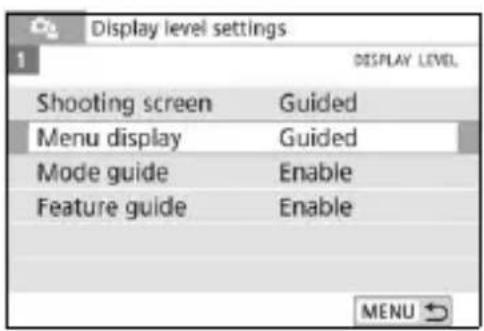

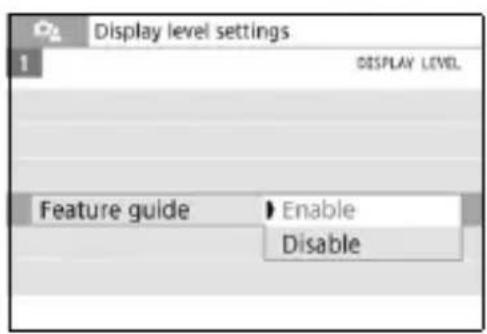

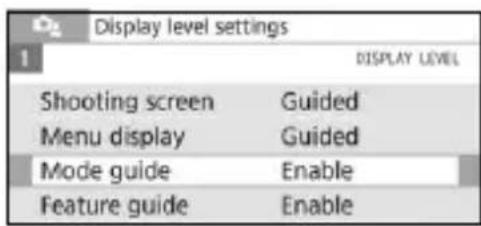

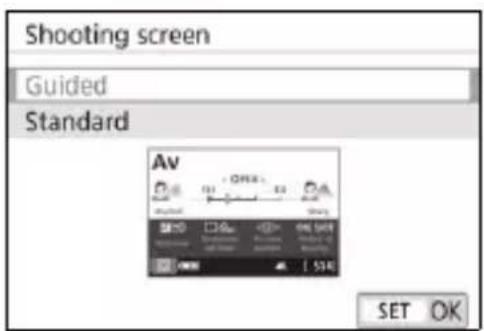

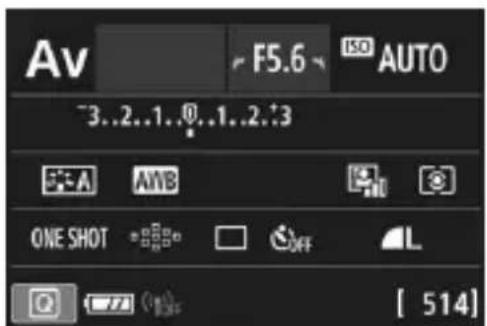

Setting the Screen Display Level....45

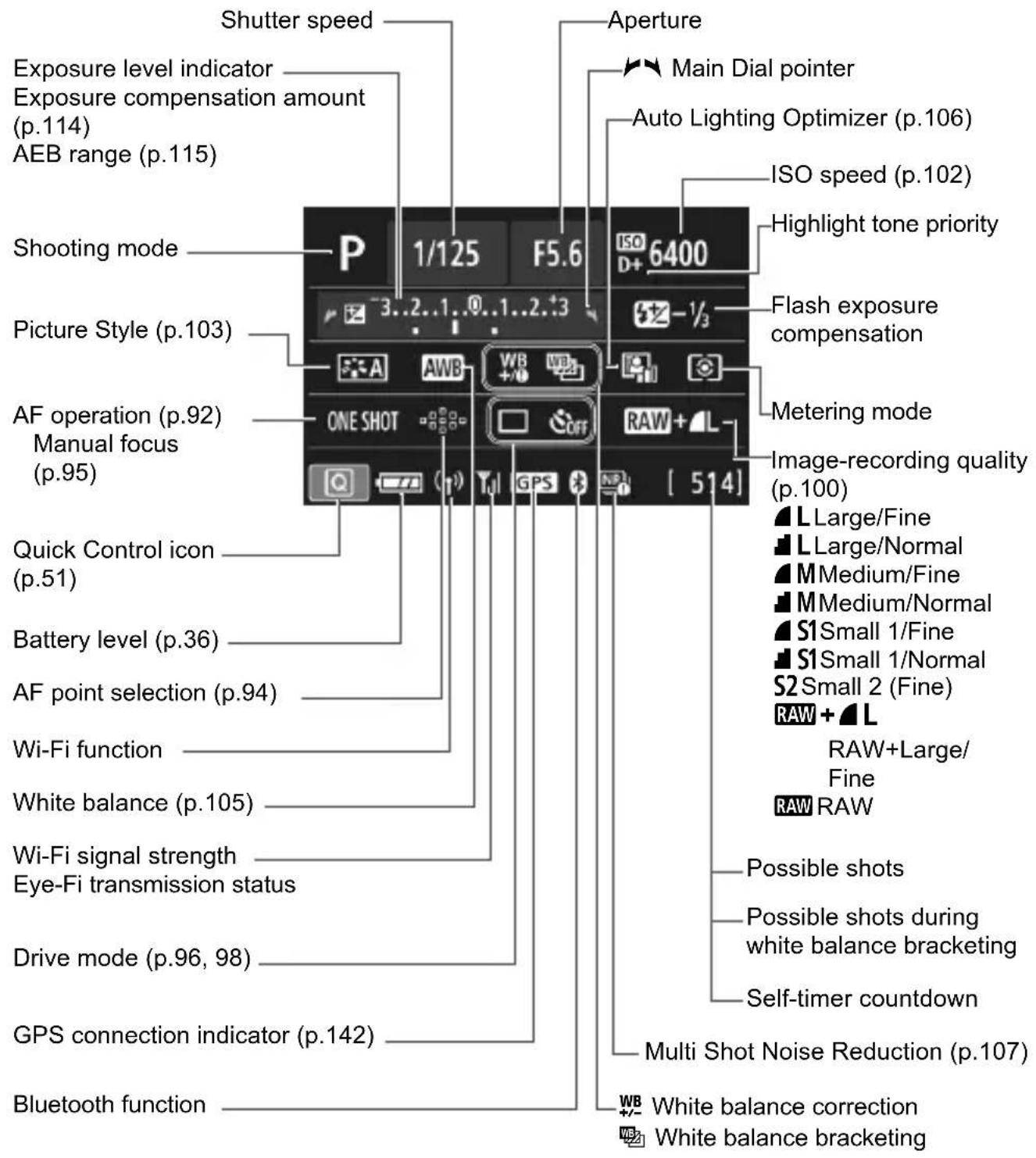

Q Quick Control for Shooting Functions....51

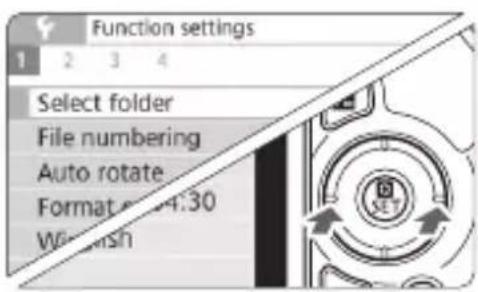

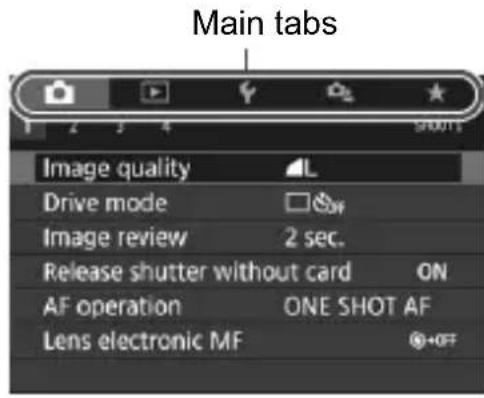

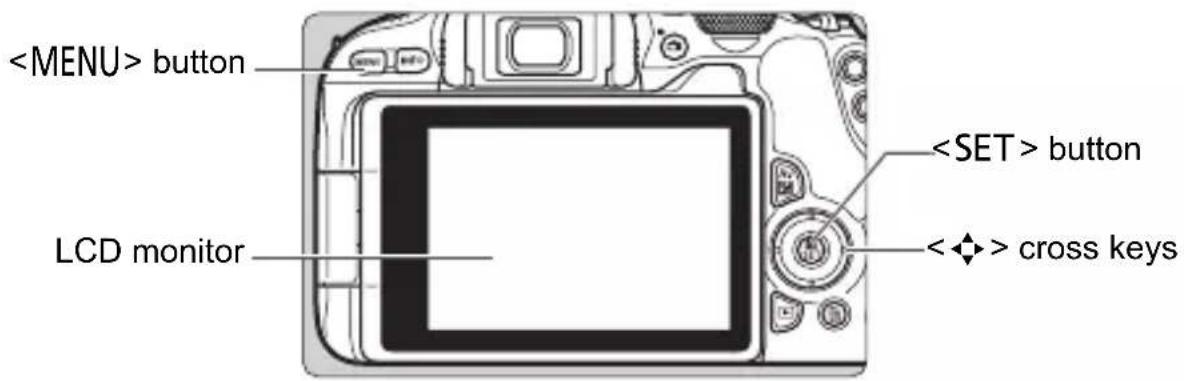

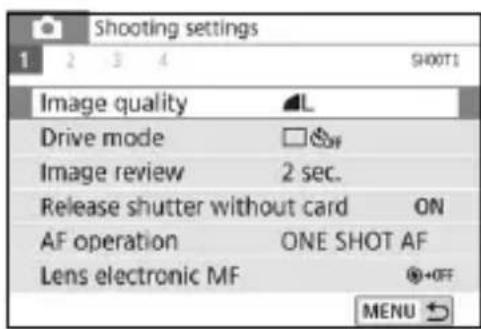

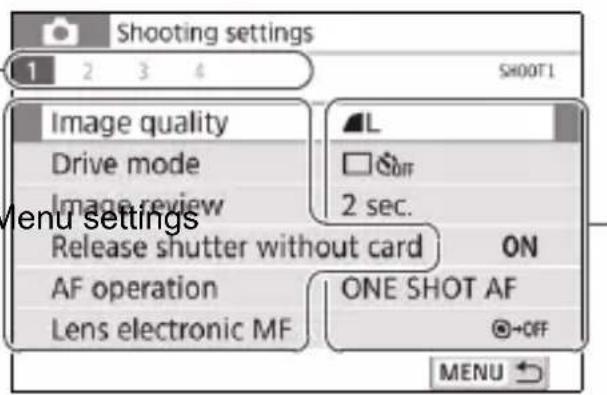

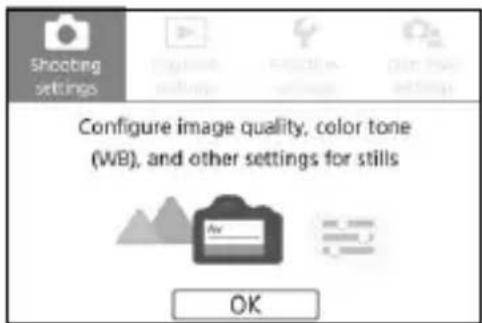

MENU Menu Operations and Configurations ....53

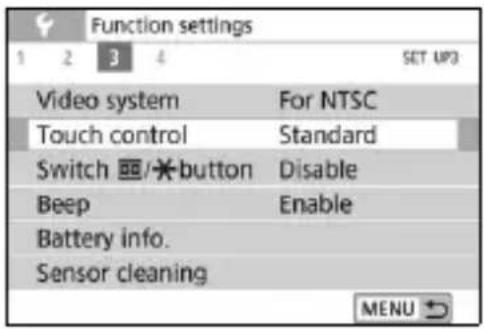

Operating the Camera with Touch Screen....57

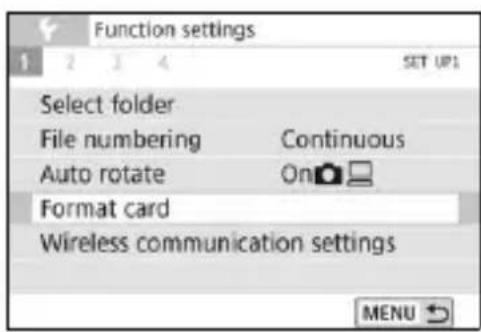

Formatting the Card ....60

Switching the LCD Monitor Display....61

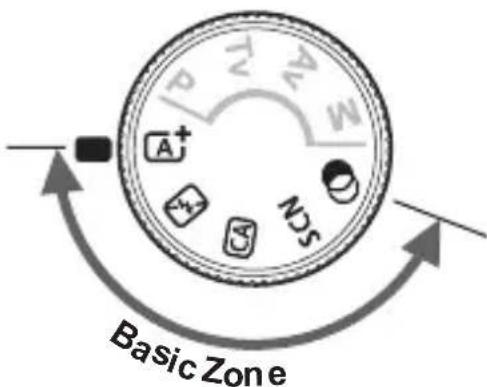

2 Basic Shooting and Image Playback 63

A ^+ Fully Automatic Shooting (Scene Intelligent Auto)...... 64
A ^+ Full Auto Techniques (Scene Intelligent Auto)...... 67
Shooting When You Cannot Use Flash.... 68

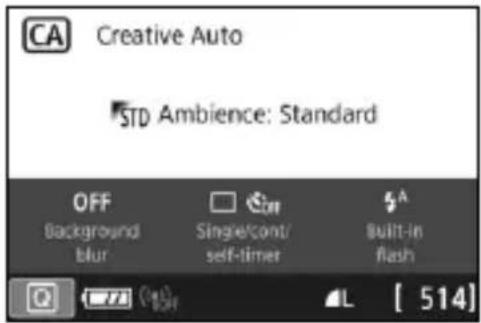

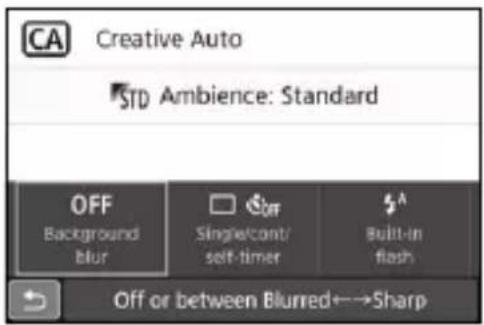

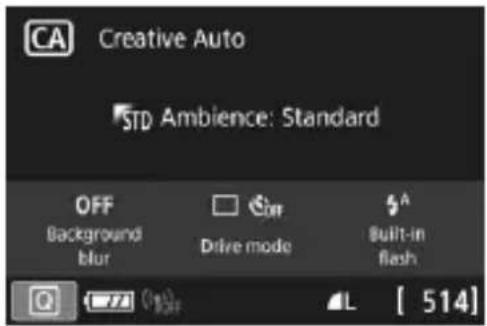

CA Creative Auto Shooting 69

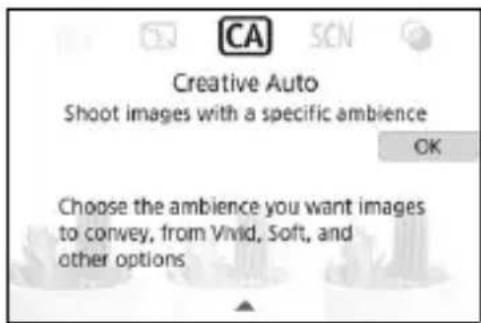

SCN: Special Scene Mode.... 70
Shooting Portraits....72
Shooting Group Photos 73

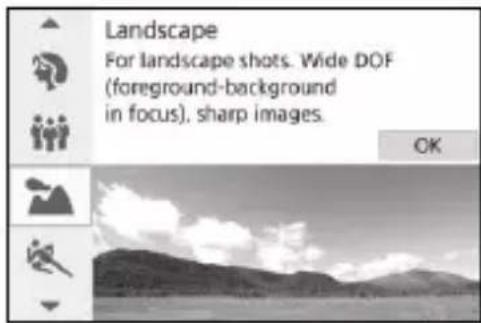

▲ Shooting Landscapes.... 74
Shooting Moving Subjects.... 75

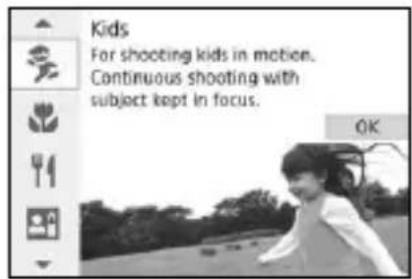

Photographing Children 76
Shooting Close-ups 77
¶ Shooting Food....78
Shooting Candlelight Portraits.... 79

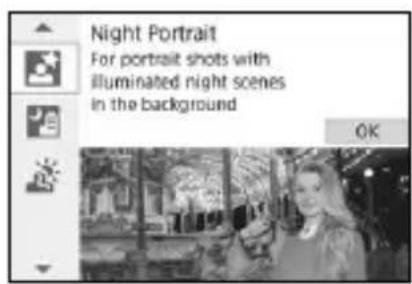

Shooting Night Portraits (With a Tripod).... 80

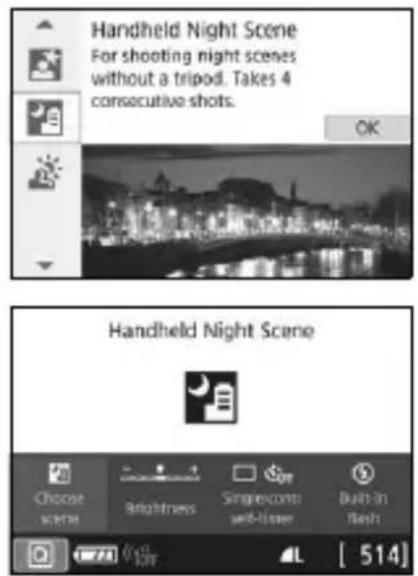

Shooting Night Scenes (Handheld).... 81

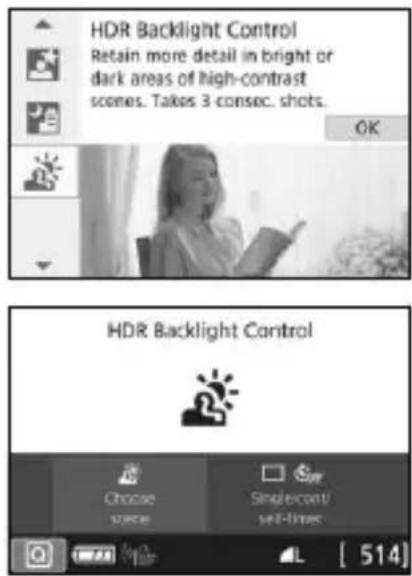

Shooting Backlit Scenes 82

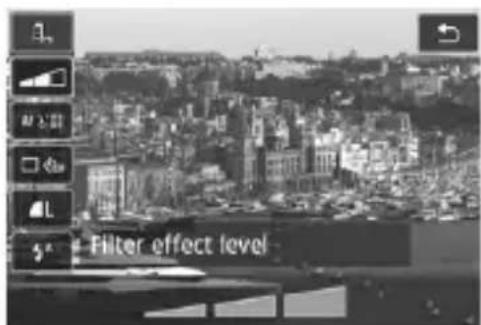

● Shooting with Creative Filter Effects...... 83

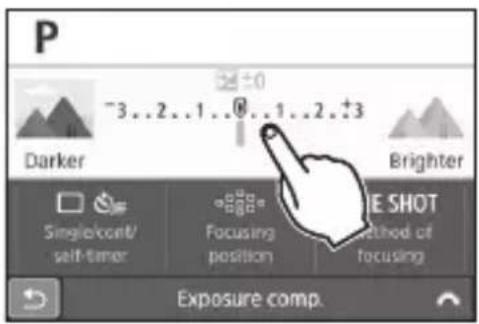

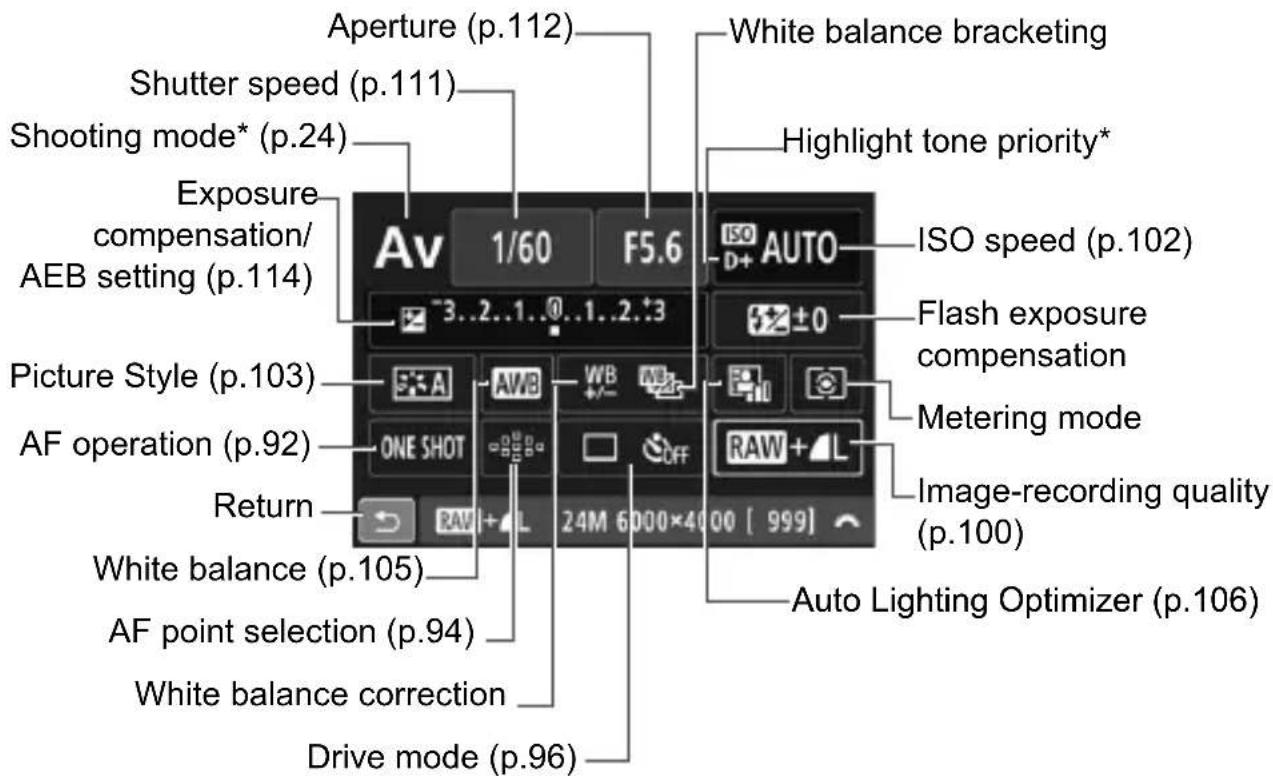

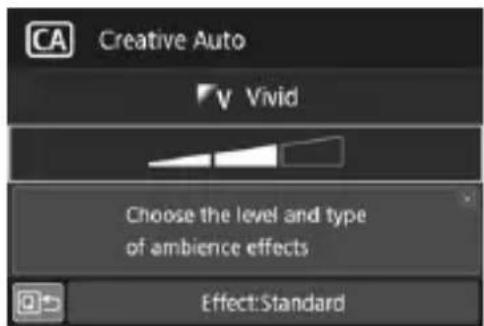

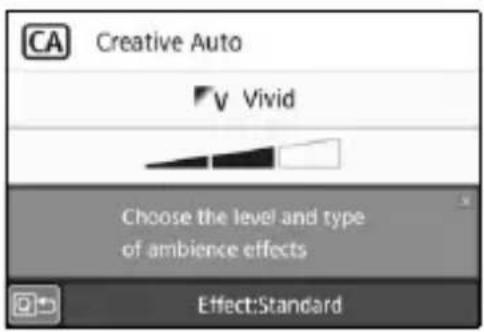

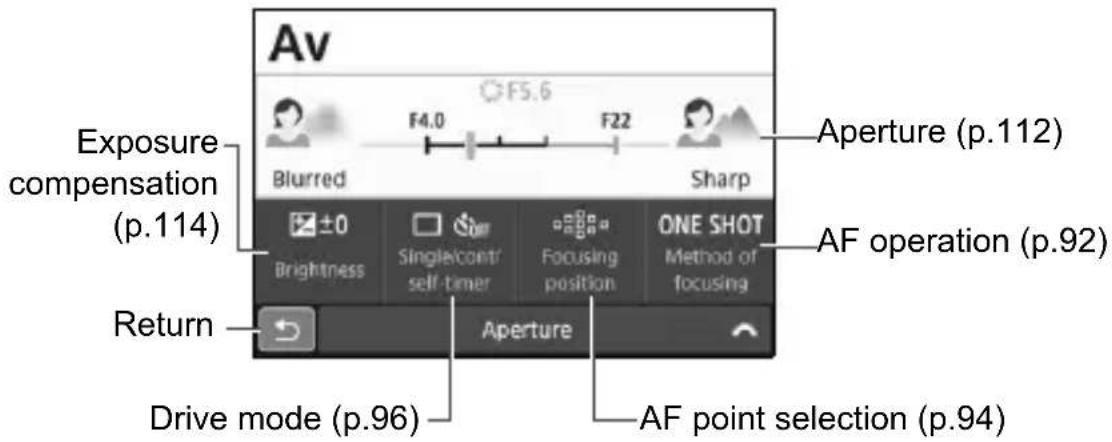

Q Quick Control.... 85

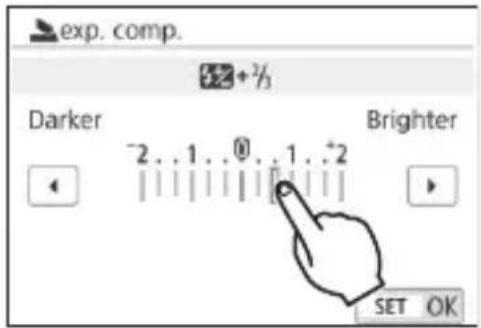

Adjusting the Brightness.... 88
▶ Image Playback 89

3 Setting the AF and Drive Modes 91

AF: Changing the Autofocus Operation.... 92

☐ Selecting the AF Point.... 94

MF: Manual Focus....95

☐ Selecting the Drive Mode 96

Using the Self-timer 98

4 Image Settings 99

Setting the Image-Recording Quality ....100

ISO: Setting the ISO Speed for Still Photos.... 102

Selecting a Picture Style ....103

WB: Matching the Light Source (White balance) 105

Auto Correction of Brightness and Contrast (Auto Lighting Optimizer)...106

Setting Noise Reduction 107

5 Advanced Operations for Photographic Effects 109

P: Program AE....110

Tv: Conveying the Subject's Movement (Shutter priority AE) ..... 111

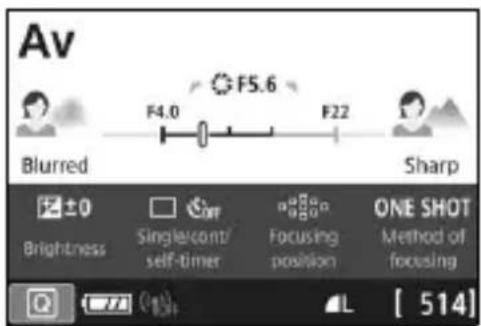

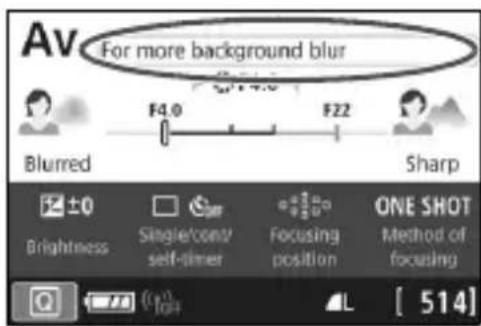

Av: Changing the Depth of Field (Aperture priority AE) 112

M: Manual Exposure.... 113

Setting the Desired Exposure Compensation.... 114

Auto Exposure Bracketing (AEB).... 115

* Locking the Exposure (AE Lock) 116

Using the Built-in Flash 117

6 Shooting with the LCD Monitor (Live View Shooting) 119

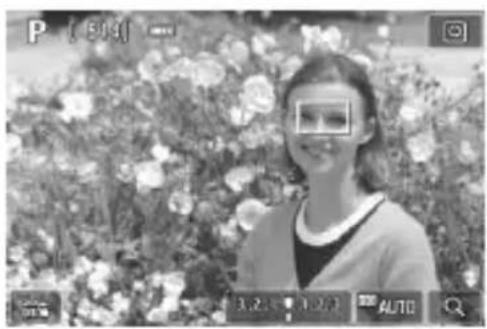

Shooting with the LCD Monitor....120

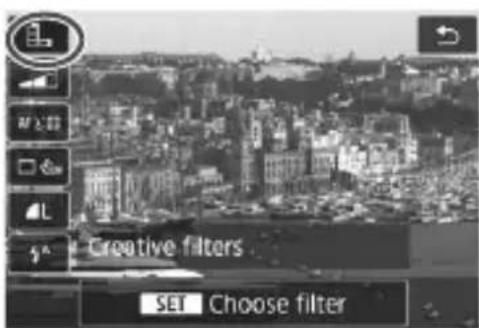

Shooting with Creative Filter Effects 123

Changing the Autofocus Operation.... 125

Focusing with AF 127

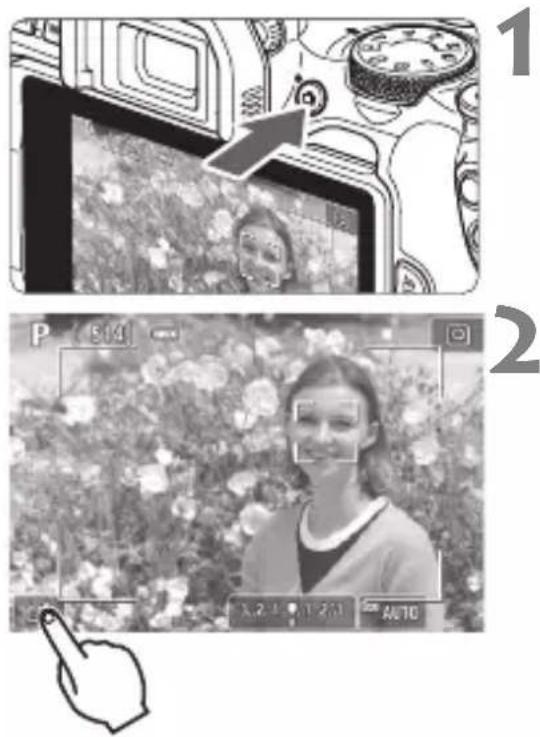

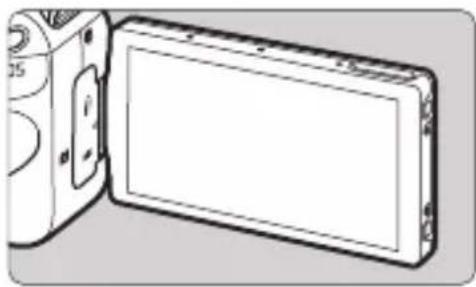

Shooting with the Touch Shutter 132

Taking a Self Portrait (Selfie) 133

7 Shooting Movies 135

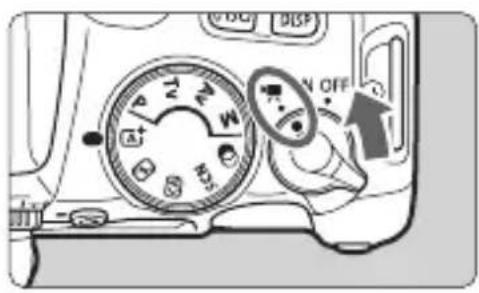

■ Shooting Movies ....136

Autoexposure Shooting....136

Setting the Movie Recording Size....138

8 Handy Features 141

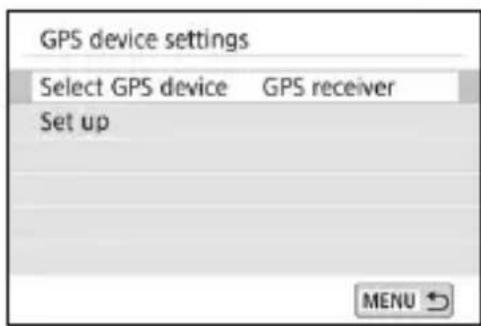

Geotagging Images 142

Handy Features.... 145

Disabling the Beeper 145

Card Reminder 145

Setting the Image Review Time.... 146

Setting the Auto Power Off Time 146

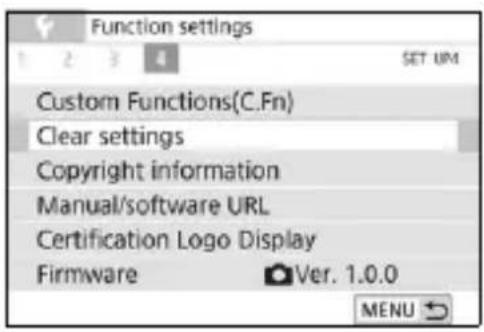

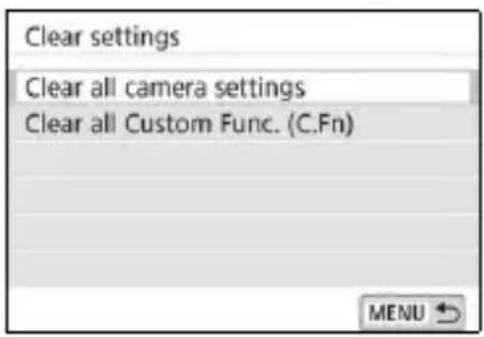

Reverting the Camera to the Default Settings 147

9 Image Playback 149

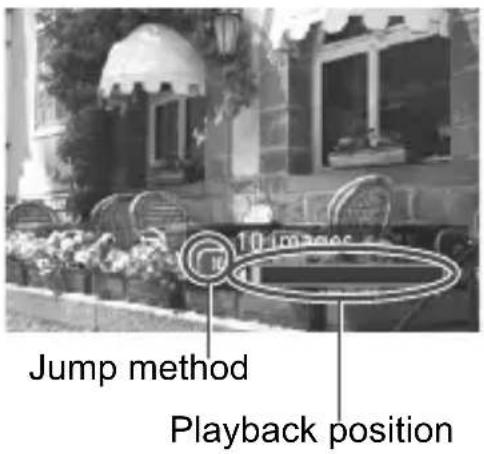

▶ Searching for Images Quickly .... 150

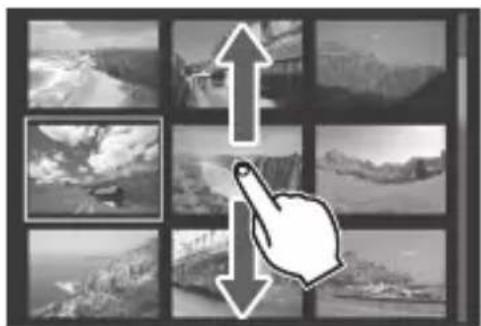

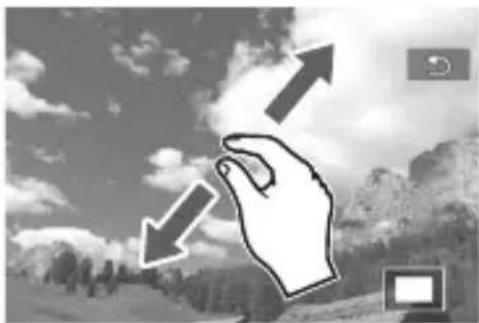

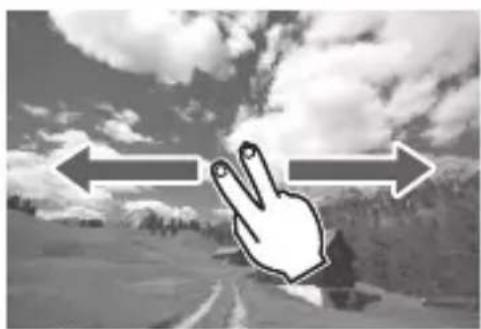

Playing Back with the Touch Screen 152

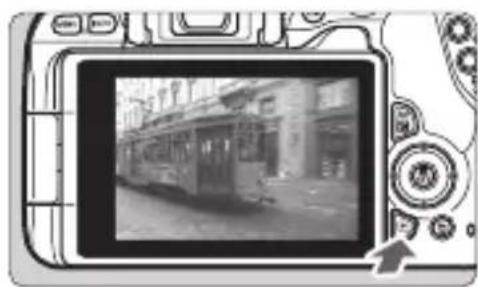

Playing Back Movies 154

☐ Erasing Images.... 156

10 Software Start Guide / Downloading Images to a Computer 157

Software Start Guide 158

Downloading and Viewing the Software Instruction Manuals (PDF Files).... 160

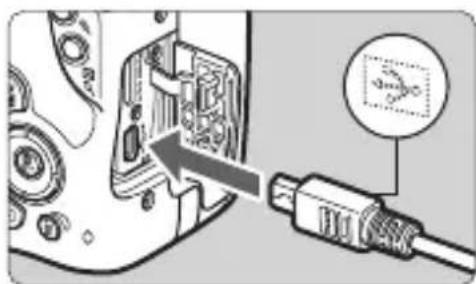

Downloading Images to a Computer 161

Index.... 169

For Troubleshooting guide and Specifications, refer to the Instruction Manual downloadable from the Canon Web site. For how to download the Instruction Manual, see page 4.

Certification Logo

Select [4: Certification Logo Display] and press to display some of the logos of the camera's certifications. Other certification logos can be found in this Instruction Manual, on the camera body, and on the camera's package.

Safety Precautions

The following precautions are provided to prevent harm or injury to yourself and others. Make sure to thoroughly understand and follow these precautions before using the product.

If you experience any malfunctions, problems, or damage to the product, contact the nearest Canon Service Center or the dealer from whom you purchased the product.

Warnings Follow the warnings below. Otherwise, death or serious injuries may result.

- To prevent fire, excessive heat, chemical leakage, explosions, and electrical shock, follow the safeguards below:

- Do not use any batteries, power sources, or accessories not specified in the Instruction Manual. Do not use any home-made or modified batteries, or the product if it is damaged.

- Do not short-circuit, disassemble, or modify the battery. Do not apply heat or solder to the battery. Do not expose the battery to fire or water. Do not subject the battery to strong physical shock.

- Do not insert the battery's plus and minus ends incorrectly.

- Do not recharge the battery in temperatures outside the allowable charging (working) temperature range. Also, do not exceed the recharge time indicated in the Instruction Manual.

- Do not insert any foreign metallic objects into the electrical contacts of the camera, accessories, connecting cables, etc.

- When disposing of a battery, insulate the electrical contacts with tape. Contact with other metallic objects or batteries may cause a fire or an explosion.

- If excessive heat, smoke, or fumes are emitted when recharging the battery, immediately unplug the battery charger from the power outlet to stop recharging. Otherwise, it may cause a fire, heat damage, or electrical shock.

- If the battery leaks, changes color, deforms, or emits smoke or fumes, remove it immediately. Be careful not to get burned in the process. It may cause a fire, electrical shock or burns if you keep using it.

- Prevent any battery leakage from contacting your eyes, skin, and clothing. It can cause blindness or skin problems. If the battery leakage comes in contact with your eyes, skin, or clothing, flush the affected area with lots of clean water without rubbing it. See a physician immediately.

- Do not leave any cords near a heat source. It can deform the cord or melt the insulation and cause a fire or electrical shock.

- Do not hold the camera in the same position for long periods of time. Even if the camera does not feel too hot, prolonged contact with the same body part may cause skin redness or blistering due to low-temperature contact burns. Using a tripod is recommended when using the camera in very hot places or for people with circulation problems or poor skin sensation.

- Do not fire the flash at anyone driving a car or other vehicle. It may cause an accident.

• When the camera or accessories are not in use, make sure to remove the battery, and disconnect the power plug and connecting cables from the equipment before storing. This is to prevent electrical shock, excessive heat, fire, and corrosion.
• Do not use the equipment where there is flammable gas. This is to prevent an explosion or a fire.
• If you drop the equipment and the casing breaks open to expose the internal parts, do not touch the exposed internal parts. There is a possibility of an electrical shock.
• Do not disassemble or modify the equipment. High-voltage internal parts can cause electrical shock.
• Do not look at the sun or an extremely bright light source through the camera or lens. Doing so may damage your vision.
• Keep equipment out of the reach of children and infants, including when in use. Straps or cords may accidentally cause choking, electrical shock, or injury. Choking or injury may also occur if a child or infant accidentally swallows a camera part or accessory. If a child or infant swallows a part or accessory, consult a physician immediately.
• Do not use or store the equipment in dusty or humid places. Likewise, keep the battery away from metallic items and store it with its protective cover attached to prevent short-circuit. This is to prevent fire, excessive heat, electrical shock, and burns.

• Before using the camera inside an airplane or hospital, check if it is allowed. Electromagnetic waves emitted by the camera may interfere with the plane's instruments or the hospital's medical equipment.
  ● ● To prevent a fire and electrical shock, follow the safeguards below:

• Always insert the power plug all the way in.

• Do not handle a power plug with wet hands.
• When unplugging a power plug, grasp and pull the plug instead of the cord.
• Do not scratch, cut, or excessively bend the cord or put a heavy object on the cord. Also do not twist or tie the cords.
• Do not connect too many power plugs to the same power outlet.

• Do not use a cord whose wire is broken or insulation is damaged.

• Unplug the power plug periodically and clean off the dust around the power outlet with a dry cloth. If the surrounding is dusty, humid, or oily, the dust on the power outlet may become moist and short-circuit the outlet, causing a fire.

• Do not connect the battery directly to an electrical outlet or a car's cigarette lighter outlet. The battery may leak, generate excessive heat or explode, causing fire, burns, or injuries.
• A thorough explanation of how to use the product by an adult is required when the product is used by children. Supervise children while they are using the product. Incorrect usage may result in electrical shock or injury.
• Do not leave a lens or lens-attached camera in the sun without the lens cap attached. Otherwise, the lens may concentrate the sun's rays and cause a fire.
• Do not cover or wrap the product with a cloth when using it. Doing so may trap heat within and cause the casing to deform or catch fire.
• Be careful not to get the camera wet. If you drop the product in the water or if water or metal get inside the product, promptly remove the battery. This is to prevent fire, electrical shock, and burns.
• Do not use paint thinner, benzene, or other organic solvents to clean the product. Doing so may cause fire or a health hazard.

Cautions Follow the cautions below. Otherwise, physical injury or property damage may result.

• Do not use or store the product in a high-temperature location such as inside a car under the hot sun. The product may become hot and cause burns. Doing so may also cause battery leakage or explosion, which will degrade the performance or shorten the life of the product.
• Do not carry the camera around when it is attached to a tripod. Doing so may cause an injury or an accident. Also make sure the tripod is sturdy enough to support the camera and lens.
• Do not leave the product in a low-temperature environment for an extended period of time. The product will become cold and may cause injury when touched.
• Do not fire the flash near the eyes. It may hurt the eyes.

Handling Precautions

Camera Care

• This camera is a precision instrument. Do not drop it or subject it to physical shock.
• The camera is not waterproof and cannot be used underwater. If you accidentally drop the camera into water, promptly consult the nearest Canon Service Center. Wipe off any water droplets with a dry and clean cloth. If the camera has been exposed to salty air, wipe it with a clean, well-wrun wet cloth.
  ● ● Never leave the camera near anything having a strong magnetic field such as a magnet or electric motor. Also, avoid using or leaving the camera near anything emitting strong radio waves, such as a large antenna. Strong magnetic fields can cause camera misoperation or destroy image data.
• Do not leave the camera in excessive heat, such as in a car in direct sunlight. High temperatures can cause the camera to malfunction.
• The camera contains precision electronic circuitry. Never attempt to disassemble the camera yourself.
• Do not block the mirror operation with your finger, etc. Doing so may cause a malfunction.
• Use only a commercially-available blower to blow away dust when it adheres to the lens, viewfinder, reflex mirror, focusing screen, etc. Do not use cleaners that contain organic solvents to clean the camera body or lens. For stubborn dirt, take the camera to the nearest Canon Service Center.
• Do not touch the camera's electrical contacts with your fingers. This is to prevent the contacts from corroding. Corroded contacts can cause camera malfunction.

• If the camera is suddenly brought in from the cold into a warm room, condensation may form on the camera and internal parts. To prevent condensation, first put the camera in a sealed plastic bag and let it adjust to the warmer temperature before taking it out of the bag.

• If condensation forms on the camera, do not use the camera. This is to avoid damaging the camera. If there is condensation, remove the lens, card and battery from the camera, and wait until condensation has evaporated before using the camera.

• If the camera will not be used for an extended period, remove the battery and store the camera in a cool, dry, well-ventilated location. Even while the camera is in storage, press the shutter button a few times once in a while to check that the camera is still working.
• Avoid storing the camera where there are chemicals that result in rust and corrosion such as in a chemical lab.
• If the camera has not been used for an extended period, test all its functions before using it. If you have not used the camera for some time or if there is an important shoot such as a foreign trip coming up, have the camera checked by your nearest Canon Service Center or check the camera yourself and make sure it is working properly.
• If you repeat continuous shooting or perform Live View shooting or movie shooting for a prolonged period, the camera may become hot. This is not a malfunction.
• If there is a bright light source inside or outside the image area, ghosting may occur.

LCD Monitor

• Although the LCD monitor is manufactured with very high precision technology with over 99.99% effective pixels, 0.01% or fewer of the pixels may be dead, and there may also be spots of black, red, or other colors. Dead pixels are not a malfunction. They do not affect the images recorded.
• If the LCD monitor is left on for a prolonged period, screen burn-in may occur where you see remnants of what was displayed. However, this is only temporary and will disappear when the camera is left unused for a few days.
  ● The LCD monitor display may seem slightly slow in low temperatures, or look black in high temperatures. It will return to normal at room temperature.

Cards

To protect the card and its recorded data, note the following:

• Do not drop, bend, or wet the card. Do not subject it to excessive force, physical shock, or vibration.
• Do not touch the card's electronic contacts with your fingers or anything metallic.
• Do not affix any stickers, etc. on the card.
• Do not store or use the card near anything that has a strong magnetic field, such as a TV set, speakers, or magnets. Also avoid places prone to having static electricity.
• Do not leave the card in direct sunlight or near a heat source.
• Store the card in a case.
• Do not store the card in hot, dusty, or humid locations.

Smudges Adhering to the Front of the Sensor

Besides dust entering the camera from outside, in rare cases, lubricant from the camera's internal parts may adhere to the front of the sensor. If smudges are visible on the images, having the sensor cleaned by a Canon Service Center is recommended.

Lens

After detaching the lens from the camera, put down the lens with the rear end up and attach the rear lens cap to avoid scratching the lens surface and electrical contacts.

Contacts

Nomenclature

Built-in flash/AF-assist beam emitter (p.117) Mode Dial (p.24) Power switch (p.35) ISO speed setting button (p.102) Display button (p.61) <☀️> Main Dial Shutter button (p.44) Built-in microphones (p.136) Grip Mirror Contacts (p.20) Lens mount Lens lock pin EF lens mount index (p.41) EF-S lens mount index (p.41) Flash sync contacts Hot shoe <⚡> Flash button (p.117) Wi-Fi lamp <(¶)> Wi-Fi button Speaker (p.154) <⊖> Focal plane mark (p.77) Strap mount (p.29) EOS Red-eye reduction/ Self-timer lamp (p.98) N (N-Mark)* Lens release button (p.42) Depth-of-field preview button <Ω> Remote control terminal External microphone IN terminal Body cap (p.41)

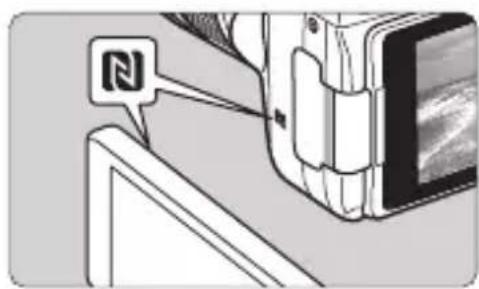

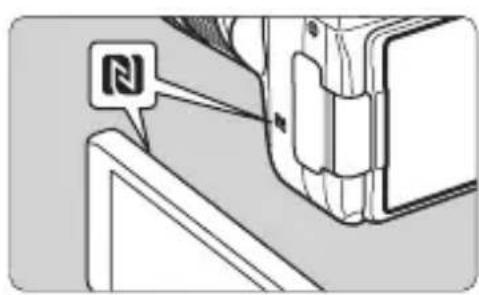

* Used for Wi-Fi connections via the NFC function.

HDMI mini OUT terminal <←> Digital terminal (p.161) <□> Live View shooting/ Movie shooting button (p.120/136) Dioptric adjustment knob (p.42) Viewfinder eyepiece Eyecup Info button (p.89, 122, 137) Menu button (p.53) LCD monitor/ Touch screen (p.53/57, 152, 155) Aperture/ Exposure compensation button Tripod socket <▶> Playback button (p.89) <▲><▼><◀><►>: <◇> Cross keys (p.53) <○/SET> Quick Control button/ Setting button (p.51/53) <*//○> AE lock/ FE lock button/ Index/Reduce button (p.150) <□/○> AF point selection/ Magnify button (p.94) Access lamp (p.33) DC cord hole Card slot/Battery compartment cover release lever (p.32) Card slot/Battery compartment cover (p.32) <→> Erase button (p.156) Card slot (p.32) Battery compartment (p.32)

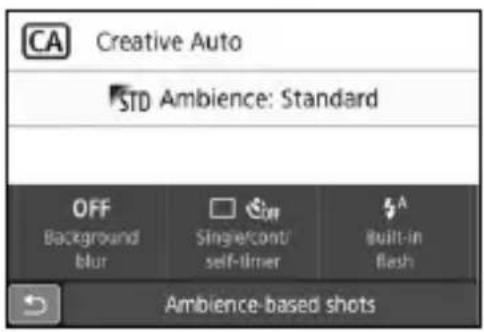

Quick Control Screen

(Example in the

mode with [☐: Shooting screen: Standard] set (p.51))

Shutter speed Exposure level indicator Exposure compensation amount (p.114) AEB range (p.115) Shooting mode Picture Style (p.103) AF operation (p.92) Manual focus (p.95) Quick Control icon (p.51) Battery level (p.36) AF point selection (p.94) Wi-Fi function White balance (p.105) Wi-Fi signal strength Eye-Fi transmission status Drive mode (p.96, 98) GPS connection indicator (p.142) Bluetooth function Aperture Main Dial pointer Auto Lighting Optimizer (p.106) ISO speed (p.102) Highlight tone priority Flash exposure compensation Metering mode Image-recording quality (p.100) Large/Fine Large/Normal Medium/Fine Medium/Normal Small 1/Fine Small 1/Normal Small 2 (Fine) RAW + L RAW+Large/ Fine RAW RAW Possible shots Possible shots during white balance bracketing Self-timer countdown Multi Shot Noise Reduction (p.107) White balance correction White balance bracketing

● The display will show only the settings currently applied.

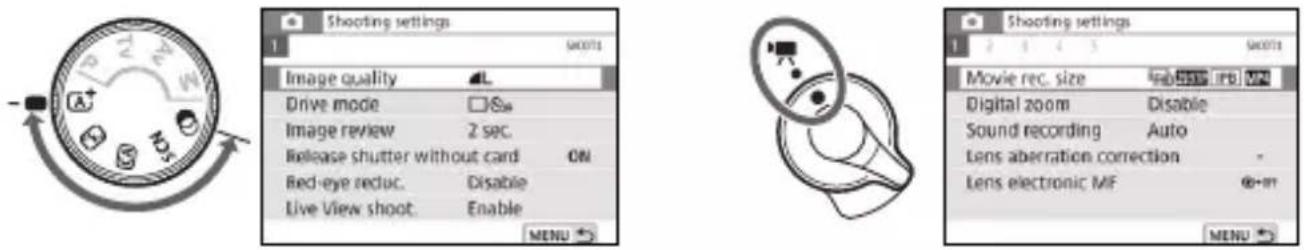

Mode Dial

The Mode Dial includes the Basic Zone modes and Creative Zone modes.

P TV AV W A+ A NDS

Basic Zone

All you do is press the shutter button. The camera sets everything to suit the subject or scene for shooting.

^+ : Scene Intelligent Auto (p.64)

: Flash Off (p.68) CA: Creative Auto (p.69)

SCN: Special scene (p.70)

	Portrait (p.72)		Food (p.78)
	Group Photo (p.73)		Candlelight (p.79)
	Landscape (p.74)		Night Portrait (p.80)
	Sports (p.75)		Handheld Night Scene (p.81)
	Kids (p.76)		HDR Backlight Control (p.82)
	Close-up (p.77)

: Creative filters (p.83)

	Grainy B/W		Miniature effect
	Soft focus		HDR art standard
	Fish-eye effect		HDR art vivid
	Water painting effect		HDR art bold
	Toy camera effect		HDR art embossed

P T A N W A+ S C N S M

Creative Zone

These modes give you more control for shooting various subjects as desired.

P: Program AE (p.110)

Tv : Shutter-priority AE (p.111)

Av : Aperture-priority AE (p.112)

M: Manual exposure (p.113)

Viewfinder Information Display

Spot metering circle <•> AF point activation indicator Focusing screen AF point (p.94) Warning icon ISO speed indicator (p.102) <•> A E I o c k AEB in-progress <♦> Flash-ready (p.117) Improper FE lock warning <♦_H> High-speed sync <♦*>FE lock / FEB in-progress <♦> Flash exposure compensation Shutter speed (p.111) Bulb exposure (buLb) FE lock (FEL) Busy (buSY) Built-in flash recharging (♦ buSY) No card warning (Card) Card error (Card) Card full warning (FuLL) Error code (Err) Aperture (p.112) <•> Focus indicator Maximum burst ISO speed (p.102) Highlight tone priority Exposure level indicator Exposure compensation amount (p.114) AEB range Red-eye reduction lamp ON <♦> Exposure compensation (p.114) Aperture (p.112)

● The display will show only the settings currently applied.

Battery Charger LC-E17

Charger for Battery Pack LP-E17 (p.30).

Power plug Canon Charge lamp FULL-charge lamp Battery pack slot

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS. DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.

Battery Charger LC-E17E

Charger for Battery Pack LP-E17 (p.30).

Battery pack slot Full-charge lamp Charge lamp Canon Power cord Power cord socket

1

Getting Started and Basic Camera Operations

This chapter describes preparatory steps before you start shooting and the basic camera operations.

Diagram illustrating rope knotting steps with numbered instructions and directional arrows

Attaching the Provided Strap

Pass the end of the strap through the camera's strap mount eyelet from the bottom. Then pass it through the strap's buckle as shown in the illustration. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.

● The eyepiece cover is also attached to the strap.

Technical line drawing of a wristwatch with textured grip and label (no readable text or symbols)

Eyepiece cover

Charging the Battery

Diagram showing a Canon device connected to a smaller device (no text or symbols present)

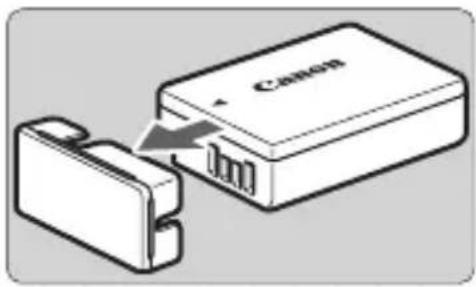

1 Remove the protective cover.

- Detach the protective cover provided with the battery.

Canon ① ② Canon

2 Attach the battery.

● As shown in the illustration, attach the battery securely to the charger.
● To detach the battery, follow the above procedure in reverse.

LC-E17

Canon CANOC Full-charge lamp Charge lamp

3 Recharge the battery. For LC-E17

- As shown by the arrow, flip out the battery charger's prongs and insert the prongs into a power outlet.

For LC-E17E

- Connect the power cord to the charger and insert the plug into a power outlet.

▶ Recharging starts automatically and the charge lamp lights up in orange.
When the battery is fully recharged, the full-charge lamp will light up in green.

LC-E17E

Diagram showing a device connected to an electrical outlet with labeled parts 1 and 2, indicating wiring or connection.

• It takes approx. 2 hours to fully recharge a completely exhausted battery at room temperature (23°C / 73°F). The time required to recharge the battery will vary greatly depending on the ambient temperature and the battery's remaining capacity.
• For safety reasons, recharging in low temperatures (5°C - 10°C / 41°F - 50°F) will take longer (up to approx. 4 hr.).

Tips for Using the Battery and Charger

• Upon purchase, the battery is not fully charged.
  Charge the battery before use.

● Recharge the battery on the day before or on the day it is to be used.

Even during storage, a charged battery will gradually drain and lose its capacity.

● After recharging the battery, detach it and disconnect the charger from the power outlet.

- When not using the camera, remove the battery.

If the battery is left in the camera for a prolonged period, a small amount of power current will keep being released, resulting in excess discharge and shorter battery life. Store the battery with the protective cover (provided) attached. Storing the battery when it is fully charged may lower the battery performance.

● The battery charger can also be used in foreign countries.

The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz power source. If necessary, attach a commercially-available plug adapter for the respective country or region. Do not attach any portable voltage transformer to the battery charger. Doing so may damage the battery charger.

- If the battery becomes exhausted quickly even after having been fully charged, the battery has reached the end of its service life.

Check the battery's recharge performance and purchase a new battery.

• After disconnecting the charger's power plug, do not touch the prongs for approx. 5 sec.
• Do not charge any battery other than a Battery Pack LP-E17.
  ● Battery Pack LP-E17 is dedicated to Canon products only. Using it with an incompatible battery charger or product may result in malfunction or accidents for which Canon cannot be held liable.

Installing and Removing the Battery and Card

Load a fully charged Battery Pack LP-E17 into the camera. The camera can use an SD, SDHC, or SDXC memory card (sold separately). UHS-I Speed Class SDHC and SDXC memory cards can also be used. The captured images are recorded onto the card.

Make sure the card's write-protect switch is set upward to enable writing/erasing.

Installing the Battery and Card

Diagram of a camera module with labeled parts and directional arrows indicating motion or movement.

1 Open the cover.

- Slide the lever as shown by the arrows and open the cover.

Technical line drawing of a mechanical device interior (no text or symbols)

Insert the battery.

- Insert the end with the battery contacts. - Insert the battery until it locks in place.

Write-protect switch

3 Insert the card.

- As shown by the illustration, face the card's label side toward the back of the camera and insert it until it clicks in place.

Technical line drawing of a camera module with no visible text or symbols

4 Close the cover.

- Press the cover until it snaps shut. - When you set the power switch to , the number of possible shots (p.36) will be displayed on the LCD monitor.

Removing the Battery and Card

1 Set the power switch to (p.35).

Open the cover.

Diagram of a camera module with labeled parts and directional arrows indicating motion or movement.

● Make sure the access lamp is off, then open the cover.
- If [Recording...] is displayed, close the cover.

Technical diagram of a device with numbered components, likely illustrating a mechanical or electronic assembly.

3 Remove the battery.

• Press the battery lock lever as shown by the arrow and remove the battery.
  ● To prevent short-circuiting, be sure to attach the provided protective cover (p.30) to the battery.

Technical line drawing of mechanical components with no visible text or symbols

4 Remove the card.

● Gently push in the card, then let go to eject it.
- Pull the card straight out.

5 Close the cover.

- Press the cover until it snaps shut.

When the access lamp is lit or blinking, it indicates that images are being written to, read from, or erased from the card, or data is being transferred. Do not open the card slot/battery compartment cover. Also, never do any of the following while the access lamp is lit or blinking. Otherwise, it can damage the image data, card, or camera.

• Removing the card.
• Removing the battery.
• Shaking or banging the camera around.
• Unplugging and connecting a power cord (when household power outlet accessories (sold separately) are used).

Using the LCD Monitor

After you flip out the LCD monitor, you can set menu functions, use Live View shooting, shoot movies, or play back photos and movies. You can change the direction and angle of the LCD monitor.

Diagram showing a device being processed into a screen, with no visible text or symbols.

1 Flip out the LCD monitor.

180° 90° 175°

Rotate the LCD monitor.

- When the LCD monitor is swung out, you can rotate it up, down, or over 180^ to face the subject.

● The indicated angle is only approximate.

Diagram of a camera module with a CD-ROM attached, showing no text or symbols on the device itself.

3 Face it toward you.

● Normally, use the camera with the LCD monitor facing you.

Turning on the Power

If you turn on the power switch and the date/time/zone setting screen appears, see page 37 to set the date/time/zone.

DC DISP ON FF +

<■>: The camera turns on. You can shoot movies (p.136).

: The camera turns on. You can shoot still photos.

: The camera is turned off and does not function. Set the power switch to this position when not using the camera.

Automatic Sensor Cleaning

• Whenever you set the power switch to or , sensor cleaning will be performed automatically. (A small sound may be heard.) During the sensor cleaning, the LCD monitor will display <+□>.
  ● Even during the sensor cleaning, if you press the shutter button halfway (p.44), cleaning operation will be stopped, and you can take a picture immediately.
• If you repeatedly turn the power switch < ON > / < OFF> at a short interval, the < > icon may not be displayed. This is normal and not a malfunction.

MENU Auto Power Off

To save battery power, if the camera is not operated for a prolonged period, the power will turn off automatically after the time set under [⚡2: Auto power off] (p.146). To turn on the camera again, just press the shutter button halfway (p.44).

Battery Level Indicator

When the power is turned on, the battery level will be indicated in one of the four levels.

Scene Intelligent Auto A+ Single/cont/ self-timer Built-in flash Q [514]

Battery level is sufficient.
Battery level is low, but the camera can still be used.
: Battery will be exhausted soon. (Blinks)
☐: Recharge the battery.

Number of Possible Shots with Viewfinder Shooting

(Approx. number of shots)

Temperature	Room Temperature (23°C / 73°F)	Low Temperatures (0°C / 32°F)
No Flash 840 770
50% Flash Use 650	620

● The figures above are based on a fully-charged Battery Pack LP-E17, no Live View shooting, and CIPA (Camera & Imaging Products Association) testing standards.

MENU Setting the Date, Time, and Zone

When you turn on the power for the first time or if the date/time/zone have been reset, the date/time/zone setting screen will appear. Follow the steps below to set the time zone first. Set the camera to the time zone in which you currently live so that, when you travel, you can simply change the setting to the correct time zone for your destination, and the camera will automatically adjust the date/time.

Note that the date/time appended to recorded images will be based on this date/time setting. Be sure to set the correct date/time.

Configure Image quality, color-free (HIT), and other settings for this.

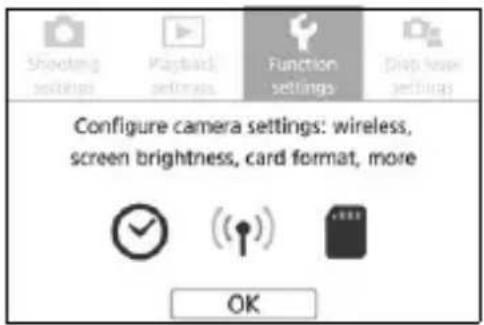

1 Display the main tabs.

- Press the

button to display the main tabs.

Function settings 1 2 3 4 Select folder File numbering Auto rotate Format 0:4:30 Wash

2 Under the [⚡2] tab, select [Date/Time/Zone].

• Press the <◀> <▶> keys to select the [◀] tab, then press .
• Press the <◀> <▶> keys to select the [◀2] tab.
• Press the <> < > keys to select [Date/Time/Zone], then press .

SET Auto power off 10 LCD brightness ★+ LCD off/on btn Shu Date/Time/Zone 03/0

3 Set the time zone.

• [London] is set by default.
- Press the <◀> <▶> keys to select [Time zone], then press .

Date/Time/Zone Time zone ±00:00 03.03.2017 09:30:00 mm/dd/yy London OK Cancel

Zone/Time difference 03/03/2017 09:30:00 Zone London

Time zone 03/03/2017 04:30:00 Chicago -06:00 New York -05:00 Caracas -04:00 Newfoundland -03:30 São Paulo -03:00 SET OK

Zone/Time difference 03/03/2017 04:15:00 Zone Time difference - 05 : 15 OK Cancel

- Press again.

• Press the <> < > keys to select the time zone, then press .
• If your desired time zone is not listed, press the button, then proceed to the next step to set it (with the time difference from the Coordinated Universal Time, UTC).
• To set the time difference from UTC, press the <> <> keys to select a parameter (+/-/hour/minute) for [Time difference].
• Press so <☐> is displayed.
• Press the <> <> keys to set it, then press . (Returns to <> .)
• After entering the time zone or time difference, press the <> <> keys to select [OK], then press .

Date/Time/Zone (03/03/2017) 03.03.2017 04:30:00 mm/dd/yy New York OK Cancel

4 Set the date and time.

• Press the <◀> <▶> keys to select the number.
• Press so <☐> is displayed.
• Press the <> <> keys to set it, then press <SET> . (Returns to <> .)

Date/Time/Zone Daylight saving time off 03 . 03 . 2017 04 : 30 : 00 mm/dd/yy New York OK Cancel

5 Set the daylight saving time.

• Set it as necessary.
• Press the <◀> <▶> keys to select [OFF].
• Press so <☐> is displayed.
• Press the <▲> <▼> keys to select [★], then press .
• When the daylight saving time is set to [●], the time set in step 4 will advance by 1 hour. If [●] is set, the daylight saving time will be canceled and the time will go back by 1 hour.

Date/Time/Zone (03/03/2017) 03.03.2017 04:30:00 mm/dd/yy New York OK Cancel

6 Exit the setting.

• Press the <◀> <▶> keys to select [OK], then press .
  The date/time/zone and daylight saving time will be set and the menu will reappear.

MENU

Selecting the Interface Language

Can you mean quality check from units, and other settings for units

1

Display the main tabs.

- Press the

button to display the main tabs.

Function settings 1 2 3 4 Select folder File numbering Auto rotate Format 4:30 Wri dish

2

Under the [⚡2] tab, select [Language 🔒].

• Press the <◀> <▶> keys to select the [◀] tab, then press .
• Press the <◀> <▶> keys to select the [⚡2] tab.
• Press the <▲> <▼> keys to select the [Language], then press .

Power off 10 CD brightness * LCD off/on btn Sh Date/Time/Zone 03/0 Language En

English	Norsk	Română
Deutsch	Svenska	Türkçe
Français	Español	###
Nederlands	Еллэнviká	###
Dansk	Русский	简体中文
Português	Polski	繁體中文
Suomi	Čeština	한국어
Italiano	Magyar	日本語
Українська		SET OK

3

Set the desired language.

• Press the <> < > keys to select the language, then press .
  The interface language will change.

Attaching and Detaching a Lens

The camera is compatible with all Canon EF and EF-S lenses. Note that you cannot use the EF-M lenses.

Attaching a Lens

Close-up of a cylindrical mechanical component with a circular recessed ring and a small rectangular opening (no visible text or symbols)

Canon ① ②

White index

Canon

Canon

Red index

1 Remove the caps.

- Remove the rear lens cap and the body cap by turning them as shown by the arrows.

2 Attach the lens.

- Align the lens's red or white index with the camera's index matching the same color. Turn the lens as shown by the arrow until it clicks in place.

Canon AF MF

3 Set the lens's focus mode switch to .

• stands for autofocus.
• stands for manual focus.

4 Remove the front lens cap.

Tips for Avoiding Smudges and Dust

• When changing lenses, do it quickly in a place with minimal dust.
• When storing the camera without a lens attached, be sure to attach the body cap to the camera.
• Remove dust on the body cap before attaching it.

Zooming

Line drawing of a DSLR camera with lens and control buttons (no text or symbols)

Detaching the Lens

Diagram of a DSLR camera with numbered parts indicating camera lens and adjustment arrows

Turn the zoom ring on the lens with your fingers.

- Perform the zoom operation before focusing. Turning the zoom ring after achieving focus may throw off the focus.

While pressing the lens release button, turn the lens as shown by the arrow.

● Turn the lens until it stops, then detach it.
- Attach the rear lens cap to the detached lens.

Do not look at the sun directly through any lens. Doing so may cause loss of vision.

Basic Shooting Operations

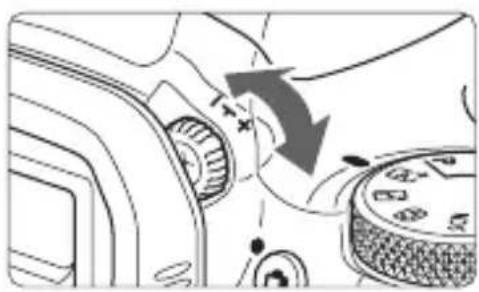

Adjusting the Viewfinder Clarity

Close-up of a camera mode dial and rotary knob mechanism (no text or symbols visible)

Turn the dioptric adjustment knob.

● Turn the knob left or right so that the AF points in the viewfinder look sharp.
- If the knob is difficult to turn, remove the eyecup.

Holding the Camera

To obtain sharp images, hold the camera still to minimize camera shake.

Illustration of a person using three different camera settings (no text or symbols present)

Horizontal shooting
Vertical shooting

1. Wrap your right hand around the camera grip firmly.
2. Hold the lens bottom with your left hand.
3. Rest your right index finger lightly on the shutter button.
4. Press your arms and elbows lightly against the front of your body.
5. To maintain a stable stance, place one foot slightly ahead of the other.
6. Press the camera against your face and look through the viewfinder.

Shutter Button

The shutter button has two steps. You can press the shutter button halfway. Then you can further press the shutter button completely.

Diagram of a camera control panel with labeled buttons and a downward arrow indicating action or change.

Pressing Halfway

This activates autofocusing and the automatic exposure system that sets the shutter speed and aperture.

The exposure setting (shutter speed and aperture) is displayed in the viewfinder (♂4).

While you press the shutter button halfway, the LCD monitor will turn off.

Close-up of a camera control panel with adjustment knobs and a downward arrow (no text or symbols visible)

Pressing Completely

This releases the shutter and takes the picture.

Preventing Camera Shake

Hand-held camera movement during the moment of exposure is called camera shake. It can cause blurred pictures. To prevent camera shake, note the following:

• Hold and steady the camera as shown on the preceding page.
• Press the shutter button halfway to autofocus, then slowly press the shutter button completely.

MENU Setting the Screen Display Level

You can set how information is displayed on the screen according to your preference. Change the settings as necessary.

Car figure image quality, color time (mE), and other settings for zinks. OK

1 Display the main tabs.

- Press the

button to display the main tabs.

Customize information display for your ability or preferences Guided Standard OK

Select the [图标] tab.

- Press the <◀> <▶> keys of the cross keys to select the [☐] tab, then press .

Shooting Screen

You can select [Standard] or [Guided] (friendly display) for the Quick Control screen in viewfinder shooting. By default, it is set to [Guided].

Display level settings 1 DISPLAY LEVEL Shooting screen Guided Menu display Guided Mode guide Enable Feature guide Enable MENU ↺

1 Select [Shooting screen].

2 Select the display method.

Shooting screen Guided Standard Av SET OK

- Sample Screens

: Guided

CA Creative Auto STD Ambience: Standard OFF Background blur Single/cont/ self-timer Built-in flash Q 770 1034 L [ 514 ]

: Standard

CA Creative Auto STD Ambience: Standard OFF Background blur Drive mode Built-in flash Q [ 514 ]

: Guided

Av Blurred F4.0 F5.6 F22 Sharp ±0 One Shot Brightness Single/cont/ self-timer Focusing position Method of focusing Q [ 514 ]

: Standard

Av F5.6 ISO AUTO 3..2..1..0..1..2..3 E-A AWB ONE SHOT OFF L [ 514 ]

In Creative Zone modes, when [Guided] is set, only the functions particular to the set shooting mode are displayed on the Quick Control screen. Note that items that cannot be set from the Quick Control screen when [Guided] is selected can be set via the menu screen (p.54).

Menu Display

You can select the display type from [Standard] or [Guided]. If you set [Guided], main tab descriptions are provided when you press the

button. If you set [Standard], you proceed directly to the menu screen when you press the button. By default, it is set to [Guided].

Display level settings 1 DISPLAY LEVEL Shooting screen Guided Menu display Guided Mode guide Enable Feature guide Enable MENU ↗

1 Select [Menu display].

Menu display Guided Standard Configure hyperquality options SMS and other settings for SMS OK SET OK

2 Select the display type.

Main tabs Shooting settings Configure image quality and other settings for still photo shooting OK

When [Guided] is set, the [★ (My Menu)] tab does not appear. To set My Menu, change the menu display level to [Standard].

Shooting Mode Guide

You can display the description of the shooting mode (mode guide) when switching the shooting mode during viewfinder shooting. By default, it is set to [Enable].

Display level settings 1 DISPLAY LEVEL Shooting screen Guided Menu display Guided Mode guide Enable Feature guide Enable

1 Select [Mode guide].

Mode guide Enable Disable Av Avalure currently 50 Select the level of recognition flow SET OK

2 Select [Enable].

CA Creative Auto Shoot images with a specific ambience OK Vitrol Soft Sensification

3 Turn the Mode Dial. A description of the

A description of the selected shooting mode will appear.

CA Creative Auto Shoot images with a specific ambience OK Choose the ambience you want images to convey, from Vivid, Soft, and other options

4 Press the < > key.

The rest of the description will appear.
- When you press , the description will disappear and the Quick Control screen will appear.
- In the and <○> shooting modes, the shooting mode selection screen will appear.

In step 3 and step 4, if you tap on [OK] or press the shutter button halfway, the description will disappear and the Quick Control screen will appear.

Feature Guide

When using Quick Control or setting menu items, you can display a brief description of functions and options (feature guide). By default, it is set to [Enable].

Display level settings 1 DISPLAY LEVEL Shooting screen Guided Menu display Guided Mode guide Enable Feature guide Enable MENU ↕

1 Select [Feature guide].

Display level settings 1 DISPLAY LEVEL Feature guide ▶ Enable Disable

2 Select [Enable].

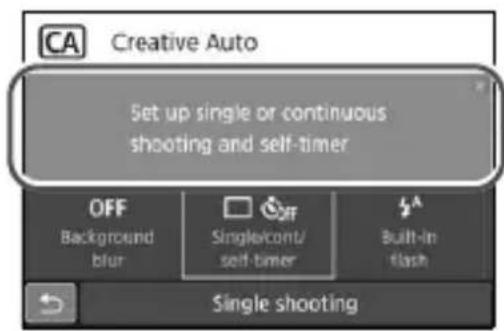

- Sample Screens

Quick Control screen Menu screen

CA Creative Auto Set up single or continuous shooting and self-timer OFF Background blur Single/cont/ self-timer Built-in flash Single shooting

Shooting settings 1 2 3 4 SHOOT1 Image quality ▲L Drive mode □OFF Image review 2 sec. Release shutter without card ON AF operation ONE SHOT AF Choose image size and quality

Feature guide

The description will disappear when you tap on it or proceed with the operation.

Shooting Tips

Shooting tips appear when [Shooting screen] is set to [Guided] (p.45) and the camera settings result in any of the following conditions. In Basic Zone modes, shooting tips appear regardless of the [Shooting screen] setting.

• You want to blur the background further (by setting the lowest aperture value in the <Av> mode).
  • The image is likely to be overexposed.
  • The image is likely to be underexposed.
• Camera shake is likely to occur (only in Basic Zone modes).

Av For more background blur Blurred F4.0 F22 Sharp ±0 Single/cont F14.0 Brightness self-timer Focusing position ONE SHOT Method of focusing Q (1) [ 514 ]

1

Tap on the area within the frame.

The shooting tips will appear.
- ● You can also display the shooting tips by pressing the <图标> button.

For more background blur Tip #1: Zoom in to the subject. Tip #2: Move closer to the subject.

2

Check the shooting tips.

• ● You can scroll up and down by tapping on the screen.
• ● You can also scroll by pressing the <▲> <▼> keys.

For more background blur Tip #4: More background blur is often possible by using a "brighter" lens with a smaller f-number (max. aperture) and longer focal length.

3

Tap on [←].

▶ Shooting tips will disappear, and the screen in step 1 will reappear.
- ● You can also hide the shooting tips by pressing .

Quick Control for Shooting Functions

You can directly select and set the shooting functions displayed on the LCD monitor with intuitive operations. This is called Quick Control.

ONE SHOT 5141

1 Press the button (💡10).

The Quick Control screen will appear.

Sharp ONE SHOT Method of focusing

Set the desired functions.

• Press the <◆> cross keys to select a function.
  The settings of the selected function and Feature guide (p.49) will appear.
• Turn the < semicircle> dial to change the setting.

Basic Zone modes Creative Zone modes

Scene Intelligent Auto A+ Single shot/ Self-timer Built-in Flash Single shooting

P TV PZ M - I05

Av Blurred F4.8 F5.6 F22 Sharp ±0 Brightness Simplepoint/ self timer Focusing post/turn ONE SHOT Method of focusing Aperture

3 Take the picture.

• Press the shutter button completely to take the picture.
  The captured image will be displayed.

Sample Quick Control Screen

• When [☐: Shooting screen: Guided] is Set


Av F5.6 F4.0 F22 Blurred Aperture (p.112) Sharp Exposure compensation (p.114) AF operation (p.92) Brightness Single/cont/ self-timer Focusing position ONE SHOT Method of focusing Return Aperture Drive mode (p.96) AF point selection (p.94)

• When [☐: Shooting screen: Standard] is Set


Aperture (p.112) Shutter speed (p.111) Shooting mode* (p.24) Exposure compensation/ AEB setting (p.114) Picture Style (p.103) AF operation (p.92) Return White balance (p.105) AF point selection (p.94) White balance correction Drive mode (p.96) White balance bracketing Highlight tone priority* AV 1/60 F5.6 ISO D+ AUTO ISO speed (p.102) Flash exposure compensation Metering mode RAW + L 24M 6000×4000 [ 999] Image-recording quality (p.100) Auto Lighting Optimizer (p.106)

* These functions cannot be set with Quick Control.

MENU Menu Operations and Configurations

You can configure various settings with the menus such as the image-recording quality, date/time, etc.

button LCD monitor button <◆> cross keys

Menu Screen

The menu tabs and items displayed vary depending on the shooting mode.

Basic Zone modes Movie shooting

Creative Zone modes

P NOS

Secondary tabs

Menu items A

Shooting settings 1 2 3 4 SH00T1 Image quality Drive mode Image review Release shutter without card ON AF operation Lens electronic MF ONE SHOT AF OFF MENU

Menu Setting Procedure

- When [☐: Menu display: Guided] is Set

Main tabs Shooting settings Configure image quality, color tone (WB), and other settings for stills OK

1 Display the main tabs.

- When you press the

button, the main tabs and a description of the selected tab will appear.

Select a main tab.

- Each time you press the <> <> keys of the cross keys, the main tab (group of functions) will switch.

3 Display the menu screen.

• Press to display the menu screen.
• To return to the main tab screen, press the button.

Shooting settings 1 2 3 4 SHOOT: Image quality ▲L Drive mode □ Off Image review 2 sec. Release shutter without card ON AF operation ONE SHOT AF Lens electronic MF 📍+OFF MENU ↻

4 Select a secondary tab.

• Press the <> <> keys of the cross keys to select a secondary tab.
• For example, in this manual, the [4] tab refers to the screen displayed when the (Shooting) tab's [4] is selected.

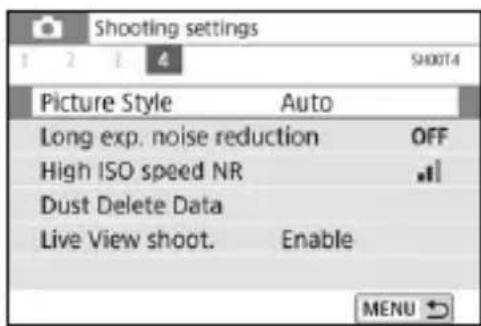

Shooting settings 1 2 3 4 SHOOT4 Picture Style Auto Long exp. noise reduction OFF High ISO speed NR Dust Delete Data Live View shoot. Enable MENU

5 Select the desired item.

- Press the <> < > keys of the cross keys to select the item, then press .

Picture Style G,G,G,O,S,O Auto 3,4,4,0,0,0 Standard 3,4,4,0,0,0 Portrait 2,4,4,0,0,0 Landscape 4,4,4,0,0,0 Fine Detail 4,1,1,0,0,0 Neutral 0,2,2,0,0,0 INFO Detail set. SET OK

6 Select the setting.

• Press the <> <> or <> <> keys of the cross keys to select the desired setting. (Some settings are selected with the <> and <> keys, and others are selected with the <> and <> keys.)
  ● The current setting is indicated in blue.

Shooting settings 1 2 3 4 SHOOT4 Picture Style Portrait Long exp. noise reduction OFF High ISO speed NR . Dust Delete Data Live View shoot. Enable MENU ↗

7 Set the setting.

• Press to set it.
  If you change the setting from the default, it will be indicated in blue (available only for the menu items under the [图标] tab).

8 Exit the setting.

- Press the

button twice to exit the menu and return to shooting-ready state.

• In step 2, you can also use the < img src="box"> dial.
• You can also go to the menu screen by tapping on [OK] in step 3.
• In steps 2 to 8, you can also tap on the LCD monitor to perform the operation (p.57).
  ● The description of menu functions hereafter assumes that the menu screen is displayed.
• To cancel the operation, press the button.

- When [图标] : Menu display: Standard] is Set

Main tabs Image quality Drive mode Image review 2 sec. Release shutter without card ON AF operation ONE SHOT AF Lens electronic MF +OFF

1 Display the menu screen.

- Press the

button to display the menu screen.

Select a tab.

- Turn the <◀> dial or press the <◀> <▶> keys to select the main tab and secondary tab.

- For example, in this manual, the [4] tab refers to the screen displayed when the (Shooting) tab's [4] is selected.

● The subsequent operations are the same as those for [☐: Menu display: Guided]. See the steps on page 54, starting with step 5.

- To exit the setting, press the

button once.

Operating the Camera with Touch Screen

You can operate the camera by tapping on the LCD monitor (touch-sensitive panel) with your fingers.

Tap

Sample Screen (Quick Control)

P Darker ±0 -3..2..1..0..1..2..3 Brighter Single/cont/ self-timer Focusing position ONE SHOT Method of focusing OFF [ 514 ]

P Darker ±0 -3..2..1..0..1..2..+3 Brighter Single/cont/ self-timer Focusing position THE SHOT method of focusing Exposure comp.

- Use your finger to tap on (touch briefly and then remove your finger from) the LCD monitor.

- By tapping, you can select menus, icons, etc. displayed on the LCD monitor.

- For example, when you tap on [Q], the Quick Control screen appears. By tapping on [Q↔], you can return to the preceding screen.

Operations possible by tapping on the screen

• Setting menu functions after pressing the button
• Quick Control
• Setting functions after pressing the or <图标> button
  ● Touch AF and Touch Shutter in Live View shooting
  ● AF point selection in movie shooting
• Setting functions in Live View shooting and movie shooting
• ● Playback operations

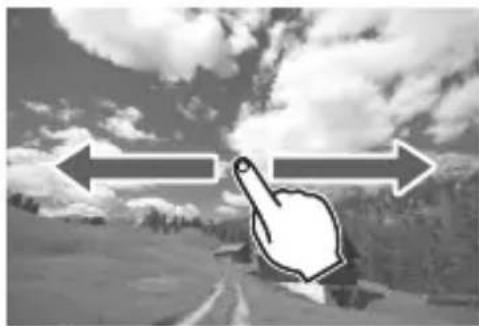

Drag

Sample Screen (Menu screen)

Share set The imagi color tone and other for stills OK

- Slide your finger while touching the LCD monitor.

Sample Screen (Scale display)

exp. comp. +½ Darker 2..1..0..1..2 Brighter SET OK

Operations possible by dragging your finger on the screen

• Selecting a menu tab or item after pressing the button
• Setting with scale display
• Quick Control
• Selecting AF points
• Setting functions in Live View shooting and movie shooting
• ● Playback operations

MENU Setting the Touch Control Response

Function settings 1 2 3 4 SET UP3 Video system For NTSC Touch control Standard Switch 📄/★button Disable Beep Enable Battery info. Sensor cleaning MENU ↕

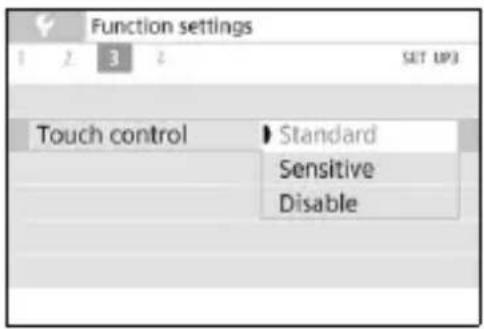

1 Select [Touch control].

- Under the [⚡3] tab, select [Touch control], then press .

Function settings 1 2 3 4 SET UPS Touch control ▶ Standard Sensitive Disable

2 Set the touch control response setting.

• Select the desired setting, then press .
• [Standard] is the normal setting.
• [Sensitive] provides a more reactive touch screen response than [Standard]. Try using both settings and select the one you prefer.
• To disable touch operations, select [Disable].

Cautions for Touch Control Operations

• Since the LCD monitor is not pressure sensitive, do not use any sharp objects, such as your fingernail or a ballpoint pen, for touch operations.
• Do not use wet fingers for touch operations.
• If the LCD monitor has any moisture or if your fingers are wet, the touch screen may not respond or malfunction may occur. In such a case, turn off the power and wipe off the moisture with a cloth.
• Attaching any commercially-available protective sheet or sticker on the LCD monitor may degrade the touch operation response.
• If you quickly perform touch operation when [Sensitive] is set, the touch operation response may be poor.

MENU Formatting the Card

If the card is new or was previously formatted by another camera or computer, format the card with this camera.

When the card is formatted, all images and data on the card will be erased. Even protected images will be erased, so make sure there is nothing you need to keep. If necessary, transfer the images and data to a computer, etc. before formatting the card.

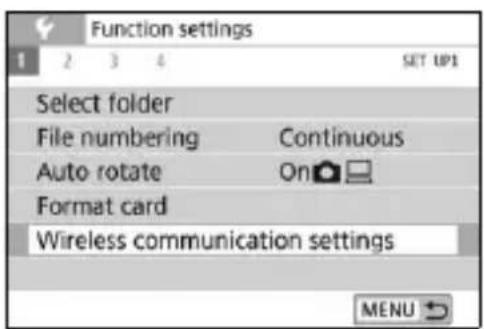

Function settings 1 2 3 4 SET UP1 Select folder File numbering Continuous Auto rotate On Format card Wireless communication settings MENU

1 Select [Format card].

- Under the [1] tab, select [Format card], then press .

Format card Format card All data will be lost! 7.76 GB used 7.81 GB Low level format Cancel OK

2 Format the card. Select [OK] then

• Select [OK], then press .
  The card will be formatted.
  When the formatting is complete, the menu will reappear.

- For low-level formatting, press the <图标> button to add a checkmark <√> to [Low level format], then select [OK].

7.76 GB used 7.81 GB Low level format Cancel OK

Switching the LCD Monitor Display

The LCD monitor can display the Quick Control screen, menu screen, captured images, etc.

Scene Intelligent Auto A+ Single/cont/ self-timer Built-in flash Q [ 514 ]

Interior view of a car dashboard with steering wheel and dashboard (no visible text or symbols)

• When you turn on the power, the Quick Control screen will appear. You can then check the current shooting function settings.
• When you press the shutter button halfway, the display will turn off. And when you let go of the shutter button, the display will turn on.
• ● You can also turn off the display by pressing the button. Press the button again to turn on the display.

Menu Functions Captured Image

Shooting settings Configure image quality, color tone (WB), and other settings for stills OK

- Appears when you press the

button. Press the button again to return to the previous screen.

Black-and-white landscape photo of a mountain valley with a small wooden cabin and snow-capped peaks under a cloudy sky (no text or symbols visible)

- Appears when you press the <▶> button. Press the button again to return to the previous screen.

2

Basic Shooting and Image Playback

This chapter describes how to use the Basic Zone modes on the Mode Dial for best results and how to play back images.

With Basic Zone modes, all you do is point and shoot, and the camera sets everything automatically (p.86). Also, because advanced shooting function settings cannot be changed, you can enjoy shooting photographs without worrying about botched pictures due to misoperation.

Scene Intelligent Auto A+ Single/cont/ self-timer Built-in flash Q [514]

Basic Zone

Before Shooting in the or <○> Mode

When the LCD monitor is turned off, press the button (p.70, 83) to check which shooting mode is set, then start shooting.

* : Special scene

* <◎> : Creative filters

A+ Fully Automatic Shooting (Scene Intelligent Auto)

< ^+ > is a fully automatic mode. The camera analyzes the scene and sets the optimum settings automatically. It can also adjust focus automatically on either the still or moving subject by detecting the motion of the subject (p.67).

Diagram showing a road intersection with a labeled area marked 'A+' and directional arrows

1 Set the Mode Dial to < ^+> .

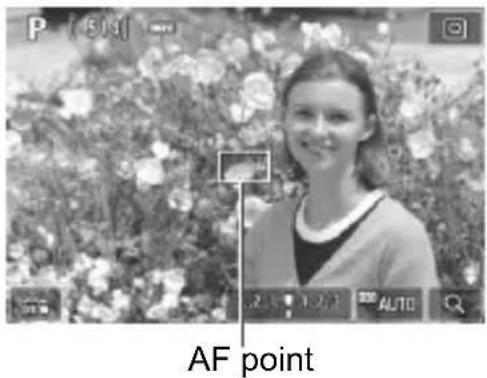

AF point

Aim the AF point over the subject.

● All the AF points will be used to focus, and the camera will normally focus on the closest object.
● Aiming the center of the AF point over the subject will make focusing easier.

Close-up of a camera's front panel showing adjustment knobs and a circular button (no text or symbols visible)

3 Focus on the subject.

• Press the shutter button halfway. The lens elements will shift to focus.
  When achieving focus, the dot inside the AF point achieving focus flashes briefly in red. At the same time, the beeper will sound and the focus indicator <> in the viewfinder will light up.
  In low light, the AF point(s) will light up briefly in red.
  The built-in flash will be raised automatically as necessary.

Black-and-white photo of a smiling woman outdoors with floral background (no visible text or symbols)

Focus indicator

If a description of the shooting mode appears in step 1, press to hide it (p.48).

Diagram showing a car interior with a circular button and a person's photo on a tablet (no text or symbols)

4 Take the picture.

• Press the shutter button completely to take the picture.
  The captured image will be displayed for approx. 2 sec. on the LCD monitor.
• When you finish shooting, push down the built-in flash with your fingers.

The <^+> mode makes the colors look more impressive in nature, outdoor, and sunset scenes. If you do not obtain the desired color tones, change the mode to a Creative Zone mode and select a Picture Style other than <> , then shoot again (p.103).

FAQ

- The focus indicator <●> blinks and focus is not achieved.

• Aim the AF point over an area with good contrast, then press the shutter button halfway (p.44).
• If you are too close to the subject, move away and shoot again.
• Select the AF point nearest to where you want to focus (p.94). The default setting is Automatic selection AF.

● Multiple AF points light up simultaneously.

Focus has been achieved at all those points that flash in red. You can take the picture as long as an AF point covering the target subject is lighting up.

- The beeper continues to beep softly. (The focus indicator <●> does not light up.)

It indicates that the camera is focusing continuously on a moving subject. (The focus indicator <●> does not light up.) You can take sharp pictures of a moving subject.

Note that focus lock (p.67) will not work in this case.

- Pressing the shutter button halfway does not focus on the subject.

If the focus mode switch of the lens is set to (manual focus), set it to (autofocus).

● The flash fired even if it was daylight.

For a backlit subject, the flash may fire to help lighten the subject's dark areas. If you do not want the flash to fire, use the Quick Control to set [Built-in flash firing] to [⚡] (p.85) or set the <⚡> (Flash Off) mode and shoot (p.68).

● The built-in flash fired and the picture came out extremely bright.

Move further away from the subject and shoot. When shooting with flash, if the subject is too close to the camera, the picture may come out extremely bright (overexposure).

- In low light, the built-in flash fired a series of flashes.

Pressing the shutter button halfway may trigger the built-in flash to fire a series of flashes to assist autofocusing. This is called the AF-assist beam. Its effective range is approx. 4 meters / 13.1 feet. Note that the built-in flash will make a sound when firing continuously. This is normal and not a malfunction.

- When flash was used, the bottom part of the picture came out unnaturally dark.

The shadow of the lens barrel was captured in the picture because the subject was too close to the camera. Move further away from the subject and shoot. If a hood is attached to the lens, remove it before taking the flash picture.

A ^+ Full Auto Techniques (Scene Intelligent Auto)

Recomposing the Shot

Black-and-white photo of a smiling woman standing in front of a floral field (no text or symbols visible)

Depending on the scene, positioning the subject toward the left or right to include a balanced background will result in a picture with better perspective. In the <^+> mode, pressing the shutter button halfway to focus on a still subject will lock the focus on that subject. Recompose the shot while keeping the shutter button pressed halfway, and then press the shutter button completely to take the picture. This is called “focus lock”. Focus lock is also possible in other Basic Zone modes (except <SCN: ).

Shooting a Moving Subject

Black-and-white photo of windsurfing athletes on a coastal shoreline, no visible text or symbols

In the <^+> mode, if the subject moves (distance to camera changes) during or after focusing, AI Servo AF will take effect to focus on the subject continuously. (The beeper will continue beeping softly.) As long as you keep the AF point positioned over the subject while pressing the shutter button halfway, focusing will be continuous. At the decisive moment, press the shutter button completely to take the picture.

Shooting When You Cannot Use Flash

The camera analyzes the scene and sets the optimum settings automatically. In places where flash photography is prohibited such as in a museum or an aquarium, use the <图标> (Flash Off) mode.

Flash Off Single/second/second timer [ 514 ]

Interior view of a museum gallery with framed paintings on the walls and visitors observing (no visible text or signage)

Shooting Tips

● Prevent camera shake if the numeric display (shutter speed) in the viewfinder blinks.

Under low light when camera shake is prone to occur, the viewfinder's shutter speed display will blink. Hold the camera steady or use a tripod. When using a zoom lens, use the wide-angle end to reduce blur caused by camera shake even with handheld shooting.

● Take portraits without flash.

In low-light conditions, tell the subject to keep still until the picture is taken. Any movement by the subject during shooting may result in the subject being blurred in the picture.

CA Creative Auto Shooting

is a fully-automatic shooting mode that is a step more advanced from . You can adjust the photo's ambience, background blur, etc. before shooting.

By pressing the button, you can set 1. Ambience-based shots, 2. Background blur setting, 3. Drive mode, and 4. Built-in flash firing with Quick Control.

* < CA > stands for Creative Auto.

CA CN

1 Set the Mode Dial to .

2000318 6in Qualcomm qum l 5141

Press the button (②10).

The Quick Control screen will appear.

Creative Auto STD Ambience: Standard OFF Background blur Single/cont/ self-timer Built-in flash Off or between Blurred←→Sharp

3 Set the desired functions.

• Press the <◆> cross keys to select a function.
  The settings of the selected function and Feature guide (p.49) will appear.

4 Take the picture.

- Press the shutter button completely to take the picture.

SCN: Special Scene Mode

The camera will automatically choose the appropriate settings when you select a shooting mode for your subject or scene.

* < SCN> stands for Special Scene.

SCN

1 Set the Mode Dial to .

Diagram of a camera interface showing dial and control buttons with Chinese text labels

2 Press the button.

Landscape For landscape shots. Wide DOF (foreground-background in focus), sharp images. OK

3 Select a shooting mode.

- Press the <> < > keys to select the desired shooting mode, then press .

- ● You can also select by turning the < > dial.

Available Shooting Modes in the Mode

Shooting Mode Page Shooting
	Portrait	p.72
	Group Photo	p.73
	Landscape	p.74
	Sports	p.75
	Kids	p.76
	Close-up	p.77

Mode Page
Food	p.78
Candlelight	p.79
Night Portrait	p.80
Handheld Night Scene	p.81
HDR Backlight Control	p.82

Shooting Portraits

The <♂> (Portrait) mode blurs the background to make the human subject stand out. It also makes skin tones and hair look softer.

Portrait For portrait shots. Backgrounds are blurred,subjects stand out. Smoothes skin tone and hair. OK

Portrait Charcoal scene Brightness Single/Com left-tuner Button flash [ 514 ]

Black-and-white portrait of a smiling woman with shoulder-length hair (no text or symbols visible)

Shooting Tips

- Select the location where the distance between the subject and the background is the farthest.

The further the distance between the subject and background, the more blurred the background will look. The subject will also stand out better against an uncluttered dark background.

- Use a telephoto lens.

If you have a zoom lens, use the telephoto end to fill the frame with the subject from the waist up. Move in closer as necessary.

• Focus on the face.

Check that the AF point covering the face lights up. For close-ups of the face, focus on the eyes.

Shooting Group Photos

Use the < img src=""> (Group Photo) mode to shoot group photos. You can take a picture in which both the people in the front and people in the back are all in focus.

Group Photo Suitable for Group Photos. Ensures that many people in the group are in focus. OK

Group photo of adults and children outdoors on grass (no text or symbols visible)

Group Photo Choose scene Brightness Single-conti well-time Built-in flash [514]

Shooting Tips

- Use a wide-angle lens.

When using a zoom lens, use the wide-angle end to make it easy to get all the people in the group in focus at once, from the front row to the back. Also, if you place a little distance between the camera and the subjects (so that the subjects' entire bodies are in the shot), the focus range increases in depth.

● Take multiple shots of the group.

It is recommended to shoot multiple photos in case some people close their eyes.

Shooting Landscapes

Use the <▶> (Landscape) mode for wide scenery or to have everything in focus from near to far. For vivid blues and greens, and very sharp and crisp images.

Landscape For landscape shots. Wide DOF (foreground-background in focus), sharp images. OK

Landscape Choose Sothe Brightness Singlecond/ self-timer [514]

Black-and-white landscape photo of a mountain lake with evergreen trees and snow-capped peaks in the background (no text or symbols visible)

Shooting Tips

● With a zoom lens, use the wide-angle end.

When using a zoom lens, set the lens to the wide-angle end to make the objects near and far in focus. It also adds breadth to landscapes.

● Shooting night scenes.

The <▶> mode is also good for night scenes because it disables the built-in flash. When shooting night scenes, use a tripod to prevent camera shake.

Shooting Moving Subjects

Use the <∅> (Sports) mode to shoot a moving subject, such as a running person or a moving vehicle.

Sports For shooting subjects in motion. Continuous shooting with subject kept in focus. OK

Black-and-white photo of a person surfing on the ocean waves, creating large splashes (no text or symbols visible)

Sports Choose score Brightness Single-com/ white-times [ 514 ]

Shooting Tips

- Use a telephoto lens.

Use of a telephoto lens is recommended for shooting from a distance.

- Use the center AF point to focus.

Aim the center AF point over the subject, then press the shutter button halfway to autofocus. During autofocusing, the beeper will continue beeping softly. If focus cannot be achieved, the focus indicator <●> will blink.

The default setting is <☐> (Continuous shooting). At the decisive moment, press the shutter button completely to take the picture. If you keep holding down the shutter button, you can shoot continuously while maintaining autofocus to capture changes in the subject's movement.

Photographing Children

When you want to continuously focus on and photograph children running around, use < img src=""> (Kids). Skin tones will look healthy.

Kids For shooting kids in motion. Continuous shooting with subject kept in focus.

Kids Chrome scene Brightness Single/Control Jet-Driver Built-in flash [ 514 ]

Black-and-white photo of a boy mid-air in mid-air against a cloudy sky (no text or symbols visible)

Shooting Tips

- Use the center AF point to focus.

Aim the center AF point over the subject, then press the shutter button halfway to autofocus. During autofocusing, the beeper will continue beeping softly. If focus cannot be achieved, the focus indicator <> will blink.

● Shoot continuously.

The default setting is <☐> (Continuous shooting). At the decisive moment, press the shutter button completely to take the picture. If you keep holding down the shutter button, you can shoot continuously while maintaining autofocusing to capture changes in the subject's facial expression and movement.

Shooting Close-ups

When you want to shoot flowers or small things up close, use the <◀> (Close-up) mode. To make small things appear much larger, use a macro lens (sold separately).

Close-up For close-ups of small subjects such as flowers. Shoot as close to subjects as possible. OK

Black-and-white close-up of a blooming water lily flower with visible stamens and petals (no text or symbols)

Close-up Choose Skew Brightness Single-point well-time Built-in Bash [514]

Shooting Tips

- Use a simple background.

A simple background makes small objects such as flowers stand out better.

- Move in as close as possible to the subject.

Check the lens for its minimum focusing distance. Some lenses have indications such as <0.25m/0.8ft> on them. The lens minimum focusing distance is measured from the <> (focal plane) mark on the top of the camera to the subject. If you are too close to the subject and focus cannot be achieved, the focus indicator <> will blink.

If the built-in flash is fired and the bottom part of the picture comes out unnaturally dark, move away a little from the subject and try again.

● With a zoom lens, use the telephoto end.

When using a zoom lens, using the telephoto end will make the subject look larger.

Shooting Food

When shooting food, use < 41> (Food). The photo will look bright and appetizing. Also, depending on the light source, the reddish tinge will be suppressed in the pictures taken under tungsten lights, etc.

Food For culinary photography: Makes food look fresh and vibrant. OK Food Color tone Choose scene Brightness Single-cont/ self-timer Built-in flash [ 514 ]

Black-and-white photo of a bowl filled with sliced meat and vegetables, with a spoon on the side (no text or symbols visible)

Shooting Tips

- Change the color tone.

You can change [Color tone]. To increase the food's reddish tinge, set it toward [Warm]. Set it toward [Cool] if it looks too red.

- Avoid using flash.

If you use flash, the light may reflect off the dish or food and results in unnatural shadows. Therefore, < ④> (Built-in flash off) is set by default. Try to prevent camera shake when shooting in low-light locations.

Shooting Candlelight Portraits

When you want to photograph a human subject lit in candlelight, use <图标> (Candlelight). The atmosphere of candlelight is reflected in the color tones of the picture.

Candlelight Preserve the ambience in shots of people under candlelight. LV shooting is not possible.

Child sitting at night with a birthday cake and three lit candles, black and white photo (no text or symbols visible)

Candlelight Color tone Choose score Brightness Single-comy self-tower [ 514 ]

Shooting Tips

- Use the center AF point to focus.

Aim the center AF point in the viewfinder over the subject, then shoot.

● Prevent camera shake if the numeric display (shutter speed) in the viewfinder blinks.

Under low light, the viewfinder's shutter speed display will blink. Hold the camera steady or use a tripod. When using a zoom lens, you can reduce the blur caused by camera shake by setting the lens to the wide-angle end.

- Change the color tone.

You can change [Color tone]. To increase the candlelight's reddish tinge, set it toward [Warm]. Set it toward [Cool] if it looks too red.

Shooting Night Portraits (With a Tripod)

When you want to photograph people at night and obtain a natural-looking night scene in the background, use the <图标> (Night Portrait) mode. Using a tripod is recommended.

Night Portrait For portrait shots with illuminated night scenes in the background OK

Night Portrait Choose View Risplintest Singlecond/ self-User [514]

Black-and-white photo of a smiling woman in front of a building with illuminated windows (no visible text or symbols)

Shooting Tips

- Use a wide-angle lens and a tripod.

When using a zoom lens, use the wide-angle end to obtain a wide night view. Also, since camera shake is prone to occur with handheld shooting, use a tripod.

- Check the subject's brightness.

Under low light, the built-in flash will fire automatically to obtain a good exposure of the subject.

Note that it is recommended to play back the captured image on location to check the image brightness. If the subject looks dark, move nearer and shoot again.

- Also shoot in other shooting modes.

Since camera shake is prone to occur with night shots, shooting also with <^+> and <> is recommended.

Shooting Night Scenes (Handheld)

Using a tripod when shooting a night scene gives the best results. However, the <▶> (Handheld Night Scene) mode enables you to shoot night scenes even while handholding the camera. In this shooting mode, four shots are taken consecutively for each picture, and the resulting one image with reduced camera shake is recorded.

Handheld Night Scene For shooting night scenes without a tripod. Takes 4 consecutive shots. OK Handheld Night Scene Choose scene Brightness Single-cont self-tower Built-in flash [514]

Nighttime cityscape with illuminated buildings and a distant mountain range (no visible text or signage)

Shooting Tips

- Hold the camera firmly.

During shooting, hold the camera firmly and steadily. In this mode, four shots are aligned and merged into a single image. However, if there is significant misalignment in any of the four shots due to camera shake, they may not align properly in the final image.

● ● For shots including people, fire the flash.

If you are to include people in the night scene shot, press the button to set <↓> (Built-in flash on). To take a nice portrait, the first shot will use flash. Tell the subject not to move until all four consecutive shots are taken.

Shooting Backlit Scenes

When shooting a scene having both the bright and dark areas, use the < HDR Backlight Control> (HDR Backlight Control) mode. When you take one picture in this mode, three consecutive shots are taken at different exposures. This results in one image, with a wide tonal range, that has minimized the clipped shadows caused by backlighting.

HDR Backlight Control Retain more detail in bright or dark areas of high-contrast scenes. Takes 3 consec. shots. OK HDR Backlight Control Choose store Single-cont/ self-time: [514]

Black-and-white exterior view of a modern glass building with curved facade and sky reflection (no signage or text)

Shooting Tips

● Hold the camera firmly.

During shooting, hold the camera firmly and steadily. In this mode, three shots are aligned and merged into a single image. However, if there is significant misalignment in any of the three shots due to camera shake, they may not align properly in the final image.

Shooting with Creative Filter Effects

In the <◎> (Creative filter) mode, you can apply one of ten filter effects (Grainy B/W*, Soft focus*, Fish-eye effect*, Water painting effect*, Toy camera effect*, Miniature effect*, HDR art standard, HDR art vivid, HDR art bold, and HDR art embossed) for shooting. When the camera is set for Live View shooting, you can see the effect on the screen before you start shooting. The camera saves only the image with the Creative filter effects applied.

For the effects marked with an asterisk, you can also take a picture without a Creative filter, then apply the effect afterward and save it as a new image.

Pure electrical circuit lines without any symbols

1 Set the Mode Dial to <○>.

Black-and-white cityscape photo showing a harbor with boats and buildings, no visible text or symbols

Display the Live View image.

- Press the button to display the Live View image.

Creative filters SET Choose filter

3 Select [Creative filters] with Quick Control.

• Press the button (💡10).
• Press the <> < > keys to select [L] on the upper left of the screen, then press .

Grainy B/W Images are processed to create grainy black and white images OK

4 Select a shooting mode.

• Press the <> < > keys to select a shooting mode, then press .
  The image will be displayed with the effects of the filter applied.

Available Shooting Modes in the Ⓞ Mode

Shooting Mode Shooting Mode
Grainy B/W Miniature effect
Soft focus	HDR art standard
Fish-eye effect	HDR art vivid
Water painting effect	HDR art bold
Toy camera effect	HDR art embossed

Filter effect level

5 Adjust the effect.

• Press the button and select the icon below [Creative filters] (except for , HDR , HDR , HDR , and HDR ).
• Press the <◀> <▶> keys to adjust the filter effect, then press .

6 Take the picture.

• Press the shutter button completely to take the picture.
• To return to viewfinder shooting, press the button to exit Live View shooting. Then press the shutter button completely to take the picture.

Quick Control

In Basic Zone modes, pressing the button sets the camera to the Quick Control state and enables you to set the items shown in the tables on pages 86-87.

1 Set the Mode Dial to a Basic Zone mode.
Press the button (②10).

The Quick Control screen will appear.

Example: < >

CA Creative Auto STD Ambience: Standard OFF Background blur Single/cont/ self-timer Built-in flash Ambience-based shots

3 Set the desired functions.

CA Creative Auto v Vivid Choose the level and type of ambience effects Effect:Standard

• Press the <◆> cross keys to select a function. (This procedure is not necessary in the ☐ mode.)
  The settings of the selected function and Feature guide (p.49) will appear.
• Turn the < img src=""> dial to change the setting.
• ● You can also select from a list by selecting a function and pressing .

- When [☐: Shooting screen: Standard] is set, a screen such as the following will appear.

Example: < >

CA Creative Auto STD Ambience: Standard OFF Background blur Drive mode Built-in flash Ambience-based shots

CA Creative Auto V Vivid Choose the level and type of ambience effects Effect:Standard

Settable Functions in Basic Zone Modes

●: Default setting* ○: User selectable ☐: Not selectable

Function ^+ ☒					SCN
					☑	☑	☑	☑
Drive mode (p.96)	u: Single shooting	● ●	● ○ ●	● ○
	i: Continuous shooting	○ ○	○ ●	○ ○ ●
	☑_10/☐☐: Self-timer: 10 sec./remote control	○ ○	○ ○	○ ○
	l: 2sec.	○ ○	○ ○	○ ○
	☑c: Continuous shooting	○ ○	○ ○	○ ○
Built-in flash firing	♣^A: Automatic firing	● ●	● ●
	♣: Flash on (Fires at all times)	○ ○	○ ○
	☑: Flash off	○ ●	○ ○	○ ● ●
Ambience-based shots				○
Background blur				○
Brightness (p.88)					○ ○	○ ○

Function		SCN
Drive mode (p.96)	u: Single shooting	○●	●●	●●
	i: Continuous shooting	●○	○○	○○○
	☀10/☐☀: Self-timer: 10 sec./remote control	○○	○○	○○○
	l: 2sec.	○○	○○	○○○
	☀c: Continuous shooting	○○	○○	○○○
Built-in flash firing	☀A: Automatic firing	●●	●
	⚡: Flash on (Fires at all times)	○○	○○
	💡: Flash off	○○	●●	●●
Brightness (p.88)		○○	○○	○○
Color tone (p.78, 79)					○	○

* If you change the shooting mode or set the power switch to , all the functions will revert to the default settings (except the self-timer).

●: Default setting ^* ○: User selectable ☐: Not selectable

Function		∅
Drive mode (p.96)	☐: Single shooting	●●	●●●
	☐: Continuous shooting
	∅10/☐: Self-timer: 10 sec./remote control	○○	○○○
	∅2: 2sec.	○○	○○○
	∅c: Continuous shooting	○○	○○○
Built-in flash firing	♦A: Automatic firing	●●	●●●
	♦: Flash on (Fires at all times)	○○	○○○
	∅: Flash off	○○	○○○
Adjustment of effects (p.83)		○○	○○○

Function
			HDR	HDR	HDR	HDR
Drive mode (p.96)	☐: Single shooting	●●	●●●
	☐: Continuous shooting			○○	○○
	◇10/◇: Self-timer: 10 sec./remote control	○○	○○○
	◇2: 2sec.	○○	○○○
	◇c: Continuous shooting	○○	○○○
Built-in flash firing	♦A: Automatic firing	○
	♦: Flash on (Fires at all times)	○
	◇: Flash off	●●	●●●
Adjustment of effects (p.83)

* If you change the shooting mode or set the power switch to , all the functions will revert to the default settings (except the self-timer).

Adjusting the Brightness

In Basic Zone modes, when a mode other than <^+> , <2> , <> , < N:★> , or <●> is set, you can adjust the brightness for shooting. You can adjust both the brightness and darkness across 3-step ranges with 0 being the standard.

1 Set the Mode Dial to \- Set to any mode other than <.

Black-and-white landscape photo showing a rural road with a small house and distant mountains under a cloudy sky (no text or symbols visible)

Display the Live View image.

\- Press the button to display the Live View image (except ).

Brightness: Dark←→Bright

3 With Quick Control, select the desired brightness.

- Press the button (💡10). - Press the <> <> keys to select [^-1 + Brightness] , then press the <> <> keys to select the desired brightness. The image with the selected brightness adjustment applied will appear.

4 Take the picture.

- Press the shutter button completely to take the picture. - To return to viewfinder shooting, press the button to exit Live View shooting. Then press the shutter button completely to take the picture. - If you change the shooting mode or set the power switch to , the setting will revert to [0] (standard).

Image Playback

The easiest way to play back images is described below. For more details on the playback procedure, see page 149.

Digital camera module displaying a street scene with a tram and buildings, no visible text or symbols on the main image area.

1 Play back the image.

- Press the <▶> button. The last image captured or played back will appear.

Diagram showing a camera setup with a set button and directional arrows, alongside a landscape photo (no text or symbols)

Select an image.

- To play back images starting with the last image captured, press the <◀> key. To play back images starting with the first captured image, press the <▶> key. - Each time you press the button, the display will change.

3/24 100-0003 No information Basic information display 3/24 100-0003 03/03/2017 04:30:00 P 1/125 F8.0 -½ 100 400 D+ A2,61 3,4,4,0,0,0 -½ D0 M+ L 31.0MB

Shooting information display

3 Exit the image playback.

\- Press the <▶> button to exit the image playback and return to shooting-ready state.

Shooting Information Display

With the shooting information screen displayed (p.89), you can press the <▲> <▼> keys to change the shooting information displayed at the screen bottom as follows.

3

Setting the AF and Drive Modes


Simple diagram with a central circle and six surrounding square markers (no text or symbols)

The AF points in the viewfinder are arranged to make AF shooting suitable for a wide variety of subjects and scenes. You can also select the AF operation and drive mode that best match the shooting conditions and subject. - The ☆ icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (p.25). - In Basic Zone modes, the AF operation is set automatically.  stands for autofocus. stands for manual focus.

AF: Changing the Autofocus Operation ^☆

You can select the AF (autofocus) operation characteristics to suit the shooting conditions or subject. In Basic Zone modes, the optimum AF operation is set automatically for the respective shooting mode.

Canon AF1 MF

1 Set the lens focus mode switch to . 2 Turn the Mode Dial to a Creative Zone mode. 3 Select [AF operation]. \- Under the [1] tab, select [AF operation], then press . [AF operation] will appear.

Shooting settings 1 2 3 4 SHOOT: Image quality ▲L Drive mode □&N Image review 2 sec. Release shutter without card ON AF operation ONE SHOT AF Lens electronic MF Ⓧ+OFF MENU ↻

4 Select the AF operation. \- Press the <◀> <▶> keys to select the desired AF operation, then press .

AF operation One-Shot AF ONE SHOT AI FOCUS AI SERVO SET OK

5 Focus on the subject. \- Aim the AF point over the subject and press the shutter button halfway. The camera will then autofocus in the selected AF operation.

One-Shot AF for Still Subjects


AF point Focus indicator

Suited for still subjects. When you press the shutter button halfway, the camera will focus only once. - The dot inside the AF point achieving focus lights up briefly in red, and the focus indicator <> in the viewfinder will also light up. - With evaluative metering, the exposure setting will be set at the same time focus is achieved. ● While you keep holding down the shutter button halfway, the focus will be locked. You can then recompose the shot if desired.

AI Servo AF for Moving Subjects

This AF operation is suited for moving subjects when the focusing distance keeps changing. While you hold down the shutter button halfway, the camera will keep focusing on the subject continuously. ● The exposure is set at the moment the picture is taken. - When the AF point selection (p.94) is automatic, the camera first uses the center AF point to focus. During autofocusing, if the subject moves away from the center AF point, focus tracking continues as long as the subject is covered by another AF point.

AI Focus AF for Switching the AF Operation Automatically

AI Focus AF switches the AF operation from One-Shot AF to AI Servo AF automatically if a still subject starts moving. ● After the subject is in focus in One-Shot AF, if the subject starts moving, the camera will detect the movement, change the AF operation automatically to AI Servo AF, and start tracking the moving subject.

Selecting the AF Point

When or <○: 🌐> mode is set, since the camera automatically focuses on the closest subject in normal cases, it may not always focus on your desired subject. In any other mode, you can select one AF point to focus solely on the subject that AF point is aimed over.

2.70 ON/OFF ON/OFF ON/OFF

1 Press the button (⑦6).

The selected AF point will be displayed on the LCD monitor and in the viewfinder.

AF point selection Automatic selection

Select the AF point.

- Use the <> cross keys to select the AF point. - To select the AF point while looking in the viewfinder, turn the <☀> dial to switch the point lit in red. - When all the AF points light up, automatic AF point selection will be set. The AF point will be selected automatically to focus on the subject. - Pressing toggles the AF point selection between the center AF point and automatic AF point selection.

Symmetrical abstract diagram with central square and surrounding circular arrows (no text or symbols)

3 Focus on the subject.

\- Aim the selected AF point over the subject and press the shutter button halfway to focus.

MF: Manual Focus


Canon AF MF Focusing ring

1 Set the lens's focus mode switch to . 2 Focus on the subject. \- Focus by turning the lens focusing ring until the subject looks sharp in the viewfinder.

Selecting the Drive Mode

Single and continuous drive modes are provided.

HOT NOVATION ORDER ONE HUT ORDER OF ORDER ONION SHOWN BY 15 23


Press the button.

The Quick Control screen will appear.

P ±0 -3..2..1..0..1..2..3 Darker Brighter Single/cont/ self-timer Focusing position ONE SHOT Method of focusing Single shooting


Select [ ]. ⚫ OFF

\- Press the <◀> <▶> keys to select [ ], then press .

Single/cont/self-timer (drive mode) Single shooting →


Select the drive mode.

\- Press the <◀> <▶> keys to select the desired drive mode, then press .

□: Single shooting

When you press the shutter button completely, only one shot will be taken.

☐ : Continuous shooting (Max. approx. 5.0 shots/sec.)

When you press the shutter button completely, the camera will shoot continuously while you keep holding it down.

□S: Silent single shooting☆

When you press the shutter button completely, only one shot will be taken quietly.

☐S : Silent continuous shooting (Max. approx. 2.5 shots/sec.)☆

When you press the shutter button completely, the camera will shoot continuously quietly while you keep holding it down. &10/☐: 10-sec. self-timer/remote control (when Wireless Remote Control BR-E1 (sold separately) is used) _2 : 2-sec. self-timer : Self-timer: Continuous For self-timer shooting, see page 98.

Using the Self-timer


ONE CHUT 15 20

1 Press the button.

The Quick Control screen will appear.

P ±0 3..2..1..0..1..2..3 Darker Brighter Single/cont self-timer Focusing position ONE SHOT Method of focusing Single shooting

2 Select [ ]. OFF

\- Press the <◀> <▶> keys to select [ ], then press .

3 Select the self-timer.

\- Press the <◀> <▶> keys to select the self-timer, then press . ©10/ ®: 10 sec./remote control self-timer Remote control shooting with the Wireless Remote Control BR-E1 (sold separately) is also possible. _2 : 2-sec. self-timer : 10-sec. self-timer plus continuous shots Press the <> <> keys to set the number of multiple shots (2 to 10) to be taken with the self-timer.

Single/cont/self-timer (drive mode) Self-timer:Continuous 1 2 3 4 5 6 7 8 9 10 C 2

4 Take the picture.


Diagram of a Canon DSLR camera with a downward arrow indicating action (no text or symbols on the device itself)

- Look through the viewfinder, focus on the subject, then press the shutter button completely. You can check the self-timer operation with the self-timer lamp, beeper, and countdown display (in seconds) on the LCD monitor. 2 sec. before the picture is taken, the self-timer lamp will light up and the beeper will sound faster.

4

Image Settings

This chapter describes image-related function settings: Image-recording quality, ISO speed, Picture Style, white balance, Auto Lighting Optimizer, and noise reduction. \- The ☆ icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (p.25).

MENU Setting the Image-Recording Quality

You can select the pixel count and its image quality. Nine image-recording quality settings are provided: ▲L, ▲L, ▲M, ▲M, ▲S1, ▲S1, S2, RAW + ▲L, RAW.

Shooting settings 1 2 3 4 SHOTS Image quality ▲L Drive mode □&# Image review 2 sec. Release shutter without card ON AF operation ONE SHOT AF Lens electronic MF Ⓧ+OFF MENU ↺

Pixels recorded (pixel count)
