USER MANUAL JM16GA51 Junker

• Gericht Mikrowellen-Leistung Watt, Dauer in Minuten Hinweis Eiermilch, 565 g 180 W, 25-30 Min. + 90 W, 20-25 Min. Pyrexform 20 x 17 cm auf den Drehteller stellen. Biskuit 600 W, 8-10 Min. Pyrexform Ø 22 cm auf den Drehteller stellen. Hackbraten 600 W, 20-25 Min. Pyrexform auf den Drehteller stellen. Gericht Mikrowellen-Leistung Watt, Dauer in Minuten Hinweis Fleisch 180 W, 5-7 Min. + 90 W, 10-15 Min. Pyrexform Ø 22 cm auf den Drehteller stellen. Gericht Mikrowellen-Leistung Watt, Dauer in Minuten Hinweis Kartoffelgratin Grill ( + 360 W, 35-40 Min. Pyrexform Ø 22 cm auf den Drehteller stellen.17 Ú Table of contents [en]Instruction manual Important safety information p. 17

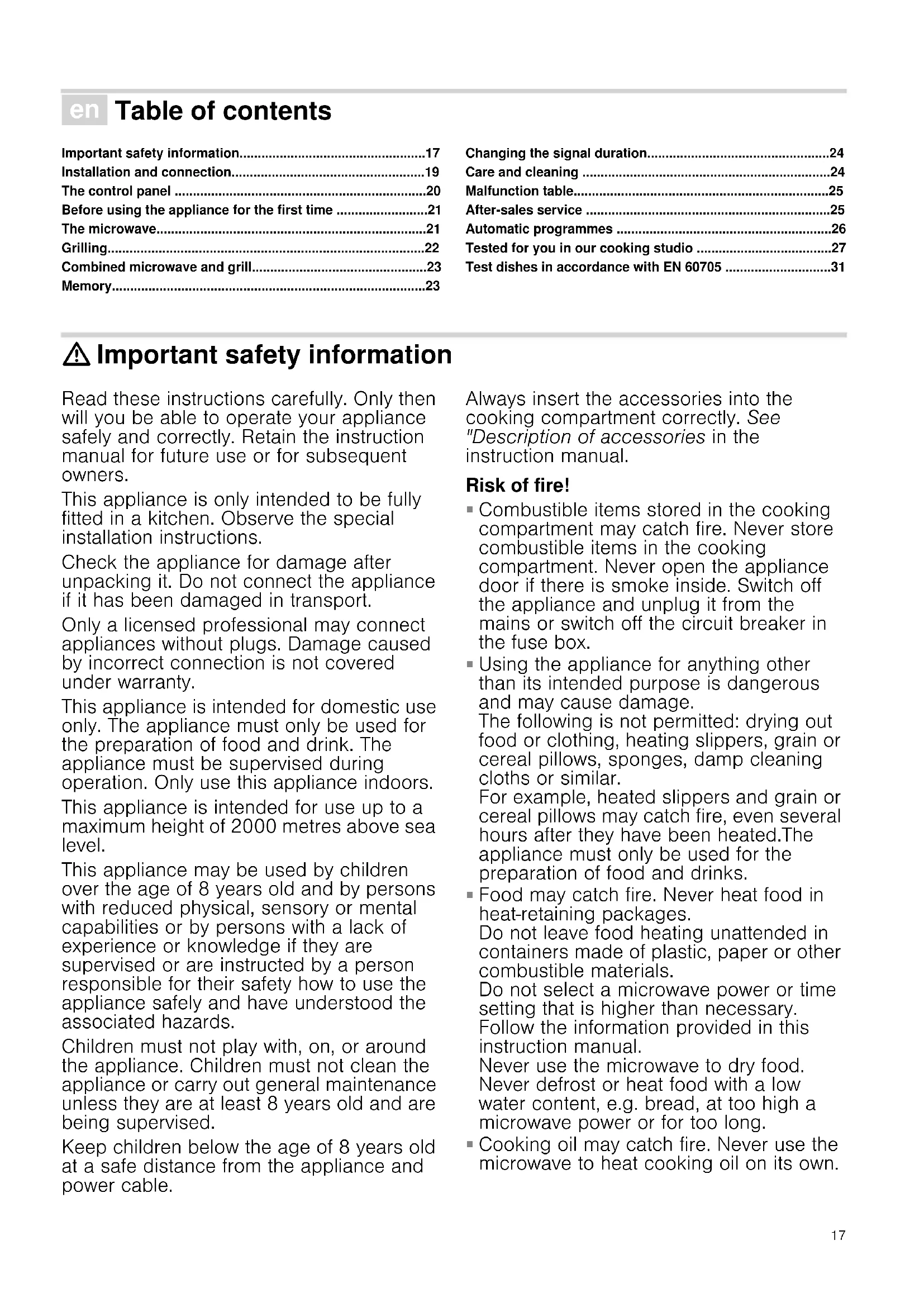

• Installation and connection p. 19

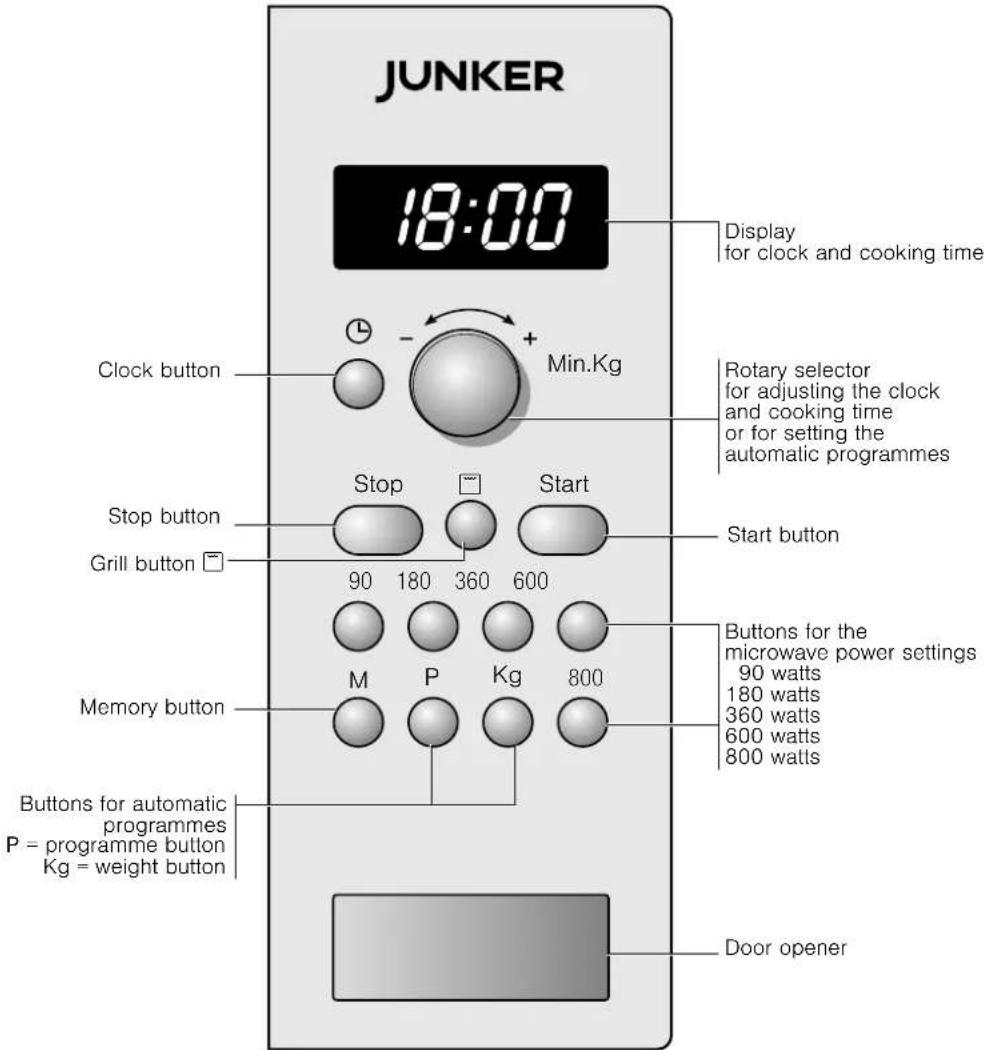

• The control panel p. 20
• Before using the appliance for the first time p. 21
• The microwave p. 21
• Grilling p. 22
• Combined microwave and grill p. 23
• Memory p. 23
• Changing the signal duration p. 24
• Care and cleaning p. 24
• Malfunction table p. 25
• After-sales service p. 25
• Automatic programmes p. 26
• Tested for you in our cooking studio p. 27
• Test dishes in accordance with EN 60705 : Important safety information Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual for future use or for subsequent owners. This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Always insert the accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual. Risk of fire! p. 31

Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box. Risk of fire!

Using the appliance for anything other than its intended purpose is dangerous and may cause damage. The following is not permitted: drying out food or clothing, heating slippers, grain or cereal pillows, sponges, damp cleaning cloths or similar. For example, heated slippers and grain or cereal pillows may catch fire, even several hours after they have been heated.The appliance must only be used for the preparation of food and drinks. Risk of fire!

Food may catch fire. Never heat food in heat-retaining packages. Do not leave food heating unattended in containers made of plastic, paper or other combustible materials. Do not select a microwave power or time setting that is higher than necessary. Follow the information provided in this instruction manual. Never use the microwave to dry food. Never defrost or heat food with a low water content, e.g. bread, at too high a microwave power or for too long. Risk of fire!

Cooking oil may catch fire. Never use the microwave to heat cooking oil on its own.18 Risk of explosion! Liquids and other food may explode when in containers that have been tightly sealed. Never heat liquids or other food in containers that have been tightly sealed. Risk of serious damage to health!

The surface of the appliance may become damaged if it is not cleaned properly. Microwave energy may escape. Clean the appliance on a regular basis, and remove any food residue immediately. Always keep the cooking compartment, door seal, door and door stop clean; see also section Care and cleaning. Risk of serious damage to health!

Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance if the cooking compartment door or the door seal is damaged. Contact the after- sales service. Risk of serious damage to health!

Microwave energy will escape from appliances that do not have any casing. Never remove the casing. For any maintenance or repair work, contact the after-sales service. Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock and serious injury!

The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance. Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!

Penetrating moisture may cause electric shock. Never subject the appliance to intense heat or humidity. Only use this appliance indoors. Risk of electric shock!

A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock!

The appliance is a high-voltage appliance. Never remove the casing. Risk of burns!

The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance. Risk of serious burns!

Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment. Risk of burns!

Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care. Risk of burns!

Foods with peel or skin may burst or explode during, or even after, heating. Never cook eggs in their shells or reheat hard-boiled eggs. Never cook shellfish or crustaceans. Always prick the yolk when baking or poaching eggs. The skin of foods that have a peel or skin, such as apples, tomatoes, potatoes and sausages, may burst. Before heating, prick the peel or skin. Risk of burns!

Heat is not distributed evenly through baby food. Never heat baby food in closed containers. Always remove the lid or teat. Stir or shake well after the food has been heated. Check the temperature of the food before it is given to the child. Risk of burns!

Heated food gives off heat. The ovenware may become hot. Always use oven gloves to remove ovenware or accessories from the cooking compartment. Risk of burns!

Airtight packaging may burst when food is heated. Always observe the instructions on the packaging. Always use oven gloves to remove dishes from the cooking compartment. Risk of scalding!

When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance. Risk of scalding!

Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment. Risk of scalding!

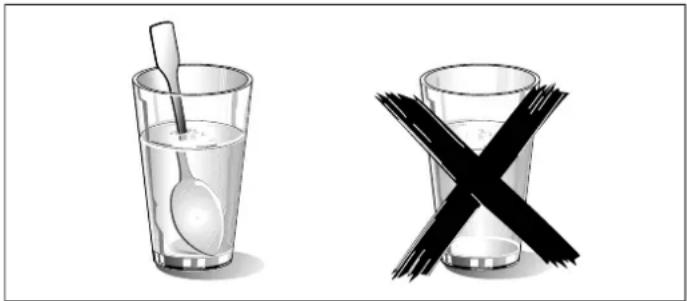

There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if the container only vibrates a little, the hot liquid may suddenly boil over and spatter. When19 heating, always place a spoon in the container. This will prevent delayed boiling. Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. Risk of injury!

Unsuitable ovenware may crack. Porcelain or ceramic ovenware can have small perforations in the handles or lids. These perforations conceal a cavity below. Any moisture that penetrates this cavity could cause the ovenware to crack. Only use microwave-safe ovenware. Causes of damage Caution! ■ Heavily soiled seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean. ■ Operating the microwave without food: Operating the appliance without food in the cooking compartment may lead to overloading. Never switch on the appliance unless there is food in the cooking compartment. An exception to this rule is a short crockery test (see the section "Microwave, suitable crockery"). ■ Microwave popcorn: Never set the microwave power too high. Use a power setting no higher than 600 watts. Always place the popcorn bag on a glass plate. The disc may jump if overloaded. ■ Liquid that has boiled over must not be allowed to run through the turntable drive into the interior of the appliance. Monitor the cooking process. Choose a shorter cooking time initially, and increase the cooking time as required. ■ Never use the microwave oven without the turntable. ■ Creation of sparks: Metal e.g. a spoon in a glass must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably damage the glass on the inside of the door. ■ Foil containers: Do not use foil containers in the appliance. They damage the appliance by producing sparks. ■ Cooling with the appliance door open: Only leave the cooking compartment to cool with the door closed. Do not trap anything in the appliance door. Even if the door is only slightly ajar, the fronts of adjacent units may be damaged over time. ■ Condensation in the cooking compartment: Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. To prevent corrosion, wipe off the condensation every time you cook. Installation and connection This appliance is intended for domestic use only. This appliance is only intended to be fully fitted in a kitchen. Please observe the special installation instructions. The appliance can be fitted in a 60 cm wide wall cabinet (min. 30 cm deep and 85 cm off the floor). The appliance is fitted with a plug and must only be connected to a properly-installed earthed socket. The fuse protection must be rated at 10 amperes (L or B circuit breakers). The mains voltage must correspond to the voltage specified on the rating plate. The socket must be installed and the power cable replaced by a qualified electrician only. If the plug is no longer accessible following installation, an all-pin disconnecting device must be present on the installation side, with a contact gap of at least 3 mm. Multiple plugs, plug bars and extension leads must not be used. Overloading can result in a risk of fire.20 The control panel Here, you will see an overview of the control panel. Depending on the appliance model, there may be differences in the particular details. Rotary selector The rotary selector is used to alter the default values and set values. The rotary selector is retractable. Press on the rotary selector to lock it in or out. Types of heating Microwaves Microwaves are converted to heat inside food. The microwave is ideal for rapid defrosting, heating up, melting and cooking. Microwave power settings ■ 800 watts - for heating liquids.■ 600 watts - for heating and cooking food.■ 360 watts - for cooking meat and heating delicate foods.■ 180 watts - for defrosting and continued cooking.■ 90 watts - for defrosting delicate foods . Grill

You can use this to grill or cook bakes "au gratin". Combined grill and microwave This involves simultaneous operation of the grill and the microwave. The combined operation is particularly suitable for cooking bakes and gratins. The food becomes crispy and brown. It is much quicker and saves energy. Accessories The turntable How to fit the turntable:

1. Place the turntable ring a in the recess in the cooking

2. Let the turntable b slot in place in the drive c in the centre of

the cooking compartment floor. 6WRS 6WDUW 0LQ.J

F21 Note: Do not use the appliance if the turntable is not in place. Ensure that it is properly slotted into place. The turntable can turn clockwise or anti-clockwise.Wire rack Before using the appliance for the first time Here you will find everything you need to do before using the microwave to prepare food for the first time. First read the section on Safety information. Setting the clock When the appliance is first connected or after a power cut, three zeros will appear in the display panel.1. Press the 0 button."12:00" and 0 appear in the display.

2. Set the clock using the rotary selector.3. Press the 0 button again.The current time is set.Hiding the clockPress the

0 button and then press Stop. The display is blank.Resetting the clockPress the 0 button. "12:00" appears in the display. Make settings as detailed in points 2 and 3.Change the clock, e.g. from summer to winter timeSet as described in point 1 to 3. Heating up the cooking compartment Heat the empty cooking compartment with the turntable inserted and the door closed for 10 minutes to remove the new smell. Ensure that no packaging remnants have been left in the cooking compartment.1. Press the ( grill button.10:00 min appears in the display2. Press the Start button.A signal sounds once the time has elapsed. Press the Stop button or open the appliance door. The microwave Microwaves are converted to heat in foodstuffs. You can set the microwave on its own or in combination with the grill. Here you will find information about cookware and how to set the microwave.Note: In the Tested for you in our cooking studio section, you will find examples for defrosting, heating and cooking with the microwave.Try out the microwave straight away. You could heat up a cup of water for your tea, for example.Use a large cup without any decorative gold or silver trim and place a teaspoon in it. Place the cup containing the water on the turntable.1. Press 800 W.2. Set 1:30 minutes using the rotary knob.3. Press the Start button.After 1 minute 30 seconds, a signal sounds. The water is hot.As you are drinking your tea, please take time to read again the safety information that can be found at the front of the instruction manual. This is very important. Notes regarding ovenware Suitable ovenwareSuitable dishes are heat-resistant ovenware made of glass, glass ceramic, porcelain, ceramic or heat-resistant plastic. These materials allow microwaves to pass through.You can also use serving dishes. This saves you having to transfer food from one dish to another. You should only use ovenware with decorative gold or silver trim if the manufacturer guarantees that they are suitable for use in microwaves.Unsuitable ovenwareMetal ovenware is unsuitable. Metal does not allow microwaves to pass through. Food in covered metal containers will remain cold.Caution! Creation of sparks: metal – e.g. a spoon in a glass – must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could destroy the glass on the inside of the door.Ovenware testDo not switch on the microwave unless there is food inside. The following ovenware test is the only exception to this rule.Perform the following test if you are unsure whether your ovenware is suitable for use in the microwave: Wire rack for grilling, e.g. steaks, sausages or for toasting bread, or as a surface, e.g. for shallow dishes. Note: Place the wire rack on the turntable.

0LQ.J 0LQ.J22 1. Heat the empty ovenware at maximum power for ½ to 1 minute.2. Check the temperature occasionally during that time.The ovenware should still be cold or warm to the touch.The ovenware is unsuitable if it becomes hot or sparks are generated. Microwave power settings Use the button to set the desired microwave power.Note: You can set the 800 W microwave power setting for 30 minutes, 600 W for 1 hour, the other power settings for 1 hour and 39 minutes respectively. Setting the microwave Example: microwave power setting of 600 watts1. Press the required microwave power setting.The selected microwave power setting lights up in the display, and "1:00 min" appears.2. Set a cooking time using the rotary selector.3. Press the Start button.The cooking time counts down in the display.The cooking time has elapsedA signal sounds. Open the appliance door or press Stop. The clock reappears.Changing the cooking timeThis can be done at any time. Change the cooking time using the rotary selector.PausingPress the Stop button once, or open the appliance door. Press the START button after closing the door.Cancelling operationPress the Stop button twice, or open the door and press the Stop button once.Note: You can also adjust the cooking time first and then the microwave power setting. Cooling fan The appliance is equipped with a cooling fan. The fan may run on even if the oven has been switched off.Notes■ The cooking compartment remains cold during microwave operation. The cooling fan will still switch on. The fan may run on even when microwave operation has ended.■ Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. Wipe away the condensation after cooking. Grilling A powerful grill ensures an intensive surface heat and even browning of the food. Setting the grill 1. Press the ( grill button.10:00 min and the symbol appear in the display.2. Set the cooking time using the rotary selector.3. Press the Start button.The cooking time counts down in the display.The cooking time has elapsedA signal sounds. Open the appliance door or press Stop. The clock reappears.Changing the cooking timeThis can be done at any time. Change the cooking time using the rotary selector.PausingPress the Stop button once, or open the appliance door. Press the START button after closing the door.CorrectionYou may correct a set cooking time at any time.Cancelling the settingPress the Stop button twice, or open the appliance door and press the Stop button once.90 W For defrosting delicate foods180 W For defrosting and continued cooking360 W For cooking meat and heating delicate foods600 W For heating and cooking food800 W For heating liquids

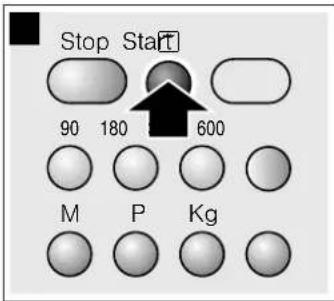

Combined microwave and grill You can set the grill and the microwave at the same time. The food becomes crispy and brown. It is much quicker and saves energy.You can switch on all microwave power settings. Exception: 800 and 600 W. Setting the microwave and grill Example: 360 W ( grill, 5 minutes.1. Press the required microwave power setting.The selected microwave power setting lights up in the display, and "1:00 min" appears.2. Press the ( grill button.3. Set the cooking time using the rotary selector.4. Press the Start button.The cooking time counts down in the display.The cooking time has elapsedA signal sounds. Open the appliance door or press Stop. The clock reappears.Changing the cooking timeThis can be done at any time. Change the cooking time using the rotary selector.PausingPress the Stop button once, or open the appliance door. Press the START button after closing the door.Cancelling operationPress the Stop button twice, or open the door and press the Stop button once.Note: You can also adjust the cooking time first and then the microwave power setting. Memory You can save the settings for a dish in the memory and call it up again at any time. The memory is useful for if you frequently prepare a specific dish. Notes■ You can also store grill only or grill combined with microwave.■ You cannot save several microwave power settings one after the other.■ You cannot save automatic programmes.■ You can save the memory settings and start the appliance immediately. When finishing, instead of pressing i, press Start. ■ Saving a new setting in the memory: press the ibutton. The old settings appear. Save the new programme as described in steps 1-4. Saving memory settings Example: 360 W, 25 minutes1. Press the "i" button."M" appears in the display.2. Press the required microwave power setting."M", the selected power setting and "1:00 min" appear in the display.3. Set the cooking time using the rotary selector.4. Confirm by pressing the "i" buton.The clock reappears. The setting is saved.Note: You can save the memory settings and start the appliance immediately. When finishing, instead of pressing the " i" button, press Start. Notes■ You can also store grill only or grill combined with microwave.■ You cannot save several microwave power settings one after the other.■ You cannot save automatic programmes.■ You can save the memory settings and start the appliance immediately. When finishing, instead of pressing i, press Start. ■ Saving a new setting in the memory: press the ibutton. The old settings appear. Save the new programme as described in steps 1-4.

Adding to the memory Press the " i" button. The old settings appear. Save the new programme as described in points 1 to 4. Notes ■ You cannot save several microwave power settings one after the other. ■ You cannot save automatic programmes. Starting the memory It is very easy to start the saved programme. Place your meal into the appliance. Close the appliance door.

1. Press the "i" button.

The saved settings are displayed.

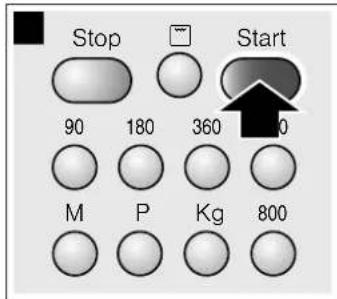

2. Press the Start button.

The cooking time counts down in the display. The cooking time has elapsed A signal sounds. Open the appliance door or press Stop. The clock reappears. Pausing Press the Stop button once or open the appliance door. Operation is suspended. The display above Start flashes. After closing the door, press the Start button again. Cancelling the setting Press the Stop button twice, or open the appliance door and press the Stop button once. Changing the signal duration You will hear a signal when the appliance is switched off. You can change the duration of the acoustic signal. Press the Start button for approx. 6 seconds. The new signal duration is adopted. The clock reappears. The following are possible: Short signal duration - 3 tones Long signal duration - 30 tones. Care and cleaning With careful care and cleaning your microwave oven will retain its looks and remain good order. We will explain here how you should care for and clean your appliance correctly. : Risk of short circuit! Never use high-pressure cleaners or steam cleaners to clean the oven. : Risk of burns! Never clean the appliance immediately after switching off. Let the appliance cool down. : Risk of electric shock! Do not immerse the appliance in water or clean under a jet of water. Surfaces are different, and damage caused by using the wrong cleaning agent can be avoided by observing the information in the table below. Do not use ■ sharp or abrasive cleaning agents. The surface could be damaged. If such a substance comes into contact with the front of the appliance, wash it off immediately with water. ■ metal or glass scrapers to clean the glass in the appliance door. ■ metal or glass scrapers for cleaning the seal.■ hard scouring pads or cleaning sponges. Wash new sponge cloths thoroughly before use. ■ cleaning agents with high concentrations of alcohol. Cleaning agents Caution! Before cleaning, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Clean the outside of the appliance and the cooking compartment with a damp cloth and mild detergent. Dry with a clean cloth. Area Cleaning agents Appliance front Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or metal or glass scrapers for cleaning. Appliance front with stainless steel Hot soapy water: Clean with a dish cloth and dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Corrosion can form under such residues. Special stainless steel cleaning agents can be obtained from the after-sales service or from spe- cialist shops. Do not use glass cleaners or metal or glass scrapers for cleaning. Cooking compart- ment made of stain- less steel Hot soapy water or a vinegar solution: Clean with a dish cloth and dry with a soft cloth. If the oven is very dirty: use oven cleaner, but only when cooking com- partment is cold. It is best to use a stain- less-steel sponge. Do not use oven spray or other aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan cleaners are also unsuitable. These items scratch the surface. Allow the interior surfaces to dry thoroughly. Recess in cooking compartment Damp cloth: Ensure that no water seeps through the turntable drive into the appliance inte- rior. Turntable and turnta- ble ring Hot soapy water: When putting the turntable back in place, make sure it slots in correctly.25 Malfunction table Malfunctions often have simple explanations. Please refer to the malfunction table before calling the after-sales service. If a meal does not turn out exactly as you wanted, refer to the Tested for you in our cooking studio section, where you will find plenty of cooking tips and tricks. : Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. You can take remedial action yourself for some error messages. Troubleshooting After-sales service Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. E number and FD number When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found on the right-hand side when you open the appliance door. To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required. Wire rack Hot soapy water: Clean using stainless steel cleaning agent or in the dishwasher. Door panels Glass cleaner: Clean with a dish cloth. Do not use a glass scraper. Seal Hot soapy water: Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for cleaning. Area Cleaning agents Error message Possible cause Remedy/Note The appliance does not work The plug is not plugged into the mains. Plug the plug in Power cut Check whether the kitchen light works. Faulty circuit breaker Look in the fuse box and check that the cir- cuit breaker for the appliance is in working order. Incorrect operation Switch off the circuit breaker in the fuse box. Reconnect it after approx. 10 seconds. Three zeros flash in the display. Power cut Reset the time. The appliance is not in operation. A cooking time appears in the display. The rotary selector was accidentally pressed. Press the Stop button. The Start button was not pressed after the set- ting was made. Press the Start button or clear the setting by pressing the Stop button. The microwave does not work. The door was not fully closed. Check whether food remains or foreign material is trapped in the door. The Start button was not pressed. Press the Start button. The food takes longer than usual to heat up The microwave power setting was too low. Select a higher microwave power setting. You have placed a larger amount of food than normal in the appliance. Double the amount = double the cooking time. The food was colder than usual. Stir or turn the food during cooking The turntable is making a scratching or grinding noise. There is dirt or a foreign object in the area around the turntable drive. Clean the roller ring and recess in the cooking compartment. Microwave operation has been can- celled for no apparent reason. The microwave has a fault. If this fault occurs repeatedly, please call the after-sales service. E no. FD no. After-sales service O26 Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.After-sales contact details for all countries can be found in the attached after-sales service directory.This appliance corresponds to the standards EN 55011 and CISPR 11. It is a Group 2, Class B product.Group 2 means that microwaves are produced for the purpose of heating food. Class B states that the appliance is suitable for private households. Technical data Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Automatic programmes The automatic programmes enable you to prepare food very easily. You select the programme and enter the weight of your food. The automatic programme makes the optimum setting.Note: You can choose from 8 programmes. Setting a programme Once you have selected a programme, make settings as follows:

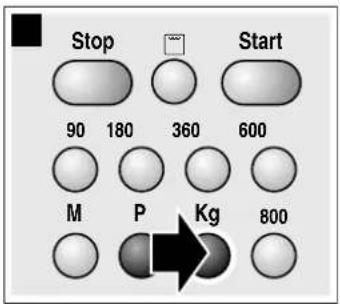

1. Press the "g" button repeatedly until the required programme

number appears.2. Press the "Kg" button. " g" and a default weight appear in the display. 3. Turn the rotary selector to specify the weight of the dish.4. Press the Start button.You will see the cooking time for the programme counting down.The cooking time has elapsedA signal sounds. Open the appliance door or press Stop. The clock reappears.CorrectionPress the Stop button twice and reset.PausingPress the Stop button once, or open the appliance door. Press the START button after closing the door.Cancelling operationPress the Stop button twice, or open the door and press the Stop button once.Notes■ For some programmes, a signal sounds after a certain time. Open the appliance door and stir the food or turn the meat or poultry. After closing, press the Start button again. ■ You can query the programme number and weight using "g" or "kg". The queried value is shown for 3 seconds in the display. Defrosting using the automatic programmes You can use the 4 defrosting programmes to defrost meat, poultry and bread.Notes■ Preparing foodUse food that has been frozen at -18 °C and stored in portion-sized quantities that are as thin as possible.Take the food to be defrosted out of all packaging and weigh it. You need to know the weight to set the programme.■ Liquid will be produced when defrosting meat or poultry. Drain off this liquid when turning meat and poultry and under no circumstances use it for other purposes or allow it to come into contact with other foods.■ OvenwarePlace the food in a microwaveable shallow dish, e.g. a china or glass plate, but do not cover.Input voltage AC 220-230 V, 50 HzPower consumption 1270 WMaximum output power 800 WGrill power 1000 WMicrowave frequency 2450 MHzFuse 10 ADimensions (HxWxD) appliance 364x460x333 mm cooking compartment 194x290x300 mmVDE approved yesCE mark yesThis appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

■ Resting time The defrosted food should be left to stand for an additional 10 to 30 minutes until it reaches an even temperature. Large pieces of meat require a longer standing time than smaller pieces. Flat pieces of meat and items made from minced meat should be separated from each other before leaving to stand. After this time, you can continue to prepare the food, even though thick pieces of meat may still be frozen in the middle. The giblets can be removed from poultry at this point. ■ Signal For some programmes, a signal sounds after a certain time. Open the appliance door and separate the food out or turn the meat or poultry. Close the door and press the Start button. Cooking with the automatic programmes With the 3 cooking programmes, you can cook rice, potatoes or vegetables. Notes ■ Ovenware The food must be cooked in microwaveable cookware with a lid. For rice, you should use a large, deep dish. ■ Preparing food Weigh out the food. You need to know the weight to set the programme. Rice: Do not use boil-in-the-bag rice. Add the required amount of water, as specified on the packaging. This is usually two or three times the quantity of rice. Potatoes: For boiled potatoes, cut the fresh potatoes into small, even- sized pieces. Add one tablespoon of water for each 100 g boiled potatoes, and a little salt. Fresh vegetables: Weigh out the fresh, trimmed vegetables. Cut the vegetables into small, even-sized pieces. Add a tbsp water for each 100 g vegetables. ■ Signal While the programme is running, a signal sounds after some time. Stir the food. ■ Resting time Once the programme has finished, stir the food again. You should leave it to stand for another 5 to 10 minutes until it reaches an even temperature. The cooking result will depend on the quality and consistency of the food. Combicooking programme Notes ■ Ovenware Cook the food in ovenware which is not too big, and is heat resistant and microwaveable. ■ Preparing food Take the food out of its packaging and weigh it. If it is not possible to enter the exact weight, you should round it up or down. ■ Resting time Once the programme has finished, allow the food to rest for another 5 to 10 minutes so it reaches an even temperature. Tested for you in our cooking studio Here you will find a selection of recipes and the ideal settings for them. We show you which microwave power setting is best suited to your dish. There are also tips about ovenware and preparation methods. Information regarding the tables The following tables provide you with numerous options and settings for the microwave. The times specified in the tables are only guidelines. They may vary according to the ovenware used, the quality, temperature and consistency of the food. Time ranges are often specified in the tables. Set the shortest time first and then extend the time if necessary. It may be that you have different quantities from those specified in the tables. A rule of thumb can be applied: Double the amount - almost twice the cooking time Half the amount - half the cooking time. Always place the ovenware on the turntable. Defrost Notes ■ Place the frozen food in an open container on the turntable. ■ Delicate parts such as the legs and wings of chicken or fatty outer layers of roasts can be covered with small pieces of aluminium foil. The foil must not touch the oven walls. You can remove the foil half way through the defrosting time. ■ Liquid will be produced when defrosting meat or poultry. Drain off this liquid when turning meat and poultry and under no circumstances use it for other purposes or allow it to come into contact with other foods. ■ Turn or stir the food once or twice during the defrosting time. Large pieces of food should be turned several times. ■ Leave defrosted items to stand at room temperature for a further 10 to 20 minutes so that the temperature is even throughout. The giblets can be removed from poultry at this point. The meat can still be further prepared, even if it has a small frozen core. Programme no. Weight range in kg Defrost P 01 Minced meat 0.20 - 1.00 P 02 Pieces of meat 0.20 - 1.00 P 03 Chicken, chicken pieces

Defrosting, heating up or cooking frozen food Notes ■ Take ready meals out of the packaging. They will heat up more quickly and evenly in microwaveable ovenware. The different components of the meal may not require the same amount of time to heat up . ■ Food which lies flat will cook more quickly than food which is piled high. You should therefore distribute the food so that it is as flat as possible in the ovenware. Different foodstuffs should not be placed in layers on top of one another. ■ Always cover the food. If you do not have a suitable cover for your ovenware, use a plate or special microwave foil. ■ Stir or turn the food 2 or 3 times during cooking. ■ After heating, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature. ■ Always use an oven cloth or oven gloves when removing plates from the oven. ■ This will help the food retain its own distinct taste, so it will require less seasoning. Defrost Weight Microwave power setting in watts, cooking time in minutes Notes Whole pieces of meat (beef, veal or pork - on the bone or boned) 800 g 180 W, 15 mins + 90 W, 10-20 mins - 1 kg 180 W, 20 mins + 90 W, 15-25 mins

Fish fillet, fish steak or slices 400 g 180 W, 5 mins + 90 W, 10-15 mins Separate any defrosted parts Vegetables, e.g. peas 300 g 180 W, 10-15 mins - Fruit, e.g. raspberries 300 g 180 W, 710 mins Stir carefully during defrosting and separate any defrosted parts 500 g 180 W, 8 mins + 90 W, 5-10 mins Butter, defrosting 125 g 180 W, 1 min. + 90 W, 2-3 mins Remove all packaging 250 g 180 W, 1 min + 90 W, 3-4 mins Loaf of bread 500 g 180 W, 6 mins + 90 W, 5-10 mins - 1 kg 180 W, 12 mins + 90 W, 10-20 mins Cakes, dry, e.g. sponge cake 500 g 90 W, 10-15 mins Only for cakes without icing, cream or crème pâtissière, separate the pieces of cake 750 g 180 W, 5 mins + 90 W, 10-15 mins Cakes, moist, e.g. fruit flan, cheese- cake 500 g 180 W, 5 mins + 90 W, 15-20 mins Only for cakes without icing, cream or gelatine 750 g 180 W, 7 mins + 90 W, 15-20 mins Defrosting, heating up or cooking fro- zen food Weight Microwave power setting in watts, cooking time in minutes Notes Menu, plated meal, ready meal (2-3 components) 300-400 g 600 W, 8-11 mins - Soup 400 g 600 W, 8-10 mins - Stews 500 g 600 W, 10-13 mins - Slices or pieces of meat in sauce, e.g. goulash 500 g 600 W, 12-17 mins Separate the pieces of meat when stir- ring Fish, e.g. fillet steaks 400 g 600 W, 10-15 mins Add water, lemon juice or wine as desired Bakes, e.g. lasagne, cannelloni 450 g 600 W, 1015 mins - Side dishes, e.g. rice, pasta 250 g 600 W, 2-5 mins Add a little liquid 500 g 600 W, 8-10 mins Vegetables, e.g. peas, broccoli, carrots 300 g 600 W, 8-10 mins Pour water into the dish so that it cov- ers the base 600 g 600 W, 14-17 mins Creamed spinach 450 g 600 W, 11-16 mins Cook without additional water29 Heating food : Risk of scalding! There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if the container only moves a little, the hot liquid can suddenly boil over and spatter. When heating liquids, always place a spoon in the container. This will prevent delayed boiling. Caution! Metal e.g. a spoon in a glass must be kept at least 2 cm from the oven walls and the inside of the door. Sparks could irreparably damage the glass on the inside of the door. Notes ■ Take ready meals out of the packaging. They will heat up more quickly and evenly in microwaveable ovenware. The different components of the meal may not require the same amount of time to heat up . ■ Always cover the food. If you do not have a suitable cover for your container, use a plate or special microwave foil. ■ Stir or turn the food several times during the heating time. Check the temperature. ■ After heating, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature. ■ Always use an oven cloth or oven gloves when removing plates from the oven. Cooking food Notes ■ Food which lies flat will cook more quickly than food which is piled high. You should therefore distribute the food so that it is as flat as possible in the ovenware. Different foodstuffs should not be placed in layers on top of one another. ■ Cook the food in ovenware with a lid. If you do not have a suitable lid for your ovenware, use a plate or special microwave foil. ■ This will help the food retain its own distinct taste, so it will require less seasoning. ■ After cooking, allow the food to stand for a further 2 to 5 minutes so that it can achieve an even temperature. ■ Always use an oven cloth or oven gloves when removing plates from the oven. Heating food Weight Microwave power setting in watts, cooking time in minutes Notes Menu, plated meal, ready meal (2-3 components) 350-500 g 600 W, 4-8 mins - Drinks 150 ml 800 W, 1-2 mins Place a spoon in the glass; do not overheat alcoholic drinks; check during heating 300 ml 800 W, 2-3 mins 500 ml 800 W, 3-4 mins Baby food, e.g. baby bottle 50 ml 360 W, approx. ½ min No teats or lids. Always shake well after heat- ing. You must check the temperature. 100 ml 360 W, approx. 1 min. 200 ml 360 W, 1 ^ min Soup 1 cup 200 g 600 W, 2-3 mins - Soup, 2 cups 400 g 600 W, 4-5 mins - Meat in sauce 500 g 600 W, 8-11 mins Separate the slices of meat Stew 400 g 600 W, 6-8 mins - 800 g 600 W, 8-11 mins - Vegetables, 1 portion 150 g 600 W, 2-3 mins Add a little liquid Vegetables, 2 portions 300 g 600 W, 3-5 mins Cooking food Weight Microwave power setting in watts, cooking time in minutes Notes Meat loaf 750 g 600 W, 20-25 mins Cook uncovered Whole chicken, fresh, no giblets 1.2 kg 600 W, 25-30 mins Turn halfway through the cooking time Fresh vegetables 250 g 600 W, 5-10 mins Cut vegetables into pieces of equal size. Add 1 to 2 tbsp water per 100 g of vegetables. Stir during cooking 500 g 600 W, 10-15 mins Potatoes 250 g 600 W, 8-10 mins Cut potatoes into pieces of equal size; Add 1 to 2 tbsp water for every 100 g. Stir during cooking 500 g 600 W, 11-14 mins 750 g 600 W, 15-22 mins Rice 125 g 800 W, 5-7 mins + 180 W, 12-15 mins Add double the quantity of liquid. 250 g 800 W, 6-8 mins + 180 W, 15-18 mins30 Microwave tips Condensation Condensation may appear on the door window, interior walls and floor. This is normal. This does not affect how the microwave operates. Wipe away the condensation after cooking. Tips for grilling Notes ■ All the values given are guidelines and can vary depending on the properties of your food. ■ Always grill on the wire rack with the cooking compartment door closed and do not preheat. ■ Always place the wire rack on the turntable. ■ Grease the wire rack with oil beforehand. ■ Set the first time using the rotary selector. Turn the food and then set the time for the second side. Combined grill and microwave Notes ■ The combined operation is particularly suitable for cooking bakes and gratins. ■ Always place the dish on the turntable and do not cover the food. ■ Use a high-sided dish for roasting. This keeps the cooking compartment cleaner. ■ Use large flat ovenware for bakes and gratins. Food takes longer to cook in narrow, deep containers and browns more on top. ■ Check that your ovenware fits in the cooking compartment. It must not be too large, as the turntable must still be able to turn. ■ Always set the maximum cooking time. Check the food after the shorter time specified. ■ Leave the meat to rest for another 5 to 10 minutes before cutting it. This allows the meat juices to be distributed evenly so that they do not run out when the meat is cut. ■ Bakes and gratins should be left to cook in the appliance for a further 5 minutes after the appliance has been switched off. Sweet foods, e.g. blancmange (instant) 500 ml 600 W, 6-8 mins Stir the custard pudding thoroughly 2 to 3 times during cooking using an egg whisk. Fruit, compote 500 g 600 W, 9-12 mins - You cannot find any information about the settings for the quantity of food you have prepared. Increase or reduce the cooking times using the following rule of thumb: Double the amount = almost double the cooking time Half the amount = half the cooking time The food has become too dry. Next time, set a shorter cooking time or select a lower microwave power setting. Cover the food and add more liquid. When the time has elapsed, the food is not defrosted, hot or cooked. Set a longer time. Large quantities and food which is piled high require longer times. When the time has elapsed, the food is overheated at the edge but not done in the middle. Stir it during the cooking time and next time, select a lower micro- wave power setting and a longer cooking time. After defrosting, the poultry or meat is defrosted on the out- side but not defrosted in the middle. Next time, select a lower microwave power setting. If you are defrosting a large quantity, turn it several times. Cooking food Weight Microwave power setting in watts, cooking time in minutes Notes Quantity Accessories Cooking time in minutes Bread for toasting (pre-toasting) 2 to 4 slices Wire rack 1st side: approx. 2 to 4 2nd side: approx. 2 to 3 Toast with topping 2 to 4 slices Wire rack Depending on topping: 5 to 7 Soup with toppings, e.g. onion soup 2 to 4 cups Turntable approx. 15 to 20 Weight Accessories Microwave power setting in watts Cooking time in minutes Notes Joint of pork, e.g. neck of pork approx.750 g Turntable 360 W +

40-50 mins Turn 1 to 2 times. Meat loaf approx.750 g Turntable 360 W +

25-35 mins Maximum of 6 cm in height. Chicken portions, small, e.g. chicken thighs or wings approx. 800 g Ovenware on the wire grill 360 W +

25-35 mins Place with the skin side up. Do not turn. Frozen marinated chicken wings approx. 800 g Ovenware on the wire grill 360 W +

15-25 mins Do not turn.31 Test dishes in accordance with EN 60705 The quality and correct operation of microwave appliances are tested by testing institutes using these dishes. In accordance with EN 60705, IEC 60705, DIN 44547 and EN 60350 (2009) Cooking and defrosting with microwave Microwave cooking Microwave defrosting Combined microwave cooking Pasta bake (using pre-cooked ingredi- ents) approx.1000 g Turntable 360 W +

25-35 mins Sprinkle with cheese. Maximum of 5 cm in height Potato gratin (using raw potatoes) approx.1000 g Turntable 360 W +

30-40 mins Maximum of 4 cm in height Fish, scalloped approx.400 g Turntable 360 W +

20-25 mins Defrost frozen fish before cook- ing. Quark bake approx.1000 g Turntable 360 W +

30-35 mins Maximum of 5 cm in height Vegetable kebab 4-5 pieces Wire rack 180 W +
