USER MANUAL HSA2070M HAIER

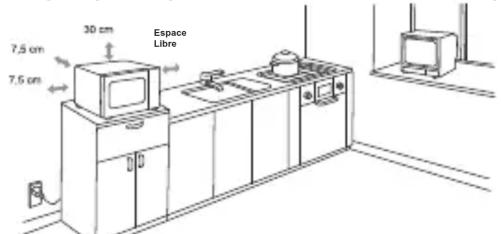

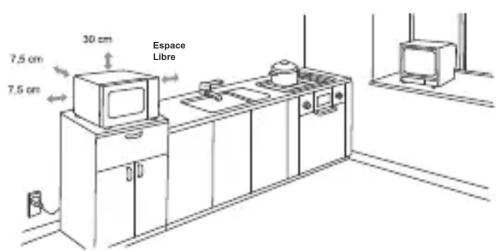

EspaceLibre Choose a flat surface giving enough space for ventilation openings. Plug your oven into a standard electrical outlet. Make sure that the voltage and frequency are the same as those shown on the label of the oven。 This microwave oven must be plugged into a earth- connected outlet. This unit is equipped with an electrical

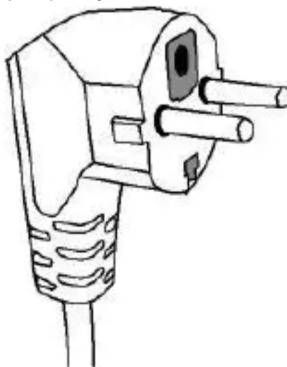

If an extension is necessary, use only extension cords with three son features a three-prong plug for earthing and a

This microwave oven must be plugged into a earth- connected outlet. This unit is equipped with an electrical earth-connected wire. It must be plugged into an outlet properly installed and equipped with a earth connection. CAUTION : Improper use of earth wire can cause electrical shock. NOTES : If you have questions about the earthing or wiring, please consult a qualified staff. If an extension is necessary, use only extension cords with three son features a three-prong plug for earthing and a three-slot socket adapted to the information about the device.

Scellofrais Scellofrais Haute

9-12 minutes 16-20 minutes

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE - WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; - WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; - WARNING: it is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; - WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode - WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; - only use utensils that are suitable for use in microwave ovens - when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; - if smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames; - microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; - the oven should be cleaned regularly and any food deposits removed; - failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; - if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

GBSPECIFICATIONS Power consumption: Output: Operating Frequency: Outside Dimensions: Oven Cavity Dimensions: Oven Capacity: Uncrated Weight:

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not

appear or the display disappears: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power does not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. 230V~50Hz,1080W 700W 2,450MHz 20 litres Approx. 10.5kg RADIO INTERFERENCE Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a. Clean the door and sealing surface of the oven. b. Place the radio, TV, etc. as far away from your microwave oven as possible. c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT. Note: The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only. 454mm(W) X 330mm(D) X 262mm(H) 315mm(W) X 296mm(D) X 211mm(H)

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly:switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service. PRODUCT SERIAL NUMBER.Where can i find it? It is important that you to inform the Assistance Service of your product code and its serial number(a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance. It will help to avoid wasted journerys to technicians,thereby(and most significantly) saving the corresponding callout charges.

1. Make sure all the packing materials are removed from

the inside of the door.

2. Inspect the oven after unpacking for any visual

damage such as: Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 10.5kg and must be

placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature

5. DO NOT place anything on top of the oven.

6. DO NOT remove the turn -table drive shaft.

7. As with any appliance, close supervision is necessary

when used by children. WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach

2. This oven requires 1.1 KVA for its input.

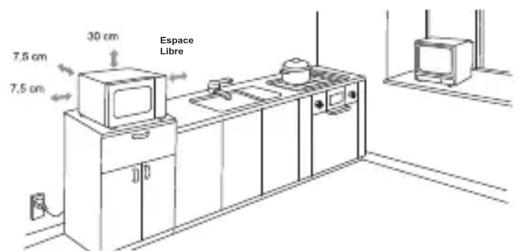

consultation with service engineer is suggested when installing the oven. CAUTION:This oven is protected internally by ac 250V, 8 Amp Fuse. Espace Libre Choose a flat surface giving enough space for ventilation openings. Plug your oven into a standard electrical outlet. Make sure that the voltage and frequency are the same as those shown on the label of the oven. This microwave oven must be plugged into a earth- connected outlet. This unit is equipped with an electrical earth-connected wire. It must be plugged into an outlet properly installed and equipped with a earth connection. CAUTION : Improper use of earth wire can cause electrical shock. NOTES : If you have questions about the earthing or wiring, please consult a qualified staff. If an extension is necessary, use only extension cords with three son features a three-prong plug for earthing and a three-slot socket adapted to the information about the device.

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any

other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.

5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without first being pierced several times with a fork.

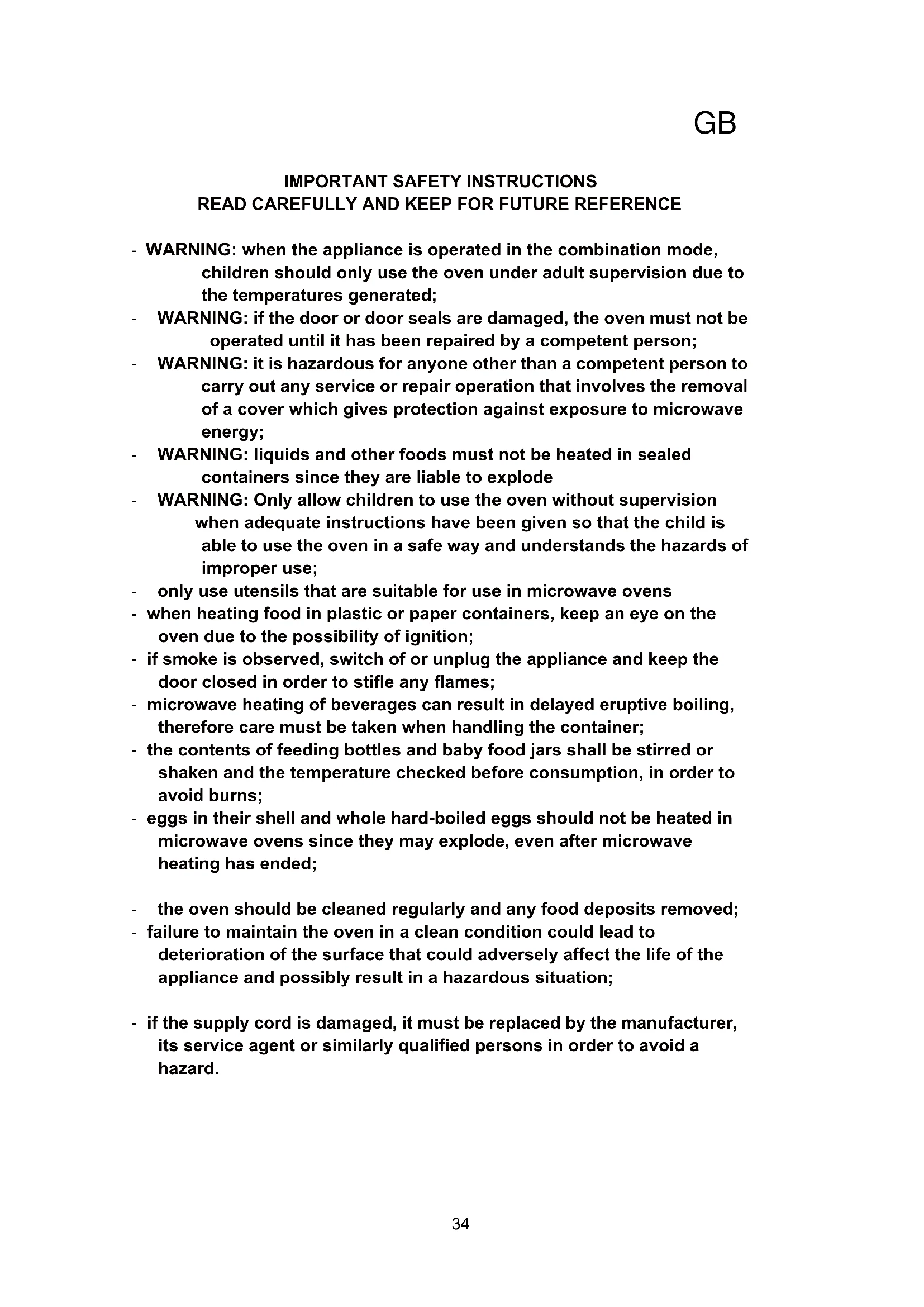

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; -WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; -WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode. -WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; - The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and 30cms from top of the oven.Don't remove oven's feet, do not block air events of the oven. - Only use utensils that are suitable for use in microwave ovens. - When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition; - If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames; - Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; - When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. - The oven should be cleaned regularly and any food deposits removed; - Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

376. Do not insert any object into the openings on the outer

7. Do not at any time remove parts from the oven such as

the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food

in/on proper cooking utensil before placing in the oven.

9. IMPORTANT-COOKWARE NOT TO USE IN YOUR

MICROWAVE OVEN Do not use metal pans or dishes with metal handles. Do not use anything with metal trim. Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed. Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven. Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

10. Microwave utensils should be used only in

accordance with manufacturer's instructions.

11. Do not attempt to deep-fry foods in this oven.

12. Please remember that a microwave oven only

heats the liquid in a container rather than the container itself.Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

13. Always test the temperature of cooked food

yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/ liquid to distribute heat evenly.

14. Food containing a mixture of fat and water,

e.g.stock,should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

15. When preparing/cooking food/liquid and remember

that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

16. Cooking utensil may become hot because of heat

transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil. 17.To reduce the risk of fire in the oven cavity: (a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b)Remove wire twist-ties from bags before placing bag in oven. (c)If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel. FEATURE DIAGRAM (1) Door Safety Lock System (2) Oven Window (3) Roller Ring (4) Glass Tray (5) Control Panel

18.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

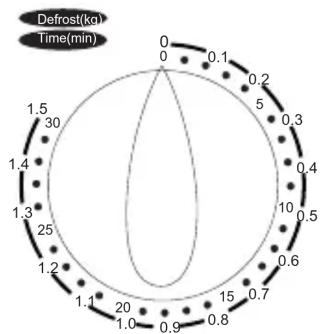

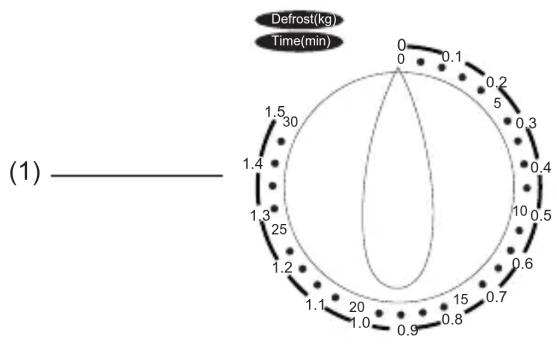

38CONTROL PANEL (1) (2) (1) Timer-0-30 Minutes (2) Power Select Control Turn Power Control knob to correct required power level. Select correct cooking time by using timer. Low: M.Low: Med: M.High: High: Defrost( ) : 36% Power Output 17% Power Output 55% Power Output 77% Power Output 100% Power Output Note: Oven will start cooking food once the timer is turned. If you need cooking time for less than 5 minutes, turn timer past 5 minutes and then return to correct timing. ALWAYS RETURN TIMER BACK TO ZERO position when food is removed from oven but the set cooking time has not completed. STOP OVEN: Turn timer to Zero position. If the door of oven is opened during cooking, the microwave oven will automatically stop working, the cooking will continue after closing the door. If the remaining cooking time is not required, return timer back to Zero position before closing the door. Operation Instruction To set a cooking program: Put the food onto the glass turntable in the oven and close the door.

6.It is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or in a dishwasher. 7.The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise.Simply wipe the bottom surface of the oven with mild detergent,water or window cleaner and dry.The roller ring may be washed in mild sudsy water or dish washer.Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels.When removing the roller ring from cavity floor for cleaning,be sure to replace it in the proper position. 8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes,wipe thoroughly and dry with a soft cloth. 9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced. 1.Turn the oven off and remove the power plug from the wall socket before cleaning. 2.Keep the inside of the oven clean.When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended. 3.The outside oven surface should be cleaned with a damp cloth.To prevent damage to the operating parts inside the oven,water should not be allowed to seep into the ventilation openings. 4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel. 5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

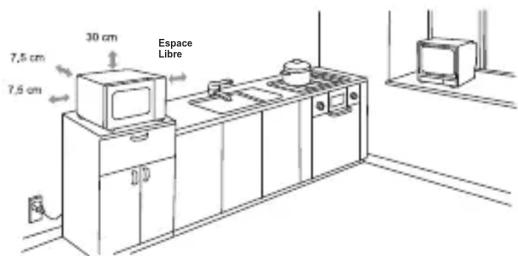

. A süt teljesítményigénye 1,1 kVA. A süt telepítésekor célszer szakszerel tanácsát kérni. FIGYELMEZTETÉS: A süt bels védelmét egy 250 V, 8 A biztosíték biztosítja. Espace Libre Choose a flat surface giving enough space for ventilation openings. Plug your oven into a standard electrical outlet. Make sure that the voltage and frequency are the same as those shown on the label of the oven. This microwave oven must be plugged into a earth- connected outlet. This unit is equipped with an electrical earth-connected wire. It must be plugged into an outlet properly installed and equipped with a earth connection. CAUTION : Improper use of earth wire can cause electrical shock. NOTES : If you have questions about the earthing or wiring, please consult a qualified staff. If an extension is necessary, use only extension cords with three son features a three-prong plug for earthing and a three-slot socket adapted to the information about the device.

&216,*/,35$7,&,3(5/¶862

&216,*/,3(5/26&21*(/$0(172

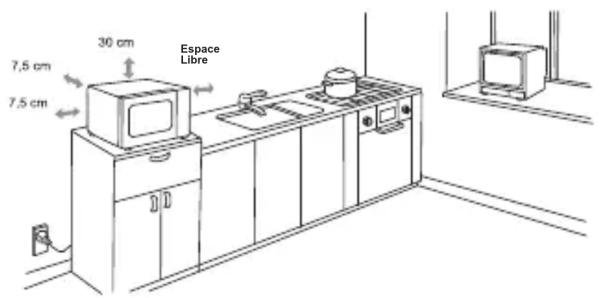

serwisem UWAGA: kuchenka posiada wewntrzny bezpiecznik 250V 8A This microwave oven must be plugged into a earth- connected outlet. This unit is equipped earth-connected wire. It must be plugged into an outlet properly installed CAUTION : Improper use of earth wire can cause electrical shock. NOTES : If you have questions about the earthing or wiring, please If an extension is necessary, use only extension cords with three son plug for earthing and a three-slot socket adapted with an electrical and equipped with a earth connection. consult a qualified staff. features a three-prong to the information about the device.
