MS-2480EG - Microwave HAIER - Free user manual and instructions

Product Type	Microwave Oven
Brand	Haier
Model	MS-2480EG
Capacity	24 L
Power Output	800 W
Voltage	230 V / 50 Hz
Dimensions (W x D x H)	455 x 335 x 275 mm
Weight	12 kg
Control Type	Digital with LED display
Functions	Defrost, Timer, Auto Cook, Clock
Turntable	Yes, 270 mm glass plate
Door Opening	Side opening with handle
Interior Light	Yes
Material	Stainless steel exterior
Cleaning	Wipe with damp cloth, avoid abrasive cleaners
Safety Features	Child lock, overheat protection, door interlock
Spare Parts Available	Glass turntable, roller ring, fuse, bulb
Repairability Index	7.5 / 10 (estimated)

Frequently Asked Questions - MS-2480EG HAIER

How to set the clock on the Haier MS-2480EG?

Press the Clock button, then use the number pad to enter the time. Press Clock again to confirm.

How to defrost food using the microwave?

Press the Defrost button, enter the weight of the food, and press Start. The microwave will automatically calculate the time.

What is the maximum cooking time?

The maximum cooking time is 99 minutes and 99 seconds.

How to clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Avoid using abrasive cleaners or scouring pads.

Why does the microwave stop during operation?

This may be due to overheating or a door interlock issue. Ensure the door is fully closed and let the microwave cool down before use.

How to use the auto cook function?

Press the Auto Cook button repeatedly to select a preset menu (e.g., popcorn, pizza). Enter the weight if prompted, and press Start.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and fire. Only use microwave-safe glass, ceramic, or plastic containers.

How to activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds until you hear a beep. The lock icon will appear on the display.

What should I do if the turntable is not rotating?

Check if the glass plate and roller ring are properly aligned. If not, reposition them. If the problem persists, the motor may need service.

Is the Haier MS-2480EG energy efficient?

This model has an estimated annual energy consumption of around 190 kWh, which is typical for a 24 L microwave.

USER MANUAL MS-2480EG HAIER

Household Microwave Oven

Contents

Before Use

Features of the Product......1

Names of the Parts......2

Safety Precautions....3

Installation Environment......5

Open the Package Carton *

Installation....5

Usage

Instructions of the Control Panel

Functions......6

Usage....7

Selection of the Cooking

Dishware....12

Cooking Tips......13

Maintenance & Repair

Maintenance & Repair......14

Answers to Questions......15

After-sales Service......16

* Please read this manual carefully before use. * Please retain it for future use. * See the physical sample for the appearance and colour pattern.

Safe to use

● The door adopts a unique anti-choke structure and integrated punch forming, and thus effectively prevents microwave leakage. It is controlled by a two-step interlock switch. The power will be switched off automatically when the door is open, therefore it is much safer to use.

Shining appearance

● The door shell and operation panel frame shell adopt imported high-quality stainless steel materials, and will never rust or change color. It has a modern appearance and superior quality, and thus becomes the best choice for the household microwave oven.

Healthy and germicidal

• It is produced with antiseptic materials, and can suppress the reproduction of bacteria effectively. ● The special function of the microwave oven can eliminate germs in the food quickly and completely.

High-temperature roast

• It has a two-step roast function, and can roast food quickly and efficiently.
• It has a two-step “microwave + roast” combined roast function, and can produce perfect roast food.

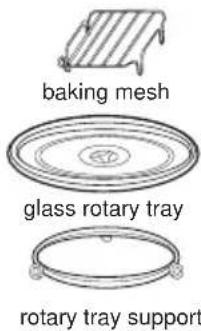

mesh board (heating pipe on board)

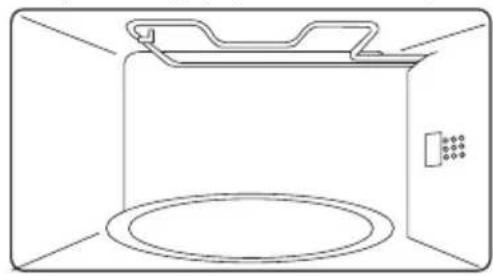

cavity diagrammatic sketch for the accessory installation

Safety Precautions

- Please read the safety precautions carefully to guarantee safe and convenient use of the microwave oven.

Danger

Warning

Attention

Electric shock hazard

No dismantle

No one except the professional technicians are permitted to disassemble the microwave oven, or it may result in electric shock.

Do not use metal rod to enter the interlock switch hole on the front side of the cavity. It may cause hazard.

Do not apply excess force to the door. It may cause distortion of the door and result in microwave leakage.

Do not use sealed containers. For those foods with skin, please prick holes on the skin.

Do not cook eggs in their shells to avoid bursting

Remember to clear away excess grease from the inside the cavity. Otherwise it may cause smoke or fire during heating.

Do not use the microwave oven for purposes other than for cooking food

This appliance must be earthed

Safety Precautions

When roasting, the face of the door and the top of the cabinet may become hot to touch.

warning

Do not use it with the cavity empty. It will damage the microwave oven.

Warning

Do not use metallic dishware to cook with microwave as it will cause internal arcing.

Warning

Allow the cavity to cool after long cooking processes (i.e. Roasting etc) before starting another cook cycle.

Warning

Warning

1. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
2. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Liquids and other foods must be heated in sealed containers since they are liable to explode.
4. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
5. Only use utensils that are suitable for use in microwave ovens;
6. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
7. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handing the container;
9. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

Do not use the product for any industrial and commercial purpose.

Installation Environment

Ventilation space is required in installation of the microwave oven.

Do not install the microwave oven in environment that is humid or with high temperature.

Open the Package Carton Installation

Open the carton

user's manual

Install

Put the microwave oven levelly at the position you choose. Keep good ventilation.

L>15cm

Select independent special socket, with current at least 10A. Be sure to ground it reliable.

10 MIN

1 MIN

10 SEC

A1

AUTO REHEAT

A5

FISH

A2

MILK

A6

CHICKEN

A3

VEGETABLE

AUTO MENU

A4

BEEF

WEIGHT DEFROST

G1-G2 GRILL

C1-C2 COMBINATION

POWER LEVEL

WEIGHT

PAUSE CANCEL

START

Usage

1. Cooking function

The microwave oven has five power levels, which are able to meet your requirements for different cooking functions.

P100 P70	P50	P30	P10
High	Medium-high	Medium	Medium-low	Low

For instance

To cook for 12 minutes and 30 seconds with medium power level.

1. Push the "POWER LEVEL" button three times.

LED display

1. Push the "10MIN" button once.

LED display

1. Push the "1MIN" button twice.

LED display

1. Push the "10SEC" button three times.

LED display

1. Push the "START" button.

LED display

Remarks:

1. This model uses a circulating display for power level selection, i.e., with each push, the power level changes in the following manner: P100-P70-P50-P30-P10, then P10-P100.
2. When the cooking time expires (the counting down time is 0:00), the buzzer will sound four times to indicate that the cooking is finished.
3. The largest cooking time of this model is 99 minutes and 50 seconds.

AUTO MENU cooking

For instance

To cook 200g mutton with AUTO MENU function.

With the AUTO MENU cooking function, you only need to set the type and weight of the food, then start the oven to do cooking, without setting the cooking time.

Menu types:

A1	A2	A3	A4	A5	A6
Auto reheat	Heat milk	Cook vegetable	Cook meat	Cook fish	Cook chicken

1. Push the "AUTO MENU" button four times.

LED display

1. Push the "WEIGHT" button twice.

LED display

1. Push the "START" button.

LED display

Remarks:

1. The AUTO MENU uses a circulating display, i.e. with each push, it will change in following manner: A1-A2-A3-A4-A5-A6, then A6-A1.
2. The weight grade for one certain menu, the display is also circulating.
3. The weight grade offered by the AUTO MENU is only for reference.
4. Reference for the food with AUTO MENU cooking.

Recipe Type Weight(g) reference			Recipe Type Weight(g) reference
A1	Auto turnover	140	A4	Cook meat	100
		210			200
		280			300
		350			350
		420			400
		500			450
A2	Heat milk	50	A5	Cook fish	100
		100			200
		200			300
		300			350
		300			400
A3	Cook vegetable	100	A6	Cook chicken	450
		200			100
		300			200
		400			400
		500			500
		600			600
		600			800

Usage

Two-step roast This model of microwave oven has the two-step

roast function. High and Low. Select suitable power level according to different food to make best effect.

For instance

Power level of two-step roast

G1	G2
High	Low

For instance, to roast with the HIGH power level for 5 minutes and 10 seconds.

1. Push the "GRILL" button once.

LED display

1. Push the "1MIN" button five times.

LED display

1. Push the "10SEC" button once.

LED display

1. Push the "START" button once.

LED display

Remarks:

1. The roast power levels G1 and G2 will be displayed alternately when the button is pushed.
2. When the cooking process reaches halfway through the cook period, the buzzer will sound twice and then stop working. This is to remind you to open the door and turn the food to cook the other side, so that the food can be roasted evenly.
3. The thin joint roast only applies to thin food. It is suggested to use combined roast for those with large volume and thickness.

Usage

Combined roast: It is suggested to use Combined Roast to cook food with large volume and thickness. That is to say, use "Microwave + Roast" during cooking.

Power level of the combined roast

For instance, to do a combined roast with low power consumption for 2 minutes and 20 seconds.

C1	C2
High	Low

1. Push the "COMBINATION" button twice.

LED display

1. Push the "1MIN" button two times.

LED display

1. Push the "10SEC" button two times.

1. Push the "START" button.

(The oven starts counting down)

Child-lock function

To avoid children from playing or tampering with the microwave oven and sustaining possible injury, the microwave oven has a special Child Lock function.

1. Set the "CHILD-LOCK".

When the oven is not in use and the door is closed, push the "10MIN" button and the "10SEC" button simultaneously.

The microwave oven will give a long buzz, indicating that the CHILD-LOCK is engaged. In the locked mode, no operation can be executed.

LED display

1. Cancel the "CHILD-LOCK".

In locked mode, push the "10MIN" button and "10SEC" button simultaneously. When a long buzz is heard, it indicates that the CHILD-LOCK is cancelled.

LED display

Weight defrost function: You can perform quick defrosting by the automatic defrost function. The microwave oven will set the defrosting time automatically according to the quantity you offered. Two weight-setting methods are available for this model:

1. Push the "WEIGHT DEFROST" "▲" button, the LED will display in turn: 0.2-0.4-0.6...1.8-2.0.
2. Push the "WEIGHT DEFROST" button, the LED will display in turn: 2.0-1.8-1.6...0.4-0.2.

For instance

To defrost 1.6kg food.

LED display

1. Push the "WEIGHT DEFROST" ▼ button

three times

1. Push the "START" button

LED display

Selection of the Cooking Dishware

Selection of the microwave cooking dishware

Please select suitable cooking dishware for the microwave oven.

Microwave characteristics

Absorbed by the food, penetrate the glass, reflected by the metal

Cooking dishware		Microwave cooking	Roast-cooking	Combined cooking
Heatproof glass containe		Yes	Yes	Yes
Non heatproof glass container		No	No	No
Heatproof plastic container		YesPlease use containers labelled with “apply for microwave oven” mark	No	No
Non heatproof plastic container		NoMaterials deteriorated by microwave can not be used.The foam tray can be used in single defrosting the fresh food.	No	No
Ceramic container		YesContainers with color pattern or golden/silver decoration can not be used.	YesContainers with color pattern at inner side may cause color drops. Please avoid using such containers.	Yes
Lacquer container		NoIt may cause paint drops, breaking etc.	No	No
Metal containers such as aluminum		NoThe metal screen may also cause arc, and thus can not be used.The coloring plate special for microwave oven (metal product) can not be used either	NoIf the container has resin handle, do not use it.	No
Wooden, bamboo, paper container		NoIt may cause combustion	NoThose paper container treated with heatproof processing can be used.	No
Film		YesDo not use it in cooking with much oil because it will produce high temperature	NoIt will melt under high temperature	No
Aluminum foil		NoIt can be used for suitable extent in defrosting food	YesWrap the food with alumi-num foil to do roasting	No

Cooking tips for microwave oven

Food temperature	Lower temperature requires longer cooking time. Frozen food needs longer heating time than common food.
Food moisture	As the microwave cavity is smaller it will retain a higher level of humidity, larger humidity levels result in shorter cooking time.
Food shape	As the microwave can only penetrate 2-4cm into the food, the thickness of the food will influence the cooking time.
Food density	Heating times are different between dense food (meats) and loose(peas) food. The former requires longer time.
Food quantity	The selected power level of the microwave is a certain value, and will not change along with the quantity of the food. Therefore larger quantity of food requires longer cooking time.
Bone and fat	Bones have quicker heat transmission, and fats absorb more energy. Therefore please pay attention to the overheat possibility in cooking the meat with bones and fats.
Add cover	The production of heat and vapour can be reduced by placing the food into a container with a cover, this will shorten the cooking time.
Settle	Please form the food in circular shape during cooking, and avoid piling up as far as possible. It can improve the evenness.
Stir	When cooking liquid food like the soap, juice or beverage etc., stir it slightly before and during cooking.
Seal	Seal the food with freshness-preserve film to avoid splashing and contaminating the cavity. It can also preserve the moisture and nutrition.
Lay aside	When the food is removed from the microwave oven, the inside of the food is still heating. Place it aside for some time. Take the factor of duration into consideration.

Maintenance & Repair

Maintenance: Frequent cleaning and maintenance can guarantee normal performance of the microwave oven.

Be sure to switch off the power before cleaning.

Do not use detergent and materials containing metal to clean the cavity and door.

Use soapy water to clean the shell, and wipe it with a soft cloth.

Use a wet cloth to clean food scraps on the door, door seal, and inside the cavity. Use a wet cloth soaked with soapy water to clean other deposits.

Keep the inner side of the door clean. Keep it free from food scraps.

Take it out at least once per week, put it into water to clean, to prevent deposits from corroding the rotary wheel.

Note that the power supply cable shall not be damaged or broken. If the power supply cable is damaged, be sure to replace it with a special cable.

Remarks: If the microwave oven is to be idle for a long time, please clean thoroughly each part of the oven to avoid rusting.

Warning

If the microwave oven appears abnormal or is damaged, do not use it any more before it is repaired by professional technicians.

Answers to Questions

Answers to Questions

Why is the lamp not on?

Why is vapor emitted from the air discharge outlet? Why is there water overflowing below the door?

Can microwave leak from the view window of the door?

If you start the microwave oven without any food, will it damage the oven?

Why does the food need to be laid aside after cooking?

Why is it not as quick as stated in the manual to cook with my microwave oven?

Why is there sparking or cracking sound during cooking sometimes?

1. The lamp has failed.
2. The timer is not set.

It is normal that vapor may emit during cooking. Sometimes the vapor will condense into water and flow out. This is a normal phenomenon.

No. The metal shelter can reflect the energy back into the oven. The view window only allows harmless light to pass through. The microwave energy cannot pass through.

Yes. NEVER do that.

It is important to lay the food aside for several minutes. Cooking by microwave oven makes the food retain heat inside. After you take out the food from the oven, the inside of the food will continue heating for 2-3 minutes. It can assist the cooking of the joint of the food, vegetables or cookies completely outside the oven by laying aside.

Check the user's manual. Confirm that you follow the instruction completely. Find out the reason for setting different times. The setting of cooking time is only for reference. To avoid excess cooking, you shall learn the technology of cooking with microwave. The volume, weight and shape of the food can all influence the cooking. Take the instruction as reference, and learn it independently.

It may be owing to following: 1. Dishware with metal part is used (including gold and silver);

1. Fork or other metal dishware are left in the oven;
2. Too much metallic foil are used;
3. Metallic thread is used to bind the food.

In maintenance, the technicians shall pay attention that:

Components that are easy to dismantle and likely to touch voltage above 240V:

1. Magnetron
2. High-voltage transformer
3. High-voltage capacitor
4. High-voltage diode
5. AK rectifier Components that may

cause excess microwave leakage:

1. Improper installation of the magnetron on the wave guide
2. Improper adjusting of the door hook, door body and up/down hinges
3. Door body and shell are damaged The above problems can cause excess microwave leakage

Microwave radiation

Do not expose yourself to the radiation of the microwave generator or other components that transfer the microwave energy.

After-sales Service

After-sales service

1. Please glue the invoice on the invoice column in the warranty certificate and keep it with care.
2. This product has one year's warranty (subject to the purchase date on invoice) with maintenance free of charge. Please contact the special shop for maintenance by the warranty certificate and invoice if maintenance is needed.
3. The following cases will not enjoy the maintenance free of charge. We will offer maintenance with relative charges for them: (1) Those damaged owing to misoperation of the user; (2) Those damaged owing to decomposing by the user; (3) Those without invoice and warranty certificate; (4) Those with altered invoice or warranty certificate; (5) Those exceeding the warranty period;
