USER MANUAL LVS13C45GZ17W SABA

Thank you for choosing SABA quality This product has been developed by our team of professional and according to European regulations In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference Technical information 38 Warnings 39 Description 41 Before installing your dishwasher 43 Installation instructions 43 Operation 45 Cleaning and maintenance 59 Troubleshooting 62 Product che 66 Disposal of old electrical appliances 68

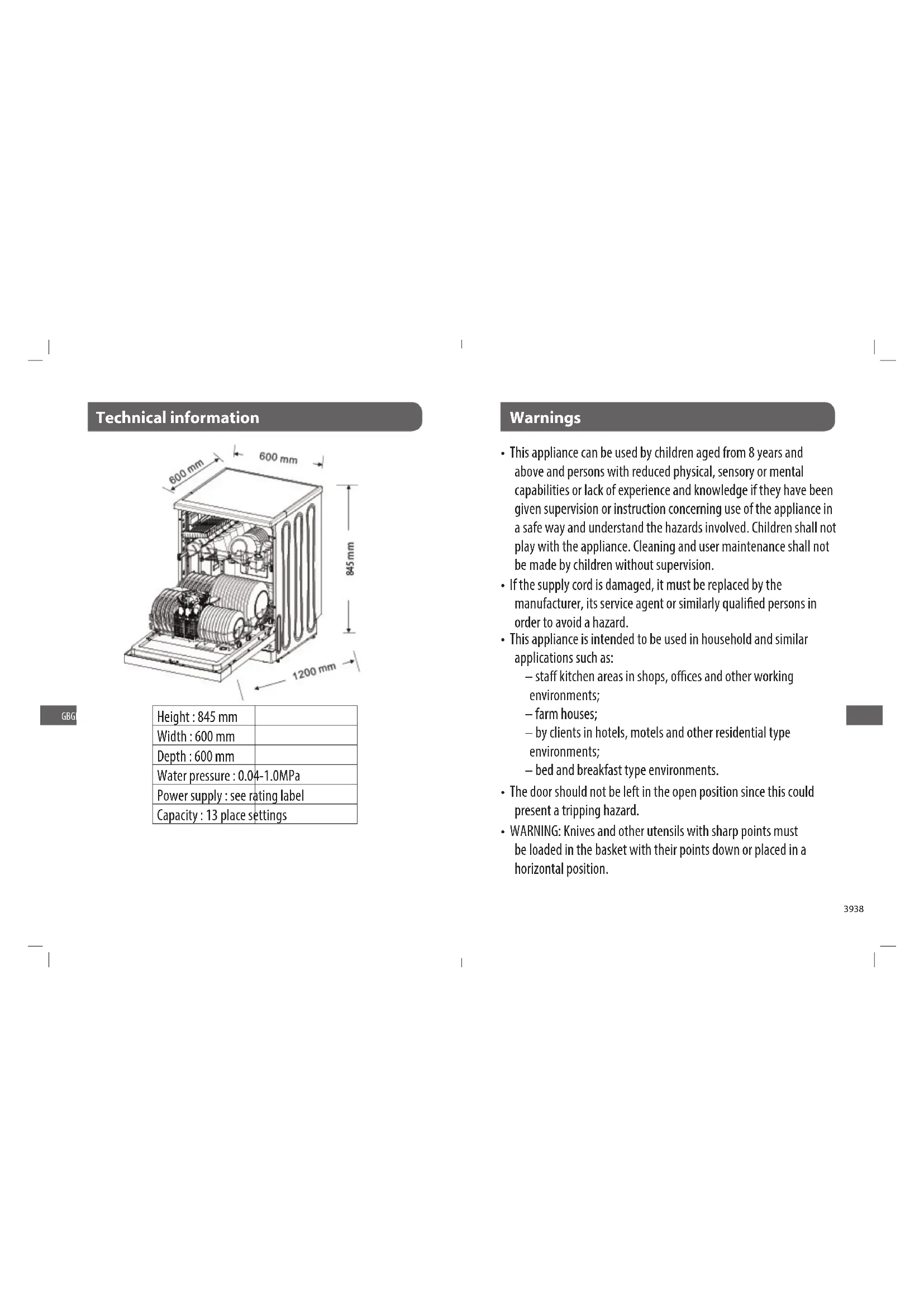

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision

• WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard

• This appliance is intended to be used in household and similar applications such as: – sta kitchen areas in shops, oces and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments

• The door should not be left in the open position since this could present a tripping hazard• The ventilation openings must not be obstructed by a carpet The maximum number of place settings to be washed: 13 The inlet water pressure is 0,04-1 MPa Description

• The appliance should be connected to the water mains using new hose-sets supplied with the appliance , old hose-sets should be reused

Use only connections conformed to the standard EN61770

recommended in your country

• For cleaning instruction, please refer to page: 59-61

• For loading the dishes, please refer to page: 47-49

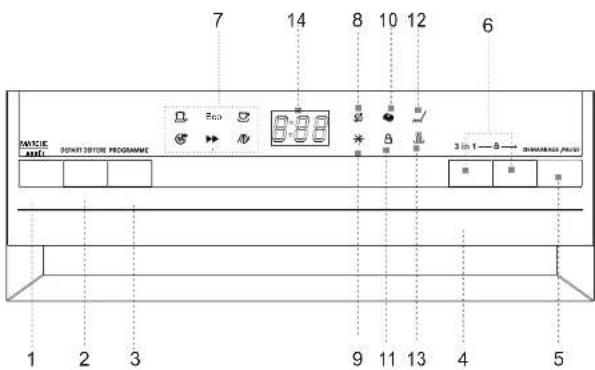

• Regarding the instructions for installation and electric connection of the appliance, pls refer to page:43-45Control Panel 1 Power button

• To show the washing time, delayed start time or error codes Overview Before installing your dishwasher Installation instructions Before connecting your dishwasher to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home The appliance must be grounded The manufacturer is not responsible for damages that may occur as a result of usage without grounding

WARNING: Disconnect electrical power before installing your

dishwasher Your dishwasher can be installed in various locations in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply Do not connect an extension lead to the appliance to avoid potential safety hazards Inlet hose (Cold water supply) Connecting to the Mains Water Supply The water inlet hose from the machine terminates in a 3/4” female connector The water supply should therefore terminate in a similar male connector and should have a stopcock close by in the pipe 4342 GB GB

6For best operating results, incoming water pressure should be between 004 MPa and 1MPa Incoming water supply for the dishwasher is controlled by a ‘pressure switch’, so if the household water pressure is low, dishwasher ll time will increase or may not operate

WARNING: Please close the hydrant after using

Water Pressure Connect the straight connector of the inlet hose to the water supply securely ensuring that the washers are securely in place at both ends of the hose Insert the drain hose into a drainage pipe Attach the drain hose to the wall using the supplied U-bend tting The end of the hose should be dropped into a drainage pipe, the height of which should be from 500mm to 1100 mm above the base of the dishwasher To allow for an air gap around the end of the drain hose, the diameter of the drainage pipe should be at least 40 mm Connecting to the water outlet min 40 mm min 120 mm min 500 mm max 1100 mm If leaks are detected, immediately shut the water supply and check the hose connections fully Re-tighten the connections if necessary If for any reason you are unable to stop the leak yourself please seek advice from a qualied plumber Place the dishwasher on an even, stable surface It is very important that the dishwasher is perfectly levelled in order to avoid it to malfunction Youcan level the dishwasher by adjusting the feet at the base of the appliance Levelling Operation Your dishwasher cleans by spraying a mixture of clean water and detergent (under pressure) against the soiled surface of dishes The water is pumped through a rotating spray arm, drained through a lter removing food and soiled particles and pumped back through the spray arm Soiled water is pumped out and replaced with clean water at the end of each cycle (how many times depends on the cycle being used) NOTE: Hard water conditions will adversely aect washability performance of your dishwasher Hard water conditions will also contribute to “Lime” (white lm substance) deposits and/or “Scaling” on the stainless steel surface of the dishwasher tub and heater element located in the sump underneath the removable lter screen

GB GBTo minimise these conditions, it is recommended to periodically operate/rinse the inside of the dishwasher (empty) using 1 cup of white vinegar (at least once a week) Before using the dishwasher for the rst time, it is advisable to read the following recommendations concerning dish types to be washed and their loading Before loading the dishes into the baskets it is necessary to:

• Remove coarse food remains, eg bones, which may clog the lter or damage the wash pump

• Soak any pots or pans with burnt-on food remains on the bottom then load them into the basket There is no need to pre-wash the dishes under running water before loading them into the basket WARNINGS:

• Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle

• Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out

• Do not place glasses too close together because they may knock against each other and break

• Load large items which are most dicult to clean into the lower basket

• Make sure that the items being washed are dishwasher-safe General Warnings and Recommendations Items which are not dishwasher-safe:

• Wooden dishes, pots or pans

• Plastic dishes (except when marked dishwasher-safe)

• Dishes and objects in copper, tin, zinc or brass

• Decorated items Loading the upper and lower baskets The upper basket is designed to hold delicate and light items such as glasses, cups, saucers, servingbowls and shallow pans The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely Arrange items so that water can reach all surfaces Loading the Baskets

GB GBA Cups B Glasses C Saucers D Medium serving bowl E large serving bowl F Small serving bowl G Soup plates H Dinner plates I Dessert plates J Oval plate Upper Basket Lower Basket The height of the upper basket can be adjusted To raise your basket, hold it from both sides and pull it upwards, the basket will be lock Loading the cutlery rack and basket The cutlery should be arranged in a specic way inside the rack and basket, with the handles pointing downwards Knives and forks should be placed with handles up for safety Take care during loading to avoid injury from the knife blades Folding racks consisting of three/ two parts in the upper/ lower basket of your machine are designed in order to let you place big items easier as pots,pans,etc Upper basket Lower basket

GB GB automatically To lower it, hold it from both sides again,pull it a little bit upwards and pull it downwardsCutlery rack (assembled on the upper basket) Cutlery basket 1 Teaspoons 2 Dessert spoons 3 Soup spoons 4 Gravy ladle 5 Serving fork 6 Forks 7 Knives 8 Serving spoons The hardness of the water varies from place to place If hard water is used in the dishwasher, deposits will be formed on the utensils This appliance is equipped with a water softener which uses a salt specically designed to eliminate the minerals from the water CAUTION:

• Only use salt specially formulated for domestic dishwashers

• Do not use table salt as it contains insoluble substances which may damage the water softening system

• Fill the salt container before starting the washing programme. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion

• If you plan to use dishwasher tablets for your washing needs, then you do not require to use salt or rinse agent but please note that the rell salt indicator light will remain illuminated on the control panel This is quite normal and will not aect the operation of your dishwasher Adjusting the salt consumption 1 After the dishwasher is switched on, enter the status of adjusting the salt consumption by holding down and until the value H4 (factory setting) ashes on the display 2 While the value is ashing repeatedly press to adjust the setting from H0 to H7 to suit the water hardness 3 Press to conrm the setting Using the Water Softener

Display °fH °Clarke mmol/l 0~11 0~8 0~11 H0 12~14 9~10 12~14 H1 15~18 11~12 15~18 H2 19~21 13~15 19~21 H3 22~29 16~20 22~29 H4 30~37 21~26 30~37 H5 38~54 27~38 38~54 H6 55~89 39~62 55~89 H7 NOTE: °Clarkes: British degree °fH: French degree Filling with salt 1 Unscrew the cap from the salt container by turning it anticlockwise 2 Place the supplied funnel so the end ts into the opening of the salt container Load about 2kg of salt into the salt container Screw the cap back clockwise NOTE: The salt container must only be relled when the rell salt indicator light illuminates Depending on how fully the salt dissolves, the rell salt indicator light may still be on even though the salt container is lled The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining Itis automatically added to the water during the nal rinse cycle The detergent and rinse aid dispensers are located on the innerpart of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right Using the Rinse Aid and Detergent Dispensers Adding the rinse aid 1 Rotate the dispenser cap anticlockwise and remove it 2 Add the rinse aid until the container is full

• The optical level indicator on the side of the cap should be completely dark 3 Replace the cap and turn it clockwise NOTE: Rell the rinse aid when the optical level indicator becomes clear again, or when the rinse aid indicator light illuminates

GB GBAdjusting the rinse aid dispenser setting The factory setting for the dishwasher is 5 and you can choose among 6 settings The amount of rinse aid dispensed is proportional to the selector position 1 To adjust the rinse aid setting, remove the dispenser cap 2 Rotate the rinse aid selector to the desired position 3 Replace the cap and turn it clockwise Adding the detergent 1 To open the detergent dispenser cap, gently press the release button 2 Add the detergent and close the cap NOTE: The amount of rinse aid must be increased if the washed dishes appear dull or feature circular stains If the dishes are sticky or have white streaks, it is necessary to reduce the rinse aid setting Adjust lever (Rinse) A detergent for main wash cycle B detergent for pre-wash cycle NOTE: Use only detergent specically formulated for dishwashers For optimal washing results it is important to use a good quality detergent Washing Programmes Programme Degree of soil Cycle Description Recommended quantity of detergent pre-wash / main wash Washing time (min.) Energy (Kwh) Water (L) Rinse Aid needed? Intensive For extremely soiled crockery and normally soiled pots, pans, dishes, etc Pre-wash Main wash (60°C) rinse 1 rinse 2 Hot rinse Drying 5/275 g (or 3 in

Standard daily cycle for normal soiled loads, such as pots, plates and glasses Pre-wash Main wash (46°C) Hot rinse Drying 5/275 g (or 3 in

199 092 11 Yes Light For lightly soiled loads that need no excellent drying eciency Pre-wash Main wash (45°C) Hot rinse Drying 5/20 g (or 3 in

GB GBProgramme Degree of soil Cycle Description Recommended quantity of detergent pre-wash / main wash Washing time (min.) Energy (Kwh) Water (L) Rinse Aid needed? 60 min For lightly soiled loads that need no excellent drying eciency Hot rinse 1 Hot rinse 2 Hot rinse (60°C) Drying 5/20 g 60 095 10 Yes Rapid A shorter wash for lightly soiled loads and quick wash Main wash (40°C) Hot rinse 15 g 39 050 7 No Pre-rinse To rinse out loosen soil particles from the dishes Pre-wash NA 11 001 4 NA

• Testing programme for EN 50242 The information for comparability test in accordance with EN 50242 is as follows:

• Capacity: 13 settings

• Position of upper basket: Low position

• Rinse aid setting: 5 (or 4 for four setting dispenser) NOTE: 1 The washing time may vary depending on the incoming water temperature and the ambient temperature 2 The power consumption in left-on mode is 09W (door open), in o-mode it is 035W 1 Turn the water tap on 2 Open the dishwasher door 3 Check the lters

• Ensure they are clean and properly positioned See “Cleaning and maintenance” section 4 Check that there is rinse aid and salt 5 Load the dishes

• Ensure that the spray arms can rotate freely 6 Add the required amount of detergent into the dispenser according to the “Washing Programmes” chart 7 Close the dishwasher door securely 8 Press to switch on the dishwasher 9 Select the desired washing programme by repeatedly pressing

• The corresponding washing programme indicator light will ash

• Delay : The delay start function allows you to delay the start of a washing programme from 1 hour to a maximum of 24 hours Repeatedly press until the desired start delay time ashes on the display, eg 3H for a 3-hour delay Once the delay timer has been set, press

• The function is available only when you select the intensive, ECO or light programme 11 Start the washing programme by pressing 12 At the end of the washing programme, the dishwasher will buzz and automatically stop 13 Wait for about 15 minutes before you open the dishwasher door in order to avoid burns 14 Unload the dishes The washing cycle will not start if the dishwasher door is left open or not properly closed Do not open the door when the dishwasher is working since hot water may be ejected, which could cause scalding Adding extra crockery 1 Without switching o the appliance, press to pause 2 Open the door, taking care to avoid the escaping steam 3 Place the crockery inside the dishwasher 4 Close the door and press The cycle will start from the point at which it was interrupted Modifying a washing programme in progress If a mistake was made during the washing programme selection process it is possible to change the programme 1 Press to turn o the appliance and then press again to turn it on 2 Repeatedly press to select a new programme

• The new programme indicator light will ash 3 Press to start the programme Child lock function The child lock function is designed to prevent children from operating the dishwasher To activate this function: Press and hold for about 3 seconds until a beep is heard The corresponding indicator light will ash This function can only be activated when the machine is in operation When child lock is activated, no button can work except the power button To deactivate this function: Press and hold for 3 seconds until a beep is heard The corresponding indicator light will go out This function will also be deactivated when the dishwasher is turned o by pressing Always switch o and unplug the appliance before cleaning Do not use chemical solvents or strong detergents as these may damage the cosmetic nish Clean the outer surfaces and the tank of the dishwasher with a damp cloth Cleaning and maintenance

GB GB //////ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE //ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE ARRÊTMARCHE _The lter unit consists of a main lter (1), central lter (2) and micro lter (3) Turn the assembled central and micro lters anticlockwise to unlock them from the appliance Separate the lters Lift up the main lter Rinse them under running water using a soft brush To disassemble the lters Cleaning the Filter Unit Clean the lters regularly Replace the lter unit by turning them clockwise until they lock into position CAUTION: Never operate the dishwasher without the lters Use a damp cloth to clean the edge around the door To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner Cleaning the Door Avoid placing the dishwasher in a location where the temperature is below 0°C If this is unavoidable, empty the dishwasher, close the door, disconnect the water inlet pipe and empty it Frost Precautions The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging To remove the upper and lower spray arms, hold and unscrew or pull them out Wash the spray arms under running water and attach them back in place, checking that the rotary movement is in no way impeded. Cleaning the Spray Arms

GB GBTroubleshooting Problem Possible Causes Solutions Dishwasher will not start Fuse blown, or the circuit breaker tripped Replace fuse or reset circuit breaker Remove any other appliance sharing the same circuit with the dishwasher Power supply is not turned on Make sure the dishwasher is turned on and the door is closed securely Make sure the power cord is properly plugged into the wall socket The door has not been properly closed Close the door securely Water not pumped from dishwasher Kink in drain hose Check drain hose Filter clogged Check the lters (see “Cleaning the Filter Unit”) Kitchen sink clogged Check kitchen sink to make sure it is draining well If kitchen sink is not draining, you may ask a plumber to check it Problem Possible Causes Solutions Suds in the tub Improper detergent Use only the detergent special for dishwasher to avoid suds If this occurs, open the door and let the suds evaporate Close the door securely then start the soak wash cycle to drain the water out Repeat if necessary Spilled rinse aid Always wipe up rinse aid spills immediately Stained tub interior Detergent with colourant is used Make sure the detergent does not contain any colourant White lm over the inside surface Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves Never use any other cleaner than dishwasher detergent for the risk of foaming or suds

GB GBProblem Possible Causes Solutions There are rust stains on the cutlery The cutlery is not corrosion resistant No programme has run after dishwasher salt was added Traces of salt have got into the wash cycle Always run the rapid washing programme Add dishwasher salt with no crockery in the dishwasher The dishwasher is noisy Dishes are rattling against each other The spray arm is knocking against the dishes Refer to “Loading the Basket” to rearrange the dishes The dishes are not clean The dishes have not been arranged properly Refer to “Loading the Baskets” Problem Possible Causes Solutions The dishes are not clean The washing programme selected is too gentle Select a more intensive programme Refer to “Washing Programmes” Not enough detergent has been used or it is unsuitable Use more detergent or change the detergent The spray arms are clogged Rearrange the items so that the spray arms can rotate freely The lters are not clean or not in the correct position Clean and/or position the lters correctly Streaking and straining on the dishes The rinse aid dispenser setting is not high enough Adjust the rinse aid dispenser setting The dishes are not quite dry Improper loading Refer to “Loading the Baskets” The rinse aid has run out or too little is being used Increase or rell the amount of rinse aid Wrong programme selection Choose a programme with long washing time

GB GBError codes Error codes Meaning E1 Door is not closed E2 Water inlet malfunction E3 Drainage malfunction E4 Temperature sensor malfunction E5 Overow/leakage E6 Water leakage E7 Abnormal heating Product che This dishwasher’s product che has been setup in conformity with EU Regulation No 1059/2010 Brand SABA Model Standard place settings 13 Energy eciency class A++ Annual energy consumption 262 kWh/annum Energy consumption of the standard cleaning cycle 092 kWh/cycle Power consumption of o-mode 035W Power consumption of left-on mode (door open) 09W ‘Left-on mode’ duration N/A Annual water consumption 3080 litres Drying eciency class A Standard cleaning cycle Eco Programme duration of the standard cleaning cycle 199 minutes Noise level 45 dB(A) re 1 pW Mounting Freestanding Height 845 cm Width 60 cm Depth (with connectors) 60 cm Power consumption 1850W Rated voltage / frequency 220-240V~ 50Hz Water pressure (ow pressure) 04-10 bar = 004-1 Mpa NOTE: A+++ (highest eciency) to D (lowest eciency) Energy consumption “262” kWh per year, based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes Actual energy consumption will depend on how the appliance is used Water consumption “3080” litres per year, based on 280 standard cleaning cycles Actual water consumption will depend on how the appliance is used A (highest eciency) to G (lowest eciency) This programme is suitable for cleaning normally soiled tableware

17IBK zand it is the most ecient programme in terms of combined energy and water consumption for that type of tableware The device meets the European standards and the directives in the current version at delivery: The above values have been measured in accordance with standards under specied operating conditions, amount of detergents, etc The manual is based on the European Union’s standards and rules Disposal of old electrical appliances The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, itmust be separately collected Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance
