USER MANUAL ZHV64450BA ZANUSSI

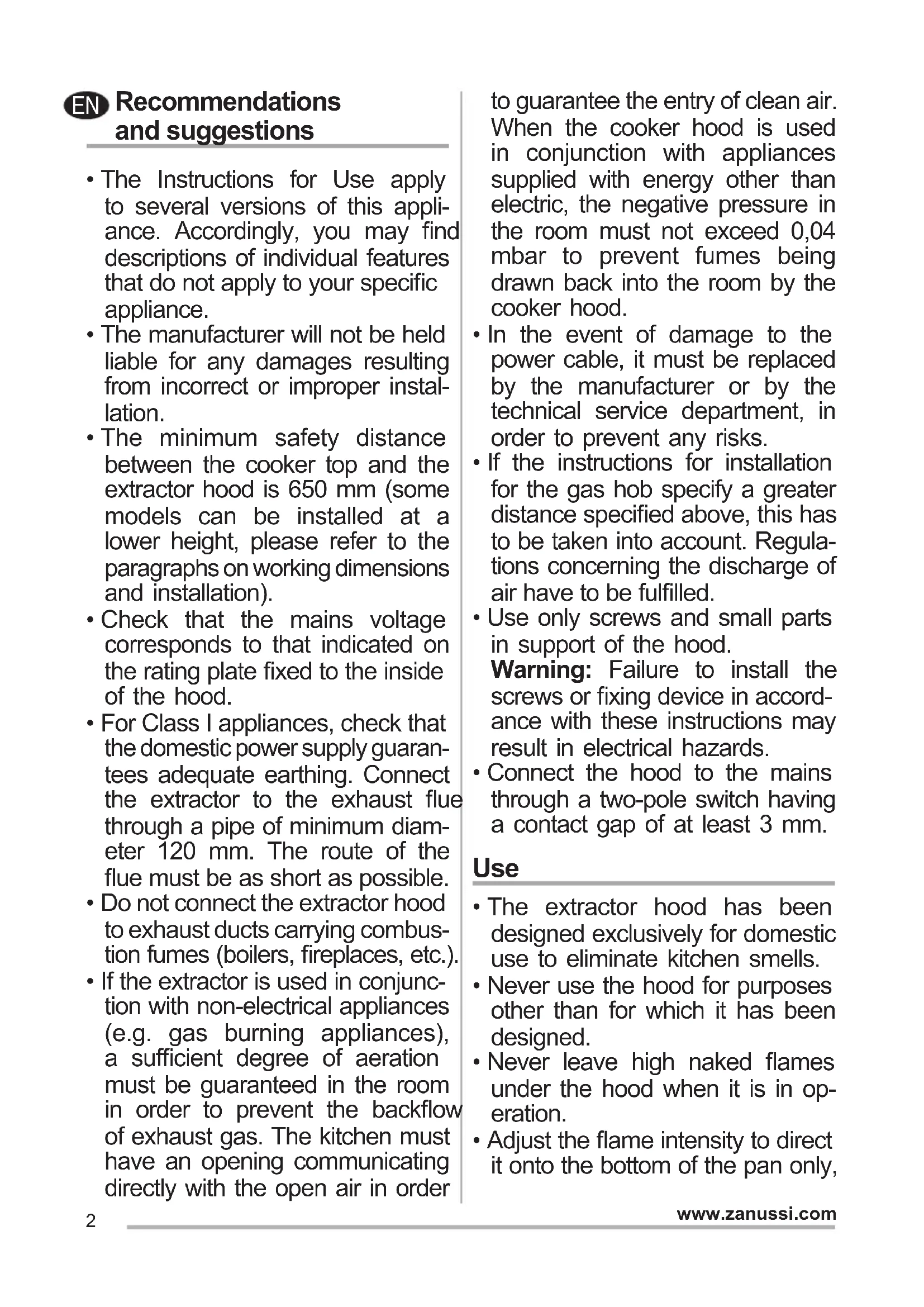

• The Instructions for Use apply to several versions of this appli- ance. Accordingly, you may nd descriptions of individual features that do not apply to your specic appliance.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper instal- lation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating plate xed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran- tees adequate earthing. Connect the extractor to the exhaust ue through a pipe of minimum diam- eter 120 mm. The route of the ue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus- tion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunc- tion with non-electrical appliances (e.g. gas burning appliances), a sufcient degree of aeration must be guaranteed in the room in order to prevent the backow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specied above, this has to be taken into account. Regula- tions concerning the discharge of air have to be fullled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the

screws or xing device in accord- ance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked ames under the hood when it is in op- eration.

• Adjust the ame intensity to direct it onto the bottom of the pan only, EN3 www.zanussi.com making sure that it does not engulf the sides.

• Deep fat fryers must be continu- ously monitored during use: over- heated oil can burst into ames.

• Do not ambè under the range hood; risk of re.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cook- ing appliances.” Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equip- ment. By ensuring this product is disposed of correctly, you will help prevent potential negative conse- quences for the environment and human health, which could other- wise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before car- rying out any maintenance work.

• Clean and/or replace the Filters after the specied time period (Fire hazard). - The Activated charcoal lter is not washable and cannot be re- generated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

- The Grease filters must be cleaned every 2 months of op- eration, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid deter- gent.4 www.zanussi.com Controls A B C D Button Function

Turns the lighting system on and off at maximum intensity.

Turns the suction motor on and off at speed one. Delay Activate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off.

Turns the suction motor on and off at speed two. Delay Activate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off.

Turns the suction motor on at speed three. Delay Activate automatic switch-off with a 5 minutes delay. Suitable to complete elimination of residual odours. Can be activated from any position, by a longer pressure of the icon and is disabled by pressing the button or turning the motor off. Lighting
