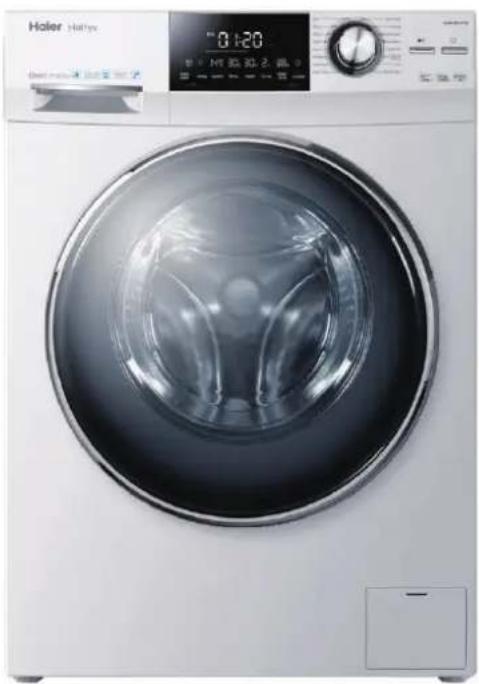

USER MANUAL HW80BD14756 HAIER

Please read these instructions carefully before using this appliance. It contains important information which will help you get the best out of your appliance and ensure safe and proper installation, use, care and cleaning.
Keep this manual in a convenient place so you can always refer to it for safe and proper use.
If you sell the appliance, give it away, or leave it behind when you move, make sure you also pass on this manual so that the new owner can become familiar with all features and safety warnings.

Legend

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Before switching on the appliance for the first time...

...make sure all transport bolts are removed.
...make sure the power cord is not caught under or in the appliance and there is no damage or risk for damaging
...make sure the power circuit fuse is rated for 15A.
...use a separate earthed socket for the power supply.
...make sure the plug is always accessible.
...hold the plug and not the electric cable when unplugging the power supply.
...check that hose joints and connections are firm and by opening tap check for any waterleakage.
...do not switch on the appliance until everything is properly installed!

Do not ...

...install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.
...expose machine to any frost, heat or direct sunlight.
...touch or use the appliance when barefoot or with wet or damp hands or feet.

...use flammable detergent or dry cleaning agent. ...use any flammable sprays in close vicinity to the appliance.

...remove or insert the plug in presence of flammable gas. ...place the appliance directly on a carpet, or close to

...remove or insert the plug in presence of flammable gas.
...place the appliance directly on a carpet, or close to a wall or furniture.

Control panel

Product description

This drawing may be slightly different from the layout of the washing machine you have just purchased.

I Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S6)
4 Power cord
5 Water inlet valve
6 Drain hose

Check the accessories and literature in accordance with this list.

IX User manual

x Drain hose bracket

5x Blanking plugs

Assembly

"Start/Pause" button

Press this button gently to start or

operation its symbol is shining,or if interrupted blinking.

"On/Off" button

Press this button gently to switch on, the display is shining. Press again for about 2 seconds to switch off. If no panel element or programme is activated after a while machine will shut down automatically.

To get best results in each programme Haier has well defined specific default settings. If there is no special requirement default settings are recommended. Accordingly to these factory settings many programme parameters and additional functions could be individually changed (see "programmes" and "function" buttons).

"Smart Dosing (button a)

"Smart Dosing" is default setting. Means, due to programme, laundry load and water hardness there will be an optimal automatic dosage of liquid detergent and softener using related compartments 1 and 3 of the detergent drawer. If activated according symbols will light up. This function achieves optimal results, saves washing agent and protect our environment. A charge lasts for up to 20 programme cycles. If a reservoir is empty related symbol will be blinking.

Kunse (Bullion 1)

Iouch it to adapt times of rinse.

---

"Memo" (button g)

Memory function is available in parts of programmes, after setting up the parameters for the program which have this function, press "Memo" button till display show "S", mean memory saved success.

Before start the programmes,press Memo pusston when displays show "P",mean that choose the memo parameters, then press start button running program.
IF you want to set new memory parameter, please touch

"Memo" button until display show "S" again, after new parameter be set completely.

"Intense"(button h)

Intensifies cleaning results. Preferable if laundry is heavily soiled.

Press it intense function is activated.

"Speed" (button c)

Touch it to adapt speed of centrifugation.

"Child lock" - control panel lock function (button g + h)

This option blocks all panel elements against activation. After starting, press simultaneously "Memo" + "Intense" for about 3 seconds. Panel lock symbol is now displayed. Next repetition deblocks any function.

"Temp." (button d) Touch it to adapt maximum of water temperature. Note: Display of "nothing "stands for "no operational heating".

General information and tips: i

To cancel any actual setting change programme or press "On/Off" about 3 seconds. To cancel a running programme touch "Start/Pause" and then "On/Off" for about 3 seconds.

Programme	Temp. max.	Preset	3	2	1	Fibre type	Preset Spin speed
Hygienic	--- 95°C Cotton /Synth.						1000 rpm
2 Jeans 0-60°C 40°C Jeans 1000 rpm
Sport 0-40°C	30°C Sports	Wear 1000 rpm
Under wear 0-60°C 40°C Underwear
5 Wool	0-40°C	---			√	Woolen fabrics	600 rpm
6 Mix	0-60°C 40°C Cotton Synth.				√	Chemical fibre fabrics	1200 rpm
Synthetic	0-60°C 30°C				√
8 Cotton	0-90°C 40°C Cotton Synth				√	Chemical fibre fabrics
Daily Wash	0-40°C 40°C Cotton Fabrics				√	Chemical fibre fabrics
Ultra White	0-60°C 40°C Cotton Synth				√	Chemical fibre fabrics
Fast	0-60°C	40°C			√	Cotton /Synth.	1400 rpm
Express 15 min	0-30°C	20°C			√	Cotton /Synth.	1000 rpm
Baby Care	0-90°C	90°C			√	Cotton /Synth.	1000 rpm
Delicate	0-40°C	30°C			√	Silk or wool	600 rpm
Hand Wash	0-40°C 30°C Cotton Fabrics				√	Silk or wool
Spin/Drain	---	---				---	1400 rpm

Basic status indication	Programme cycle indication	Programme settings
Door is locked (in operation)	Time display (1 or 2)	Liquid detergent Smart Dosing activated
Control panel locked	Remaining operation time (1)	Softener Smart Dosing activated
No water supply	Remaining delay time (2)	Endtime delay activated
Door is open		Maximum speed of rotation setting
Liquid detergent - empty Reservoir		Maximum wash-temperature setting
Softener - empty Reservoir		Washing time setting
		Rinse times setting
		Memo setting / Memo select
		Intense activated

Daily use

This appliance is only for domestic use inside the house. If it is used for commercial, industrial or not intended purposes any Haier guarantee will not be valid anymore. Consider anytime instructions of each garment label and wash only machine-washable laundry.

The indicated consumption values may differ in addiction of local conditions.

Hygienic	2	2,00	36,0	95	Auto	---
Jeans	4	0,56	40,0	40	Auto	---
Sport	2	0,26	35,0	30	0:25	---
Underwear	4	0,50	40,0	40	1:09	---
Wool	1	0,10	50,0	---	0:42	---
Mix	4	0,56	34,0	40	Auto	---
Synthetic	4	0,25	46,0	30	Auto	---
Cotton 40*	5/4	0,51/0,42	50,0/45,0	40	Auto	<53
Cotton 60*	5/4	0,57/0,47	50,0/45,0	60	Auto	<53
Cotton 60*	10/8	0,55/0,45	60,0/55,0	60	Auto	<54
Daily Wash	4	0,58	46,0	40	1:20	---
Ultra White	2	0,60	45,0	40	0:59	---
Fast	2	0,20	20,0	40	0:51	---
Express 15 min	1	0,20	20,0	20	0:15	---
Baby Care	4	2,00	67,5	90	2:05	---
Delicate	1	0,25	50,0	30	0:56	---
Hand Wash	2	0,25	36,0	30	0:57	---
Spin/Drain	10/8	0,10	---	---	0:08	---

Power supply

Connect the washing machine to the power supply (220V to 240V~/50Hz).

Water connection

Turn on the tap. The water must be clean and clear.

Warning!

Before use, turn tap on

Preparing laundry

Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.
Separate white clothes from coloured ones. Wash coloured textiles first by hand to check if they fade or run. Garments without hems, delicates and finely woven textile
such as fine curtains are to be put into a wash bag to care for this delicate laundry (hand or dry cleaning would be better). Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as socks, belts.
1. 50% of the time, people in the area will be hungry for food and have to work hard to get enough food.
2. In the summer, people will be more likely to travel to the nearby parks and beaches.
3. On the other hand, people will be more likely to travel to the nearby parks and beaches.
etc. Turn clothes inside out. Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).

Warning!

Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance.

*General information and tips:

Standard programme for the Energy Labelling
according to 2010/30EU:
Cotton 60^ / 40^ with max. spin speed setting and 50min of washing time and 2 times of rinse without "smart dosing".

The standard 60^ and 40^ cotton programmes are
suitable to clean normally soiled cotton laundry. They are
the most efficient programmes in terms of combined energy

esuyliaD

Loading the appliance

Open the door and put in the laundry piece by piece. Don't overload. Check if you can put a hand upright on top of load. Close the door carefully.

Select a programme

To get the best washing results, s

fits the degree of soiling and sort of laundry type. Please turn the programme knob to select the right programme.

Select a programme

Select required options (refer to "Control Panel").

__________

Washing efficiency and performance is determined by used detergent quality. Use only machine wash approved detergent and if needed specific detergents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations.

General information and tips:

Remove detergent residues before next wash cycle. Please follow given detergent dosage recommendation from detergent package.

Interrupt - cancel wash programme

To interrupt a running programme press gently "Start/Pause" button. Press it again to resume operation. To cancel a running programme and all its individual settings activate "Start/Pause" and then for about 3 seconds "On/Off".

General information and tips:

Choose programme settings carefully referring to icons on each laundry label and "Care chart". Removing laundry promptly at cycle end will be gently and minimize wrinkling.

If there is a power cut when the machine is working, please press the On button for program to continue when power is reconnected.

After washing

Turn off the water supply and unplug the power cord. Open the door to prevent formation of moisture and odours. Let it open while not used.

Adding detergent - "Smart Dosing"

Slide out the detergent drawer and put the required washing agents into the corresponding compartments.

Important information: "Smart Dosing" is default setting. Accordingly to programme, load and water hardness an optimal dosage of washing agents will be automatically

Optimal dosage of washing agent will be automatically applied using reservoirs for liquid detergent and softener. To fill up open related flap of the detergent drawer and add a non concentrated product until the "MAX limit line" is reached. At last push gently the drawer back.

Care chart

Care and cleaning

Care chart

Cleaning the machine

Unplug the machine during cleaning and maintenance. Use a soft cloth with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.

Bleaching Process

DnOxygen / Do n non-chlorine

Any bleaching a allowed bleach allowed

bleach allowed

Tumble Drying Process

Do not tumble dry

Tumble drying possible lower temperature

Flat drying

Tumble drying possible normal temperature

Line drying

Environmental information

Professional Textile Care Process

Do not dry clean

Professional dry cleaning Do not dry clean

in hydrocarbons

---

Do not prewet clean

Professional
Professiona

Do not iron

Pump filter

Please check the pump filter regularly and if the appliance

• doesn't drain the water,

• doesn't spin,

• cause unusual noise while running.

Water inlet valve and inlet valve filter

To prevent blockage of water supply by foreign substances, clean inlet valve filter regularly.

Period of disuse

If the appliance is left idle for a longer period, pull out the electrical plug (1) and turn off water supply (2). Open the door to prevent formation of moisture and odours. Let door open while not used.
Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leackage.

Choose the best Detergent

	Universal	Color	Delicate	Special	Softener
Wool	-	-	-	L	O
Mix	L/P	L/P	-	-	O
Synthetic	L/P	L/P	L	-	O
Cotton	L/P	L/P	-	-	O
Express 15 min	L	L	-	-	O
Delicate	-	-	L	-	O

	Detergent	Temperatur range in \( {}^{ \circ }\mathrm{C} \)
L	Liquid	cold - 60
P	Powder	40 - 90
o	Optional	---
-	No	---

If using liquid detergent, it is not recommended to activate the delayed start. The amount of detergent necessarily choose to package information! info: Modern washing detergents work at low temperatures.

Troubleshooting

Display code Code Cause

The current programme and its setting will be saved only for a short time. Probably a new programme cycle start is needed.

If a power failure cuts an operating wash programme door opening is mechanically blocked. To get out any laundry water level should not be seen in the glassy porthole of the door - danger of burns!

Not till then pull lever beneath service flap until door is unlocked by a gentle click. Afterwards remix all parts.

In case of power failure

End End of cycle.

EI Drainage within 6

Troubleshooting without display code

Problem Cause Solution

Washing machine Programme is not yet started. Press "Start/Pause" button.

fails to operate . Door is not properly closed . Close the door properly

Machine has not been switched on. Switch the machine on.
Power failure. Check power supply.

Power failure. Check power supply.

Washing machine No chosen programme. Set programme and start it.

will not be filled No water. Check water tap.

with water. Inlet hose is knicked.

Inlet hose filter is blocked. Unblock inlet hose filter.

Water pressure is less than Check water pressure.

0.03MPa

Water supply failure Ensure the water supply

Water-soluble, water-soluble

M
Machine is draining Height of drain nose is make sure that drain nose while being filled below 80~cm is properly installed.
Drain hose end could
reach into water.

installation.
E2 Lock error Shut the door properly
E4. Water level not reached after 8 Check if water supply and water pressure
minutes is normal. Drain hose is self-syph
59. )Wnttertioe and rorr Aorters Other inot the
E8 Water protective level - error: Auto Release:Other After sales service.
E3 Temperature sensor - error Contact the After sales service

F4 Heating error (Appears at the end of Contact the After sales service
a cycle).
57. M
F7 Hotor - error.
EA Water level sensor error Contract the After sales service

EC Electronic control system Contract the After sales service
Electronic contol -error. Contact the Alter sales service.
Unb . Unbalanced load and not able to . Check and balance the laundry
spin. drum. Also reduce the load if too heavy. Restart with a spin program.

Problem Cause Solution

Drainage failure. Pump filter is blocked. Clean pump filter. Drain hose end is higher than Make sure that drain hose 100 cm above floor level. is properly installed. Drain hose is blocked. Unblock drain hose.

Strong vibration Machine load is not correct.. Adapt amount of laundry. while spinning. Washing machine is located Make sure that washing on an uneven surface or is machine is on an even sur- not levelled. face and levelled. Not all transportation bolts Remove all transportation have been removed. bolts.

Operation stops Water or electric failure. Check power before completing and water supply. wash cycle.

Operation stops No displayed "error code"? Activate display - see".display". for a period of time. Programme performs Touch "Start/Pause" to resume. soaking cycle? Programme break down. If it seems appropriate cancel operation.

Excessive foam Detergent is not a appropriate. Check detergent floats drum and/or Excessive use of detergent. recommendations. detergent drawer. Excessive use of detergent. Reduce amount of detergent

Automatic adjustment Washing programme This is normal and doesn't of washing time. duration will be adjusted. affect functionality.

Spinning fails. Unbalance of laundry. Check machine load and laundry and run a spinning programme again.

Installation

Installation

Inlet hose - Aqua control System The Aqua Stop inlet hose is an important element for safety and over all control. Its valves are controlling water supply and will interrupt it if the hose is leaking

1. Connect the nut on the inlet hose to the connector on the water valve.

Warning!

on the water valve.

Warning! The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning). Drain hose is not to be extended. If necessary contact after sales service.

Warning!

Appliance is only qualified for cold water supply! I like the boss not uptilted with the ablation

Use the nose-set supplied with an appliance. Ollant: should be used

Old nose-sets should not be reused.

Drain hose

Drainage could be installed in different ways. Nevertheless, level of drain hose has to reach at one point 80 - 100cm If possible keep always drain hose fixed to the clip at the appliance back.

I. Drain hose to sink

Use the drain hose bracket to keep drain hose end retained and out of any water level. Fix the bracket sufficiently to avoid dropping down due to operational movements.

2. Drain hose to sink siphon

Connection has to be securely sealed and fixed to correspond adapter above the siphoning part!

In case of trouble, please check the trouble-shooting section of this manual. If required please check your warranty card for after sales service information.

For other countries please refer to: www.haier.com service and support area. You can find FAQs and can activate service claim.

Product Fiche (according EU 1061/2010)
Trade mark	Haier
®MM	HW100-BD14756/HW80-BD14756
Rated capacity(kg)	10/8
Energy efficiency class	A+++
Energy consumption per year (\( \text{kWh} \))1)	120/98
Energy consumption of cotton 60°C, full load	0.55/0.45
Energy consumption of cotton 60°C, partial load	0.57/0.47
Energy consumption of cotton 40°C, partial load	0.51/0.42
Weighted power consumption of the off-mode	0.5
Weighted power consumption of the left-on mode	0.5
Water consumption per year (\( L \))2)	12000/11500
Spin-drying efficiency class3)	B
Max spin speed (\( rpm \))4)	1400
Remaining moisture content (\( \% \))4)	54
standard 60°C cotton program5)	Cotton 60°C with max. spin speed setting and 50min of washing time and 2 timse of rinse and without "smart dosing".
standard 40°C cotton program5)	Cotton 40°C with max. spin speed setting and 50min of washing time and 2 timse of rinse and without "smart dosing".
Program time of cotton 60°C, full load (min)	231/230
Program time of cotton 60°C, partial load(min)	231/230
Program time of cotton 40°C, partial load (min)	228/228
Duration of the left-on mode (\( min \))6)	-
Airborne acoustical noise (washing/spinning)(\( dB(A) \))7)	(55/67)/(55/67)
Type	front loader freestanding
1) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
3) Class G is the least efficient and Class A is the most efficient.
4) Based on the standard 60°C cotton program at full load and the standard 40°C cotton program at partial load
5) "standard 60°C cotton program" and "standard 40°C cotton program" are the standard washing programmes to which the information in the label and fiche relates. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumption.
6) In case there is a power management system
7) Based on the standard 60°C cotton program at full load

Basic technical information regarding the appliance

HW100-BD14756/HW80-BD14756

	zH05/~V042-022ecrurusR
Max. working current (A)	10
Water pressure (MPa)	0.03≤P≤1
Nominal load (kg)	10/8
Spinning speed (rpm)	1400
Washing programmes	16
Max. power (W)	2000
Dimensions (HxDxW mm)	845 × 650 × 595/845 × 600 × 595
Net. weight (kg)	77/74
Power consumption of the off-mode (W)	0.5
Power consumption of the left-on mode (W)	0.5

Haier

Mode d'emploi

Lave-linge

HW100-BD14756

HW80-BDI4756

"Smart Dosing " (bouton a )

"Essorage" (bouton c)

"Rinçage" (bouton f)

Depart/Pa 3 seconds.

Demarrage differe (2)

600 trs/min

s/min

F1
