Product Type	Milk frother / milkshake maker
Brand	Nostalgia
Model	MLKS100COKE
Power Supply	120 V, 60 Hz, 100 W
Plug Type	Polarized (one wider blade)
Cup Capacity	450 ml (indication line)
Materials	Stainless steel cup, chrome motor, plastic base
Speeds	2 speeds (I = low, II = high)
Main Functions	Preparation of milkshakes, pancakes, omelettes and dairy drinks
Typical Use	Mix milk, ice cream and fresh or puréed fruits
Safety	Do not immerse motor, do not leave unattended, unplug after use
Care and Cleaning	Wipe motor with a damp cloth; wash cup by hand with soapy water; do not put in dishwasher
Available Spare Parts	Stainless steel cup, mixing rod (contact customer service)
Warranty	1 year (material and workmanship defects)
Customer Service	By phone [phone] or website www.nostalgiaproducts.com
Countries of Distribution	United States and Canada

Frequently Asked Questions - MLKS100COKE Nostalgia

How to use the Nostalgia MLKS100COKE milk frother?

Place the appliance on a stable surface near a 120V outlet. Make sure the switch is set to 'O'. Plug in the appliance. Add ingredients into the cup (max 450 ml). Insert the cup engaging the micro-switch. Select speed I (low) or II (high) according to the desired consistency. After mixing, set back to 'O', remove the cup and serve.

What types of recipes can I make with this blender?

You can prepare milkshakes (vanilla, strawberry, orange), pancakes, omelettes, light batters and dairy drinks. Consult the recipes provided in the manual for precise proportions.

How do I clean the appliance?

Unplug the appliance. Wipe the motor, mixing rod and base with a slightly damp, non-abrasive cloth. Never immerse the motor in water. Wash the stainless steel cup by hand with warm soapy water and dry thoroughly. Do not place any part in the dishwasher.

What are the important safety precautions?

Never immerse the motor in water or other liquid. Use the appliance only on a flat surface away from water. Do not leave it unattended while plugged in. Unplug after use and before cleaning. Keep out of reach of children. Do not use the appliance with a damaged cord.

Can I use an extension cord?

Yes, provided that the extension cord's rated voltage is at least equal to that of the appliance (120V, 100W) and that the usual precautions are followed. Preferably use a short extension cord to prevent tripping hazards.

What should I do if the appliance does not work?

Check that the cup is properly inserted and the micro-switch is engaged. Ensure the cord is plugged into a functioning 120V outlet. If the problem persists, contact Nostalgia customer service at [phone] or via their website.

Can I put whole fruits in the appliance?

It is not recommended to use whole fruits. For best results, use crushed or puréed fruits. Whole fruits may clog the mixing rod or damage the motor.

How do I get the perfect milkshake consistency?

For a frothy texture, use very cold ingredients (milk, ice cream). Add wet ingredients first, then dry ones. Mix at low speed first, then finish at high speed if desired.

Is the appliance guaranteed?

Yes, Nostalgia offers a one-year warranty from the date of purchase against material and workmanship defects for normal household use. Keep your receipt as proof of purchase. The warranty does not cover normal wear, misuse, or transport damage.

Where can I find the complete instruction manual?

The complete manual is available for free download in PDF format at www.nostalgiaproducts.com/user-manuals/. You can also view it on our dedicated page for model MLKS100COKE.

USER MANUAL MLKS100COKE Nostalgia

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2016 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev.10/17/16 ES)

MUK5100COKE

Coca-Cola® 2-Speed Milkshake Maker
Máquina para preparar batidos de 2 velocidades
Machine pour lait fouette à 2 vitesses

Instructions and Recipes
Instrucciones y Recetas
Instructions et Recettes

Make everyday a party! Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT PRECAUTIONS 3

IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 6

CLEANING & MAINTENANCE 6

RECIPES 7

RETURNS & WARRANTY 9

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz

100 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalggiaproducts.com/user-manuals/ for the most updated manual.

Intertek

IMPORTANT PRECAUTIONS

1. NEVER immerse in water.
2. NEVER use near water.
3. NEVER use an abrasive sponge or cloth on the unit.
4. NEVER leave unit unattended while in use.
5. Unplug unit from outlet when not in use and when cleaning.
6. DO NOT operate this appliance with a damaged cord or plug or in the event the appliance ever malfunctions.
7. DO NOT put in dishwasher.
8. Keep out of reach of children.
9. This appliance is NOT A TOY.
10. This appliance is not intended for use by unsupervised young children or cognitively challenged individuals.
11. Young children should be supervised while product is in use to ensure that they do not play with the appliance.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.
3. Close supervision is necessary when any appliance is used by or near children.
4. To avoid fire or shock hazard, or damage to the unit, this unit should be plugged into a polarized 120 Volt AC outlet ONLY.
5. Unplug from outlet when not in use and before removing parts for cleaning.
6. DO NOT operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.
7. The manufacturer does not recommend the use of accessory attachments. Use of attachments may cause injuries.
8. NEVER operate the unit dry. Always have milkshake mixture inside of the container while plugged in.
9. DO NOT use outdoors.
10. DO NOT let the cord touch hot surfaces.
11. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
12. This unit must be on a level surface to operate properly.

13. DO NOT use this appliance for other than its intended use.

14. DO NOT leave unit unattended while in use or when plugged into an outlet.

15. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
16. Extension cord can be used if care is exercised in use.
17. The marked electrical rating of an extension cord should be at least as great as the electrical rating of the appliance.
18. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way.
19. DO NOT put hands or any foreign objects into this appliance while it is plugged in and operating.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

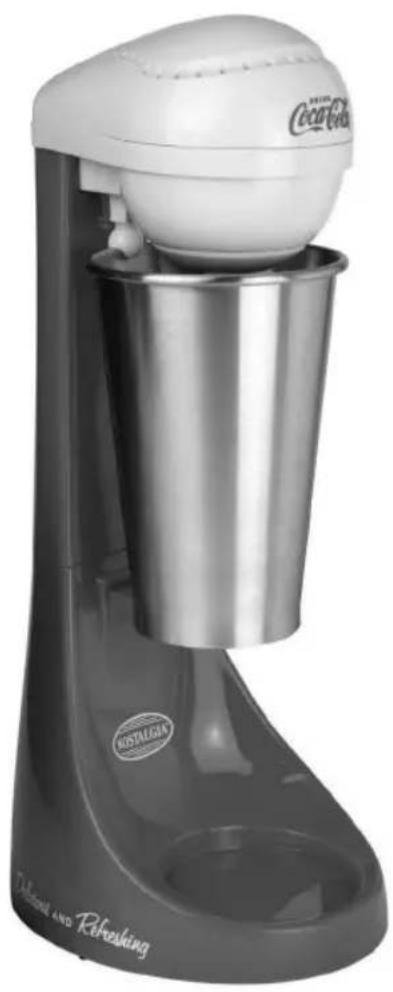

Thank you for purchasing the COCA-COLA® 2-SPEED MILKSHAKE MAKER from Nostalgia™! This fun and easy-to-use milkshake maker bring the old time ice cream parlor right into your kitchen! With a versatile two-speed mixer, it's easy to control milkshake thickness for the perfect treat.

Features include:

• Powerful 100-watt motor
• Versatile two-speed mixer
• Durable stainless steel blending cup and mixing wand
• Chrome-plated motor
  Weighted base for stability

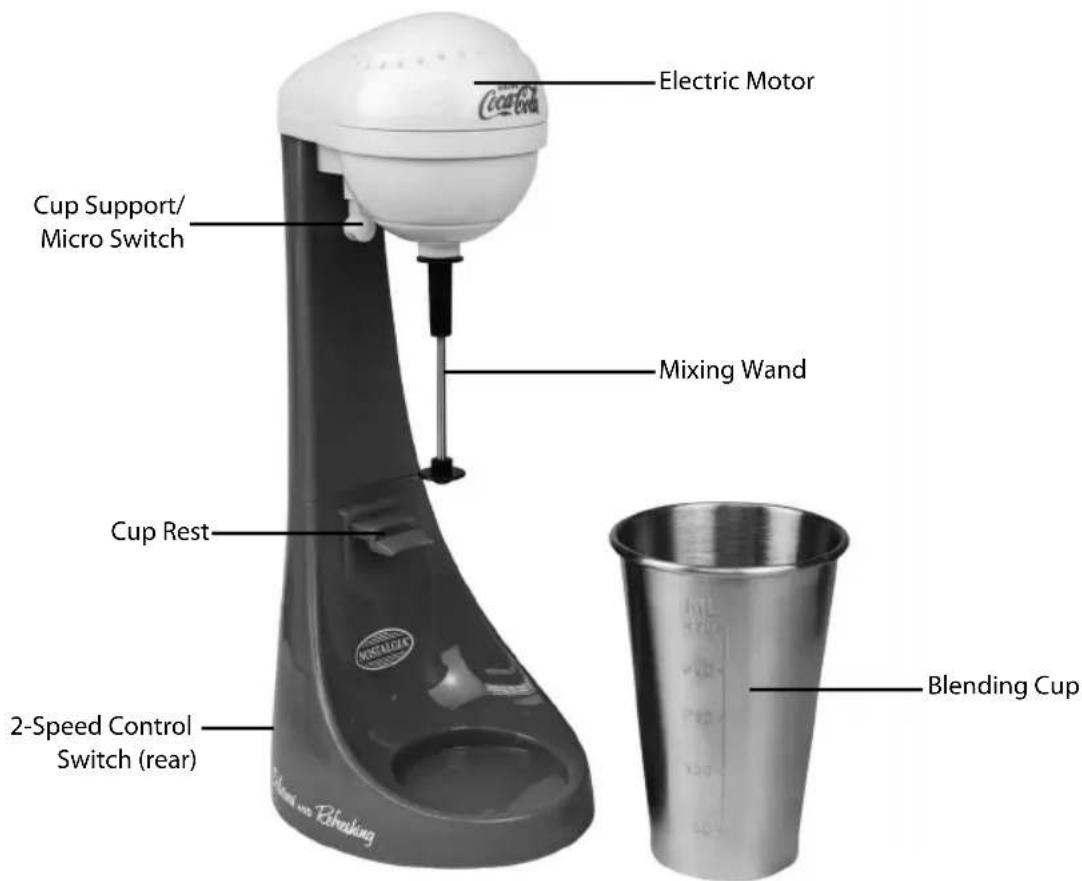

PARTS & ASSEMBLY

Your COCA-COLA® 2-SPEED MILKSHAKE MAKER comes fully assembled.

To place the Blending Cup into the supports, press the lip of the Blending Cup up to the Cup Support/Micro Switch and push up, then rest the bottom of the Blending Cup on the Cup Rest.

HOW TO OPERATE

1. First, find a stable surface near an electrical outlet. Make sure the cord is away from any water source.
2. Set the Control Switch to "O" and plug the cord into the electrical outlet.
3. Place ingredients to be mixed into the Blending Cup. NOTE: Ensure that the ingredients do not exceed the 450~mL indicator line.
4. Attach the Blending Cup to the milkshake maker by pressing the lip of the Blending Cup up to the Cup Support/Micro Switch and push up, then rest the bottom of the Blending Cup on the notch of the Cup Rest. NOTE: The Cup Support/Micro Switch must be engaged in order for the unit to work.
5. Toggle the Control Switch to "I" to begin mixing at low speed. If desired, for the final stage of mixing, toggle the Control Switch to "II" to mix at high speed.
6. When mixing is complete, set the Control Switch to "O" and remove the Blending Cup.
7. Pour the mixture into your desired serving container, and enjoy!

HELPFUL TIPS

Mixing

• For best results, always add wet ingredients to the mixing cup before adding any dry ingredients. This will prevent the dry ingredients from sinking to the bottom of the blending cup.

Texture

• For best results, ensure that all ingredients are as cold as possible before mixing. Drinks made with ice cold milk will mix thicker and frothier than if warmer milk is used.
• Do not use whole fruits when mixing. Mashed or pureed fruits work best.

Other Uses

This appliance can also be used to mix thin batters and eggs.

CLEANING & MAINTENANCE

1. Make sure the 2-Speed Control Switch is turned off (O) and the unit is unplugged.
2. Carefully wipe the Electric Motor, Mixing Wand and main unit with a slightly damp, non-abrasive cloth. NEVER immerse the Electric Motor in water or any other liquid.
3. Wash the Blending Cup in warm, soapy water and dry thoroughly.
4. DO NOT use harsh or abrasive cleaners.
5. DO NOT place any parts in a dishwasher. Hand wash only.

RECIPES

The COCA-COLA® 2-SPEED MILKSHAKE MAKER mixes rich and delicious milkshakes anytime! Use your own recipe, or try one of these delicious recipes.

NOTE: The volume of a milk shake will vary depending on the type of milk used. For example, heavy cream does not froth as much as skim or low fat milk.

BACK TO BASICS VANILLA SHAKE

12 Cup Ice Cream

Combine all ingredients in the Blending Cup.

3/4 Cup Milk

Follow the directions under HOW TO

1 Tsp. Vanilla

OPERATE to mix ingredients.

Makes 1-2 servings.

STRAWBERRY MILKSHAKE

3/4 Cup Strawberry Ice Cream

Combine all ingredients in the Blending Cup.

1/4 Cup Pureed Strawberries

Follow the directions under HOW TO OPERATE to mix ingredients.

1½ Tbsp. Milk

Makes 1-2 servings.

ORANGE FROSTY SHAKE

1 Cup Orange Juice

Combine all ingredients in the Blending Cup.

12 Cup Vanilla Ice Cream

Follow the directions under HOW TO OPERATE to mix ingredients.

Makes 1-2 servings.

PANCAKES

1/2 Cup Milk

Combine the milk, egg and vegetable oil together n the Blending Cup.

1/2 Cup Pancake Mix

Follow the directions under HOW TO OPERATE and mix ingredients at low speed (I).

1 Medium Egg

Next, add the pancake mix to the Blending Cup and mix ingredients at low speed (I).

2 Tsp. Vegetable oil

If necessary, scrape the inside of the Blending Cup and mix until well blended.

Cook on a preheated greased griddle or frying pan.

Makes about 4 six inch pancakes.

BREAKFAST OMELETTE

4 Medium Eggs

Combine the eggs, milk, satl and pepper in the Blending Cup.

2 Tbsp. Milk

Follow the directions under HOW TO OPERATE to mix ingredients on low speed (I) for several seconds. Then mix on high speed (II) for about 30 seconds.

1 Tbsp. Butter

Salt and Pepper (to taste)

Melt butter in a small omelette pan on medium-high heat until butter bubbles.

Flavorings and fillings of your choice (such as shredded cheese, cooked bacon, onions and peppers)

Add egg mixture to the pan, pushing the edges back with a spatula as the eggs set, allowing the uncooked portions to run down.

When mixture is set, but still moist, spoon your chosen fillings into the pan, fold over, and serve.

Makes 1 serving.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

COCA-COLA® 2-SPEED MILKSHAKE MAKER / MLKS100SERIES

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.
