USER MANUAL Wireless Charging Pad EPPG920 SAMSUNG

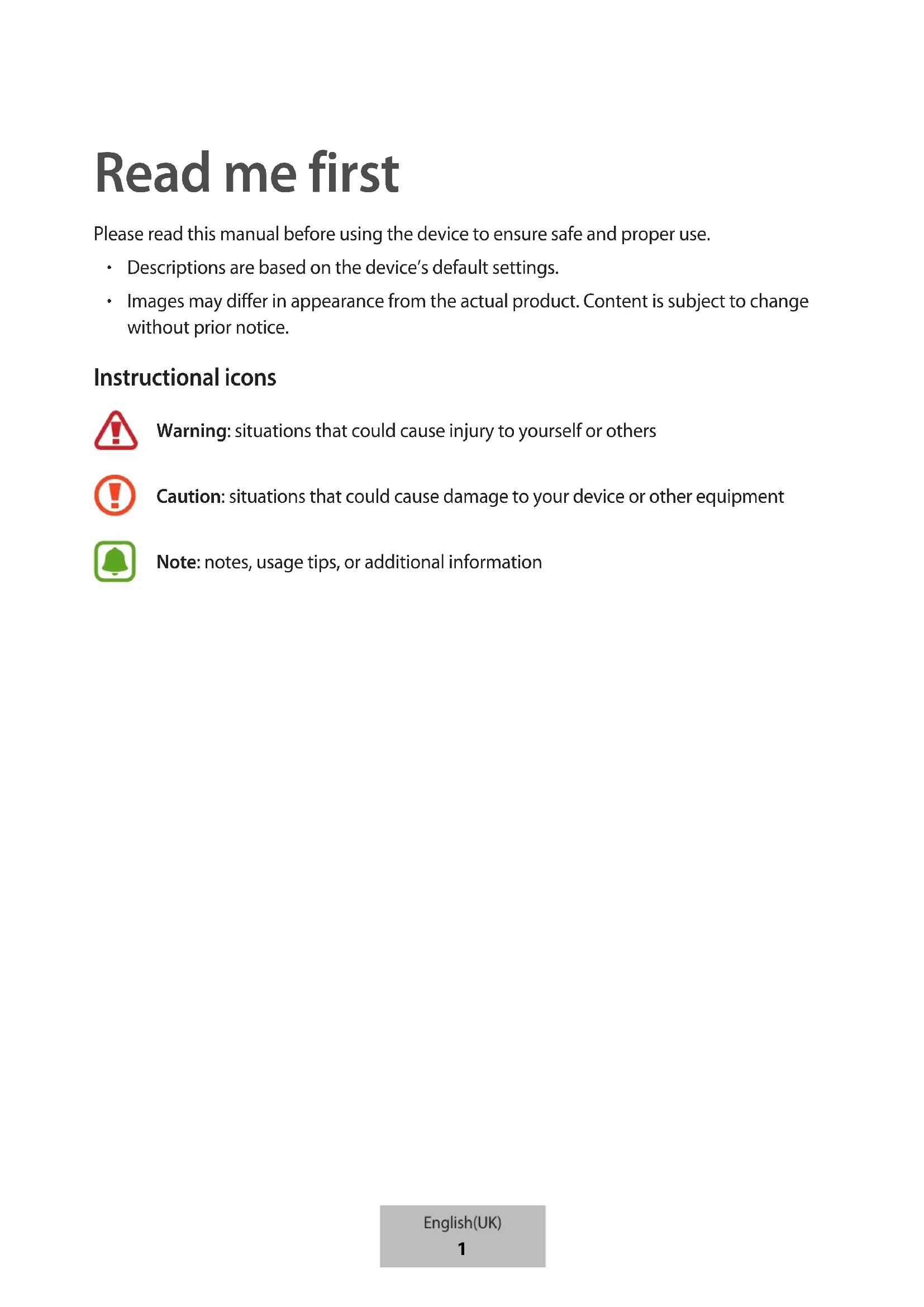

Please read this manual before using the device to ensure safe and proper use.

• Descriptions are based on the device's default settings.
• Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

Getting started

Package contents

Check the product box for the following items:

• Device
• Quick start guide

• Wireless charging cover and travel adaptor sold separately.
• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

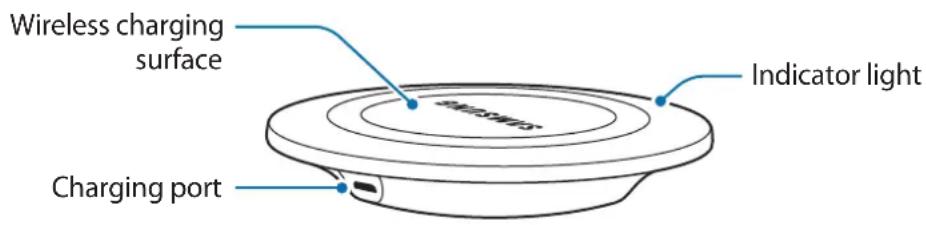

Device layout

Wireless charging surface Indicator light Charging port

Using the device

Using wireless charger

1 Connect the wireless charger and a travel adaptor with a charging cable, and plug the travel adaptor into an electric socket.

When the wireless charger is connected to the electric socket, the indicator light flashes from blue to green to cyan, and then turns off.

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Use only Samsung-approved travel adaptors (5 V/2 A). Unauthorised travel adaptors may cause damage or the wireless charger may malfunction.

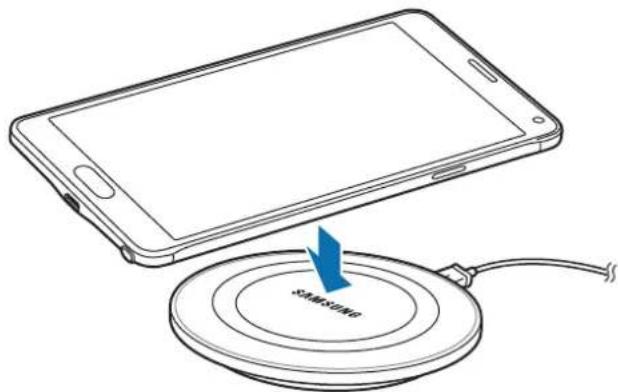

2 Place a supported mobile device in the centre of the charging surface.

Line drawing of a smartphone connected to a circular device with a blue arrow labeled 'SAMSUNG' (no text or symbols on the device itself)

Do not place the wireless charging cover solely on the wireless charger. Doing so may overheat the wireless charger and cause a fire. It may also result in serious burn or device malfunction.

3 When the mobile device is fully charged, remove it from the wireless charger.

- Check the mobile device's battery status using the charging icon displayed on the screen.

- Do not place any other object between the mobile device and the wireless charger. The mobile device may not charge properly.

- If you connect a travel adaptor to the mobile device during wireless charging, the wireless charging feature is unavailable.

• The wireless charger is compatible with WPC certified devices.

- To save energy, unplug the travel adaptor when not in use. The travel adaptor does not have a power switch, so you must unplug the travel adaptor from the electric socket when not in use to avoid wasting power. The travel adaptor should remain close to the electric socket and be easily accessible while charging.

Checking the battery level

You can check the device's charging status via the notification light.

Colour Status
Blue → Green → Cyan	When connecting to the power outlet
Blue When charging
Green When fully charged
Cyan	When charging with a travel adaptor (less than 5 V/2 A)
Flashing blue When not charging properly due to a general error
Off When in Idle mode

• If the indicator light is not working properly, reconnect the travel adaptor to the wireless charger.
• The indicator light's colour may vary depending on the mobile device or the wireless charging cover.

Copyright

Copyright © 2015 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- All other trademarks and copyrights are the property of their respective owners.

Diagram of a circular device with a cable and connector, no text or symbols present

Line drawing of a smartphone with a circular base and cable, showing no text or symbols on the device itself.

Blackbushe Business Park D'APPOSITION DU

Saxony Way, Yateley, Hampshire MARQUAGE CE: 2015)

GU46 6GG, UK

Sholdough

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a cable and connector, no text or symbols present

Diagram showing a smartphone above a circular device with a blue arrow labeled 'SAMSUNG' (no text or symbols on the device itself)

Copyright © 2015 Samsung Electronics

Simple line drawing of a circular device with a cable inserted into it, showing no text or symbols.

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Blackbushe Business Park INIZIARE AD APPORRE

Saxony Way, Yateley, Hampshire LA MARCATURA CE 2015)

GU46 6GG, UK

Sholdough

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a connected plug and cable, no text or symbols present

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond label)

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a cable inserted into a connector, showing no text or symbols.

Line drawing of a smartphone with a circular base and cable, showing no text or symbols on the device itself.

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone connected to a circular device with a cable, showing no text or symbols.

Samsung Electronics Euro QA Lab. (ROK, W KTÓRYM

Blackbushe Business Park ROZPOCZĘTO UMIESZCZANIE

Saxony Way, Yateley, Hampshire OZNAKOWANIA CE 2015)

GU46 6GG, UK

Sholdough

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a cable inserted into a component, showing an arrow pointing to its top surface (no text or symbols present)

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Blackbushe Business Park APLICARE MARCĂ

Saxony Way, Yateley, Hampshire CE 2015)

GU46 6GG, UK

Sdoldough

27 mai 2015 Stephen Colclough / Reprezentant UE

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base and cable, showing no text or symbols on the device itself.

Copyright © 2015 Samsung Electronics

Simple line drawing of a circular disc with a connected plug and cable, no text or symbols present

Koristite isključivo putne adaptere koje je odobrio Samsung (5 V/2 A). Neovlašteni putni adapteri mogu prouzročiti štetu ili dovesti do greške u radu punjača za bežično punjenje.

2 Postavite podržani mobilni uređaj u središte površine za punjenje.

Line drawing of a smartphone connected to a circular device with a blue arrow labeled 'SAMSUNG' (no text or symbols on the device itself)

Poklopac za bežično punjenje ne postavljajte isključivo na punjač za bežično punjenje. Ako to učinite, moglo bi doći do pretjeranog zagrijavanja punjača za bežično punjenje, što bi moglo prouzročiti požar. Moglo bi prouzročiti i ozbiljne opekline ili grešku u radu uređaja.

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a connected plug and cable, no text or symbols present

Koristite isključivo putne ispravljače koje je odobrila kompanija Samsung (5 V/2 A). Neodobreni putni ispravljači mogu da izazovu oštećenje što može dalje da dovede do kvara na bežičnom punjaču.

2 Stavite podržani mobilni uređaj u centar površine za punjenje.

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text beyond label)

Copyright © 2015 Samsung Electronics

Ovaj priručnik je zaštićen međunarodnim zakonima o autorskim pravima.

Nijedan deo ovog priručnika se ne sme reprodukovati, distribuirati, prevoditi niti prenositi ni u jednom obliku niti bilo kojim putem, elektronskim niti mehaničkim, što podrazumeva fotokopiranje, snimanje i skladištenje u okviru bilo kog skladišta informacija i sistema za preuzimanje, bez prethodne dozvole kompanije „Samsung Electronics“ u pisanom obliku.

Trgovačke marke

• SAMSUNG i SAMSUNG logotip su registrovane trgovačke marke kompanije „Samsung Electronics“.
• Sve ostale trgovačke marke i autorska prava su vlasništvo njihovih vlasnika.

Leia primeiro

Simple line drawing of a circular device with a connected plug and cable, no text or symbols present.

Line drawing of a smartphone connected to a circular device with a blue arrow indicating the cable (no text or symbols present)

Modelo(s): EP-PG920I

C€0678

Copyright © 2015 Samsung Electronics

Este manual está protegido pelas leis internacionais de copyright.

Simple line drawing of a circular device with a connected plug and cable, no text or symbols present.

Diagram showing a smartphone above a circular device with a blue arrow pointing to it, no text or symbols present.

Blackbushe Business Park UZSÄKT CE

Saxony Way, Yateley, Hampshire MARKÉŠANU 2015)

GU46 6GG, UK

Sdoldough

Diagram of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text beyond label)

Diagram of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text beyond label)

Blackbushe Business Park AFIKS

Saxony Way, Yateley, Hampshire CE-MÄRGISTUS 2015)

GU46 6GG, UK

Sholdough

1. mai 2015. a Stephen Colclough / EL-i volinik

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Blackbushe Business Park CE-MARKERING 2015

Saxony Way, Yateley, Hampshire MOET WORDEN TOEGEVOEGD)

GU46 6GG, UK

Sholdough

Copyright © 2015 Samsung Electronics

Simple line drawing of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols)

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text or symbols on the device itself)

Saxony Way, Yateley, Hampshire

GU46 6GG, UK

Sholdough

27 maj 2015 Stephen Colclough / EU-representant

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a connected plug and cable, no text or symbols present

Diagram showing a smartphone above a circular device with a blue arrow pointing to it, no text or symbols present.

Saxony Way, Yateley, Hampshire CE-MERKING 2015)

GU46 6GG, UK

Sholdough

1. mai 2015 Stephen Colclough / EU-representant

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a cable and connector, no text or symbols present

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text beyond label)

Blackbushe Business Park LIITTÄMISEN

Saxony Way, Yateley, Hampshire ALKAMISVUOSI 2015)

GU46 6GG, UK

Sholdough

Copyright © 2015 Samsung Electronics

Simple line drawing of a circular device with a connected plug and cable, no text or symbols present.

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text or symbols on the device itself)

Blackbushe Business Park PÅBEGYNDELSE AF

Saxony Way, Yateley, Hampshire CE-MAERKNING 2015)

GU46 6GG, UK

Sholdough

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a cable inserted, showing no text or symbols beyond the label.

Diagram of a circular device with a connected plug and cable, no text or symbols present

Uporabljate samo potovalne polnilnike odobrene s strani Samsung (5 V/2 A).

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text beyond label)

Blackbushe Business Park SE JE ZAČELO

Saxony Way, Yateley, Hampshire OZNAČEVANJE Z OZNAKO CE)

GU46 6GG, UK

Sholdough

Simple line drawing of a circular device with a connected plug and cable, no text or symbols present.

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Telif hakkı © 2015 Samsung Electronics

Diagram of a circular device with a cable and connector, no text or symbols present

Line drawing of a smartphone with a circular device labeled 'SAMSUNG' underneath, showing no text or symbols on the device itself.

© Samsung Electronics, 2015.

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular device labeled 'SAMSUNG' underneath, showing no text or symbols on the device itself.

© Samsung Electronics, 2015

Diagram of a circular device with a cable and connector, no text or symbols present

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols on the device itself)

Copyright © 2015 Samsung Electronics

Please read this manual before using the device to ensure safe and proper use.

• Descriptions are based on the device's default settings.
• Images may differ in appearance from the actual product. Content is subject to change without prior notice.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

Getting started

Package contents

Check the product box for the following items:

• Device
• Quick start guide

• Wireless charging cover and travel adapter sold separately.
• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• The supplied items are designed only for this device and may not be compatible with other devices.
• Appearances and specifications are subject to change without prior notice.
• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.
• Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.
• Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

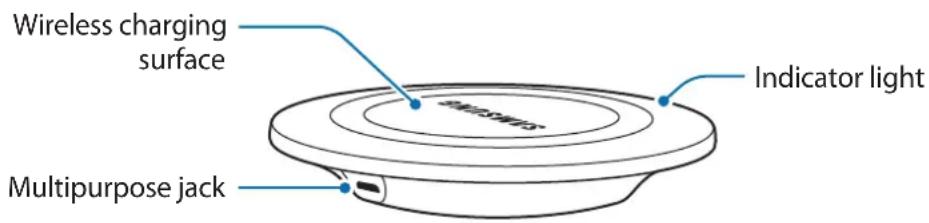

Device layout

Wireless charging surface Indicator light Multipurpose jack

Using the device

Using wireless charger

1 Connect the wireless charger and a travel adapter with a charging cable, and plug the travel adapter into an electric socket.

When the wireless charger is connected to the electric socket, the indicator light flashes from blue to green to cyan, and then turns off.

Diagram of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols present)

Use only Samsung-approved travel adapters (5 V/2 A). Unauthorized travel adapters may cause damage or the wireless charger may malfunction.

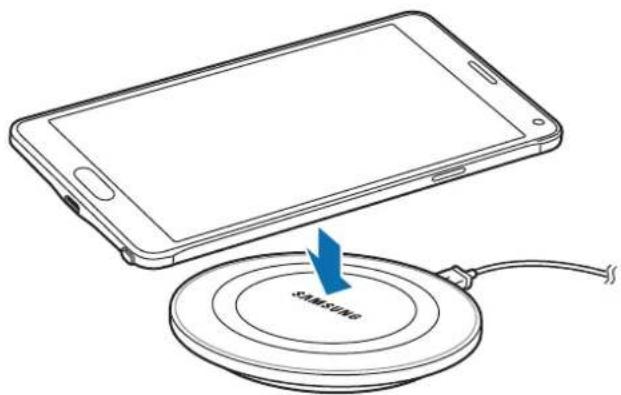

2 Place a supported mobile device in the center of the charging surface.

Line drawing of a smartphone connected to a circular device with a blue arrow labeled 'SAMSUNG' (no text or symbols on the device itself)

Do not place the wireless charging cover solely on the wireless charger. Doing so may overheat the wireless charger and cause a fire. It may also result in serious burn or device malfunction.

3 When the mobile device is fully charged, remove it from the wireless charger.

- Check the mobile device's battery status using the charging icon displayed on the screen.

- Do not place any other object between the mobile device and the wireless charger. The mobile device may not charge properly.

- If you connect a travel adapter to the mobile device during wireless charging, the wireless charging feature is unavailable.

- The wireless charger is compatible with WPC certified devices.

- To save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the electric socket when not in use to avoid wasting power. The travel adapter should remain close to the electric socket and be easily accessible while charging.

Checking the battery level

You can check the device's charging status via the notification light.

Color Status
Blue → Green → Cyan	When connecting to the power outlet
Blue When charging
Green When fully charged
Cyan	When charging with a travel adapter (less than 5 V/2 A)
Flashing blue When not charging properly due to a general error
Off When in Idle mode

• If the indicator light is not working properly, reconnect the travel adapter to the wireless charger.
• The indicator light's color may vary depending on the mobile device or the wireless charging cover.

Copyright

Copyright © 2015 Samsung Electronics

This manual is protected under international copyright laws.

No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

• SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.
- All other trademarks and copyrights are the property of their respective owners.

Diagram of a circular device with a cable inserted into a connector (no text or symbols)

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Copyright © 2015 Samsung Electronics

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

Diagram of a circular device with a blue arrow pointing to its internal structure, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base and cable, showing no text or symbols on the device itself.

Copyright © 2015 Samsung Electronics

本手册受國際版權法保護。

Diagram of a circular device with a cable inserted into a connector, showing no text or symbols.

Line drawing of a smartphone with a circular base labeled 'SAMSUNG' and a blue arrow pointing to it (no text or symbols beyond the label)

© 2015 Samsung Electronics

Diagram of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a blue arrow pointing to a circular device labeled 'SAMSUNG' (no text or symbols on the device itself)

Diagram of a circular device with a blue arrow pointing to its top component, connected to a cable (no text or symbols present)

Diagram of a circular device with a blue arrow pointing to its top surface, connected to a cable (no text or symbols present)

Line drawing of a smartphone with a circular base labeled 'SASIKIN' and a blue arrow pointing to it, connected to a cable (no text or symbols beyond the label)

Diagram of a circular device with a cable and connector, connected by a blue arrow (no text or symbols)

Line drawing of a smartphone connected to a circular device with a blue arrow labeled 'SANSOVO' (no text or symbols on the device itself)

Copyright © 2015 Samsung Electronics

olerance that is in the
