20141 - Kettle KORONA - Free user manual and instructions

Product Type	Electric Kettle
Brand	Korona
Model	20141
Capacity	1,5 L
Nominal Power	1850 - 2200 W
Voltage	220 - 240 V ~ 50/60 Hz
Protection Class	I
Body Material	Plastic and stainless steel
Automatic Shut-off	Yes
Dry Boil Protection	Yes
Water Level Indicator	Yes (interior)
Anti-scale Filter	Yes (removable, integrated in spout)
Lid Opening	By button
Power Indicator Light	Yes
Power Base	With base and cable guide
Cord Storage	Yes (under the base)
Safety Shut-off Function	Yes (in case of overheating)
Recommended Descaling	Every 3 to 6 months
Warranty	2 years
After-sales Service	KORONA Service, Germany

Frequently Asked Questions - 20141 KORONA

How to descale the Korona 20141 kettle?

Use a suitable commercial descaling agent. After descaling, boil 4 to 5 cycles of fresh water and discard to remove any residue. Never use metal or abrasive objects.

What to do if the kettle does not turn on?

Check that the kettle is properly placed on its base and that the lid is closed. Ensure the power outlet is working. If the problem persists, contact customer service.

Why does the kettle turn off before the water boils?

This may be due to insufficient water level (below minimum 0.5 L) or heavy limescale buildup. Check the water level and descale if necessary.

Can I heat liquids other than water?

No, this kettle is designed exclusively for boiling water. Never heat milk, soup, or other liquids.

How to clean the exterior of the kettle?

Unplug and let cool. Clean the body with a soft damp cloth. Never immerse the kettle or base in water.

What to do if the lid does not close properly?

Check that no object is obstructing the mechanism. Ensure the seal is clean. If the problem persists, contact after-sales service.

The kettle makes a loud noise during boiling, is this normal?

Yes, bubbling noises are normal. Whistling may indicate excessive limescale. Descaling can reduce the noise.

How to use the anti-scale filter?

The filter is integrated inside the spout. It catches limescale deposits. To clean it, remove it gently and rinse under clear water.

What to do if water leaks from the kettle?

Ensure the lid is closed properly and that the water level does not exceed the maximum (1.5 L). If the leak persists, contact customer service.

How to store the kettle after use?

Let it cool, wrap the cord around the storage under the base, and store it in a clean, dry place out of reach of children.

USER MANUAL 20141 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

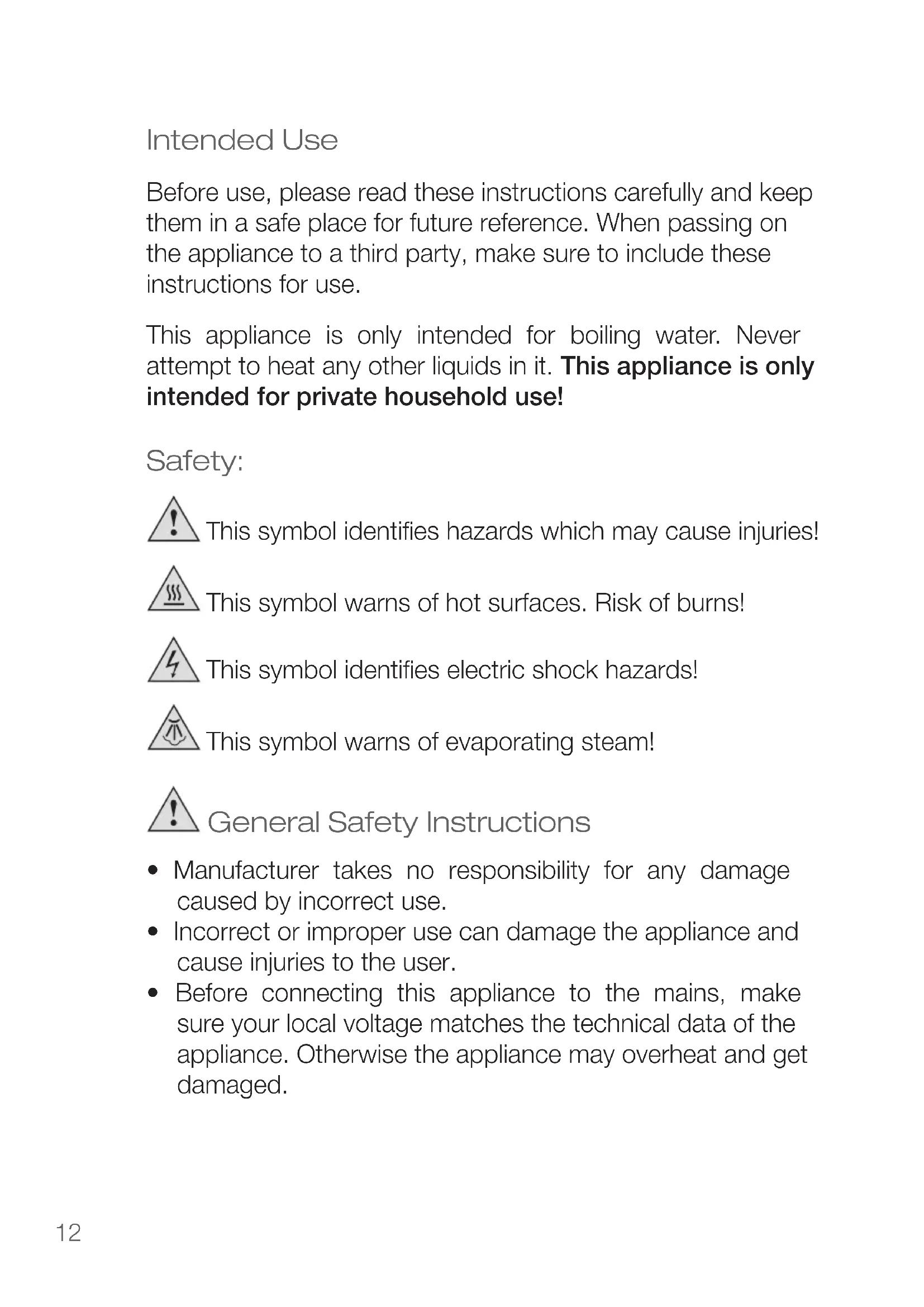

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

! General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.

• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on an even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1.5 L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!
• Never open the lid during operation.
• Always remove the kettle from the power base when filling it with water.
• To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5 L).

• The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

• Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

• Only use the appliance with the base provided.

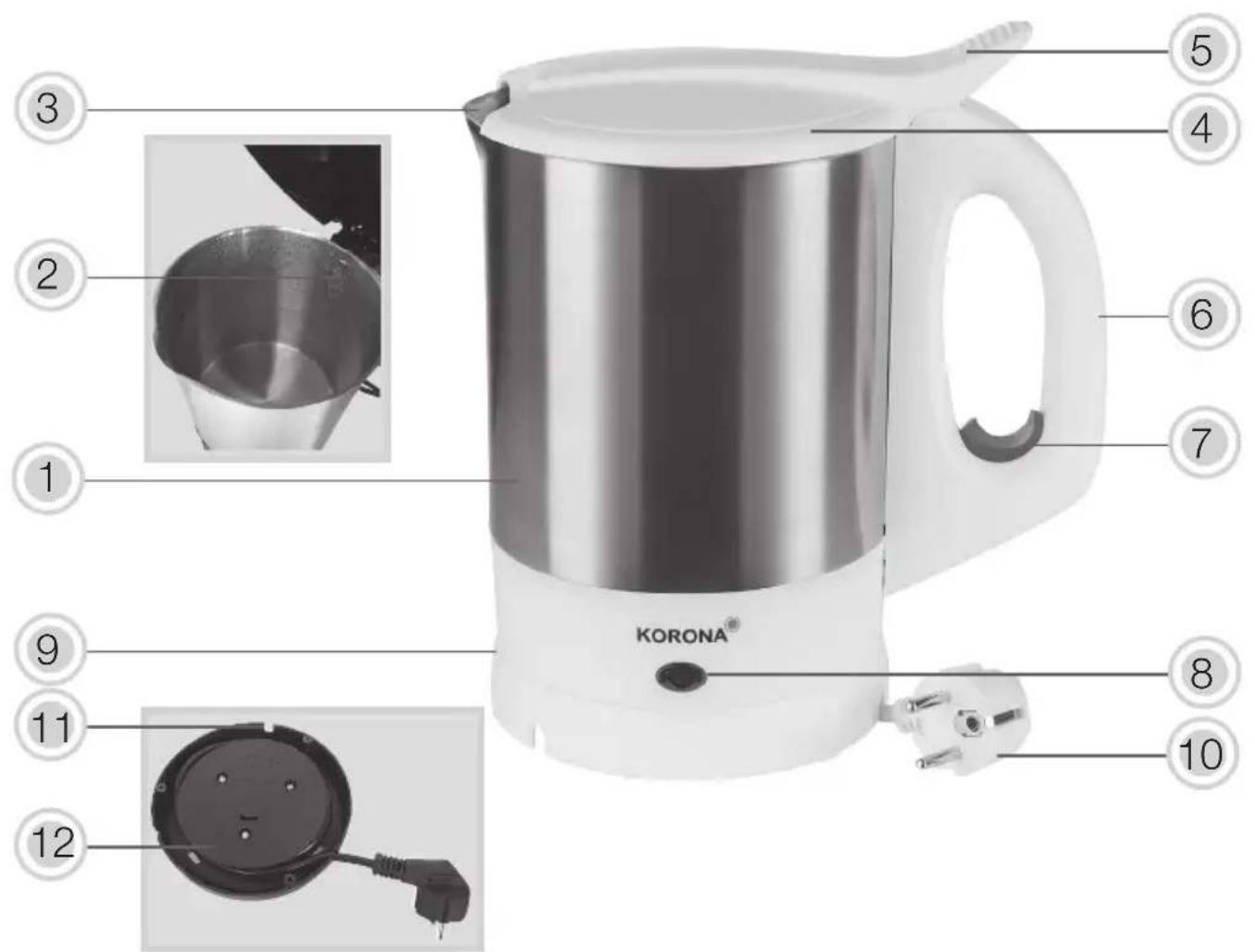

Product Description

1. Kettle
2. Water level indicator (inside kettle)
3. Spout
4. Lid
5. Lid opening button
6. Handle
7. On/Off button
8. Indicator light
9. Base
10. Power cord and plug
11. Cable guide (rear side)
12. Cable storage (rear side)

Before First Use

• Remove all packaging material and check whether the appliance is undamaged and complete.
• Fully unwind the power cord (10) and make sure that the power cord (10) is clamped into the cable guide (11) (rear side).
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Connect the appliance to a properly installed wall socket and boil 4-5 kettles of water using fresh water with each boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

Your appliance is fitted (inside the spout) with a scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (4) by pressing onto the lid opening button (5). Hold the kettle (1) in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating. See water level indicator (2) inside the kettle.
2. Close the lid (4).
3. Place the kettle (1) onto the base (9) and make sure it properly fits onto the contact unit.
4. Connect it to the mains and switch on the water kettle by pressing the On/Off button (7). The indicator light (8) lights up.
5. As soon as the water boils the appliance switches off automatically provided that you have thoroughly closed

the lid (4). Otherwise boiling water could spill. The indicator light switches off as well.

1. Lift the kettle (1) off the base (9). The water is now ready for use.

You can stop the boiling process any time by pushing the On/Off button (7).

Attention: The boiling process is not stopped by

only removing the unit from the power base. The unit must properly be switched off. Otherwise, once put back onto the base the unit will resume the boiling process as the switch is still set ON.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a dry-boil cut-out which will switch off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out, switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance connect it from the mains. Let it completely cool

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

DESCALING

Descale your appliance in regular intervals (approx. every 3 - 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descending, always boil 4-5 kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cable (10) around the cord storage (12).

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special

collection points for disposal or your local dealer.

Your Water Kettle 20141 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240V 50 / 60Hz

Rated Power: 1850 - 2200 W

Capacity: 1.5 Litre

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
