Product Type	Blender / Smoothie Maker
Brand	KORONA
Model	24300
Intended Use	Domestic, for small quantities of food: smoothies, milkshakes, purees, ice cubes
Maximum Capacity	Max level indicated on the bottle (approx. 600 ml)
Bottle Material	Plastic (Tritan or similar)
Blade Material	Stainless steel
Color	White / Silver (not specified)
Main Functions	Mixing, pulse, ice crushing (max 4 ice cubes)
Safety	Safety switch preventing activation if the blender is not correctly positioned; automatic stop in Pulse mode
Speed Setting	Continuous variable speed (positions 1 to 3) + Pulse mode (P)
Operating Cycle	5 x 1 minute, then 30 minutes cooling
Cleaning	Bottle and lid dishwasher safe; blade not dishwasher safe, hand wash
Maintenance	Wipe motor unit with a damp cloth; do not immerse
Spare Parts	Travel bottle, lid, blade assembly, motor unit
Warranty	2 years
After-Sales Service	KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany; [e-mail]
Included Accessories	Travel bottle, lid, blade assembly, motor unit, cable guide
Power Supply	Mains (voltage not specified, adapted to country)
Dimensions (approx.)	Height: 25 cm, Width: 15 cm, Depth: 15 cm
Weight (approx.)	1.2 kg

Frequently Asked Questions - 24300 KORONA

How to use the blender?

Place the ingredients in the bottle (liquids first, then solids up to the max level). Screw on the blade assembly, attach the bottle to the motor unit aligning the symbols, then turn the switch to the desired speed (1-3 or P for pulse). To stop, release or set to 0.

Can I blend ice cubes?

Yes, but only crushed ice or a maximum of 4 ice cubes (approx. 25 g each) at a time to avoid damaging the appliance. Preferably use Pulse mode.

How to clean the appliance?

Unplug the appliance. Clean the motor unit with a damp cloth (do not immerse). The bottle and lid are dishwasher safe. For the blade, rinse with soapy water without putting it in the dishwasher. Use pulse function with soapy water for quick cleaning.

What to do if the appliance does not turn on?

Check that the bottle is correctly positioned on the motor unit (symbols aligned). The appliance has a safety switch that prevents starting if the blender is not properly attached. Also ensure the plug is connected.

How long can I use the appliance continuously?

You can perform up to 5 cycles of 1 minute each, then the appliance must cool down for 30 minutes to avoid overheating.

Can I put the bottle in the dishwasher?

Yes, the travel bottle and its lid are dishwasher safe. However, the blade assembly must be hand washed to avoid damage.

How to assemble the blender?

Screw the blade assembly onto the bottle clockwise until locked. Then place the bottle onto the motor unit aligning the locking symbols, and turn it clockwise until it clicks.

What is the maximum capacity of the bottle?

Never exceed the maximum level indicated on the bottle. Generally, this corresponds to about 600 ml, but refer to the visible mark to avoid overflow.

What to do in case of overflow or leakage?

Immediately stop the appliance and unplug it. Remove the bottle and check that the blade assembly is tightly screwed. Make sure you have not exceeded the max level. Clean thoroughly before reuse.

Where to find spare parts?

Contact KORONA after-sales service: KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany, email [e-mail], or visit www.korona-electric.de.

USER MANUAL 24300 KORONA

Black and white photo of a Korona blender with three side dishes, surrounded by fresh vegetables (no text or symbols visible on the main objects)

Transparent plastic container with black lid and black handle, showing a curved arrow indicating rotation (no text or symbols)

Transparent plastic bottle with black lid and arrow indicating rotational motion (no text or symbols)

Exterior view of a modern stainless steel blender with a clear glass top and control knob (no text or symbols visible)

Close-up of a metallic mechanical component with a lock and bidirectional arrow indicator (no text or symbols)

Close-up of a mechanical component with two padlock icons and bidirectional arrows (no text or symbols)

150 ml Cranberry Saft

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for processing small amounts of foods (mixing and pureeing, e.g. smoothies, milkshakes, etc.) All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

caused by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the damaged.

Caution! Danger of electric shock!

other liquid

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall

supervised.

before cleaning.

surfaces to avoid any damage to the appliance.

cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

otherwise.

Have it checked and, if necessary, repaired by a qualified

modifications to or repair the appliance yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

small amounts of foods) and as described in this manual.

mixing unit has been firmly secured.

mixing unit could crack. This could lead to serious burns!

operation, switch off the appliance, disconnect it from the mains and remove the blockage.

unit to 34 , as the mix will rise due to the rotation of the

will froth up during the mixing process.

Appliance must be switched off.

use it in the vicinity of heat generating appliances.

avoid injuries.

2 1 3 2 4 5 KORONA 7 6

Product Description

1. Lid for travel cup
2. Blade Assembly
3. Motor block
4. Rotary Switch
5. Cable guide
6. Cable storage

Transparent plastic container with black lid and black handle, showing a curved arrow indicating rotation (no text or symbols)

Lock the lid in clockwise direction

Transparent plastic bottle with black lid and arrow indicating rotational motion (no text or symbols)

Lock the blade assembly in clockwise direction

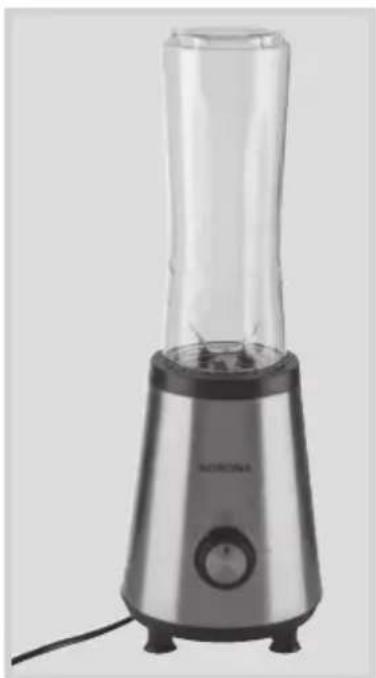

Exterior view of a modern stainless steel blender with a clear glass top and control knob (no text or symbols visible)

Rotate the mixing unit upside down

Before First Use

appliance is complete and undamaged.

surface and make sure that the power cord underneath the appliance is clamped into the cable guide (6).

"Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and es, therefore keep them away to avoid suffocation.

What's a Smoothie

A smoothie is a thick blended beverage, normally pureed in a blender using fresh or frozen fruits or vegetables. They can also contain yoghurt or liquids such as water, juice, milk, etc.

Preparing the ingredients

We recommend to only use well ripened fruits!

process.

1. Fruits with stones (e.g. plums, apricots, etc.) should have those removed first.
2. Always add some liquid (e.g. water, juice, milk, etc.)

To avoid damage to the appliance, we recommend only use crushed ice!

Assembling/Disassembling the mixing unit / travel cup

cup (1).

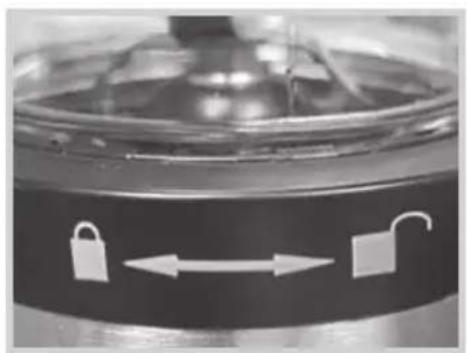

the motor block (4). Pay attention to the lock symbol on the motor block (3) as well as to the arrow on the blade attachment (2). Press it slightly down and turn it clockwise until it is securely engaged. If the mixing unit is not properly positioned, the appliance cannot be switched on.

Close-up of a black cylindrical object with two padlock icons and bidirectional arrows, no visible text or symbols.

Close-up of a mechanical component with two padlock symbols and bidirectional arrows indicating movement (no text or labels)

ingredients will spill.

Lock the blade assembly in clockwise direction

Close-up of a small kitchen blender with a rotating handle and base, no visible text or symbols

Close-up of a transparent cylindrical container with internal components and a black base (no visible text or symbols)

direction direction

Operation

Your Smoothie Maker can be used for processing small amounts of foods, e.g. smoothies, milk shakes, pureeing, crushing ice cubes etc.

If you don't have any crushed ice on hand, you can also use ice cubes. But, make sure, to only use 4 ice cubes (e.g. 25 g) at a time, to avoid damage to the appliance!

Always make sure that during operation the mixing unit/travel cup is properly attached!

Safety Switch

Safety Switch: This appliance has an integrated safety switch and can only be switched on when the mixing unit is properly positioned onto the motor unit.

How to use the Smoothie Maker

If you wish to process/blend solid ingredients, cut them into pieces (1cm – 2 cm) first. Only place small quantities of food/ingredients into the mixing unit (1) at a time. Always pour the liquid into the mixing unit first, before adding the solid ingredients. The recommended max. level is 600 ml/20 oz.

into the mixing unit (1). Always make sure, to add the liquids first.

the motor block (4). Pay attention to the lock symbol on the motor block (4) as well as to the arrow on the blade assembly (3). Press it slightly down and turn it clockwise until it is securely engaged. If the mixing unit is not properly positioned, the appliance cannot be switched on.

and switch it on by choosing the desired speed setting

recommend that you use the Smoothie Maker in impulse

stuck.

stop the blending process and remove the mixing unit (1) as explained under Assembling/Disassembling the mixing unit / travel cup.

on the go just leave it in the mixing unit/travel cup (1) and just attach the travel cup lid (2).

remove it from the mains.

Attention: The max. filling (e.g. fruit and liquid) should never exceed the max. level indicated on the travel jar!

Recipes

Mixed Berry Smoothie (2 people)

150 g mixed berries (frozen) or fresh
150 ml Cranberry juice
2 table spoons of natural or Greek yoghurt
1 table spoon of almond flakes (honey if needed)

Spinach Smoothie (2 people)

150 g Baby Spinach

150 ml freshly squeezed Orange juice

2 bananas (cut in pieces)

1 table spoon of almond flakes or sesame seeds small piece of grated ginger (to your liking)

You can of course create your own smoothie with your favorite ingredients!

Speed Setting

With the rotary switch (5), you can select the operating speed (pulse switch).

switches off automatically.

Warning: DO NOT operate the appliance longer than 1

blender should be allowed to cool down for 30 minutes.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the motor block in water. Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

(4) and empty it.

with water ( not more than 250 ml), and add a bit of dishwashing detergent.

unit (1) and attach the assembled unit to the motor block (4).

seconds.

(1) and rinse both, mixing unit and blade assembly with clear water and dry them thoroughly.

Mixing unit / travel cup (1) and travel cup lid (2) can also be cleaned in the dishwasher.

Make sure, never to immerse the blade assembly (3) water. The blade assembly is not dishwasher safe!

Cleaning and user maintenance shall not be made children without supervision.

The cutting blade is extremely sharp. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special on points for disposal or your local dealer.

Technical Data:

time how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Subject to change without notice!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Transparent plastic bottle with black lid and black handle, partially submerged in liquid (no text or symbols visible)

Transparent plastic bottle with black lid and arrow indicating rotational motion (no text or symbols)

Exterior view of a modern stainless steel blender with a clear glass top and control knob (no text or symbols visible)

Close-up of a metallic mechanical component with a double-headed arrow indicating left and right motion (no text or symbols)

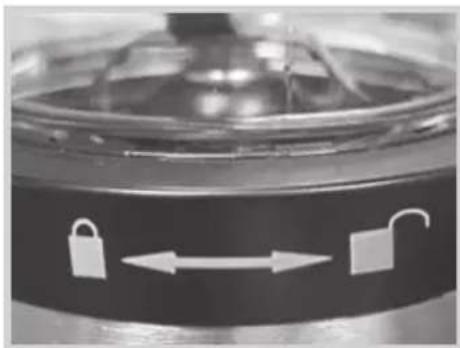

Close-up of a mechanical component with two padlock icons and bidirectional arrows, no visible text or symbols.

Close-up of a kitchen blender with a rotating handle and base, no visible text or symbols

Close-up of a transparent cylindrical container with internal components and a black base (no visible text or symbols)

Bediening

Transparent plastic container with black lid and arrow indicating rotation (no text or symbols)

Transparent plastic container with black lid and arrow indicating rotation (no text or symbols)

Exterior view of a modern kitchen blender with a glass top and metal casing (no visible text or symbols)

Close-up of a mechanical component with a lock and bidirectional arrow symbol (no text or labels)

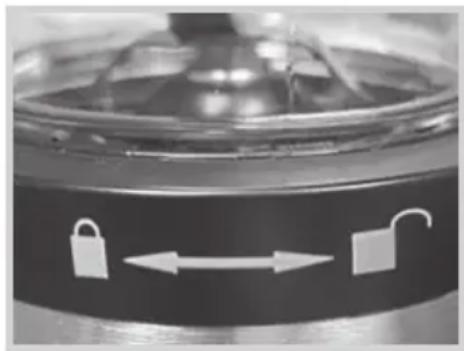

Close-up of a mechanical component with two padlock icons and bidirectional arrows (no text or symbols)
