Brand	Eurom
Model	Fly Away 30 IPX4
Product type	Electric insect killer
Usage	Indoor only
Protection rating	IPX4 (splash-proof)
Operating principle	Attracts flying insects by UV light and electrocutes them on a metal grid under high voltage (3000 V)
Power supply	220-240 V ~ 50 Hz
Power consumption	45 W
Grid voltage	3000 V
Maximum range	150 m²
UV lamps	2 x TL-D 15W Actinic BL
Dimensions (L x W x H)	12 x 52 x 29 cm
Weight	3.2 kg
Recommended installation height	1.5 to 2 meters (1 meter for mosquitoes)
High-voltage grid material	Stainless steel
Collection tray	Yes, removable for emptying
Cleaning	Unplug, use a vacuum cleaner or soft brush. Do not use water or harsh detergent.
Safety	Outer safety grid; do not touch the live grid; do not use in the presence of flammable gases; do not immerse; do not modify the device.
Repairability	Have any repairs carried out by a qualified electrician; do not repair yourself.
Standards	CE compliant: EN 55014, EN 60335, etc.

Frequently Asked Questions - Fly Away 30 IPX4 Eurom

How does the Fly Away 30 IPX4 work?

The device attracts flying insects (flies, mosquitoes, moths) using two UV tubes. When they get close, they are electrocuted by a high-voltage metal grid (3000 V). No chemicals are used.

Where should I install the insect killer?

Install it in a central location, at a height of 1.5 to 2 meters (1 meter for mosquitoes), in a relatively dark area, at least 1 meter from any water source. Avoid direct sunlight as it reduces UV efficiency.

Can I use the device outdoors?

No, the device is intended for indoor use only. The IPX4 rating protects against water splashes, but the unit should not be exposed to rain or submerged.

How do I clean the device?

Unplug the device, remove the collection tray and empty it. For the interior, use a vacuum cleaner, duster or soft brush. Never use water or harsh detergent.

Is it dangerous to humans or animals?

The UV lamps are harmless to humans and animals. However, the live grid is dangerous: never touch it while operating. Keep children and pets away.

When should I replace the UV lamps?

Replace the lamps when they no longer work or if their efficiency decreases. Follow the manual instructions: unplug, remove the tray, disassemble the cover and grills, then rotate the tube 90° to remove it.

Can the device stay on 24/7?

Yes, it can be used continuously all day. However, avoid exposing people to UV radiation for more than 8 hours per day to prevent health risks.

What if the lamps do not light up?

Check the lamp connection, replace it if worn, or have the starter and choke coil checked by a qualified electrician. Also ensure the plug is properly connected.

How do I hang the device?

Use the suspension eyes on the top cover to hang the device from a chain or hook. You can also place it on a stable surface (table, cabinet) ensuring it does not tip over.

What are the dimensions and weight of the Fly Away 30?

The dimensions are 12 x 52 x 29 cm and the weight is 3.2 kg.

USER MANUAL Fly Away 30 IPX4 Eurom

Three black EUROM electric motors cage models with visible branding and metal wire grids, no text or symbols on the devices themselves.

Fly Away 30/40 IPX4

GB - electric insect-killer - Instruction booklet

Hand lifting a black box with chains, containing a small appliance (no visible text or symbols)

Close-up of a hand placing small electronic components into a metal cage (no text or symbols visible)

Exterior view of a modern building with grid-like metal framing (no visible text or symbols)

Black lightning bolt symbol on white background (no text or numbers)

Simple line drawing of a house with an arrow indicating direction (no text or symbols)

The insect-killer is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. As they fly towards with light, they fly into an electrified metal screen that electrocutes them.

The device

The Fly Away 30/40 IPX4 insect-killer is highly efficient and safe. The electrified screen is made from stainless steel. This material has been chosen so that there is only minimal crackling on electrocution and the insects neither combust nor is the material damaged. The special UV lamps are totally harmless to humans and pets. An external safety screen protects users from coming into unintentional contact with the electrified screen.

The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly. The Fly Away 30/40 IPX4 insect-killer is designed to be used indoors, in the home, in work areas, retail outlets, etc. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.

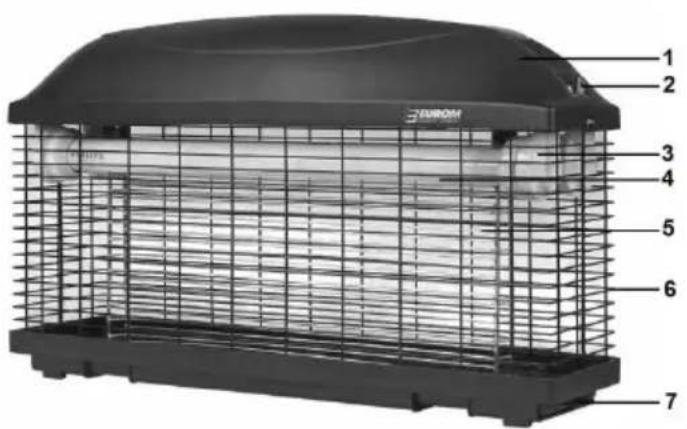

Description

1. Top cover
2. Suspension eye
3. Light fitting
4. UV tube
5. High Voltage grill
6. Safety grill
7. Collection tray

Installation

When placing and installing the insect-killer, it is important to take the location of the device in the room/space into account.

1. Hang the insect-killer centrally in the area; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.
2. Hang the insect-killer or a wall or in a corner if the room/area is not very large.
3. The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.
4. The insect-killer can be suspended from the chain or placed on a surface such as a table or cabinet. Make sure it is on a good stable base.
5. Install your insect-killer in a relatively dark place, near an electricity socket: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.

Use and Maintenance

Using for the first time

Make sure that the power socket you intend using is earthed and the correct voltage (220-230V-50Hz). Start the insect-killer working by plugging the device in. The insect-killer is operating.

The insect-killer can be kept switched on (24 hours a day) all year round.

Replacing lamps

To replace a worn out UV tube you must remove the plug from the socket and remove the collection tray by pulling it out of the side of the device. Unscrew the 2x2 cap nuts next to the suspension eyes. Remove the suspension eyes and top cover. Now unscrew the 2x2 screws on the front and back of the grill and lift the entire electrical block with the lights out of grill. Unscrew the ring around the right and left of the light fitting. Slide the rubber rings and the plastic rings

away. You can now turn the strip light 90°, remove it from the fitting and replace it. Install the lights, rings, grill and tray in their original positions before using the device again.

Cleaning

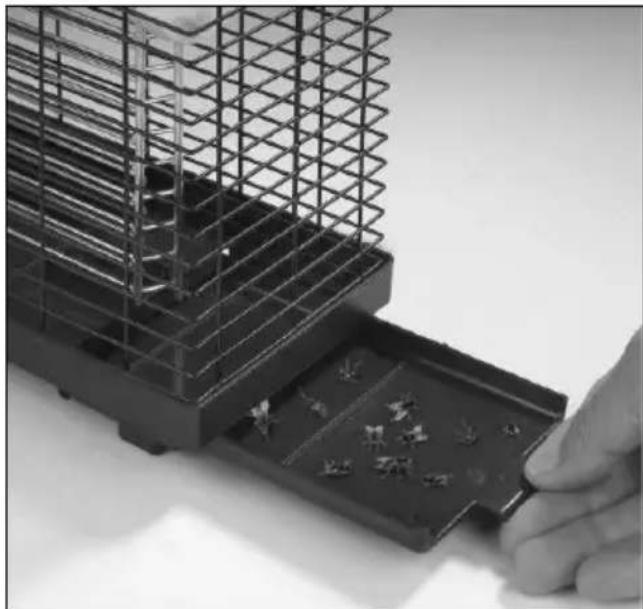

Regularly empty the collection tray by pulling it out of the side of the device, (see diagram 2 on page 2).

Too much dust will adversely affect the effectiveness of the light and too much dirt will affect the way insects are destroyed. So clean the device regularly. To do that, pull the plug out of the power socket and remove the collect tray. When you now place the device on a work surface, you can remove dust and dirt, for example with a vacuum cleaner, duster or soft brush. Do not use any moisture or corrosive cleaning agents in the insect-killer.

You can dust off the outer side of the device using a soft cloth.

Safety notices

- Close supervision is necessary when the product is used near children or incapacitated persons. The device is not suitable for use by persons (including children) with a physical, sensual or mental limitation or a lack of experience and knowledge, irrespective of whether they are being supervised or have been issued with instructions in relation to the use of the device by a person who is responsible for their safety. Always ensure that children cannot play with the device. The screen that kills the insects is electrified!

- Only connect the Fly Away 30/40 IPX4 to an earthed socket with a 220-240V-50Hz power supply.

- Make sure you NEVER touch the electrified screen when the device is in use: not with your fingers, or with a pen, piece of paper or other object of any kind. If you do, you will receive a strong electric shock and you may also cause a fire! NEVER push objects into the insect-killer through the safety screen.

- In order to avoid health risks, do not expose persons to the UV radiation of the insect killer for more than 8 hours per day.

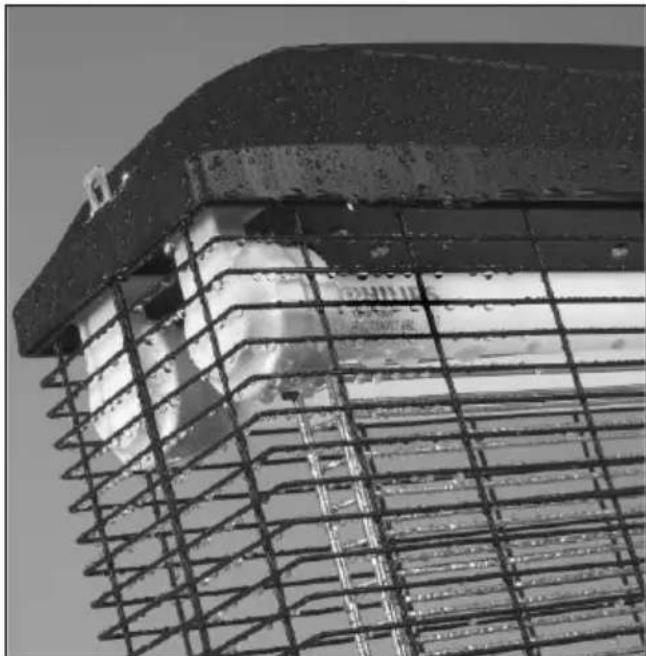

• The device is intended for indoor use. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.
• Do not use the device in areas where there may be explosive or combustible gases or liquids or similar materials, so do not use in garages. The insect-killer can create a spark, which may ignite the gas or liquid!
• Never immerse the appliance in water od any other liquid! Maintain a distance of at least 1 metre from water. E.g. baths, taps, etc.
• Do not try and modify the device in any way as this is dangerous and will void the manufacturer's liability.
• If there is any damage to the device itself, power cord or plug, switch it off immediately and take the plug from the socket. Contact the store where you purchased your insect-killer or ask a qualified electrician to have the part replaced or repaired. NEVER carry our repairs yourself!

Possible defects/problems

The lamps do not light up

• The lamp is not making contact. Repair it.
• The lamp has blown. Replace it.
• The starter is defective. Let it be replaced.
• The induction coil is defective. Let it be replaced.
• The plug is not inserted properly into the power socket. Insert it properly.

There is no power to the electrified screen

• There is a break in the power cable to the screen. Have it repaired.
• There is a short-circuit in the transformer. Let it be repaired/replaced.

Before making any repairs, always ensure the plug has been removed from the power socket!

Technical details FLY AWAY 30/40 IPX4:

Type	Fly Away 30 – IPX4	Fly Away 40 – IPX4
Lamps (2x)	TL-D 15W Actinic BL	TL-D 18W Actinic BL
Power consumption	45W	60W
Range max.	150m2	200m2
Screen voltage	3000V	3000V
Connection voltage	220-240V ~50Hz	220-240V ~50Hz
Dimensions (cm)	12 x 52 x 29 cm	12x67x29 cm
Weight	3,2 kg	4 kg

CE – Statement

The undersigned : Euromac bv., Kokosstraat 20, 8281JC

Genemuiden-NL hereby declares that the following appliance:

EUROM Insect killer, type Fly-Away 30 / 40 IPX4

complies with the following standards:

EMC : EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1 :2001+A2 :2008

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3 :2008

LVD : EN 60335-2-59 :2002+A1 :2006

EN 60335-1:2001+A1 :2004+A2 :2006

Genemuiden, 19-02-2013

W.J. Bakker, alg dir.
