USER MANUAL Fly Away 40 IPX4 Eurom
GB - electric insect-killer - Instruction booklet
The insect-killer is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. As they fly towards light, they fly into an electrified metal screen that electrocutes them.
The device
The Fly Away 30/40 IPX4 insect-killer is highly efficient and safe. The electrified screen is made from stainless steel. This material has been chosen so that there is only minimal crackling on electrocution and the insects neither combust nor is the material damaged. The special UV lamps are totally harmless to humans and pets. An external safety screen protects users from coming into unintentional contact with the electrified screen.
The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly. The Fly Away 30/40 IPX4 insect-killer is designed to be used indoors, in the home, in work areas, retail outlets, etc. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.

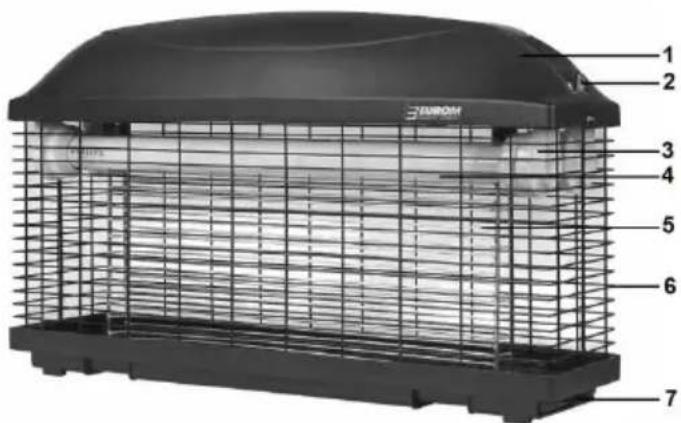

Description
- Top cover
- Suspension eye
- Light fitting
- UV tube
- High Voltage grill
- Safety grill
- Collection tray
Installation
When placing and installing the insect-killer, it is important to take the location of the device in the room/space into account.
- Hang the insect-killer centrally in the area; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.
- Hang the insect-killer or a wall or in a corner if the room/area is not very large.
- The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.
- The insect-killer can be suspended from the chain or placed on a surface such as a table or cabinet. Make sure it is on a good stable base.
- Install your insect-killer in a relatively dark place, near an electricity socket: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.
Use and Maintenance
Using for the first time
Make sure that the power socket you intend using is earthed and the correct voltage (220-230V-50Hz). Start the insect-killer working by plugging the device in. The insect-killer is operating.
The insect-killer can be kept switched on (24 hours a day) all year round.
Replacing lamps
To replace a worn out UV tube you must remove the plug from the socket and remove the collection tray by pulling it out of the side of the device. Unscrew the 2x2 cap nuts next to the suspension eyes. Remove the suspension eyes and top cover. Now unscrew the 2x2 screws on the front and back of the grill and lift the entire electrical block with the lights out of grill. Unscrew the ring around the right and left of the light fitting. Slide the rubber rings and the plastic rings
away. You can now turn the strip light 90^ , remove it from the fitting and replace it. Install the lights, rings, grill and tray in their original positions before using the device again.
Cleaning
Regularly empty the collection tray by pulling it out of the side of the device, (see diagram 2 on page 2).
Too much dust will adversely affect the effectiveness of the light and too much dirt will affect the way insects are destroyed. So clean the device regularly. To do that, pull the plug out of the power socket and remove the collect tray. When you now place the device on a work surface, you can remove dust and dirt, for example with a vacuum cleaner, duster or soft brush. Do not use any moisture or corrosive cleaning agents in the insect-killer.
You can dust off the outer side of the device using a soft cloth.
Safety notices
- Close supervision is necessary when the product is used near children or incapacitated persons. The device is not suitable for use by persons (including children) with a physical, sensual or mental limitation or a lack of experience and knowledge, irrespective of whether they are being supervised or have been issued with instructions in relation to the use of the device by a person who is responsible for their safety. Always ensure that children cannot play with the device. The screen that kills the insects is electrified!
- Only connect the Fly Away 30/40 IPX4 to an earthed socket with a 220-240V-50Hz power supply.
- Make sure you NEVER touch the electrified screen when the device is in use: not with your fingers, or with a pen, piece of paper or other object of any kind. If you do, you will receive a strong electric shock and you may also cause a fire! NEVER push objects into the insect-killer through the safety screen.
-
In order to avoid health risks, do not expose persons to the UV radiation of the insect killer for more than 8 hours per day.
-
The device is intended for indoor use. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.
- Do not use the device in areas where there may be explosive or combustible gases or liquids or similar materials, so do not use in garages. The insect-killer can create a spark, which may ignite the gas or liquid!
- Never immerse the appliance in water od any other liquid! Maintain a distance of at least 1 metre from water. E.g. baths, taps, etc.
- Do not try and modify the device in any way as this is dangerous and will void the manufacturer's liability.
- If there is any damage to the device itself, power cord or plug, switch it off immediately and take the plug from the socket. Contact the store where you purchased your insect-killer or ask a qualified electrician to have the part replaced or repaired. NEVER carry our repairs yourself!
Possible defects/problems
The lamps do not light up
- The lamp is not making contact. Repair it.
- The lamp has blown. Replace it.
- The starter is defective. Let it be replaced.
- The induction coil is defective. Let it be replaced.
- The plug is not inserted properly into the power socket. Insert it properly.
There is no power to the electrified screen
- There is a break in the power cable to the screen. Have it repaired.
- There is a short-circuit in the transformer. Let it be repaired/replaced.
Before making any repairs, always ensure the plug has been removed from the power socket!
Technical details FLY AWAY 30/40 IPX4:
| Type | Fly Away 30 – IPX4 | Fly Away 40 – IPX4 |
| Lamps (2x) | TL-D 15W Actinic BL | TL-D 18W Actinic BL |
| Power consumption | 45W | 60W |
| Range max. | 150m2 | 200m2 |
| Screen voltage | 3000V | 3000V |
| Connection voltage | 220-240V ~50Hz | 220-240V ~50Hz |
| Dimensions (cm) | 12 x 52 x 29 cm | 12x67x29 cm |
| Weight | 3,2 kg | 4 kg |
CE – Statement
The undersigned: Euromac bv., Kokosstraat 20, 8281JC
Genemuiden-NL hereby declares that the following appliance:
EUROM Insect killer, type Fly-Away 30 / 40 IPX4
complies with the following standards:
EMC: EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:1997+A1 :2001+A2 :2008
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3 :2008
LVD:EN60335-2-59:2002+A1:2006
EN 60335-1:2001+A1 :2004+A2 :2006
Genemuiden, 19-02-2013
W.J. Bakker, alg dir.
