USER MANUAL EDS SKGE 2000 A1 SILVERCREST

, 50Hz Power consumption 1800-2000W Dimensions (W x H x D) approx. 36.2 x 15.6 x 36.5cm Grill surface approx. 28.5 x 25.3cm Weight approx. 5.2kg Safety tested: TÜV Rheinland The technical data and design may be changed without notification. Safety instructions Before using this contact grill for the first time, always read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the device or pass it on, always include these operating instructions. They are an integral part of the device.

WARNING! This symbol indicates important information for safe operation of the contact grill and the safety of the user.

DANGER! This symbol warns about injuries or burns associated with hot surfaces of the contact grill.

This symbol indicates other important information on the topic.

The contact grill is not intended to be operated with an external time switch or a separate remote control system. Never leave the contact grill unattended when it is switched on. It poses a fire hazard! This device can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the device and understand the resulting risks. Children must not play with the device. Cleaning and user maintenance must not be carried out by childrenSilverCrest EDS SKGE 2000 A1 English - 5 without supervision. Always keep plastic packaging away from children. It poses a suffocation risk. Children who are younger than 8 years of age must be kept away from the device and its mains cable. If smoke is produced, or there are any unusual sounds or smells, switch off the contact grill immediately and remove the mains plug from the mains socket. In such cases, the contact grill should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful. Never touch the mains cable and the contact grill with wet hands because there is a risk of an electric shock! Do not use the contact grill with charcoal or other fuels. It poses a fire hazard! Always place the contact grill on a flat, heat-resistant surface and not in the vicinity of heat sources and flammable materials, liquids or gases. Leave at least 30cm clearance from walls because there is a risk of fire otherwise! The contact grill must not become damaged in order to prevent hazards. Ensure that no fire sources (e.g. burning candles) are placed on or near the contact grill. It poses a fire hazard! Do not leave the contact grill unattended when it is operating. Always switch off the contact grill when it is not in use and remove the mains plug from the socket. Put away the contact grill only when it has completely cooled down. It poses a fire hazard!

Warning: Fire hazard! Never use the contact grill in the vicinity of flammable materials such as

curtains, drapes, etc. The contact grill must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or bright artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the contact grill near water. In particular, the contact grill should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on the contact grill). Also ensure that the contact grill is never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the contact grill could be damaged.SilverCrest EDS SKGE 2000 A1

Mains cable Always handle the mains cable by the mains plug and do not pull on the cable itself. Do not place the contact grill, furniture or other heavy objects on the mains cable and ensure that it is not kinked. Never tie a knot in the mains cable and do not tie cables together. Ensure that the mains cable is placed so that no one can trip over it and it does not cause an obstruction. Make sure that the mains cable does not touch any hot surfaces of the contact grill. Do not use adapter plugs or extension cables that do not comply with applicable safety standards, and do not make any alterations to the mains cable! If the mains cable is damaged, it must be replaced by the manufacturer or its customer service representative or a similarly qualified person to prevent any safety hazards. Copyright All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change. Prior to use Remove the contact grill from the packaging and remove the packaging material completely. Check the contact grill for signs of damage. If damaged, the contact grill must not be used. Place the contact grill on a flat, heat-resistant surface. If the surface is sensitive, place a heat- resistant board under the contact grill. There is a risk of burns! The temperature of the accessible surfaces may be very high when the device is operating. Clean the contact grill as described in the section "Cleaning". Remove the cleaning scraper from the grease tray (10). Turn the thermostat (9) to "●". Open the cover and lightly grease the grill plates (3 and 6) with suitable grease, margarine or oil. This enables production-related residue on the grill plates (3 and 6) to be removed more easily. Then insert the mains plug into a mains socket that is always easily accessible. Turn the thermostat (9) to "MAX" and preheat the contact grill once with the cover open until the READY LED (8) lights up to indicate that the temperature has been reached. When using the device for the first time, production-related residue may give rise to a slight odour and minor smoke emission is also possible. This is normal and will fade after a short time. Please ensure that there is sufficient ventilation. Open a window if necessary. After approximately 15SilverCrest EDS SKGE 2000 A1 English - 7 minutes, turn the thermostat (9) to "●" in order to switch off the contact grill. Now disconnect the mains plug from the socket and let the contact grill cool down. Then clean the contact grill again as described in the section "Cleaning". First use Place the contact grill on a flat, heat-resistant surface. If the surface is sensitive, place a heat- resistant board under the contact grill. There is a risk of burns! The temperature of the accessible surfaces may be very high when the device is operating. Only touch the handle (1) or the thermostat (9) of the contact grill. The accessible surfaces of the contact grill can become very hot. Use pot holders or oven gloves to prevent burns. There is a risk of injury. Never use metallic objects to remove or turn food that you are grilling as they can damage the coating of the grill plates (3 and 6). Use a heat-resistant plastic or wooden spatula instead. Place the food to be grilled directly on the grill plates (3 and 6). Never use tin foil, a plate or similar as a base. Before using the contact grill for the first time, make sure that the grease tray (10) is correctly inserted. The grease tray (10) must be emptied in time to prevent it from overflowing. Optimising outward flow of grease There are 2 fold-out feet (see arrows in the adjoining figure) at the rear of the bottom grill plate (6). Fold them out when you are preparing food with a high fat content. This raises the front of the unit slightly and allows the resulting grease to flow more easily into the grease tray (10). In "single-sided grilling" mode, you can place the the top grill plate (3) slightly at an angle with light pressure (see arrow) to ensure the grease flows easily.SilverCrest EDS SKGE 2000 A1

Double-sided grilling This mode (Figure A) is suitable for searing both sides of the food without having to turn it. Proceed as follows: Turn the thermostat (9) to "●". Set the slider (4) to " " in order to release the cover. Open the cover. Grease the grill plates (3 and 6) if necessary with suitable grease, margarine or oil and close the cover. Please note that butter is unsuitable due to the high temperatures. Insert the mains plug into a mains socket that is always easily accessible. Turn the thermostat (9) to the desired setting. Setting I = Defrost Setting II = Heat up Setting III = Medium level of grill Setting MAX = Maximum level of grill As soon as the contact grill is connected to the mains socket, the POWER LED (7) lights up and the contact grill starts to heat up. When the set temperature is reached, the READY LED (8) also lights up. Now open the cover and place the food to be grilled directly on the bottom grill plate (6). Then close the cover again. The contact grill heats up again once the temperature drops below the set level. This is indicated by the READY LED (8) going out at this time. Switch off the contact grill after use by turning the thermostat (9) to "●" and remove the mains plug from the socket. Clean the contact grill as described in the section "Cleaning". Single-sided grilling This mode (Figure B) is suitable, for example, for grilling a larger quantity of food. Proceed as follows: Turn the thermostat (9) to "●". Set the slider (4) to " " in order to release the cover. Open the cover and press the release button (5) to open the cover by 180°. Fold out the feet (2) and ensure that the cover is positioned securely. Grease the grill plates (3 and 6) if necessary with suitable grease, margarine or oil. Please note that butter is unsuitable due to the high temperatures. Insert the mains plug into a mains socket that is always easily accessible. Turn the thermostat (9) to the desired setting. Setting I = DefrostSilverCrest EDS SKGE 2000 A1 English - 9 Setting II = Heat up Setting III = Medium level of grill Setting MAX = Maximum level of grill As soon as the contact grill is connected to the mains socket, the POWER LED (7) lights up and the contact grill starts to heat up. When the set temperature is reached, the READY LED (8) also lights up. Place the food to be grilled directly on the grill plates (3 and 6). The contact grill heats up again once the temperature drops below the set level. This is indicated by the READY LED (8) going out at this time. Turn the food from time to time. Switch off the contact grill after use by turning the thermostat (9) to "●" and remove the mains plug from the socket. Clean the contact grill as described in the section "Cleaning". Gratinating This mode (Figure C) is suitable for gratinating food. Proceed as follows: Turn the thermostat (9) to "●". Set the slider (4) to " " in order to release the cover. Open the cover. Grease the bottom grill plate (6) if necessary with suitable grease, margarine or oil and close the cover. Please note that butter is unsuitable due to the high temperatures. Insert the mains plug into a mains socket that is always easily accessible. Turn the thermostat (9) to the desired setting. Setting I = Defrost Setting II = Heat up Setting III = Medium level of grill Setting MAX = Maximum level of grill As soon as the contact grill is connected to the mains socket, the POWER LED (7) lights up and the contact grill starts to heat up. When the set temperature is reached, the READY LED (8) also lights up. Now open the cover and place the food to be grilled directly on the bottom grill plate (6). Set the slider (4) to a suitable position (I, II, III, IV or V) so that the top grill plate (3) does not touch the food when you close the cover. Then close the cover. The contact grill heats up again once the temperature drops below the set level. This is indicated by the READY LED (8) going out at this time. Switch off the contact grill after use by turning the thermostat (9) to "●" and remove the mains plug from the socket. Clean the contact grill as described in the section "Cleaning".SilverCrest EDS SKGE 2000 A1

Tips for grilling food well Tender meat is most suitable for grilling and is also more tender after grilling. In "single-sided grilling" mode, avoid turning food frequently to prevent it from drying out. To avoid an excessively long cooking time, your food should be not too thick. Product or function Thermostat (9) setting Cooking or grilling time Defrost I Heat up II Vegetables III approx. 5 – 7 minutes Prawns III approx. 5 – 8 minutes Fish III approx. 8 – 10 minutes Toast Hawaii MAX approx. 3 – 4 minutes Sandwich MAX approx. 2 – 4 minutes Meat, sausages MAX approx. 6 – 8 minutes Poultry MAX approx. 8 – 10 minutes The specified times are only guide values. They may be longer or shorter depending on the nature of the food and your personal preferences.SilverCrest EDS SKGE 2000 A1 English - 11 Cleaning / maintenance Maintenance Servicing is necessary if the contact grill has been damaged or if liquids or objects have penetrated the housing, if the contact grill has been exposed to rain or moisture or if it does not work properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, switch off the contact grill immediately and remove the mains plug from the mains socket. In such cases, the contact grill should not be used until it has been inspected by authorised service personnel. Only have qualified personnel carry out the maintenance work on the device. Never open the housing of the contact grill. Cleaning Remove the mains plug from the mains socket before cleaning as there is a risk of an electric shock! Wait until the contact grill has cooled down completely. Otherwise, there is a risk of burns! The contact grill must not be immersed in water as there is a risk of an electric shock! Use a slightly damp cloth to clean the outer surfaces and never use any solvent or cleaner that would corrode the plastic materials. The grill plates (3 and 6) can be removed for cleaning. To do so, press the release (11) to remove the bottom grill plate (6) and the release (12) to remove the top grill plate (3). Remove large remaining food particles with the supplied cleaning scraper. The grill plates (3 and 6) can then be cleaned in a basin of warm water and washing-up liquid. Rinse the grill plates (3 and 6) with clear water afterwards and dry them completely before inserting them again. Never use a wire brush or other abrasive objects. Insert the grill plates (3 and 6) again after cleaning. Proceed as follows:

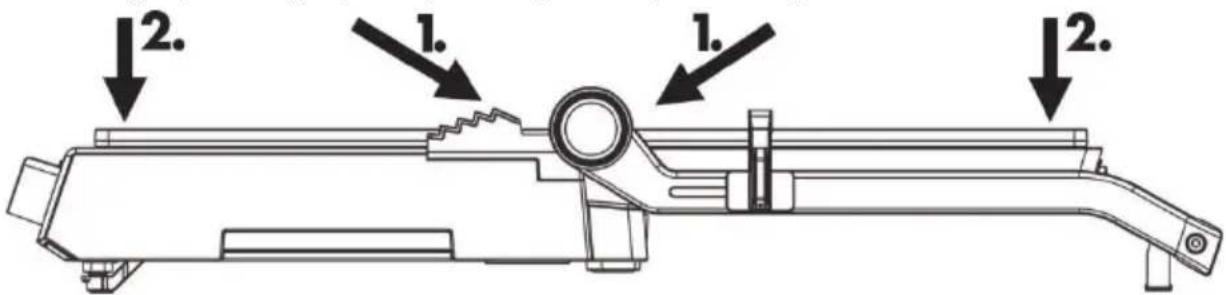

1. To do so, first slide the grill plates diagonally under the 2 guide tabs.

2. Press lightly on the grill plates (3 and 6) until they click into place.

Remove the grease tray (10) and dispose of the contents. The grease tray (10) can be cleaned in a basin of warm water and washing-up liquid. Rinse the grease tray (10) with clear water afterwards and dry it completely before inserting it again. Never use a wire brush or other abrasive objects. The grill plates (3 and 6) and the grease tray (10) are dishwasher-proof up to 60°C.SilverCrest EDS SKGE 2000 A1

Storage when not in use If you do not want to use the contact grill, wind the mains cable as shown in Figure D. When the cover is closed, set the slider (4) to " " in order to lock the cover. Ensure that the contact grill is kept in a clean, dry location without direct sunlight. Troubleshooting The contact grill does not heat. Check whether the mains plug is inserted correctly in the mains socket. Check the position of the thermostat (9) and turn the thermostat (9) up to "MAX" if necessary. Environmental and disposal information When this symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at designated disposal points. Disposal of old devices in this manner will prevent harm to the environment and human health hazards. For further information regarding disposal of old devices in accordance with the directive, contact your local government office or the retailer where you purchased the device. Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner. Conformity information This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of these operating instructions.SilverCrest EDS SKGE 2000 A1 English - 13 Recipes The specified grilling times and thermostat (9) setting may vary. They depend on the nature of the food and personal taste. Turkey rolls with Serrano ham (4 persons) Ingredients 8 small thin turkey escalopes (each approx. 50g) Salt (pinch) Pepper (pinch) 2 tsp. mustard 8 thin slices Serrano ham 8 soft dried apricots 1 tbsp. olive oil 8 meat needles Preparation

1. Flatten escalopes and season with salt and pepper. Coat one side with mustard. Cut ham slices

in half. Place ham and an apricot on top of the side coated with mustard.

2. Heat up the contact grill in "double-sided grilling (Figure A)" mode (thermostat (9) to "MAX").

3. Roll up the escalopes and secure with a meat needle (or meat thread).

4. Brush rolls with oil and grill for approx. 6 minutes.

Tuna with orange slices (4 persons) Ingredients 4 fresh tuna steaks (each approx. 170g) 1 orange (fresh) 1 tbsp. finely chopped herbs (for example, parsley) Salt (pinch) Pepper (pinch) Preparation

1. Peel the orange and cut it into slices approximately 5mm thick.

2. Place the tuna steaks on the preheated contact grill in "double-sided grilling (Figure A)" mode

(thermostat (9) to position "MAX"), sprinkle the herbs (for example, parsley) on them and season with salt and pepper. Place the orange slices on the tuna steaks and grill them for approx. 6-8 minutes.

3. Remove the grilled orange slices and serve the tuna steaks.SilverCrest EDS SKGE 2000 A1

Burger with cheese and bacon (2 persons) Ingredients 250g minced beef Salt Pepper, freshly ground (depending on your preference) 2 hamburger buns 2 slices cheese (for example, Cheshire) Ingredients according to your preference: 4 slices bacon 2 fresh leaves lettuce 4 fresh slices tomato Some slices of gherkin Tomato ketchup Barbecue sauce Preparation

1. Season the minced beef, knead thoroughly and form 2 flat, round slices corresponding to the

size of the hamburger buns.

2. Preheat contact grill (thermostat (9) to "MAX"). Grill the slices of bacon in the preheated

contact grill until they are crispy - mode: gratinating (Figure C).

4. Take the bacon slices from the contact grill and set aside.

5. Place the hamburgers (minced beef) in the lightly greased contact grill. - Mode: double-sided

grilling (Figure A) - grilling time: approx. 5 - 8 minutes, depending on the thickness and size of the hamburgers (minced beef).

6. Take the hamburgers (minced beef) from the contact grill and set aside.

7. Turn the thermostat (9) back to "II".

8. Place the sliced hamburger buns on the contact grill, covering the lower halves with the

hamburgers (minced beef) and one slice of cheese each. - Mode: gratinating (Figure C) - grilling time: approx. 2-3 minutes, until the cheese melts.

9. Place bacon, ketchup, barbecue sauce, gherkin and tomato slices on the burger to taste and

4. Season to taste with salt.

5. Preheat contact grill (thermostat (9) to setting "III").

6. Bake the panini in the lightly greased contact grill until the mozzarella melts. - Mode:

Warranty and servicing advice Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following:SilverCrest EDS SKGE 2000 A1 English - 17 - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 59494 SOEST GERMANYSilverCrest EDS SKGE 2000 A1
