INEW710DC - Browser ALPINE - Free user manual and instructions

Brand	Alpine
Model	INEW710DC
Product Type	Multimedia GPS Navigator
Power Supply	14.4 V DC (11 - 16 V allowed)
Weight	1.54 kg
Screen Size	8 inches (diagonal)
Screen Resolution	800 × 480 pixels
Screen Type	Active matrix TFT with LED backlight
FM Tuner	Range 87.5 - 108.0 MHz, RDS
AM Tuner	MW 531 - 1602 kHz, LW 153 - 281 kHz
DAB / DAB+ / DMB	Band III and Band L
Bluetooth Connectivity	Bluetooth v3.0, profiles HFP, A2DP, AVRCP, PBAP, etc.
USB Port	USB 2.0, mass storage compatible, MP3/WMA/AAC/FLAC/AVI/MKV/MP4 files
HDMI Input	720p/480p/480i/VGA
Smartphone Compatibility	Apple CarPlay, Android Auto, Alpine Connect
GPS Navigation	Built-in maps, route calculation, points of interest
Audio Outputs	4 × 50 W max, front/rear pre-outs and subwoofer
Operating Temperature	-20 °C to +60 °C
Maintenance and Cleaning	Clean with a soft dry cloth; avoid solvents
Safety	Do not watch video while driving; install correctly
Spare Parts and Repairability	Contact an authorized Alpine dealer or after-sales service
General Information	User manual available in multiple languages

Frequently Asked Questions - INEW710DC ALPINE

How to properly install the device in my car?

Installation must be carried out by a professional. Make sure the driver cannot watch video while driving. Disconnect the battery before any connection and use fuses of the correct amperage. Refer to the provided installation manual.

How to connect my phone via Bluetooth?

Go to Settings > Bluetooth. Enable Bluetooth on the device and your phone. Press 'Register Bluetooth Devices' then the search button. Select your phone from the list and choose the desired profile (hands-free, audio, or both). Follow the on-screen instructions.

How to use Apple CarPlay or Android Auto?

Connect your iPhone or Android smartphone via a USB cable (or Bluetooth for Android Auto). Press the MENU button, then select Apple CarPlay or Android Auto. Follow the on-screen instructions. For CarPlay, you can also use the VOICE button to activate Siri.

How to memorize a radio station?

Tune to the desired station, then press the preset key (P1 to P6) for at least 2 seconds. The station is then saved. You can also use auto memory via the functions menu.

How to set up GPS navigation?

Press the NAV button to access the map screen. Use the Navigation menu to set a destination: press 'New route', choose 'Address', enter the city and street. You can also use saved places or history.

What audio and video formats are supported by the USB port?

The USB port supports MP3, WMA, AAC, and FLAC audio files, as well as AVI, MKV, and MP4 video files. The file system must be FAT16 or FAT32.

Can I connect a DVD player via HDMI?

Yes, connect the DVD player (such as the optional DVE-5300) to the HDMI input. You can control playback from the device: pause, stop, chapters, menus, etc. An optional HDMI selector allows connecting two sources.

How to clean the touchscreen?

Use a soft, dry cloth specifically designed for LCD screens. Do not use solvents, abrasive products, or liquid cleaners. Avoid scratching the surface with hard objects.

What to do if the device does not turn on?

Check that the fuse is not blown and replace it if necessary with a fuse of the same amperage. Make sure the car battery is properly connected and the ignition is on. If the problem persists, contact an authorized Alpine dealer.

Where to find the full manual or updates?

The user manual is provided on a CD-ROM. You can also download the manual in PDF format for free from our site notice-facile.com. For software updates, visit the official Alpine website or contact your dealer.

USER MANUAL INEW710DC ALPINE

Digital Audio Broadcasting

Spotify®

(X902D/X802D-U/INE-W710D Only)

MP3

AAC

Contents

WARNING 2

CAUTION 3

Getting Started 4

Favourite Function....6

Registering Items 6

Android Auto (Optional)....7

Apple CarPlay (Optional)....7

Alpine Connect App (Optional) (X902D/X802D-U/INE-W710D only) ....7

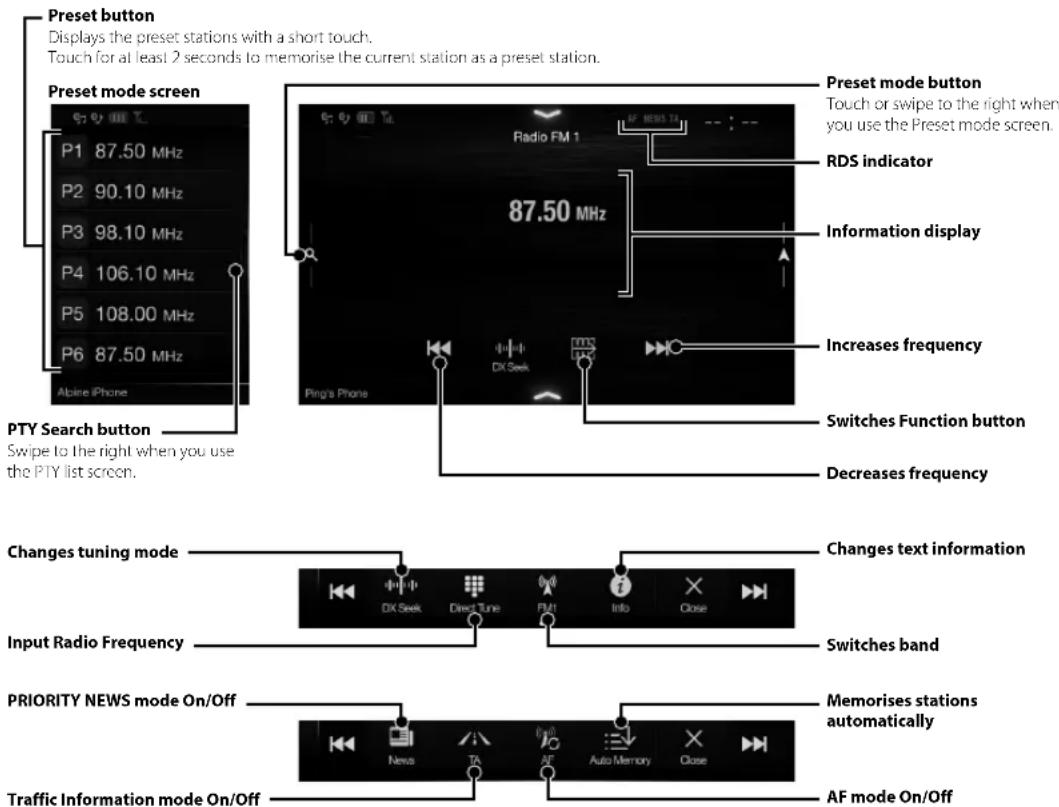

Radio/RDS Operation 8

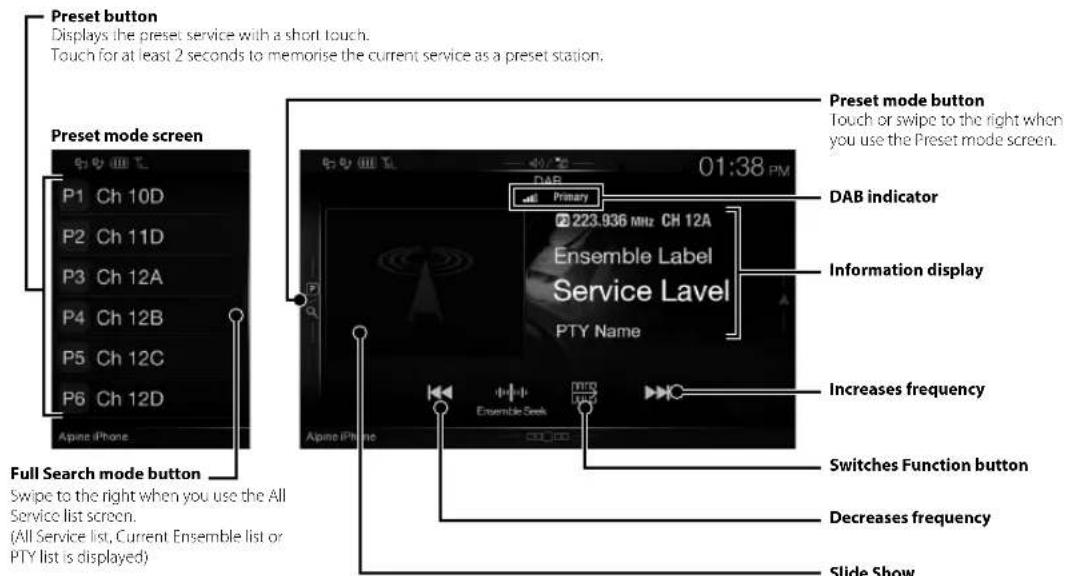

DAB/DAB+/DMB Operation 9

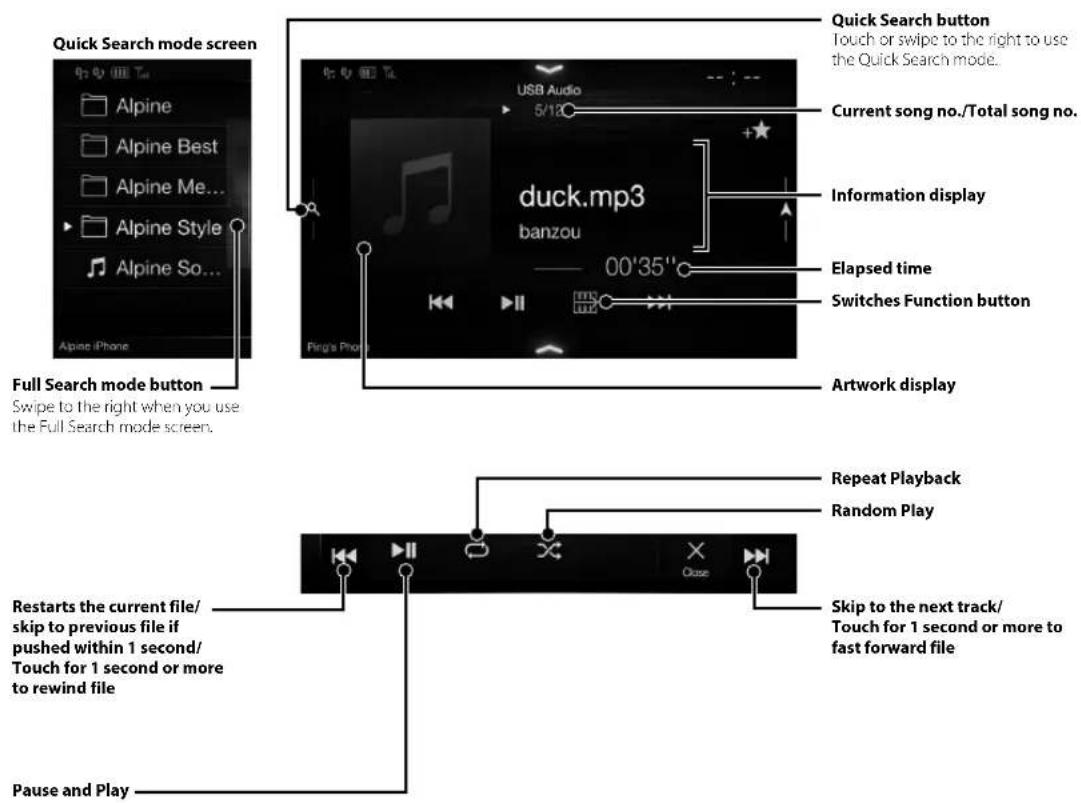

USB Flash drive Operation (Optional)....10

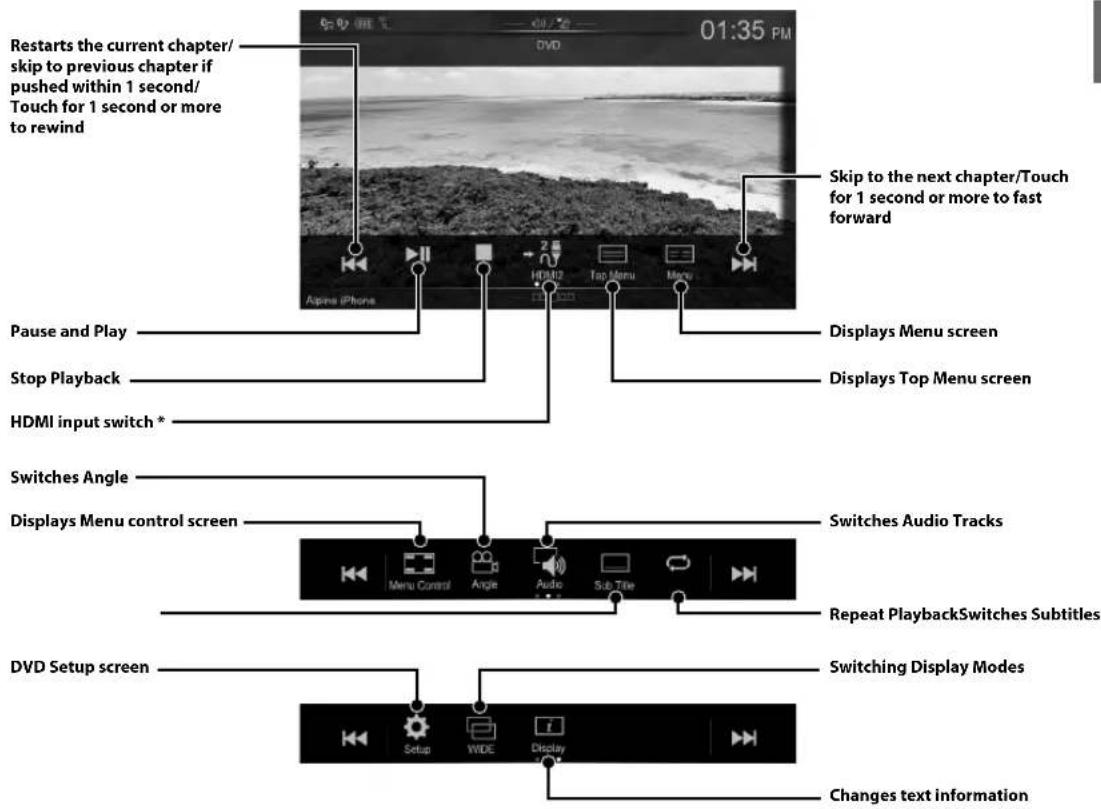

HDMI Device (DVD Player) Operation (Optional) 11

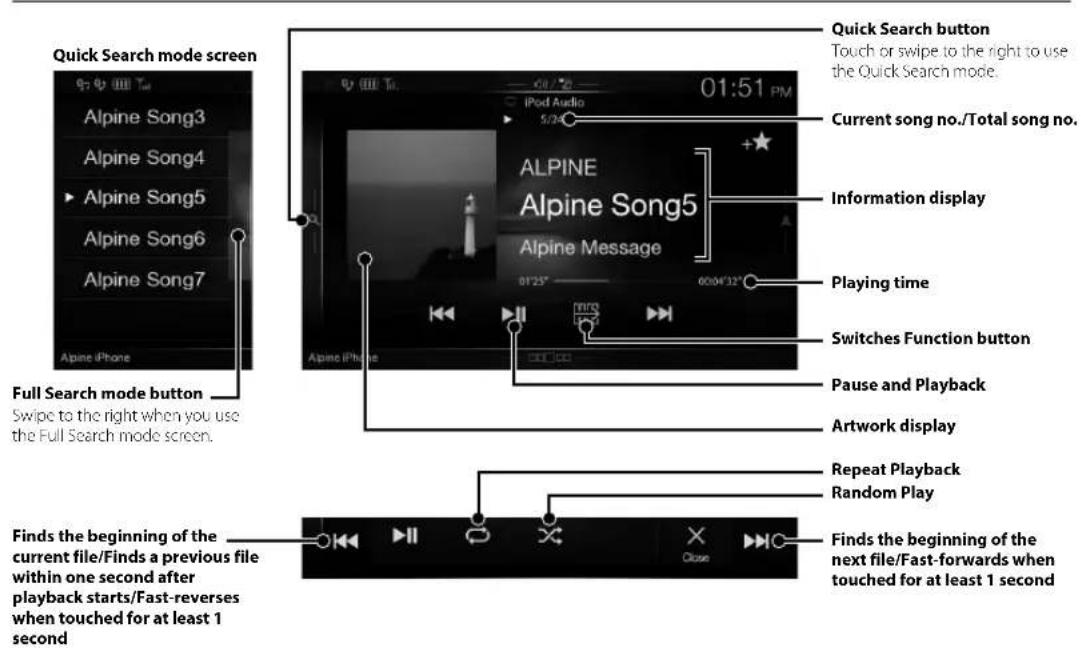

iPod/iPhone Operation (Optional)....12

Hands-Free Phone Control 13

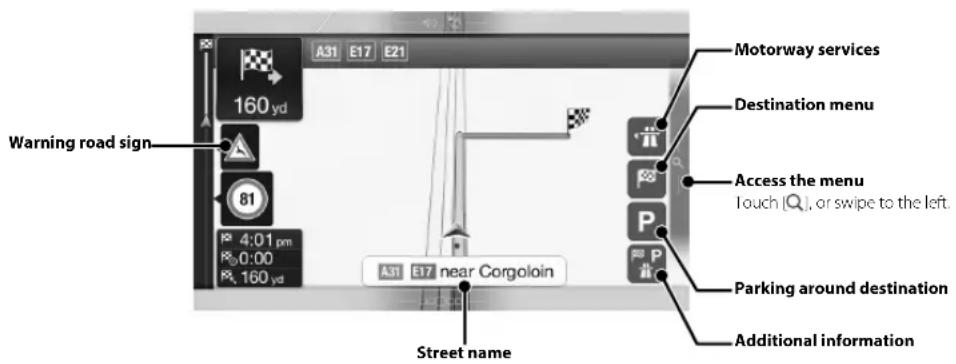

Map Functions (X902D/X802D-U/INE-W710D only)....14

Navigation Menu (X902D/X802D-U/INE-W710D only) 15

Setting a Destination (X902D/X802D-U/INE-W710D only) 16

Specifications 17

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record.

SERIAL NUMBER:

ISO SERIAL NUMBER: AL

INSTALLATION DATE:

INSTALLATION TECHNICIAN:

PLACE OF PURCHASE:

For details on all functions, refer to the Owner's Manual stored in the supplied CD-ROM. (As it is data CD, the CD cannot be used for playing back music and images on the player.) If required, an ALPINE dealer will readily provide you with a print out of the Owner's Manual contained in the CD-ROM.

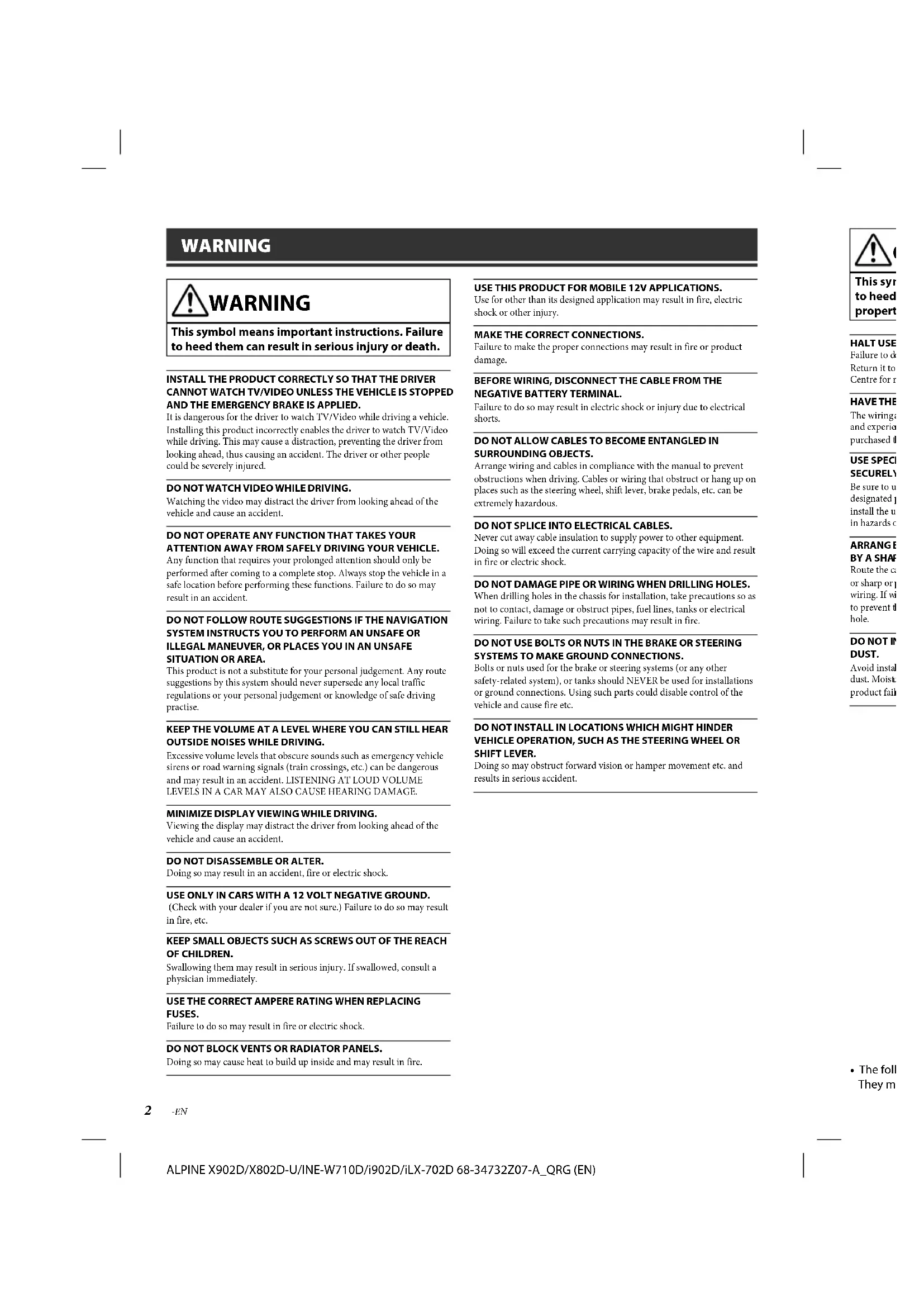

WARNING

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED.

It is dangerous for the driver to watch TV/Video while driving a vehicle. Installing this product incorrectly enables the driver to watch TV/Video while driving. This may cause a distraction, preventing the driver from looking ahead, thus causing an accident. The driver or other people could be severely injured.

DO NOT WATCH VIDEO WHILE DRIVING.

Watching the video may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

DO NOT FOLLOW ROUTE SUGGESTIONS IF THE NAVIGATION SYSTEM INSTRUCTS YOU TO PERFORM AN UNSAFE OR ILLEGAL MANEUVER, OR PLACES YOU IN AN UNSAFE SITUATION OR AREA.

This product is not a substitute for your personal judgement. Any route suggestions by this system should never supersede any local traffic regulations or your personal judgement or knowledge of safe driving practise.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS SCREWS OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Centre for repairing.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

- The following screen examples of X902D/X802D-U/INE-W710D used in this manual are for reference only. They may differ from the actual screen displays.

Getting Started

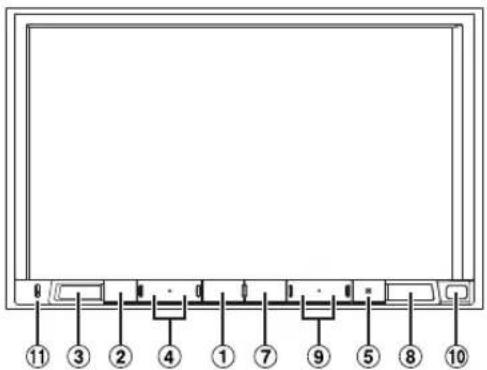

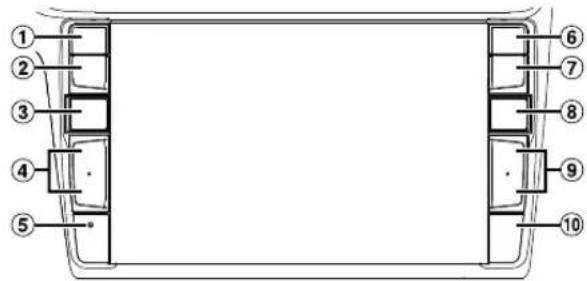

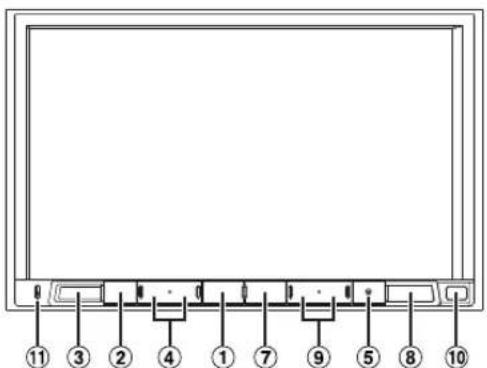

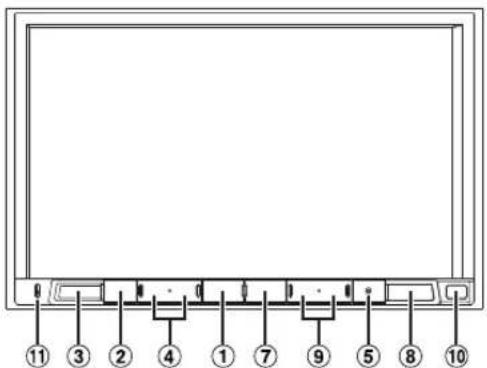

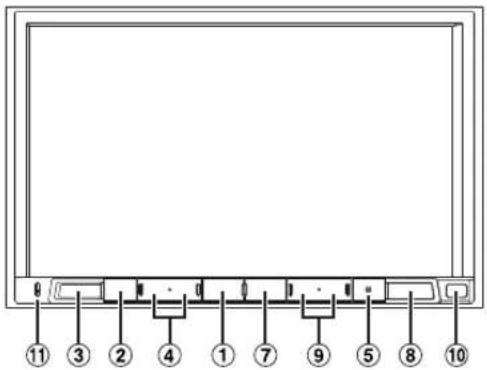

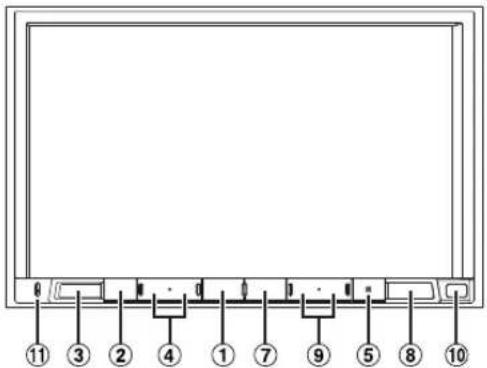

Location of Controls

The screen design used in the Owner's Manual may differ from the actual screen.

For X902D/i902D

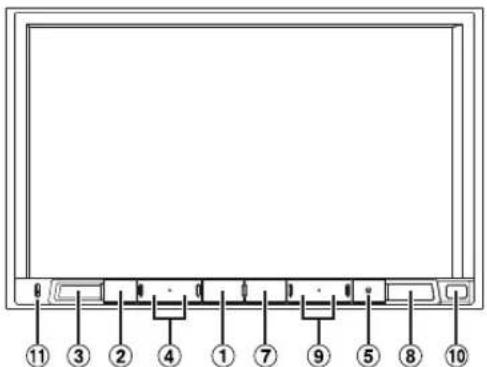

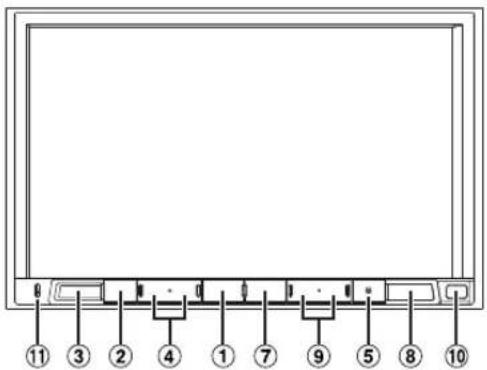

For X802D-U/INE-W710D/iLX-702D

① or VOICE button

Depending on the connected smartphone, press to recall Siri function or voice recognition mode.

② (MUTE) button

Press to activate/deactivate the mute mode.

③ (AUDIO)/(Favourite) button

Displays the Audio/Visual screen. If the Audio/Visual screen is already displayed, changes the source. Press and hold for at least 2 seconds to recall the Favourite screen.

④ / dr + (UP/DOWN) button

Press to adjust the volume.

⑤ RESET switch

The system of this unit is reset.

⑥ (PHONE) button (X902D/i902D only)

Recalls the Phone Menu screen. Press to start a conversation when a call is incoming.

⑦ MENU/ (Power Off) button

Recalls the Menu screen. Press and hold this button for at least 5 seconds to turn the power off.

⑧ (NAV) button

For X902D/X802D-U/INE-W710D:

Recalls the navigation map screen. Press again to switch to Navigation menu screen. Press and hold this button for at least 2 seconds to change to Go Home route screen. (If Home is not set yet, it will change to the Home setting screen.) For details of navigation operations, refer to "Navigation System OM" in the CD-ROM.

For i902D/iLX-702D:

Recalls the connected smartphone's map screen. Depending on the smartphone, this function may not available.

⑨ ▶|/◀◀ button

Press to seek up/down a station in radio mode or up/down a track, chapter, etc., in other audio/visual sources.

⑩ Remote Sensor

Point the remote control transmitter towards the remote sensor within a range of 2 metres.

⑪ Microphone (X802D-U/INE-W710D/iLX702D only)

Used for Hands-free or Voice Control modes.

Turning Power On or Off

1 Turn the ignition key to the ACC or ON position.

The system is turned on.

2 Press and hold the MENU button for at least 5 seconds to turn the power off.

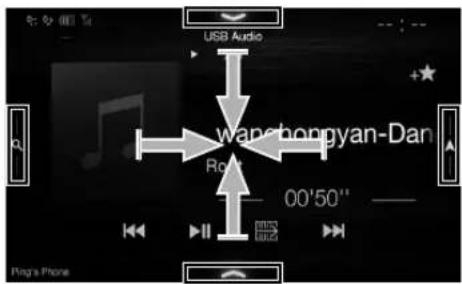

Switching the Audio Sources Screen to a Dedicated Screen

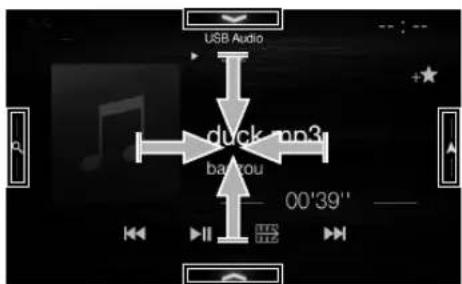

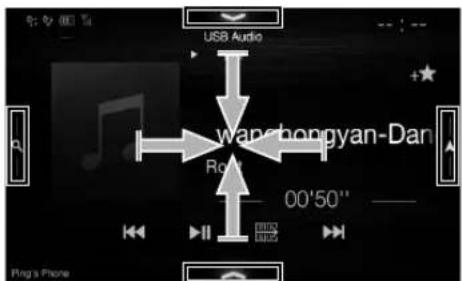

You can switch the Audio Sources screen to a dedicated screen by touching the icon on one of the four edges of the screen, or by swiping vertically or horizontally.

Shortcut Setup Screen

You can set the Sound Setup or Rear Seat Entertainment System.

Gray curved arrow pointing left, no text or symbols present

Dual Screen
(X902D/X802D-U/INE-W710D only)

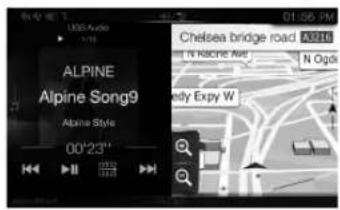

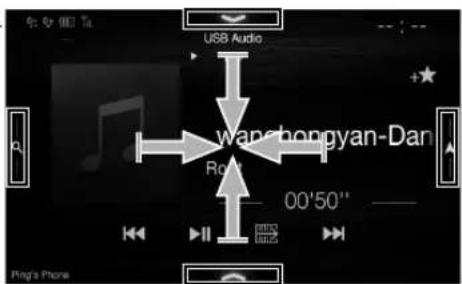

You can switch between the displayed screens on the Dual Screen.
(USB Audio)

Audio Sources Screen

Gray curved arrow pointing downward (no text or symbols)

Simple gray upward arrow graphic pointing right (no text or symbols)

Preset button or Quick Search mode Screen*

Menu Screen

You can make settings on the Menu Screen.
* The Search mode differs depending on the audio source. For details, see the operating instructions of the audio source.

Favourite Function

This unit enables you to recall functions easily by registering frequently used items such as the Audio source, the navigation search function, etc. to the Favourite screen. You can recall any of these items easily.

1 Press and hold the ♪/(Favourite) button for at least 2 seconds. The Favourite screen is displayed.

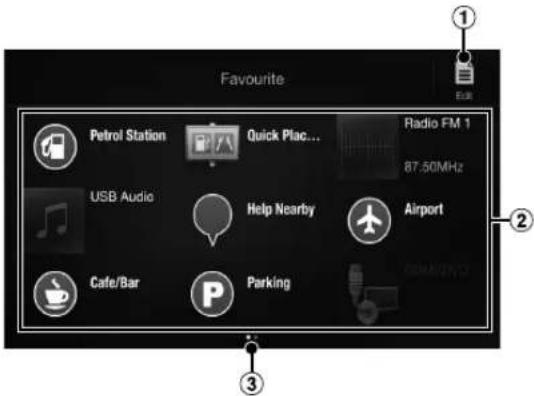

■ Favourite screen example

① Changes to the Edit screen used for registering items or changing names.
② Favourite registration item
③ Indicates the location of the currently displayed Favourite screen.

Swipe to the left and right to change the pages. You can add up to 6 pages.

Owner's manual Registering Items

Registering Items

1 Touch [ ] (Edit).

A checkbox is displayed on the upper left area of the registration icon and it changes to Edit mode.

2 Touch [ ] (Add).

The items to be added (categories) are displayed.

3 Touch the desired item to be added (category).

4 Choose the desired item to be added.

For details on the items to be added, refer to "Editing the Favourite Screen" in the Owner's Manual.

• You can add up to 54 items.
• You cannot register an item more than once.

5 After editing is complete, touch [] (Back).
6 After the caption for the confirmation is displayed, touch [OK].
7 Editing is complete and the screen switches to the Favourite screen.

- If you touch [→] (Cancel) while editing, the screen switches to the previous Favourite Edit screen.

Owner's manual Android Auto (Optional)

Android Auto (Optional)

Android Auto is designed to make it easier to use apps from your phone while you're on the road. Navigate with Google Maps, listen to playlists or podcasts from your favourite apps, and more.

Download the Android Auto App from the Google Play store before continuing.

Connect your Android compatible Phone to begin using Android Auto.

1 Press the MENU button.

The Menu screen is displayed.

2 Touch [Android Auto].

The Android Auto screen is displayed.

- For details operation of Android Auto, refer to "Android Auto" in the Owner's Manual (CD-ROM).

Owner's manual Apple CarPlay (Optional)

Apple CarPlay (Optional)

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with your iPhone while driving and puts them right on this unit. You can get directions, make calls, send and receive messages, and listen to music, all in a way that allows you to stay focused on the road. Just plug in your iPhone to this unit and go.

For details, refer to Owner's Manual (CD-ROM).

Press for VOICE to activate Siri function of the iPhone.

You can make a call, play music, etc., by using Siri function of the iPhone.

You can also control Apple CarPlay on touchscreen.

Owner's manual Alpine Connect App (Optional) (X902D/X802D-U/INE-W710D only)

Alpine Connect App (Optional) (X902D/X802D-U/INE-W710D only)

Download an app that supports Alpine Connect to your smartphone, and you can operate it from the unit.

Alpine Connect App is downloadable from Apple's App Store; the Android user can download it from Google Play. For details, consult your Alpine dealer.

Before these operations, set Connectivity Setting or Alpine Connect to USB (iPhone) or Bluetooth (Android) depending on the connected Smartphone.

1 Launch Alpine Connect App.

2 Then connect the smartphone to this unit.

3 Press the MENU button.

The Menu screen is displayed.

4 Touch [Alpine Connect].

The Alpine Connect App select screen is displayed.

5 Select the desired App.

The selected App screen is displayed.

Spotify®

Spotify is a music streaming distribution service not affiliated with Alpine. More information is available at http://www.spotify.com.

The Spotify application is available for iPhone and Android phones, please visit https://support.spotify.com/ for the latest compatibility information.

To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes App Store or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening.

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https://www.spotify.com/us/select-your-country/.

Owner's manual Radio/RDS

Radio/RDS Operation

Owner's manual DAB/DAB+/DMB

DAB/DAB+/DMB Operation

Preset mode button

Touch or swipe to the right when you use the Preset mode screen.

DAB indicator

Information display

Increases frequency

Switches Function button

Decreases frequency

Displays the program information, artist photos, and advertisements that are synchronised with the Service component currently being received.*

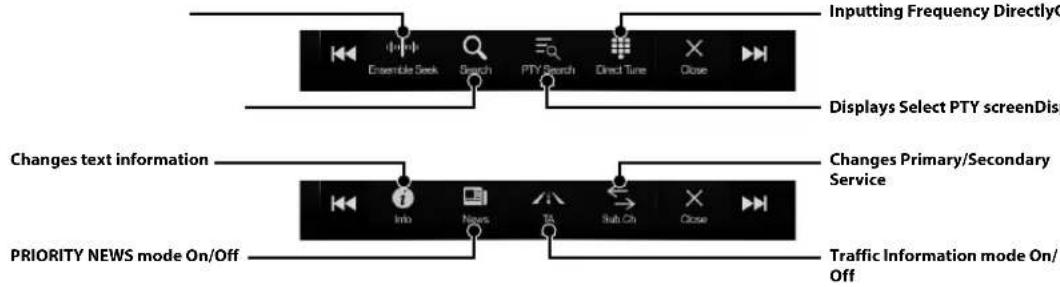

Inputting Frequency DirectlyChanges tuning mode

Displays Select PTY screenDisplays select service screen

Changes Primary/Secondary Service

Traffic Information mode On/Off

* They may not be displayed, depending on the Service component currently being received.

USB Flash drive Operation (Optional)

You can play back music files (MP3/WMA/AAC/FLAC) and video files (AVI/MKV/MP4) stored in a USB flash drive on the internal player of this system.

USB Audio main screen example

Owner's manual HDMI (Option) DVD

HDMI Device (DVD Player) Operation (Optional)

When you connect an optional DVE-5300 (DVD Player), you can operate it from the unit.

* If you connect an optional HDMI selector module, you can connect two HDMI devices. If the HDMI selector is set to "On" when two HDMI devices are connected, the HDMI input switch button is displayed. The displayed button differs depending on the settings and the HDMI input currently selected. For details, refer to "HDMI Setup" and "Setting the HDMI Selector On/Off" in the OWNER'S MANUAL (CD-ROM).

iPod/iPhone Operation (Optional)

A separately sold Lightning to USB cable (KCU-471i), etc., is required depending on the type of iPod/iPhone.

Audio mode

Searching for a Music File (Full Search Mode)

For example: Searching by Artist name

1 Touch [Artists] in the Full Search mode screen.

2 Touch the desired artist's name.

The Albums search screen of the selected artist is displayed.

Touching [▶] of the desired artist will play back all songs of the selected artist.

3 Touch the desired album's name.

All songs of the selected album are displayed.

Touching ▶] of the desired album will play back all songs of the selected album.

4 Touch the desired song's name.

The selected song is played back.

Owner's manual Bluetooth Setup, Bluetooth Operation

Hands-Free Phone Control

The unit can connect with up to two hands-free phones. If you connect two hands-free phones to the unit, select "Hands-free Device Priority" in "Bluetooth Setup" to set the order of precedence. For details, refer to OWNER'S MANUAL in the AUDIO VISUAL SECTION (CD-ROM).

How to connect to a Bluetooth compatible device (Pairing)

1 Touch [Setup] button on the Menu screen.

2 Touch [Bluetooth]. Make sure the "Bluetooth" setting is "On".

3 Touch [Set Bluetooth Device].

4 Touch [] to search for a new device.

5 Touch [ ] (Audio), [ ] (Hands-free) or [ ] (Both) for the device you want to connect from the list.

Audio: Sets for use as an Audio device. Hands-free: Sets for use as a Hands Free Device. Both: Sets for use as both an Audio device and Hands Free Device.

6 When the device registration is complete, a message appears and the device returns to normal mode.

- You can register up to 5 Bluetooth compatible mobile phones. - The Bluetooth registration process differs depending on the device version and SSP (Simple Secure Pairing). If a 4 or 6 character Passcode appears on this device, enter the Passcode using the Bluetooth compatible device. If a 6 character Passkey appears on this device, make sure the same passkey is displayed on the Bluetooth compatible device and touch "Yes."

Answering a Call

1 An incoming call triggers the ringtone and an incoming call display.

Incoming call notification screen

2 Touch incoming call notification screen.

The call starts.

Touch the call info area during a call changes to the Phone Operation screen. Use this screen to adjust the speech volume, etc.

Hanging up the Telephone

1 Touch [] (End Call).

The call finishes.

Map Functions (X902D/X802D-U/INE-W710D only)

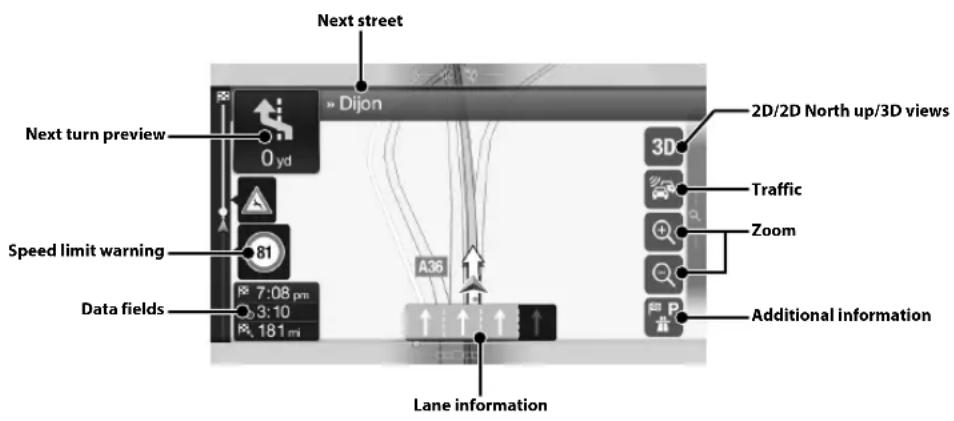

Below is an overview of different buttons and icons on the map display. For more detailed information about this screen, please see the Owner's Manual.

Navigation Menu (X902D/X802D-U/INE-W710D only)

To access the Navigation Menu, touch [Q] on the right edge of the map screen or swipe to the left. Alternatively, press the Ⓐutton.

Multipoint Route

Build your route from one or more route points. You can also plan a route independently of your current GPS position by setting a new starting point.

New Rout

Select your destination by entering an address or its coordinate, or by selecting a Place, a Saved Location, or a Saved Route. You can also look up your recent destinations from the History. When Internet connection is available, the Online Search option can be a further help to find your destination.

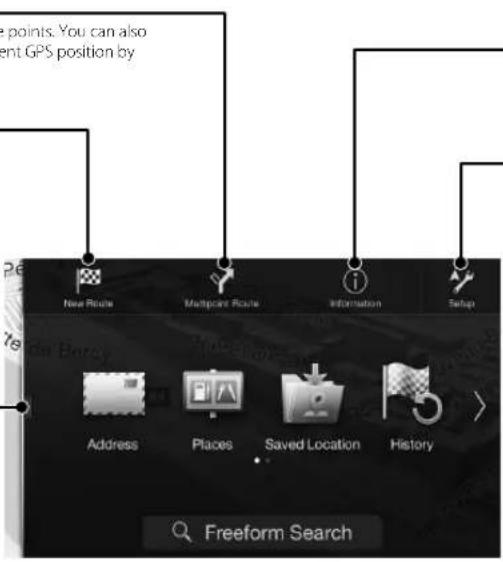

Access the Map

Touch or swipe to the right.

Information

Access additional options and check navigation-related information.

Setup

Customise the way the navigation software works.

Setting a Destination (X902D/X802D-U/INE-W710D only)

The following example describes how to search for a destination when choosing [Town/Postcode] from [Address].

- You can search and narrow down the Country/State by starting from [Country/State].

1 Touch [New Route] from the Navigation Menu.

2 Touch [Address].

7 Touch [More] to modify the route parametres, or touch [Start Navigation] to start your journey.

3 Touch [Town/Postcode].

4 Enter the town name or postcode.

- Touch 📄 display the candidate list.

5 Enter the desired street name.

- Touch to display the candidate list.

6 Enter the house number or crossing street.

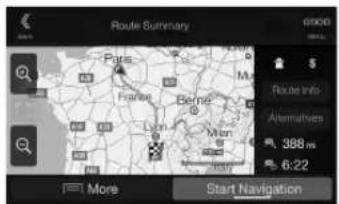

The route is calculated, and a map appears, showing the entire route. Here you can check route information and route alternatives.

Owner's manual Specifications

Specifications

MONITOR SECTION

Screen Size 9" (X902D/i902D)

8" (X802D-U)

7" (INE-W710D/iLX-702D)

LCD Type Transparent type TN LCD

Operation System TFT active matrix

Number of Picture Elements 1,152,000 pcs.

(800×480×3(RGB))

Effective Number of Picture Elements

99% or more

Illumination System LED

FM TUNER SECTION

Tuning Range 87.5 - 108.0 MHz

Mono Usable Sensitivity 8.1 dBf (0.7 μV/75 ohms)

50 dB Quiecting Sensitivity 12 dBi (1.1 μV//5 ohms)

Alternate Channel Selectivity 80 dB

Signal-to-Noise Ratio 65 dB

Stereo Separation 35 dB

Capture Ratio 2.0 dB

MW TUNER SECTION

Tuning Range 531 - 1,602 kHz

25.1 μV/28 dBf

Usable Sensitivity

LW TUNER SECTION

Tuning Range 153 - 281 kHz

31.6 μV/30 dBi

Sensitivity (IEC Standard)

DAB SECTION

Tuning Range BAND III

174.93-239.2MHz

Tuning Range L-BAND

1,452.96 - 1,490.6 MHz

Usable Sensitivity

Signal-to-Noise Ratio 95 dB

Stereo Separation 85 dB

USB SECTION

USB requirements USB 2.0

Max. Power Consumption

1,500 mA (CDP Support)

USB Class

USB (Mass Storage Class)

File System FAT16/32

Number of Channels

2-Channels (Stereo)

Frequency Response*

5 - 20,000 Hz (±1 dB)

Total Harmonic Distortion

0.008% (at 1 kHz)

Dynamic Range

95 dB (at 1 kHz)

Signal-to-Noise Ratio 100 dB

Channel Separation 85 dB (at 1 kHz)

*1 Frequency response may differ depending on the encoder software/bit rate.

HDMI SECTION

Input Format

720p/480p/480i/VGA

Output Format

480p

GPS SECTION

GPS Reception frequency

1,575.42 ±1 MHz

GPS Reception sensitivity

130 dB max.

Bluetooth SECTION

Bluetooth Specification

Frequency band

Output Power

Profile

Bluetooth v3.0

2,402-2,480MHz

+4 dBm Max. (Power class 2)

HFP (Hands-Free Profile)

OPP (Object Push Profile)

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

GENERAL

Power Requirement

Operating temperature

Maximum Power Output

Audio output level

Preout (Front, Rear):

Preout (Subwoofer):

Weight

14.4V DC

(11-16 V allowable)

-4°F to +140°F

(-20°C to +60°C)

50W×4

2V/10k ohms (max.)

2V/10k ohms (max.)

1.54 kg (3 lbs. 6 oz) (X802D-U) 1.41

kg (3 lbs. 2 oz) (INE-W710D/

iLX-702D)

CHASSIS SIZE

Width

Height

Depth

198 mm (7-13/16") (X802D-U) 178

mm (7") (INE-W710D/iLX-702D) 125

mm (4-15/16") (X802D-U) 100 mm

(3-15/16") (INE-W710D/iLX-702D)

14/mm(5-3/4")

NOSE SIZE

Width

Height

Depth

191 mm (7-1/2") (X802D-U)

171 mm (6-3/4") (INE-W/10D/

iLX-702D)

121 mm (4-3/4") (X802D-U)

96 mm (3-3/4") (INE-W710D/

ILX-702D)

19 mm (3/4")

• X902D/i902D is sized exclusively for a certain car model.
- Due to continuous product improvement, specifications and design are subject to change without notice.
- The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.

17-EN

• Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
• Apple, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Apple CarPlay is a trademark of Apple Inc.
• Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone, or iPod may affect wireless performance.
• "Made for iPod," and "Made for iPhone," mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.
  • Android is a trademark of Google Inc.
• The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution Licence.
• SPOTIFY and the Spotify logo are among registered trademarks of Spotify AB.
• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is under licence.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Supply of this product only conveys a licence for private, non-commercial use and does not convey a licence nor imply any right to use this product in any commercial (i.e. revenue-generation) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent licence for such use is required. For details, please visit http://www.mp3licensing.com
• ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Inhalt

WARNUNG 2

VORSICHT....3

Erste Schritte 4

Favoritenfunktion 6

Alpine Connect App (Option) (nur X902D/X802D-U/INE-W710D) ....7

Radio/RDS-Betrieb 8

Navigationsmenü (nur X902D/X802D-U/INE-W710D)....15

Für X802D-U/INE-W710D/iLX-702D

Gray curved arrow pointing downward (no text or symbols)

Gray curved arrow pointing downward (no text or symbols)

Simple gray upward arrow graphic pointing upward (no text or symbols)

Gray curved arrow pointing downward to the right (no text or symbols)

Menübildschirm

Alpine Connect App (Option) (nur X902D/X802D-U/INE-W710D)

7 Zoll (INE-W710D/iLX-702D)

LCD-Typ

Transparentes

Funktionsprinzip

TFT-Aktivmatrix

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

ALLGEMEINES

Spannungsversorgung

1,41 kg (INE-W710D/iLX-702D)

GEHÄUSEGRÖSSE

Breite

198 mm (X802D-U)

178 mm (INE-W710D/iLX-702D)

Höhe

125 mm (X802D-U)

100 mm (INE-W/10D/ILX-/02D)

Tiefe

147 mm

VORSPRUNGGRÖSSE

Breite

191 mm (X802D-U)

171 mm (INE-W710D/iLX-702D)

Höhe

121 mm (X802D-U)

96 mm (INE-W710D/iLX-702D)

Tiefe

19 mm

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Table des matières

AVERTISSEMENT 2

ATTENTION....3

Mise en route....4

Fonction Favoris ....6

Gray curved arrow pointing downward (no text or symbols)

Écran double (X902D/X802D-U/INE-W710D uniquement)

Simple gray upward arrow graphic pointing upward (no text or symbols)

Gray curved arrow pointing downward (no text or symbols)

Écran Menu

7" (INE-W710D/iLX-702D)

Type de LCD LCD TN de type transparent

1,41 kg (3 lbs. 2 oz) (INE-W710D/

(LX-/02D)

DIMENSIONS DU CHÂSSIS

Largeur

198 mm (7 -13/16") (X802D-U)

178 mm (7") (INE-W710D/iLX-702D)

Hauteur

125 mm (4-15/16") (X802D-U)

100 mm (3 -15/16") (INE-W710D/

(LX-/02D)

Profondeur

147 mm (5 -3/4")

DIMENSIONS DU NEZ

Largeur

191 mm (7-1/2") (X802D-U)

171 mm (6-3/4") (INE-W710D/

LX-702D)

Hauteur

121 mm (4-3/4") (X802D-U)

96 mm (3 -3/4") (INE-W710D/

ILX-702D)

Profondeur

19 mm (3/4")

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Contenido

ADVERTENCIA....2

PRUDENCIA 3

Primeros pasos....4

Para X802D-U/INE-W710D/iLX-702D

① Botón o VOICE

Para X902D/X802D-U/INE-W710D:

Gray curved arrow pointing downward and to the right (no text or symbols)

Pantalla dual (X902D/X802D-U/INE-W710D solo)

Gray curved arrow pointing downward (no text or symbols)

Simple gray upward arrow graphic pointing upward (no text or symbols)

Gray curved arrow pointing downward to the right (no text or symbols)

Pantalla de menús

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

GENERAL

1,41 kg (INE-W710D/iLX-702D)

TAMAÑO DEL CHASIS

Anchura 198 mm (X802D-U)

178 mm (INE-W710D/iLX-702D)

Altura

125 mm (X802D-U)

100 mm (INE-W710D/iLX-702D)

Profundidad 14/ mm

171 mm (INE-W/10D/iLX-702D)

Altura 121 mm (X802D-U)

96 mm (INE-W710D/iLX-702D)

Profundidad 19 mm

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Sommario

AVVERTENZA....2

ATTENZIONE 3

Per X802D-U/INE-W710D/iLX-702D

Gray curved arrow pointing downward and to the right (no text or symbols)

Schermata doppia (solo X902D/X802D-U/INE-W710D)

Gray upward-pointing arrow symbol on white background (no text or labels)

Gray curved arrow pointing downward (no text or symbols)

Gray curved arrow pointing downward and to the right (no text or symbols)

Schermata Menu

7" (INE-W710D/iLX-702D)

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serial Port Profile)

SPECIFICHE GENERALI

178 mm (INE-W710D/iLX-702D)

Altezza

125 mm (X802D-U)

100 mm (INE-W710D/iLX-702D)

Profondità 147 mm

171 mm (INE-W710D/iLX-702D)

Altezza

121 mm (X802D-U)

96 mm (INE-W710D/iLX-702D)

Profondità 19 mm

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Innehåll

WARNING....2

FÖRSIKTIGT....3

Komma igång....4

INSTALLATIONSTEKNIKER:

INKÖPSSTÄLLE:

Gray curved arrow pointing downward and to the right (no text or symbols)

Dubbel skärmbild (endast X902D/X802D-U/INE-W710D)

Gray curved arrow pointing downward (no text or symbols)

Gray curved arrow pointing downward and to the right (no text or symbols)

Menyskärm

7 tum (INE-W710D/iLX-702D)

LCD-typ Genomskinlig typ TN LCD

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile)

SPP (Serieport-Profil)

ALLMÄNT

Ingångsspänning

1,41 kg (INE-W710D/iLX-702D)

CHASSISTORLEK

Bredd

178 mm (INE-W710D/iLX-702D)

100 mm (INE-W710D/iLX-702D)

Djup

NOSSTORLEK

Bredd

171 mm (INE-W710D/iLX-702D)

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Inhoud

WAARSCHUWING....2

OPGELET....3

Aan de slag 4

Alpine Connect App (Optioneel) (alleen X902D/X802D-U/INE-W710D) ....7

Radio-/RDS-bediening 8

■ Voor X802D-U/INE-W710D/iLX-702D

① of VOICE-knop

⑥ (PHONE) (alleen X902D/i902D)-knop

Simple gray curved arrow pointing downward (no text or symbols)

Dubbel scherm (alleen X902D/X802D-U/INE-W710D)

Simple gray upward arrow graphic pointing upward (no text or symbols)

Gray curved arrow pointing downward (no text or symbols)

Gray curved arrow pointing downward to the right (no text or symbols)

Menuscherm

Alpine Connect App (Optioneel) (alleen X902D/X802D-U/INE-W710D)

80 dB
65	dB
35		dB
2,0	dB

MW-TUNERGEDEELTE

• X902D/i902D is sized exclusively for a certain car model.

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Содержание

ПРЕДУПРЕЖДЕНИЕ 2

ВНИМАНИЕ....3

Модель X802D-U/INE-W710D/iLX-702D

① Кнопка или VOICE

Simple gray curved arrow pointing downward (no text or symbols)

Simple gray upward arrow graphic pointing upward (no text or symbols)

Gray curved arrow pointing downward (no text or symbols)

предварительно

178 mm (INE-W710D/iLX-702D)

Высота

125 mm (X802D-U)

100 mm (INE-W/10D/iLX-/02D)

Глубина

147 mm

171 mm (INE-W710D/iLX-702D)

Высота

121 mm (X802D-U)

96 mm (INE-W/10D/iLX-/02D)

Глубина

19mm

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

Сделано в Японии

Spis treści

OSTRZEŻENIE....2

PRZESTROGA....3

Wprowadzenie 4

Dla X802D-U/INE-W710D/iLX-702D

Dia X902D/X802D-U/INE-W710D:

Simple gray curved arrow pointing downward (no text or symbols)

Gray curved arrow pointing downward (no text or symbols)

Simple gray upward arrow graphic on white background (no text or symbols)

Ekran menu

7 cali (INE-W710D/iLX-702D)

1,41 kg (INE-W710D/iLX-702D)

WYMIARY KORPUSU

Szerokość

198 mm (X802D-U)

1/8 mm (INE-W/10D/iLX-/02D)

Wysokość

125 mm (X802D-U)

100 mm (INE-W710D/iLX-702D)

Głębokość

147 mm

WYMIARY PŁYTY CZOŁOWEJ

Szerokość

191 mm (X802D-U)

171 mm (INE-W/10D/iLX-702D)

Wysokość

121 mm (X802D-U)

96 mm (INE-W710D/iLX-702D)

Głębokość

19 mm

- ©2006-2016 TomTom. All rights reserved. This material is proprietary and the subject of copyright protection, database right protection and other intellectual property rights owned by TomTom or its suppliers. The use of this material is subject to the terms of a license agreement. Any unauthorized copying or disclosure of this material will lead to criminal and civil liabilities.

WYŁĄCZNY DYSTRYBUTOR

HORN DISTRIBUTION S.A.

UL. KURANTÓW 34

02-873 WARSZAWA

TEL.: [phone]

FAX.: [phone]

WWW.ALPINE.COM.PL

Centralny Serwis:

About the Rules of Bluetooth Electromagnetic Radiation Regulation

Declaration of Conformity

ALPINE®

ALPINE ELECTRONICS MARKETING, INC.

1-7, Yukigaya-Otsukamachi, Ota-ku,

Tokyo 145-0067, JAPAN

Phone: [phone]

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway,

Hallam Victoria 3803, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Alpine House Fletchamstead Highway,

Coventry CV4 9TW, U.K.

www.alpine.co.uk

ALPINE ELECTRONICS France S.A.R.L.

2-6-34, Takashima, Nishi-ku, Yokohama,

Kanagawa, Japan

Printed in Japan
