USER MANUAL IVR1785S INVENTUM

1. safety instructions page 15
2. appliance description page 21
3. before first use page 21
4. how to operate the appliance page 22
5. placing food in the appliance page 23
6. cleaning & maintenance page 23
7. troubleshooting page 24

General terms and conditions of service and warranty page 51

Deutsch

1 Safety instructions

GENERAL SAFETY INSTRUCTIONS

- Fully read the instruction manual prior to using the appliance.

• Carefully store the instruction manual for future reference or subsequent owners.
• Only use this appliance for the purpose described in the instruction manual. This appliance is intended as a built-in device.
• Do not allow children to play or hide inside the appliance - there is a risk of becoming trapped and suffocating.
• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and supply cord out of reach of children younger than 8 years of age.
• The manufacturer is not responsible for damage which is caused by improper use or incorrect operation.

Warning: Danger of suffocation!

Packaging material is dangerous to children. Keep the packaging material out of the reach of children.

• This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their safety, or have been instructed in how to use the appliance safely and have understood the risks involved in not using it properly.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  Children must not play with the appliance.
• Cleaning and user maintenance must not be performed by children unless they are supervised.

• This appliance is intended to be used in household and similar applications, such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses and by clients in hotels, motels and other residential environments;

• Bed and breakfast type environments;

• Catering and similar non-retail applications.

• If the safety instructions and warnings are not observed, the manufacturer cannot be held liable for any resulting damage.
• Damage as a result of incorrect connection, incorrect installation or incorrect use does not fall under the warranty.

REFRIGERANT

Caution:

fire

• The refrigerant isobutene R600a is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. WARNING: Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to disposal. If the refrigerant circuit should be damaged, avoid open flames and sources of ignition and thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the power supply cord may cause a short-circuit, fire, and/or electric shock.

SAFETY INSTRUCTIONS FOR INSTALLATION

• The appliance must be handled and installed by two or more persons.
• Wear safety gloves to unpack and install the appliance.
• Only connect the appliance to alternate current, to an earthed mains socket. Make sure that the voltage in your home corresponds with the voltage printed on the type plate of the appliance.
• After unpacking the appliance, make sure that it has not been damaged during transport. If this is the case, do not install the appliance before consulting the dealer of our service department.
• The appliance may only be fitted by a certified installer.
• The electrical connection must meet national and local

regulations.

• The connection point, mains socket and mains plug must always be accessible.
• The appliance must always be earthed.
• Do not operate the appliance with an external timer or a separate remote control system.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Warning: Risk of electric shock

• Make sure that the power supply cord does not get damaged during installation or is running along sharp edges.

• Be careful not to damage the floor when you move the appliance.

• When moving the appliance, do not lift it or pull it by the door(s).
• Make sure the appliance is not positioned near a heat source.
• Do not place heat generating appliances such as (microwave) ovens above the appliance.
• Make sure that there is sufficient ventilation, leave a space of at least 4cm at the back of the appliance.

Caution:

Do not damage the refrigerant circuit pipes of the appliance.

Caution:

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Install the appliance on a firm and stable surface.
• Install the appliance in a dry and well ventilated area. The appliance is intended for operation in environments where ambient temperatures fall within the following ranges, depending on the appliance. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climate class Ambient temperature
SN From 10°C to	32°C
N From 16°C to	32°C
ST From 18°C to	38°C
T From 18°C to	43°C

SAFETY INSTRUCTIONS FOR OPERATION

• Only use the refrigerator compartment for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not use the appliance outdoors.
• Wait at least three hours before switching the appliance on, to ensure the refrigerant circuit is fully efficient.

Warning: Risk of fire

• Do not store explosive substances such as aerosol cans or other flammable materials in or near your appliance.

• Do not store glass bottles or containers with liquids in the freezer compartment, since they may break.

• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer, since they may cause frost burns.
• Do not re-freeze frozen goods after they have thawed out. This may cause health issues like food poisoning.

SAFETY INSTRUCTIONS FOR CLEANING AND MAINTENANCE

• Always disconnect the appliance from the mains supply before carrying out any work or maintenance on it.
• Do not use a high-pressure cleaner or steam cleaner to clean the appliance

Caution:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use abrasive or harsh cleaners such as window sprays, scouring cleaners, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door lines or gaskets. Do not use paper towels, scouring pads or other harsh cleaning tools.

Warning: Risk of electric shock

• Always carry out regular checks of the appliance and the power supply cord to ensure no damage is evident. Should there be any signs that the appliance or power supply cord is damaged in the slightest degree, contact the customer service department. If the power supply cord is damaged, it must only be replaced by the manufacturer, its service organization agent or similarly qualified persons, in order to prevent hazardous situations. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

Warning:

• The light source shall be replaced by a certified installer.
• Energy efficiency class: F

INFORMATION ABOUT HOW TO AVOID FOOD CONTAMINATION

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order Com	partments TYPE	Target storage temp. [℃]	Appropriate food
1 Fridge +2	+8 Eggs, cooked food	packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer ≤-18 Seafood (fish, shrimp, shellfish), fresh water aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), fresh water aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer ≤-12 Seafood (fish, shrimp, shellfish), fresh water aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer ≤-6 Seafood (fish, shrimp, shellfish), fresh water aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
6 0-star -6	0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.(recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods).
7 Chill		-2 ~ +3	Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C).
8 Fresh food		0 ~ +4	Fresh pork, beef, fish, chicken, cooked food, etc. (recommended to eat within the same day, preferably no more than 3 days).
9 Wine +5 ~	+20 Red wine, white wine, sparkling wine, etc.

NOTE:

Please store different foods according to the compartments or target storage temperature of your purchased products..

If the refrigerating appliance is left empty for long periods, switch off. Defrost, clean and dry it and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.

WARNING

• Food needs to be packed in bags and liquids in bottles or capped containers before putting into the refrigerator to avoid the problem that the inside of the appliance is not easy to clean.

ENVIRONMENTAL PROTECTION

The appliance is energy-efficient. Save even more energy when using the appliance with the following tips, and how to dispose of your appliance in an environmentally-friendly way.

Saving energy

• A high ambient temperature will have a negative effect on the energy consumption. Direct sunlight and other heat sources near the appliance also have a negative effect.
• Keep ventilation holes free. Covered and dirty holes cause a high energy consumption. Ensure sufficient space around the refrigerator, so that a proper ventilation and air flow around the appliance is possible.
• Do not open the doors of the appliance more often than necessary and leave the doors open as briefly as possible.
  The distance between the shelves and the rear wall ensurs a free air circulation. Do not place food against the rear wall.
• Set the thermostat to a lower setting if circumstances allow.
• Allow cooked food that you want to store in the appliance to cool down to room temperature before placing it in the appliance.
• A door rubber that does not close properly could increase the energy consumption. Therefore, have it replaced by a qualified person in time.
• If the instructions are not observed, this could lead to a higher energy consumption.

Environmentally-friendly disposal

Recycling - WEEE

• Dispose of packaging in an environmentally-friendly manner.
• This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

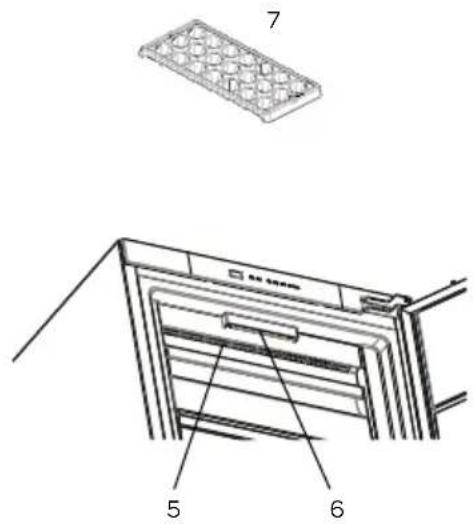

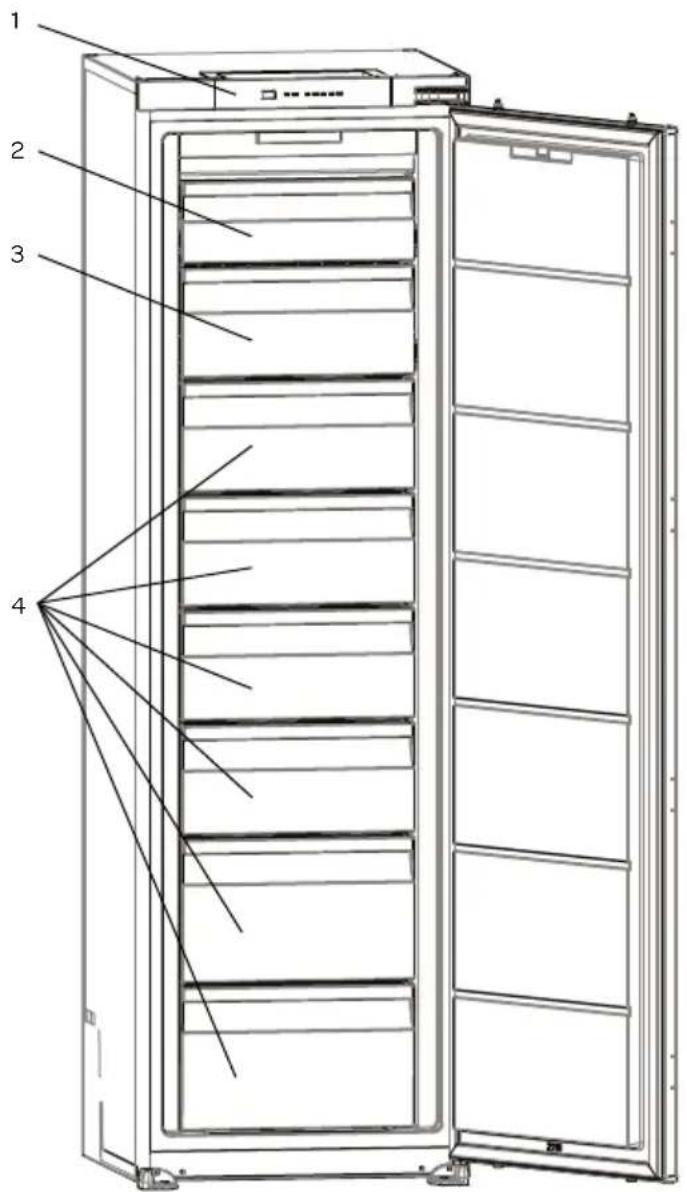

2 appliance description

1. Operating panel
2. Freezer compartment with cover
3. Freezer compartment
4. Freezer drawers
5. No Frost circulation system
6. Interior lighting
7. Ice cube holder

3 before the first use

After installation, leave the appliance for at least 3 hours before inserting the plug into the socket. The cooling circuit must be stabilised, before the appliance is able to work efficiently.

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface.

The installation procedure is given in the Installation Instructions.

Clean the appliance thoroughly, especially in the interior, before use (see Cleaning & Maintenance).

The installation and electrical connection must be carried out by a qualified technician, in accordance with installation instructions and local regulations.

The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must correspond with the details on the rating label of the appliance. The rating label is located on the inside left of the appliance.

There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

In order to ensure a smooth and vibration-free operation of your freezer, the adjustable front feet must be adjusted to a suitable height and mutually balanced. You can guarantee this by rotating the adjustable feet clockwise or anti-clockwise. Do the following before placing food in the freezer.

Before you start using the freezer, you should wipe all components with warm soapy water with washing-up liquid, all-purpose cleaner or soda, for example. Wipe the inside and components of the freezer after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours.

4 how to operate the appliance

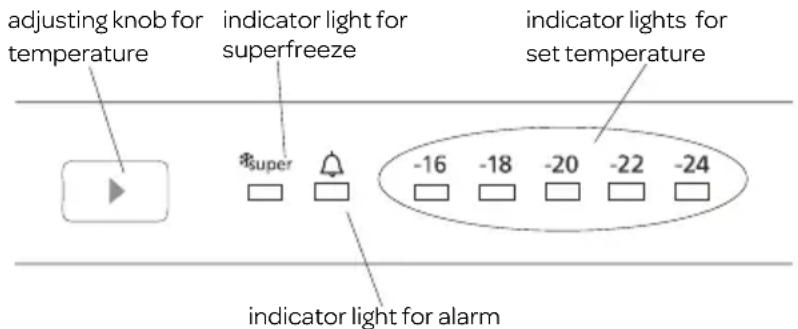

ADJUSTING THE TEMPERATURE

With the temperature adjusting knob you are able to adjust the freezer's temperature.

Also use the adjusting knob to activate the superfreeze setting.

The standard setting of the temperature is -18^

The appliance will now cool continuously until the set temperature has been reached. Allow the appliance to reach the required temperature with no food in the freezer. Usually this will take 2 to 3 hours. After that, you can set the required temperature and fill the freezer with food.

Repeatedly press the knob until the indicator light of the required temperature lights up. The temperature settings are shown in the following sequence. -16^ , -18^ , -20^ , -22^ , -24^ and superfreeze.

If you press the adjusting knob until the indicator light for superfreeze lights up, it will start to flash after 3 seconds. superfreeze is now active.

ALARM

If there is a problem with the freezer, the indicator light for the alarm will light up. Check what the problem could be in chapter 7.

SUPERFREEZE

When can superfreeze be used?

• If you want to freeze large quantities of food at once
  If you want to freeze food quickly

• If you want to store seasonal vegetables properly for a longer period of time

• Press the adjusting knob until the indicator light for superfreeze lights up. The light will remain on as long as superfreeze remains active.

• In order to make optimum use of the superfreeze setting, you must activate it 24 hours before placing the fresh food in the freezer.
• You can deactivate superfreeze by pressing the adjusting knob once more.

superfreeze is deactivated automatically after 24 hours or when the thermostat sensor gets below -32^

FORA+APPLIANCES

The freezer compartment, indicated by means of the **** symbol, is used to store frozen food and freeze fresh or prepared food. It also provides the possibility of making ice cubes.

Attention:

The ambient temperature, the temperature of the recently stored food and the frequency by means of which the door is opened, have an effect on the temperature in the freezer. Take this into account when setting the thermostat.

• superfreeze is deactivated automatically after 24 hours or when the thermostat sensor gets below -32^ .
• You should never place hazardous, highly flammable or explosive substances such as alcohol, acetone or petrol in the freezer, because there will be a hazard of explosion.
• A 5 minute delay function is used to prevent damage to the freezer's compressor when you remove the plug and insert it in the socket again to switch on the freezer or during a power interruption. Your freezer starts working normally after 5 minutes.

22·English

ACCESSORY

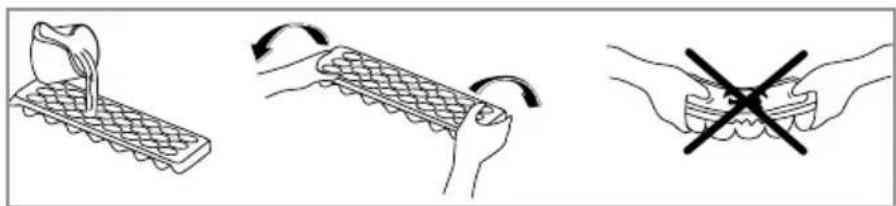

Ice cube mould

• Fill the ice cube mould with water and place it in the freezer section.
• Once the water is fully frozen, you can bend the mould as shown below in order to remove the ice cubes.

5 placing food in the appliance

The freezer offers you the possibility to store deep-frozen products, freeze fresh foods and make ice cubes.

• Do not freeze too much at once. The quicker the freezing process, the longer the quality of the food is maintained.
• Ensure that the foods are properly packaged, so that flavour is maintained and no odour is given off to other foods.
• Place the deep-freeze products in the freezer compartment as quickly as possible after purchase. Make sure they do not defrost during transport.
  Storage of freshly frozen and deep-freeze products depends on the type of food.
• Properly package fresh foodstuffs and properly close the packaging. The packaging must be air-tight and should not leak. Special freezer bags, aluminium film (double packaging in case of doubt) or freezer containers are ideal.
• Write packaging date and contents on the packaging if you want to freeze leftovers.
• Do not place hot food in the freezer.
• Do not place glass bottles or cans in the freezer compartment. These can break when the contents freeze. Carbonated drinks could even explode. Therefore never store lemonade, beer, wine, champagne, etc. in the freezer compartment.
  Once the foods have defrosted, they should never be frozen again. Cook or bake them before you can freeze them again.
• In the case of a power interruption or breakdown, the freezer section will retain a temperature that is low enough to store the foods. But try not to open the door of the freezer section too often, so that the temperature does not rise.
  Try not to open the door too often and do not leave the door open for any longer than necessary.
  The use-by date and recommended temperature for storing deep-freeze products are stated on the packaging. Observe the storage instructions on the packaging. If it does not contain any information, you should never store the food for longer than three months.

6 cleaning and maintenance

Before cleaning the freezer, switch off the appliance, remove the plug from the socket.

Clean the inside of the freezer. Use warm soapy water with, for instance, washing-up liquid, all-purpose cleaner or soda in order to prevent nasty smells. Wipe the inside of the freezer after cleaning with clean water and properly wipe everything dry. Leave the appliance to dry for 1 to 2 hours. The drawers can be removed from the freezer easily and washed by hand. These components may never be cleaned in the dishwasher.

Clean the outside of the freezer and the door rubbers with a soft damp cloth.

Clean the rear of the freezer at least one per year with a vacuum cleaner, so that the condenser and ventilation holes remain clean and the freezer is able to function as optimal as possible.

DEFROSTING THE FREEZER SECTION

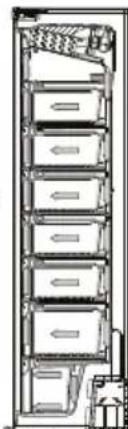

The freezer section of this appliance is free from frost - no-frost. If used correctly, no ice will be formed.

Dry and cold air is evenly distributed in the freezer and freezer compartments by means of the fan. Cold air distributed between the shelves will evenly cool all your food, as a result of which humidity and frost are prevented.

That is why your no-frost freezer offers ease of use, in addition to the huge capacity and stylish appearance.

If an ice layer is created after all, defrost the freezer section when the ice layer has reached a thickness of 3 mm. Remove all products from the freezer section. Store the frozen products on a cool location, packaged in newspapers and blankets. Remove the plug from the socket and keep the door of the cooler section closed while defrosting the freezer section.

Defrost the freezer section Defrosting can be accelerated by placing a tray with hot water in the freezer section. Do not use sharp metal objects to scrape the freezer section clean, use a plastic ice scraper.

Clean and dry the freezer section. Insert the plug in the socket and set the thermostat to the required setting. Place the frozen products back in the freezer section once it has reached the required temperature.

Warning Never remove ice with sharp objects, defrosting sprays, a hair dryer, a heater or something similar. This could lead to unsafe situations and cause irreparable damage to the appliance.

TIPS

• A high ambient temperature will have a negative effect on the energy consumption. Direct sunlight and other heat sources near the freezer also have a negative effect.
• Keep ventilation holes free. Covered and dirty holes cause a high energy consumption. Ensure sufficient space around the freezer, so that a proper ventilation and air flow around the freezer is possible.
• Do not open the door of the freezer more often than necessary and leave the door open as short as possible.
• Set the thermostat to a lower setting if circumstances allow.
• Frost or ice will increase power consumption. Therefore, these should be removed regularly once they are 3 to 5 mm thick.
• A door rubber that does not close properly could increase the power consumption.
• The condenser at the rear of the freezer must always be kept clean and free from dust.
• If the instructions are not observed, this could lead to a higher power consumption.
• If you do not use the appliance for a longer period of time (e.g. during holidays), switch off the freezer by removing the plug from the socket. Defrost and clean the freezer. Leave the doors slightly open to prevent moulds and smells.

7 troubleshooting

If your freezer does not work properly, this can be caused by a minor problem. First check the following items before contacting an electrician. This will save you time and money.

Problem Cause Solution
Appliance does not do anything	- Plug not in socket - Power interruption - Thermostat is set to •	- Insert the plug in the socket - Check the fuse box - Set the thermostat to setting 1 to 5
Temperature in the freezer is too high or too low	Incorrect thermostat setting Set the thermostat to the correct setting
	Ventilation holes are blocked Clean the ventilation holes
Appliance makes noise Is the appliance properly installed? Check the installation - is the freezer level?
			Does the rear of the freezer make contact with something?	Check this and move the freezer forward
The ALARM indicator light lights up.	The plug is inserted in the socket for the first time or there has been a power interruption of at least one hour.	Check that the door of the appliance is properly closed and check that the appliance has been on for more than one hour. If this is not the case, contact customer service.
	A component is defective or there is a breakdown in the cooling process.	Contact customer service.

Note: During normal use of the cooling appliance, different types of noises can occur that do not have any effect on the correct operation of the appliance.

Noises that can be heard during normal use of the appliance are caused by the operation of the thermostat, compressor (activation), cooling system (shrinkage and expansion of the material under the influence of temperature differences and flow of cooling liquid).

Le compartment congestion est no-frost.

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
  The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and printing errors reserved

facebook.com/inventum1908

pinterest.com/inventum1908

youtube.com/inventum1908

instagram.com/inventum1908
