USER MANUAL SKWH 5 A1 SILVERCREST

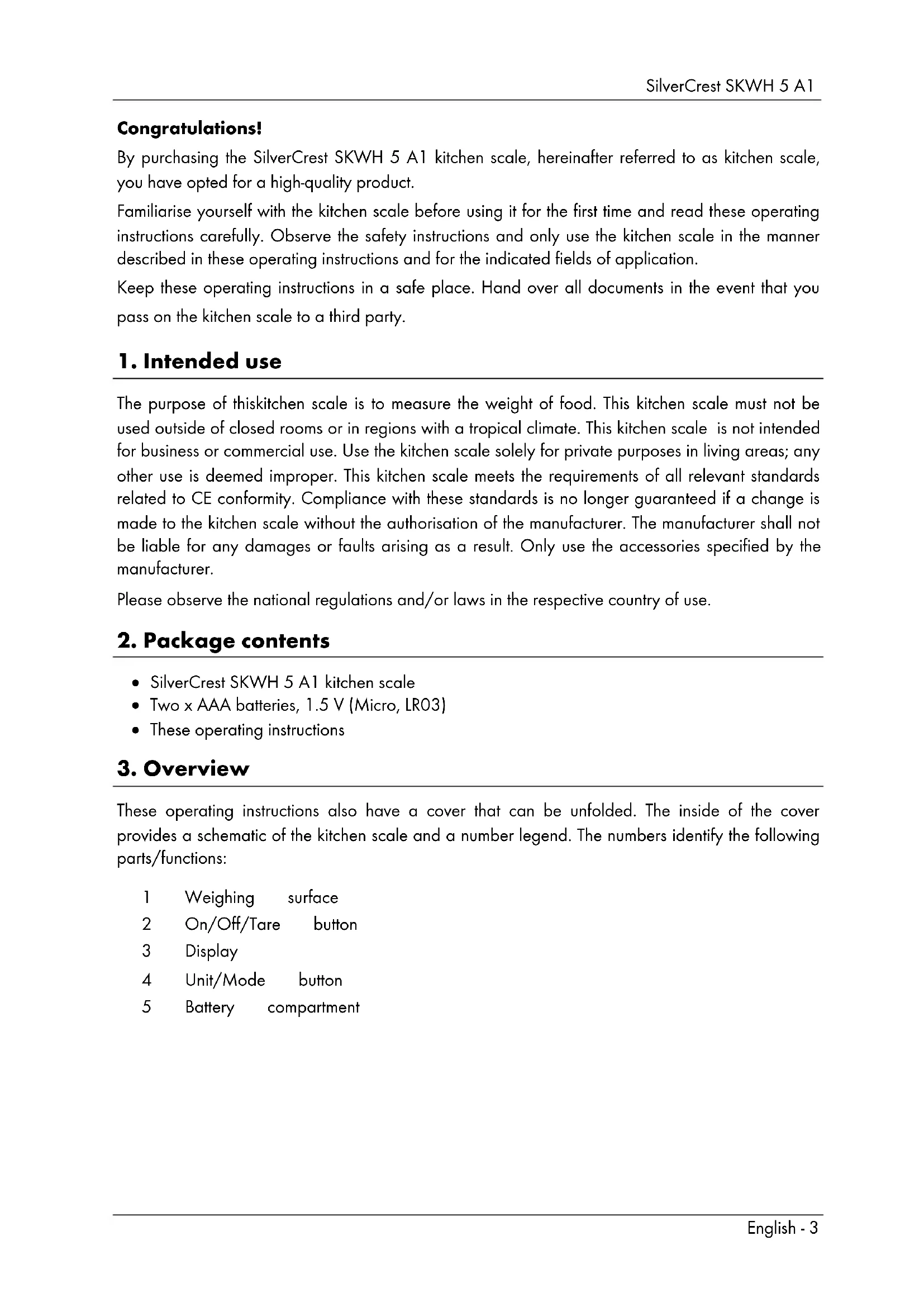

15. Notes on guarantee and serv ice ................................................................. 12SilverCrest SKWH 5 A1 English - 3 Congratulations! By purchasing the SilverCrest SKWH 5 A1 kitchen scale, hereinafter referred to as kitchen scale, you have opted for a high-quality product. Familiarise yourself with the kitchen scale before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the kitchen scale in the manner described in these operating instructions and for the indicated fields of application. Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the kitchen scale to a third party.

The purpose of thiskitchen scale is to measure the weight of food. This kitchen scale must not be used outside of closed rooms or in regions with a tropical climate. This kitchen scale is not intended for business or commercial use. Use the kitchen scale solely for private purposes in living areas; any other use is deemed improper. This kitchen scale meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the kitchen scale without the authorisation of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result. Only use the accessories specified by the manufacturer. Please observe the national regulations and/or laws in the respective country of use.

SilverCrest SKWH 5 A1 kitchen scale Two x AAA batteries, 1.5 V (Micro, LR03) These operating instructions

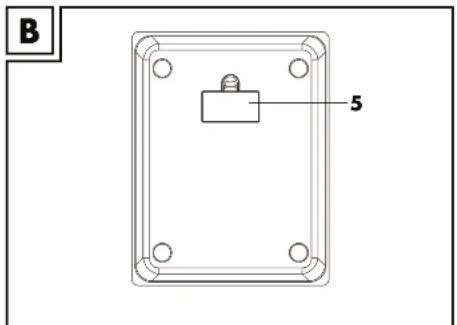

These operating instructions also have a cover that can be unfolded. The inside of the cover provides a schematic of the kitchen scale and a number legend. The numbers identify the following parts/functions: 1 Weighing surface 2 On/Off/Tare button 3 Display 4 Unit/Mode button 5 Battery compartmentSilverCrest SKWH 5 A1

Operating voltage: 3 V (direct current) Batteries: Two x AAA batteries, 1.5 V (Micro) Weight units: g / oz / ml / lb:oz / fl.oz (switchable) Weighing surface: Max. 5 kg/11 lb Increments: 1 g / 0.01 oz Auto power-off: yes Dimensions (W x H x D): approx. 175 x 225 x 20 mm Weight: Approx. 550 g Operating temperature: +10°C to +40°C The specifications and design are subject to change without notice.

Before using the kitchen scale for the first time, read the following instructions carefully and observe all warnings, even if you are familiar with using electronic devices. Keep these operating instructions in a safe place for future reference. If you give away the kitchen scale or sell it, please ensure that you also pass on this manual. It is part of the product. DANGER! This icon, in conjunction with the word ‘Danger’, indicates an impending dangerous situation which, if not prevented, may lead to serious injuries or even death.SilverCrest SKWH 5 A1 English - 5

WARNING! This icon, in conjunction with the word ‘Warning’, indicates important information for the safe operation of the device and user safety.

This icon indicates that further information on the topic is available.

DANGER! This kitchen scale can be used by children aged eight and over, as well as by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, providing they are supervised or have been instructed in the safe use of the kitchen scale and understand the resulting dangers. Children must not play with the kitchen scale. Cleaning and user maintenance must not be carried out by children unless they are supervised. Also keep the packaging film away from children. There is a risk of suffocation. DANGER! Do not exceed the kitchen scale weight allowance of 5 kg/11 lb. This could damage the kitchen scale and there is a risk of electric shock

DANGER! Make sure there are no naked flames (for example, burning candles) placed on or near the kitchen scale. There is a risk of fire!SilverCrest SKWH 5 A1

lways insert batteries with the correct polarity. When doing so, observe the label in the battery compartment. Do not try to recharge the batteries and never throw them onto a fire. Do not use different batteries (old and new, alkaline and carbon etc.) at the same time. Remove the batteries if you intend not to use the device for a longer period of time. There is a risk of explosion and leakage if the device is not used properly. Batteries are not a toy. In the event that the batteries are swallowed, seek immediate medical attention. Batteries must not be opened or deformed in any way because leaking chemicals can cause injury. If it comes into contact with the skin or eyes, rinse/wash the area with plenty of water and seek medical attention. WARNING! If you notice any smoke, unusual noises or smells, remove the batteries from the kitchen scale immediately. In such cases, the kitchen scale should not be used until it has been inspected by authorised service personnel. Do not inhale smoke possibly caused by a burning device. If you have inhaled smoke, consult a physician. Inhaling smoke can be harmful to your health.SilverCrest SKWH 5 A1 English - 7 WARNING! In order to avoid hazards, the kitchen scale must not become damaged. WARNING! If the batteries have leaked, remove them to avoid damaging the device. You can remove leaked battery fluids with a dry, absorbent cloth. When doing so, wear suitable gloves! Contact with your skin must be avoided. If it comes into contact with the skin or eyes, rinse/wash the area with plenty of water and seek medical attention. WARNING! The kitchen scale must not be exposed to direct sources of heat (for example, heaters), direct sunlight or strong artificial light. Also avoid contact with splashing and dripping water as well as aggressive liquids. Do not use the kitchen scale near water. In particular, the kitchen scale must never be immersed. Also ensure that the kitchen scale is not exposed to excessive shocks and vibrations. Furthermore, no foreign bodies should penetrate into the device. This could damage the kitchen scale.SilverCrest SKWH 5 A1

All contents of these operating instructions are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

Remove the strips from the battery compartment (5) on the bottom of the kitchen scale. The kitchen scale is now ready to use. If the kitchen scale does not switch on, please check whether the batteries were moved when the protective strip was pulled out.

To ensure correct measurements, it is important that there a firm base underneath. Therefore, ensure that the kitchen scale is always placed on a firm, level base. Otherwise, the measurement result may not be accurate.

8.1 Switching on/weighing with kitchen scale

Press the On/Off/Tare button (2) to switch on the kitchen scale. The set measurement unit or weight unit will appear on the display (3). The meanings of the symbols are as follows: Symbol Meaning Tare The kitchen scale was reset to zero Weight (g, oz, lb:oz) Liquid (ml, fl.oz) Milk (ml, fl.oz) Press the Unit/Mode button (4) to change the measurement and weight units. Place the item to be weighed on the weighing surface (1). The measurement result will appear on the display (3). Remove the weighed item from the weighing surface if you do not wish to weigh anything else. If you would like to add another item to weigh, please refer to the ‘Tare function’ chapter.SilverCrest SKWH 5 A1 English - 9

Press the On/Off/Tare button (2) to weigh another item. The kitchen scale will now reset itself to zero. ‘Tare’ will also appear in the display (3). Now add the new item that you would like to weigh. The measurement result of the new item you are weighing now appears in the display (3). Repeat the process if you wish to add more items to weigh. When doing so, the maximum total weight must not exceed 5 kg. Remove the weighed item from the weighing surface if you do not wish to weigh anything else. Press the On/Off/Tare button (2) to end the tare function. The kitchen scale will now reset itself to zero. ‘Tare’ will no longer appear on the display (3).

8.3 Automatic switch-off

The kitchen scale has an automatic switch-off function. If the kitchen scale is not used for two minutes, it will automatically switch itself off. Press and hold the On/Off/Tare button (2) for approximately three seconds to switch off the kitchen scale manually.

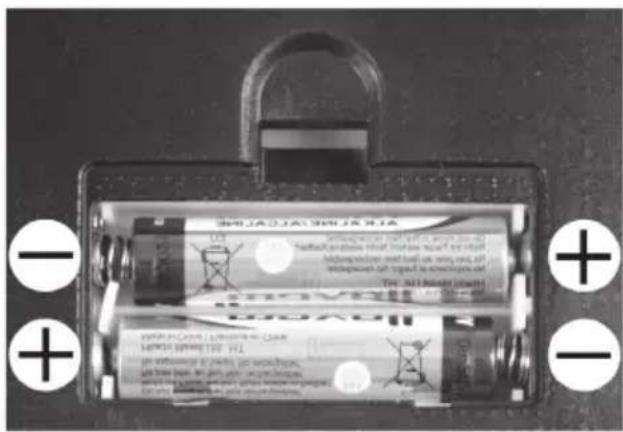

8.4 Inserting/changing the batteries

To insert batteries, remove the battery compartment cover on the bottom of the kitchen scale by inserting your finger into the recess on the side of the battery compartment (5). Now prise the battery compartment cover (5) off the battery compartment. Now insert the new batteries or remove the batteries if they are empty. Ensure the correct polarity (+ and -) when inserting the batteries. The polarity is marked on the batteries and in the battery compartment (5). Then reattach the battery compartment lid on the battery compartment (5) until you hear it click into place.SilverCrest SKWH 5 A1

9.1 Nothing appears on the display

The batteries were moved when the protective strip was pulled out. Insert the batteries again correctly. The batteries are dead. Please replace the batteries with new batteries of the same type. Please refer to the instructions in the ‘Inserting/changing the batteries’ section. The batteries were inserted incorrectly. Please refer to the instructions in the ‘Inserting/changing the batteries’ section.

9.2 ‘LO’ appears on display and scale switches off

The batteries are almost empty. Please replace the batteries with new batteries of the same type. Please refer to the instructions in the ‘Inserting/changing the batteries’ section.

9.3 ‘Err’ appears on display

The weight exceeds the maximum load capacity of 5 kg. Remove the items from the weighing surface (1) immediately to avoid damaging the kitchen scale.

10. Maintenance/cleaning

Maintenance work is required if the kitchen scale has been damaged, for example if the device housing is damaged, liquids or objects have got inside the device, or if the device has been exposed to rain or moisture. Maintenance work is also required if the device does not work properly or has been dropped. If you notice any smoke, unusual noises or smells, remove the batteries from the kitchen scale immediately. In such cases, the kitchen scale should not be used until it has been inspected by authorised service personnel. All maintenance work should only be carried out by qualified specialists. Never open the housing of the kitchen scale.

Clean the kitchen scale using a clean, slightly damp cloth and never use abrasive liquids. Use some washing up-liquid on the damp cloth for stubborn stains.SilverCrest SKWH 5 A1 English - 11

11. Storing the device when not in use

If the kitchen scale is not going to be used for a longer period of time, store it in a safe, clean and dry place. Remove the batteries. Before storing the device, clean it thoroughly as described in the previous section.

12. Environmental and waste disposal information

If a product features this icon of a crossed-through waste bin, the product is subject to European Directive 2012/19/EU. Electrical and electronic equipment must not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. The batteries must be removed from the device before it is disposed of. Further information on disposing of old devices can be obtained from your local authority or the shop where you purchased the product. Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally- friendly manner.

12.1 Disposing of batteries

Think about environmental protection. Used batteries do not belong in normal domestic waste. You must dispose of them at a collection point for old batteries. Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.

13. Food contact authenticity

This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs.SilverCrest SKWH 5 A1

14. Marks of conformity

This product fulfils the requirements specified in the applicable European and national policies. Its conformity has been verified. The declarations and documents are stored with the manufacturer. You can download the full EU declaration of conformity at the following link: www.targa.de/downloads/conformity/296970.pdf

15. Notes on guarantee and service

Warranty of TARGA GmbH Dear Customer, This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below. Warranty conditions The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate. Warranty period and legal warranty rights The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge. Scope of warranty The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced. Submitting warranty claims To ensure speedy handling of your complaint, please note the following:SilverCrest SKWH 5 A1 English - 13 - Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline. - Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase. - If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Manufacturer Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH Coesterweg 45 DE-59494 Soest GERMANYSilverCrest SKWH 5 A1
