USER MANUAL TCTS 20251 UA EINHELL

1. Safety regulations

2. Layout and items supplied

5. Before starting the equipment

10. Cleaning, maintenance and ordering of spare parts

11. Disposal and recycling

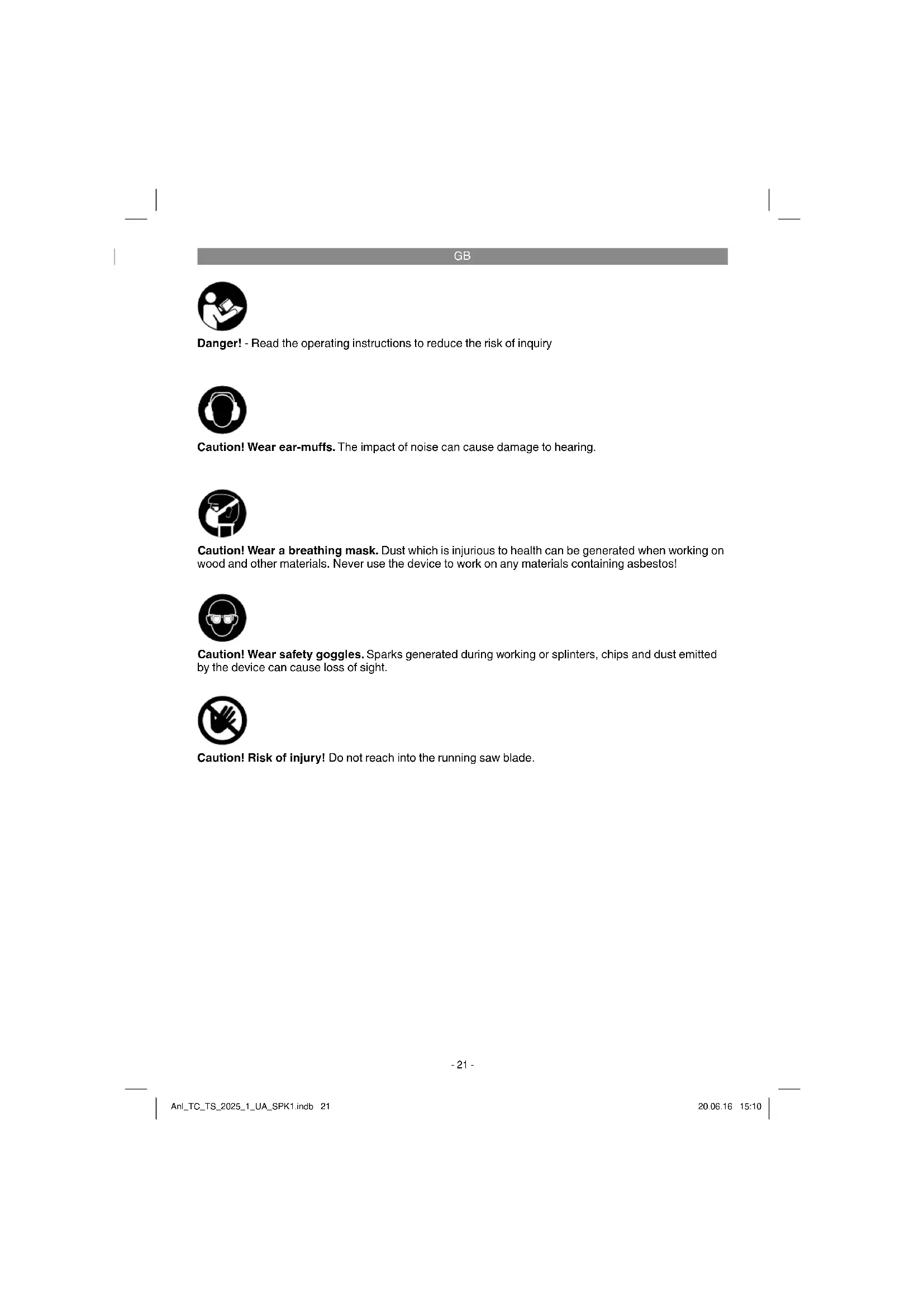

Danger! - Read the operating instructions to reduce the risk of inquiry Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Caution! Risk of injury! Do not reach into the running saw blade. Anl_TC_TS_2025_1_UA_SPK1.indb 21Anl_TC_TS_2025_1_UA_SPK1.indb 21 20.06.16 15:1020.06.16 15:10GB

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

Ring wrench 10/13 mm

Original operating instructions

The bench-type circular saw is designed for the slitting and cross-cutting (only with the cross stop) of all types of timber commensurate with the machine‘s size. The equipment is not to be used for cutting any type of round wood. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes. The equipment is to be operated only with suita- ble saw blades (saw blades made of HM or CV) It is prohibited to use any type of HSS saw blade and cutting-off wheel. To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with these operating instructions and must be informed about the equipment‘s potential hazards. It is also imperati- ve to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work. The manufacturer will not be liable for any chan- ges made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossi- ble to eliminate certain residual risk factors. The following hazards may arise in connection with the machine‘s construction and design:

Contact with the saw blade in the uncovered saw zone.

Reaching into the running saw blade (cut injuries).

Kick-back of workpieces and parts of work- pieces.

Catapulting of faulty carbide tips from the saw blade.

Damage to hearing if essential ear-muffs are not used.

Harmful emissions of wood dust when used in closed rooms.

Thickness of the splitter .......................... 2.0 mm Operating mode S6 25%: Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it may only be operated for 25% of the cycle at the specifi ed rating and must then be allowed to idle for 75% of the cycle. Danger! Sound and vibration Sound and vibration values were measured in accordance with EN 61029. Anl_TC_TS_2025_1_UA_SPK1.indb 23Anl_TC_TS_2025_1_UA_SPK1.indb 23 20.06.16 15:1020.06.16 15:10GB

uncertainty .............................................3 dB The quoted values are emission values and not necessarily reliable workplace values. Although there is a correlation between emission and im- mission levels it is impossible to draw any certain conclusions as to the need for additional precau- tions. Factors with a potential infl uence on the ac- tual immission level at the workplace include the duration of impact, the type of room, and other sources of noise etc., e.g. the number of machi- nes and other neighboring operations. Reliable workplace values may also vary from country to country. With this information the user should at least be able to make a better assessment of the dangers and risks involved. Wear ear-muff s. The impact of noise can cause damage to hea- ring. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Warning! Always pull the power plug before making adjustments to the equipment.

Unpack the bench-type circular saw and check it for damage which may have occurred in transit.

The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong base.

All covers and safety devices have to be pro- perly fitted before the machine is switched on.

It must be possible for the saw blade to run freely.

When working with wood that has been pro- cessed before, watch out for foreign bodies such as nails or screws etc.

Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the machine’s moving parts run smoothly.

Danger! Pull out the power plug before carry- ing out any maintenance, resetting or assem- bly work on the cutting-off machine!

Turn the saw upside down and place it on the floor.

Use the hex screws (a) to fasten the four legs (29) loosely to the saw.

Now use the round-head screws (c) and the nuts (b) to fasten the longitudinal struts (31) and the cross-struts (30) loosely to the legs. Important: The longer struts have to be used on the sides.

Finally, tighten all screws and nuts on the base frame.

Screw the additional legs (36) to the rear legs (29) so that they point towards the rear of the machine (Fig. 5).

Use the screws (a) and nuts (b) to fasten the table width extensions (33) and length exten- sion (39) loosely to the saw table (1).

Screw the supports (32) loosely to the saw housing and to the table width extensions (33) and the table length extension (39) (Fig. 6).

Align the table width extensions (33) and the table length extension (39) level with the saw table.

Finally, tighten all screws.

6.3 Fitting / removing the saw blade guard

Mount the saw blade guard (2) on the splitter (5) so that the screw fits through the hole (18) in the splitter.

Do not tighten the screw (15) too far – the bla- de guard must be able to move freely.

To remove the saw blade guard, proceed in reverse order. Warning! The guard hood (2) must always be lowered over the workpiece before you begin to cut.

To prevent increased likelihood of injury the table insert should be changed whenever it is worn or damaged.

Remove the saw blade guard (2).

Remove the 1 countersunk head screws (17).

Set the blade (4) to max. cutting depth, move to 0° position and lock in place.

Remove the saw blade guard (see 6.2).

Slacken the fixing screw (19).

Push up the splitter (5) until the gap between the saw table (1) and the upper edge of the splitter (5) equals approx. 10 cm.

The distance between the blade (4) and the splitter (5) should be 3-5 mm.

Important! Pull out the power plug first.

Remove the table insert by undoing the two countersunk head screws (see 6.4).

Undo the nut with a size 21 wrench on the nut itself and a second fork wrench (size 10) on the motor shaft to apply counter-pressure.

Important! Turn the nut in the direction of rotation of the saw blade.

Take off the outer flange and pull the old saw blade off the inner flange by dropping the bla- de at an angle.

Clean the blade flange thoroughly before fit- ting the new blade.

Mount and fasten the new saw blade in rever- se order.

Important! Note the running direction. The cutting angle of the teeth must point in run- ning direction, i.e. forwards (see the arrow on the blade guard).

Refit and set the splitter (5) and the saw gu- ard (2) (see 6.3., 6.5.)

Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again.

To turn the saw on, press the green button “I”. Wait for the blade to reach its maximum speed of rotation before commencing with the cut.

The parallel stop (7) supplied with the bench- type circular saw has two different guide faces.

For thick material you must use the stop rail (23) as shown in Fig. 12, for thin material you must use the stop rail as shown in Fig.13.

To change over the stop rail (23) to the lo- wer guide face you have to slacken the two knurled screws (26) in order to disconnect the stop rail (23) from the holder (24).

Remove the two knurled screws (26) through the one slot (27) in the stop rail (23) and in- sert in the other slot (25).

Remount the stop rail (23) on the holder (24).

The procedure for changing over to the high guide face is similar.

The parallel stop (7) has to be used when making longitudinal cuts in wooden workpie- ces.

The parallel stop (7) can be mounted on eit- her side of the saw table (1).

The parallel stop (7) has to be mounted in the guide rail (28) of the saw table (1).

The parallel stop (7) can be set to the requi- red dimension with the help of the scale (22) on the guide rail (1).

You can clamp the parallel stop in the requi- red position by pressing the eccentric lever (12).

The stop rail (23) can be moved in longitudi- nal direction in order to prevent the workpiece from becoming jammed.

Rule of thumb: The rear end of the stop co- mes up against an imaginary line that begins roughly at the center of the blade and runs at an angle of 45° to the rear.

Set the required cutting width - Slacken the knurled screws (26) and push the stop rail (23) forward until it touches the imaginary 45° line. - Retighten the knurled screws (26). 7.4. Cross stop (Figure 15)

Slide the cross stop (14) into the groove (21) of the table.

Slacken the knurled screw (20).

Turn the cross stop (14) until the arrow points to the angle required.

Retighten the knurled screw (20). Important!

Do not push the stop rail (23) too far toward the blade.

The distance between the stop rail (23) and the blade (4) should be approx. 2 cm. 7.5. Setting the angle (Fig. 16)

Adjust the angle of the saw blade by pressing the hand wheel (8) towards the machine and turning it at the same time.

Lock the locking grip.

After every new adjustment we recommend you to make a trial cut in order to check the new settings.

After switching on the saw, wait for the blade to reach its maximum speed of rotation before commencing with the cut.

Take extra care when starting the cut!

Never use the equipment without the suction function.

Regularly check and clean the suction chan- nels.

The cap on the blade guard can be removed in order to be able to connect a suction hose to the blade guard.

8.1.1 Making longitudinal cuts (Figure 17)

Longitudinal cutting (also known as slitting) is when you use the saw to cut along the grain of the wood. Press one edge of the workpiece against the parallel stop (7) while the fl at side lies on the saw table (1). The guard hood (2) must always be lowered over the workpiece. When you make a longitudinal cut, never adopt a working position that is in line with the cutting direction.

Set the parallel stop (7) in accordance with the workpiece height and the desired width. (See 7.3.)

Place your hands (with fingers closed) flat on the workpiece and push the workpiece along the parallel stop (7) and into the blade (4).

Guide at the side with your left or right hand (depending on the position of the parallel stop) only as far as the front edge of the gu- ard hood.

Always push the workpiece through to the end of the splitter (5).

The offcut piece remains on the saw table (1) until the blade (4) is back in its position of rest.

Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.).

8.1.2. Cutting narrow workpieces (Fig. 18)

Be sure to use a push stick (3) when making longitudinal cuts in workpieces smaller than 120 mm in width. A push block is supplied with the saw! Replace a worn or damaged push stick im- mediately.

8.1.3.Cutting extremely narrow workpieces

Be sure to use a push block when making longitudinal cuts in very narrow workpieces with a width of 30 mm and less.

The low guide face of the parallel stop is best used in this case.

There is no push block supplied with the saw! (Available from your specialist dealer). Replace the push block without delay when it becomes worn.

8.1.4. Making bevel cuts (Fig. 16/20)

Bevel cuts must always be used using the parallel stop (7).

Set the blade (4) to the desired angle. (See

Set the parallel stop (7) in accordance with the workpiece width and height (see 7.3.1)

Carry out the cut in accordance with the work- piece width (see 8.1.1., 8.1.2 and 8.1.3.)

Slide the cross stop (21) into one of the grooves (21) in the table and adjust to the required angle. (See 7.4.) If you also want to tilt the blade (4), use the groove (21) which prevents your hand and the cross stop from making contact with the blade guard.

Press the workpiece firmly against the cross stop (14).

Push the cross stop (14) and the workpiece toward the blade in order to make the cut.

Warning! Always hold the guided part of the workpiece. Never hold the part which is to be cut off.

Push the cross stop (14) forward until the workpiece is cut all the way through.

Switch off the saw again. Do not remove the offcut until the blade has stopped rotating.

9. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

10. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

We recommend that you clean the device immediately each time you have finished using it.

Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could at- tack the plastic parts of the equipment. Ensu- re that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

In case of excessive sparking, have the carbon brushes checked only by a qualifi ed electrician. Danger! The carbon brushes should not be rep laced by anyone but a qualifi ed electrician.

10.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

Article number of the unit

ID number of the unit

Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info Tip! For good results we recommend high-quality ac- cessories from ! www.kwb.eu welcome@kwb.eu

11. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original pa- ckaging. Anl_TC_TS_2025_1_UA_SPK1.indb 28Anl_TC_TS_2025_1_UA_SPK1.indb 28 20.06.16 15:1020.06.16 15:10GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes

The product meets the requirements of EN 61000-3-11 and is subject to special connection condi- tions. This means that use of the product at any freely selectable connection point is not allowed.

Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.

The product is intended solely for use at connection points that a) do not exceed a maximum permitted supply impedance 0.34 Ω, or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.

As the user, you are required to ensure, in consultation with your electric power company if neces- sary, that the connection point at which you wish to operate the product meets one of the two requi- rements, a) or b), named above. Anl_TC_TS_2025_1_UA_SPK1.indb 29Anl_TC_TS_2025_1_UA_SPK1.indb 29 20.06.16 15:1020.06.16 15:10GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* V-belt, carbon brushes, table insert, push stick Consumables* Saw blade Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.

Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_TC_TS_2025_1_UA_SPK1.indb 31Anl_TC_TS_2025_1_UA_SPK1.indb 31 20.06.16 15:1020.06.16 15:10F

= dB (A); guaranteed L
