Product type	Coffee machine
Brand	Clatronic
Model	KA 3689
Power supply	220-240 V~, 50/60 Hz
Power	1000 W
Water tank capacity	1.7 liters
Net weight	Approx. 1.60 kg
Protection class	I
Coffee type	Ground coffee
Recommended paper filter size	1 x 4
Automatic shut-off	Yes, after 40 minutes (Ecodesign compliance)
Keep warm	Yes, up to 40 minutes
Anti-drip device	Yes
Carafe material	Glass
Cleaning	Do not immerse, wipe with a damp cloth; wash the carafe and filter holder with soapy water
Descaling	Recommended with citric acid-based descalers; rinse 3 to 4 times with clear water
Hot surface safety	Warning: hot plate and container hot
Intended use	Household and indoor use only

Frequently Asked Questions - KA 3689 CLATRONIC

How to descale the coffee machine?

Use a commercial citric acid-based descaler. Follow the dosage indicated on the packaging. Then, boil fresh water 3 or 4 times to rinse off residues. Do not consume this water.

Why is the coffee not flowing?

Check that the coffee pot is properly placed on the hot plate with the lid closed. Otherwise, the anti-drip device remains closed. If the filter is clogged, turn off the appliance, place the coffee pot to empty the filter, then clean.

What type of paper filter to use?

Use a size 1 x 4 (size 4) paper coffee filter.

The machine turns off by itself, is that normal?

Yes, it's normal. According to the Ecodesign directive, the appliance automatically shuts off at most 40 minutes after the coffee preparation ends.

How to clean the exterior of the machine?

Unplug the appliance and let it cool down. Clean the exterior with a slightly damp cloth. Do not use harsh or abrasive detergents.

Can you open the water tank lid during preparation?

No, never open the water tank lid during brewing. Risk of burns.

What to do if coffee grounds end up in the cup?

This may be due to a filter that is too small or too much ground coffee. Use a size 1 x 4 filter and reduce the amount of ground coffee.

The coffee preparation takes too long, what to do?

This is probably due to limescale buildup. Descale the appliance as indicated in the manual.

Can I use the glass carafe to fill the water tank?

Yes, you can use the coffee pot to fill the water tank. Make sure not to exceed the MAX mark.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a municipal recycling center for electrical appliances.

USER MANUAL KA 3689 CLATRONIC

White coffee maker with clear glass and black liquid, no visible text or symbols

Bedienungsanleitung

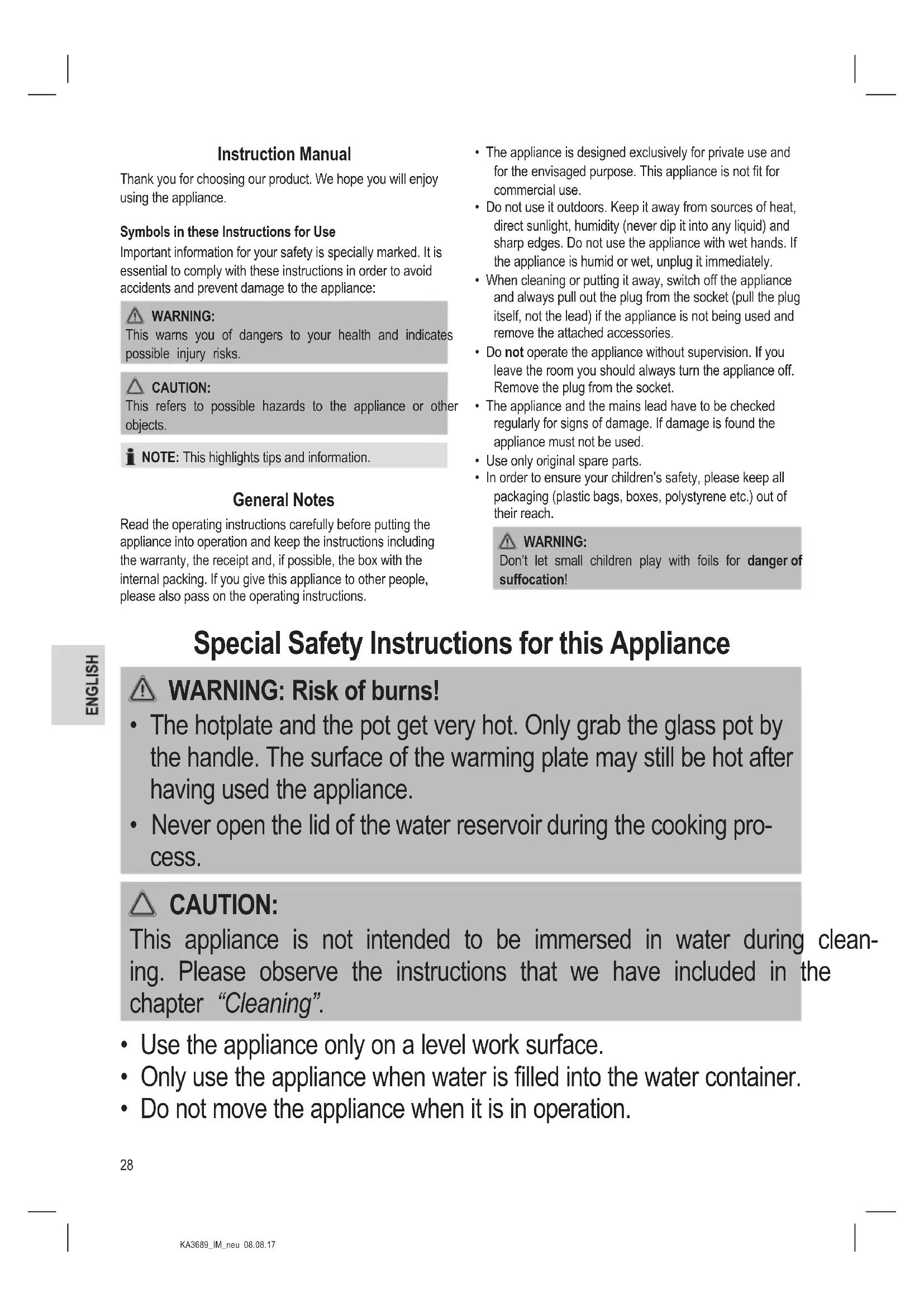

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Don't let small children play with foils for danger of suffocation!

Special Safety Instructions for this Appliance

WARNING: Risk of burns!

• The hotplate and the pot get very hot. Only grab the glass pot by the handle. The surface of the warming plate may still be hot after having used the appliance.
• Never open the lid of the water reservoir during the cooking process.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included in the chapter “Cleaning”.

• Use the appliance only on a level work surface.
• Only use the appliance when water is filled into the water container.

• Do not move the appliance when it is in operation.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not repair the appliance by yourself. Please contact authorized personnel. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Designated Use

• This appliance serves for brewing of ground coffee.
• Only use the appliance in a dry, indoor area.

• It is intended for domestic use and similar areas of use such as e. g.:

• In staff kitchens in shops, offices and other commercial areas;

• By guests in hotels, motels and other accommodation facilities.

It is not intended for use in farm accommodation or Bed & Breakfast establishments.

Scope of Delivery

1 Automatic coffee maker
1 Filter holder
1 Glass coffee pot
1 Coffee pot lid

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material such as plastic films, filler material, cable ties and cardboard packaging.
3. Check the content for any missing parts.
4. In the event that the packaging content should be incomplete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately.

NOTE:

There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under “Cleaning”.

Notes on Use

Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.
• Do not place the appliance in close proximity to a gas or electric stove or any other heat source.

Note About the Brewing Process

During the brewing process and depending on the degree of grinding and the used amount, the coffee powder absorbs a certain amount of water. That is why the quantity of coffee might diverge from the quantity of water in the water tank.

European Regulations on Energy Saving

NOTE:

The European Directive 2009 / 125 / EC (Ecodesign Directive) incorporates measurements for energy saving.

The following applies to coffee makers: The keep-warm period is limited to max. 40 minutes after which the appliance turns off automatically.

You benefit from better safety and lower energy consumption.

Electric Connection

1. Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the type label.
2. Connect the mains cable to a properly installed and earthed wall outlet.

Initial Operation

Before making coffee for the first time operate the appliance twice with clean water only and without paper filter. This removes dust, which may have collected during transport.

Follow the instructions given under "Operation".

Turning the Appliance On/Off

• Press the button to switch on the appliance. The indicator lamp of the button lights up.
• Press the button again to turn off the appliance or to cancel brewing. The indicator lamp of the button turns off.

Operation

1. Open the lid of the water tank.
2. Fill cold water according to the desired amount of cups of coffee into the rear water tank. You can determine the water level with the help of the scale in the water tank.

NOTE:

You can use the pot to fill the water tank.

CAUTION:

Do not overfill the tank! Do not fill it above the MAX mark.

1. Insert the filter holder. Pay attention to the guides at the bottom of the filter holder.
2. Turn over the lower fold of the paper filter (size 1 x 4) and place it in the filter funnel. Then fill it with coffee powder.

NOTE:

Do not put too much coffee powder into the filter to avoid spillage.

1. Now close the lid of the water tank. It must engage.
2. Place the jug onto the warming plate.

CAUTION: Drip stop

Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents the coffee from dripping onto the warming plate if there is still water in the filter.

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.

• If there is still water in the tank, place the pot underneath as soon as possible. Otherwise the filter might overflow.

• Switch on the appliance. The indicator lamp of the button lights up.

NOTE:

The appliance switches off automatically about 30 minutes after the brewing. The indicator lamp of the button turns off.

The Coffee is Ready

• When no more coffee is flowing through the filter you can remove the pot.
• Turn the appliance off.
• Would you like to keep the remaining coffee warm? Leave the appliance turned on until the end of the keep-warm period. If you wish to keep the coffee warm even after the keep-warm period has finished, pour the remaining coffee into a thermal flask.

WARNING:

If you want to make another pot of coffee immediately, switch off the appliance first. Let it cool down with the water tank open in order to avoid hot water splashing refilling with water.

NOTE:

While grabbing both handles you can pull the filter holder out of the appliance. This makes it easier to dispose of the old coffee filter, for example.

De-scaling

De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acid-based descaler.
• Dose as indicated on packaging or instruction leaflet.

WARNING:

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the de-scaling agent.
• Do not use any coffee powder!
  when • Do not use this water for consumption.

Cleaning

WARNING:

• Before cleaning, always remove the mains plug and wait until the appliance has cooled down.
• Do not immerse the appliance in water. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• The exterior of the appliance should be cleaned as necessary with a slightly damp cloth – without any additives.
• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.
• Grab both handles to remove the filter holder.
• The coffee pot and the filter pad should be cleaned by rinsing in warm water. Use a soft brush if necessary.

Storage

• Clean the appliance as described and let it dry completely.
• We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  • Always store the appliance at a well ventilated and dry place outside the reach of children.

Troubleshooting

Problem Possible Cause Solution
The appliance does not work.	The appliance is not connected to mains power.	Check the wall outlet with a different appliance.
		Insert the plug properly in the wall outlet.
		Check the fuse.
	The appliance is defective. Contact our service or a repair center.
Filter blockage: coffee grounds spill over the edge of the filter.	The drip stop is closed: The coffee pot is not on the warming plate or the lid is not on the coffee pot.	1. Switch the appliance off. Disconnect from mains power supply.2. Put the coffee pot with lid on the warming plate so that the filter is emptied.3. Dispose of the paper filter.4. Clean the appliance as described.
	Too much coffee powder in the filter.
Coffee grounds in the coffee.	The paper filter is too small. Use a paper filter size “1 x 4”.
	Too much coffee powder in the filter. Use less coffee powder.
The brewing process takes too long.	Limescale deposits in the appliance. Decalcify the appliance as described.
The appliance turns off automatically.	This is not a malfunction of the appliance. In order to comply with the Ecodesign Directive (2009 / 125 / EC), the appliance turns off automatically after max. 40 minutes after the brewing process has finished.

Technical Data

Model: KA 3689

Power supply: 220 - 240 V\~, 50 / 60 Hz

Power consumption: 1000W

Filling quantity: 1.7 Litre

Protection class:....I

Net weight: .... approx. 1.60 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
