ID8RGKBBG - Keyboard Zagg - Free user manual and instructions

Product type	Keyboard with protective case for tablet
Brand	Zagg
Model	ID8RGKBBG (Rugged Book)
Compatibility	iPad (multiple generations) and iPad mini
Connectivity	Bluetooth
Power	Rechargeable lithium-polymer battery
Battery life	Up to 2 years in normal use
Charging time	2 to 4 hours
Charging port	Micro-USB
Function keys	Home, lock, show/hide keyboard, media control, volume, Siri, search, backlight
Backlight	Yes, with auto-off
Battery indicator	LED indicator (green/yellow/red)
Pairing	Dedicated Bluetooth key
Case material	Protective rubber
Weight	Approximately 500 g
Dimensions	Approximately 25 x 20 x 2 cm
Warranty	1 year manufacturer (registration required)
Package contents	Keyboard, micro-USB cable, manual
Manufacturing	China
Cleaning	Soft damp cloth, no solvents
Safety	Do not immerse, do not disassemble, stop if pain occurs

Frequently Asked Questions - ID8RGKBBG Zagg

How do I pair my Zagg Rugged Book keyboard with my tablet?

Open your tablet's Bluetooth settings. Press and hold the Bluetooth key on the keyboard for 3 seconds. A blue light flashes. Select "ZAGG Rugged Book" from the device list on your tablet to complete pairing.

How do I charge the keyboard?

Plug the provided micro-USB cable into the charging port on the keyboard, and the other end into a USB port. A red light turns on during charging and turns off when charging is complete (2 to 4 hours).

What is the battery life?

The lithium-polymer battery can last up to 2 years under normal usage conditions before needing a recharge.

How do I check the battery level?

Press the Battery key on the keyboard. The LED flashes: 3 times green (>50% remaining), 3 times yellow (25-49%), 3 times red (<25%). Below 25%, the red light flashes once every 5 minutes.

How do I use the backlight?

Press Fn + Backlight symbol to activate the function. Each press increases the intensity or turns off the backlight. It automatically turns off after a few seconds of inactivity.

What should I do if the keyboard is not responding?

Restart your tablet. Turn the keyboard off and on again. Make sure it is charged. If the problem persists, forget the device in Bluetooth settings and repeat pairing. Contact ZAGG customer service if needed.

How do I clean the keyboard?

Unplug the cable. Clean with a soft damp cloth. Do not use liquid or aerosol solvents.

What are the special function keys?

The keys include: Home (home screen), Lock (sleep), Show/Hide keyboard, media controls (previous, play/pause, next), Mute, Search, Siri, volume, Bluetooth, and Battery. The Shift key locks caps lock (blue indicator).

Can I use the keyboard with an iPad mini?

Yes, the Rugged Book is compatible with the iPad mini. Use Fn + Show/Hide keyboard to show or hide the iPad mini's virtual keyboard.

How do I register the warranty?

Register your Rugged Book on the ZAGG.com website and keep your receipt. The one-year warranty is activated after registration. If you purchased on ZAGG.com, it is already registered.

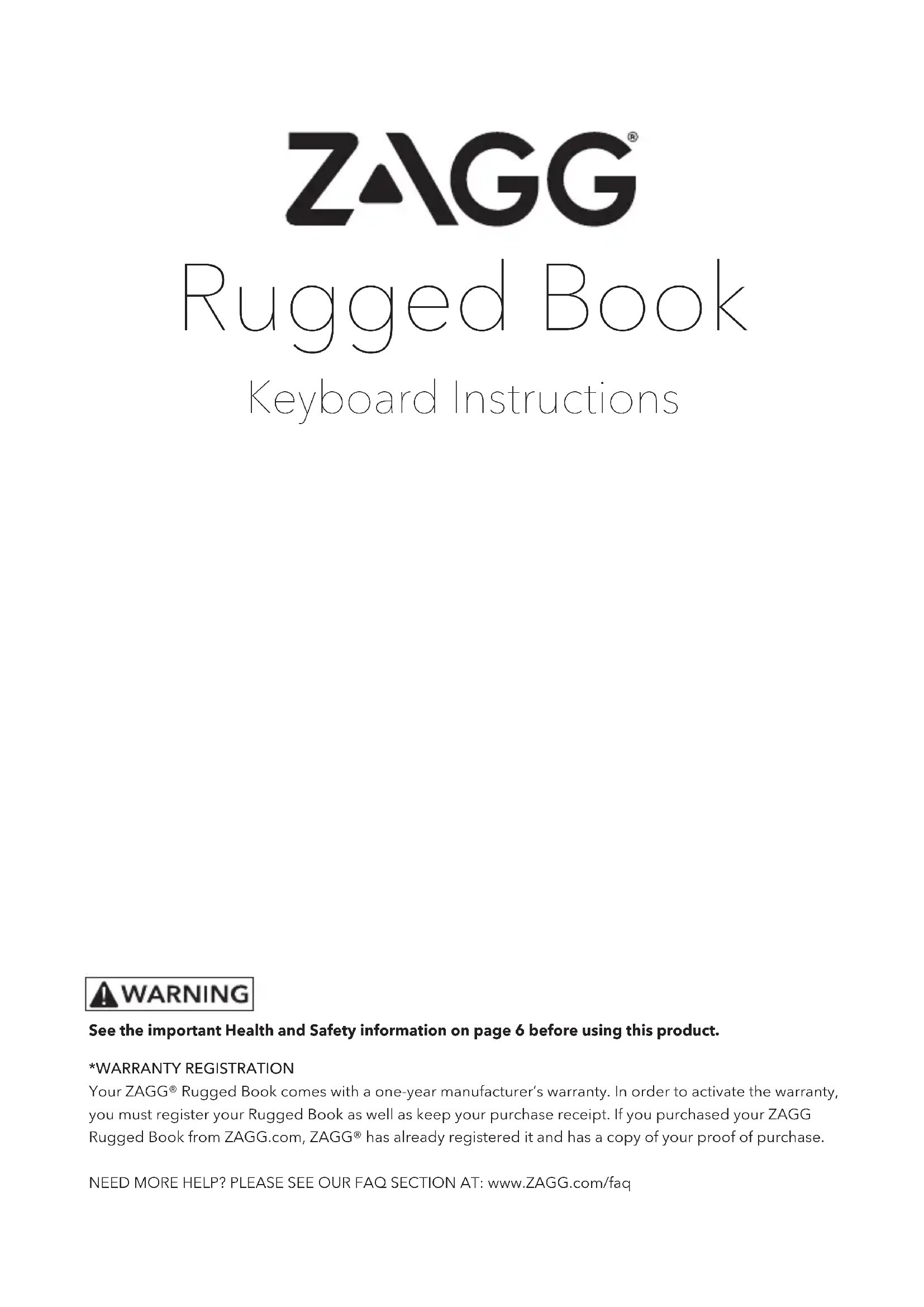

USER MANUAL ID8RGKBBG Zagg

Keyboard Instructions

WARNING

See the important Health and Safety information on page 6 before using this product.

*WARRANTY REGISTRATION

Your ZAGG® Rugged Book comes with a one-year manufacturer's warranty. In order to activate the warranty, you must register your Rugged Book as well as keep your purchase receipt. If you purchased your ZAGG Rugged Book from ZAGG.com, ZAGG® has already registered it and has a copy of your proof of purchase.

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq

INSERTING/REMOVING YOUR TABLET

To insert your tablet into the Rugged Book open the Book's case and remove it from the keyboard (to do this pull the case up and away from the keyboard). Then, line up your tablet with the holes in the case. Make sure the camera hole is aligned properly as well as the opening for your charging cable. When everything is aligned, set the bottom half of your tablet in the cover and apply light pressure to ensure it's properly settled. Snap the top half of your tablet into the cover. Check all corners to make sure they have seated properly.

When your tablet is secure in the case, you can connect it to the keyboard by placing it in the magnetic trough. Powerful magnets will secure it in place, but will also allow you to remove your tablet any time it benefits you.

To easily remove your tablet from the case, separate the case from the keyboard, and then gently roll the rubber overmold away from the edges while pressing the tablet from behind. Grasp your tablet's exposed side and lift/pull away from the Rugged Book.

POWERING ON AND OFF

To turn your Rugged Book on, press the Power button. A green LED on the battery key will illuminate briefly while the keyboard

powers up. To turn your Rugged Book off, press and hold the Power button for three seconds. A red LED will flash, indicating your Rugged Book has turned off.

PAIRING YOUR ZAGG Rugged Book

Pairing your Rugged Book with your tablet is easy. It should only need to be paired once, using the following directions. If the connection between your tablet and Rugged Book is ever lost, repeat these steps.

1. Access the Bluetooth settings on your tablet.
2. Press and hold the Bluetooth button for three seconds. A blue LED under the Power key will flash until your Rugged Book and tablet are paired.
3. Your tablet will display "ZAGG Rugged Book" as an available device. Select this option to complete pairing.

CHARGING

Your Rugged Book features a powerful lithium polymer battery that lasts for up to two years of normal use between charges*. It comes with a charging cable you can use to charge your keyboard quickly and conveniently. To charge your Rugged Book, follow these steps:

1. Plug the micro USB connector into the charging port.
2. Plug the regular USB connector into any USB outlet.
3. A red LED under the Power button will illuminate to indicate your Rugged Book is charging. Wait until this light turns off, indicating a full charge. It usually takes 2-4 hours to completely charge your Rugged Book.
4. Remove the micro USB connector and enjoy your Rugged Book for up to two years before you need to charge it again.

BATTERY LIFE

As mentioned, the Rugged Book features a powerful, rechargeable battery that lasts up to two years between charges. To check your Rugged Book's remaining battery power press the battery key. The LED indicator will flash one of three ways.

1. Three green flashes indicate 50% or more battery life remaining.
2. Three yellow flashes indicate between 25% -49% battery life remaining.
3. Three red flashes indicate less than 25% battery life remaining. When your Book reaches critical battery level, the red LED will flash once every five minutes.

To help preserve battery life, your Rugged Book will enter sleep mode if left on and not used for several minutes. To awaken your Rugged Book, press any key. The Rugged Book's battery has no memory and may be charged whenever you wish.

SPECIAL FUNCTION KEYS

Your Rugged Book keyboard has been designed with the following special function keys to give you more control over your tablet:

HOME - Displays your tablet's home screen.
LOCK - Activates and deactivates your tablet's sleep mode.
KEYBOARD HIDE/SHOW - Hides or shows your tablet's on-screen keyboard.
FN + KEYBOARD HIDE/SHOW (iPad mini ONLY) - Hides or shows your tablet's on-screen keyboard.
PREVIOUS TRACK - Skips to the previous track on your selected playlist.
PLAY/PAUSE - Starts or pauses your current playlist.
NEXT TRACK - Skips to the next track on your current playlist.
MUTE - Mutes your tablet's audio.
SEARCH (FOR iPad mini USE FN + SEARCH) - Opens your tablet's search function.

SIRI - Opens Siri on your iPad or iPad mini.
BLUETOOTH - Press and hold for three seconds to pair.
POWER - Turns your Rugged Book keyboard on and off.
VOLUME DOWN - Decreases your tablet's volume.
VOLUME UP-Increases your tablet's volume.

caps CAPS LOCK - Activates the Caps Lock feature. When Caps Lock is on a blue indicator light will remain lit until it is turned off. To turn Caps Lock off, simply press Caps again.

WORLD SYMBOL - Toggles between international keyboards (when activated in your tablet's settings).

FN + BATTERY SYMBOL - Indicates remaining battery life.

FN + BACKLIGHT SYMBOL - Activates your Rugged Book's backlight feature. If you continue pressing the backlight button, your Rugged Book will turn off.

NOTE: The backlights will automatically turn off after a couple seconds if not being used. Begin typing again to activate them.

TROUBLESHOOTING

If your tablet does not respond to your Rugged Book there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your tablet.
2. Turn your Rugged Book off and back on. You should see the LED illuminate briefly, if not, charge your Rugged Book.
3. After charging, turn your Rugged Book on. If the LED does not illuminate, and your keyboard doesn't operate correctly, please contact ZAGG's customer service.
4. If your Rugged Book cannot establish or maintain a Bluetooth® connection, reset the Bluetooth module by charging your keyboard.
5. Forget and re-pair your Rugged Book.
6. Push the FN + Pair buttons on your Rugged Book and watch for the LED to flash blue.
7. Your tablet should display "ZAGG Rugged Book" as an available device. Select it.
8. If your tablet gives you an error message, repeat the pairing process.

For more help please see our FAQ section at: www.zagg.com/faq

To reach a trained customer service representative, please use one of the following:

ZAGG.com/support/contact.php | [e-mail]

1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers

For unparalleled scratch protection for your tablet, we recommend ZAGG's InvisibleShield®.

©2005 - 2014 ZAGG Inc All Rights Reserved.

PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA

iPad mini™ is a trademark of Apple, Inc., registered in the US and other countries.

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.

ZAGG®, InvisibleShield®, and ZAGG Rugged Book™ are trademarks or registered trademarks of ZAGG Inc.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Please read the following precautions and operation information before using your keyboard or any accessories that accompany it. Retain this information for future use.

1. Health warning: Take frequent breaks when using your keyboard. If you experience any discomfort, pain, tingling, numbness, or burning in your neck, shoulders, arms, wrists, hands, or any other part of your body, stop using your keyboard and consult a physician.
2. Use only micro USB chargers in connection with your keyboard.
3. Do not attempt to service your keyboard.
4. Do not disassemble or attempt to disassemble your keyboard.
5. Do not crush or puncture your keyboard.
6. Do not immerse your keyboard in water.
7. Do not put your keyboard in contact with water or other liquids as they could cause a short circuit, fire, or electric shock which could result in serious injury, death, or property damage.
8. Do not use liquid, aerosol cleaners, or solvents on or near your keyboard. Clean only with a soft, dry cloth. Disconnect any cords before cleaning the keyboard.
9. Do not use your keyboard while operating a motorized vehicle, including automobile, boat, or airplane. Doing so could put you and others at risk of serious injury, death, or property damage.
10. Do not use or place your keyboard near any heat sources including, but not limited to, radiators, heat registers, stoves, other appliances, campfires, or barbecue grills.
11. To reduce the risk of fire or electric shock, wire or connect your keyboard to products only in the manner instructed in the documentation supplied herewith. Do not attempt to modify or adjust any ports. Any improper connections or adjustments may cause damage.
12. When you are ready to discard your keyboard, recycle your keyboard in a manner consistent with electronic recycling requirements or recommendations in your geographic area.
