GVC D913BS - Tumble drier CANDY - Free user manual and instructions

Product Type	Condenser Dryer
Brand	Candy
Model	GVC D913BS
Height	85 cm
Width	60 cm
Depth	60 cm
Approximate Weight	45 kg
Power Supply Voltage	220-240 V, 50 Hz
Rated Current	10 A minimum
Maximum Load Capacity	10 kg (cotton)
Maximum Drying Weight Synthetics	4 kg
Drum Type	Stainless steel
Drying Programs	Perfect Home, Dry, Ready to Store, Ready to Iron, Anti-crease, Wool, Mix & Dry, Shirts, Quick 40', Time, Memo
Options	Delicate Drying (acrylics/synthetics), Delayed Start (1-24h), Wrinkle Removal, Memo
Drying System	Electronic Sensor Dry
Noise Level	~65 dB (estimated)
Lint Filter	Yes, washable after each cycle
Condenser	Regular cleaning recommended
Water Tank	Capacity ~6 L, manual drain
Direct Evacuation Option	Yes, evacuation kit optional
Energy Class	Refer to energy label
Standby Consumption	0.15-0.25 W
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - GVC D913BS CANDY

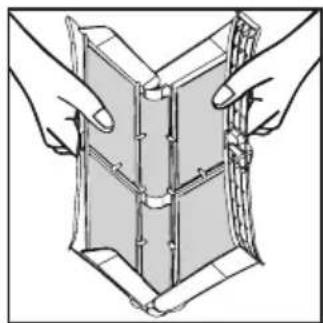

How to clean the lint filter?

Pull the filter upwards, open it, remove lint with a soft brush or fingers, then re-engage it and push it into place. It is recommended to clean it after each drying cycle.

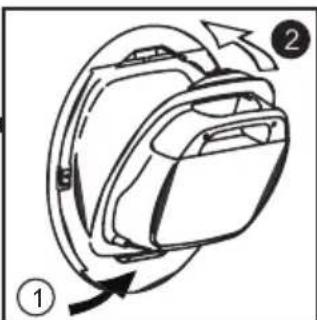

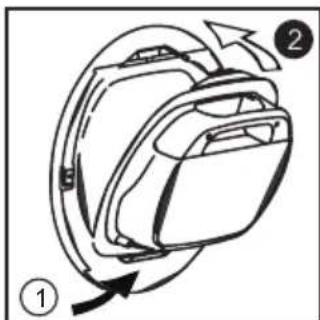

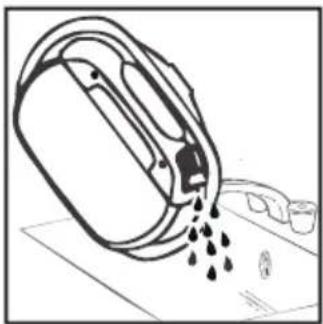

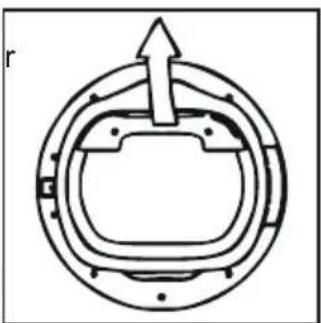

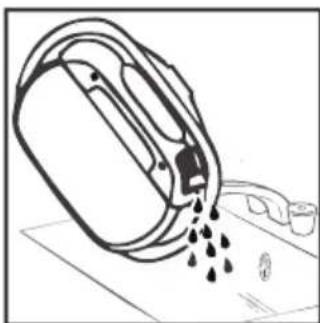

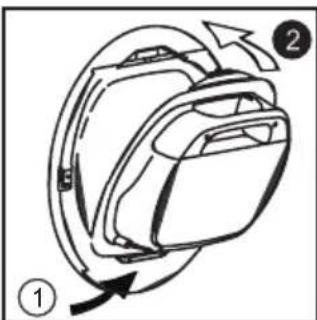

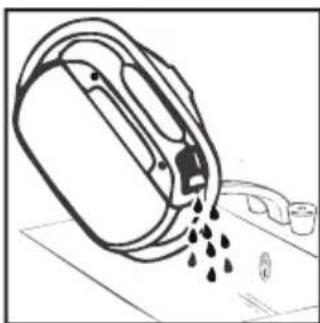

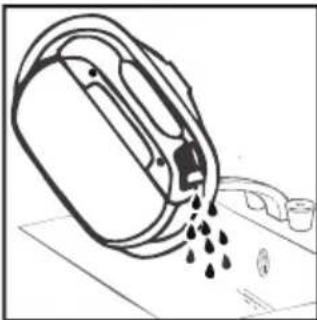

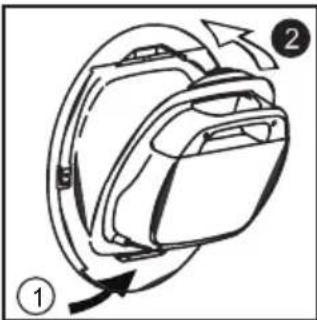

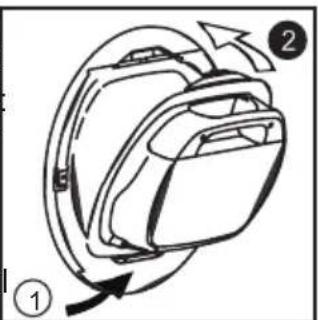

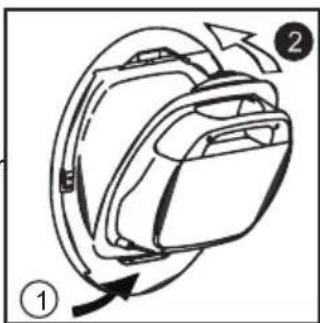

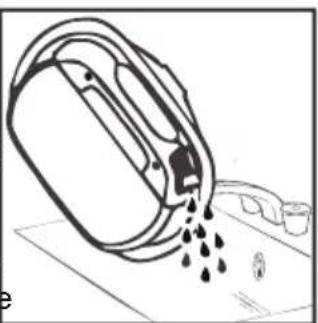

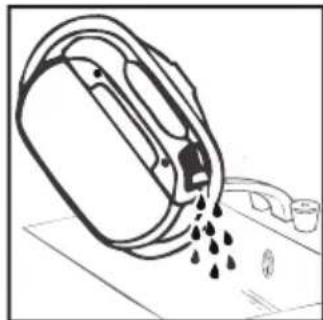

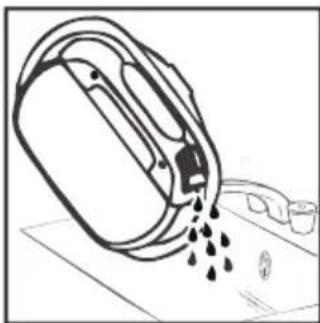

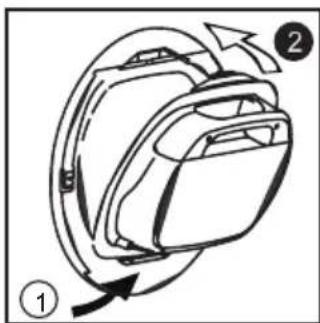

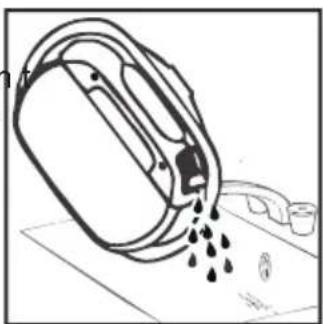

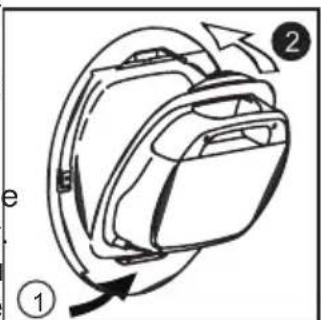

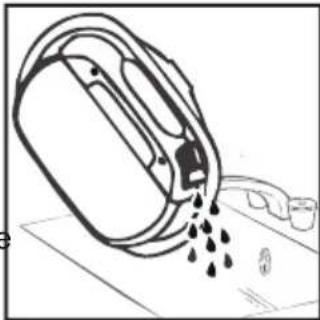

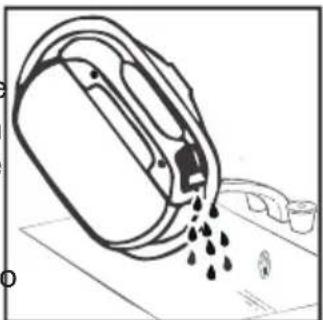

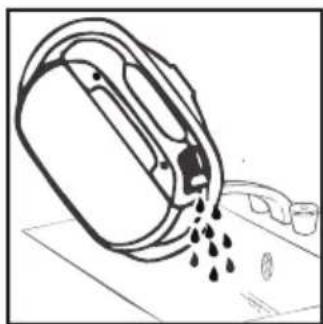

How to empty the water tank?

Carefully remove the tank by the handle, tilt it, and empty it through the provided hole. Replace it by first inserting the base then pushing the upper part into the notch. The indicator lights up when full.

Can I dry wool in this dryer?

Yes, the Wool program allows drying up to 1 kg of wool (about three sweaters). It is approved by The Woolmark Company for machine-washable wool garments. Dry garments inside out.

What if laundry is not dry after the cycle?

Check that the lint filter and condenser are clean. Make sure the drum is not overloaded. For small loads, use a timed program. If the problem persists, contact GIAS service.

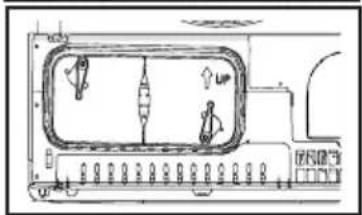

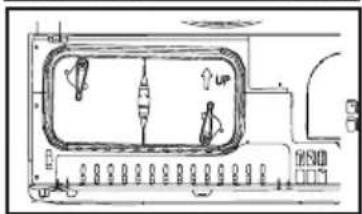

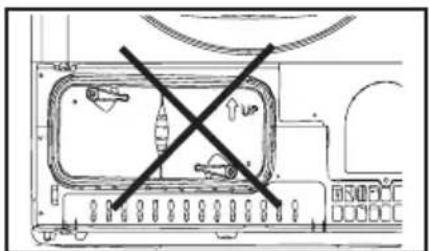

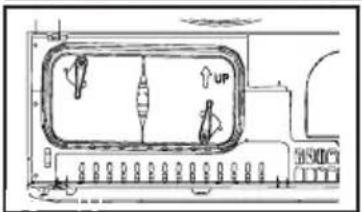

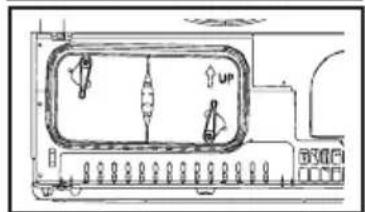

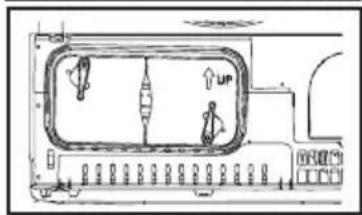

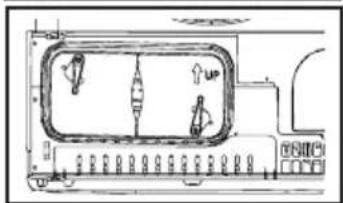

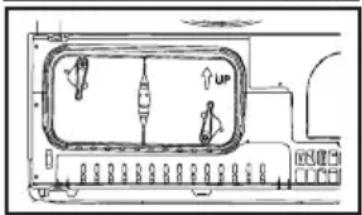

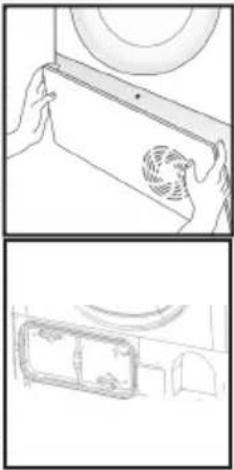

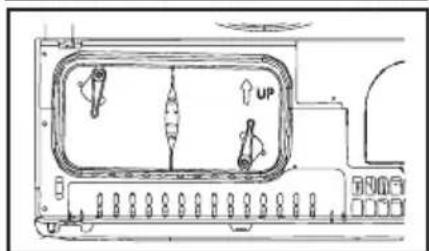

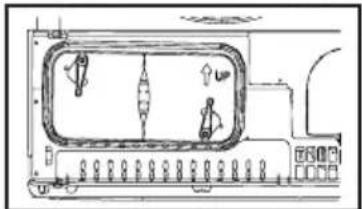

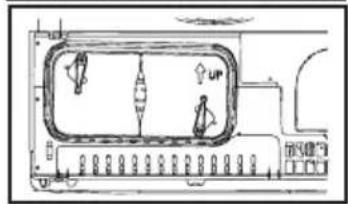

How to clean the condenser?

Cut the power and unplug the appliance. Remove the protection plate, turn the locking levers counterclockwise, remove the condenser, wash it under running water, then replace it by turning the levers clockwise.

Can I use electrical extension cords?

No, it is not recommended to use multi-sockets or extension cords. The appliance must be plugged directly into a grounded outlet with a voltage of 220-240 V and a current of at least 10 A.

How to use the delayed start function?

Press the Delayed Start button several times to set a delay from 1 to 24 hours. Then press the Start/Pause button. The display will show the time remaining before start.

What if the filter indicator lights up?

The Filter maintenance indicator shows that the lint filter needs cleaning. Follow the filter cleaning procedure. If the indicator remains on after cleaning, also check the condenser.

How to cancel a running program?

Press the On/Off button for 3 seconds. The machine resets and displays '0:00' on the screen. You can then select a new program.

Can I install the dryer on top of a washing machine?

Yes, using an appropriate stacking kit (Mod 35100019 for washing machine min. depth 49 cm, Mod 35900120 for min. depth 51 cm). The kit is available from the spare parts service.

USER MANUAL GVC D913BS CANDY

Safety Reminders	3
Drain Hose Kit: Fitting Instructions	8
Preparing the Load	9
Controls and Indicators	10
Selecting the Programme	11
Door and Filter	12
Condenser	13
Operation	14
Cleaning and Routine Maintenance	14
Troubleshooting	15
Customer Service	15

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

SAFETY REMINDS

Use

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

- WARNING Misuse of a tumble dryer may create a fire hazard.

- This appliances is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments"

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.'

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.

• Do not allow children to play with the machine or its controls.

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

• WARNING Where the hot surface symbol is 🔒 located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
  •Maximum load drying weight: see energy label.

The Laundry

- Do not dry unwashed items in the tumble dryer.

- WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

- WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

- Always refer to the laundry care labels for directions on suitability for drying.

•Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
• Installing the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.
• Check regularly that the air flowing through the dryer is not restricted.
• Check frequently the fluff filter after use, and clean, if necessary.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet
• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm -Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spa service.

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

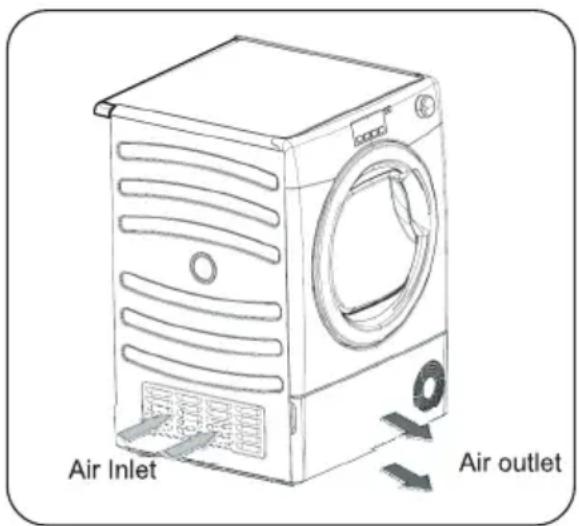

Air Inlet Air outlet

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
  • To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2012/19/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extensionleads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it

DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING!

Switch off and remove the tumble dryer plug from the before carrying out any work.

Fit the Hose as Follows:

1. Tilt the machine backwards.

2. The waste water pipe is situated at the left-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

4. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic hose connected to a white container (no visible text or symbols)

Close-up of a hand holding a flexible cable with blue insulation, attached to an industrial machine (no visible text or symbols)

1. Place the tap supplied by the kit to close the remaining hose.

2. Once the machine is in place the feet should be adjusted to ensure that the new hose does not kink when pushing the tumble dryer into position.

3. Connect the new drain hose to the waste Water pipe.

4. Connect to the mains electricity supply.

Close-up of a white plastic container with a cylindrical pipe inserted, no visible text or symbols

Illustration of a person using a tool to interact with a small object, no text or symbols present

White electronic device with attached black cable and wiring, placed on a plain floor (no visible text or symbols)

White industrial electrical box with attached circuit breaker and coiled cable (no visible text or symbols)

PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber dishes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Do not overload the drum, large items when can exceed the maximum admissible clothes (for example: sleeping bags, duvets).

Maximum Drying Weight
Cottons	Max.	10 Kg	9 Kg	8 Kg	7 Kg	6 Kg
Synthetics	Max.	4 Kg	4 Kg	4 Kg	3,5 Kg	3 Kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

Do not overload the drum, large items et can exceed the maximum admissible load (for example: sleeping bags,

CONTROLS AND INDICATORS

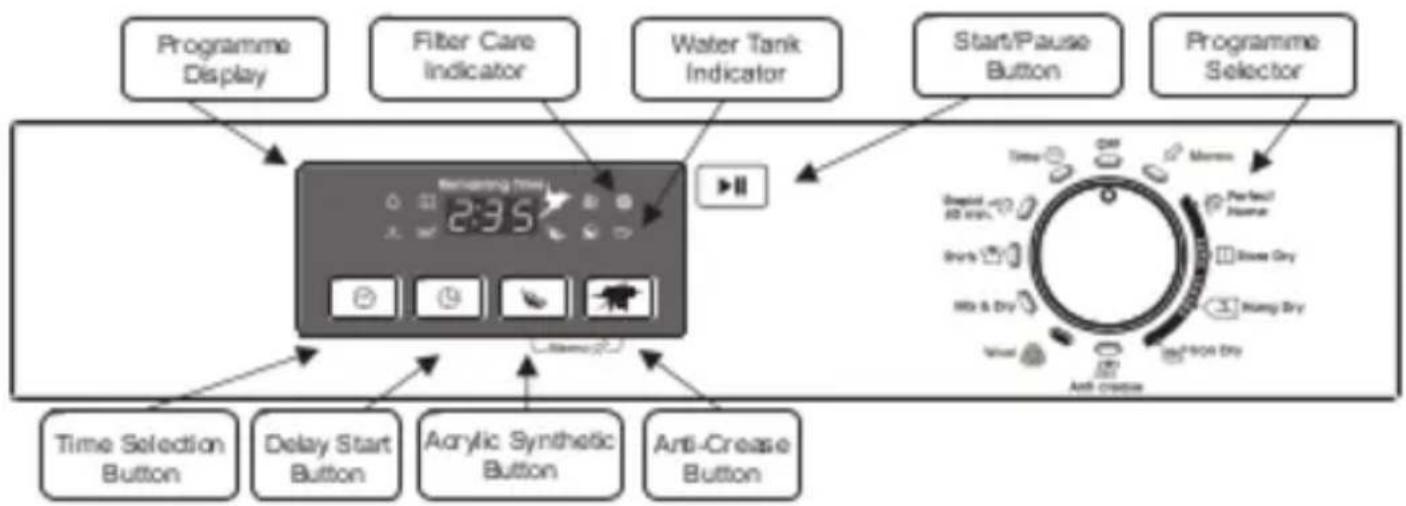

Programme Display Filter Care Indicator Water Tank Indicator Start/Pause Button Programme Selector Time Selection Button Delay Start Button Acrylic Synthetic Button Anti-Creuse Button Refringing Time 2:35 Timeline

Control Panel and Indicator Lights

Knob: You can turn it in both directions to choose the required programme.

Time selection ☑: To modify the drying timing of required programme; it works only with certain programmes.

Delay start ⚙: To delay the start of the drying cycle and to dry your laundry when electricity costs less (please see dedicated section)

Delicate fabrics: When pulled, this indicator 📋 turns off and this new one 🌐 turns on; with this special function, the drying temperature is lower to better protect your delicate clothes.

Anti-Crease Button ☑ – Select the anti-crease function at the end of drying cycle. The drum keeps moving at regular phases to refresh the laundry.

Cool down ♂ : This indicator turns on during the final cool phase of the cycle.

Start/Pause Ⅲ: To start the programme required or to pause the cycle.

Automatic programmes: Depending on desired programme, specific indicators turn on (please see "programme list")

Filter care ☐: When on, please clean the filters.

Full water tank : When on, please empty the water tank.

Memo Button – Allows user to record the programme by pressing simultaneously the Anti-Crease and the Acrylic Synthetic buttons for 3 seconds, after 2 minutes duration of the chosen programme/option.

SELECTING THE PROGRAMME

The Candy Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note:

The sensor may not detect a small load of small articles. For small loads and separate items or predicted fabrics with low moisture content, use the timed programmes. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours. In these cases we advise to use a time cycles between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

WOOLMARK APPAREL CARE

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. M1524.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

SELECTING THE PROGRAMME

PROGRAMME DESCRIPTION

Perfect Home

Store Dry

Hang Dry

Iron Dry

Anti Crease

Wool Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are more heavy, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.

Mix & Dry

Shirts

Rapid 40 Min. The Rapid 40' programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the temperature in the drum. The maximum load is 2 kg and the programme is suitable for all types of fabrics where tumble drying is appropriate.

Time

Memo Memo Program allows to re-perform a program that the user has saved before, without selecting the correct sequence of program selector positions and option buttons for that particular program.

DOOR and FILTER

Pull on handle to open the door.

To restart the dryer, close the door and press Start / Pause button

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

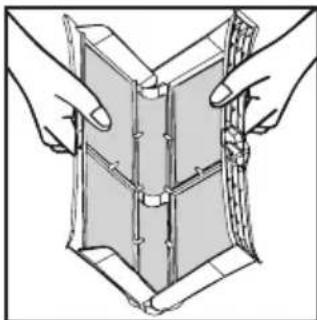

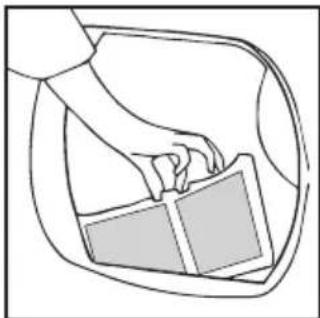

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

Illustration of two hands assembling or folding a rectangular object (no text or symbols visible)

DO NOT USE WATER TO CLEAN THE FILTER

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the water container holding the handle.

When it is full the water container will weigh about 6 kg.

1. Ti lt t he wa ter container to empty the water out through the spout.

When empty, replace the water container back as shown; first insert the base of the container into position as shown then gentle push the top into position.

1. Press ▷ Button to restart the cycle.

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

Diagram of a backpack with labeled parts and directional arrows indicating motion or movement

CONDENSER

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out the condenser.
   3.Pull out the condenser unit.

3. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

4. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

5. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

6. Refit the kickplate.

Diagram of a computer monitor with a crossed-out black X mark indicating no readable text or symbols

Technical diagram of a device rear panel with labeled components and directional arrows indicating movement or orientation.

Line drawing of hands holding a fan with a circular grille (no text or symbols)

Simple line drawing of a vehicle or enclosure with no text, numbers, or symbols

Line drawing of a hand inserting a card into a rectangular slot (no text or symbols)

Illustration of hands cleaning a wooden plank with a tool, no text or symbols present

Simple line drawing of a rectangular object with a cross mark on top (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Sketch of a geometric structure with intersecting lines and shaded regions (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
4. If drying synthetics, acrylics or delicate items, press the 📋 button to reduce the heat level.

The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the button, after this time reset the machine to change the setting.

1. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.
2. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.
3. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
4. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

OPERATION

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser.

- After each period of use, wipe the inside of the drum and leave the door open for a while t allow circulation of air to dry it.

- Wipe the outside of the machine and the door with a soft cloth.

- DO NOT use abrasive pads or cleaning agents.

- To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

WARNING! The Drum, door and load may be very hot.

Drying Guide

The standard cycle HANG DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

Capacity (as energy label)	6 kg	7 kg	8 kg	9 kg / 10 kg
Power consumption of off-mode	0,20 W	0,25 W	0,20 W	0,15 W
Power consumption of on-mode	0,75 W	0,80 W	0,80 W	0,75 W

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY + SYNTHETIC

Technical Specifications

Drum capacity 115

Maximum load See energy label

Height 85 cm

Width 60 cm

Depth 60 cm

Energy class See energy label

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

*Have you selected the correct drying time/programme?

- Were the clothes too wet? Were the clothes thoroughly wrtung or spindried?

•Does the filter need cleaning?

*Is the dryer overloaded?

Has the 0 option been selected from a previous

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

• Does the filter need cleaning?

The _md Indicator is on...

• Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

• Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS

ÍNDICE

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic connector with metal clamps, attached to a white plastic container (no visible text or symbols)

Close-up of a hand holding a black cable with a blue cable inserted into a white electronic device (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a person using a tool to interact with a small object, no text or symbols present

White electronic device with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White appliance with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand opening a car door with a rectangular object inside (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

KONDENSWASSER-BEHÄLTER

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing rotational motion arrows (no text or symbols beyond labels)

Diagram showing a device with a crossed-out black symbol and 'Up' label, indicating a warning or status.

Technical diagram of a vehicle or parking area layout with directional indicators and labeled components

Line drawing of hands holding a fan or vent device (no text or symbols)

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Line drawing of a hand inserting a card into a banknote (no text or symbols)

Illustration of hands using a tool to interact with a mechanical component (no text or symbols visible)

Pure diagram of a rectangular object with internal lines and cross marks, no text or symbols present

Simple line drawing of a mechanical component with diagonal braces and a base (no text or symbols)

Sketch of a geometric structure with triangular elements and horizontal supports (no text or symbols)

FUNCIONAMIENTO

- Dans des bed and breakfast,

Illustration of a person using a tool to apply a tip or screwdriver (no text or symbols present)

KIT TUYAU D'ÉVACUATION : INSTRUCTIONS DE MONTAGE

Close-up of a hand using a tool to apply white powder onto a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic pipe fitting attached to a white surface (no text or symbols visible)

Close-up of a hand holding a flexible hose connected to a white plastic enclosure (no visible text or symbols)

Close-up of a mechanical component with pipes and housing (no visible text or symbols)

Illustration of a person using a tool to interact with a small object, no text or symbols present

Interior view of a white appliance with visible internal components and a black cable attached (no text or symbols)

White refrigerator with black buttons and a coiled cable on the floor (no visible text or symbols)

PRÉPARATION DE LA CHARGE

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Illustration of two hands holding a folded or folded object with visible structural details (no text or symbols)

RÉSERVOIR D'EAU

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container on a surface (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Diagram showing a device with a crossed-out symbol and labeled components, possibly indicating a warning or hazard.

Technical diagram of a vehicle or parking area layout with labeled components and directional arrows indicating movement or movement.

Line drawing of hands holding a fan with a circular object above (no text or symbols)

u la

Line drawing of a hand inserting a component into a device (no text or symbols)

Illustration of hands cleaning a tiled wall with a water droplet (no text or symbols)

Pure diagram of a rectangular object with a cross mark and internal lines, no text or symbols present.

Simple line drawing of a mechanical component with triangular supports and a curved handle (no text or symbols)

Sketch of a building with diagonal lines and trees, no visible text or symbols

FONCTIONNEMENT

Close-up of a hand using a tool to clean or inspect mechanical components (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with blue insulation, attached to an electronic device (no visible text or symbols)

Close-up of a white plastic container with a cylindrical pipe inserted, no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White industrial appliance with attached black component and coiled cable on floor (no visible text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Flusensieb-Anzeige

Illustration of two hands assembling or folding a rectangular object with internal components (no text or symbols)

Wassertank

Pure mechanical cross-section diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container on a surface (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing rotational motion arrows (no text or symbols beyond labels)

Diagram of a computer monitor with a crossed-out X mark, no text or symbols present

Diagram of a hotel room layout with labeled sections and furniture placement indicators

Line drawing of hands holding a fan with a circular component above (no text or symbols)

Simple line drawing of a rectangular object with internal features, possibly a container or enclosure, against a building facade (no text or symbols)

Line drawing of a hand inserting a small rectangular object into a container (no text or symbols)

Line drawing of hands using a tool to interact with a mechanical device (no text or symbols visible)

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

Pure architectural line drawing of a building facade with trusses and windows (no text or symbols)

Abstract line drawing with intersecting diagonal lines and vertical bars, no text or symbols present

BETRIEB

Companies in documentations in the bioplane applications and materials are not necessarily

Close-up of a hand using a tool to clean or inspect a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a flexible cable with a black connector, next to an open industrial machine (no visible text or symbols)

Close-up of a white plastic container with black cylindrical ports, no visible text or symbols

Illustration of a person using a tool to interact with a device (no text or symbols present)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a person holding a book inside a car (no text or symbols)

Illustration of two hands holding a folded or folded object, no text or symbols present

NON USARE ACQUA PER PULIRE IL FILTRO

VASCHETTA DELL'ACQUA

Pure technical diagram of a mechanical component with no text or symbols

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Diagram showing two views of a device with 'UP' symbols crossed out, indicating status or status change.

Technical line drawing showing a hand holding a fan blade and a device inside a housing (no text or symbols)

Line drawing of a hand inserting a card into a rectangular device (no text or symbols)

Line drawing of a person using a handheld device to clean or wash the surface (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Architectural line drawing of a building facade with diagonal bracing (no text or symbols)

Technical line drawing of a structural frame with diagonal braces and supports (no text or symbols)

FUNZIONAMENTO

Illustration of a hand holding a small object with arrows indicating motion or direction (no text or symbols)

Close-up of a hand using a power tool to clean or store items on a metal rack (no visible text or symbols)

Close-up of a hand holding a black plastic connector attached to a white plastic container (no visible text or symbols)

Close-up of a hand holding a black cable with a green cable inserted into a white electrical panel (no visible text or symbols)

Close-up of a white plastic container with black cylindrical connectors (no visible text or symbols)

Illustration of a person using a tool to interact with a small object, no text or symbols present

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Illustration of two hands assembling or folding a mechanical component (no text or symbols visible)

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a container pouring liquid into a container with a handle (no text or symbols)

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

Diagram showing a device with a crossed-out X mark and labeled components, possibly indicating a warning or hazard.

Architectural site plan showing room layout with labeled features like 'UP' and directional indicators

Line drawing of hands holding a rectangular device with a circular component above (no text or symbols)

Line drawing of a vehicle front view showing dashboard and side arm (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand holding a vertical object with a handle, against a plain background (no text or symbols)

Simple line drawing of a rectangular object with a cross mark and circular elements, no text or symbols present.

Pure architectural line drawing of a truss structure without any text, numbers, or symbols

Abstract line drawing with intersecting lines and curved shapes, no text or symbols present

ВИКОРИСТАННЯ

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black connector with attached black plastic components (no visible text or symbols)

Close-up of a hand holding a black cable with blue insulation, attached to a white industrial machine (no visible text or symbols)

Close-up of a white plastic container with black cylindrical ports, no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

White industrial machine with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with black buttons and a coiled cable on the floor (no visible text or symbols)

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Illustration of two hands assembling or folding a mechanical component (no text or symbols visible)

VESISÄILIÖ

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a handle (no text or symbols)

Diagram showing a device with a crossed-out X mark and 'UP' label, indicating a switch or status.

Technical diagram of a device with labeled components and directional arrows indicating movement or flow.

Simple line drawing of a hand holding a rectangular object with a circular pattern on the side (no text or symbols)

Simple line drawing of a rectangular object with curved lines and an arched end, no text or symbols present.

Line drawing of a hand inserting a card into a banknote (no text or symbols)

Line drawing of a hand holding a mechanical component, possibly a valve or pump, with no visible text or symbols.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Pure architectural line drawing of a building facade with diagonal braces and arches (no text or symbols)

Sketch of a building interior with diagonal lines and structural elements (no text or symbols)

KÄYTTÖ

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste

Elektriske Krav

Close-up of a hand using a tool to clean or store items, no visible text or symbols

Close-up of a hand holding a black plastic connector with metal clamps, attached to a white surface (no visible text or symbols)

Close-up of a hand holding a blue cable with black connector, against a blurred industrial background (no visible text or symbols)

Close-up of a white plastic container with black connectors and a cylindrical inlet (no visible text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force direction (no text or symbols)

White industrial machine with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White portable washing machine with attached black door and cable, placed on a concrete floor (no visible text or symbols)

FORBEREDELSE AF ILÆGNING AF T∅J

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

VIGTIGT: For at bevare tørretumblerens effektivitet skal det kontrolleres, at fnugfiltret er rent før hver tørrecyklus.

Illustration of two hands assembling or folding a rectangular object (no text or symbols visible)

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

VANDBEHOLDER

Pure mechanical cross-section diagram without any text, numbers, or symbols

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing rotational motion arrows (no text or symbols beyond labels)

Technical diagram showing two layout views with a crossed-out symbol indicating a cross-section or restriction.

Line drawing of hands holding a circular object with a patterned base (no text or symbols)

Simple line drawing of a rectangular frame with decorative elements, no text or symbols present

Simple line drawing of a hand pressing a button on a device (no text or symbols)

Line drawing of hands cleaning a sink with a faucet and cup (no text or symbols)

Pure electrical circuit lines without any symbols

Architectural line drawing of a building facade with truss structure (no text or symbols)

Sketch of a bridge structure with diagonal bracing (no text or symbols)

BETJENING

Capacity (in energy/dwt)	6 kg	7 kg	8 kg	8 kg / 10 kg
Power consumption of soft-mode	0.20 kWh	0.25 kWh	0.20 kWh	0.15 kWh
Power consumption of co-mode	0.75 kWh	0.90 kWh	0.80 kWh	0.75 kWh

Oplysninger til Testlaboratorium

EN 81121 Program

SIKKERHETSPÄMINNELSER

Bruk

Close-up of a hand using a tool to clean or store items, no visible text or symbols

Close-up of a hand holding a black plastic connector attached to a white plastic container (no visible text or symbols)

Close-up of a hand holding a flexible cable with a black connector, attached to a white industrial machine (no visible text or symbols)

Close-up of a white plastic container with black cylindrical ports, no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or rotation (no text or symbols)

White electronic device with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with black buttons and a coiled cable on the floor (no visible text or symbols)

GJ∅RE KLART T∅YET

Line drawing of a hand opening a car door with a rectangular panel on the side (no text or symbols)

Indikator For Filtervedlikehold

Illustration of two hands holding a folded or layered object with visible internal structure (no text or symbols)

VANNBEHOLDER

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Diagram of a backpack with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a hand holding a rectangular object with a circular pattern on the side (no text or symbols)

Simple line drawing of a rectangular object with curved lines and an arched base (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Illustration of hands cleaning a wooden door with a cup (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Simple line drawing of a rectangular frame with diagonal lines and circular elements (no text or symbols)

Sketch of a geometric line segment with intersecting diagonals and a horizontal base (no text or symbols)

BRUK AV MASKINEN

Close-up of a hand using a tool to clean or repair a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic connector with metal rings, attached to a white surface (no visible text or symbols)

Close-up of a hand holding a flexible cable with green insulation, partially enclosed in a white enclosure (no visible text or symbols)

Close-up of a white plastic panel with a cylindrical tube inserted, no visible text or symbols

Illustration of a person using a tool to interact with a small object, showing motion arrows (no text or symbols)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with attached black door and cable, placed on a concrete floor (no visible text or symbols)

FÖRBEREDA LASTEN

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Filterindikator

Illustration of hands assembling or folding a mechanical component (no text or symbols visible)

WATER CONTAINER

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Diagram of a backpack with labeled parts and directional arrows indicating movement or rotation

Diagram of an electronic device with a crossed-out switch symbol and labeled ports, indicating status or warning.

Technical diagram of a vehicle or gas station layout with labeled components and directional indicators

Line drawing of hands holding a fan blade with a circular object above (no text or symbols)

g t

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of hands cleaning a tiled wall with a cup (no text or symbols)

Simple line drawing of a rectangular object with a vertical line and cross marks, no text or symbols present.

Simple line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with triangular components (no text or symbols)

ANVÄNDNING

Illustration of a person using a tool to adjust or install a small object, with no visible text or symbols.

TUBO DE DRENAGEM: INSTRUÇÕES DE INSTALAÇÃO

Close-up of a hand using a tool to clean or inspect mechanical components (no visible text or symbols)

Close-up of a hand holding a black plastic pipe fitting with metal clamps, attached to a white surface (no visible text or symbols)

Close-up of a hand holding a black cable with a blue cable, attached to a white industrial equipment box (no visible text or symbols)

Close-up of a white plastic container with black cylindrical components, no visible text or symbols

Illustration of a person using a tool to interact with a small object, showing motion arrows (no text or symbols)

White industrial machine with attached wiring and a coiled cable, placed on a concrete floor (no visible text or symbols)

White industrial electrical box with attached plug and cable, placed on a concrete floor (no visible text or symbols)

PREPARAÇÃO DA CARGA

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of hands holding a folded or layered object with no visible text or symbols

DEPÓSITO DA ÁGUA

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a lid, placed on a surface (no text or symbols)

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a white plastic shelf with a cylindrical pipe inserted, no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

1. Odklopite cev od spoja na mostičku.

2. Priključite črno cev, ki ste jo dobili v kompletu (uporabite konektor in priložene sponke), na cev, ki ste jo ločili od spoja na mostičku.

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with blue insulation, attached to a white industrial machine (no visible text or symbols)

White portable washing machine with attached black cable on a concrete floor (no visible text or symbols)

PRIPRAVA NA POLNJENJE STROJA

Diagram of a hand holding a rectangular object inside a car's side panel (no text or symbols)

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

Illustration of two hands holding a folded or layered object with visible structural elements (no text or symbols)

POSODA ZA VODO

Pure mechanical diagram showing a circular component with an upward arrow, no text or symbols present

Simple line drawing of a container pouring liquid into a container on a surface (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including circled number 1 and numbered 2.

Diagram of a device interior with no visible text, numbers, or symbols

Diagram of a vehicle parking area layout with directional indicators and labeled equipment

Illustration of hands holding a fan or vent with a circular object above (no text or symbols)

Simple line drawing of a vehicle or road with a rectangular frame and curved roof (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand holding a tool or device against a surface, with no visible text or symbols.

Pure electrical circuit lines without any symbols

Simple line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with intersecting rods and components (no text or symbols)

UPORABA SUŠILNEGA STROJA

data was updated on the

INDEX

Close-up of a hand using a tool to clean or store items, no visible text or symbols

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with a green cable inserted into a white appliance (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a person using a tool to interact with a device (no text or symbols present)

White industrial electrical box with coiled cable and wiring, placed on a concrete floor (no visible text or symbols)

White industrial electrical box with attached power plug and black cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands assembling or folding a rectangular object with internal components (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a lid, placed on a surface (no text or symbols)

Diagram of a backpack with labeled parts and directional arrows, showing motion sequence

Diagram of a device interior with no visible text, numbers, or symbols

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a hand opening a fan with a circular fan on the cover (no text or symbols)

Simple line drawing of a rectangular object with curved lines above it, no text or symbols present.

Line drawing of a hand inserting a card into a banknote (no text or symbols)

Illustration of hands operating a mechanical device with a tool and base (no text or symbols visible)

Simple line drawing of a rectangular object with a cross mark and small circular elements, no text or symbols present.

Architectural line drawing of a bridge structure with trusses and supports (no text or symbols)

Architectural line drawing of a truss structure with beams and supports (no text or symbols)

ΛΕΙΤΟΥΡΓΙΑ

Capacity (in mbar) (km2)	6 kg	7 kg	9 kg	9 kg / 100 g
Power consumption of off-mode	0.2100	0.2000	0.2100	0.1500
Power consumption of on-mode	0.7500	0.8000	0.8300	0.7500

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic pipe fitting into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with blue insulation, attached to an industrial machine (no visible text or symbols)

Close-up of a white plastic container with black cylindrical ports and a side panel (no visible text or symbols)

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

White industrial electrical box with visible wiring and a coiled cable, placed on a concrete floor (no text or symbols)

White washing machine with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

HET WASGOED VOORBEREIDEN

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Illustration of two hands assembling a layered structure (no text or symbols visible)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing directional arrows indicating motion or movement (no text or symbols beyond labels)

Diagram showing a device with a crossed-out black symbol and 'Up' label, indicating a switch or status.

UP

Line drawing of hands holding a fan inside a fan-shaped device (no text or symbols)

Simple line drawing of a rectangular object with internal components and curved lines, no text or symbols present.

Line drawing of a hand inserting a rectangular component into a housing (no text or symbols)

u n a e

Pure mechanical component diagram without any text, numbers, or symbols

Architectural line drawing of a building facade with trusses and structural elements (no text or symbols)

Line drawing of a mechanical component with intersecting diagonal lines (no text or symbols)

BEDIENING

Capacity (in energy/ton)	6 kg	7 kg	8 kg	9 kg × 10 kg
Power consumption of offshore	0.2100	0.2500	0.3100	0.1500
Power consumption of offshore	0.7300	0.8000	0.8100	0.7500

Testspecifications

EN 61121 Programma Programmakeuze

PROBLEMEN OPLOSSEN
