USER MANUAL Ventus 210 Sonnenkönig

02 WARNING NOTICE Please read and understand these instructions completely before attempting to assemble, ope- rate or install the product. This manual contains important information about the installation, operation and maintenance of this patio heater. General safety information is presented on these first pages and is also found throughout this manual. Retain this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precau- tions are essential when dealing with mechanical or propane powered equipment. These precautions are required when using, storing and maintaining this item. Using this equipment with due respect and caution will reduce the possibility of personal injury or property damage. Inspect the unit for damage after removing the packaging. If damage is suspected, do not operate the device and contact a specialist. The recyclable packaging material must not be kept or disposed of in a way that is accessible to small children, but must be disposed of properly. This device may only be used for the purpose for which it was expressly designed. Any other use is to be considered improper and consequently dangerous. The supplier is not liable for any personal injury and/or damage to property resulting from improper or incorrect use. Repairs to electrical equipment may only be carried out by qualified personnel. Improperly perfor- med repairs and modifications to the equipment may result in dangerous consequences for the user, whereupon warranty claims will be rejected. The following basic precautions should always be followed when handling electrical equipment:

• To avoid overheating, do not cover the heater.

• Some parts of this product may become very hot and cause burns. Special care must be taken when children and vulnerable persons are near the heater.

• The fan heater is not suitable for outdoor use in damp weather, bathrooms or other wet or humid environments.

• Please note that the fan heater can become very hot. It should therefore be placed at a safe dis- tance from combustible objects such as furniture, curtains and the like.

• Do not cover the heater.

• Do not place the heater directly under a power outlet.

• Do not connect the radiator to an on/off timer or other devices that automatically turn the heating on or off.

• The radiator must not be stored in rooms where flammable liquids or gases are used.

• If an extension cord is used, it must be as short as possible and always fully extended.

• No other appliances may be plugged into the same outlet as the heater.

• If the power cord is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person to avoid danger.

• Place the heater far enough away from curtains and places where the air intake can be blocked.

• The power coupler is waterproof when not in use. Never use the unit with wet hands when it is not working properly and when water is on the power cord to avoid possible electric shock or power leakage.

• Do not dispose of electrical equipment as unsorted waste, use separate collection facilities. Con- tact the local municipality for information on collection systems. When electrical equipment is disposed of in landfills, hazardous substances can enter the groundwater and thus the food chain. Protect your health and well-being.EN

• Children must be supervised so that they do not play with the appliance.

• Depending on the type of power cord, the fan heater can be used only in households, warehou- ses and workshops, construction sites or greenhouses. The heater contains a thermostat and a self-reset of the heating elements. The thermostat senses the air temperature and controls the ambient temperature. The fan motor is not controlled by the thermostat and it stops working when the thermostat turns off the heating element. The self-reset feature turns the unit off to prevent overheating.

• When the heater is used for the first time, there may be a slight emission of smoke. This is quite normal and will pass after a short time. The heating element is made of stainless steel and has been coated with protective oil during manufacture. The smoke is caused by the residual oil when it is heated.

• The housing is made of sheet steel and has been coated with heat-resistant powder.

• It is supplied complete with cable and plug.

Important: VENTUS and are supplied with a detachable cable which must be used exclu- sively for our VENTUS units. Any other use may result in damage and no liability will be accepted.

1. Position the fan heater so that it is upright on a solid surface and at a safe distance from wet en-

vironments and flammable objects.

2. Connect the fan heater to the mains supply.

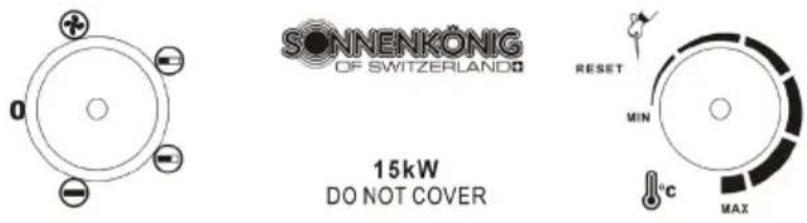

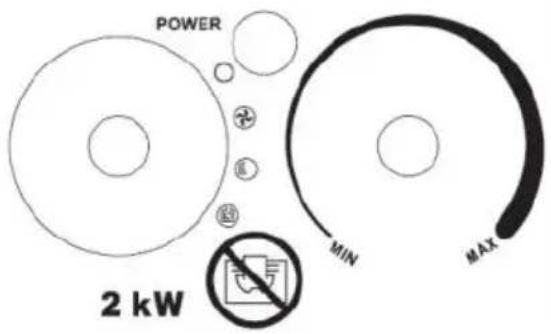

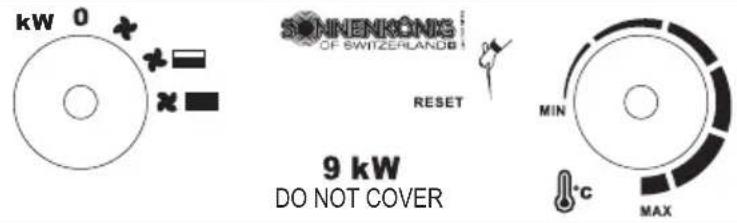

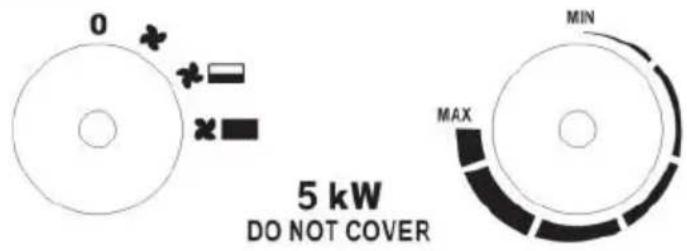

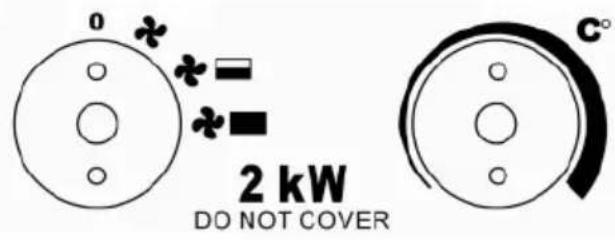

3. Set the thermostat knob to MAX and run the heater at full power.

4. The fan heater will turn on when any of the power settings are set.

5. Once the room reaches the desired temperature, the heating element will stop working, but the

fan will continue to work. As soon as the temperature is decreased, the heating element will start working again. The fan heater will now start and stop automatically, maintaining a constant room temperature.

6. Before turning off the heater, set the thermostat to the MIN position and turn it to the fan position.

Let the unit cool down for two minutes, then you can turn off the unit and unplug it.

• Unplug the device from the power outlet and let it cool down before you start cleaning. If the hou- sing is slightly dirty, clean it with a soft sponge. Dirty parts should be cleaned with a sponge which has been dipped in <50° C hot water and a mild detergent and then dried with a clean cloth. Make sure that there is no water in the unit. Do not splash water on the heater. Never use solvents such as gasoline, etc. to protect the housing.

• Clean and dry the cables and plugs, then you can store them in a plastic bag.

• If you want to stow the heater, let it cool down first. Let the heater dry and store it in a plastic bag. Place the heater in its original packaging and store it in a dry and well-ventilated place.EN

Many problems can be solved by yourself, saving you repair costs. Try the following suggestions to see if the problem can be solved before contacting customer service. Problem Possible cause Remedy The heater does not work even though it is plugged in and the thermostat is on. The connector is loose, the connection is bad. Pull out the plug and check the connection of the plug and the socket. Reconnect the device. No power on the socket. Insert the plug into another socket. The heating element is glowing. The input voltage is too high or too low. Use the power supply that is indicated on the label. The air inlet is blocked. Place the heater far enough away from curtains, plastic bags, paper and other things that can cover the inlet. The unit does not heat, only the fan is running. The switch has not been set to heat. Turn the switch to a heat setting. Operate the thermostat. Turn the thermostat and listen when it clicks to open/close. If no click is heard and the thermostat is not damaged, the heater will automatically turn on when the unit has cooled. The reset is still working. Turn off the heater and unplug it. Wait at least ten minutes before turning the heater back on to allow the protection system to reset. Unusual noise. The unit is not upright. Place the device on a level surface.EN

Warranty All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit. Disposal Please remove the heater properly. You can bring the product to any specialist dealer fort he removal. Technical changes Technical changes in technique and design are possible. CE declaration of Conformity This device complies with the following standards VENTUS 200/210

EN 60335-1:2012/A15:2021 EN 62233:2008 LVD 2014/35/EU EMC 2014/30/EU RoHS 2015/863/EU Any modifications or repairs to the device must be carried out by a qualified person. Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described. VENTUS 500/900

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management. The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and envi- ronmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indica- tes that the disposal of used batteries is prohibited in household waste. Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.NL NEDERLANDSVersie BEDRIJF Sonnenkönig of SwitzerlandOlensbachstrasse 9-15CH-9631 UlisbachTel. Int. +41 58 611 60 00Tel. Nat. 0848 870 850Sonnenkönig of SwitzerlandPeter-Henlein-Strasse 5D-89331 BurgauTel: 0180 500 64 350.14 Cent/Minute VENTUS 200/210/500/900/1500 HETELUCHTBLAZER VENTUS 210: 20600612 VENTUS 200: 20600512 VENTUS 900: 20600414 VENTUS 500: 20600714 VENTUS 1500: 20600314 DIT PRODUCT IS ALLEEN GESCHIKTVOOR GOED GEÏSOLEERDE RUIMTENOF INCIDENTEEL GEBRUIK.

02 - WAARSCHUWINGEN 43

02 - WAARSCHUWINGENNL

min 1 kW Electronic heat charge control with room and/or outdoor tem- perature feedback [no] Maximum continuous heat output

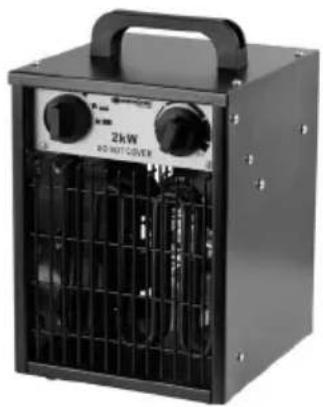

max 2 kW Fan assisted heat output [no] VENTUS 210 Type of heat output/room temperature control (select one) Nominal heat output P nom 2 kW Single stage heat output and no room temperature control [no] Minimum heat output (indicative)

min 1 kW Two or more manual stages, no room temperature control [no] Maximum continuous heat output

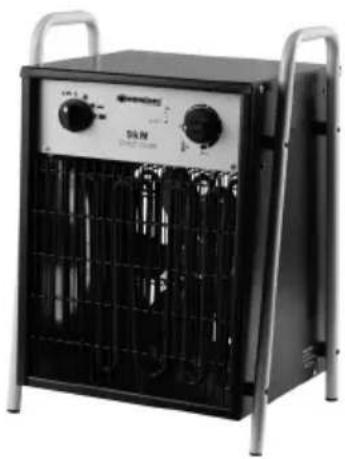

max 2 kW With mechanic thermostat room temperature control [yes] VENTUS 500 With electronic room temperature control [no] Nominal heat output P nom 5 kW Electronic room temperature control plus day timer [no] Minimum heat output (indicative)

Electronic room temperature control plus week timer [no] Maximum continuous heat output

max 5 kW Other control options (multiple selections possible) VENTUS 900 Room temperature control, with presence detection [no] Nominal heat output P nom 9 kW Room temperature control, with open window detection [no] Minimum heat output (indicative)

With distance control option [no] Maximum continuous heat output

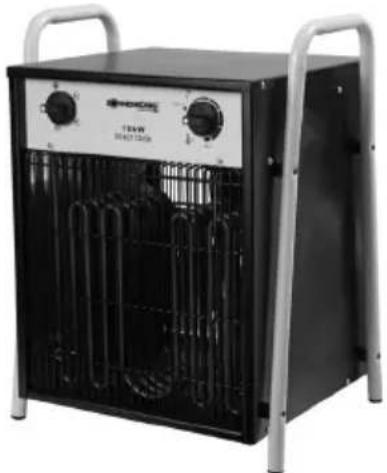

max 9 kW With adaptive start control [no] VENTUS 1500 With working time limitation [no] Nominal heat output P nom 15 kW With black bulb sensor [no] Minimum heat output (indicative)

min 5 kW Maximum continuous heat output

max 15 kW Auxiliary electricity consumption At nominal heat output
