USER MANUAL Bella Argentea Klarstein
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom

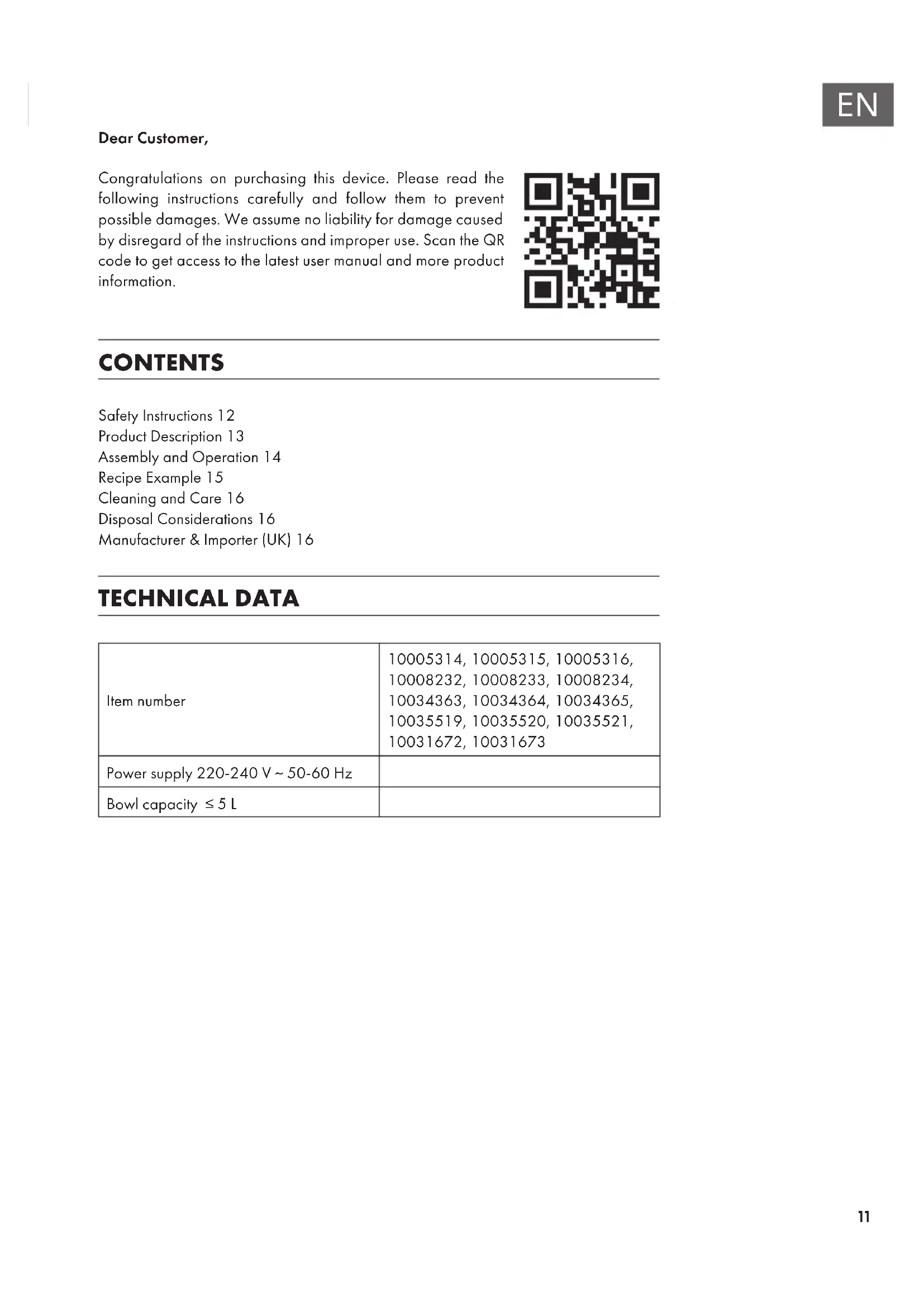

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENTS
Safety Instructions 12
Product Description 13
Assembly and Operation 14
Recipe Example 15
Cleaning and Care 16
Disposal Considerations 16
Manufacturer & Importer (UK) 16
TECHNICAL DATA
| Item number | 10005314, 10005315, 10005316, 10008232, 10008233, 10008234, 10034363, 10034364, 10034365, 10035519, 10035520, 10035521, 10031672, 10031673 |
| Power supply 220-240 V ~ 50-60 Hz | |
| Bowl capacity ≤ 5 L | |
SAFETY INSTRUCTIONS
- Read all instructions carefully and keep the manual for future reference.
- To protect yourself from electric shock, do not immerse the appliance, power cord or plug in water or other liquids.
- Do not leave the unit unattended in the presence of children.
- Turn the power off and unplug the appliance before assembling, disassembling, using, or cleaning.
- Do not allow body parts, jewelry, or loose clothing to come into contact with the moving parts of the product.
- Do not insert your fingers into the product while it is in use.
- If the power cord is damaged, have it repaired by the manufacturer or qualified service personnel.
Make sure that the voltage of the device is the same as your home power supply. The motor should always be switched off when connecting the mixer to the mains.
- Only use accessories approved by the manufacturer, otherwise you could seriously injure yourself or damage the appliance. Only use the unit indoors.
- Do not leave the unit unattended.
- Do not let the power cord hang over the edge of the work surface.
- Keep hands and other kitchen utensils away from knives and moving parts during operation to prevent injury or damage to the appliance.
- Be careful not to injure yourself when cleaning the knives.
- Ensure that all parts are firmly connected before putting the appliance into operation.
- Do not use accessories that are not approved by the manufacturer.
- Be careful when lifting the unit - it is very heavy. Make sure that the mixer head is locked and all parts are tight when lifting the unit.
- Unplug the appliance from the wall outlet when leaving it unattended or when assembling or disassembling it.
- Be careful when pouring hot food into the mixer as unexpected hot steam may escape. Never use this appliance for cooking food.
- Children, physically and mentally handicapped persons should only use the appliance if they have been thoroughly familiarized with its functions and safety precautions by a supervisor.
- The appliance is not intended for commercial use, but only for household use and similar environments, such as staff kitchens, farms, hotels, motels or Bed & Breakfast accommodations.
- Misuse will void the warranty.
Notes on Cleaning
- Do not use volatile or corrosive liquids for cleaning, such as insect sprays. Excessive pressure when wiping may damage the surfaces. Rubber or plastic parts should not be in contact with the unit for long periods of time.
- Do not use abrasive or corrosive detergents as they may corrode the surface.
Thoroughly clean all parts before first use.

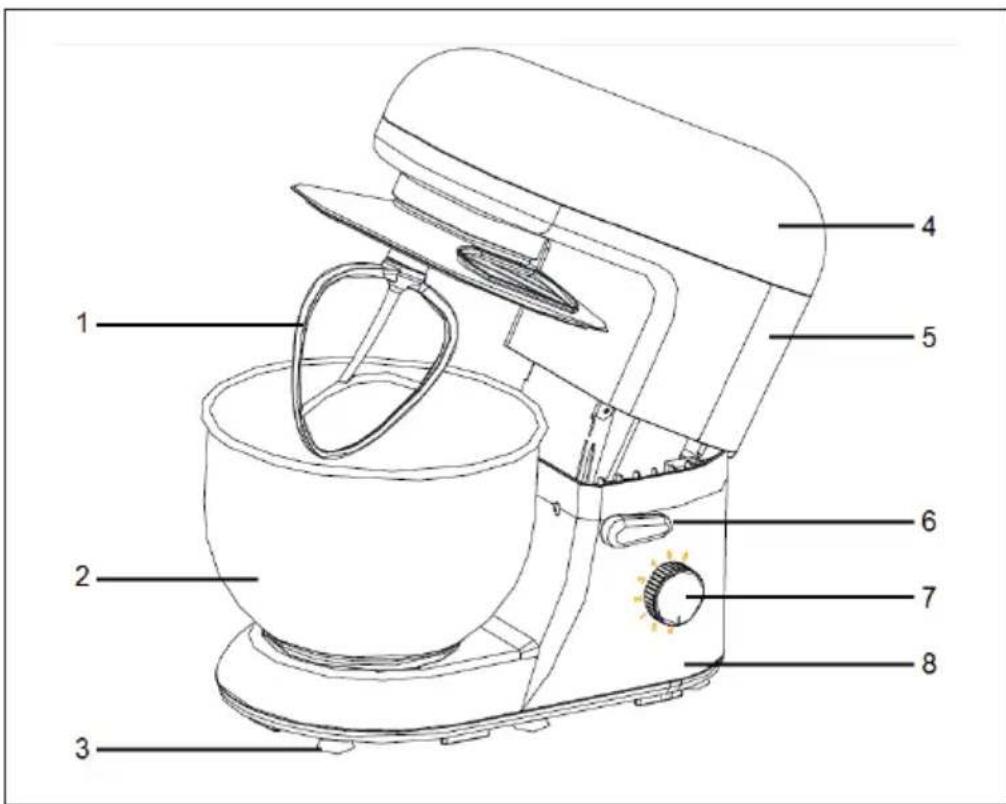

PRODUCT DESCRIPTION
1 Mixing Blade
2 Mixing Bowl
3 Feet
4 Upper Cover
5 Housing
6 Lever
7 Switch
8 Bottom

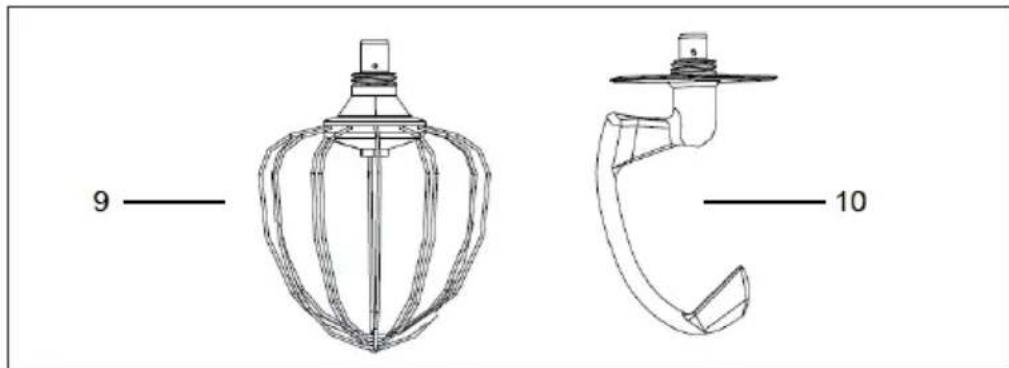

9 Whisk
10 Dough Blade

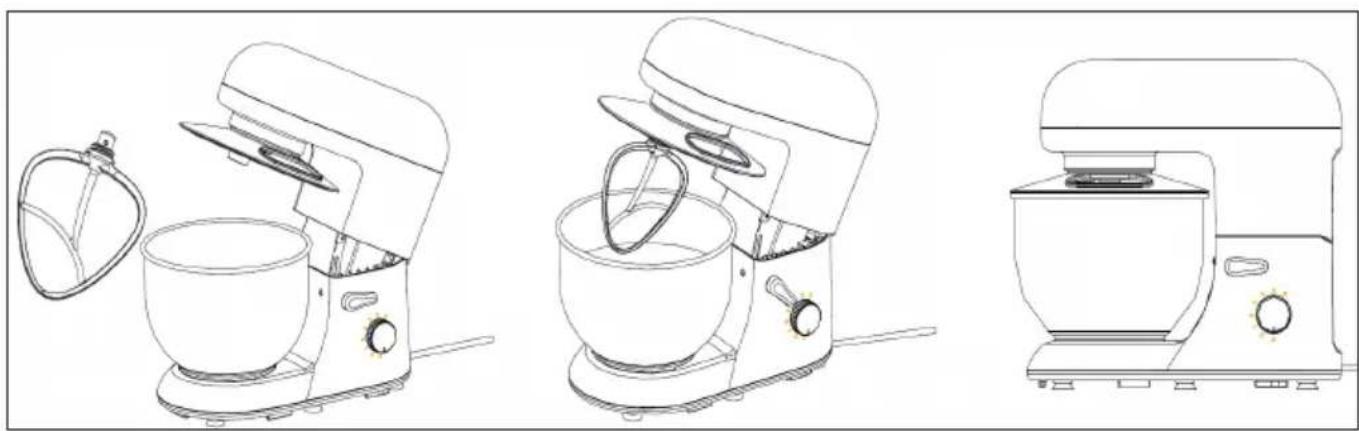

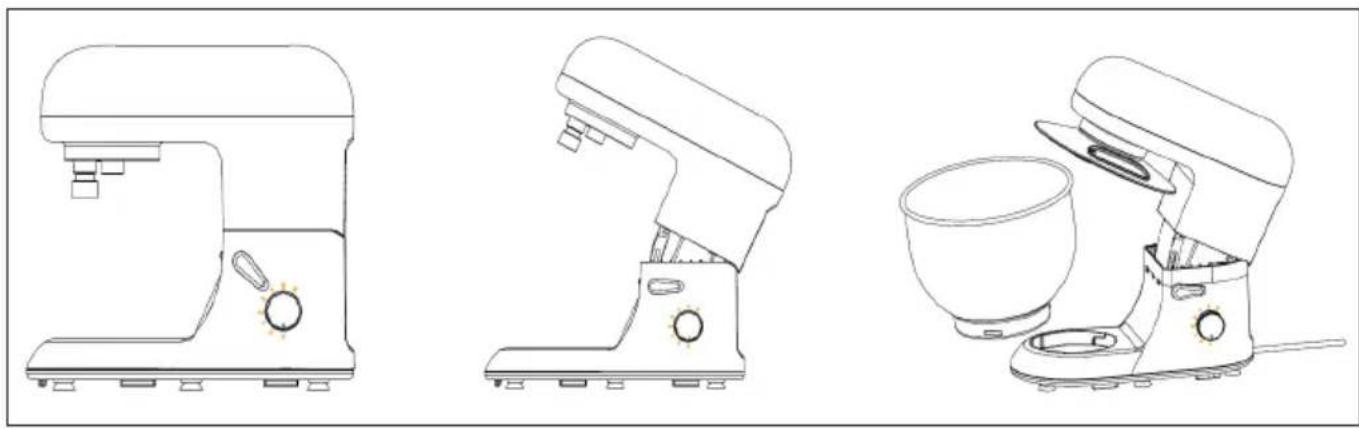

ASSEMBLY AND OPERATION
1 Mix the food ingredients thoroughly in accordance with the recipe you are following.
2 Then open the upper housing cover using the small lever (6).
3 Place the mixing bowl (2) on the device plate, and turn the mixing bowl anticlockwise until it is fixed.
4 Fix the dough blade (10), the whisk (9) or the mixer blade (1) on the blade connector and rotate the blade connector clockwise until it engages firmly.
5 Turn the lever in the direction of the arrow (on the machine) and press the top of the housing (5) downwards with one hand.
6 Ensure that the switch is set to "P" or "0" and connect the AC plug with a household AC socket. The Bella is now ready to use.
RECIPHE EXAMPLE
Batter for panda waffles
Ingredients:
125gbleached flour
- 60 g sugar
2 teaspoons baking soda
1 pinch of salt
- 1 egg
Pandan paste
200 ml coconut milk
- 60 ml coconut oil
1 pinch of vanilla sugar
Preparation:
Mix flour, sugar, baking powder and salt in the mixing bowl. Use the mixer attachment (1) as an attachment and start the machine at level 1 (about 20 seconds) before increasing to level 2 (also about 20 seconds).
Then set to step 3 and mix the batter for another 2 to 3 minutes.
Next, add egg, pandan paste, coconut milk, coconut oil and vanilla sugar.
Finally, beat the batter into a smooth light green mass. Use the whisk and gently increase the speed from level 1. Ensure that the device does not work longer than approx. 4 minutes at a time and does not overheat.
The result will be a fine exotic waffle batter. This goes very well with a coconut cream, for example. How to prepare this and many more recipe inspirations can be found at www.urban-hunger.com.
Use the whisk attachment to whip cream or egg whites until stiff. Choose a higher speed setting and be careful not to overfill the mixing bowl.
CLEANING AND CARE
Note: Please note that the stirring elements are not suitable for cleaning in the dishwasher or with alkaline cleaning agents. This may result in black discoloration.
Note: Glass mixing bowls may only be cleaned by hand. The dishwasher gets too hot and causes the glass to crack.
DISPOSAL CONSIDERATIONS
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
