USER MANUAL CD6111 JENSEN

Tuner Operation ....7

CD Player Operation ....8

CD Changer Operation 9

JPORT Operation 9

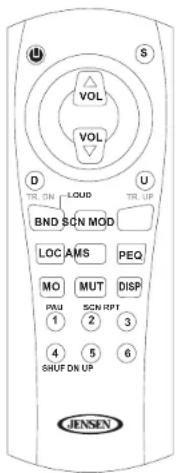

Remote Control 10

Care and Maintenance ....10

Troubleshooting 11

Specifications 11

12-Month Limited Warranty 12

CONTENIDO

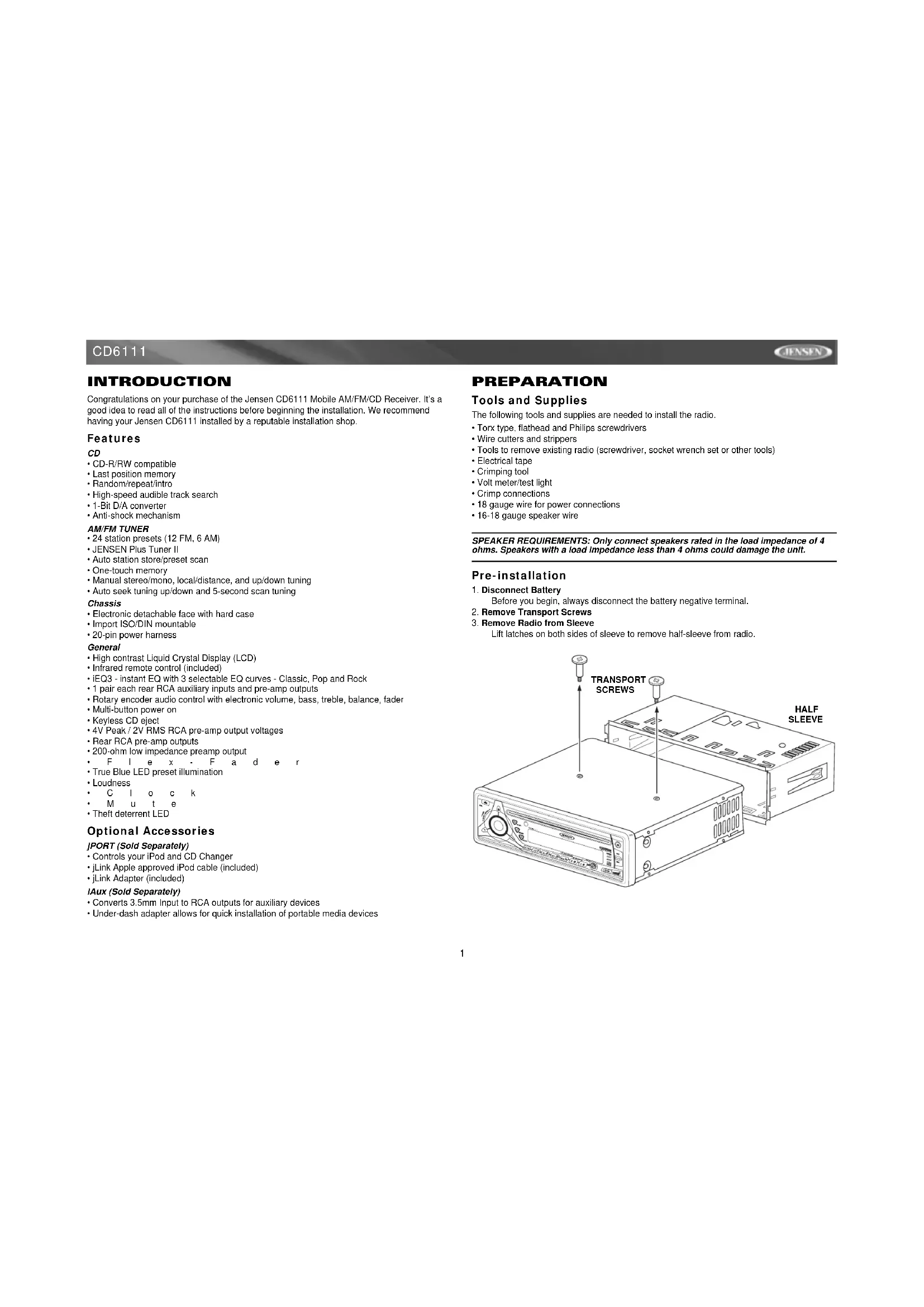

Congratulations on your purchase of the Jensen CD6111 Mobile AM/FM/CD Receiver. It's a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen CD6111 installed by a reputable installation shop.

Features

CD

• CD-R/RW compatible
• Last position memory
• Random/repeat/intro
  • High-speed audible track search
  • 1-Bit D/A converter
  • Anti-shock mechanism

AM/FM TUNER

• 24 station presets (12 FM, 6 AM)
• JENSEN Plus Tuner II
• Auto station store/preset scan
- One-touch memory
- Manual stereo/mono, local/distance, and up/down tuning
• Auto seek tuning up/down and 5-second scan tuning

Chassis

• Electronic detachable face with hard case
- Import ISO/DIN mountable
• 20-pin power harness

General

• High contrast Liquid Crystal Display (LCD)
• Infrared remote control (included)
- iEQ3 - instant EQ with 3 selectable EQ curves - Classic, Pop and Rock
• 1 pair each rear RCA auxiliary inputs and pre-amp outputs
• Rotary encoder audio control with electronic volume, bass, treble, balance, fader
- Multi-button power on
- Keyless CD eject
• 4V Peak / 2V RMS RCA pre-amp output voltages
- Rear RCA pre-amp outputs
• 200-ohm low impedance preamp output

• F I e x - F a d e r
• True Blue LED preset illumination
- Loudness

• C I o c k
• M u t e
- Theft deterrent LED

Optional Accessories

JPORT (Sold Separately)

• Controls your iPod and CD Changer
• jLink Apple approved iPod cable (included)
- jLink Adapter (included)

iAux (Sold Separately)

• Converts 3.5mm Input to RCA outputs for auxiliary devices
  • Under-dash adapter allows for quick installation of portable media devices

PREPARATION

Tools and Supplies

The following tools and supplies are needed to install the radio.

• Torx type, flathead and Philips screwdrivers
- Wire cutters and strippers
- Tools to remove existing radio (screwdriver, socket wrench set or other tools)
- Electrical tape
- Crimping tool
- Volt meter/test light
- Crimp connections
• 18 gauge wire for power connections
• 16-18 gauge speaker wire

SPEAKER REQUIREMENTS: Only connect speakers rated in the load impedance of 4 ohms. Speakers with a load impedance less than 4 ohms could damage the unit.

Pre-installation

1. Disconnect Battery

2. Remove Transport Screws

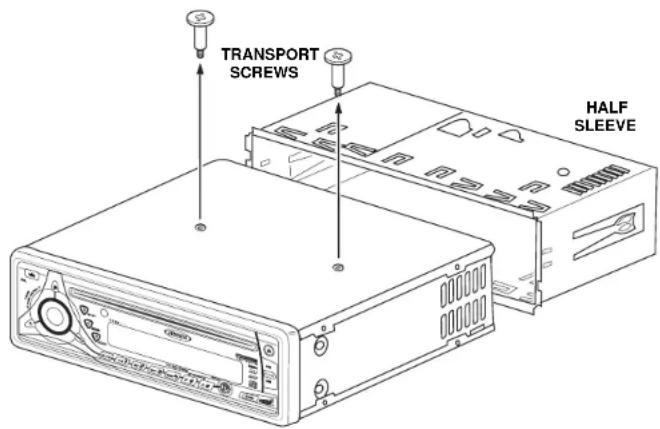

3. Remove Radio from Sleeve

Before you begin, always disconnect the battery negative terminal.
Lift latches on both sides of sleeve to remove half-sleeve from radio.

TRANSPORT SCREWS HALF SLEEVE

WIRING

Wiring with a Wiring Adapter (Purchased Separately)

Connect Wires

You can make these connections without being in the vehicle.

1. Splice or crimp wires.

2. Attach wiring adapter to car wiring harness.

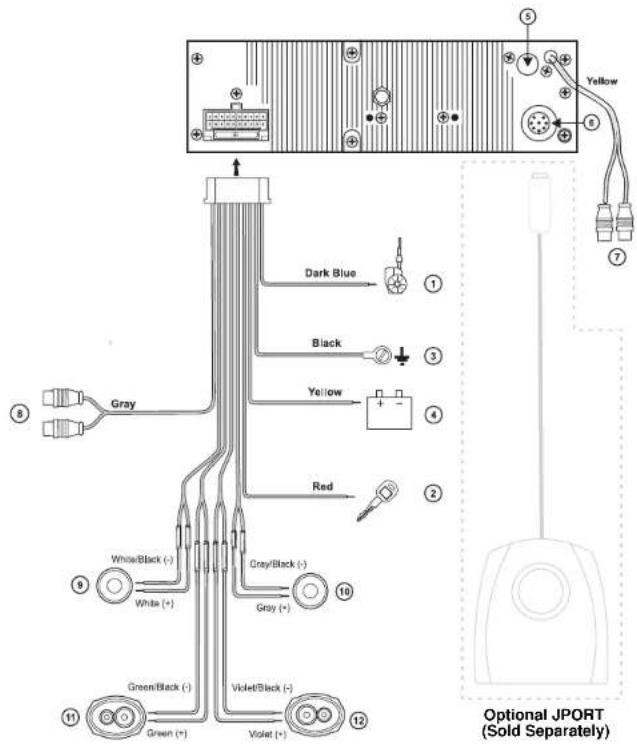

Wiring Diagram / Color Codes

1. Power Antenna (dark blue wire) - Connect to power antenna or amplifier. If not used, tape bare end of wire.
2. Accessory/Ignition (red wire) - Connect to existing radio wire or radio fuse.
3. Ground (black wire) - Connect to ground terminal or clean, unpainted part of chassis.
4. Memory/Battery (yellow wire) - Connect to battery or 12 volt power source that is always live. The radio will not work if this wire is not connected.
5. Antenna Connector - Connect the antenna plug from the existing antenna cable (some vehicles require an adaptor).
6. CD Changer/JPORT connector - Use this 8-pin DIN socket to connect an optional CD Changer or JPORT (sold separately).
7. Auxiliary Input Cable (yellow RCA cables) - Connect line in for auxiliary input devices (CD player, etc.).
8. Outputs to Amplifier (gray RCA cables) - Connect line out for optional external amplifiers. The red connector is for the right and the white connector is for the left.
9. Left Front Speaker
10. Right Front Speaker
11. Left Rear Speaker
12. Right Rear Speaker

NOTE: The amplifiers in this radio are only designed for use with four speakers. Never combine (bridge) outputs for use with two speakers. Never ground negative speaker leads to chassis ground. Failure to wire exactly as shown may cause electrical damage to the radio.

Fuses

When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The CD6111 uses one 15 amp fuse located below the wiring connector (15 amp fast blow ATO).

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

Technical Assistance

If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.

WIRING DIAGRAM

Gray White/Black (-) White (+) Green/Black (-) Green (+) Violet/Black (-) Violet (+) Dark Blue Black Yellow Red Gray/Black (-) Gray (+) Optional JPORT (Sold Separately)

INSTALLATION

This unit is designed for installation in cars, trucks and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialty shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. If you have trouble locating a kit or need installation assistance, contact Technical Support at 1-800-323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.

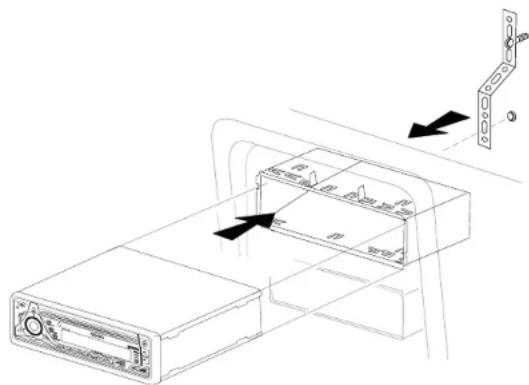

Universal Installation Using Mounting Sleeve

1. Remove the detachable front panel, if it is attached to the chassis, by pushing the "Release" button.
2. Slide the mounting sleeve off of the chassis if it has not already been removed. If it is locked into position, use the removal keys (supplied) to disengage it. The removal keys are depicted on page 4.
3. Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Do not force the sleeve into the opening or cause it to bend or bow. Check that there will be sufficient space behind the dashboard for the radio chassis.
4. Locate the series of bend tabs along the top, bottom and sides of the mounting sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary to firmly secure the sleeve to the dashboard.

Technical line drawing of a mechanical component with a hammer and a magnified inset showing a pin (no text or symbols)

1. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve.

Technical diagram showing a device with labeled ports and directional arrows indicating assembly or movement.

1. Follow the wiring diagram carefully and make certain all connections are secure and insulated with crimp connectors or electrical tape to ensure proper operation.
2. After completing the wiring connections, attach the front panel and turn the unit on to confirm operation (vehicle ignition switch must be on). If the unit does not operate, recheck all wiring until the problem is corrected. Once proper operation is achieved, turn the ignition switch off and proceed with final mounting of the chassis.
3. Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is fully seated and the spring clips lock it into place.
4. Attach one end of the perforated support strap (supplied) to the screw stud on the rear of the chassis using the hex nut provided. Fasten the other end of the perforated strap to a secure part of the dashboard either above or below the radio using the screw and hex nut provided. Bend the strap, as necessary, to position it. CAUTION: The rear of the radio must be supported with the strap to prevent damage to the dashboard from the weight of the radio or improper operation due to vibration.
5. Re-attach the front panel to the chassis and test radio operation by referring to the operating instructions for the unit.

NOTE: For proper operation of the CD player, the chassis must be mounted within 20° of horizontal. Make sure the unit is mounted within this limitation.

JENSEN

CD6111

Kit Installation

If your vehicle requires the use of an installation kit to mount this radio, follow the instructions included with the installation kit to attach the radio to the mounting plate supplied with the kit.

1. Wire and test the radio as outlined in the Universal Installation instructions.
2. Install the radio/mounting plate assembly to the sub-dashboard according to the instructions in the installation kit.
3. Attach the support strap to the radio and dashboard as described in the Universal Installation instructions.
4. Replace the dashboard trim panel.

ISO Installation

This unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some vehicles to mount the radio to the dashboard. Please consult with your local car stereo shop for assistance on this type of installation.

1. Remove the existing factory radio from the dashboard or center console mounting. Save all hardware and brackets as they will be used to mount the new radio.
2. Carefully unsnap the plastic frame from the front of the new radio chassis. Remove and discard the frame.
3. Remove the factory mounting brackets and hardware from the existing radio and attach them to the new radio. Do not exceed M5 x 9 MM maximum screw size. Longer screws may damage components inside the chassis.
4. Wire the new radio to the vehicle as outlined in the Universal Installation instructions.
5. Mount the new radio assembly to the dashboard or center console using the reverse procedure of step 1.

Remove Radio

To remove the radio after installation, remove the trim ring by lifting in the center and pulling it off from either side. Insert the removal keys straight back until they lock, and then pull the radio out. If removal keys are inserted at an angle, they will not lock properly to release the unit.

Pure mechanical assembly diagram without any text, numbers, or symbols

REMOVAL KEYS

OPERATION

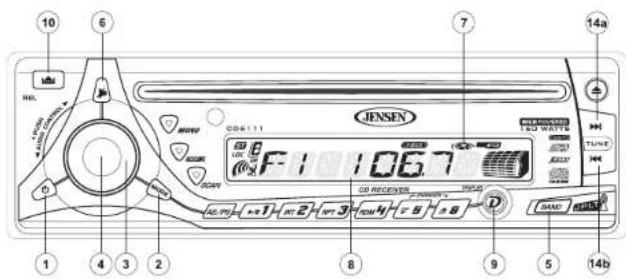

Power

Press the power button (1) or any other button on the face of the receiver to turn the unit on when the ignition switch is on. Press the power button again to turn the receiver off. If the radio was left on when the ignition was last turned off, the receiver will turn on automatically when the ignition switch is again turned on. If the receiver was off when the ignition was last turned off, the receiver must be turned on manually when restarting the vehicle.

Mode

Press MODE (2) to select a different mode of operation as indicated on the display panel. Available modes include Tuner, CD, CD changer (CDC) and Auxiliary Input. During CD player operation, pressing MODE will change to the tuner mode without ejecting the disc. The CD icon (7) will remain in the display to indicate that a disc is still loaded in the unit. Unless a CD changer is connected to the unit, the CD changer (CDC) mode cannot be accessed. To access the Auxiliary Input mode, press the MODE button until "AUX" is indicated in the display.

Volume

To increase the volume, rotate the volume control (3) clockwise. To decrease the volume, rotate the volume control counter clockwise. When volume is adjusted, the volume level is shown on the display panel as a number ranging from "00" (lowest) to "100" (highest).

Select

Press PUSH (4) to step through the menu of audio functions. The first option is volume (VOL), followed by bass (BAS), treble (TRB), balance (BAL), fader (FAD), and again by volume (VOL). When adjusting audio functions, the unit will automatically exit select mode and return to the normal display after five seconds or when another function is activated.

10 6 7 14a JENSEN CD4111 F 1 106.7 OR RECEIVER LOAD TUBE 1 4 3 2 8 9 5 14b

Select (continued)

Bass

Press PUSH (4) twice until "BAS" appears in the display. Within five seconds, rotate the volume control (3) clockwise or counter clockwise to adjust the bass from -10^ to +10^ . "00" represents a flat response. The bass level is shown on the display for five seconds or until another function is activated.

CD6111

JENSEN

Treble

Press PUSH (4) three times until "TRB" appears in the display. Within five seconds, rotate the volume control (3) clockwise or counter clockwise to adjust Treble from "-10° to "+10°, "00" represents a flat response. The treble level is shown on the display for five seconds or until another function is activated.

Balance

Press PUSH (4) four times until "BAL" appears in the display. Within five seconds, rotate the volume control (3) clockwise (or counter clockwise) to adjust Balance between the right and left speakers from "BAL 10R" (full right) to "BAL 10L" (full left). "BAL L=R" represents an equal balance level between the right and left speakers. The balance position is shown on the display for five seconds or until another function is activated.

Fader

Press PUSH (4) five times until "FAD" appears in the display. Within five seconds, rotate the volume control (3) clockwise or counter clockwise to adjust balance between the front and rear speakers from "FAD 10R" (full rear) to "FAD 10F" (full front). "FAD F=R" represents an equal balance level between the front and rear speakers. The fader position is shown on the display for five seconds or until another function is activated.

AIR COATING MODE

iX-BASS (BAND)

Press BAND (5) for two seconds to activate the iX-BASS feature. When listening to music at low volume levels, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing. When this feature is activated, "LOUD ON" will appear in the display for five seconds. Press BAND again for two seconds to deactivate this feature. "LOUD OFF" appears in the display for five seconds.

Audio Mute (MUTE)

Press ▶ (6) to mute the audio volume. "MUTE" flashes on the display. Restore volume to the previous setting by pressing the mute button again, adjusting the volume control, or by pressing any other button on the unit.

Liquid Crystal Display (LCD)

The liquid crystal display (LCD) panel (8) displays the frequency, time and activated functions of the unit, including a combination audio level/disc indicator, which appears as dual disc icons with circular bar graphs depicting the audio signal. In addition, the display contains a receive signal indicator that depicts the relative strength of the incoming broadcast frequency.

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

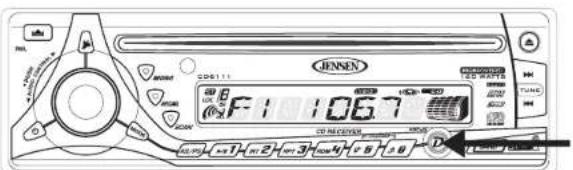

Display (DISPLAY)

When the unit is off, the LCD displays the time of day. When the unit is on, the LCD automatically shows the tuner, CD or CD changer display, depending on which mode of operation is currently activated.

JENNEN 125 WARS OFF F: 1:067 30 MHz 10.95% +1 +2 +3 +4 +5 +6 +7 +8

Display Clock

During tuner, CD or CD changer operation, press DISPLAY (9) to display the time of day. After five seconds, the display reverts to tuner, CD or CD changer display.

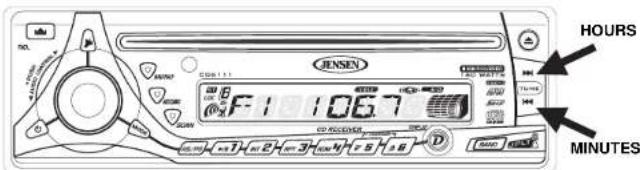

Set Clock

1. To set the clock, turn the radio on in tuner mode (or any other mode).
2. Press DISPLAY. The time appears on the display.
3. Press and hold DISPLAY until the time display begins flashing.
4. While the display is flashing, press the Up Tuning button (14a) to adjust hours and the "A" (AM) or "P" (PM) indication. Press the Down Tuning button (14b) to adjust minutes.
5. After five seconds, the time will set and the display will return to tuner, CD or CD changer display.

JENSEN HOURS MINUTES

Front Panel Release

The front panel release button (10) releases the mechanism that holds the front panel to the chassis.

JASEN

CD6111

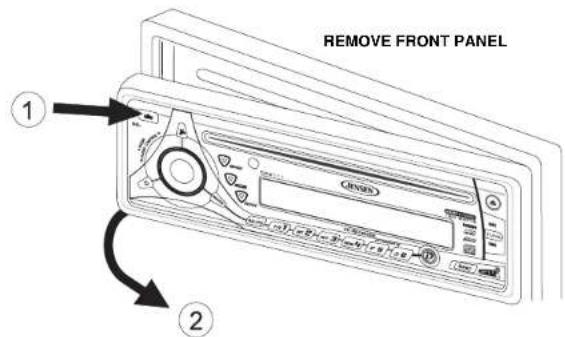

Detaching the Front Panel

To detach the front panel, first press the front panel release button to release the left side of the panel. Next, grasp the released side and pull it off the chassis. After removing the front panel, store it in the supplied carrying case to protect it from dirt and damage.

REMOVE FRONT PANEL ① ②

Re-attaching the Front Panel

To re-attach the front panel, make sure the electrical terminals on the back of the panel are free of dust and dirt, as debris could cause intermittent operation or other malfunctions. Position the right side of the panel in place so that it is correctly engaged, then lightly press the left side of the panel until the mechanism locks it into place.

Reset Button

The reset button (11) is located on the front of the chassis and can only be accessed with the front panel removed. The reset circuitry protects the microprocessor circuitry. Since resetting the unit will erase the time and preset memories, it should only be activated upon initial installation after all wiring is complete or if there is a malfunction of any of the switches on the unit. In these circumstances, pressing the reset button will clear the system and return the unit to normal operation.

Simple line drawing of a rectangular frame with two small circular symbols at the bottom (no text or labels)

Theft Deterrent LED

A light-emitting diode (LED) (12) is located on the chassis behind the front panel and will flash when the panel is removed. The flashing light serves as a visual warning to the would-be thief that the unit has been disabled by removal of the front panel.

TUNER OPERATION

AM/ FM Band Selector (BAND)

Press BAND (13) during radio play to switch between three FM bands and one AM band. "F1", "F2", "F3" or "AM" will appear in the display to indicate the band currently selected.

Tuning

Automatic Tuning

Press the Up Tuning (14a) button to tune upward in frequency and the Down Tuning (14b) button to tune downward in frequency. The unit will automatically stop at the next strong station. If the Local mode is active, the radio will seek the next strong local station when either button is pressed.

Manual Tuning

Press the Up Tuning (14a) or Down Tuning (14b) button for more than two seconds to select manual tuning mode. "MANUAL" will appear in the display. Press the Up or Down Tuning buttons to move radio frequency up or down two digits at a time. Press and hold the Up or Down tuning buttons to quickly advance to a certain frequency. Release when the desired frequency is reached. If tuning is not adjusted within five seconds of entering manual tuning mode, the radio will revert to automatic tuning and "AUTO" will appear in the display.

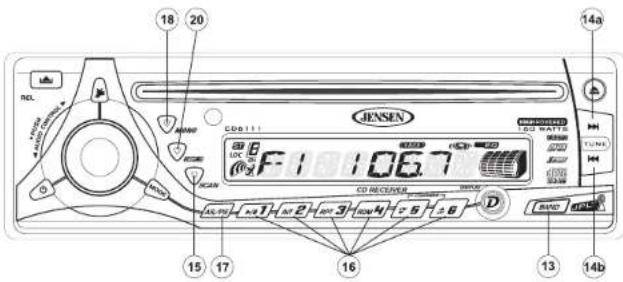

Scan Tuning (SCAN)

Press SCAN (15) to scan upwards through all the strong channels in the current band. The unit will pause and play each station for five seconds, and the station frequency will flash in the display during this time. Press SCAN again to stop scanning and listen to the current station.

18 20 JENSEN CD-ROM 14a 15 17 16 13 14b

Preset Stations

Up to six stations on each band can be stored as presets and can then be instantly recalled by pressing the associated preset button (16). To store a station, turn the radio on and select the desired band and station. Press and hold the desired preset button (numbered one through six on the face of the radio) for more than two seconds. When stored, the preset number will appear in the display. The station is now stored and can be re-called at any time by pressing the corresponding preset button. Repeat for the remaining five presets on the current band and for all presets on the other three bands.

Automatically Store / Preset Scan (AS/PS)

Automatically Store

Select six strong stations and store them in the current band using the Automatic Store feature. To enable this feature, press and hold AS/PS (17) for more than two seconds. The radio will automatically scan the band in use and enter strong stations into the preset memory positions for that band. After entering the stations into memory, the unit will automatically stop at each station for five seconds so each can be heard. When using the Automatically Store feature, the new stations replace any stations already stored in preset memory for the selected band.

Preset Scan

Press AS/PS (17) to scan the six preset stations in the current band. The unit will stop at each station for five seconds before continuing to the next preset station, and the preset number will flash on the display during the preset scan. Press AS/PS again to stop scanning and listen to the current station.

REL MOUNT SCAN CO RECEIVER D BAND PRESS AND HOLD PRESET NUMBER APPEARS

Mono/ Stereo Selector (MONO)

Press MONO (18) during FM radio operation to select stereo reception of the broadcast signal. Under normal reception, the unit should be left in the stereo mode as indicated by the "ST" designation and the associated signal strength indicator that appear on the display panel when tuned to an FM stereo signal. If the signal is too noisy for comfortable listening, press MONO to switch to mono reception, and the "ST" indication will disappear. Press MONO again to return to stereo mode.

Equalizer Selector (iEQ)

The equalizer function applies preset sound effects to the unit's audio output signal. Press IEQ (20) to activate one of the following operating modes: FLAT, CLASSICS, POP M, ROCK M or DSP OFF. When the equalizer function is activated, the most recently selected bass/treble levels are ignored. If the bass and/or treble levels are adjusted while the equalizer function is active, the equalizer function will revert to FLAT. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels.

CD PLAYER OPERATION

Insert CD

With the label surface facing up, gently insert the disc into the CD slot (21) until the soft-loading mechanism engages and pulls in the disc. Disc play begins, "S--CDP" will appear in the display, and the CD icon will become animated. The center of the disc icon (7) illuminates and becomes animated, and the track number and elapsed time appear in the display.

NOTE: The unit is designed for play of standard 5" (12 cm.) compact discs only. Do not attempt to use 3" (8 cm.) CD singles in this unit, either with or without an adaptor, as damage to the player and/or the disc may occur. Such damage will not be covered by the warranty on this product.

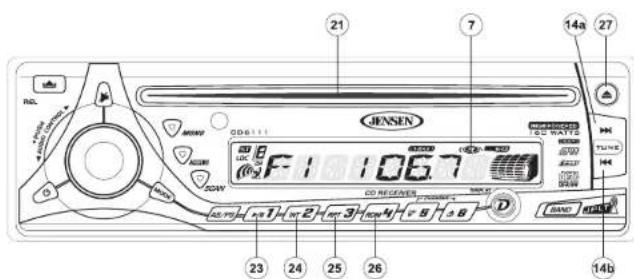

Track Select

Track select features are used to quickly access the beginning of a particular track when a disc is in play. Press the Up Tuning button (14a) to move forward or the Down Tuning button (14b) to move backward on the disc to locate the desired track. Track numbers will appear in the display as they are accessed.

Press and hold the Up or Down Tuning buttons to fast forward or fast reverse through a disc. During either function, the elapsed time will appear on the display. Release the button to resume CD play.

JENSEN 21 7 14a 27 23 24 25 26 14b

Play/ Pause

Press the play/pause button (23) to suspend disc play. "S--PAUSE" will appear in the display, and the center of the disc icon (7) will stop rotating. Press the play/pause button again to resume disc play. The "S--PAUSE" indication will disappear from the display, and play will resume from the pausing point.

Disc Scan (SCN)

During disc play, press SCN (24) to play the first 10 seconds of each track on the disc. "S--SCN" will appear in the display. When the desired track is reached, press SCN again to end the scan function and play the selected track. "S--SCN" will disappear from the display. The scan function will also be canceled when activating the repeat or shuffle functions.

Disc Repeat (RPT)

Press RPT (25) during disc play to continuously repeat the selected track. "S-RPT" will appear in the display. Press RPT again to stop repeating. "S-RPT" will disappear from the display, and regular play will resume. The repeat function will also be canceled when activating the scan or shuffle functions.

Disc Shuffle (SHF)

Press SHF (26) during disc play to play all tracks on a CD in random, shuffled order. "S--SHF" will in the display. Press SHF again to stop random play. "S-SHF" will disappear from the display, and regular play will resume. The shuffle function will also be canceled when activating the scan or repeat functions.

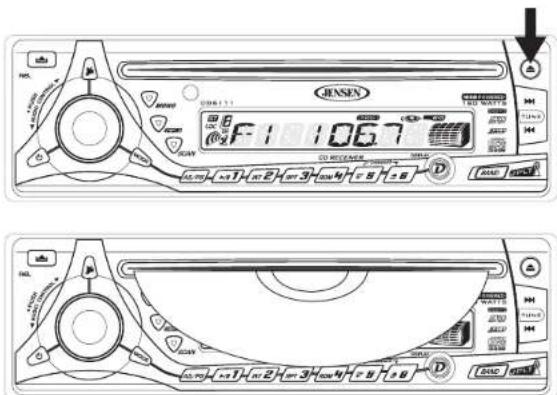

Disc Eject

Press the eject button (27) to stop CD play and eject the disc. The unit will change to tuner or CD changer operation, depending on which mode was in operation prior to disc play. If the disc is not removed from the unit within 15 seconds, the disc will be reloaded to prevent accidental damage. The CD icon (7) will appear in the display to indicate that a disc is loaded in the player. Disc play can be resumed by pressing MODE (2) to choose the CD player function.

JENSEN 02F1 1067 CD-ROM D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi

CD Player Error Codes

If a problem should develop while operating the CD player, an error code (ER-1, ER-2, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. If an error code should appear, try ejecting and reloading the disc into the player. While the disc is out of the unit, make sure it is clean and undamaged, and then load it correctly. If this does not solve the problem, pressing the reset button (11) may help, but will erase the time and preset memory. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance.

Please call Jensen technical support at 1-800-323-4815 for a complete list of CD changers compatible with this unit. The following Jensen CD Changers are compatible with this unit: JCH10RF and CH1001.

After the CD changer has been installed and properly connected, press the Reset button (11) to initialize the installation. Refer to the owner's manual included with the CD changer for instructions on installing, loading and using the CD magazine.

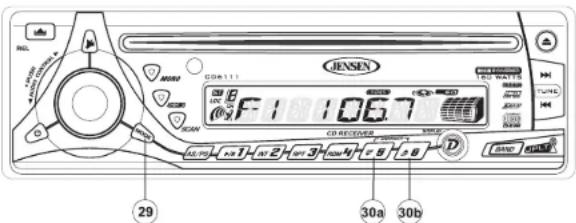

CD Changer Mode

Press MODE (29) during radio or disc play to select operation of the CD changer, "CDC" will appear in the display. Disc play will begin, and the disc and track numbers will be shown in the display. If a new magazine has been loaded into the changer, play will begin from the first track of the first disc. If a magazine was already in the changer, play will resume where it ended.

Disc Select (UP/ DN)

To select a disc for play, use the UP (30a) button to advance to a higher disc or the DN (30b) button to move back to a lower disc. The number of the disc in play appears on the display.

Other Features

The Play/Pause, Scan, Repeat, Shuffle, Track Select and Fast Forward/Fast Reverse features for CD changer play are accessed in the same methods as for regular disc play. Refer to the CD Player Operation section of this manual for details.

JENSEN CD-ROM 111 F-1:1067 CD-RECEIVER 30a 30b

CD Changer Error Codes

If problems arise during CD changer operation, the following error codes may appear in the display:

ER-1: No magazine loaded in the CD changer. ER-2: Problem in the disc loading function.

ER-3: Error in the disc loading function. ER-4: Error in the disc unloading function.

ER-5: Error in the magazine position. ER-6: Error in the laser pickup position.

ER-7: Error in the laser focus on the disc.

To resolve any of the above problems, eject the magazine from the changer and verify that the discs are clean, undamaged and loaded correctly. Pressing the reset button (11) may help, but will erase the time and preset memories. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance.

JPORT OPERATION

After the JPORT has been installed and connected, press the RESET button (11) to initialize the installation. The JPORT can be used to control your iPod or an optional CD Changer. Refer to the owner's manual included with the JPORT for Instructions regarding the operation of external devices attached to your JPORT.

JENSEN

CD6111

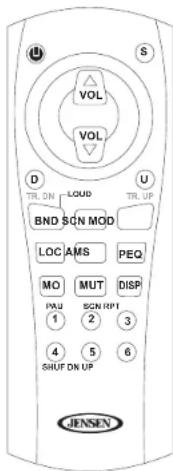

REMOTE CONTROL

The remote control will allow you to control the basic functions of the CD6111.

The remote control sensor is at the top left of the MONO (18) button.

AMS = AS / PS

PEQ = iEQ

MOD = Mode

LOC = Lo / DX

BND = Band

SCN = Scan,AM,FM

MUT = Mute

MO = St / Mo

DISP = Clock / Frequency

VOL VOL D TR, DN LOUD BND SCN MOD LOC AMS PEQ MO MUT DISP PRU SCN RPT 1 2 3 4 5 6 SHUF DN UP JENSEN

CARE AND MAINTENANCE

CD Player

The following guidelines will help you extend the life of your CD player:

1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit.
2. The CD player will not operate properly in extreme hot/cold or under damp conditions. In case of such conditions, wait until the vehicle interior reaches a normal temperature or any condensation on the disc player lens has evaporated before using the player.
3. Never insert anything other than round 5" CDs into the player. Attempting to insert CDs of other sizes (even with an adaptor) will cause damage not covered by the warranty.
4. Always remove the CD when the player is not is use.
5. The unit is designed with a vibration dampening CD mechanism to minimize interruption of disc play due to normal vibration in a moving vehicle. However, occasional sound skips may occur when driving on very rough roads. This will not scratch or damage the disc, and normal play will resume when the rough conditions cease.

Compact Discs

CD-R / CD-RW

Depending on media type and method of "recording / burning", some CD-R/RWs may be incompatible with this unit. After "recording / burning" the session must be closed. Please refer to your software's recommended procedures for closing a disc / session. Review your recording software to familiarize yourself with the correct "recording / burning" procedures. We recommend using the latest versions of ROXIO™ or NEROTM burning software.

In addition, this unit will only recognize the CDDA (Compact Disc Digital Audio) format "recorded / burned" onto a CD-R/RW. This unit does not support .MP3, .WMA, .WAV, .OGG or other formats. The CDDA format is the standard format of an "original store bought" CD. When recording / burning a CD-R/RW make sure the CDDA format is selected.

CD Care and Handling

Dirt, dust, scratches and warpage can cause skips in the playback and deterioration of sound quality. Please follow these guidelines to take care of your compact discs.

1. Carefully wipe fingerprints, dust and dirt from the disc's playing surface with a soft cloth. Wipe in a straight motion from the inside to the outside of the disc.
2. Never use chemicals such as record sprays or household cleaners to clean CDs, as they can irreparably damage the disc's surface.
3. Discs should be kept in their storage cases when not in use.
4. Do not expose discs to direct sunlight, high temperatures or high humidity for long periods.
5. Do not stick paper, tape or labels on disc surfaces.

TROUBLESHOOTING SPECIFICATIONS

Problem Cause	Corrective Action
Does not operate (display does not light)	No power to yellow wire; no power to red wire	Check connection with test light; check vehicle fuse with test light.
	Inline fuse blown Replace fuse.
No power to unit Inline fuse blown Check/replace fuse.
No speakers operate (display lights normally)	Speaker harness not connected	Connect speaker harness; check speaker wires.
Not all speakers operate	Incorrect splices or connections	Check all splices and connections.
	Speaker wires shorting to chassis ground or to each other	Check splices, insulate all bare wires.
Blows fuses Power wire shorting to ground		Make sure wire is not pinched.
		Make sure wire is not pinched.
		Install fuse of correct rating.
CD skips too much Receiver mount is not solid or backstrap is not secure		Check mounting and backstrap, tighten if needed.

CEA Power Ratings

Power Output .....13 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio ..... 64dBA below reference. (Reference: 1 watt, 4-ohms) Dynamic Power ..... 64 Watts @ 4 ohms all channels driven Frequency Response .....20Hz to 20kHz (-3dB), Auxiliary input used as source reference Reference Supply Voltage ..... 14.4VDC

CD Player

Signal-to-noise ratio >90dBA Frequency response 20Hz-20kHz, -3dB Channel separation >55dB @ 1kHz D/A converter 1 Bit/CH

FM Tuner

Tuning range 87.5MHz-107.9MHz Mono sensitivity 12dBf 50dB quieting sensitivity (stereo) 16dBf Stereo separation @ 1kHz >35dB Frequency response 30Hz-12kHz ±3dB

AM Tuner

Tuning range 530kHz-1710kHz Sensitivity @ 20dB signal to noise .30uV Frequency response .30Hz-2kHz, -3dB

Auxiliary Input

Input sensitivity ....400mV RMS for 1 watt RMS into 4-ohms Frequency response ....20Hz to 20kHz, -3dB Input impedance ....10 k-ohms

General

Power supply.... 11-16 VDC, negative ground Fuses.... 15 amp fast blow ATO DIN chassis dimensions.... 2"H x 7"W x 7"D (51mm x 178mm x 178mm)

Specifications subject to change without notice.

JENSEN

CD6111

12-MONTH LIMITED WARRANTY

AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. To obtain repair or replacement within the terms of this Warranty, please contact Jensen at the telephone number provided below.

This Warranty does not extend to the elimination of car static or motor noise, to correction of antenna problems, to costs incurred for installation, removal, or reinstallation of the product, or damage to tapes, compact discs, accessories or vehicle electrical systems. This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s) or markings. THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 12 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

U.S.A: 1-800-323-4815

CANADA: Call 1-800-323-4815 for location of warranty station serving your area.

if it's too LOUD you're too OLD!

Audiovox Electronics Corporation Hauppauge, NY 11788

Technical Assistance: 1-800-323-4815 www.jensen.com

© 2006 Audiovox

Ver. 120905

Printed in China

INTRODUCCIÓN

Technical line drawing of a mechanical assembly with a tool and a magnified inset showing a component (no text or symbols)

Technical diagram showing a device with labeled ports and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

CLAVES PARA QUITAR

OPERACIÓN

Encendido

Simple line drawing of a rectangular frame with two vertical connectors and a small circle at the bottom (no text or symbols)

Luz Antirrobo

DISP = Clock / Frequency

VOL VOL D TR. ON LOUD BND SCN MOD LOC AMS PEQ MO MUT DISP PRU SCN RPI 1 2 3 4 5 6 SHUF DN UP JENSEN

if it's too LOUD you're too OLD!

Audiovox Electronics Corporation Hauppauge, NY 11788

Technical Assistance: 1-800-323-4815 www.jensen.com

© 2006 Audiovox Ver. 120905

Impreso en China

INTRODUCTION

Technical line drawing of a mechanical assembly with a hammer and lever, no text or symbols present

Technical diagram showing a device with labeled ports and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

TOUCHES D'ENLÈVEMENT

OPERATION

Puissance

Simple line drawing of a rectangular frame with two vertical lines and circular ends, no text or symbols present.

JENSEN CD-ROM F1 1067 21 7 14a 27 TUNE RIO. MOSO DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC DC 23 24 25 26 14b

Pause

DISP = Clock / Frequency

VOL VOL D TR, DN LOUD BND SCN MOD LOC AMS PEQ MO MUT DISP PRU SCN RPT 1 2 3 4 5 6 SHUF DN UP JENSEN

SOIN ET ENTRETIEN

if it's too LOUD you're too OLD!

Audiovox Electronics Corporation Hauppauge, NY 11788

Technical Assistance: 1-800-323-4815 www.jensen.com

© 2006 Audiovox Ver. 120905

Imprimé en Chine
