Product type	Mobile optical adjustment device
Brand	Bosch
Model	EFLE60
Use	Adjustment of motor vehicle headlights
Mobility	Swivel casters with maneuvering handle
Alignment	Adjustable alignment mirror
Height adjustment	Rotary handle with automatic brake
Inclination adjustment	Rotary knob with adjustment mark
Illuminance measurement	Integrated luxmeter with scales A and F
Display	Projection screen and deflecting mirror
Power supply	None (mechanical/optical device)
Weight (estimated)	Approximately 15 kg
Dimensions (estimated)	600 x 400 x 300 mm
Installation conditions	Flat floor with flatness differences < 1.2 mm
Maintenance	Clean lenses and mirrors with a soft cloth; lubricate the wheels
Periodic check	Accuracy check recommended via Bosch service
Spare parts	Available from Bosch after-sales service
Safety	Protect from shocks; handle gently
Available options	Rail-mounted models (EFLE 62)

Frequently Asked Questions - EFLE60 BOSCH

How to put the EFLE60 device into service?

Before first use, unfold the alignment mirror by turning the arm 180° upward (loosen the locking screw with a 4 mm wrench, then retighten). Then, pivot the maneuvering handle 90° outward (loosen the 5 mm screw, pivot, then retighten).

How to align the device with the vehicle axis?

Point the alignment mirror toward the front of the vehicle. Adjust the device until the line of sight uniformly aligns with two symmetrical reference points (headlight rim, hood). For cab-over vehicles, use a plumb line to mark the center of the headlights on the ground.

How to adjust the height of the device?

Turn the rotary handle (fig. 4, item 1) to release the automatic brake. Adjust the height, then release the handle to lock the position.

What is the luxmeter for and how to use it?

The luxmeter measures the illuminance intensity of the headlights. For low beams, press the button; the needle must stay in the green sector of scale A. For high beams, the needle must reach the green sector of scale F. Always set the rotary knob to 10 cm / 10 m.

What are the required conditions for precise adjustment?

Conditions include: a flat inspection area (differences < 1.2 mm for mobile devices), tires inflated to prescribed pressure, headlights in good condition (lenses, reflectors, bulbs), and the vehicle loaded according to specifications.

How to maintain the EFLE60 device?

Regularly clean the lens and mirror with a soft cloth. Lubricate the wheels with a few drops of oil. Keep the guide column dry and grease-free. Have the device's accuracy checked periodically by a Bosch service.

What are the projected images for different types of headlights?

For asymmetric beam headlights, the dark/light cutoff must align with the separation line to the left of center. For symmetric and fog headlights, the cutoff must be horizontal and symmetric. High beams must fall within the central rectangle.

How to adjust the headlight inclination?

Set the rotary knob (fig. 4, item 2) to the appropriate adjustment mark (inclination value in cm at 10 m). Load the vehicle according to specifications. Observe the projection on the screen and adjust if necessary.

Where to find spare parts for the EFLE60?

Spare parts are available from Bosch after-sales service. It is recommended to take out a maintenance contract for periodic checks.

What is the difference between the EFLE60 and EFLE62 models?

The EFLE60 is a mobile device on wheels, while the EFLE62 is mounted on floor rails. Both share the same operating principle, but the EFLE62 requires guide rails installed with a flatness of 1.3 mm maximum.

USER MANUAL EFLE60 BOSCH

Headlight Aiming Device EFLE 50..52/60..62

Régophare EFLE 50..52/60..62

Alineador de faros EFLE 50..52/60..62

Instructions for putting into operation 9

1. General 9
   1.1 Mobile headlight aiming devices EFLE 50, EFLE 51, EFLE 60 and 61 9
   1.2 Headlight aiming device on floor rails EFLE 52 and EFLE 62 10
2. Prerequisites for aiming the headlamps 10
   2.1 Operating site 10
   2.2 Tire-inflation pressure 10
   2.3 Headlamps 10
   2.4 Setting up aiming device 11
   2.5 Aligning the aiming device with the longitudinal axis of the vehicle 11
   2.6 Adjusting the aiming device 11
3. Aiming regulations 11
   4.Measuring images 12
   4.1 Headlamps with asymmetrical lower beam 12
   4.2 Headlamps with symmetrical lower beam, and fog lamps 12
   4.3 Headlamps with inclination data 12
4. Luxmeter 13
   6.Maintenance and care 13

Page

Indice Pagina

Instructions for putting into operation

Before the headlight aiming device is put into initial operation the alignment mirror and the handle on EFLE 50, 51, 60 and 61 must be turned to the working position.

Operations required to do this

Release the locking screw (1) on the equipment support column using a 4mm hexagon-socket screw key.
- Swing the arm holding the alignment mirror 180^ upward (2).
Tighten the locking screw again.

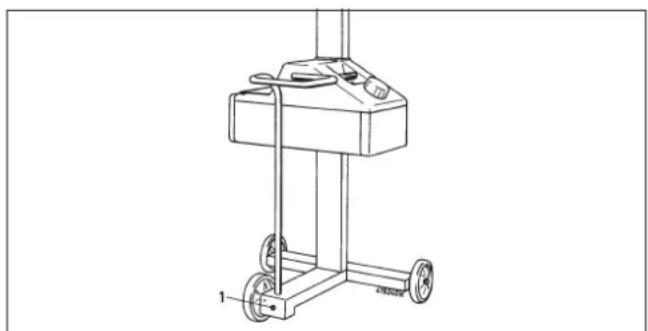

Fig. 1

Operations required to do this

Release the locking screw (1) on the equipment support column using a 5mm hexagon-socket screw key.
- Swing the handle 90^ outwards.
- Insert the locking screw in the hole and tighten.

Fig. 1a

1. General

Headlamps on motor vehicles must not blind the drivers of vehicles coming from the opposite direction. The inclination and the aiming of the headlamp light beam to the side must therefore be adjusted according to legal specifications.

In order to make these legally specified adjustments of motor-vehicle headlamps, Bosch supplies the following aiming devices:

1.1 Mobile headlight aiming devices EFLE 50,EFLE 51,EFLE 60 and 61

The surface on which the headlight aiming device is set up must be even but it does not have to be horizontal. In order to achieve the specified measurement accuracy, surface irregularities within the area where the aiming device is used must be less than 1.2mm

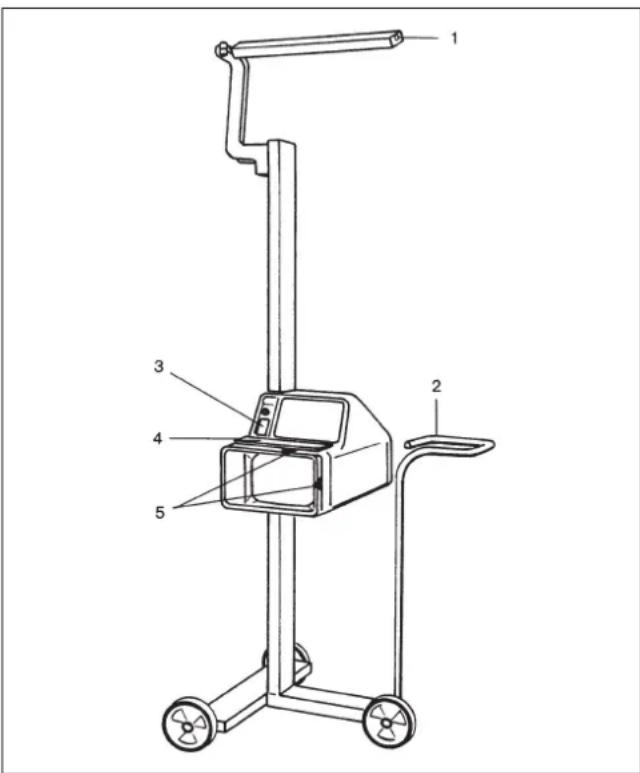

Fig. 2

1 alignment mirror
2 handle
3 luxmeter
4 deflection mirror
5 markings for lens center

1.2 Headlight aiming device on floor rails EFLE 52 and EFLE 62

The standing surface for the vehicle and the guide rails of the apparatus must be horizontal and parallel to one aonther. In order to achieve the prescribed measuring exactness, the horizontal deviation of the guide rails must not be more than 1.3mm out of line with respect to one another.

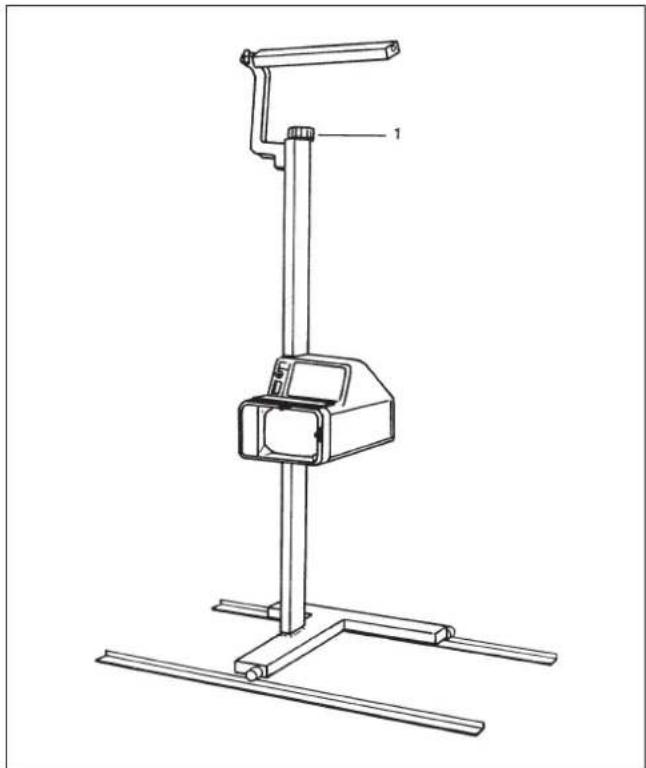

Fig. 3

1 Roatary knob for aligning the test device with the longitudinal axis of the vehicle.

2. Prerequisites for aiming the headlamps

2.1 Operating site

The operating site must meet the conditions specified in Sections 1.1 and 1.2 above.

2.2 Tire-inflation pressure

All tires must be inflated to the pressure specified for the particular vehicle.

2.3 Headlamps

Deflective lenses and reflectors, as well as blackened bulbs must be replaced before the aiming adjustment.

With headlamps that are fitted with an adjusting device, observe the following:

In order to aim headlamps on vehicles fitted with a device for infinitely variable adjustment of the headlamps by hand, the adjusting device must be in the specified detent position.

When the headlamps are fitted with an adjusting device that can be set to only 2 detent positions, proceed as follows:

• With vehicles in which the headlamp beams are directed upward as the load increases (loading space at the black), the headlamps should be aimed with the adjusting device in the "high" lightbeam detent position.
• With vehicles in which the headlamp beams are directed downward as the load increases (loading space at the front), the headlamps should be aimed with the adjusting device in the "low" light-beam detent position.

2.4 Setting up aiming device

The distance between the aiming device and the headlamp should be just enough so that setting operations can also be carried out on the headlamp from in front (about 30~cm ).

The center of the lens on the aiming device should differ by less than 3cm from the headlamp center. The center of the lens is identified by marks (see Fig. 2, No. 5).

In order to adjust the height of the aiming device, the hand roller ist turned (1) and a brake is released. The brake automatically looks in place again when the roller is released.

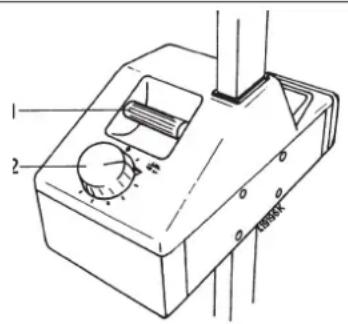

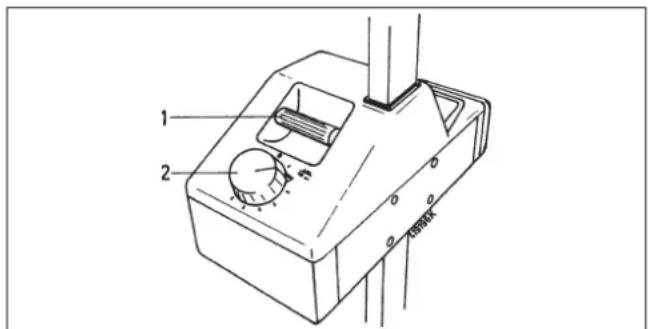

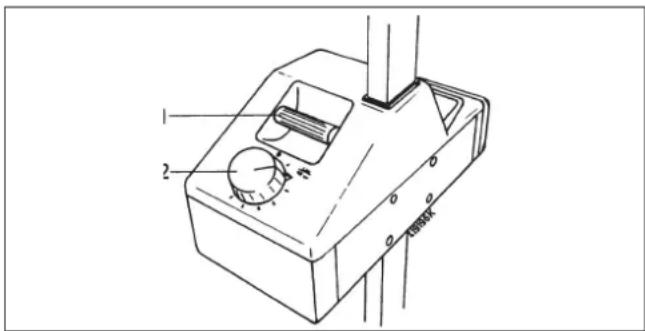

Fig. 4

1 control knob for height adjustment
2 rotary knob for setting the inclination measure

2.5 Aligning the aiming device with the longitudinal axis of the vehicle

2.5.1 Vehicles with flat engine-compartment lid

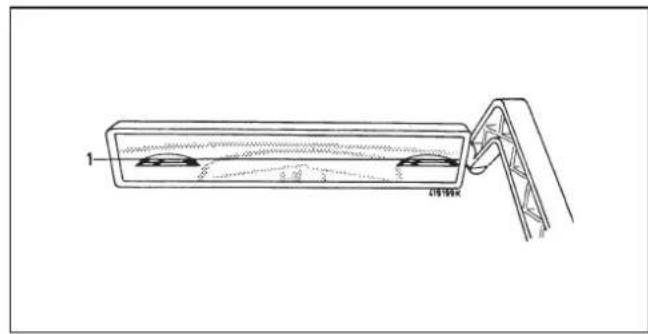

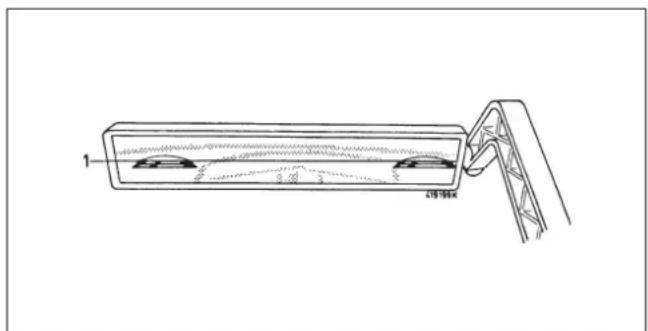

By swinging the mirror arm (Fig. 1, Pos. 2) the alignment mirror (Fig. 2, Pos. 1) is set above the head towards the operator so that the front of the vehicle with two outer symmetrical reference points (for example, the upper edge of the headlamps, joints in the engine hood, etc.) are visible in it.

The aiming device is aligned on the longitudinal axis of the vehicle so that the positioning line on the mirror touches these two outer reference points equally (see Fig. 5).

With the mobile aiming devices (EFLE 50, 51, 60 and 61), this is done by moving the aiming device using the wheeling handle.

The floor-rail aiming device (EFLE 52 and 62) is turned as required with the rotary knob at the top of the support column (Fig. 3, No. 1).

Fig. 5

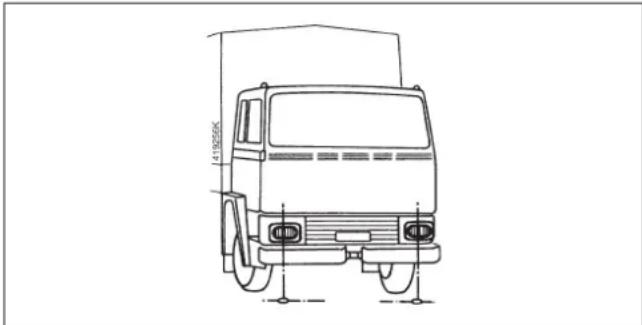

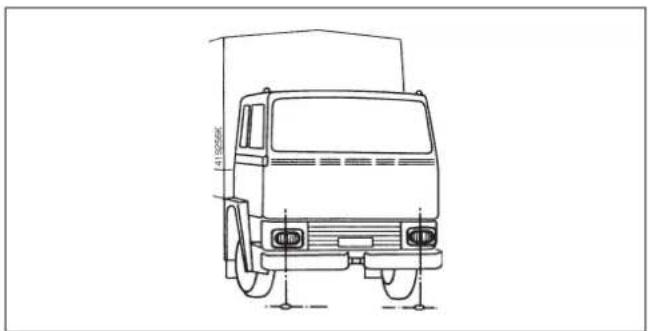

2.5.2 Cab-over-engine vehicles

In vehicles with vertical front section the centres of the headlights are marked with chalk on the floor using a plumb bob. The centres can be connected with a rail. These markings are lined up in the adjusting mirror.

Fig. 6

2.6 Adjusting the aiming device

The setting used for aiming headlamps is the inclination value in cm which the cut-off must have at a distance of 10m

This setting is given in Section 3.1, and is made before the test at the rotary knob (Fig. 4, No. 2).

The vehicle should be loaded as specified.

3. Aiming regulations

Please observe the aiming regulations valid in your country.

4. Measuring images

The measuring images can also be observed from the rear of the aiming device by means of the deflection mirror (Fig. 10, No. 3).

Before every measurement the prerequisites given in Section 2 above must be complied with.

4.1 Headlamps with asymmetrical lower beam

With headlamps used for an asymmetrical lower beam, the lower beam cut-off line must coincide with the boundary line to the left of the center point. The point of intersection between the left-hand part of the lower beam cut-off line (as horizontal as possible) and the right-hand rising part of this line must be located on the vertical line that passes through the center mark. In order to determine this point of intersection more easily, the left-hand half of the handlamp can be alternately masked and unmasked serveral times.

After the lower beam cut-off line has been set according to specifications, the center of the high beam with headlamps on which the lower beam and upper beam can be aimed together must lie within the limit corners inscribed around the center mark.

With high-beam headlamps fitted with their own adjustment mechanisms, the center of the light beam must be positioned on the center mark.

4.2 Headlamps with symmetrical lower beam, and fog lamps

With headlamps used for a symmetrical lower beam and with fog lamps, the highest part of the lower beam cut-off line must touch the boundary line, must be as horizontal as possible across the width of the test surface.

To the side, these headlamps must be aimed so that the distribution of the light is as symmetrical as possible with respect to the vertical line that passes through the center mark.

After the lower beam cut-off line has been set according to specifications, the center of the high beam with headlamps on which the lower beam and upper beam can be aimed together must lie within the limit corners inscribed around the center mark (see Fig. 8).

With high-beam headlamps fitted with their own adjustment mechanisms, the center of the light beam must be positioned on the center mark (see Fig. 8).

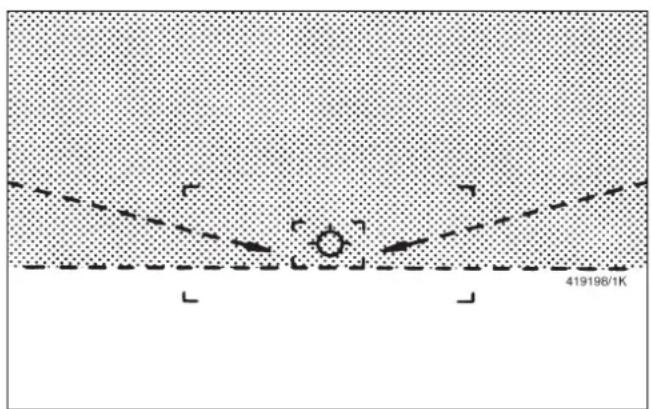

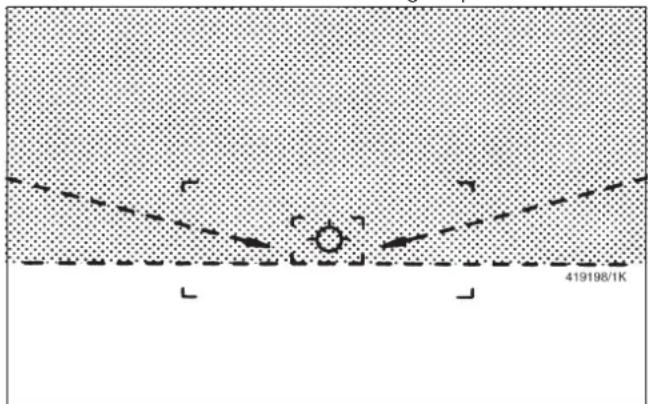

Example: Boundary line for the lower eam cut-off with an asymmetrical lower beam.

Fig. 7

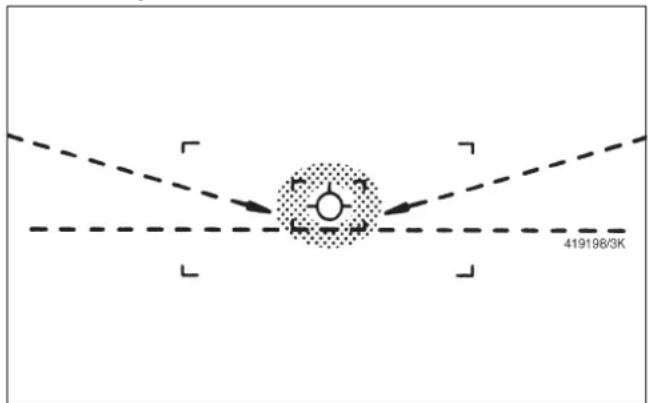

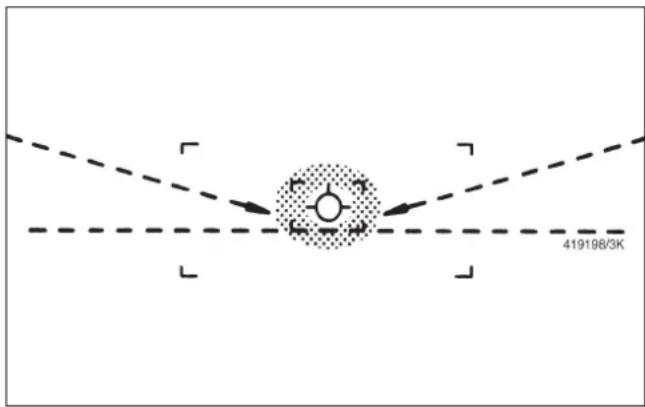

Example: Center mark and boundary corners for the center of the higt beam.

Fig. 8

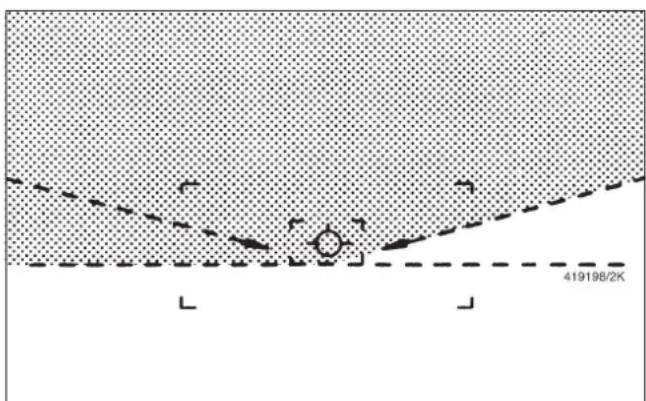

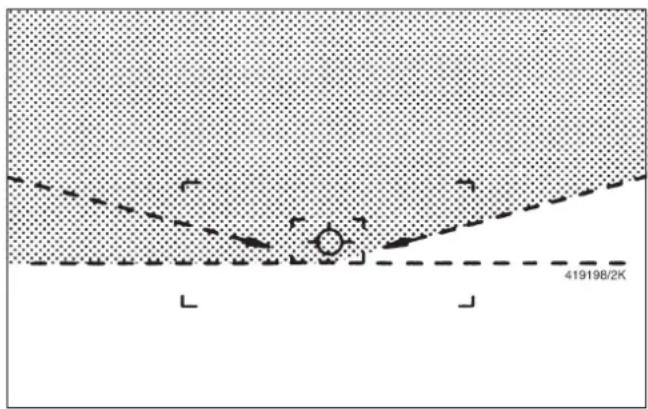

Example: Boundary line for the lower beam cut-off with a symmetrical lower beam and with fog lamps.

Fig. 9

4.3 Headlamps with inclination data

In the case of single-axle towing vehicles or machines with headlamps permanently set to the lower beam and on which the inclination of the light beam center is given, the center of the beam must lie on the boundary line and on the vertical line that passes through the center mark.

5. Luxmeter

Using the luxmeter, the illumination from the headlamps can be tested (measured) after they have been aimed.

During these tests the rotary knob for the setting must always be set to the position 10cm / 10m

Lower beam: The illumination must be below the permissible glare value. Press the pushbutton on the luxmeter. The pointer must remain within the green range on the scale marked "A".

High beam: The illumination must reach the minimum permissible value. The pointer must come up to the green range on the德拉 marked "F".

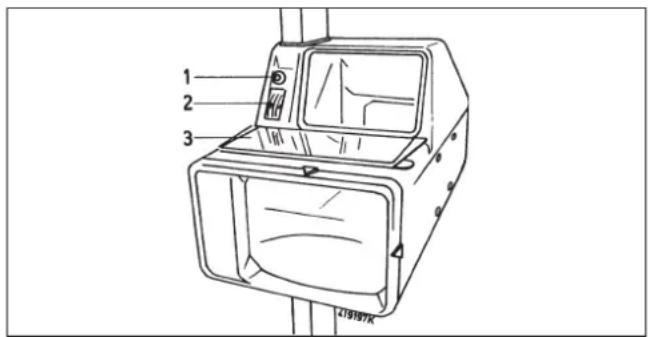

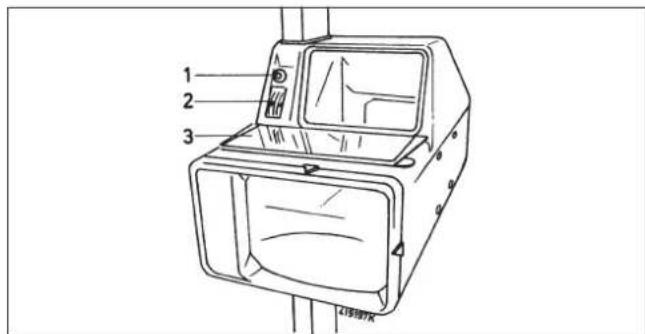

Fig. 10

1 Push button for luxmeter
2 Scale for luxmeter
3 Deflection mirror

6. Maintenance and care

The headlight aiming device is a high-precision optical measuring instrument. In order to preserve its measurement accuracy, shocks and rough handling must be avoided.

At regular intervals its accuracy is to be checked.

This is especially important for workshops which carry out their work according to legal regulations.

For this purpose we recommend that a maintenance contract be concluded with the responsible Bosch Customer Service. This will ensure that the aiming device will be checked and tested by trained personnel using the right test equipment and according to plant specifications.

For maintenance purposes the wheels should be lubricated occasionally with a few drops of oil.

The support column must be kept dry and free of grease and oil!

Wipe the lens and the reflector with a soft cloth to keep them clean.

Y φap c yctpoiCTBOM peRyIINpOBKn HxKHOyHTbIBaTb:

Длгpeулровкфapу aBTOMobилeи，y KOToPbIXфapblMOrYT BpyHyU 6e3ctypeHcatopeylnpoBaTbcR，yCTpOiCTBO peylnpoBKNdoJXHO HaxoDITbcR BпрдпсанHomФнКсрOBaHHOM nIOnKeHn.

Y φap c perylnpoBOHbIM yCTpOiCTBOM TOIbKO Ha 2 NOJoxEHHa, HxKHO DeIcTBOBaTb CNeDyUOIM O6pa3OM:

-yaBTOMO6HJEn,yKOTOpbIXIyOcCBeTa
PnHaRpyXeHNIOHnMaetc
(6araXnKc3aDn),HyXHO pOBODITb
peYIpOBKY B KOHeYHom IIOXKeHN
peYIpOBOCHOro yCTpOiCTBa,piN
KOTOPOMIyOKCBeTa HxOHTCBA
HAHBbICWEMIOLOXKeHN.

-y aBTOMO6nJIe, y KOTOpbIX NyUOK CBeta npn HargyKeHnn aBTOMo6nIa onyckaetc (6araXnK cpeeni) perynpoBky HxKnHO npoBOOntB KoHeuHOM noLoXKeHnn peYnIpOBOuHoro yCTpOInCTBa, npn KOTOpom NyUOK CBeta HaxOnTcB HxKHom noIOXKeHnn.

2.4.YctaHObKa np6opa JIJI npoBepKn

PacctoarHne MeJxdy npnbopom n fapamn DoJIxHO 6bITb TaKIM, YTO6bI C fapamM MoXHO 6blIO npOIN3BOIDITb peRyINpOBOCHbIE pa60tbl cpepei (np6bn. 30 cm). CepeHa JInH3bl np6bopa He DOJXHa OTKIOHrTbcr OT φap 60JIbSe yem Ha 3 cm. OHa o6o3Haayetcra OTMeTKaMn Ha np6bope (cm. Pnc.2, Po3.5).

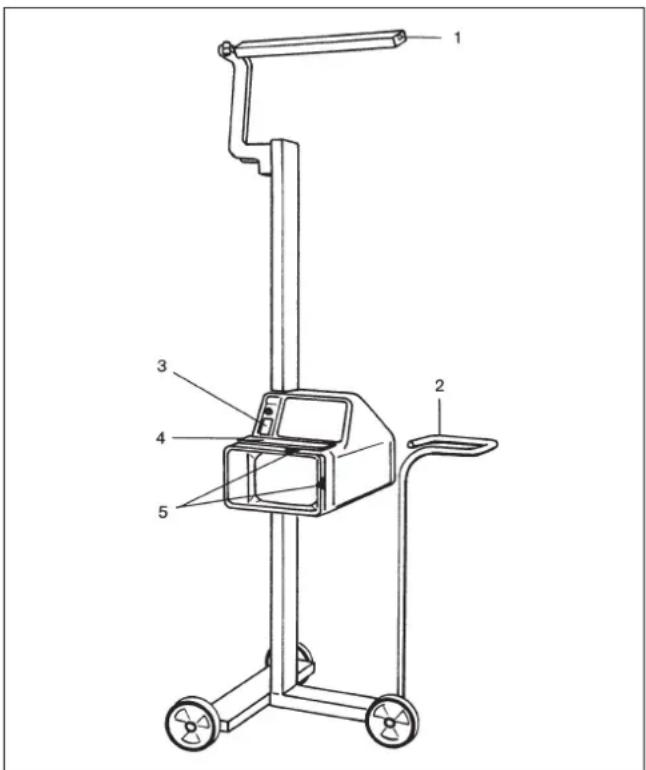

Pnc.2

Дя yctaHOBK BbICOTbI npn OTbOpaUNBaHN pyuKn OCBO6OxJaETcra TopMo3 (cm. Pnc.4, I03.1), KOTpbI npn OTnyckAHn pyuKn 3akpePJIeTcra camOCToTeJIbHO.

2.5. BbipabHnBaHne npnbopa dI npOBepKn no OTHOseHnK npoJoBHoO cN aBTOMo6nJr

2.5.1.ABtOMo6nJIn cPoBHBIM KaIOTOM

BbipabHnBaUoee 3epKaI0 (Pnc.2 P03.1) ycTaHaBnBaETCa Hnd rOIOBOI o6cnyKnaBoUeTo nepcoHaJa nyTeM noBOpota pykaba 3epkana (Pnc.1 P03.2) TaKIM O6pa3OM, YTO6bl B 3epkane npocMaTpRuBaIacb NpeEdHra YaCTb aBTOMOBnJIc C DByMra CmmMeTpnuHbIMn ChapyKn IexkaUHMN OTMeTKaMn (HaNPmEp, BepxHra OKaHTOBKa fap, BbiTAMnOBKa Ha KpbIuKe KaNoTa).

Pnp6op dIpy npOBepKn BbipaBHNBaETcR B npOIOJbHOM HAppaBJIeHnn ABTOMO6nJIra TaKIM o6pa3OM, yTo6bl IINHna 3epKaJa npoxoJnla chepe3 DBe HapyKhble OTMeTKn (cm.Pnc.5)

Pnc.5

2.5.2.ABtOMo6nHcKa6HOnHaNnI nped DBrataTeIeM (Pnc.6)

Y aBTOMOBnne C BbICOKO BEpTKaJIbHOI NaHeJIbIO cepeINHbI fap BbIEuINBaIOTcC NOMOuTOB OTBeCOB Ha IOnI N TaM OTMeuAOTcMeIOM. OTMeKIN Bu3NpyIOTcC NOMOuBu BBipABHnBaHOUeO 3epKaJa.

Y nepeDbNkHbIX npnbopOB dIy npOBepKn EFLE 50, 51, 60 n 61 3To doCTnraetcnyTeM nepeDbNkeHn npnbopa npn nomoun DnurraHoue pyKn.

Y npnbopOB Ha peIbcax (EFLE 52 n 62) cam npnbop COOTBETCTBEHNO Bpaauaetc npn nomouu noBOPoTHo KNOpKn (Pnc.3, P03.1) Ha cToiKe.

Pnc.6

Pnc.3

2.6. Hac tropona npnbopa

Iapametpom peryunipOBKn dIa fap
YBJIeTcna Iapametp HaKIOHa B CM., KOTOpbI
DOJKeH IMeTb rpaHnCy CBET/TeHb B 10 M.
OTdAJIeHnI.

Iapametp perynipOBKn BndeH n3 pa3dena 3.1. n HactpanBaetcpeep npoBepko IIOBOPoTHO KHONKO np6opa (Pnc.4, Pno3.2)

Pnc.4

AByOmbHarpy3ntB CootBeTCTBnC npedncaHneM.

3. HEMELKNE INPEДПИСAHЯ NO PEGYINPOBKE

B COOTBeTCTBnC DInpeKTnBaMn E3C 76/765 B JInCTe «DopoxHoe DnBxKeHne» VkBI 1987, TeTpadb 16, cTp.563 6bln ony6nKOBaHbl «DInpeKTnBbl no perynipOBke CBeta φap aBTOMO6nJIeN.

PnimeHReMbIe COkpaueHnna 06o3HaayoiT:

H= BBICOTa cepeINbI opabIO T NOBepxHOCTn IOna

e = napametpr perylnipOBKN B CM, npn OTdaneHn NO OTHOWeHIO K HAKNOHy 10 M. Yka3aHHbI napametp DOJXKeH 6bITb 3apaHee yCTaHOBJIeH Ha NOBOPOTHOI KHONKe npnbopa (CM. nyHKT 2.6.)

N= npapameTp pepynpOBKn B cm. npn 5 M. OTdaJIeHnn.

ПустовсabTOMOBUN-3TO,corlaCHO §42, BEc rOToBOrO K 3KcPJIyatauIN ABTomOBUN C NOHOCbU HAnONHeHHbIM BMOHTnPOBaHHbIM 6aKOM TOnNIBa BKIOUayBec BCex 3aDeIcTBoBAHHbIX B 3KcPJIyatauIN YacteIN ObOpYDoBAHnA (HaNP.3aNaChbIe KOJeca IN ShInbI, 3aNaChbIe YactN, INCTpyMeHTbl, DOMKpaT,OrHeTuWntEnb,yCTpoiCTBa aHTNCKoJIbXKeHnA,6aJInaCTOBbI rpy3 n dp.), y dpyrIx aTOMOBUNe,Taknx KaK JleRKObIe IN MOTOUKNbl-BKIOUoya75Kr.Beca BOINTeN.

A B T O M O 6 H N I, y K O T O P b I X 3 a r p y 3 K a 6 b I B a E T 3 K C T P e M a J b H O N, D O J L K H b I p e R y J I N P O B A T b C R S 6 e 3 Y u e T a P n i B e D e H h b X B b I W e D i n p E K T N B T a K I M 0 b p a 3 O, U T O b b I H o c O n e N I P T b B o d I T e N e B C T P e H O R O T p a H C N O P T a (\$50 p a 3 d e n 6 St V Z O). C M. n 3 M e p e H n e C n b I C B e T a P y H K T 5.

PpimueaHne: OJxHbI TaKke yuHTbBaTbcR BCE DeiCTByIOUe B dpynx cTpaHax npedncaHnno perynnpOBKe CBeta ap.

4. KAPTUHKNI3MEPEHEN

KapTINHKn N3MepeHn MOrY T 6bITb CHTaHbI TaKKe YpeE3 NOBOpOTHe 3epKaNo (Pnc.10 P03.3) c o6paTHoN CTOpObI npi6opa dIy npOBePKn.

Ipeed KaJdbIM H3MepeHnEM Heo6xOaMo BbINOJIHHTb npBedeHHbIe B nyHKTe 2. IpeDnocblkn.

4.1.Фарыс acnMMetpruHо nCTeMoI paCnppeJeHn8 6JnxKHeRo CBeTa

Y φap c acnMMetpnuHoi cnCTeMoI
pacnpedeHHe 6JInxHrO CBeta rpaHnca
CBET/TeHb 6JInxHrO CBeta DOJxHa KacaTbcra
OrpaHnHTeHbHO JINHN CNEBa OT
cepeDInbI. TOnka nepeceHnma MExdy JbeBOI (no-BO3MOXHOCTN BblPOBHeHHo) n npaBOI
IOHNMaHOSeCay TaCTbIO rpaHnZbI CBET/TeHb
DOJXHa JexKaTb Ha nepneHdNKyIpe,
PPOXODJaem Chepe3 ceHTpaNbHyIO OTMeTKy.
ДЯлЯERKO OnpedeHnRA BblWeHa3BaHHoI
TOOKI nepeceHnra JEBaR NOOBHa φapbl
DOJXHa 6bITb HeCKOJIbKO pa3 NonepeMeHHO
3aKpbIta n ChOBa OTKpbIta.

Corlaacno npedncaHNO perylnpoBKe rpaHnIb cBeT/TeHb 6nXHero CBeta cepeHa npka daJIbHero cBeta y qap c oIeJ peYnIPOBKO daIbHero n 6nIXHero CBeta DOJXHa HaxOHTbcra BHyTpN ORpaHnHTeJIbHbIX JINH N BOKpyr UeHTpaIbHOI OTMeTKI.

Y φapДальbero CBeta C CO6CTBENHOrpeRyIpOBKOI cepeINHa NpyKa CBetaDOLXHa HaxoINTbcr Ha LcHTpaNbHOOTMEtke.

4.2.ФарыснметрунСистемог pacnpedeJIeHЯбИХHero CBeta I прOTиBOTуMaHHbIe ФapыI

Y φap c CnMMeTpNHO nCCTeMOI
pacnpedeHn8 6nXhero CBeta y
IpOTNBOTMaHHbIX φap BbICUee NOLOXeHne
rgaHnCb CBET/TeHb 6nXhero CBeta DOJXHa
KacaTbCS ORpAHuHTeBHOININ INO
BO3MOxHOCTH paBHomePHO pOxOdntb Ype3
MNHMaJIbHyO UINpHHy PpOBepoHNo
NOBepXHOCTN.

3TNФapbI DOnJXHbI 6bITb OTpeRyJInpOBAHbIB 6OKOBOM HnPaBJIeHn TaKIM O6pa3OM, 7TO6bl paCnpdeJeHne CBeta NO BO3MOxHOCTN CmMMETPNUHO HaxOJINOCb K BEPTKAbHoJ LHNH NcHTpaJbHOOTMETKn.

Corgnacno npedncaHNO perynipOBKe rpaHnIcBcET/TeHb 6JnxKHeRo CBeta cepeHa nyka daNbHeRo CBeta nΦap c o6uepeynpOBKn daNbHeRo 6JnxKHeRo CBeta DOJXHa HaxOINTbcra BHyTpni orpaHnUHTeNbHbIX yIIOB BOKpyr ceHTpAlbHOOTMeTkn (Pnc.8).

Y φap Далб Hero CBeta C co6CTBENHо peRyInpOBKo CEpeDHa NpyKa CBeta DOJXHa HaxOДNTbCЯ Ha ceHTpaJIbHOI OTMeTKe.

Pnc.7 (EFLE 50, 51,52)

OrpaHnUteJIbHaJIINHnI dIraI rpaHnCbl CBet/ TeHb npI accmmMeTpnuHoi CnCTeMe paCnpedeJeHn8 6JInxKHeRo CBeta.

Puc.8 (EFLE 50, 51, 52)

UeHTpaJIbHaA OTMeTKa I OpapHnHTeJIbHbIe yJIbI dIe cepEnHbI daJIbHeRo CBeta.

Pnc.9 (EFLE 50, 51,52) OrpaHnHTeNbHaJIINHIAI rpaHnCbI CBET/ TeHb npi CmMMeTpnuHoi CNCTeMe paCnpedeJeHnI6blxKHeO CBeta n y npOTnBOTymaHbIX φap.

4.3.ФарысnapaMeTpmaHаКноHa

Y OJHOOCHbIX TЯraeH N pa6OuNX Maun H C φapamn 6bnxHero CBeta C OJHOHTeBOI JAMNOI INLOCKIM paccenBaTeIeM, HA KOTOpbIX yka3aH NaKIOH cepeINbI pyKa CBeta, cepeINHa PnyKa CBeta DOJXHa HAXODITbcra Ha ORpaHnueJIbHOJ LInHn I Ha BEPTIKaJIbHOJ LInHn, IpoxoJaSeIYepe3 UeHTpaJIbHyIO OTMeTKy.

5. JIOKCMETP (Puc.10)

При пOMOцл JIOKcMeTp a MOxH O npOBepntb cnIy cBeta ap nocIe perynipOBKn. NobopOTnHa KHOJa dIЯ napaMeTp a perynipOBKn DoJXHa 6bITb Prn 3TOM BceIda yCTaHOBJIeHa Ha napaMeTp perynipOBKn 10 cm/10 m.

Блжнш CBET: Cиа CBeta Должна octaBaTbCS HIXke ДОпUCTIMORO napametpa oclenJIeHn. HaxaTb KONky Ha JIOKcMeTpe. Ha obo3NaeHHo ByKBoI «A» ShkaJIe CTpeJIka DoJxHa hAXODITbCBy 3eJIeHoi Oblactn.

Дальни CBET: Cиla CBeta ДолжнаdoCTNATb DONYCTMOROMINHMaJIbHOrO 3HaueHnA.Ctrpenka DoJxHa DoCTNATbHa O6o3HaueHNo 6yKBoi«F»шкane 3eJeHoIoblaactn.

Iyoxo3aKonecamnHyxHO Cma3aTbNX HeckoIbKIMN KApJIaMn Macna.

ДВИGAUOуюся CTоиky COdepxaTb BCyXOM MecTe,6e3 xupa n Macna!

IinH3y n 3epkaio npotnpatb YnCToM mKoT PAnKO.

Pnc.10

1. Khoika JIOKcMempa
   2 1kana JIOKcmempa
2. NoeopomHbIe pbHauzU

6. OBCJIyXKINBAHNE I YXOJ

Pnp6op dnypeynipOBKn Cbeta ap ABnreTc TOHbIM ONTnecknM 3MeepntBHBm np6opom. TTo6bl coxpaHnTB 3Ty TOHOCb N3MepeHn, HxKHO n36eRaTb ynapoN rpy6oro o6paueHn.

Yepe3 onpeJeHHbIe npomexyTKn BpeMeHn ToUHOCTb NOKa3aHm np6opa dna perynipOBKn CBetaap DoJXHa nepenpoBepaTBCra.

TO OcO6eHNO BaxHo IJI MaCTepCKNX pOBOdntb BCE pa60tbl B COOTBeTCTBnS29 StVZO.

I03tOMyMbI peKOMeHdyem 3aKnIOuHTb
DorOBOp O cepBnCHOM 6cJnyKnBaHN C
yOnlHMOueHHo cJyXboB 5OUI-CepBnC.
IpepePobEpa DOJxHa npoBOAnTbcra
obUyeHHbIM nepcoHaONM C
COOTBetCTByUOzIMN pnp6opAMN dJa
pPobEPKn cOrnaCHO ppeDncaHnM 3aBoDa-
n3rTOBNTeJI.

EFLE 50 0 684 100 900

EFLE 510684 100901

EFLE 520684100902

EFLE 51 S1 0 684 100 903

EFLE 51 S2 0 684 100 904

EFLE 52 S1 0 684 100 906

EFLE 51 S4 0 684 100 907

EFLE 52 S2 0 684 100 908

EFLE 52 S3 0 684 100 909

EFLE 50 S5 0 684 100 910

EFLE 51 S5 0 684 100 911

EFLE 52 S5 0 684 100 912

EFLE 51 S6 0 684 100 913

EFLE 60 0 684 100 920

EFLE 610684 100921

EFLE 620684100922

EFLE 62 S3 0 684 100 923

EFLE 60 S5 0 684 100 924

EFLE 61 S5 0 684 100 925

EFLE 62 S5 0 684 100 926

EFLE 61 S4 0 684 100 927

EFLE 62 S2 0 684 100 928

EFLE 61 S1 0 684 100 929

EFLE 61 S2 0 684 100 930

BOSCH

Robert Bosch GmbH

Automotive Aftermarket

Test Equipment

Postfach 1129

D 73201 Plochingen
