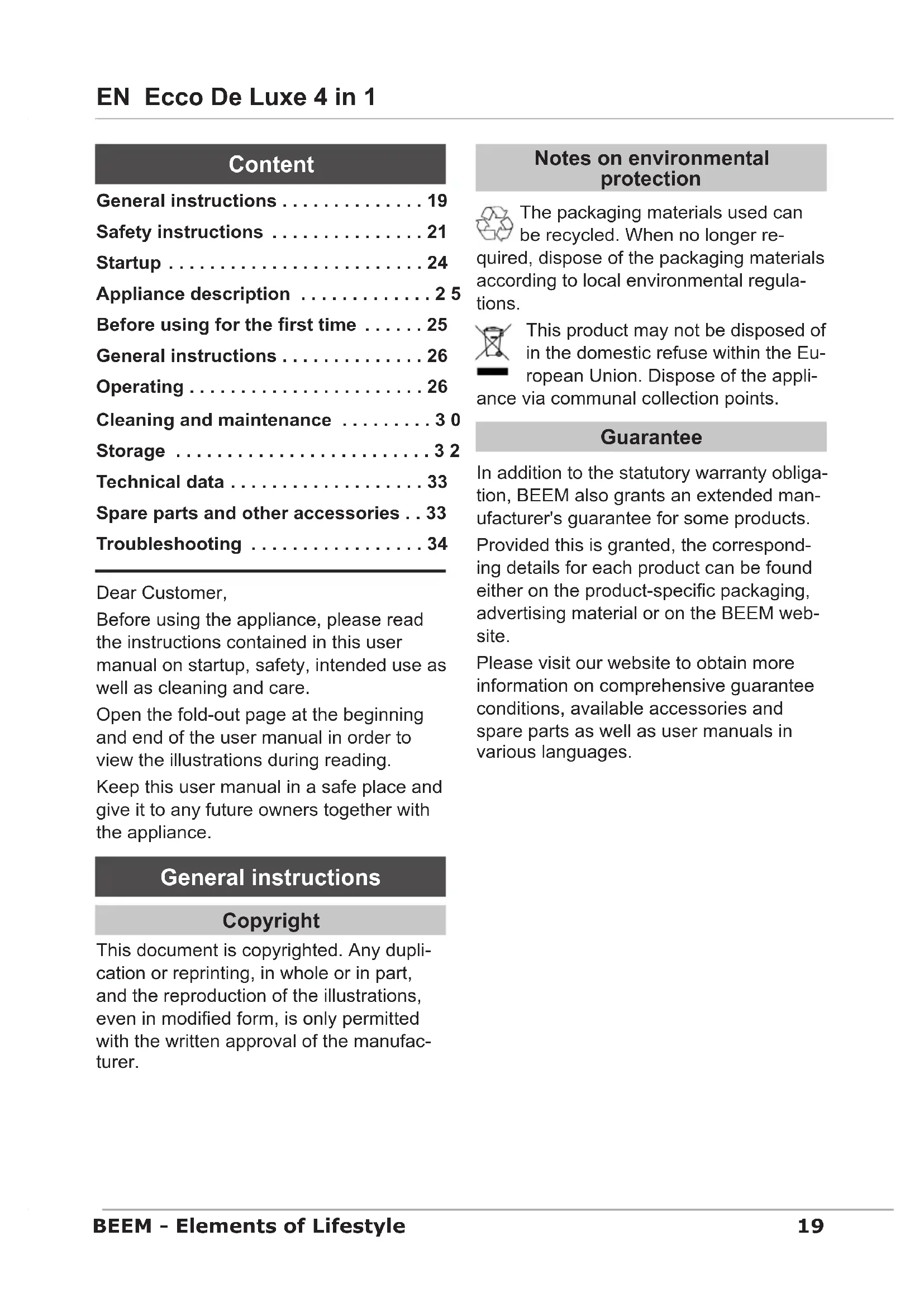

Dear Customer,

Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and give it to any future owners together with the appliance.

General instructions

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.

Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages.

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Symbols on the appliance

Symbol Meaning

Warning of hot surfaces

Intended use

This appliance is intended for toasting bread, rolls or bagels, for preparing coffee and for heating water for use in the household or similar places such as:

staff kitchens in shops, cafés, offices or any other business environment;

agricultural establishments;

use by guests in hotels, motels or other residential areas;

bed and breakfast- establishments.

Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC and und 2009/125/EC directives.

Limitation of liability

We assume no liability for damage or follow-up damage in the case of:

failure to observe the instructions in the user manual,

use for other than the intended purpose,

improper or unsuitable handling,

incorrectly performed repairs,

unauthorised modifications,

use of non-approved parts or spare parts,

use of unsuitable supplementary or accessory parts.

Safety instructions

This appliance is not intended for use by children under 8 years of age or persons with limited physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Cleaning and caring for the appliance not be performed by children under 8 years who are not under supervision.

Supervise children to ensure that they do not play with the appliance.

Inspect the appliance for visible signs of damage before use. Do not operate a damage appliance.

Store the appliance, the connecting cable and accessories out of the reach of children under 8 years of age.

Do not leave the appliance unattended during operation.

Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. This will also invalidate the warranty or guarantee.

Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer otherwise the warranty or guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Danger of electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the ap- pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

In wet areas, only use approved extension leads or multiple mains sockets.

Do put your fingers into the toasting slot. Do not try to remove toasted food stuck in the toasting slots using a knife or other tools. Remove the plug and allow the appliance cool down before rectifying faults.

Switch off the appliance and pull the plug out of the mains socket before beginning work.

DANGER

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

WARNING

Danger of burns!

Do not touch the hot surfaces of the appliance during operation.

During operation, only touch the handle and buttons of the appliance.

Only fill the kettle up the MAX mark. Hot water can squirt out if it is overfilled.

Do not open the lid of the kettle during boiling or immediately afterwards.

Keep sufficient distance to escaping steam.

Do not cover the toasting slots.

Bread can burn. Never use the appliance in the vicinity of or underneath flammable materials such as curtains.

Do not open the filter compa-ment when operating of the coffeemachine.

Do not move the appliance during operation.

Before cleaning, allow the appliance to cool down.

Only operate the kettle with the original parking device.

CAUTION

Do not pour in any other liquids apart from water or put foodstuffs into the kettle or the water container.

Never operate the coffee machine without water, otherwise the appliance will be damaged.

Do not put the thermos jug into a microwave oven.

Only use the toaster when the crumb tray has been correctly inserted.

Do not pull the connecting cable to remove the plug from the mains socket.

Do not use sharp objects or abrasive cleaning agents to clean the surfaces of the appliance.

Descale the kettle and coffee machine regularly.

Requirements for the place of operation

For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:

Place the appliance on a dry, flat, waterproof and heat-resistant surface.

The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.

Do not install the appliance in a hot, wet or very humid environment.

Select a location that does not allow children to reach the hot surfaces of the appliance.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

Make sure that there is a sufficient distance to heat-sensitive surfaces to walls and furniture for example.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions on the electrical connection must be be observed:

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 16 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.

The connecting cable must not be strained or bent.

Always unwind the mains cable completely before connecting the appliance to the mains socket.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Protective equipment

The appliance is equipped with boil-dry safety protection.

NOTE

If the kettle is filled with too little water or switched on without any water at all, heating is switched off automatically by a safety switch. See section Resetting the boil-dry protection (page 28).

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Never remove the rating plate or any warning signs on the appliance.

Keep the original packaging during the warranty or guarantee period of the appliance in order to return the appliance in the packaging in the event of a warranty or guarantee claim. Transport damage will invalidate the warranty or guarantee.

Checking the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Appliance description

(refer to the fold-out page for illustration)

Long slot toaster

Crumb tray1

Button for bun rack2

Bun rack3

Toasting slot with bread centring guide4 Start button5

Kettle

Lid, kettle6

Lid release button7

Handle8

ON/OFF switch9

Kettle10

Level indicator11

Calcium filter12

Electrical base station

Kettle socket13

14 Electrical base station
15 Operating panel
16 Water container with level indicator
17 Water tank cover
18 Thermos jug resting plate

Coffee machine

19 Thermos jug

Thermos jug lid20

21 Drip stop
22 Swivelling filter compartment
23 Filter holder
24 Permanent filter

Operating panel

25 Display
26 Reheat
27 Setting the browning level
28 Cancel, eject toast
29 Defrost
30 Coffee machine ON/OFF switch
31 User manual (not illustrated)

Before using for the first time

Clean the appliance as described in the section Cleaning and maintenance (page 30).
Check whether the crumb tray is inserted properly.
Insert the plug into a mains socket.

NOTE

When using for the first time, it is possible that production-related additives such as grease could cause slight odour or smoke. This is completely normal. Ensure sufficient ventilation.

Prepare the appliance for use as follows:

Long slot toaster

Operate the toaster twice at maximum browning level without bread (see section Operating - Long slot toaster; S. 26).

Kettle

Fill the kettle up to the MAX mark with fresh water.
Switch the kettle on by moving the on/off switch to the "1" position.
Wait until the water boils and the appliance switches itself off.
Pour out the water.
Repeat the process.

Coffee machine

Fill the water container with fresh water up to the mark 8.

Switch on the coffee machine (see section Operating-Coffee machine; page 29).Allow the water to run through and pour it out.

Repeat the process once again.

Clean the appliance as described in the section Cleaning and maintenance (page 30).

General instructions

Combined use

The breakfast centre combines three appliances in one:

Long slot toaster

Kettle and

Coffee machine.

NOTE

It is possible to operate only two appliances simultaneously:

Coffee machine + long slot toaster or

coffee machine + kettle.

In order not to overload the power connection, the kettle switches itself off automatically when the toaster is switched on. As soon as the toaster has finished, the kettle switches itself on again automatically.

Operating

Long slot toaster

General instructions

The lifting lever only locks at the bottom when the appliance is connected to the mains.
Only operate the toaster when the crumb tray has been correctly inserted. Various different levels of browning are necessary and depend on the type of bread (see section Toasting): white bread should be toasted at a low level, darker and heavier varieties require a higher setting.
To begin and until the desired browning level has been found, set a medium browning level until familiar with the appliance.
Only use bread slices that fit into the slot of the toaster.
If the toaster begins to smoke, stop.
toasting immediately by pressing the button (28).

Toasting

The appliance is in standby mode after connecting to the power supply. The last active setting flashes in the display (25).

insert one or two slices of bread into the toaster slot (4).

Use the button (27) to set the desired browning level.

1 bar: lowest browning level (image A1)

11 bar: highest browning level (image A2)

Press the start button (5) downwards until it snaps in. Toasting begins automatically.

After toasting is completed, the toaster switches itself off automatically and the lifting mechanism returns to its original position.

Remove the bread from the slot.

Stop toasting

Press (28) to stop toasting. The lifting mechanism (5) returns to the original position.

Warming up toast

The appliance is equipped with a heating function that allows you to warm up already toasted food. The warm-up time is approximately 30 seconds and depends on the browning level set.

Begin toasting as described in the section Toasting (page 26).

Also press (26). "REHEAT" appears in the display (25) (see image A3).

The "REHEAT" display extinguishes after toasting is completed.

Toasting bagels

Bagels can be browned in the toasting slot (4) in the same way as bread slices or warmed up with the help of the bun rack (3).

NOTE

Depending on the supplier, bagels have different thicknesses and may not always fit into the toaster slot. Cut the bagel into two halves or use the bun rack (3) to warm up the whole bagel.

Toasting frozen bread

Begin toasting as described in the section Toasting (page 26).

Also press (29). "DEFROST" appears in the display (25) (see image A4).

The "DEFROST" display extinguishes after toasting is completed.

Removing a stuck piece of toast

DANGER

Electric shock hazard!

Contact with live leads or components poses a risk of serious injury or even death!

Do not use sharp tools as these may damage the heating element and could also lead to injury.

Remove the plug and allow the ap- appliance cool down before removing toasted food.

Remove the toasted food carefully to prevent damage to the slot.

Using the bun rack

To fold up the bun rack (3), push down the button for the bun rack (2) until it snaps in.
ut the rolls onto the bun rack (see image A5).
Use the button (27) to set the desired browning level.

Press the lifting mechanism (5) down until it snaps in. Toasting begins automatically.

After toasting is completed, the appliance switches itself off automatically and the lifting mechanism returns to its original position.

Turn the buns over and push down the lifting mechanism (5) to switch on the toaster again.

If you no longer require the bun rack (3), pull the button for the bun rack (2) upwards to fold in the bun rack.

Kettle

General instructions

Observe the filling level indicator (11). Do not fill up over the MAX mark and not under the MIN mark.

The kettle does not automatically switch off if the lid is not closed.

You can interrupt water boiling at any time by moving the ON/OFF switch (9) to the "0" position or lifting the appliance out of the socket.

WARNING

Danger of burns! Only hold the kettle with the handle (8) since it can become very hot.

Using the kettle

Remove the kettle (10) from the socket (13.)
Press the release button to open the lid (6) (see image B1).
fill the tank with the desired amount of water.
Push the calcium filter (12) into the holder until it audibly snaps in (see images B2 and B3).
Close the lid of the kettle (6) and allow it to snap in.
Put the kettle onto the socket (13). Turn it so that the spout snaps into the bulge of the base station.
Switch on the appliance by moving the ON/OFF switch (9) to "1". The power indicator lights up and the water is heated. As soon as the water is boiled, the kettle switches itself off and the power indicator extinguishes.

Resetting the boil-dry safety protection

If you inadvertently allow the kettle (10) to boil dry, the boil-dry protection switches off the kettle. The power indicator extinguishes.

To reset the boil-dry safety protection, proceed as follows:

Allow the kettle (10) to cool down.

our fresh water into the kettle.
Continue to use the appliance as usual.

Coffee machine

General instructions

To measure the desired quantity of water, there are cup marks on the water tank (16).

Always use fresh, cold, non-carbonated mineral water or tap water. Never put other foodstuffs into the water tank (16).

Observe the filling level indicator (16) on the water tank. Do not overfill!

Thanks to the permanent filter (24), filter paper is us not necessary. Remove and clean the permanent filter after each use. Paper filters size 4 can be used instead of permanent filters.

The filter insert (23) can be removed for easier handling. When you reinsert the filter holder, make sure that it is properly fitted: the differently sized noses in the filter holder must fit into the recesses of the filter compartment (22) (see image C2).

If possible, use freshly ground coffee powder to assure optimum flavour.

Make sure that the thermos jug (19) is in the middle under the filter compartment (22).

Clean and descale the coffee machine regularly as described in the section Cleaning and maintenance (page 30). A dirty and/or scaled coffee machine impairs the aroma.

Functionality of the thermos jug

Opening the thermos jug (19):

Turn the lid (20) anti-clockwise until it can be lifted off (see image C1).

Closing the thermos jug (19):

Lay the lid (20) onto the thermos jug (19) and subsequently turn it clockwise until it stops.

Automatic drip-stop function

When the appliance is in operation, the thermos jug (19) must be under the filter compartment (22). The lid (20) of the thermos jug pushes the drip stop (21) upwards and the coffee can flow from the filter the lid and into the thermos jug.

The drip-stop prevents water from leaking out of the filter when the thermos jug (19) is removed from the coffee machine. During the brewing process, the thermos jug (19) should not be removed from the appliance for more than a few seconds, otherwise the filter will overflow.

Brewing coffee

Open the lid (17) of the water container (16).

Only fill the amount of water required for the desired number of cups.

Close the lid (17) of the water container (16).

Swivel out the filter compartment (22).
Fill the permanent filter (24) with the desired amount of coffee powder. Recommendation: 4-6 g per 150~ml .

Swivel in the filter compartment (22) completely.

Put the thermos jug (19) with lid (20) onto the the resting plate (18).

Press the button (30) to start brewing coffee. The power indicator lights up.

Roughly 1 minute after brewing has completed, you can remove the thermos jug (19) and pour coffee.

Cancelling the brewing process

Press the button (30) to cancel the brewing process. The power indicator extinguishes.

Press the button again to restart brewing ing.

After brewing

Carry out the following after using the coffee machine each time in order to retain proper function of the appliance and prevent mould from forming:

Press the button (30) to switch off the coffee machine.

Allow the coffee machine to cool down.

Swivel out the filter compartment (22).

Use the handle to lift the permanent filter (24) out of the filter compartment (22).

Empty and clean the permanent filter (24).

Use the handle to lift the filter holder (23) out of the filter compartment (22).

Clean the filter holder (23) and the drip stop (21).

Cleaning and maintenance

Before beginning any work, pay attention to the safety instructions in the section Safety instructions (page 21)!

Clean the appliance after each use.
pull the plug out of the mains socket and allow the appliance to cool down.
Wipe all parts of the appliance with a damp cloth.

Long slot toaster

Pull the crumb tray (1) out of the appliance, empty it and wipe it with a paper cloth.

Kettle

Open the lid (6). Press the release button (7) for this purpose.
Remove the calcium filter (12) from the kettle (10).
Clean the calcium filter thoroughly by hand or in the dishwasher.

NOTE

If the calcium filter is damaged, replace it with a new calcium filter.

Insert the calcium filter into the holder. Clean the inside of the kettle (10) with a soft brush and rinse it out.

Coffee machine

Swivel out the filter compartment (22) completely.

Use the handle to take the permanent filter (24) out of the filter holder (23).

Clean the permanent filter with warm water by hand - not in the dishwasher.

Use the handle to take the filter holder (23) out of the filter compartment (22).

Clean the filter holder with washing-up liquid and rinse afterwards with fresh water. Push the drip-stop (21) several times while rinsing.

Wipe condensed water from the underneath of the filter cover with a clean, dry cloth.

Clean the thermos jug (19) with warm water after each use.

Put everything back together again. Make sure that the filter holder (23) snaps into the filter compartment (22) at both noses.

Descaling

Kettle

In order to increase the service life of the kettle, it must be descaled at regular intervals. The water hardness determines how often the appliance must be descaled. Calcium deposits can be recognized by the staining on the inside of the kettle.

To descale the kettle proceed as follows:

Fill the kettle (10) up to the MAX mark with a mixture of fresh water and citric acid or vinegar essence (approx. 5% acid).

Allow the descending solution to soak in for approx. 10 minutes.

To clean the calcium filter, remove it from the holder and insert it into the descaling solution.

Empty the kettle and rinse out several times with fresh water.

Clean the calcium filter under run- ning water and insert it into the holder again.

NOTE

If you use a commercially available.
descaling agent, observe the manufac-.
facturer's instructions for use.

Coffee machine

In order to increase the service life of the appliance and not impair the quality of the coffee, it must be descaled at regular intervals. The descending interval depends on the water hardness (we recommend precautionary descending every 3 months).

To descale the coffee machine proceed as follows:

Fill the water tank (16) up to the 8 mark with a mixture of fresh water and citric acid or vinegar essence (approx. 5 % acid).

Swing in the filter compartment (22) with filter holder (23) and permanent filter (24) without coffee powder.

Put the thermos jug (19) with lid (20) onto the resting plate (18).

Switch on the coffee machine.

Wait until approximately one cup has run through and then switch off the coffee machine.

Allow the descending solution to soak for approximately 10 minutes and switch on the coffee machine again.

The descending procedure is complete when all of the solution has run through.

After descending, repeat the procedure twice with fresh water to rinse the coffee machine.

Rinse the thermos jug (19), lid (20), filter holder (23) and permanent filter (24) thoroughly under running water.

Push the drip-stop (21) several times while rinsing.

NOTE

If you use a commercially available.
descaling agent, observe the manufac turer's instructions for use.

If the appliance is severely scaled, it may be necessary to repeat the descaling process.

Care of stainless steel parts

We recommend using INOX-METAL-POLISH from BEEM for regular maintenance and the removal of difficult stains from stainless steel surfaces. The polish restores appliances to their original shine. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminium, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel.

You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.

Storage

If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and maintenance (page 30). Store the appliance and all accessory parts at a dry, clean and frost-free location which is protected against direct sunlight.

Technical data

Model	Breakfast Centre Ecco De Luxe 4 in 1
Type number Z10.001
Operating voltage 230 V ~
Mains frequency 50 Hz
Overall power:	3000 W
Toaster	800 W
Kettle	2200 W
Coffee machine	800 W
Dimensions	465 x 330 x 345 mm (H x W x D)
Approximate weight 7.04 kg
Thermos jug filling quantity 8 cups/1 litre
Maximum kettle filling quantity 1.7 litres
Protection class I

Spare parts and other accessories

Item* Article No. Designation
10 900 665 004 Kettle with calcium filter
19 900 665 002 Thermos jug
23 900 665 003 Filter holder with drip stop

• according to the drawing in the description of the appliance

Troubleshooting

The following table helps in localising and remedying minor faults:

Fault Possible cause Remedy
The display lighting does not light up after inserting the mains plug.	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
	Display lighting defective Contact customer service.
The automatic circuit breaker in the electrical distribution board trips.	Too many appliances connect- ed to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected. Contact customer service.
Kettle (10) cannot be switched on. Power indicator does not light up.	Kettle (10) is not standing on the socket properly (13).	Put the kettle (10) onto the socket (13) so that it snaps in properly.
Kettle (10) does not automatically switch off.	On/off switch (9) is blocked. Remove the blockage.
	Lid is not closed properly. Close lid.
Kettle (10) switches off prematurely.	Boil-dry safety protection was triggered	Reset the dry-boil protec- tion as described in the section Resetting the boil-dry protection (page 28).
Filter compartment (22) cannot be swivelled out properly.	Permanent filter (24) and/or fil- ter holder (23) are not properly positioned in the filter compa- ment (22).	Pay attention to the proper positioning of the permanent filter (24) and the filter compartment (23).
Coffee flows into the ther-mos jug (19) too slowly.	Drip-stop (21) is blocked. Clean	the drip-stop (21).
	Coffee machine scaled.	Descale coffee machine. See section Descaling (page 31).

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

Sommaire

Remarques generales 35

modifications non-authorises;

Elements of Lifestyle

BEEM

Subject to printing error.

Subject to technical modifications.

For service in other countries contact your local dealer.
