ED6 - Food Dehydrator STEBA - Free user manual and instructions

Product Type	Food Dehydrator
Brand	Steba
Model	ED6
Number of Trays	6 stainless steel trays + 1 herb mat
Temperature Range	35 °C to 90 °C (adjustable in 1 °C increments)
Timer	Adjustable in 30-minute increments
Display	Digital display
Power Supply	220-240 V ~ 50/60 Hz
Power	600 W (approx.)
Dimensions (approx.)	35 x 35 x 35 cm
Weight (approx.)	5 kg
Tray Material	Stainless steel
Functions	Dehydration of fruits, vegetables, herbs, flowers; adjustable temperature and timer; auto shut-off; post-shut-off ventilation
Maintenance and Cleaning	Clean trays with detergent, housing with damp cloth; do not immerse
Safety	Automatic shut-off at end of program; use by children aged 8 and above under supervision; do not use with external timer
Available Spare Parts	Stainless steel trays, herb mat
Usage	Private, non-commercial

Frequently Asked Questions - ED6 STEBA

How to set the temperature on the Steba ED6?

Press the temperature key (°C symbol). The display shows the previous temperature. Use the + or - keys to adjust in 1 °C increments between 35 °C and 90 °C.

How to set the timer?

Press the timer key. The display shows the previous time. Use the + or - keys to adjust in 30-minute increments.

Can I add or remove trays while operating?

Yes, the trays are removable. You can add a new tray or remove one during operation because the air circulates and each tray can hold a different type of food.

How to clean the dehydrator?

Unplug the appliance and let it cool down. Clean the housing with a damp cloth (never immerse). Wash the trays and door with detergent, then dry thoroughly.

What foods can I dehydrate?

You can dehydrate fruits (apples, pears, bananas...), vegetables (zucchini, tomatoes, mushrooms...), herbs (basil, thyme...), and flowers (elderflowers, lavender...). Refer to the table of recommended temperatures and times.

How to prepare fruits before drying?

Wash fresh fruits, remove cores, seeds, and stems. Cut into uniform slices (2-4 mm). To prevent oxidation, sprinkle with lemon juice. Place on the tray without overlapping, skin side down.

Why won't my dehydrator start?

Check that the appliance is plugged in and the socket works. Make sure the display shows 'OFF' then press the start key (⑥). If the fan does not start, wait a few seconds.

Can I change the temperature during drying?

Yes, press the temperature key again. The value flashes, you can change it in 1 °C increments. The program continues with the new setting and remaining time.

Can the dehydrator be used by children?

Yes, from 8 years old, under supervision if they have been instructed of the dangers. Children must not play with the appliance. Cleaning by children under 8 is prohibited.

What to do if the appliance is damaged?

Do not use the appliance if it has been dropped or damaged. Unplug it and contact Steba's customer service. Do not attempt to repair it yourself; only qualified electricians can intervene.

USER MANUAL ED6 STEBA

Instructions for use 8

Mode d'emploi 13

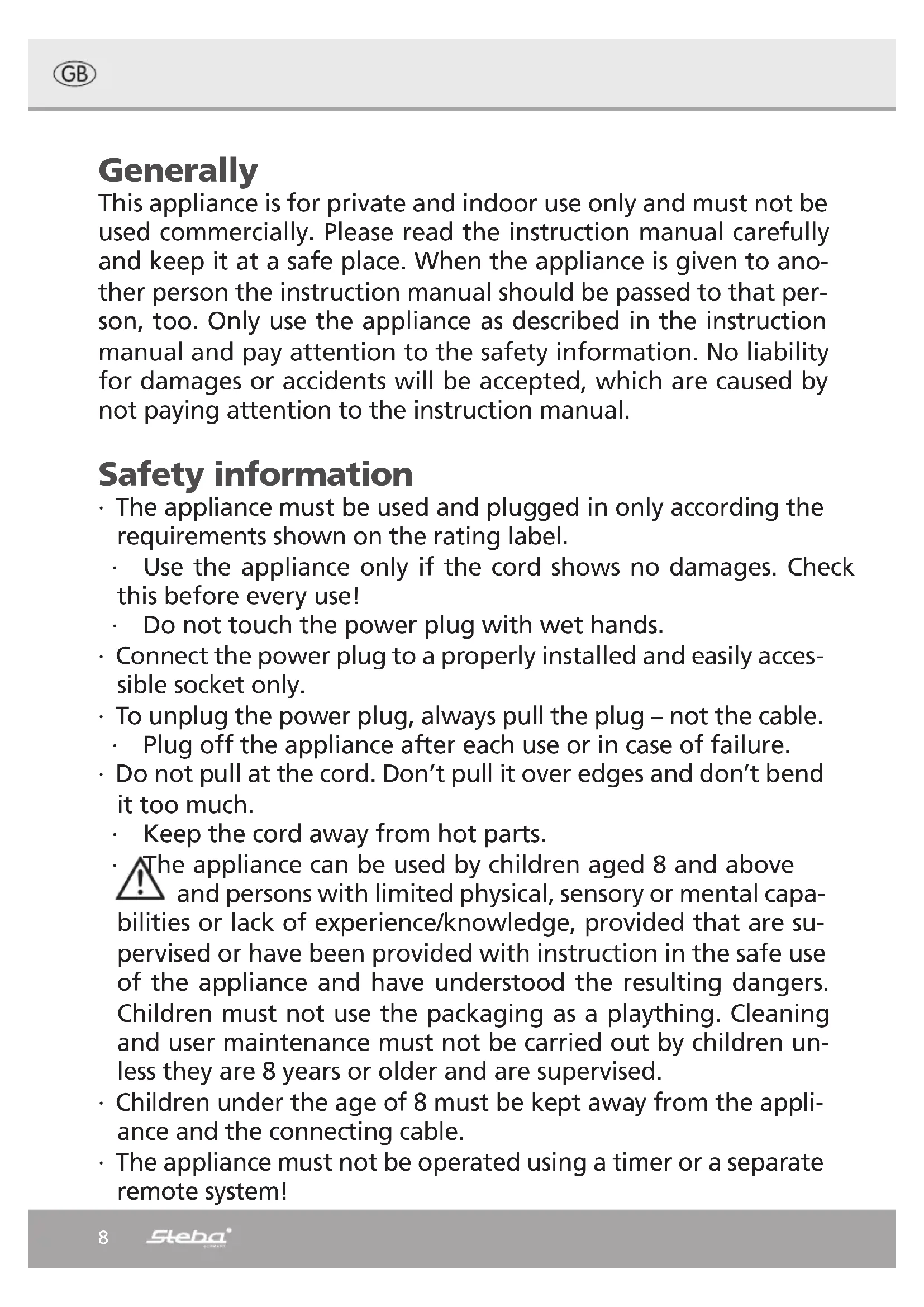

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be used and plugged in only according the requirements shown on the rating label.
• Use the appliance only if the cord shows no damages. Check this before every use!
• Do not touch the power plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
  Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• The appliance must not be operated using a timer or a separate remote system!

• Don't keep the appliance outside or in a humid environment.

• Never immerse the appliance in water.
• Use the appliance never after a malfunction, e.g. when it fell down or was damaged in any other way.
• The producer takes no responsibility for wrong use, which comes from not obeying the instruction manual
• To avoid any dangers, any repairs at the appliance, e.g. an ex-changement of the cord, must only be done by an authorised repair service.
• The appliance must be used on a stable and even surface.
• The appliance is only for the intended use described in the instruction manual.

Cleaning

Pull the plug and allow the device to cool. Never immerse the device into water. Clean the electrical part with a damp cloth. Clean trays and the door with normal detergent and leave to dry.

Generally

Natural preservation of fruit and vegetables through a drying process in 40^ - 70^ warm air. Throughout the drying process, all moisture is extracted. Vitamins, minerals and nutrients are retained and the flavor is intensified.

After cooling the food, store it in a closable container. There you can keep it for a longer time.

It is important to ensure, that the food does not contain any residual moisture, as this may cause mold.

Usage

Dried fruits such as banana chips or thin slices of apples are healthy treats to nibble. Pay attention if small children eat dried fruits.

Dried vegetables and dried herbs can be used for cooking of sauces and soups. The dried vegetable or fruit can also be soaked overnight.

Preparation

The quality of the dried products is as good as that of the raw food. Therefore, only use washed and fresh fruits and vegetables. Please do not use overripe food! Remove all cores, stalks and stones (except cherries). Do not peel fruits.

Cut the food in equal pieces – thin slices dry faster. To avoid discoloration, brush the fruits with lemon juice. Place the food with the cut side up on the tray – the food may not be superimposed and the distance between the pieces must be chosen in a manner that air can circulate sufficiently.

As food dries differently, place congeneric fruits or vegetable on one tray only. A ready dried tray can be withdrawn during the drying process, or a new tray can be added. Vegetable with a firm structure should be blanched for 2 minutes in hot water.

Handling

• Before first use clean the device with a damp cloth. Then run for about 30 minutes to clear possible odors of production.
• Please connect the device. The display shows OFF.
• Push the button ① . The display shows the last set time. After a few seconds the fan begins to run.
• Push the button ① at once. The last set temperature appears. The desired temperature can be set in steps of 1^ C form 35^ C - 90^ C .
• Then push the time button. The last set time appears in the display. By pushing the button the time can be set in steps of 30 minutes.
  The display shows the remaining time.
• If you want to change the temperature during operation, push the button again. The set temperature flashes. Now set the new desired temperature in steps of 1^ . The device keeps on running with new temperature and remaining time.
  After the time run out or the device has been turned off, the ventilation keeps on running for a couple of seconds.

Trays

The device is delivered with 6 stainless steel trays and one mat for herbs. Depending on the amount of food to dry, the device can be run with one to six trays

Mat for herbs

Put the mat for herbs on one tray. Lay the herbs on the mat and dry for about 5 hours.

Herbs

	temperature	time
Basil, Savory, Stinging nettle,Tarragon, Lavage, Marjoram, 60°C	4 - 6 hours
Oregano, Parsley, Sage, Thyme
Blooms
Elderflower	60°C	4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lavender	60°C	4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Chamomile	60°C	4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +
Marigold	60°C	4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -	- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fruits (Remove pips, core and stipe)

Apple, sliced (2 - 4 mm) 70^ 8 - 10 hours

Pear, sliced 70^ 5-6 hours

Apricot, pitted/quartered 70^ 14-15 hours, skin down

Plum, pitted/quartered 70^ 14-15 hours, skin down

Peaches, pitted/quartered 70^ 16-18 hours, skin down

Orange, sliced (6mm) 65^ 6-8 hours

Lemon, sliced (3mm) 65^ 6-8 hours

Banana, sliced (3mm) 70°C 10 - 12 hours

Vegetables

Zucchini, sliced (3 - 4 mm) 65^ 6 - 8 hours

Pumpkin, in strips (3 - 4 mm) 65^ 6-8 hours

Pepper, in strips (3 - 4 mm) 65^ 6-8 hours

Tomatoes, quartered (3 - 4 mm) 65^ 6-8 hours, skin down

Onions, sliced (5 mm) 60^ 6-8 hours

Leek, sliced (10 mm) 70^ 3-4 hours

Carrots, sliced (5 mm) 70°C 4-5 hours

Celeriac, diced (5 mm) 70^ C 5-6 hours

Mushrooms, sliced (5-6 mm) 55°C 6-8 hours, do not wash

The result depends on the thickness of the slices (should be between 2 and 4mm ) and the humidity of the food.

• The given temperatures and times are approximate values and may change significantly in some cases.
  The condition of the dried food should be as followed: Herbs/blossom = crumbly fruits = flexible vegetable = flexible/ crumbly

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Siten, sifferkod 02 for PE-HD, 04 for PE-LD, PP for

polypropylen, PS for polystyren.
