Product type	Mobile 4G Router (MiFi)
Brand	TP-Link
Model	M7310
Dimensions (estimated)	100 x 60 x 15 mm
Weight (estimated)	100 g
Power supply	Rechargeable battery, 5V/1A charger
Main functions	4G Internet connection, Wi-Fi hotspot, management via tpMiFi app or web interface
Maintenance and cleaning	Clean with a soft dry cloth, avoid contact with water
Safety	Do not expose to water, do not disassemble, use recommended charger
Spare parts and repairability	Non-removable battery, repair by professional, SIM adapter included
General information	3-year limited warranty
Management interface	tpMiFi app (iOS/Android) or web page http://tplinkmifi.net

Frequently Asked Questions - M7310 TP-LINK

How to install the SIM card and battery?

Remove the cover, insert the SIM card (with Mini SIM adapter if necessary) and the battery as shown. Nano and Micro SIM cards require the supplied adapter.

How to connect my device to the M7310 Wi-Fi?

Turn on the MiFi by pressing and holding the power button for 5 seconds. On your device, select the SSID (e.g., TP-LINK XXXX) and enter the Wi-Fi password noted under the battery.

Is there an alternative to the tpMiFi app?

Yes, log in to the web administration page via http://tplinkmifi.net or http://192.168.0.1. The default username and password are admin.

What to do if I cannot access the web administration page?

Make sure your device is connected to the MiFi Wi-Fi, the address entered is correct, and your device receives an IP address automatically.

How to resolve Internet connection issues?

Check the PIN code status in the administration interface (Sim Card Status). If locked, enter the PIN code. Also check your operator's APN settings in Dial-up > View Profile Details.

How to enable data roaming?

In the web interface, go to Dial-up and enable the Data Roaming option. This step is necessary if you are using a roaming SIM card.

How to check data usage?

Log in to the web interface, go to Device > Data Usage. You can view your consumption and check if you have exceeded your plan's limit.

How to restore the M7310 to factory settings?

While powered on, remove the cover and press and hold the RESET button with a paperclip until the screen shows 'Power Off' or the LEDs flash. Note: all settings will be erased.

What are the important safety instructions?

Keep the device away from water, fire, and heat. Do not disassemble it, use only the recommended charger. The battery must be replaced according to instructions to avoid explosion risks.

How to save MiFi power?

The MiFi automatically disconnects Wi-Fi if no device is connected for 10 minutes. To restore, press the power button.

USER MANUAL M7310 TP-LINK

TP-LINK TECHNOLOGIES CO., LTD. South Building, Rooms 1, 3(5) and 26 (cons 1-4), Centre Science & Technology Park,

Shennan Rd, Nanshan, Shenzhen, China

TP-LINK Deutschland GmbH Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

TP-LINK UK Limited Unit 2 & 3 Riverview 142-1440, Cardiff Road, Reading, RG1 0FW

TP-LINK Hellas Ltd. Marathon Group 77, Marousi 151 24, Greece

MWS IP: UK Portugal Unipessoal, Lda. Avenida da Liberdade n°129, 1250-143 Lisbon, Portugal

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES

CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such

as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright

© 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved

www.tp-link.com

Quick Installation Guide

Mobile Wi-Fi

71C6505305 REV1.00

CONTENTS

01 / Deutsch 05 / English 09 / Español 13 / Ελληνικά 17 / Français 21 / Italiano 25 / Português 29 / Suomi 33 / Nederlands 37 / Svenska 41 / Norsk 45 / Dansk 49 / Türkçe

Deutsch

2

Notes:

4

tpMiFi-App

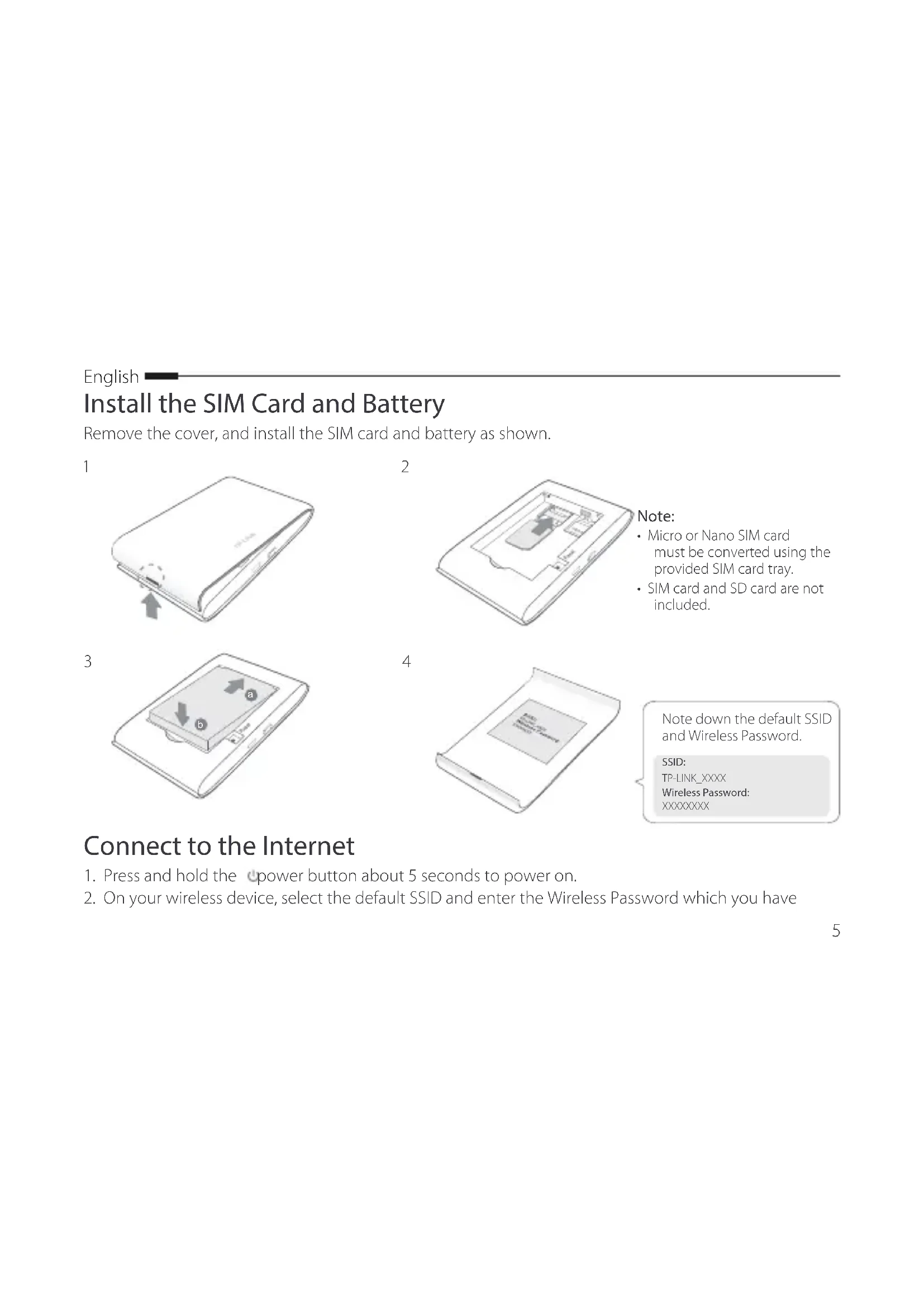

Install the SIM Card and Battery

Remove the cover, and install the SIM card and battery as shown.

1

2

Note:

• Micro or Nano SIM card must be converted using the provided SIM card tray. • SIM card and SD card are not included.

3

4

Note down the default SSID and Wireless Password.

SSID:

TP-LINK XXXX

Wireless Password:

XXXXXXXXX

Connect to the Internet

1. Press and hold the power button for about 5 seconds to power on.
2. On your wireless device, select the default SSID and enter the Wireless Password that you have

noted down.

Note: We highly recommend that you change the default wireless name and password for network security.

Enjoy!

Note:

• If you can't access the Internet, please refer to FAQ > Q3.
• For power saving, the Mobile Wi-Fi will turn off the Wi-Fi connection if no wireless devices are connected to the Mobile Wi-Fi for 10 minutes. Press the ⏻ power button to resume the Wi-Fi connection.

Charging Your Mobile Wi-Fi

Method 1: Via a Wall Outlet (Recommended)

Method 2: Via a Computer

tpMiFi App

Download the tpMiFi App (for iOS and Android) to conveniently manage your Mobile Wi-Fi.

1. Search for the tpMiFi App from the Apple Store or Google Play, or scan the QR code.
2. Connect your wireless device to the Mobile Wi-Fi.

English

1. Launch tpMiFi and enter admin to log in.

FAQ (Frequently Asked Questions)

Q1. Is there any other alternative to manage the Mobile Wi-Fi besides the tpMiFi app?

A. You can manage the Mobile Wi-Fi by using its web-management page.

1. Connect your Wi-Fi device to the Mobile Wi-Fi's wireless network.
2. Open your web browser and type http://tplinkmifi.net or http://192.168.0.1 in the address bar, then enter the default password admin, and click Login.

Q2. What should I do if I cannot log into the web-management page?

• Verify that your device is connected to the Mobile Wi-Fi. • Verify that you have entered http://tplinkmifi.net or http://192.168.0.1 correctly.
• Verify that your device is set to obtain an IP address automatically.

Q3. What should I do if I cannot access the Internet?

A1. Check PIN status

- Refer to Q1 to log into the web-management page on your phone. If the current SIM card status is "PIN Locked", you will need to unlock it using the PIN code.

A2. Verify the ISP parameters

1. Refer to Q1 to log into the web-management page on your phone. Go to Dial-up > View Profile Details and verify the parameters (i.e. APN, Username, and Password) provided by your ISP.
2. If not, return to the Dial-up page and create a new profile with the correct information, then choose the new created profile from the Profile List.

A3. Check the Data Roaming settings

1. If your SIM card is operated in a roaming service area, refer to Q1 to log in to the web-management page

on your phone.

1. Go to Dial-up and enable the Data Roaming option.

A4. Check Mobile Data

- Refer to Q1 to log into the web-management page on your phone. Go to Dial-up to verify that Mobile Data is On. If not, enable this option.

A5. Check Data Limit

- Refer to Q1 to log into the web-management page on your phone. Go to Device > Data Usage Settings to check whether your data usage has exceeded the Total/Monthly allowance.

Q4. How do I restore the Mobile Wi-Fi to its factory default settings?

With the Mobile Wi-Fi powered on, remove the cover. Use a pin to press and hold the RESET button until the "Power Off" appears on the screen or all LEDs turn on momentarily.

Note: Restoring the Mobile Wi-Fi to its factory defaults will clear all previous settings, and you will need to reconfigure it.

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any chargers other than those recommended.
• Do not use the device where wireless devices are not allowed.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

tpMiFi App

2

Note:

4

tpMiFi App

2

Note:

4

tpMiFi App

2

Note:

4

Note the default SSID and wireless password.

SSID:

TP-LINK XXXX

Wireless Password:

XXXXXXXXX

App tpMiFi

2

Note:

4

tpMiFi App

1. Go to Dial-up and enable the Data Roaming option.

2

Note:

4

tpMiFi app

2

Note:

4

tpMiFi App

2

Note:

4

tpMiFi App

2

Note:

4

tpMiFi App

2

Note:

4

Write down the default SSID and password.

SSID:

TP-LINK XXXX

Wireless Password:

XXXXXXXXX

tpMiFi App

2

Caution:

4

tpMiFi App

When a product has a power on/off button, the power on/off button is one way to turn off the product. For products without the on/off button, the only way to completely turn off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.

Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.

Do not operate this product near water.

TP-LINK Three Years Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in accordance with TP-LINK's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
