USER MANUAL FD2100 smanos

Wireless Water Detector

Introduction

This is a contact wireless water detector, which works based on the theory of liquid conductivity. The performance is reliable and the installation is easy. When the liquid reaches to the two probes of the detector, it will send wireless signal to the control panel. It can be widely used in computer rooms, warehouses and any places need to be protected from water. Two pieces of AAA 1.5V LR03 batteries are included in the detector, which enables 12 months standby.

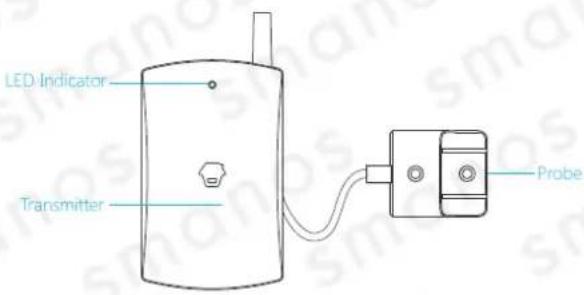

Product Overview

LED Indication

Flash once: Liquid is detected, sending wireless signal to the control panel.

Flash once every two seconds: Low battery. Please replace the battery immediately.

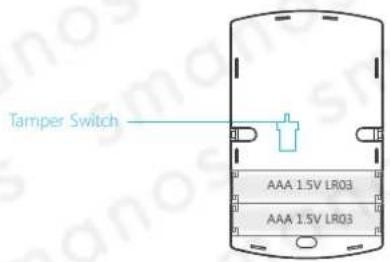

PCB Layout

Connect to the Control Panel

Make sure the control panel is under learning status, then simulate an alarm case by touching the probe of detector with the water. When an alarm signal is received by panel, one beep is heard, indicating a successful connection.

Installation

1. Remove the insulated strip, the detector will enter working mode.
2. Use screw to fix the probe horizontally on the detection site.
3. Use double-sided adhesive tape to fix the transmitter on the place where the liquid is normally unable to reach, and keep the antenna upward.

Change Batteries

Open the back case with screwdriver, and replace the batteries with new ones according to the positive and negative marks.

Specifications

Power supply: DC 3 V (AAA 1.5 V LR03 x 2 PCS)

Static current: < 29 uA

Alarm current: < 23 mA

Transmitting distance: < 80 m (in open area)

Radio frequency: 868 MHz

Housing material: ABS plastic

Operating condition:

Temperature: 0^ +55^

Relative humidity: < 80% (non-condensing)

Detector dimensions (L x W x H): 54 x 14.5 x 107 mm

Probe dimensions (L x W x H): 35 x 30 x 15 mm
