USER MANUAL SPD2415BD PHILIPS

How to... for Internal ReWriters using Nero 7

EN Install Guide
DE Installationsanleitung
FR Guide d'installation
IT Guida d'installazione
NL Installatiegids
ES Guía de instalación
PT Guia de Instalação
TR Kurulum Kilavuzu
PL Instrukcja montażu
sv Installationsguide
sc 安装指南
RU Инструкция по инсталляции
DK Installationsvejledning
TC 安装指南

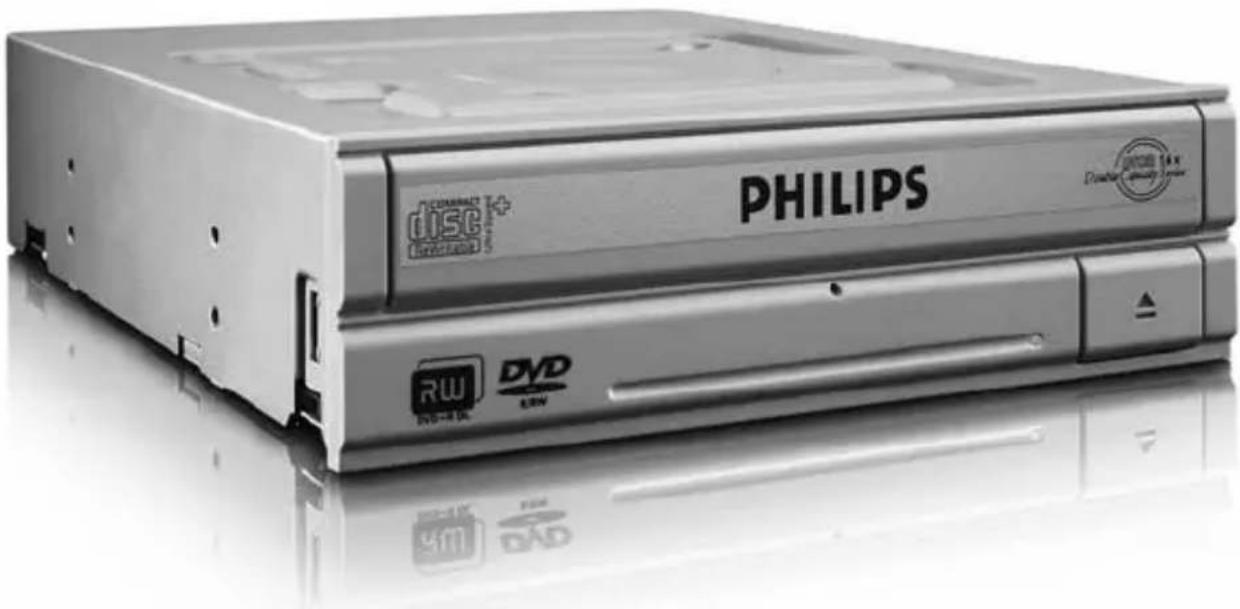

Exterior view of a Philips DVD drive with visible branding (no text-heavy elements)

PHILIPS

EN

Contents

How to install? 5

Up to date? 15

How to make a video disc? 19

How to make a data or audio disc? 27

How to copy a disc? 31

More info or help needed 34

DE

Inhalt

How to make a video disc? 87

How to make a data or audio disc? 95

How to copy a disc? 99

More info or help needed 107

How to install?

Please refer to your PC manual or contact your local dealer for more information.

[NO TEXT]

The image is too blurry to recognize any text content.

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

Close-up of a computer tower internal panel with a hand inserting a cable, showing ventilation and ports (no text or symbols on the device itself)

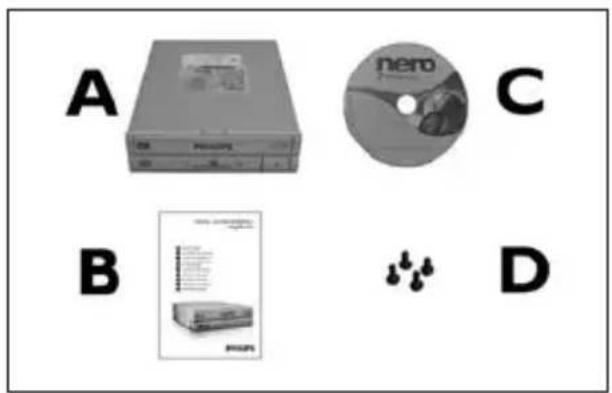

EN This can be found in the box:

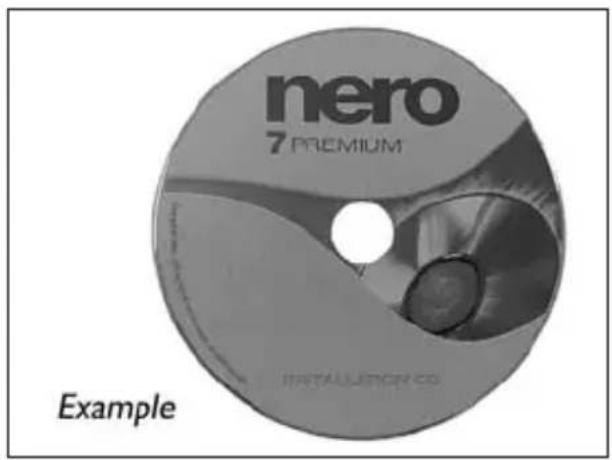

A: Your new drive C: The Nero software disc

B: This manual D: 4 screws in a small bag

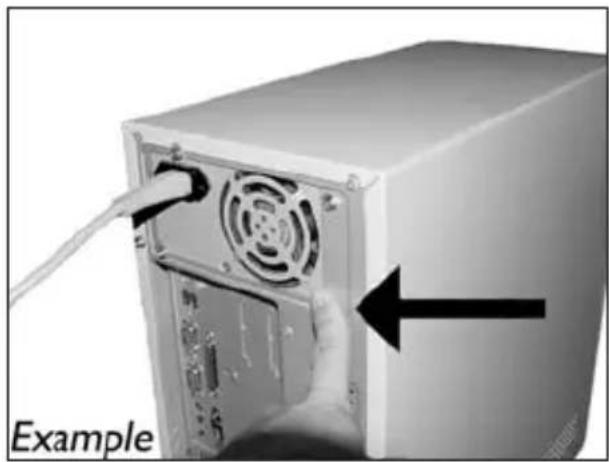

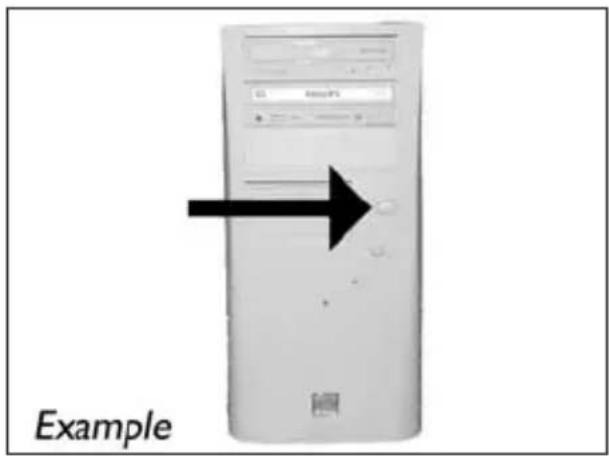

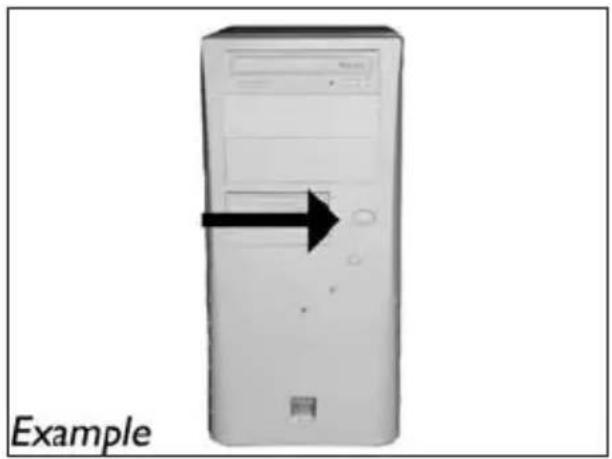

EN Switch your computer off.

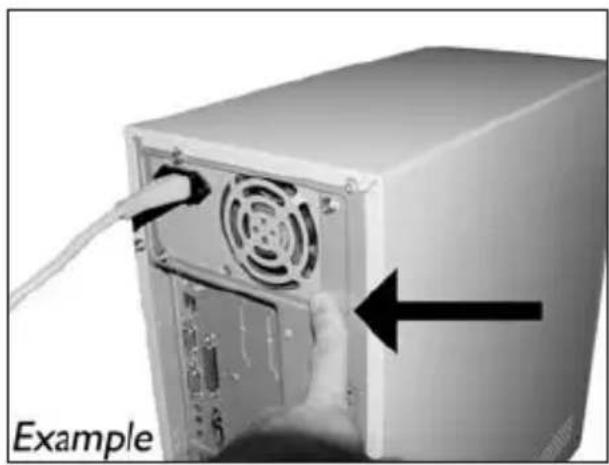

EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case).

This will avoid any damage to your computer by electrostatic discharge.

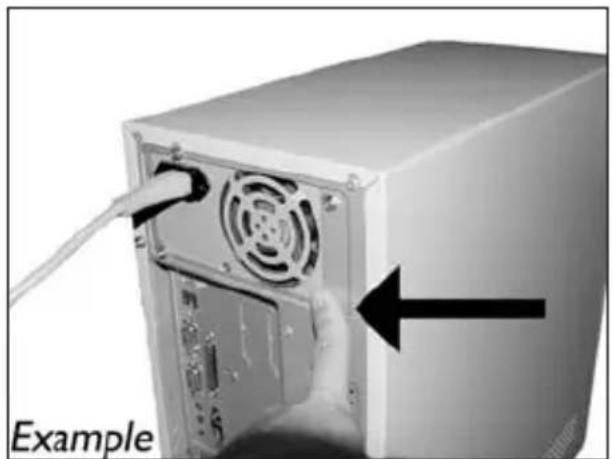

Close-up of a computer power adapter with a black arrow pointing to the outlet (no text or symbols on the device itself)

5

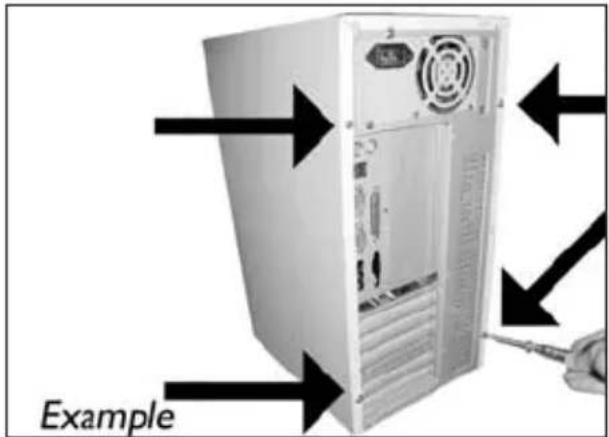

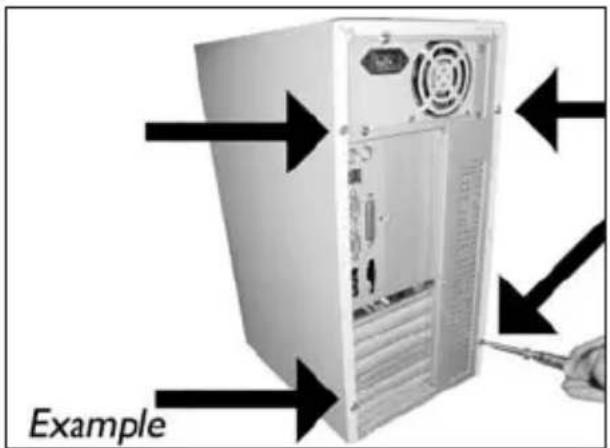

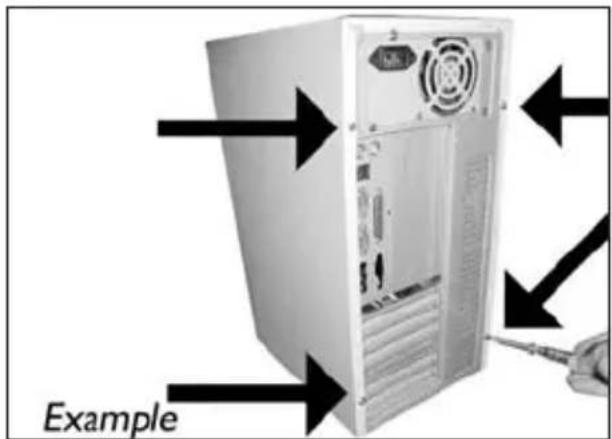

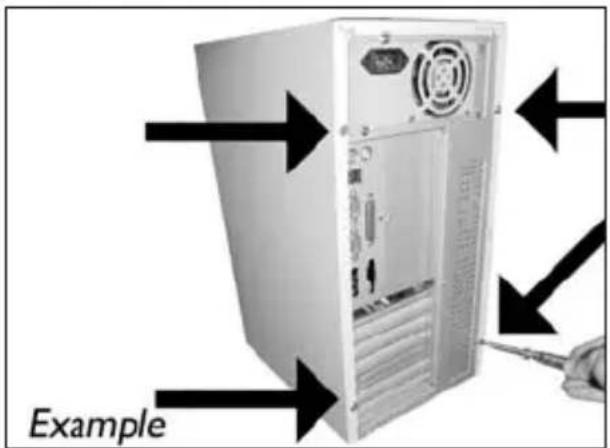

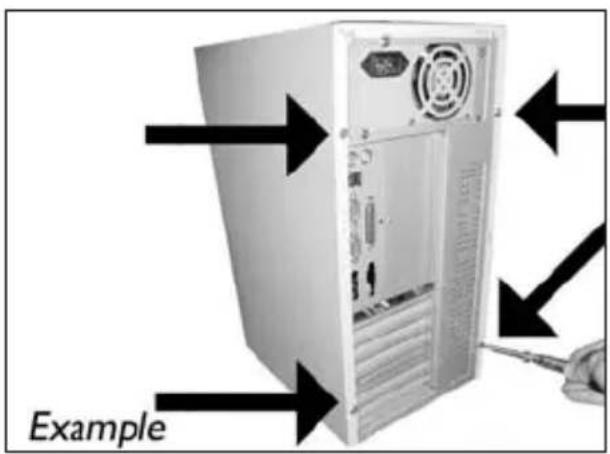

EN Open your computer. You may have to unleash screws which are mostly located at the back of your computer.
▶ See your computer manual for more details.
DE Öffnen Sie Ihren Computer. Eventuell müssen Sie hierzu Schrauben herausdrehen, die sich meistens an der Rückseite Ihres Computers befinden.
▶ Weitere Informationen hierzu finden Sie in Ihrem Computerhandbuch.
FR Ouvrez l'ordinateur. Pour cela, il peut être nécessaire de dessemer une ou plusieurs vis à l'arrière de l'ordinateur.
Pour plus de détail, reportez-vous au mode d'emploi de l'ordinateur.
IT Aprire il computer. È possibile che si dovranno svitare delle viti che in genere si trovano sul pannello posteriore del computer.
▶ Per ulteriori informazioni fare riferimento al manuale del computer.
NL Maak uw computer open. Meestal moet u de schroeven aan de achterkant van uw computer losschroeven.
▶ Raadpleeg de handleiding van uw PC voor details over het openen van de PC.

Example

6

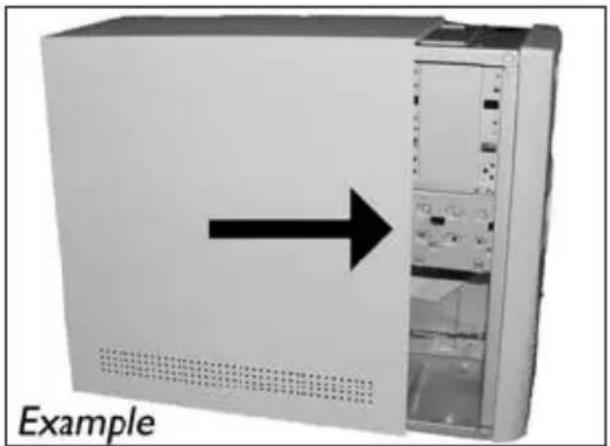

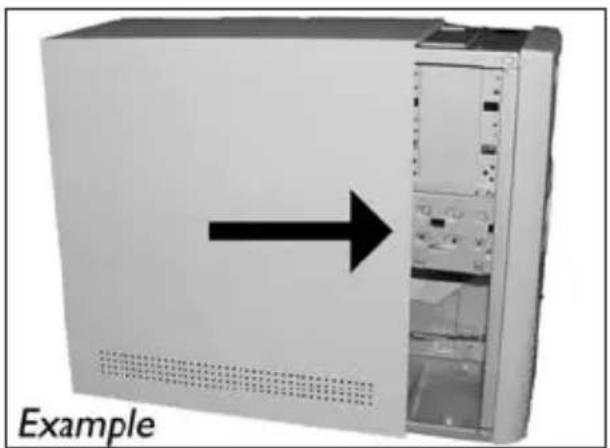

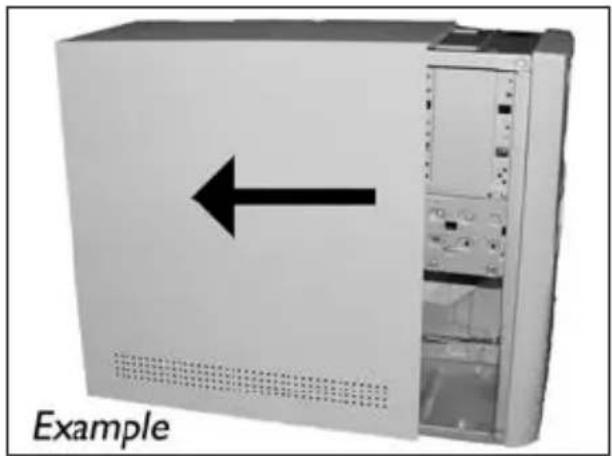

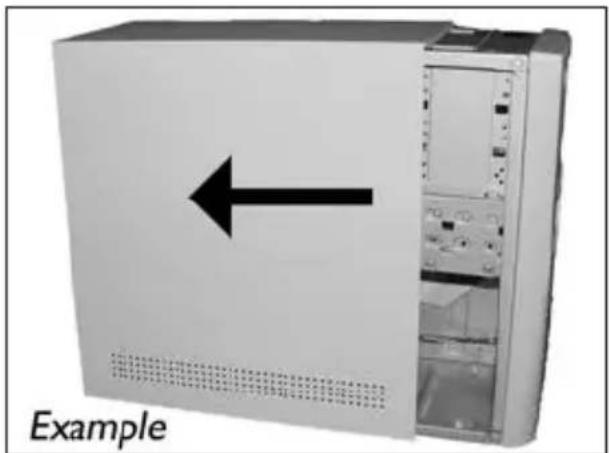

EN Take off the cover of the computer.
DE Nehmen Sie die Abdeckung des Computers ab.
FR Retirez le capot de l'ordinateur.
IT Togliere il coperchio del computer.
NL Verwijder de kast van de computer.

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)


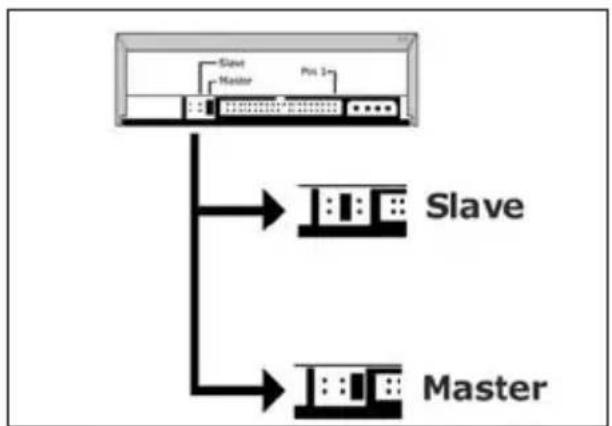

EN If you replace a drive, take it out and check which setting it has ("Master" or "Slave"). Remember this setting and go to step 10.

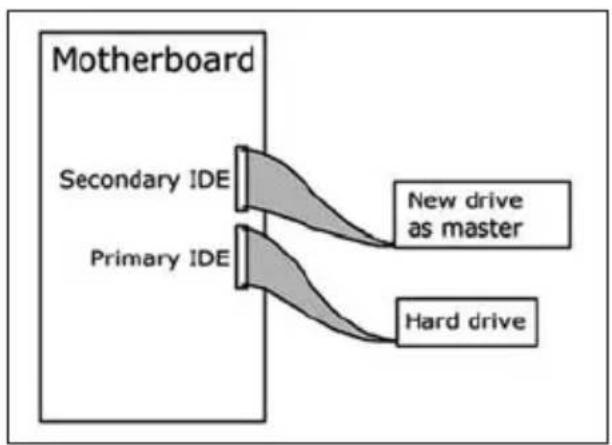


EN If you have no drive installed, remember "Master" and go to step 10.

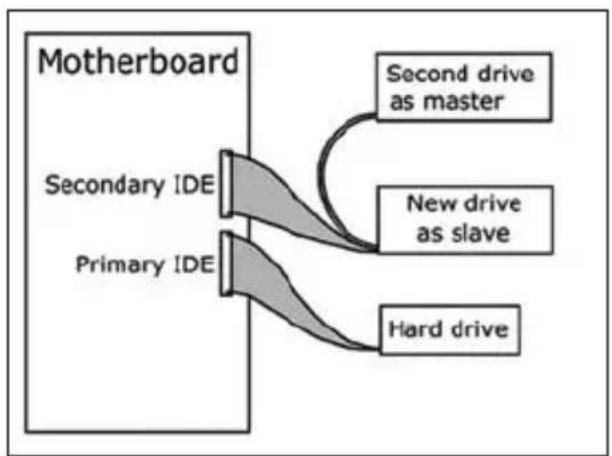


EN If you add a drive, check the drive has which remains in the PC ("Master" or "Slave", see step 11), remember the OTHER setting.

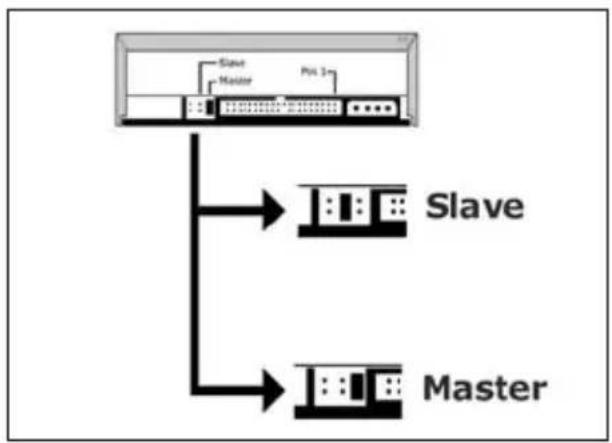

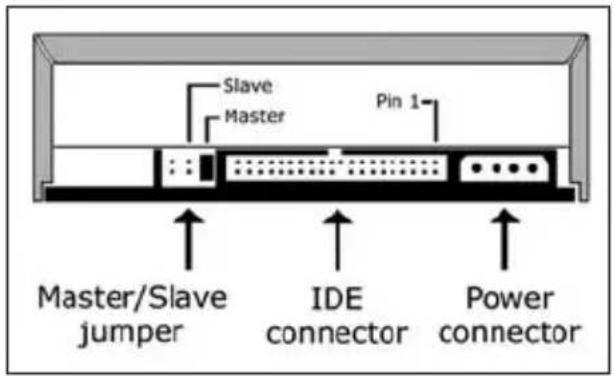

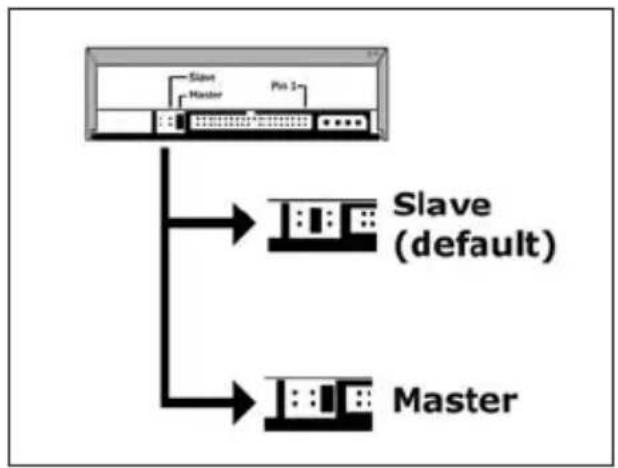

EN These are the connections (on the back of your drive) you will have to use for connecting the drive to the computer.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

11

EN Choose "Master" or "Slave" for the jumper, as seen in steps 7, 8 or 9.

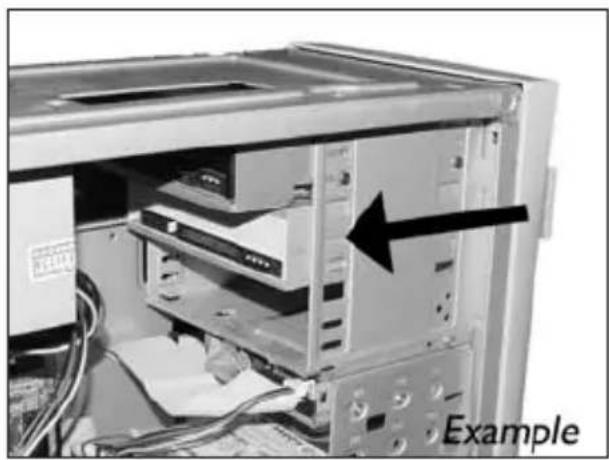

EN Put the drive into your computer.

Interior view of a computer tower with visible CPU socket and drive bays, showing an arrow pointing to the tower (no text or symbols on main components)

A B C Example

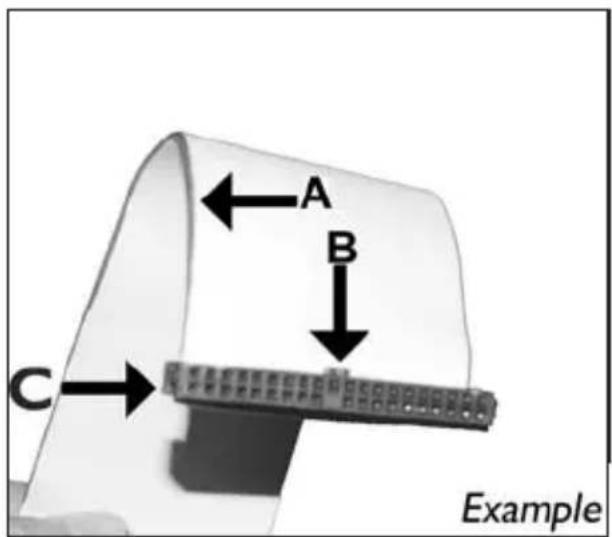

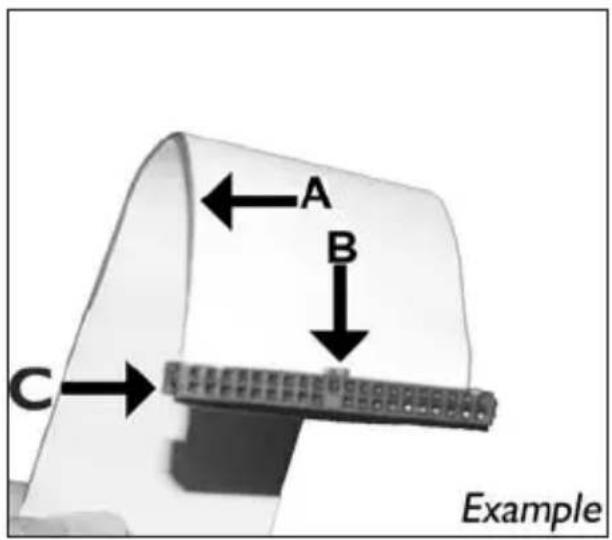

EN Find the IDE-cable which may look like this example:

A: Coloured line.

B: Notch and closed hole.

C: Pin1.

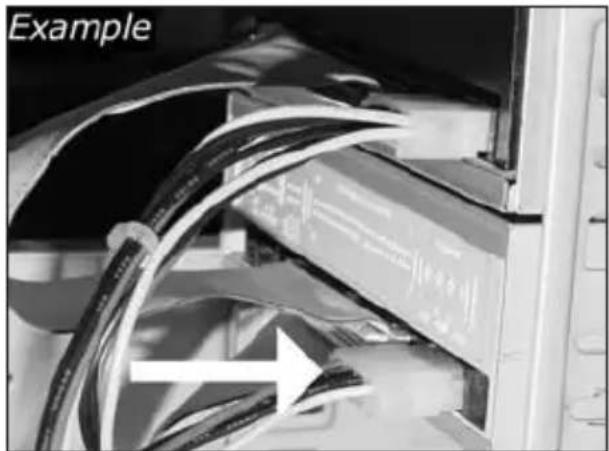

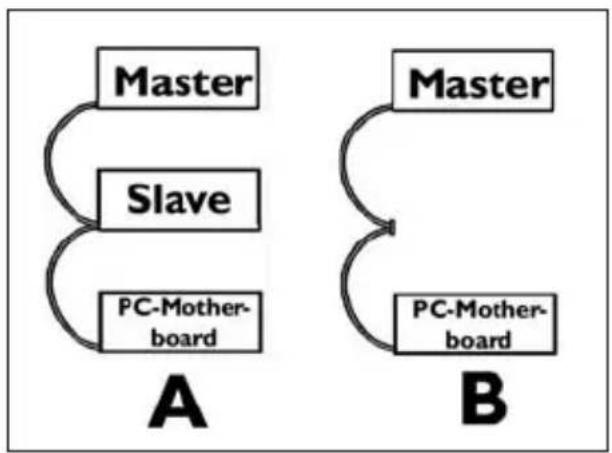

EN Connect the IDE cable like in A (2 devices) or B (only 1 device). Do not choose 2 "Master" or 2 "Slave" devices on 1 cable.

A: Coloured line.
B: Notch and closed hole.
C: Pin1.

Close-up of a hand holding a white terminal block with wires, labeled 'Example' (no other text or symbols)

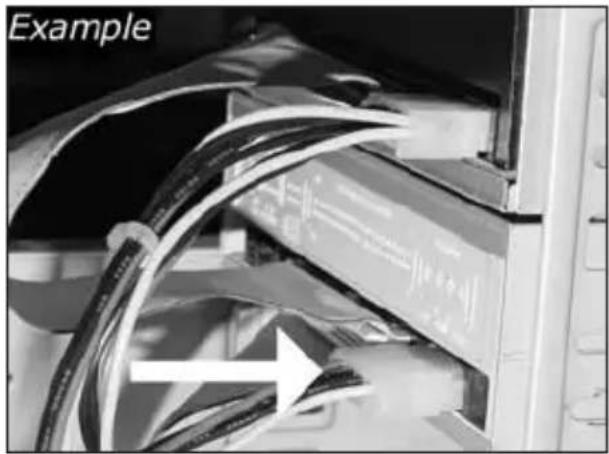

Close-up of a server rack with bundled cables and a white arrow pointing to a cable (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust internal components in a computer case (no text or symbols visible)

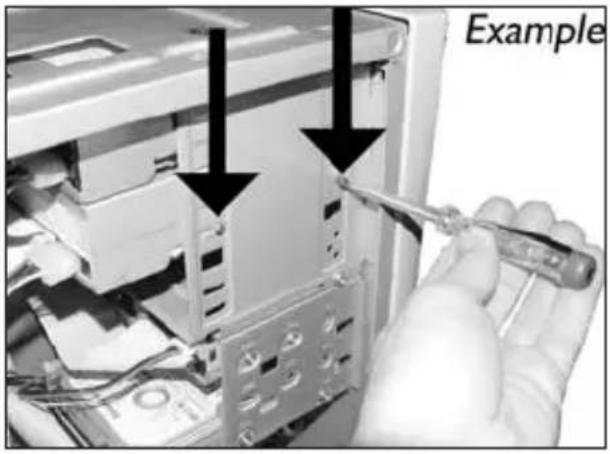

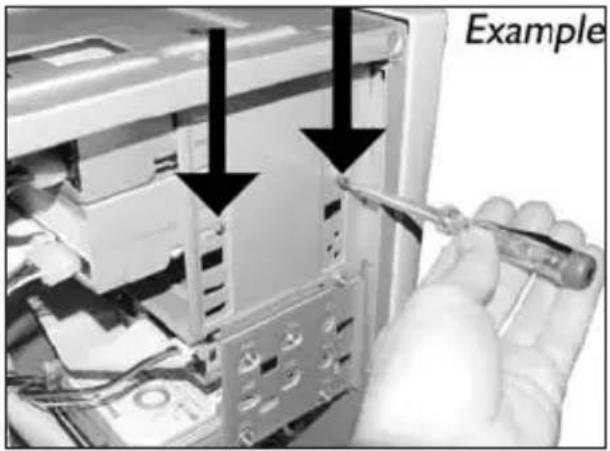

EN Secure the drive with the screws (if possible on both sides).
DE Befestigen Sie das Laufwerk mit den Schrauben (wenn möglich an beiden Seiten).
FR Fixez l'appareil à l'aide des vis (si possible des deux côtés).
IT Fissare l'unità con le viti (se possibile su entrambi i lati).
NL Schroef het station vast (zo mogelijk aan beide zijden).

Front view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

EN Put the cover you took off in step 5 back on.
DE Setzen Sie die in Schritt 5 abgenommene Abdeckung wieder auf.
FR Replacez le capot que vous avez retiré à l'étape 5.
IT Rimettere il coperchio tolto al punto 5.
NL Plaats de in stap 5 verwijderde kast weer terug.

Example

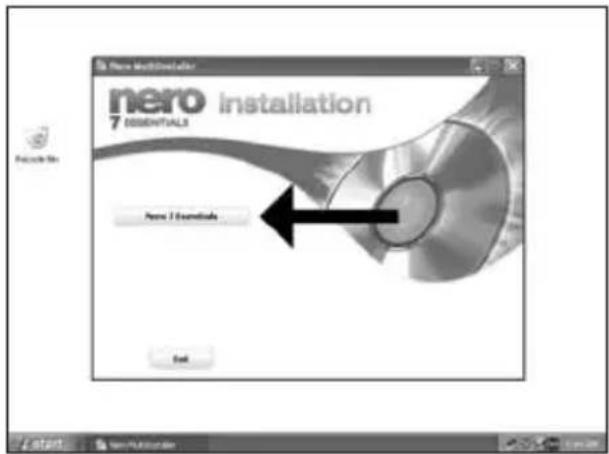

New Multi-Generator nero Installation 7 ESSENTIALS Pane 1 Essentials Exit

Up to date?

New StartUp... Next Online Update Recycle Hit System...

2

EN Click "Check for updates".

Philips Intelligent Agent Products (Systems - 349) Updates for new Philips products Product: Inscribed version: Latest version: [1] PHILIPSCHOKSALS - [HOME] PS.8 2 Philips Intelligent Agent 1.0 2 [2] The last successful product update check was performed on 2006-05-11 [10:40:45] AP. [3] The automatic product update check is validated. Check for update [4] the following to check for product updates.

Philips Intelligent Agent Products Options Help Loading for your Philips products Products Installed version Latest version [0: PHLBPS/CHIK16.5 - [XVAT]] P1.0 P2.0 Philips Intelligent Agent 1.0 1.0 The last successful product update check was performed on 2006-09-C1 123:36 PM. The automatic product update (check is decided). Check for update Product update information was accessible referred from the server.

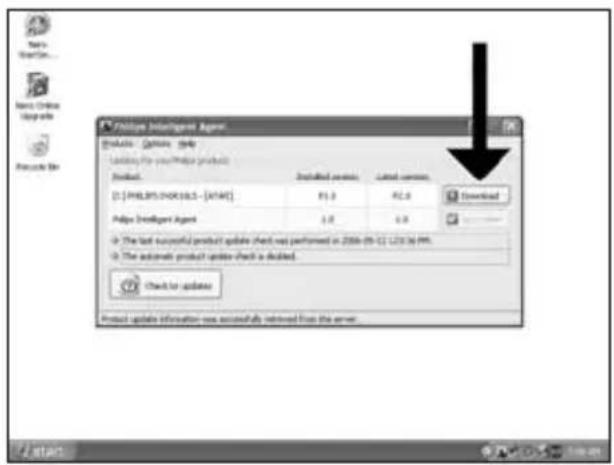

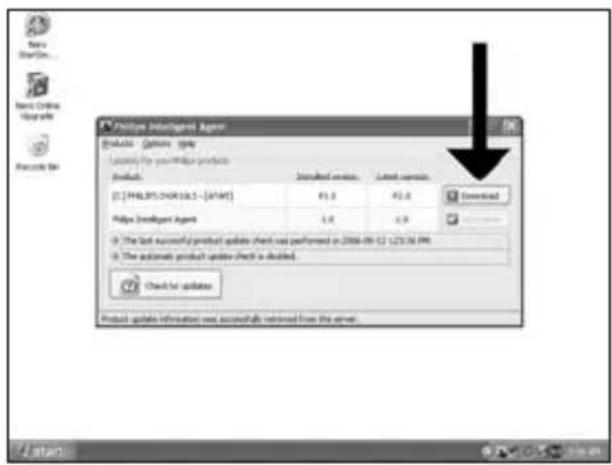

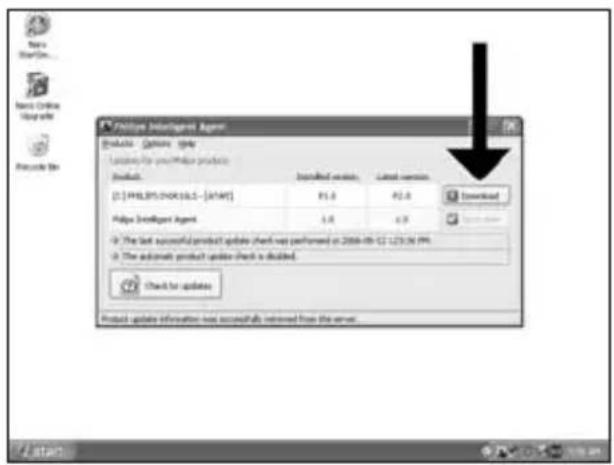

EN Download the updates and install them.
DE Laden Sie die Updates herunter und installieren Sie sie.
FR Téléchargez les mises à jour et installez-les.
IT Effettuare il Download degli aggiornamenti e installarli.
NL Download de updates en installeer ze.

New Home Essentials II Tobacco Download Download E-mail New Social Group All Programs F2 stan New Community Audio Data Labels Manual Photo and Video Play Share Tools New Home Essentials II New Social Group New Social Group New Social Group

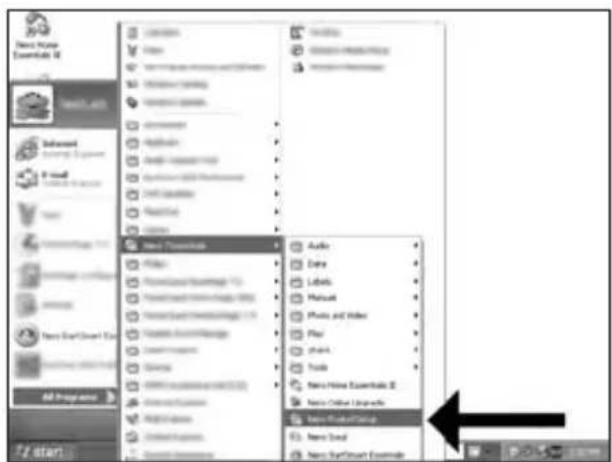

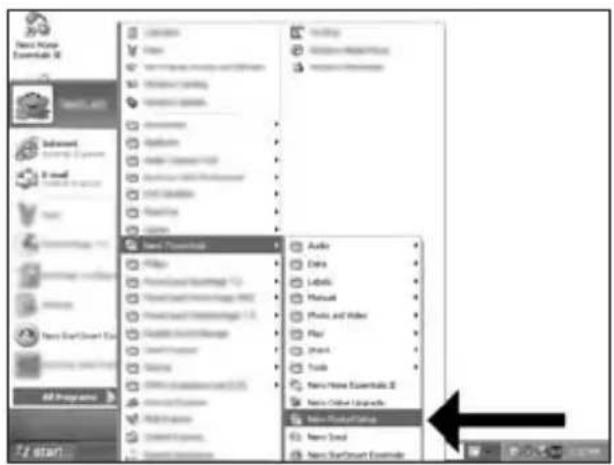

EN Choose "Start", "(All) Programs", "Nero 7 Essentials", "Nero ProductSetup".
DE Wählen Sie "Start", "(Alle) Programme", "Nero 7 Essentials", "Nero ProductSetup".
FR Sélectionnez "Démarrer", "(Tous les) Programmes", "Nero 7 Essentials", "Nero ProductSetup".
IT Scegliere "Start", "Tutti i programmi", "Nero 7 Essentials", "Nero ProductSetup".
NL Kies "Start", "(Alle) Programma's", "Nero 7 Essentials", "Nero ProductSetup".

New ProductSetup Please select one of the actions and click Next to continue Modify your New products. Use this option to enable additional features of your installed new products. Remove your New products. This product will give you that should be removed the installed new products completely from your system. Browse new product files. Updated include the latest version achieving a new product file for your installed new products. Add new additional languages. Here you can add new support for particle languages for your new products. Next

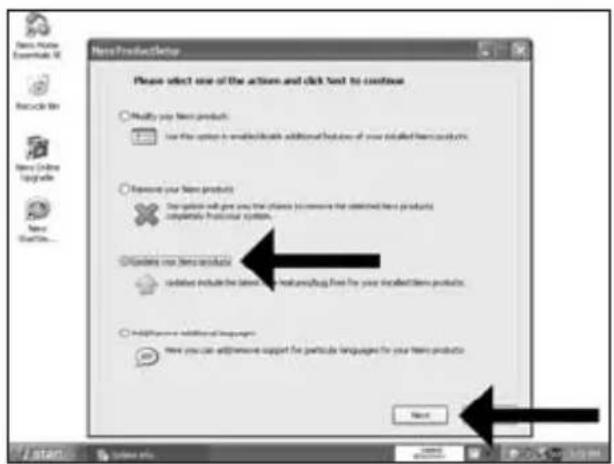

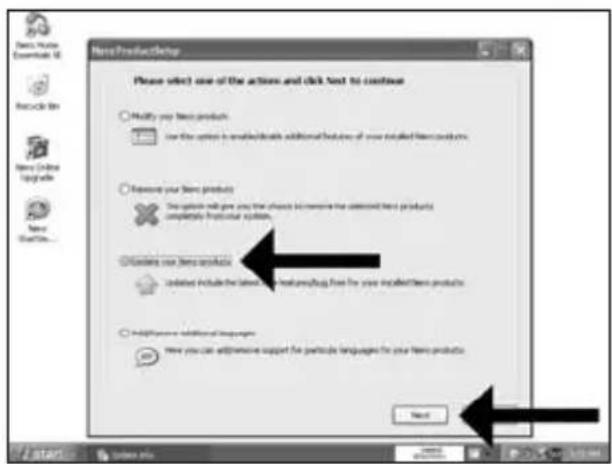

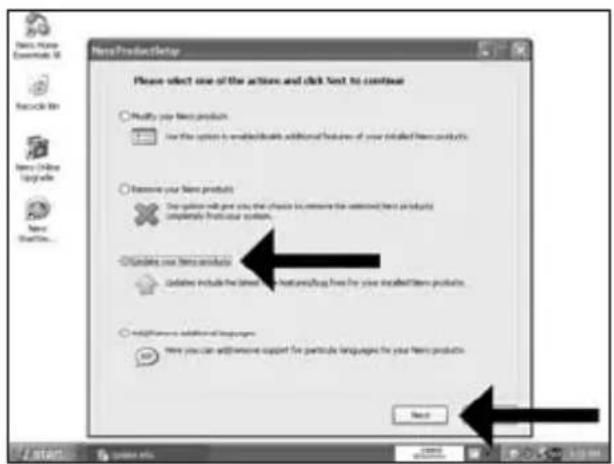

EN Choose "Update your Nero products" and "Next".
DE Wählen Sie "Nero Produkte aktualisieren" und "Weiter".
FR Sélectionnez "Mettre à jour vos produits Nero" puis cliquez sur "Suivant".
IT Scegliere "Aggioma i prodotti Nero", quindi fare clic su "Avanti".
NL Kies "Uw Nero-producten bijwerken" en "Volgende".

6

New Import Ensemble 3D Recycle Kit New Online Web sites New Update Info File Downloaded The following file products have been detected. - None ? To update all new products on your computer it is necessary to connect to the Internet. If you do not want to allow the installation signed by content to the Internet, please call Next. You will be offered about the amount of data that needs to be transferred in the next step and you will have the chance to cancel the Download. If you do OK or are ready to start this user (this user will add or add), please follow the instructions on the user to simple Internet access for the installation started. OK

7

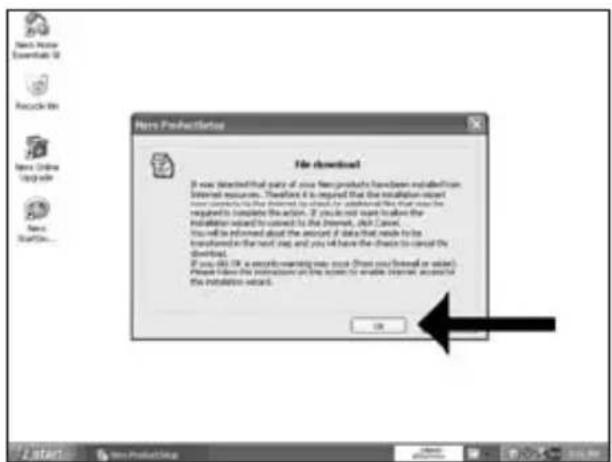

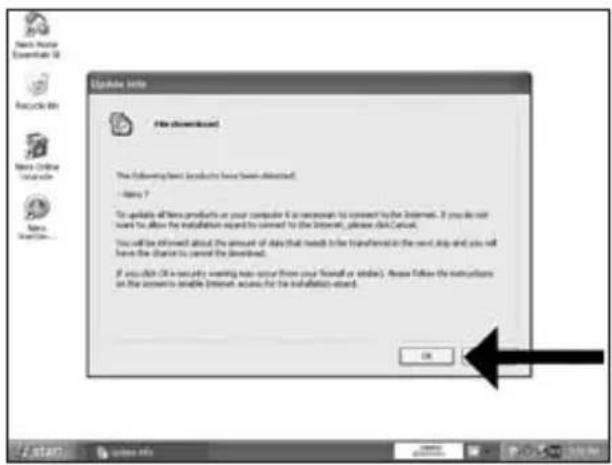

New ProductLine File download! If now started that part of your new products have been installed from Internet resources. Therefore it is required that the installation will new contacts to the internet to check for additional fees that may be required to complete the action. If you do not want to allow the installation available to correct by the Internet, check Cancel. You will be informed about the amount if data that needs to be transformed in the next job and you will have the access to correct the download. If you did OK a useful warning into user (that your friend or user). Please have the instructions on the screen for enable users access to the installation record. OK

8

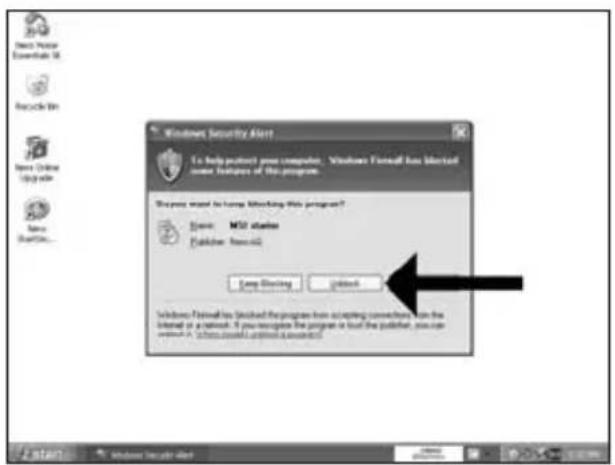

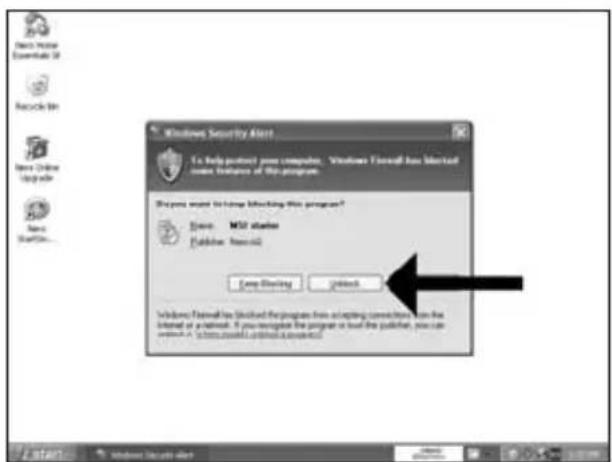

EN The Windows Firewall may warn you. Click "Unblock" to allow your Nero to be updated.
DE Sie erhalten evtl. eine Warnung von der Windows Firewall. Klicken Sie auf "Sperre deaktivieren", damit sich Nero aktualisieren kann.
FR Le pare-feu de Windows affichera peut-être un avertissement. Cliquez sur "Débloquer" pour activer la mise à jour de Nero.
IT È possibile Windows Firewall visualizzi un messaggio di avvertimento. Fare clic su "Unblock" (Sblocca) per consentire l'aggiomamento di Nero.
NL De Firewall van Windows kan een waarschuwing geven. Klik op "Uitschakelen", zodat uw Nero kan worden bijgewerkt.

Windows Security Alert To help protect your computer. Microsoft Outlook has installed some features of this program. What want to have blocking this program? Stream: MSU server Publisher: Microsoft Save Existing Get Back Windows Outlook has installed the program from executing connection, on the Internet at a network. If you recognize the program or load the publisher, you can continue in order to access any security password.

Name: Newer Downloaded 36 Recycle Web Name: Online Downloading Name: Newer ProductTransfer The updates are being downloaded 1. Comwriting 2. Checking engine 3. Preparing installation 4. Optimizing download rate 5. Downloading file 6. Pushing Close Start New Product Setup Windows 2007/01/2008 Microsoft Teams © 2007-01-04

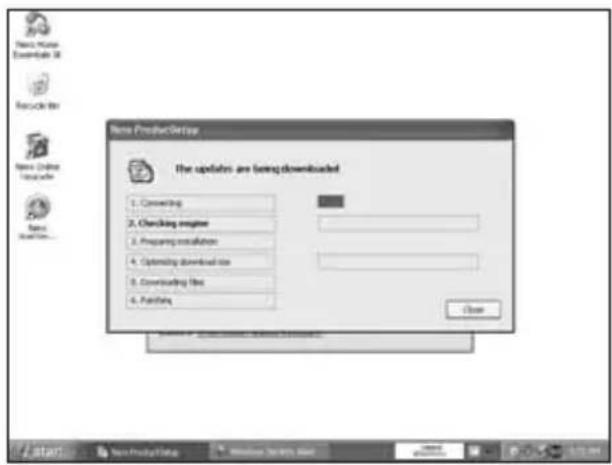

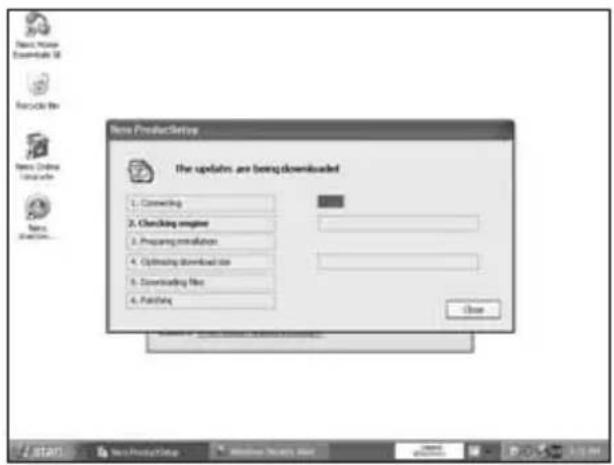

EN Nero downloads and updates itself.
DE Nero führt den Download und die Aktualisierung selbstständig durch.
FR Nero télécharge et se met à jour automatiquement.
IT L'aggiornamento di Nero viene scaricato ed eseguito.
NL Nero gaat automatisch downloaden en bijwerken.

How to make a video disc?

Be responsible Respect copyrights

1

EN Start "Nero StartSmart Essentials".
DE Starten Sie "Nero StartSmart Essentials".
FR Lancez "Nero StartSmart Essentials".
IT Avviare "Nero StartSmart Essentials".
NL Start "Nero StartSmart Essentials".

Save Start Menu Enter Web Save Connection Update Web Update Bin

Photo and Video Make Image (A) Make Image (B) Make Image (C) Make Image (D) Make Image (E) Make Image (F) Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Capture Image Photo

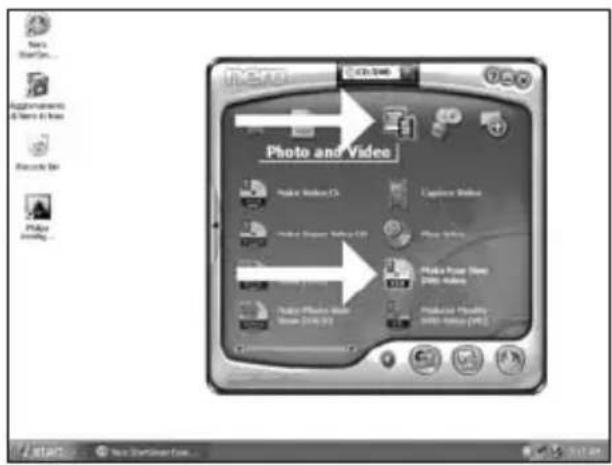

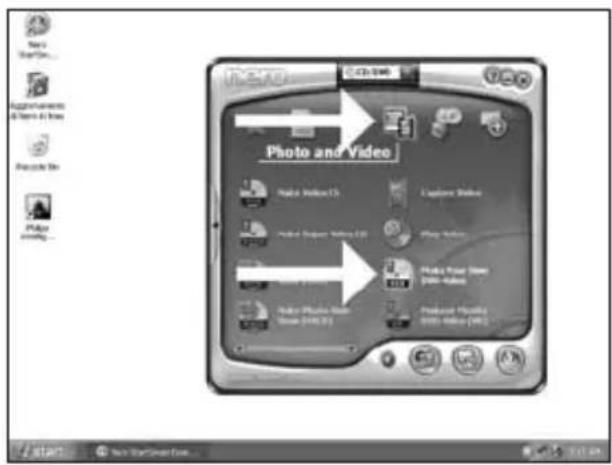

EN Choose "Photo and Video" and "Make your own DVD-Video".

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

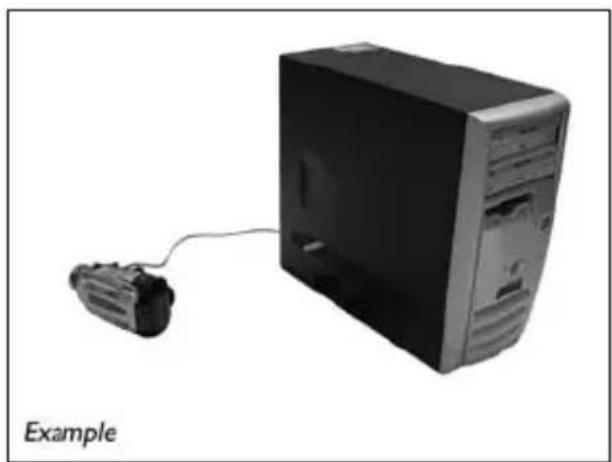

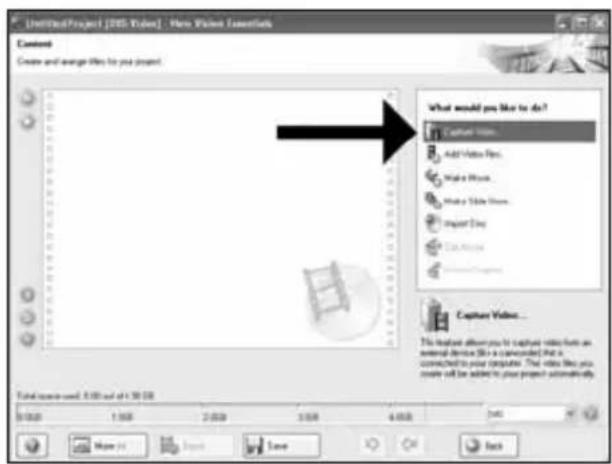

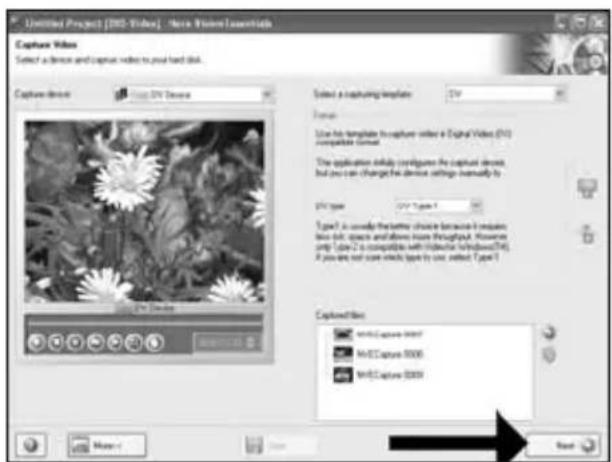

EN If you want to capture video from a camera, connect it to your PC. Otherwise go to step 8.

UntitledProject [TMS Video] - Max Picture Essentials Capture Video Select a device and capture video to install hard disk. Capture devices Top: TV Driver Options Use the template to capture video in Digital Video (DVI) compatible format The application initially configures the capture devices but you can change the device settings manually by DVI type DVI Type 1 Type 1 is usually the below choice because it requires free disk speed and allows more throughput. However, option Type 2 is compatible with video for Windows(TM) If you are not used which type 3 uses, offset Type 1 Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Top: TV Automatior Bottom: Next: Back:

6

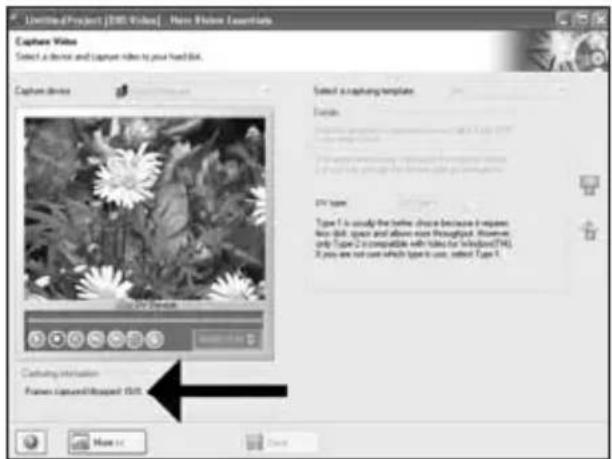

EN During capturing, you will see the progress here.
DE Während der Aufnahme sehen Sie hier den Fortschritt.
FR Pendant la capture, l'avancement s'affiche ici.
IT Durante il processo di cattura, qui sarà possibile visualizzare l'avanzamento.
NL Tijdens het laden ziet u hier de voortgang.

UntitledProject [1980 Videos] - More Picture Essentials Capture Video Select a device and capture video to your hard disk. Capture Device Select a capturing template Templates: Type 1 is useful for the better choice because it requires free disk space and allows more throughput. However, only Type 2 is compatible with type for throughput (74). If you are not sure which type is used, select Type 1. Capture Environment Frames captured/missed disk

7

Untitled Project [1957-Video] - New Window Installable Capture Video Select a device and capper video to put hard disk. Capture drive: Copy DVD Device Selected a capturing template: Ctrl Format: Use this template to capture select a Digital Video (DVI) compatible format. The application also involves the capture device, but you can change the device settings manually to. DVI type: DVD Type 1 Type 2 is used for the other choice because it requires box files, space and lines have throughout. However only: Table 2 is compatible with radioactive Windows (DW). If you are not cover which type is use select Type 2. Captured files: WNT/Capture 0007 WNT/Capture 0008 WNT/Capture 0009 Save... Next

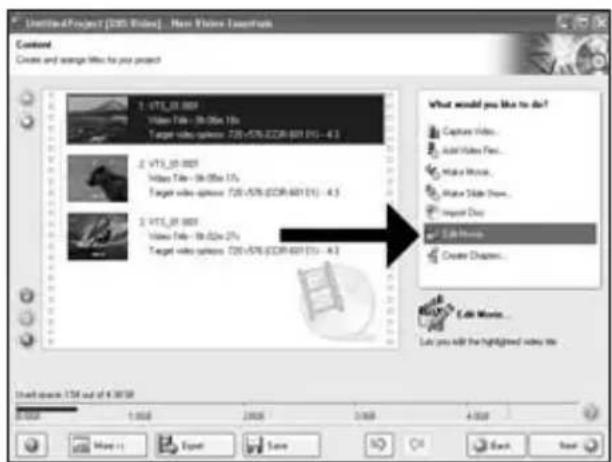

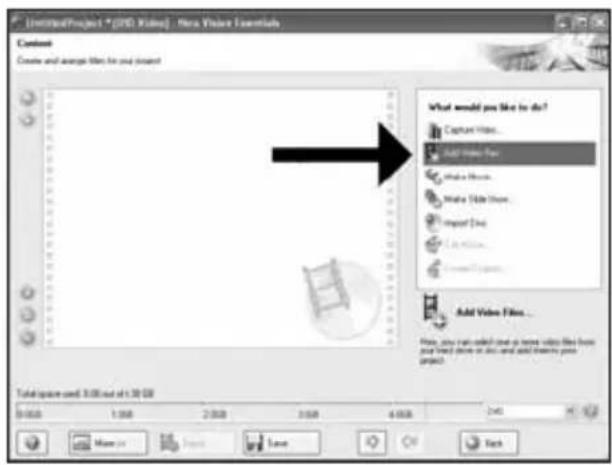

UntitledProject * [DVD Video] - New Video Essentials Context Create and analyze files for your content What would you like to do? Capture Video... Copy Video File Make Image... Make Slide Save... Import Drive Add Video Files... Add Video Files... New, any text is added into new video files from you have done so, but and add video files on project. Total space used: 3.06 out of 1.30 GB 0.000 1.000 2.000 3.00 4.00 5.00 More than Save Save Back

Open Create an Modules New Solid Desktop My Documents My Computer My Options Flares File name: File of System: All Supported Index Files Open Cancel

Unrealized Project [100] Video - New Video / NewTech Content Create and arrange video for you present 1. VIT_01 007 Video Title - 16.00x 15s Target video options: 720+VIT5/DCR-601 (1%) - 4.3 2. VIT_01 007 Video Title - 16.00x 15s Target video options: 720+VIT5/DCR-601 (1%) - 4.3 3. VIT_01 007 Video Title - 16.00x 2% Target video options: 720+VIT5/DCR-601 (1%) - 4.3 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Slide Maps... Import Day... Edit Movies... Create Chapters... Let you add the highlighted video list Only search: 15M out of 4.3008 1:000 2:000 3:000 4:000 More... Equal Save Next Next

Limiting Project [100 Vites] - New Vision Leavertown File Edit View Tools Help 100 Vites VIT_20.04 Movie 10 Event Save Add

13

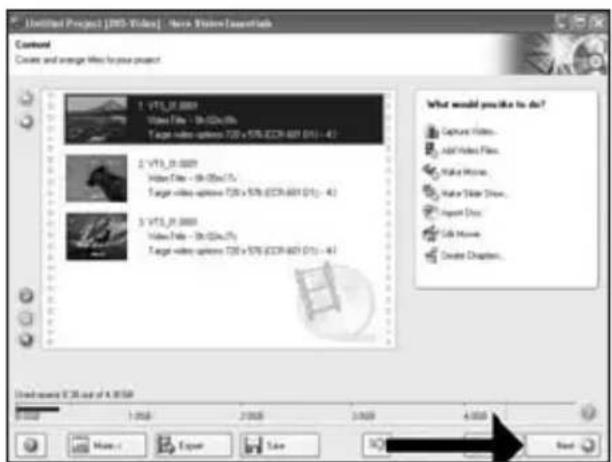

Untitled Project1 [RMS Videos] - New Vision Essentials Content Create and update files to your project. 1. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 2. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 3. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Video Views... Export Docs... Sub Movies... Create Chapters... Under search: 36 out of 4.0009 1:000 1:000 2:000 3:000 4:000 Name: Export Tools Save Back

Unlimited Proport [VISA] Video | New Video Essentials Select None Select main menu and file name. Select options: High Media Holiday 2005 1 VTE, 81.2007 Video: Holiday 2005 Edit Media... Save Next Next

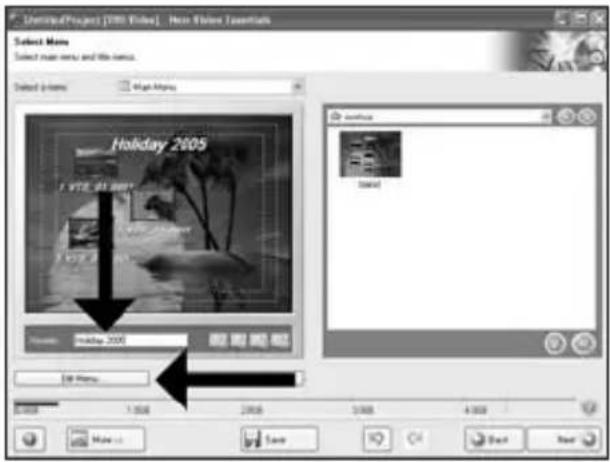

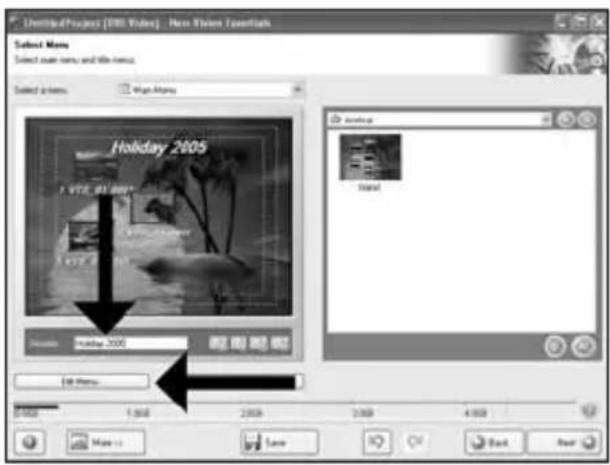

EN Enter the title in the "Header" field and click "Edit menu".

UntitledProject [1981 Video] - New iPhone Zonaftalk Edit Money Customize new options. Holiday 2005 What would you like to change? Layout Background Bottles Card Presidential/Factor Card Disability Administration Information Colors Page 1/2 Save Home

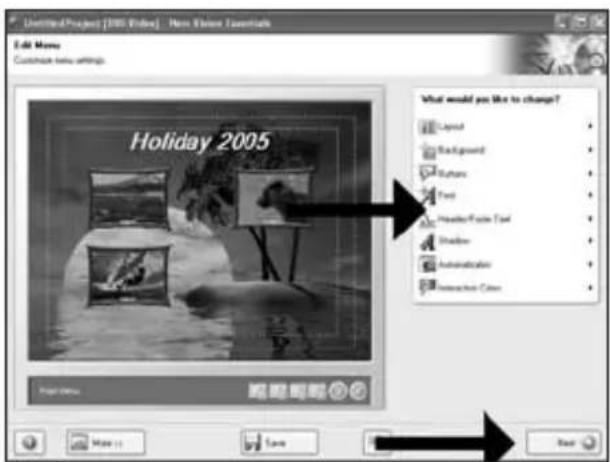

EN You can change the layout, the background, add titles,... here. When done, choose "Next" twice.

Untitled Project [300] Video | New Window Updates Preview Explore the results of your project features learning it. Holiday 2005

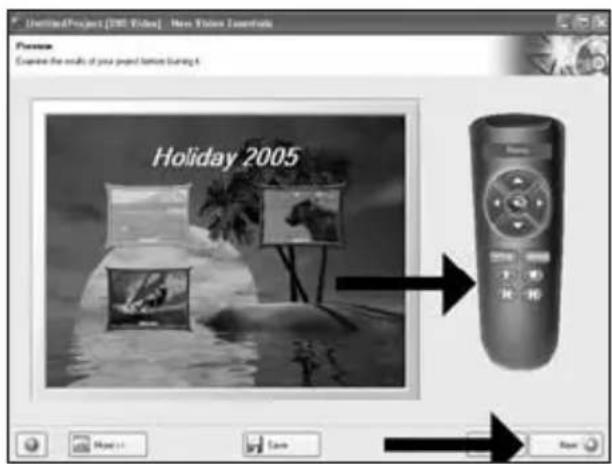

EN Preview your movie. Click "Next" to continue.

UntitledProject [EMS Video] - Max Flange Essentials Run Options Set the parameters for learning Project website Current video options Aspect also Automatic Video-rot FSL Quality Software View project contains 3 filters and 1 name. Send up... Save Start the parameter for learning Run To: Write by Hard Copy Folder Volume Name Recording Settings Run To Recorder Selected the recorder you want to use Cancel optimization Run to device: PHILIPS ORDERER Used disc space: 0.29 GB Save

18

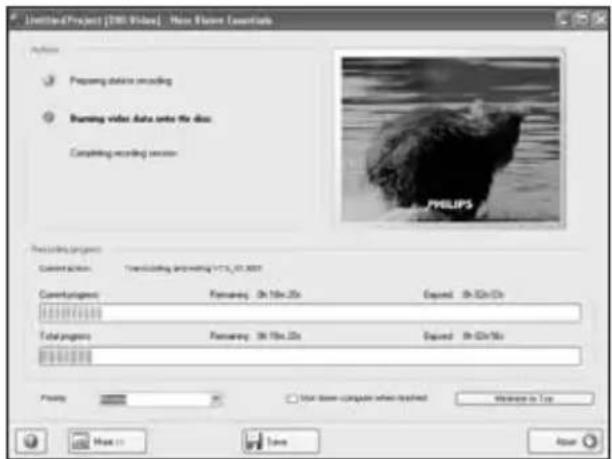

EN NeroVision Express is transcoding and burning your disc.
DE NeroVision Express führt ein Transcoding durch und brennt Ihre Disc.
FR NeroVision Express procède au transcodage et grave le disque.
IT NeroVision Express esegue la codifica intermedia e la masterizzazione del disco.
NL NeroVision Express transcodeert en brandt uw cd.

LimitedProject [100 Video] - New Future Documents Analysis Preparing default encoding Running video data onto the disc Completing recording session PHILIPS Recording project Current action: Transcribing and editing V1.5_01.0007 Current progress: Forwarding 3h 10m.25s Expired 3h 02m.05s Total progress: Forwarding 3h 10m.25s Expired 3h 02m.05s Preview: Not done computer when installed Welcome to Top Next >> Save

19

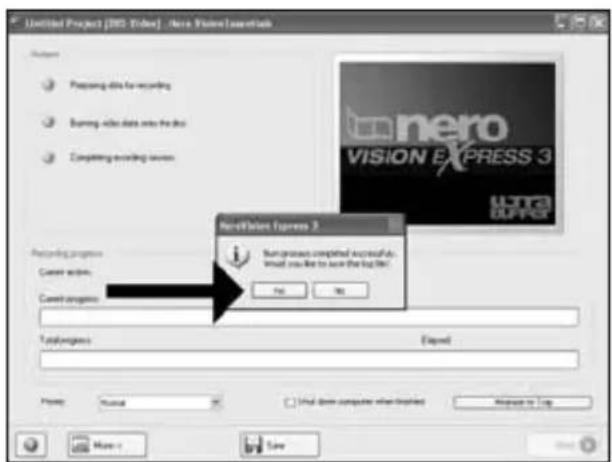

EN Congratulations, your disc has been written successfully. You may exit the application now.
DE Glückwunsch, Ihre Disc wurde erfolgreich beschrieben. Sie können jetzt die Anwendung verlassen.
FR Félicitations, le disque a été gravé avec succès. Vous pouvez maintenant quitter l'application.
IT Congratulazioni, è stata completata la scrittura del disco. Ora è possibile uscire dall'applicazione.
NL Gefeliciteerd, uw cd is met succes geschreven. U kunt de toepassing nu verlaten.

Untitled Project [MS Video] - New Video Installants Options Preparing data for recording Burning video data into the disc Completing recording services Non-Video Express 3 New process completed successfully. What you like to save the log file: No No Recording progress Current action: Current progress: 1st progression: Expired Preview: Normal Used down computer when printed Manage to Top More... Save

How to make a data or audio disc?

Be responsible Respect copyrights

1

EN Start "Nero StartSmart".
DE Starten Sie "Nero StartSmart".
FR Lancez "Nero StartSmart".
IT Aviare "Nero StartSmart".
NL Start "Nero StartSmart".

Menu Start Menu Enter Subs Enter Print Print Info Recycle Bin

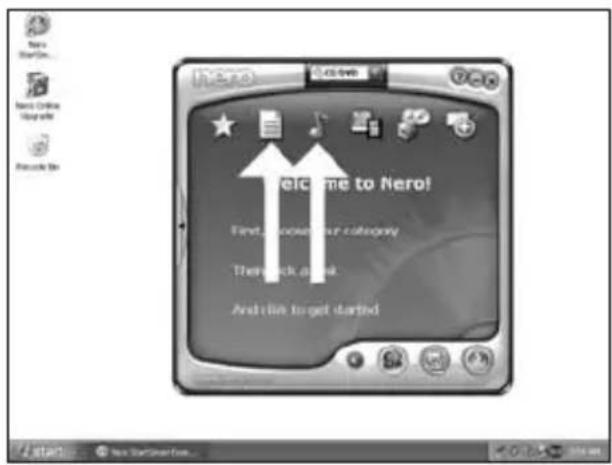

Welcome to Nero! First, you should not category Thank you for And like to get started

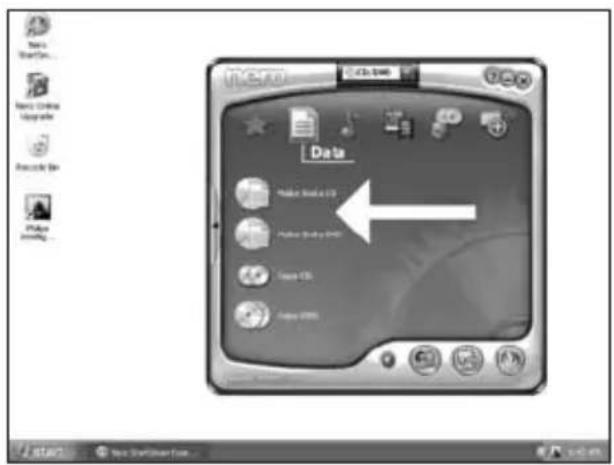

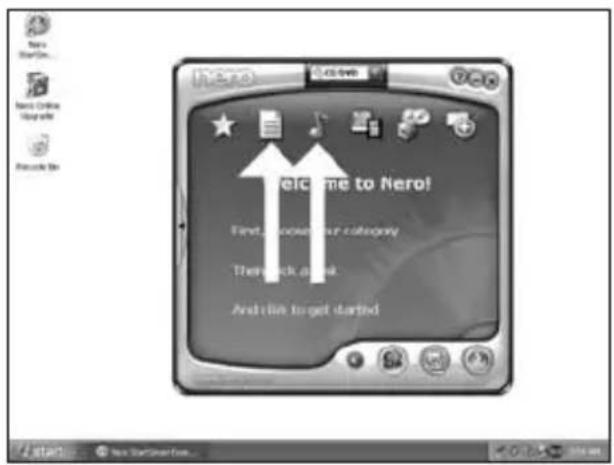

EN Choose "Data" or "Audio".
DE Wählen Sie "Daten" oder "Audio".
FR Choisissez "Données" ou "Audio".
IT Selezionare "Dati" o "Audio".
NL Kies "Data" of "Audio".

Data Make Excel 2017 Make Excel 2016 Start CS Make 2015

Audio Make Audio CD Play Audio Audio MP3.03 Audio MP3.04 Options to play music on all CDs, playing and running PC. Make Music Broadcast Audio 2.03

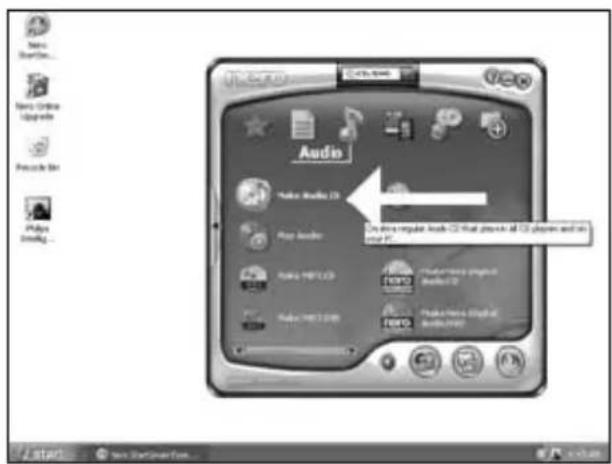

EN For an audio disc, choose "Make Audio CD".
DE Für eine Audio-Disc wählen Sie "Audio-CD erstellen".
FR Pour créer un disque audio, choisissez "Créer un CD audio".
IT Per un disco audio, selezionare "Crea CD Audio".
NL Voor een audio-cd, kies "Audio-cd maken".

5

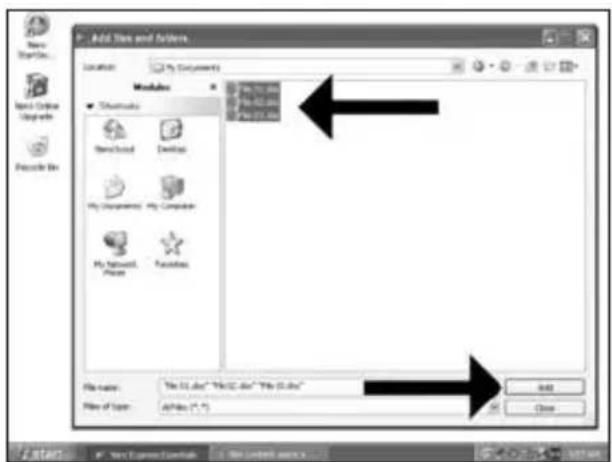

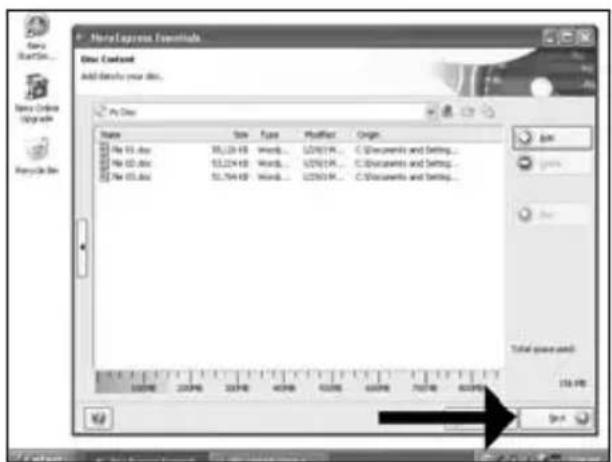

Add Text and Buttons Location My Documents Modules ● Refreshable New Third Device1 My Documents My Computer My Outlook Phone Refresher File type: "My 01.doc" "My 02.doc" "My 03.doc" File of type: Airbox (*.*)

7

Next Express Elements Find Store Settings Click Start to start the recording process Doc name: My One Number of types: Modify data on disc after turning Allow file to be added time (multimension disc) OK Apply

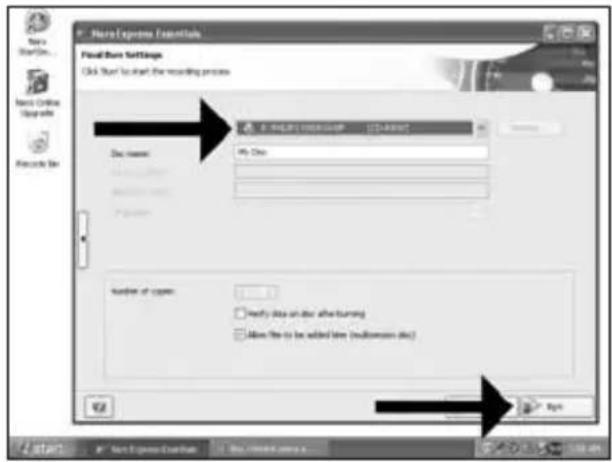

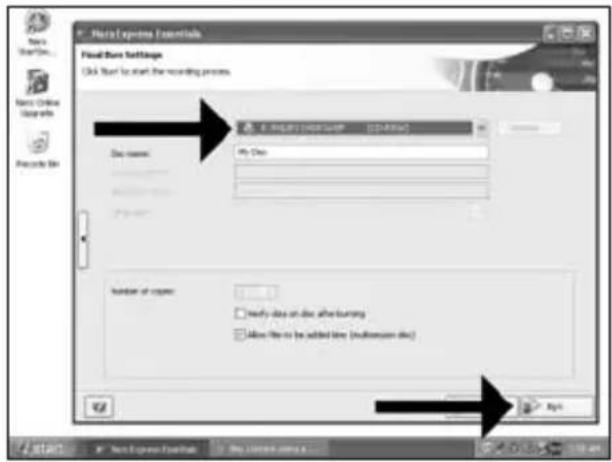

EN Choose your recorder and click "Burn".

Start Express Catalogs Starting Process Please add... Start Start Date: 4:00-05 APR 19:00:03 GMT/06/2008 Buffer order on production installed 4:00-05 APR 19:00:03 Buffer order on production installed 4:00-05 APR 19:00:03 Buffer order on production installed 4:00-05 APR 19:00:03 Buffer order on production installed 4:00-05 APR 19:00:03 Buffer order on production installed 4:00-05 APR 19:00:03 Buffer order On the following website (U.S. www.uptc.org) UTC BUTC Begin Date: 3/05/07 25% Writing at 25th CLUBP PRISC Stop

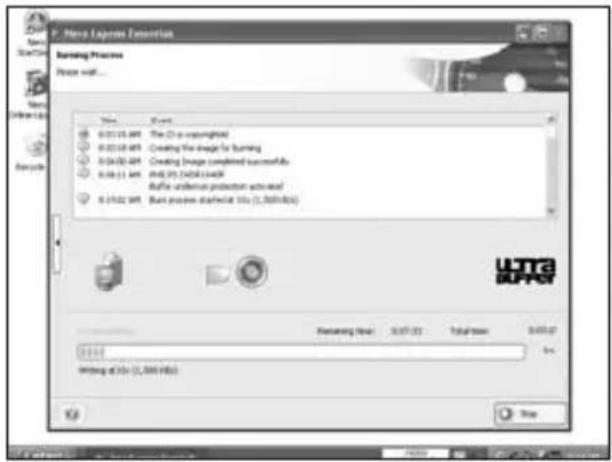

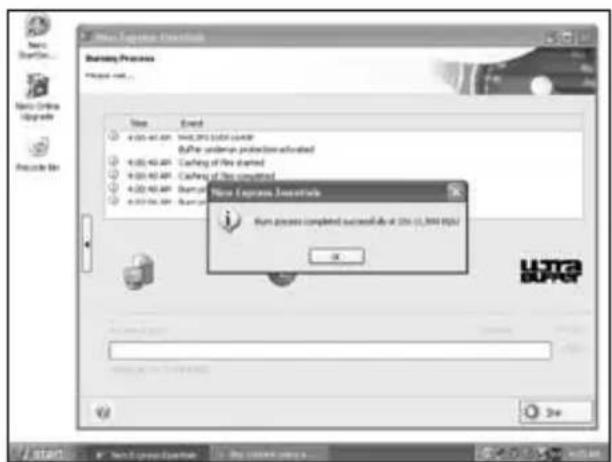

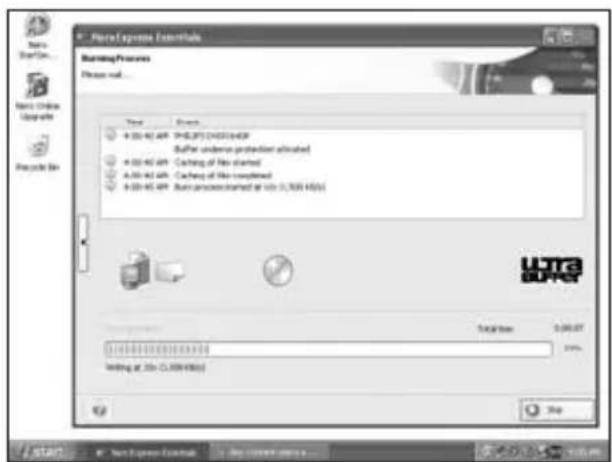

EN Nero is burning your disc.

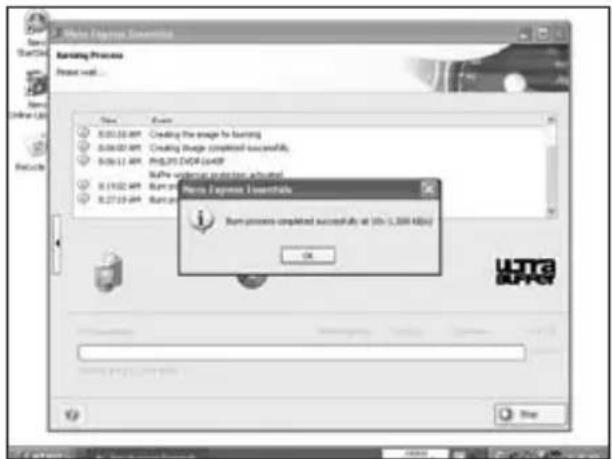

EN Congratulations, your disc has been written successfully. You may exit the application now.

Be responsible Respect copyrights

1

EN Start "Nero StartSmart Essentials".
DE Starten Sie "Nero StartSmart Essentials".
FR Lancez "Nero StartSmart Essentials".
IT Avviare "Nero StartSmart Essentials".
NL Start "Nero StartSmart Essentials".

Menu Start Menu ExerciseButton Menu Window 启用程序 Options Menu

VISA0 CD: 1940 Favorites Radio Guide 13 Radio Guide 1950 Radio Guide 1960 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950

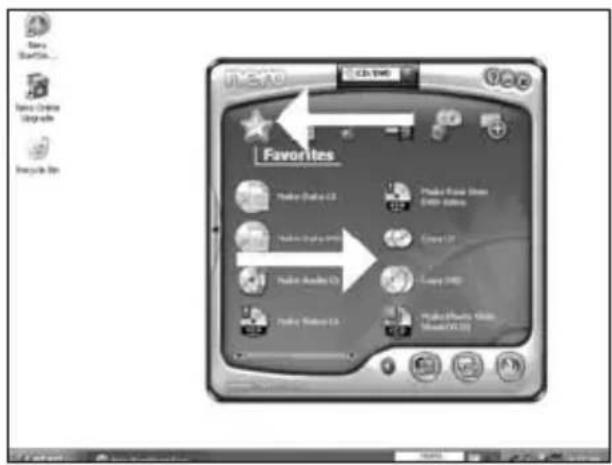

EN Choose "Favorites" and "Copy CD" or "Copy DVD".

Select Source and Destination Please select source and destination drivers and insert source disk. Source drive: E:\PLGPS\H000000P Destination drive: E:\PLGPS\H000000P [14:45W] Cashout: Save data cannot be copied. Then may be saved protected at customer's. If you are not sure if your file can be copied, please run a form simulation code (eBook or Advanced) or select Simulation. Writing gain: Maximum Number of copies: 1 Find the data in the after opening. Drop No: Documents and Settings/Chips/AlkPy Discover Open

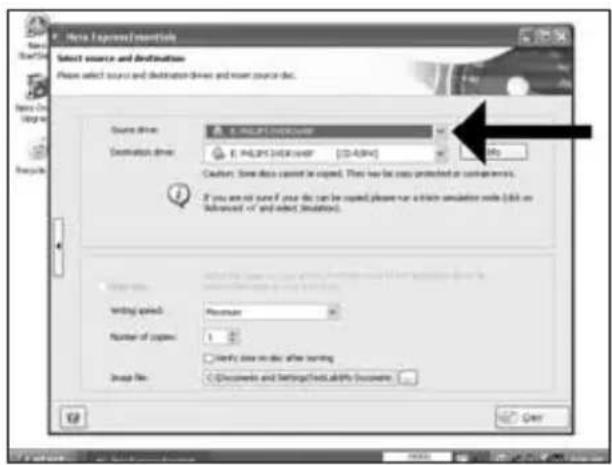

EN Select the source drive.

F:\Movie Express\Session Select source and destinations Name: select source and destination drives, and insert source list. Source drive: F:\MP3.P51.DXG2448P Destination drive: F:\MP3.P51.DXG2448P - 1.000000 Cauding: Some device must be copied. They may be copied or filtered at any other sites. If you can add some if you like the can be copied, please run a template simulation mode (bit on "Advanced" or "and selected Simulations") Writing speed: Number: □ Verify data on the other setting. Insert File: □ Documents and https://mtp3.p51.dxg2448P-Document Cancel

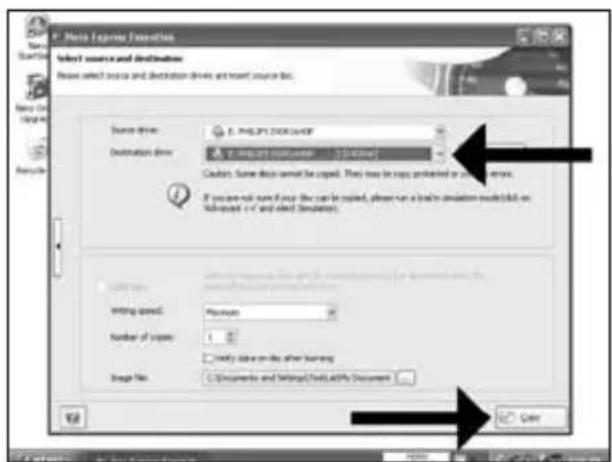

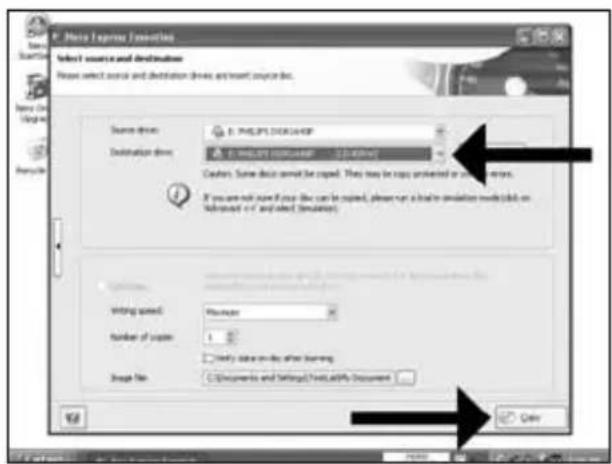

EN Select the destination drive and click "Copy".

P. New Express Options Burning Process Page walk... View Next 0.01.15.497 The CD is copyrighted 0.01.16.497 Creating the image for burning 0.04.20.497 Creating images completed successfully 0.08.11.497 PAS 35 (VSS) 1.xx8 0.15.02.497 Rupt process diagram at 1x (1,300 x8x) UFTE UPPER Texting at 1x (1,300 x8x) OK Stop

6

EN Congratulations, your disc has been written successfully. You may exit the application now.
DE Glückwunsch, Ihre Disc wurde erfolgreich beschrieben. Sie können jetzt die Anwendung verlassen.
FR Félicitations, le disque a été gravé avec succès. Vous pouvez maintenant quitter l'application.
IT Congratulazioni, è stata completata la scrittura del disco. Ora è possibile uscire dall'applicazione.
NL Gefeliciteerd, uw cd is met succes geschreven. U kunt de toepassing nu sluiten.

Micro Express Seminars Starting Process Report wall... Test Output 0.0126 APP 0.0820 APP 0.0611 APP 0.1592 APP 0.2719 APP Creating the image for running Creating Image completed successfully PROJET (DVR) 3.4MP Buffer configuration installed Micro Express Seminars Burn process completed successfully at 0% (1,000 KB) OK UTR BPMG

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

▶ Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Be responsible Respect copyrights

The image is too blurry to recognize any text content.

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

Close-up of a computer tower with a cable inserted, showing ventilation and ports (no text or symbols on the main object)

Close-up of a computer power adapter device with a black arrow pointing to the outlet (no text or symbols visible)

5

ES Abra el ordenador. Tendrá que quitar los tomillos que suelen ir colocados en la parte posterior del ordenador.
▶ Consulte el manual del ordenador donde econtrará más detalles.
PT Abra o computador. Pode ter que desapertar parafusos que, na sua maioria, se encontram na parte de trás do computador.
Para obter mais informações, consulte o manual do computador.
TR Bilgisayarınız açın. Çoğunlukla bilgisayarınızın arkasında bulunan vidaları gevşetmeniz gerekebilir.
▶ Ayrıntılar için bilgisayarınızın el kitabına bakın.
PL Otwórz komputer. Prawdopodobnie konieczne będzie odkręcenie śrub, które zazwyczaj znajdują się z tyłu komputera.
▶ Więcej informacji można znaleźć w instrukcji obsługi komputera.
SV Öppna datom. Du kan behöva lossa skruvar, oftast på datoms baksida.
▶ Mer information finns i datorns handbok.

Example

6

ES Quite la carcasa del ordenador.
PT Retire a cobertura do computador.
TR Bilgisayarın kapağını çıkarın.
PL Zdejmij obudowę komputera.
SV Avlägsna datorns hölje.

Exterior view of a computer tower case with an arrow pointing left, labeled 'Example' (no other text or symbols)

ES Si está sustituyendo una unidad, extraígala y compruebe la configuración que tiene ("Master" o "Slave"). Recuerde esta configuración y vaya al paso 10.
PT Caso substitua uma unidade, retire-a e veja qual é a sua definição ("Master" ou "Escravo" ("Slave")). Memorize esta definição e vá para a etapa 10.
TR Eğer bir sürücüyü değiştirirseniz, onu çıkanp hangi ayara sahip olduğuna bakınız ("Ana" ("Master") ya da "Bağımlı" ("Slave")). Bu ayan unutmadan 10. adıma geçiniz.

ES Si no tiene una unidad instalada, seleccione "Master" y vaya al paso 10.
PT Caso não tenha nenhuma unidade instalada, memorize a definição "Master" e vá para a etapa 10.
TR Eğer kurulu bir sürücünüz yok ise, "Ana" ("Master") yi anımsayıp 10. adıma geçiniz.
PL Jeśli nie masz zamontowanego żadnego napędu, zapamiętaj ustawienie "Master" i przejdź do punktu 10.

ES Si está añadiendo una unidad, compruebe la unidad que permanece instalada en el PC ("Master" o "Slave", consulte el paso 11), seleccione la configuración OTHER.
PT Se adicionar uma unidade, verifique a que permanecer no computador ("Master" ou "Escravo" ("Slave"), consulte a etapa 11), memorize a OUTRA definição.
TR Eğer bir sürücü ekledi iseniz, PC'de kalan sürücüyü kontrol ediniz ("Ana" ("Master") ya da "Bağimli" ("Slave"), I I. adıma bakınız), DİGER ayan anımsayınız.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

11

ES Elija "Master" o "Slave" con el puente, como se muestra en los pasos 7, 8 o 9.
PT Escolha "Master" ou "Escravo" ("Slave") para o jumper, conforme descrito nas etapas 7, 8 ou 9.
TR 7, 8 ya da 9. adımlarda görüldüğü şekilde atlama kablosu için "Ana" ("Master") ya da "Bağımlıyı" ("Slave") seçiniz.
PL Ustaw zworkę w położeniu "Master" lub "Slave", jak pokazano w punktach 7, 8 lub 9.
SV Välj "Master" eller "Slave" för bygeln, enligt steg 7, 8 eller 9.

12

ES Ponga la unidad en el ordenador.
PT Coloque a unidade no computador.
TR Sürücüyü bilgisayannıza yerleştirin.
PL Włóż napęd do komputera.
sv Sätt i enheten i datorn.

Interior view of a computer tower case showing internal hardware and a black arrow pointing to a component labeled 'Example' (no readable text or symbols beyond label)

A B C Example

Close-up of a hand holding a white electrical connector with wires, labeled 'Example' (no other text or symbols)

17

ES Conecte el cable de alimentación a la unidad (los bordes indicados en el paso 16 quedarán indicados en la parte superior).
PT Conecte o cabo de alimentação em sua unidade (as extremidades da etapa 16 ficarão na parte superior).
TR Sürücünüze güç kablosunu takınız (16. adımdan taraflar; üst kısımda olacaktır).
PL Podłącz kabel zasilania do napędu (krawędzie z punktu 16 znajdą się od góry).
sv Anslut strömkontakten till drivenheten (kantema från steg 16 ska vara ovanpå).

Close-up of a computer tower with visible cables and a white arrow pointing to a cable (no text or symbols)

Close-up of a hand using a screwdriver to adjust internal components, with arrows pointing to specific parts (no text or symbols visible)

ES Asegure la unidad con los tornillos (si es posible en ambos lados).
PT Utilize os parafusos para fixar a unidade (se possível, de ambos os lados).
TR Sürücüyü vidalarla iyice sıkıştırın (mümkünse her iki tarafı).
PL Przymocuj napęd śrubami (jeżeli jest to możliwe, obustronnie).
SV Säkra enheten med skruvar, om möjligt på båda sidorna.

Front view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

ES Vuelva a instalar la carcasa que quitó en el paso 5.
PT Recoloque a cobertura que tirou no passo 5.
TR 5. adımda çıkardığınız kapağı yerine takın.
PL Nałów z powrotem obudowę, zdjęta w punkcie 5.
sv Sätt tillbaka höljet du avlägsnade i steg 5.

Example

ES Ponga los tornillos (si hay alguno) en la parte posterior y vuelva a conectar los cables.
PT Coloque os parafusos (se havia algum) de volta no lugar e reconecte os cabos.
TR Vidaları (eger varsa) yerine koyun ve kablolan tekrar bağlayın.
PL Wkręć śrubki (jeśli zostały wykręcone) i podłącz kable.
SV Sätt tillbaka skruvarna (om sådana finns) och återanslut kablarna.

21

ES Reinicie el ordenador.
PT Reinicie o computador.
TR Bilgisayarınız yeniden başlatın.
PL Uruchom ponownie komputer.
sv Starta datorn.

Adder Example

22

ES Coloque el disco de Nero cuando se inicie Windows.
PT Introduza o disco Nero quando o Windows estiver carregado.
TR Windows açıldığında Nero diskini takın.
PL Po uruchomieniu systemu Windows, włóź płytę z programem Nero.
sv Sätt i Nero-skivan när Windows laddats.

nero 7 PREMIUM INSTALLATION CO Example

23

ES Elija "Nero 7 Essentials" y siga las instrucciones de la pantalla. Cuando termine, continúe con el siguiente capítulo.
PT Seleccione "Princípios básicos do Nero 7" e siga as instruções que aparecem na tela. Quando tiver terminado, continue com o próximo capítulo.
TR "Nero 7 Essentials"ı seçin ve ekranda verilen talimatları yerine getirin. Bitirdi inizde, sonraki bölüme devam edin.
PL Kliknij "Nero 7 Essentials" i postępuj według instrukcji na ekranie. Po zakończeniu przejdź do następnego rozdziału.
SV Välj "Nero 7 Essentials" och följ instruktionerna på skärmen. När du är klar fortsätter du med nästa kapitel.

New Multiplier nero Installation 7 ESSENTIALS Pure 1 Essentials End

¡Actualizar?

Atualizado?

Güncel mi?

Aktualizacja

Uppdaterad?

1

ES Inicie Philips Intelligent Agent. ▶ Si no está disponible, elija "Inicio", "Programas", "Philips Intelligent Agent", "Philips Intelligent Agent".

New Options... New Online Upgrade Recycle Bin Listen

2

Philips Intelligent Agent Products - 2019 (204) Options for your Product Solutions Product: Installed version: Latest version: [ ] [PHELPS CORN-6LS : [X7ATF] ] Palois Intelligent Agent: 1.0 The last successful product update check was performed in 2004-05-12 (1:40:4) API. The automatic product update check is blocked. Check for update Clarify buttons to check for product solutions.

Philips Intelligent Agent E-mail: Options Help Loading for your Philips product Product: Installed version: Latest version: [01] PHILIPS/PHILIPS-5 - [XVAT] 41.0 42.0 Downloaded Helps Intelligent Agent 1.0 1.0 The last successful product update (check not performed at 2006-09-C2 123:34 PM) The automatic product update (check is deleted. Check for updates Product update information was successfully retained from the server.

ES Descargando las actualizaciones e instalándolas.
PT Faça o download das atualizações e instale-as.
TR Günclemeleri indir ve kur.
PL Pobierz i zainstaluj aktualizacje.
sv Ladda ner uppdateringarna och installera dem.

New Home Essentials 3 Add to Default E-mail New StartSmart Key All Programs My Start New Computer Audio Data Labels Format Photo and Video Plan Share Tools New Home Essentials 2 New Global Settings New Deal New Bar/Smart Estimate

ES Elija "Inicio", "(Todos) Programas", "Nero 7 Essentials", "Nero ProductSetup".
PT Seleccione "Iniciar", "(Todos os) Programas", "Nero 7 Essentials", "Nero ProductSetup".
TR Sırasıyla "Başlat", "(Tüm) Programlar", "Nero 7 Essentials", "Nero ProductSetup" seçeneklerini belirleyin.
PL Kliknij "Start", "(Wszystkie) Programy", "Nero 7 Essentials", "Nero ProductSetup".
sv Välj "Start", "(Alla) Program", "Nero 7 Essentials", "Nero ProductSetup".

New ProductSetup Please select one of the actions and click text to continue Modify your New products. Use the option to enable additional features of your installed new products. Remove your new products. This option will give you how much to remove the installed new products completely from your system. Remove your new products. Install include the latest version of the new product file for your installed new products. Add new additional languages. Here you can add more support for particular languages for your new products. Next

ES Elija "Update your Nero products" (Actualice sus productos Nero) y "Next" (Siguiente).
PT Seleccione "Actualizar produtos Nero" e "Seguinte".
TR "Update your Nero products" (Nero ürünlerinizi güncelleyin) ve "İleri"yi seçin.
PL Wybierz "Uaktualnij produkty Nero" i kliknij "Dalej".
sv Välj "Uppdatera Nero-produkter" och "Nästa".

6

ES Haga clic en "OK".
PT Clique em "OK".
TR "Tamam"ı tıklatın.
PL Kliknij "OK".
sv Klicka på "OK".

New Author Essential 3D Recycle Kit New Online Internet New Update Info File download The following text products have been detected. - Items ? To update all new products on your computer it is necessary to connect to the Internet. If you do not want to allow the installation required by command to the Internet, please call Next. You will be offered about the amount of data that needs to be transferred in the next step and you will have the danger to cancel the download. If you did OK in security creating into your store (you would or close), please follow the instructions on the server to enable Internet access for the installation required. OK

7

ES Haga clic en "OK".
PT Clique em "OK".
TR "Tamam" i tiklatın.
PL Kliknij "OK".
sv Klicka på "OK".

New ProductStatus File download! If now started that part of our new products have been installed from Internet resources. Therefore it is required that the installation required will be required to be installed to check for additional items that you must be required to complete the action. If you do not want to allow the installation required to convert to the Internet, click Next. You will be informed about the amount if data that needs to be transferred in the next step, and you will have the direction to convert the downloads. If you do OK a security warning may need (that you need or valid). Please have the instructions on the system to enable access to the installation record. OK

8

ES Es posible que el Firewall de Windows le dé un mensaje. Haga clic en "Unblock" (Desbloquear) para permitir que Nero se actualice.
PT A Firewall do Windows pode avisá-lo. Clique em "Desbloquear" para permitir a actualização do Nero.
TR Windows Firewall sizi uyarabilir. Nero'nun güncellenmesi için "Unblock" (Engelleme) seçeneğini belirleyin.
PL Może pojawić się ostrzeżenie zapory systemu Windows. Kliknij "Odblokuj", aby umożliwiać aktualizację programu Nero.
SV Windows Firewall kan varna dig. Klicka på "Sluta blockera" så att Nero kan uppdateras.

Windows Security Alert To help protect your computer. Windows Outlook has blocked user features of the program. What would have blocking this program? Store: M37 server Publisher: Microsoft Close-Blending Cancel Cancel Windows Outlook has blocked the program from accepting commands, on the Internet of a network. If you recognize the program or load the publisher, you can write it in a website or email as requested.

New ProductSet The updates are being downloaded 1. Connecting 2. Checking engine 3. Preparing installation 4. Optimating download size 5. Downloading file 6. Completing Close

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart Essentials".
PT Inicie o "Nero StartSmart Essentials".
TR "Nero StartSmart Essentials"İ başlat.
PL Uruchom program "Nero StartSmart Essentials".
sv Starta "Nero StartSmart Essentials".

Save Start Menu Enter Web Save Connection Update Web Update Bin

Photo and Video Make Image (A) Make Image (B) Make Image (C) Make Image (D) Make Image (E) Make Image (F) Capture Image Capture Image (G) Capture Image (H) Capture Image (I) Capture Image (J) Capture Image (K) Capture Image (L) Capture Image (M) Capture Image (N) Capture Image (O) Capture Image (P) Capture Image (Q) Capture Image (R) Capture Image (S) Capture Image (T) Capture Image (U) Capture Image (V) Capture Image (W) Capture Image (X) Capture Image (Y) Capture Image (Z)

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

Untitled Project [200] Video - New Window Installals Content Create and manage files for your project. What would you like to do? Capture Video Add Video Bars... Make Video... Make Video Bars... Import Image Capture Video... Capture Video... This dialog allows you to capture video from an external device (the 2 applications) that is connected to your computer. This video then you create all the ads to your project simultaneously. Total volume used: $100 out of 10:00 0.001.00 2.003.00 4.005.00 6.007.00 8.009.00 10.0011.00 12.0013.00 14.0015.00 16.0017.00 18.0019.00 20.0021.00 22.0023.00 24.0025.00 26.0027.00 28.0029.00 30.0031.00 32.0033.00 34.0035.00 36.0037.00 38.0039.00 40.0041.00 42.0043.00 44.0045.00 46.0047.00 48.0049.00 50.0051.00 52.0053.00 54.0055.00 56.0057.00 58.0059.00 60.0061.00 62.0063.00 64.0065.00 66.0067.00 68.0069.00 70.0071.00 72.0073.00 74.0075.00 76.0077.00 78.0079.00 80.0081.00 82.0083.00 84.0085.00 86.0087.00 88.0089.00 90.0091.00 92.0093.00 94.0095.00 96.0097.00 98.0099.00 $1, 12 nan

ES Elija "Capture video".

Untitled/Project [TMS Video] - Max Picture Essentials Capture Video Select a device and capture video to save hard disk. Capture devices Top: TV Driver Options Use the template to capture video in Digital Video (DVI) compatible format The application will also configure the capture devices but you can change the device settings manually by DVI type DVI Type 1 Type 1 is usually the before choice because it requires free disk speed and often miss thoughts. Functions option Type 2 is compatible with video for Windows(TM) if you are not set which type 0 uses, offset Type 1 Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Automatior

6

UntitledProject [1980 Videos] - More Picture Essentials Capture Video Select a device and capture video to your hard disk. Capture devices Capture: Type 1 is valid that the better choice because it requires free disk space and allows more throughput. However, only Type 2 is compatible with type for network(746). If you are not sure which type is used, select Type 3. Customization: Frames captured: Microsoft Outlook

7

ES Haga clic en "Siguiente" cuando se hayan capturado todas las secuencias de vídeo.
PT Clique em "Avançar" quando todas as sequências de vídeo tiverem sido capturadas.
TR Tüm video sıraları yakalandığında "İleri"ye tıklayın.
PL Po przechwyceniu wszystkich sekwencji wideo, kliknij "Dalej".
SV Klicka på "Nästa" när alla videosekvenser har hämtats.

Untitled Project [1982 Videos] - New Vision Assortials Capture Videos Select a device and capture video to post hard disk. Capture Videos http://4V-Device Selected a capturing template: 374 Format Use file template to capture selected a Digital Video (DVI) compatible format The application also configures the capture devices but you can change the device settings manually to: DVI type: DVI Type 1 Type 2. It usually be the other choice because it requires box files, so does and allows more throughput. However, only 1 line 2 is compatible with wireless Windows (IIS). If you are not sure which type is used selected Type 1 Captured files MVC Capture 0007 MVC Capture 0006 MVC Capture 0009 None Next

UntitledProject * [DVD Viling] - New Video Essentials Context Create and analyze files for your content What would you like to do? Capture Images... Add Video Files Make Images... Make Slide Images... Import Data Edit Images... Add Video Files... New Video Files Total space used: 3.00 sq m at 1.30 GB 5,000 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 10,000 11,000 12,000 13,000 14,000 15,000 16,000 17,000 18,000 19,000 20,000 21,000 22,000 23,000 24,000 25,000 26,000 27,000 28,000 29,000 30,000 31,000 32,000 33,000 34,000 35,000 36,000 37,000 38,000 39,000 40,000 41,000 42,000 43,000 44,000 45,000 46,000 47,000 48,000 49,000 50,000 51,000 52,000 53,000 54,000 55,000 56,000 57,000 58,000 59,000 60,000 61,000 62,000 63,000 64,000 65,000 66,000 67,000 68,000 69,000 70,000 71,000 72,000 73,000 74,000 75,000 76,000 77,000 78,000 79,000 80,000 81,000 82,000 83,000 84, 85, 86 More...Save

Open Create an Modules Subdivisions New Store Desktop My Documents My Computer My Options Flame Favorite File name: File of System: All Supervised Index Files Open Cancel

UntitledProject [100] Video - More Videos Extracts Content Create and manage files for you present 1. VIT_01 009 Video Title - 16:00:15 Target video options: 720+VIT/220+801 (1%) - 4.3 2. VIT_01 009 Video Title - 16:00:15 Target video options: 720+VIT/220+801 (1%) - 4.3 3. VIT_01 009 Video Title - 16:00:25 Target video options: 720+VIT/220+801 (1%) - 4.3 What would you like to do? Capture Video... Add Video Files... Make Movies... Make Slide Maps... Import Docs... Edit Movies... Create Chapters... Let you add the highlighted video file. Used space: I3M out of 4.3008 5:00 1:00 2:00 3:00 4:00 More... Equal Save Next Next Next

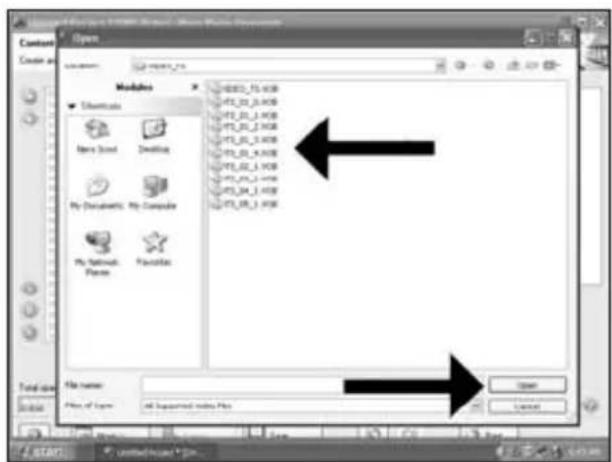

ES Seleccione los ficheros y haga clic en "Abrir".
PT Selecione os arquivos e clique em "Abrir".
TR Dosyaları seçin ve "Aç"a tıklayın.
PL Wybierz pliki i kliknij "Otwórz".
sv Markera filerna och klicka på "Öppna".

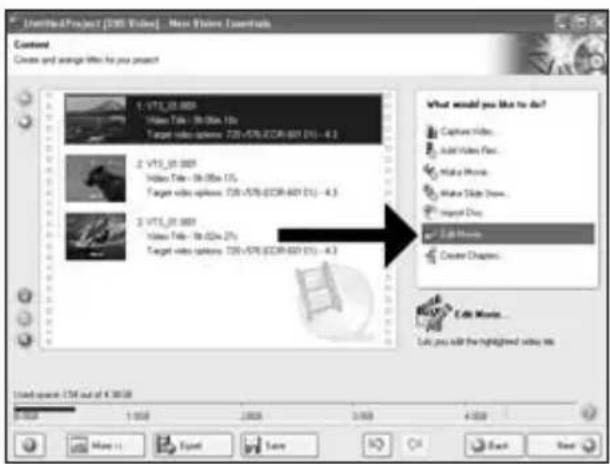

ES Puede editar las películas cargadas, escogiendo "Editar película".
PT Você pode editar os filmes carregados selecionando "Editar filme".
TR "Filmi Düzenle"yi seçerek yüklenen filmleri düzenleyebilirsiniz.
PL Możesz edytować załadowane filmy, klikając "Edytuj film".
SV Du kan redigera de laddade filmerna genom att välja "Redigera film".

11

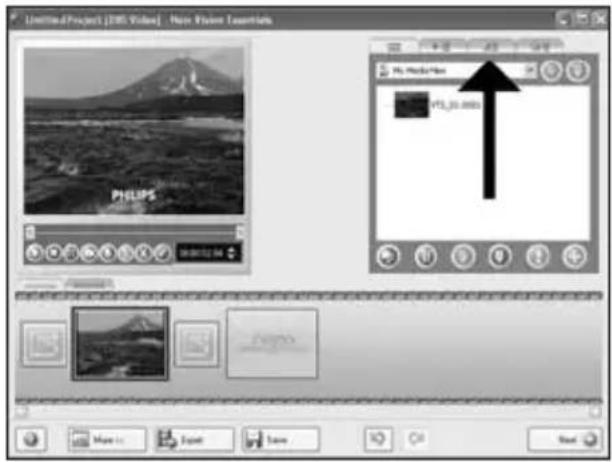

ES Aquí, puede añadir efectos de vídeo, efecto de texto y transiciones.
PT Aqui você pode adicionar efeitos de vídeo, efeitos de texto e transições.
TR Video efektlerini, metin efektlerini ve geçişleri buraya ekleyebilirsiniz.
PL Tutaj możesz dodać efekty wideo, efekty tekstowe i przejścia.
SV Här kan du lägga till videoeffekter, texteffekter och övergångar.

LimitedProject [1980] Video | New Vision Ascertainment PHILIPS PHILIPS VIE_26.0000 Movie Export Save OK Cancel

12

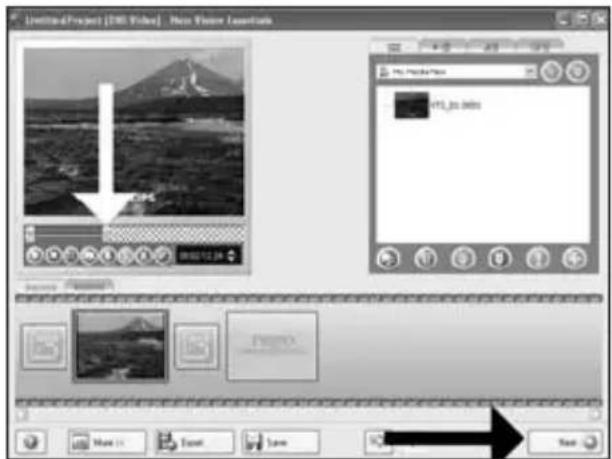

ES Puede recortar el vídeo grabado desplazando los marcadores. Cuando haya terminado, elija "Siguiente".
PT Você também pode cortar o vídeo gravado deslizando os marcadores. Quando tiver terminado, clique em "Avançar".
TR Aynca işaretleyicileri kaydırarak kaydedilen görüntüyü kırpabilirsiniz. Bittiğinde, "İleri"yi seçin.
PL Możesz również przycinać nagrany film, przesuwając wskaźniki. Po zakończeniu kliknij "Dalej".
SV Du kan också trimma den inspelade video genom att skjuta markörerna. När du är klar väljer du "Nästa".

Limiting Project [100 Vites] - New Window Mountains File Edit View Tools Help 100 Vites VIT_20.0000 Movie 10 Event Save See

13

ES Después de editar todos los ficheros, elija "Siguiente".
PT Após ter editado todos os arquivos, clique em "Avançar".
TR Tüm dosyaları düzenledikten sonra, "İleri"yi seçin.
PL Po zakończeniu edycji wszystkich plików kliknij "Dalej".
SV När du har redigerat alla filer väljer du "Nästa".

Untitled Project1 [RMS Videos] - New Vision Installations Content Create and update files to your project. 1. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 2. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 3. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Solar View... Report Docs... Edit Movies... Create Chapters... Under search: 36 out of 4.000M 1:000 1:000 2:000 3:000 4:000 Name: Export Tools Help

Unlimited Proport [VISA] Video | New Video Essentials Select None Select main menu and file name. Select options: High Media Holiday 2005 1 VTE, 81.2007 Video: Holiday 2005 Edit Media... Save Next Next

ES Ponga el título en el campo "Cabecera" y haga clic en "Editar menú".
PT Digite o título no campo "Cabeçalho" e clique em "Editar menu".
TR "Başlık" alanına başlığı girin ve "Menü Düzenle"ye tıklayın.
PL Wpisz tytuł w polu "Nagłówek" i kliknij "Edycja menu".
SV Ange titeln i fältet "Rubrik" och klicka på "Redigera Meny".

UntitledProject [1981 Video] - New iPhone SaveInfo Edit Memory Customize new options. Holiday 2005 What would you like to change? Layout Background Balance Font Presidential/Factor Font Shadow Automatications Internet-Cases Page 1/2 Save Home

ES Puede cambiar el diseño, fondo, añadir títulos,... aquí. Cuando haya terminado, elija "Siguiente" dos veces.
PT Você pode alterar o layout, o fundo, adicionar títulos,... aqui. Quando tiver terminado, selecione "Avançar" duas vezes.
TR Yerleşimi, arkaplanı, başlıkları ekle'yi, ... buradan değiştirebilirsiniz. Bittiğinde, "İllen"yi iki kez seçin.
PL Tutaj możesz zmienić układ, tło oraz dodać tytuły. o zakończeniu kliknij dwukrotnie "Dalej".
SV Här kan du ändra layout, bakgrund, lägga till titlar osv. När du är klar väljer du "Nästa" två gånger.

Untitled Project [1985 Video] New Window Journals Phanyone Explore the works of your page future learning & Holiday 2005

ES Previsualice su película. Haga clic en "Siguiente" para continuar.
PT Visualize seu filme. Clique em "Avançar" para continuar.
TR Filminizi önizleyin. Devam etmek için "İleri"ye tıklayın.
PL Obejrzyj fragment filmu. Kliknij "Dalej", aby kontynuować.
SV Förhandsgranska filmen. Klicka på "Nästa" för att fortsätta.

17

ES Elija "Grabar en", elija su grabador y elija "Grabar".
PT Seleccione "Gravar em", seleccione seu gravador e seleccione "Gravar".
TR "Farklı Yazdır"yu seçin, kaydedicinizi seçin ve "Yaz" seçeneğini seçin.
PL Kliknij "Nagraj na", wybierz nagrywarkę i kliknij "Nagraj".
SV Välj "Bränn med", markera din brännare och välj "Bränn".

UntitledProject [EMS Video] - Max Plus Essentials Run Options Set the parameters for learning Project website Current video options Aspect also Automatic Video-node: TTL Quality features View project contains 3 filters and 1 name. Send up Start the parameter for learning Save As... Write by Hard Copy Folder Volume Name Recording Settings Run To Recorder Selected the recorder you want to use Cancel optimization Run to device: PHILIPS ORDERER Used disc space: 0.29 GB Save

18

ES NeroVision Express está recodificando y grabando su disco.
PT O NeroVision Express está transcodificando e gravando seu disco.
TR NeroVision Express diskinizin kod aktarımını ve yakma işlemini gerçekleştirir.
PL Program NeroVision Express transkoduje i nagrywa płytę.
sv NeroVision Express kodar om och bränner skivan.

Untitled Project | DVD Video | New Vision Essentials Preview Preparing data encoding Running video data onto the disc Completing recording session PHILIPS Preview project: Current action: Transcoding and editing V1.5, 01.0007 Current project: Remaining 3h 10m 20s Final project: Remaining 3h 10m 20s Preview: Start down computer when installed Welcome to Top Next > Save About

19

ES Felicitaciones, su disco se ha grabado con éxito. Ahora puede salir de la aplicación.
PT Parabéns, seu disco foi gravado com sucesso. Você pode sair do aplicativo agora.
TR Tebrikler, diskiniz başarıyla yazdııldı. Uygulamadan şimdi çıkabilirsiniz.
PL Gratulacje! Zapis płyty zakończył się pomyślnie. Możesz zakończyć pracę programu.
SV Grattis, du har bränt en skiva. Du kan stänga programmet nu.

Untitled Project [RMS Video] - New Vision Essentials Options Preparing data for recording Burning video data into the disk Completing recording errors Recycling progress Current action: Current progress: 1st progression Export New Vision Express 3 New process completed successfully. What you like to save the log file! No No Preview: Manual Used down computer when displayed Remove to Top More... Save

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart".
PT Inicie o "Nero StartSmart".
TR "Nero StartSmart"İ başlatın.
PL Uruchom program "Nero StartSmart".
sv Starta "Nero StartSmart".

Menu Start Menu Enter Subs Enter Print Print Info Recycle Bin

Welcome to Nero! First, you must get a category Thank you next And like to get started

ES Elija "Datos" o "Audio".
PT Seleccione "Dados" ou "Áudio".
TR "Veri" veya "Ses"yu seçin.
PL Kliknij "Dane" lub "Audio".
SV Välj "Data" eller "Audio".

2

Data Public Start 173 Public Start 2000 Start 153 Open 2000

ES Para datos, elija "Crear CD de datos" o "Crear DVD de datos".
PT Para dados, selecione "Criar CD de dados" ou "Criar DVD de dados".
TR Veriler için "Veri CD'si Yarat" veya "Veri DVD'si Yarat"ı seçin.
PL W przypadku danych, kliknij "Utwórz dysk CD z danymi" lub "Utwórz dysk DVD z danymi".
SV För data väljer du "Skapa Data-CD" eller "Skapa Data-DVD".

3

Audio Make Audio 13 Play Audio Audio: HKEYLCD Make HKEY2308 On this regular key CD that plays all CD players and is use PC. Make new project Audio 13 Make new digital Audio 2308

ES Para un disco de audio, elija "Crear CD de audio".
PT Para um disco de áudio, selecione "Criar CD de áudio".
TR Ses diski için, "Müzik/Ses CD'si Yarat" seçin.
PL W przypadku płyty audio, kliknij "Utwórz Audio CD".
SV För en ljudskiva väljer du "Skapa Audio-CD".

4

5

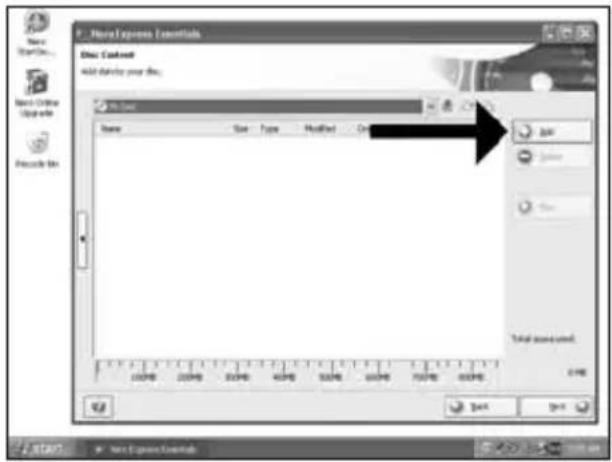

ES Haga clic en "Añadir".
PT Clique em "Adicionar".
TR "Ekle"yi seçin.
PL Kliknij "Dodaj".
SV Klicka på "Lägg till".

New Express Essentials Edit Content Add Existing your this... New Text Name Size Type Modified On Save Save Total extracted. 2 KB 100KB 200KB 300KB 400KB 500KB 600KB 700KB 800KB 900KB Start Next

6

ES Seleccione todos los archivos a grabar y haga clic en "Añadir". Haga clic en "Cerrar" cuando termine.
PT Seleccione todos os arquivos a serem gravados e clique em "Adicionar". Clique em "Fechar" quando tiver terminado.
TR Yakacağını tüm dosyaları seçin ve "Ekle"ye tıklayın. Bittiğinde "Kapat"a tıklayın.
PL Wybierz wszystkie pliki do nagrania i kliknij "Dodaj". Po zakończeniu kliknij "Zamknij".
SV Markera alla filer som ska brännas och klicka på "Lägg till". Klicka på "Stäng" när du är klar.

Add Text and Buttons Location My Documents Modules ● Refreshable New Third Device1 My Documents My Computer My Outlook Phone Refresher File name: "My 01.doc" "My 02.doc" "My 03.doc" File of Type: Airbox (*.f) Add Close

7

ES Compruebe sus archivos y haga clic en "Siguiente".
PT Verifique seus arquivos e clique em "Avançar".
TR Dosyalarınızı kontrol edin ve "İleri"ye tıklayın.
PL Sprawdź pliki i kliknij "Dalej".
SV Kontrollera dina filer och klicka på "Nästa".

New Express Terminal File Cadout Add details your files. Name Side Type Modified Orign No 01.doc 32.24 KB Word... LDN21K... C:\Documents and Settings... No 02.doc 53.24 KB Word... LDN21K... C:\Documents and Settings... No 03.doc 51.76 KB Word... LDN21K... C:\Documents and Settings... Total space used: 123 KB Save

Next Express Elements Find Store Settings Click Start to start the recording process Doc name: My One Number of types: Modify data on disc after turning Allow file to be added time (multimension disc) OK Apply

New Express Event Hall Warning Process Please wait... Test Event 4:00:00 AP PROSLPT DISCUIT/ACR Buffer correspondence protection affiliated 4:00:00 AP Cache of No started 4:00:00 AP Cache of No completed 4:00:00 AP Run uncompleted at site (1,300 MHz) UTC BUTG Length: 500.00" 25% Writing at site (1,300 MHz) Stop

ES Nero está grabando su disco.

New Express Deserivids New Express Deserivids File Edit 4.00-45.00 HAC2013/06/2014 Buffer padding protection activated 4.00-45.00 Caching of the stored 4.00-45.00 Caching of the stored 4.00-45.00 Summary 4.00-45.00 Summary New Express Deserivids New process completed successfully at 15% (1,300 KB) OK LTG BUFFER

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart Essentials".
PT Inicie o "Nero StartSmart Essentials".
TR "Nero StartSmart Essentials"İ başlatın.
PL Uruchom program "Nero StartSmart Essentials".
sv Starta "Nero StartSmart Essentials".

Menu Start Menu ExerciseButton Menu Window 启用程序 Options Menu

VISA0 CD: 1940 Favorites Radio Guide 13 Radio Guide 1950 Radio Guide 1960 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950

ES Elija "Favoritos" y "Copiar CD" o "Copiar DVD".
PT Seleccione "Favoritos" e "Copiar CD" ou "Copiar DVD".
TR "Sik Kullanılanlar" ve "CD Kopyala" veya "DVD Kopyala"yi seçin.
PL Kliknij "Ulubione" i "Kopiuj CD" lub "Kopiuj DVD".
sv Välj "Favoriter" och "Kopiera CD" eller "Kopiera DVD".

Here Express/Importing Select source and destination Please select source and destination drivers and render source disk. Source drive: E:\PLERT\IMPRESS Destination drive: E:\PLERT\IMPRESS [0-45%] Cautism: Save data content in copied. Then have to copy protected or continent-wide. If you are not sure if you do can be copied, please run a third simulation file (368 or Advanced -17 and select Simulation). Writing speed: Maximum Number of copies: 1 Findy data in disc after writing Group file: Documents and Settings/Tools all by success Open

ES Seleccione la unidad de origen.
PT Seleccione a unidade de origem.
TR Kaynak sürücüyü seçin.
PL Wybierz napęd źródłowy.
sv Välj källenhet.

F:\Photo Express\Options Select source and destination Please select source and destination drives and insert source list. Source drive: F:\PHILIPS\DOCK3449P Destination drive: C:\PHILIPS\DOCK3449P - C:\DOCK3449 Customs. Some device cannot be copied. They may be copied or deleted or not converted to other types. If you are not sure if you like can be copied, please run a library simulation mode (bit on "Reference" or "Edit") or select Simulation. Writing speed: Number: Number of copies: □ Notify data on file after learning. Image file: □ Documents and Settings\Test\ADPs\Document OK

ES Seleccione la unidad de destino y haga clic en "Copiar".
PT Seleccione a unidade de destino e clique em "Copiar".
TR Hedef sürücüyü seçin ve "Kopyala"ya tıklayın.
PL Wybierz napęd docelowy i kliknij "Kopiuj".
sv Välj målenhet och klicka på "Kopiera".

5

ES Nero está ahora copiando su disco.
PT Agora o Nero copiará seu disco.
TR Nero artık diskinizi kopyalayacaktır.
PL Program Nero rozpocznie kopiowanie płyty.
SV Nero kopierar din skiva.

P. New Express Options Burning Process Page walk... View Next 0.01.15.497 The CD is copyrighted 0.01.16.497 Creating the image for burning 0.04.20.497 Creating images completed successfully 0.08.11.497 PAS 35 (VSS) 1.xx8 0.15.02.497 Rupt process diagram at 1x (1,300 x8x) UFTE UPPER Texting at 1x (1,300 x8x) OK Stop

6

ES Felicitaciones, su disco se ha grabado con éxito. Ahora puede salir de la aplicación.
PT Parabéns, seu disco foi gravado com sucesso. Você pode sair do aplicativo agora.
TR Tebrikler, diskiniz başarıyla yazıldı. Uygulamadan şimdi çıkabilirsiniz.
PL Gratulacje! Zapis płyty zakończył się pomyślnie. Możesz zakończyć pracę programu.
SV Grattis, du har bränt en skiva. Du kan stänga programmet nu.

Micro Express Seminars Starting Process Report wall... Test Output 0.0126 APP 0.0820 APP 0.0611 APP 0.1592 APP 0.2719 APP Creating the image for running Creating Image completed successfully PROJET (DVR) 3.4MP Buffer configuration installed Micro Express Seminars Burn process completed successfully at 0% (1,000 KB) OK UTR BPMG

Be responsible Respect copyrights

Be responsible Respect copyrights

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

Please refer to your PC manual or contact your local dealer for more information.

A B C D

TC 在包裝盒裏可以找到：

A: 您的新光碟機。

B: 這本手冊。

C: Nero 軟體光碟。

D: 小袋子中的4顆螺絲

EN This can be found in the box:

A: Your new drive C: The Nero software disc

B: This manual D: 4 screws in a small bag

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

Close-up of a computer tower with a cable inserted, showing ventilation slots and a hand inserting a cable (no text or symbols visible)

EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case).

This will avoid any damage to your computer by electrostatic discharge.

SC 可在包装盒中找到以下物件：

A: 新驱动器。

C: Nero 软件光盘。

B: 本手册。

D: 小袋装的4颗螺钉。

EN Switch your computer off.

Close-up of a server rack unit with a white cable outlet and a black arrow indicating direction (no text or symbols on the device itself)

5

SC 打开计算机。可能需要松开计算机最后面的螺钉。
▶ 有关详细信息，请参阅您的计算机手册。
RU Откройте компьютер. Для этого нужно отпустить винты, расположенные чаще всего на задней стенке компьютера.
▶ Более подробно см. в руководстве по компьютеру.
DK Åbn computeren. Du skal muligvis løsne nogle skruer, der ofte sidder bag på computeren.
▶ Find mere information i manualen til din computer.
TC 折開您的電腦。您可能需要拆下螺絲，通常位於您電腦的背面。
▶請參閱您的電腦手冊以取得更多資訊。
EN Open your computer. You may have to unleash screws which are mostly located at the back of your computer.
▶ See your computer manual for more details.

Example

6

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

EN If you replace a drive, take it out and check which setting it has ("Master" or "Slave"). Remember this setting and go to step 10.

EN If you have no drive installed, remember "Master" and go to step 10.

EN If you add a drive, check the drive has which remains in the PC ("Master" or "Slave", see step 11), remember the OTHER setting.

10

EN These are the connections (on the back of your drive) you will have to use for connecting the drive to the computer.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

11

EN Choose "Master" or "Slave" for the jumper, as seen in steps 7, 8 or 9.

12

sc 将驱动器放入计算机。

EN Put the drive into your computer.

Interior view of a computer tower case showing internal components and a black arrow pointing to a device (no text or symbols on main subject)

A B C Example

EN Find the IDE-cable which may look like this example:

A: Coloured line.
B: Notch and closed hole.
C: Pin1.

EN Connect the IDE cable like in A (2 devices) or B (only 1 device).

Do not choose 2 "Master" or 2 "Slave" devices on 1 cable.

SC 找到如此例所示的 IDE 线缆：

A: Coloured line.
B: Notch and closed hole.
C: Pin1.

16

Close-up of a white electrical connector with wires and three circular ports, labeled 'Example' (no text on the connector itself)

Close-up of cable routing inside a device, showing tangled cables and a white arrow indicating direction (no text or symbols)

Close-up of a hand using a screwdriver to adjust internal components in an open computer case (no text or symbols visible)

EN Secure the drive with the screws (if possible on both sides).

Exterior view of a computer tower case with an arrow pointing to the front panel (no text or symbols on the main subject)

EN Put the cover you took off in step 5 back on.

Example

EN Put the screws (if there were any) back in and reconnect the cables.

21

New StartLine... New Online Update LockUp I:start

Philips Intelligent Agent Product: Series - 349 Updates for new Philips products Product: Annotated version: Latest version: [1] PHILIPS CHECKSAL - (VAPC) P1.0 Philips Intelligent Agent 1.0 The last successful product update check was performed on 200-05-12 [10-40-42] AP. The automatic product update check is validated. Check for update Click the following to check for product updates.

Intelus Intelligent Agent Design - Options Help Loading For you/Intelus products Product Installed version Cased version [1: (PHL85/SHK10.5 - [XVAT]) FX 3 FX 4 Intelus Intelligent Agent 1.0 1.0 The last successful product update check was performed in 2006-09-12 LTR 16 PM. The automatic product update check is deleted. Check for update Product update information was successfully retrieved from the server.

sc 下载并安装更新。
RU Загрузите актуализацию (updates) и выполните ее инсталляцию.
DK Download opdateringerne og installér dem.
TC 下載並安裝更新。
EN Download the updates and install them.

New Document File Edit View Insertion & Print Edit View Insertion Edit Options Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Audio Data Labels Format Photo and Video Play Smart Tools New/New Document 3.0 New Online Language New Product Setup New Read New Web/Stream Elements

sc 选择 “开始”，“(所有)程序”，“Nero 7 Essentials”，“Nero ProductSetup”。
RU Выберите "Start", "(All) Programs", "Philips Intelligent Agent", "Philips Intelligent Agent".
DK Vælg "Start", "(Alle) Programmer", "Nero 7 Essentials", "Nero ProductSetup".
TC 選擇「Start (開始)」，「(All) Programs ((所有程式) 程式集)」，「Nero 7 Essentials」，「Nero ProductSetup」。
EN Choose "Start", "(All) Programs", "Nero 7 Essentials", "Nero ProductSetup".

New ProductSetup Please select one of the actions and click Next to continue Modify your New products. Use the option to enable additional features of your installed new products. Remove your new products. This version will give you that choice to remove the installed new products completely from your system. Validate our new products. Validate include the latest version features/flags from your installed new products. Add和完善 additional languages. Here you can add和完善 support for particular languages for your new products. Next

SC 选择 “开始”，“(所有)程序”，“Nero 7 Essentials”，“Nero ProductSetup”。
RU Выберите "Start", "(All) Programs", "Philips Intelligent Agent", "Philips Intelligent Agent".
DK Vælg "Start", "(Alle) Programmer", "Nero 7 Essentials", "Nero ProductSetup".
TC 選擇「Start (開始)」，「(All) Programs ((所有程式) 程式集)」，「Nero 7 Essentials」，「Nero ProductSetup」。
EN Choose "Update your Nero products" and "Next".

6

sc 单击 “OK (确定)”。

Update Info File Download The following next products have been deleted: - Items 7 To update all items products or your computer it is necessary to connect by the Internet. If you do not want to allow the installation Wizard to connect to the Internet, please call Next. You will be offered about the amount of data that needs to be transferred in the next step and you will have the chance to convert the Internet. If you did not access any security warning into your home (your friends or friends). Please follow the instructions on the screen to enable Internet access for the installation Wizard. OK

7

sc 单击 “OK (确定)”。

New ProductSetup File download! It was detected that parts of your new products have been installed from Internet resources. Therefore it is required that the installation required will continue to be installed by the internet. If you are required to complete the action, if you do not want to allow the installation required to connect to the Internet, then Cancel. You will be informed about the amount if data that needs help transfer to the next end and you will have the choice to convert the download. If you do OK a very soon warning was once (since your friend or water). Please take the instructions on the screen to render new product access for the installation return. OK

8

EN The Windows Firewall may warn you. Click "Unblock" to allow your Nero to be updated.

Windows Security Alert To help protect your computer. Windows Firewall has installed some features of this program? Show you want to have blocking this program? System: MSU server Publisher: Microsoft Open Blocking Disable Windows Firewall has installed the program from executing commands on the Internet at a network. If you recognize the program or load the router, you can switch it. (Where should be installed)

New ProductSetup The updates are being downloaded 1. Connecting 2. Checking engine 3. Preparing installation 4. Optimizing download list 5. Downloading file 6. Filtering Close

sc Nero 自行下载并更新。
RU Nero выполняет загрузку и актуализацию автоматически.
DK Nero downloades og opdateres af sig selv.
TC Nero 會自行下載和更新。
EN Nero downloads and updates itself.

如何制作视频光盘？

How to make a video disc?

Be responsible Respect copyrights

1

SC 启动 “Nero StartSmart Essentials”。

RU Запустите "Nero StartSmart Essentials".

DK Start "Nero StartSmart Essentials".

TC 啟動 “Nero StartSmart Essentials”。

EN Start "Nero StartSmart Essentials".

Test Start Menu EnterBook Enter Online Update Save icon 7.240000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Photo and Video Photo Video (1) Capture Video Capture Image Video (2) Play Action Capture Image Video Capture Image Video (3) Capture Image Video (4)

SC 选择 “Photo and Video (照片和视频)” 和 “Make your own DVD-Video (制作您自己的 DVD 视频)”。
RU Выберите "Photo and Video" и "Make your own DVD-Video".
DK Vælg "Foto og video" og "Lav din egen dvd-video".
TC 選擇「Photo and Video (照片與視訊)」並按「Make your own DVD-Video (製作 DVD 視訊)」。
EN Choose "Photo and Video" and "Make your own DVD-Video".

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

SC 如要捕获来自摄像机的视频，请将摄像机连接到PC。否则转到步骤8。
RU Если вы хотите записать видео с камеры, присоедините ее к вашему PC. В противном случае перейти к шагу 8.
DK Hvis du ønsker at optage video fra et kamera, skal du forbinde det til din computer. Gå i modsat fald til pkt. 8.
TC 如果您要從攝影機擷取視訊，請將它連接至您的電腦。否則，請至步驟8。
EN If you want to capture video from a camera, connect it to your PC. Otherwise go to step 8.

UntitledProject [DS Video] - New Video Installers Content Create and manage files for your project. What would you like to do? Capture Video... Add Video Pins... Make Video... Make Slide Pins... Import Image Can Image Capture Video... This project allows you to capture video from an external device file or a converted file, which is connected to your computer. The video type you create will be added to your project automatically. Total records used: 0.00 out of 10.00 5000 100 2000 300 400 500 More than Save Save Back

UntitledProject [PMS Video] - Max Picture Essentials Capture Video Select a device and capture video to your hard disk. Capture devices Copy: DVD Server Options Use this template to capture select in Digital Video (DVI) compatible format The application will probably configure the capture device, but you can change the device calling manually for DVD type. Our Type 1 Type 1 is usually the better choice because it requires this disk special and above some throughout. Functions option Type 2 incompatible with links for Windows (TMS) If you are not set which point to use, offset Type 1. Copy to Devices Save in Next Back

6

sc 在捕获过程中，您将在此看到进度。
RU Во время записи здесь вы можете наблюдать за ходом процесса.
DK Under optagelsen kan du følge processen her.
TC 在擷取過程中，您會在此看到進度。
EN During capturing, you will see the progress here.

Capture Images Select a device and capture video to your hard disk. Capture devices Capture Select a capture template. Format: Type 1 is usually the before choice because it requires free disk space and allows more throughput. However, only Type 2 is compatible with links for Windows (76). If you are not sure which type is used, select Type 3. Creating information Frames capture/missed disk.

7

sc 捕获所有视频片段后，单击 “Next (下一步)”。
RU После записи всего видеоряда щелкните мышью на "Next".
DK Klik på "Næste", när alle videosekvenser er optaget.
TC 當已擷取所有視訊序列後，按一下「Next (下一步)」。
EN Click "Next" when all video sequences are captured.

Untitled Project [IMG Video] / New Window Essentials Capture Video Select a device and capture video to put hard disk. Capture Drive Image DVD Device Select a capture template DV Items Use file template to capture select a Digital Video (DV) compatible format The application also configures the capture device, but you can change the device settings manually to DV type. DV Type 1 Type 2 is used for the other choice because it requires free full space and above more throughput. However only: Use 2.0 compatible with Inletor window (DW). If you are not sure which type to use select Type 3. Capture files mv6Capture-0007 mv6Capture-0008 mv6Capture-0009 Save

UntitledProject * (DVD) Video | New Video Essentials Context Create and arrange files for you about! What would you like to do? Capture Videos... Add Video Files Make Images... Make Slide Views... Import Image Add Video Files... Add Video Files... How, you want to add text at notes video files from your text file or also and add frames your project. Total space used: 0.00 out of 1.30 GB

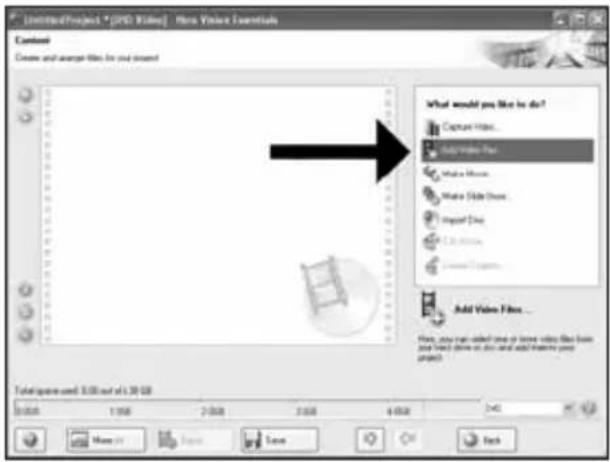

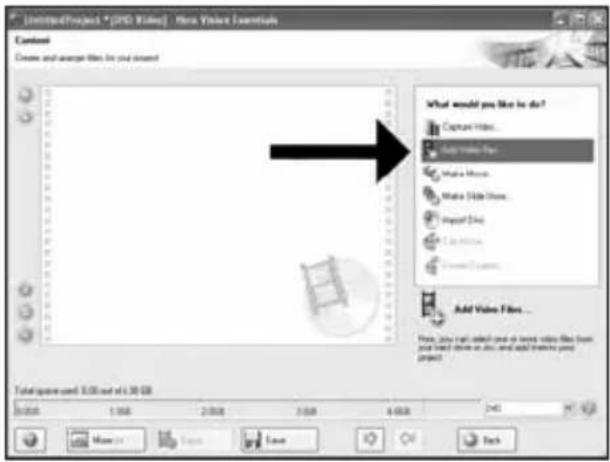

sc 如要添加来自硬盘的文件，选择“Add Video Files (添加视频文件)”。
RU Если вы хотите добавить файлы с жесткого диска, выберите "Add Video Files".
DK Vælg "Tilføj videofiler", hvis du ønsker at tilføje filer fra harddisken.
TC 如果您要從硬碟新增檔案，請選擇「AddVideo Files (新增視訊檔案)」。
EN If you want to add files from the hard disk, choose "Add Video Files".

Open Create and Parameters Modules My Documents My Computer My Network Place My Computer File name: Files of Type: All Supercised Notes Files Open Cancel

sc 选择文件并单击 “Open (打开)”。
RU Выберите нужные файлы и щелкните на "Open".
DK Vælg filerne og klik på "Åbn".
TC 選擇檔案然後按一下「Open (開啟)」。
EN Select the files and click "Open".

UniteView Project [2005 Video] - New Video Search Content Create and arrange files for your project 1. VTT_01 007 Video Title: 08.00m 10s Target video options: 720-V76/ECOR-601 (1) - 4.1 2. VTT_01 007 Video Title: 08.00m 10s Target video options: 720-V76/ECOR-601 (1) - 4.1 3. VTT_01 007 Video Title: 08.00m 10s Target video options: 720-V76/ECOR-601 (1) - 4.1 What would you like to do? Capture Video... Add Video Fines... Water Movie... Water Slide Moves... Import Disc Edit Movies... Create Chapters... Use you add the highlighted video site. Short video 15M out of 4 MSTR 5.000 1.000 2.000 3.000 4.000 More... Export Save Next Next Next

sc 可选择 “Edit Movie (编辑影片)” 编辑加载的影片。
RU Вы можете редактировать загруженные фильмы, выбрав "Edit Movie".
DK Du kan redigere de indlæste film ved at vælge "Rediger film".
TC 您可選擇「Edit Movie (編輯影片)」來編輯載入的影片。
EN You can edit the loaded movies by choosing "Edit Movie".

11

sc 可在此处添加视频效果、文字效果和过渡。
RU Здесь вы можете добавить видеоэффекты, эффекты для текстов и переходы.
DK Her kan du tilføje videoeffekter, teksteffekter og overgange.
TC 您可在此處新增視訊效果、文字效果和轉場。
EN You can here add video effects, text effects and transitions.

LimitedProject [1950] Video | More Vision Elements PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCCC

12

SC 您还可以通过滑动标记来剪切录制的视频。完成后，选择“Next（下一步）”。
RU Вы можете также подготовить записанный видеоматериал для монтажа с помощью слайдов с маркерами. После завершения выберите "Next".
DK Du kan også beskære den optagede video ved at trække i markørerne. Vælg "Næste", när du er færdig
TC 您也可以移動標記來修剪已錄製的視訊。完成後，選擇「Next (下一步)」。
EN You can also trim the recorded video by sliding the markers. When done, choose "Next".

LimitedProject [100] Video | Main Project Lessons PTL Production PTL_20.3685 Image Menu Event Save Next

13

Untitled Project [1950 Videos] - New Vision Measurements Content Create and manage files to your project. 1. VTL_01_0009 Video Files - 8h:02m:07s Target video options: FDS v 576 (ECR-801 D1) - 43 2. VTL_01_0009 Video Files - 8h:02m:07s Target video options: FDS v 576 (ECR-801 D1) - 43 3. VTL_01_0009 Video Files - 8h:02m:07s Target video options: FDS v 576 (ECR-801 D1) - 43 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Slide Maps... Repack Docs... Sub Movies... Create Chapters... Used source: E:\Out of A:\Book Book 1/1/2009 2/2009 3/3/2009 4/1/2009 Next Next

Untitled Project [300] Video - New Vision Transform Select None Select main menu and file menu. Selected options: Image Agency Holiday 2005 1 VTE_03.0007 Preview: Holiday 2005 Edit Menu... Save Next New

SC 在 “Header (标题)” 字段输入标题，然后单击 “Edit menu (编辑菜单)”。
RU Введите в поле "Header" заголовок и щелкните мышью на "Edit menu".
DK Indtast titlen i feltet "Overskrift" og klik på "Rediger menu".
TC 在「Header (標頭)」欄位中輸入標題，然後按一下「Edit menu (編輯選單)」。
EN Enter the title in the "Header" field and click "Edit menu".

Untitled Project [1995] Video - New Edition Downloads Edit Menu Customize new settings. Holiday 2005 What would you like to change? Lloyd Background Surfaces Text Presidential/Final Text Shutter AutoCAD/CNN Unintected Color Save Save

SC 您可以在此更改布局、背景，添加标题等等。完成后，选择两次“Next（下一步）”。
RU Вы можете изменять шаблон, фон, добавлять заголовки,... здесь. После завершения выберите два раза "Next".
DK Du kan ændre layout og baggrund og tilføje titler...her. Vælg "Næste" to gange, når du er færdig.
TC 您可以在此改變版面、背景、新增標題...。完成後，選擇「Next (下一步)」兩次。
EN You can change the layout, the background, add titles,... here. When done, choose "Next" twice.

Untitled Project [1987] Video | New Video Measurements Preview Create the results of your project features learning A Holiday 2005

sc 预览影片。单击“Next (下一步)”继续。16
RU Просмотрите ваш фильм. Для продолжения щелкните на "Next".
DK Kontrollér din film. Klik på "Næste" for at fortsætte.
TC 預覽您的影片。按一下「Next (下一步)」以繼續。
EN Preview your movie. Click "Next" to continue.

17

SC 选择 “Burn to (刻录到)”，选择刻录机然后再选择 “Burn (刻录)”。
RU Выберите "Burn to", ваше устройство записи, а затем "Burn".
DK Vælg "Brænd til", vælg optager og vælg "Brænd".
TC 選擇「Burn to (燒錄至)」，選擇您的燒錄器並選擇「Burn (燒錄)」。
EN Choose "Burn to", choose your recorder and choose "Burn".

UntitledProject [PHS Video] - More Picture Essentials Buen Options Set the parameters for learning Project options Connect video options Aspect new: Automatic Video-node: PSL Quality: automatic View project coordinates 3 filters and 1 name. Send it... Buen to device: PHLPS ODSNAP Image Preference Set the parameters for learning Save As... Write up Hand Dot Folder Make Name Recording Settings Buen To Exercise Selected the Interactive program for web Cancel destination Buen to device: PHLPS ODSNAP Used this space: 0.28 GB Save

18

sc NeroVision Express 将转换代码并刻录到您的光盘。
RU NeroVision Express выполняет перекодировку и прожигает ваш диск.
DK NeroVision Express kodeomsætter og brænder din disc.
TC NeroVision Express 正進行光碟的轉碼和燒錄。
EN NeroVision Express is transcoding and burning your disc.

UntitledProject [DMS Video] - New Flare Essentials Analysis Preparing data recording Running video data into the disc. Completing recording device PHILIPS Tracking project Current action: To setting and adding V1.5_01.X87 Current progress: Forwarding 3h 10m-25s Export 3h 03m-15s Total progress: Forwarding 3h 10m-25s Export 3h 03m-15s Preview: Start down computer when installed Remove it up Save

19

SC 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

Untitled Project [MS Video] - New Vision Installers Options Preparing data for recording Burning video data into the disc Completing recording errors Recording progress Current action Current progress NewVision Express 3 New process completed successfully. What you like to save the log file? No Yes Last progress Export Preview Next Show done computer shop installed Manage to Top Save

如何制作数据或音频光盘？

How to make a data or audio disc?

Be responsible Respect copyrights

1

Welcome to Nero! Find your most your category Thank you for And it is to get started

New StartUp... New Online Upgrade... Recycle Bin... Play Initi... Data Make Date 2013 Make Date 2014 Copy 15 Copy 2000

SC 对于数据光盘，选择“Make Data CD (制作数据光盘)”或“Make Data DVD (制作数据 DVD)”。
RU Для данных выберите "Make Data CD" или "Make Data DVD".
DK Vælg for data "Lav data-cd" eller "Lav data-dvd".
TC 若要製作資料光碟，請選擇「Make Data CD (製作資料 CD)」或「Make Data DVD (製作資料 DVD)」。
EN For data, choose "Make Data CD" or "Make Data DVD".

Audio Make Audio CD Play audio Make PDF1.03 Make PDF1.04 Do not regular touch CD that touch of CD player and any user PC. Make new digital audio CD Make new digital audio CD

New Express Essentials Disc Coded Add to other new data... File Edit Name Size Type Modified Ctrl Total size used: 100KB 200KB 300KB 400KB 500KB 600KB 700KB 800KB Edit Help

6

SC 选择要刻录的文件，然后单击 “Add (添加)”。完成后单击 “Close (关闭)”。
RU Выберите все нужные файлы для прожигания и щелкните на "Add". После окончания щелкните на "Close".
DK Vælg alle de filer, der skal brændes, og klik på "Tilføj". Klik på "Luk", när du er færdig.
TC 選擇所有要燒錄檔案，然後按一下「Add (新增)」。完成後，按一下「Close (關閉)」。
EN Select all the files to burn and click "Add". Click "Close" when finished.

Add Size and Action Location: My Documents Modules ● Channels New Book Desktop My Documents - My Computer My Internet Explorer Functions File type: "My 01.doc" "My 02.doc" "My 03.doc" File of type: .a748a (1, 2) Add Close

7

sc 检查文件并单击 “Next (下一步)”。
RU Проверьте ваши файлы и щелкните на "Next".
DK Kontrollér dine filer og klik på "Næste".
TC 選擇檔案然後按一下「Next (下一步)」。
EN Check your files and click "Next".

Home Express Tommills One Command Add Existing your files... My Date Name Save Fuse Modified Origin No 01.doc 35.224 KB Word... LON/1K... C:\Documents and Settings... No 02.doc 33.224 KB Word... LON/1K... C:\Documents and Settings... No 03.doc 32.764 KB Word... LON/1K... C:\Documents and Settings... Total page and: 154 KB OK Next

Next Express Essentials Fixed Start Settings Click Start to start the recording process. Project Name: My Date Number of copies: Ready day on disc after blurring Allow file to be added time (audioversion disc) Run

sc 选择刻录机，然后单击“Burn（刻录）”。
RU Выберите ваше устройство записи и щелкните на "Вит".
DK Vælg optager og klik på "Brænd".
TC 選擇您的燒錄器並按「Burn (燒錄)」。
EN Choose your recorder and click "Burn".

None Expense Coordinate Warning Process Please wait... Test Show: +0.00-65 APP - PHILIPS CHISSER Buffer undersea protection allowed +0.00-65 APP - Caching of No started +0.00-65 APP - Caching of No completed +0.00-65 APP - Auto timestamped at 10s (3:30 PM) UTC BUTCH Balance: 9:00:07 20% Writing at 30s (3:30 PM) Stop

sc Nero 开始刻录光盘。
RU Nero прожигает ваш диск.
DK Herefter brænder Nero din disc.
TC Nero 會開始燒錄您的光碟。
EN Nero is burning your disc.

New Express Essentials New Express Process File Edit View 40.00 View 2013.00.00 By far download protection activated View 40.00 View 2013.00.00 Caching of the stored View 40.00 View 2013.00.00 Caching of the installed View 40.00 View 2013.00.00 New Express Essentials New process completed successfully at 25% (3,894 bps) OK UCTG BUFFER

SC 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

如何复制光盘?

Be responsible Respect copyrights

1

sc 启动 “Nero StartSmart Essentials”。

RU Запустите "Nero StartSmart Essentials".

DK Start "Nero StartSmart Essentials".

TC 啟動 “Nero StartSmart Essentials”。

EN Start "Nero StartSmart Essentials".

Next Start menu Refreshed Enter Online Update file Remove Web

VISA CD (WD) Favorites Make Audio 12 Make Image 12 Make Audio 13 Make Audio 14 Make Audio 15 Make Audio 16 Make Audio 17 Make Audio 18 Make Audio 19 Make Audio 20 Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Options Others

EN Choose "Favorites" and "Copy CD" or "Copy DVD".

Share Express/assortile Select source and destination Please select source and destination drives and insert source disk. Source drive: Destination drive: E. PAPPS ORDER E. PAPPS ORDER [0-45%] Auto: Save data cannot be copied. This has been easy protected in accordance with If you are not sure if you do can be copied, please run a prior simulation code (Edit on Delivered + C and select Simulation). Writing speed: Message Number of pages: 1 Verify data on disc after learning. Image file: Documents and Settings/Details Document Open OK

SC 选择源驱动器。

EN Select the source drive.

V- Plaza Express Function Select source and destination Please select source and destination drives, and insert source disk. Source drive: E. PHILIPS DISCUER Destination drive: E:\MyTrip\Produce\123409\ Customs: Same data cannot be copied. They may be copy protected or not allowed. If you can't run any Froup the can be copied, please run a trailing simulation model (bit on Advanced + C) and click Simulation. Writing speed: Maximum Number of papers: 1 Notify data on the after learning Image No: C:\Documents and Settings\Flash\My Documents Cancel

SC 选择目标驱动器并单击 “Copy (复制)”。

EN Select the destination drive and click "Copy".

5

sc Nero 将开始复制光盘。
RU Nero будет затем копировать ваш диск.
DK Nero kopierer herefter din disc.
TC Nero 將會開始複製您的光碟。
EN Nero will now copy your disc.

P. New Express Definition Burning Process Please wait... New New 0.021.1.497 0.021.1.498 0.06-0.1.498 0.15/0.2.498 File ID: 1333-00000000 Creating Image for Burning Creating Image Compressed as defaults AVE PS (USB) mask Buffer undefined protection achieved Burst process differential jobs (L,200/KB) UFTR BUFFER Texting time 10:07:37 Total time 0:00:37 2011 Writing at Job (L,200 KB) Stop

6

SC 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

Micro Express Essentials Starting Process Project mail... Start End StartUp StartUp StartUp StartUp StartUp 0.01.02.4MP 0.06.02.4MP 0.06.11.4MP 0.19.02.4MP 0.27.13.4MP 8:01:33:4MP Creating the image for saving Creating Image completed successfully; PROPS DOP (eADP) Make an important version in this tool Micro Express Essentials 8:01:33:4MP 8:06.02.4MP 8:06.11.4MP 8:19.02.4MP 8:27.13.4MP 8:01:33:4MP 8:06.02.4MP 8:06.11.4MP 8:19.02.4MP 8:27.13.4MP 8:01:33:4MP 8:06.02.4MP 8:06.11.4MP 8:19.02.4MP

需要更多信息或帮助

访问 www.philips.com/storageupdates

SC

故障排除

Be responsible Respect copyrights

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.

环使用期限 Environmental Protection Use Period

This logo refers to the period (10 years)

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these substances or elements will not result in any severe environmental pollution, any bodily injury or damage to any assets.

Be responsible Respect copyrights

Be responsible Respect copyrights

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

▶ Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

FCC Compliance

FCC 15.105 rule:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

FCC 15.19 rule:

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

(1) this device my not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE

Electric-, Magnetic- and Electromagnetic Fields ("EMF")

1. Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.
2. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3. Philips is committed to develop, produce and market products that cause no adverse health effects.
4. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Safety Precautions

USA/Canada: This player is for use only with IBM compatible UL listed Personal Computers or Macintosh UL listed workstations, weighing less than 18 kg.

LASER SAFETY

This unit employs a laser. Do not remove the cover or attempt to service this device when connected due to the possibility of eye damage.

LASER-SICHERHEIT

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS LASER RADIATION EXPOSURE.

WARNUNG

CLASS 1 LASER PRODUCT

LUOKAN I LASERLAITE

KLASSE 1 LASER-PRODUKT

CAUTION INVISIBLE LASER RADIATION. WHEN OPEN AVOID EXPOSURE TO BEAM VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN WARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN ADVERSEL USYNLIG LASERSTRÅLING NÄR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN DANGER INVISIBLE LASER RADIATION. WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM VORSICHT UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

LASER

Type Semiconductor laser GaAlAs

Wave length 775-795 nm (CD) - 660 nm (DVD)

Output power (measured above the objective lens)

Read: 1,4 mW - 2,5 mW

Write: 90 mW (CD) - 27 mW (DVD)

Beam divergence 60 degree

Additional information available at our website: www.philips.com/storageupdates www.philips.com/storage

Specifications subject to change without notice. All dimensions shown are approximate. © 2007 Koninklijke Philips Electronics N.V.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
