TM5531 - Oven Tomado - Free user manual and instructions

Brand	Tomado
Model	TM5531
Product type	Tabletop oven
Dimensions (W x D x H)	480 x 343 x 330 mm
Capacity	26 liters
Power	1500 W
Voltage/Frequency	220-240 V ~ 50 Hz
Cooking functions	Top heat, bottom heat, both combined
Temperature setting	Thermostat (up to 230 °C)
Timer	Yes, automatic shut-off
Included accessories	Wire rack, baking tray, removal handle
Glass door	Yes, with handle
Interior coating	Self-cleaning
Cleaning	Damp cloth and mild detergent; wire rack and tray dishwasher safe
Safety	Automatic shut-off, hot door indicator, hot exterior surfaces
Warranty	2 years

Frequently Asked Questions - TM5531 Tomado

Should I preheat the oven before first use?

Yes, heat the empty oven at 230°C for 15 minutes with both heating elements on to remove manufacturing odors. Slight smoke may appear, this is normal.

What do the different positions of the function selector mean?

The selector allows you to choose the heat source: top heat for grilling, bottom heat for baking, both combined for roasting or baking pizzas, and OFF to turn off.

How to set the temperature and cooking time?

Turn the thermostat to the desired temperature (up to 230°C) and the timer to the desired time. The oven shuts off automatically at the end of the time.

Can I use metal or glass containers in this oven?

Yes, you can use containers suitable for oven heat. Avoid plastic or non-resistant wooden containers. The provided wire rack and baking tray are recommended.

How to clean the inside of the oven?

The interior is coated with a self-cleaning lining. Clean it with a sponge or damp cloth and mild detergent. For stubborn stains, use a special oven cleaner.

Are the accessories dishwasher safe?

Yes, the wire rack, baking tray, and handle can be washed in the dishwasher or in hot soapy water.

What distance should I leave between the oven and walls or combustible objects?

Leave a space of at least 50 cm around the oven to avoid fire risk. The oven must not be built in.

Why does the indicator light turn off and on during cooking?

This is normal: the light indicates that the oven is heating. It turns off when the set temperature is reached and turns back on to maintain heat.

What to do if the oven does not turn on?

Check that the plug is properly inserted and the power outlet is live. Make sure the timer is set to a duration and not to the off position. If the problem persists, contact technical support.

How to use the provided handle?

The upper clip (A) is used to grasp the baking tray, the lower clip (B) is used to grasp the wire rack. Always use it to remove hot accessories.

USER MANUAL TM5531 Tomado

Guidelines for protection of the environment This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic

apparatus. This symbol on appliance, instruction manual and packaging puts your intention to this important information in a visual form. The symbol can be coded. 3rd recording used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Yes, grouping you by age, so you order at

Chi n clients, char client.

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.
Warranty regulations
TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance unusable.
- The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of repurchase, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Reports will only be made under warranty in case it can be proven by means of a filled in warranty card and the receipt that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence [e.g. incorrect cleansing], or when repairs of alterations have been executed outside the authorized TCNADO service centre.
[See also: along, s]ided in a reaction or action; [The] warranty does not cover any defects arising when the product is used to the wrong outlet voltage, nor following the guidelines in the construction manual and usual wear until age.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
- TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an infaler or AC outlet). This warranty under no circumstances grants the right for any compensation.
All other claims, including damages, are excluded unless the Low sales otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumerservice
Anteordnimer 19016
NL 1000 VC Amsterdam The Netherlands

What do you do in case your appliance

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure on
defect will be repaired as soon as possible.
Repairs outside the warranty period You can always hand in your appliance to have the repaired outside the warranty period. This will of course not be free of charge.

TOMADO

Moda dmplo T4-531

sur une multiprise.

Instruction manual 74-5531

• Do not clean the appliance with an aggressive or abrasive cleaner or with a sharp object, such as a knife or saw.
• The interior of the oven is finished with a self-cleaning coating. If required, you can clean the interior with a moist cloth or a sponge and a little cleaning product. If the interior is very dirty, you can also use oven cleaner.
  Clenn the rock, reoisting tin and handle with bot.
  soapy water. These parts are also dishwasher-safe. Clean the exterior with a damp cloth.

TECHNICAL

TM 5531
Power: 1500 W
Voltage: 220-240V-50Hz
Cappity: 26
Mssuerment 488x343x330mm

TOMADO

Instruction manual TM-5531

• Insert the plug into the mains power socket. The

indicator lamp lights up.

• Set the temperature to 230^ - Set the function switch to the derived function

• Set the function switch to be the desired function.

Heating from the top. Highly suitable for heating products.

100mg/（g）

Heating from the bottom. Highly suitable for heating products.

一

Heating from the top and bottom. Highly suitable for jogging products, but also for

PREPARING PIZZAS, FOR EXAMPLE

OFF No healing.

• Set the timer to 15 minutes. The oven will

automatically switch off once the set time has passed.

This ensures that the oven is properly pre-heated.

• Set the temperature to the temp your product

• Place the product on the rock or in the roasting tin.

• Place the rock/reasting tin with the product in the

Gven.

Make sure that the product is placed as closely as possible to the selected heating element, but watch

out that the product does not touch the heating

element.

• Set the timer to the time required for your product.

The oven will automatically switch off once the set time has passed.

Use the handle or oven gloves to remove the rack

roasting tin from the oven.

NOTE

The rock/roasting tin is hot.
The exterior of the appliance also gets hot. Avoid
any physical contact; you could be severely injured.
Always use the door handle to open the glass door. And use the handle to place or remove the rock or the
roasting fin.

About using the handle

The top clamp A is meant for use with the roasting
图
The bottom clamp (B) is meant for use with the rock.

CLEANING AND MAINTENANCE

Warning:

Before cleaning the appliance, always switch it off,
unplug it from the electricity supply and allow it to cool down completely.

TOMADO

1. Thermostat

2. Indicator lamp [appliance switched on]

3. Function selector
4. Timer
5. Power cord and plug
   6.Roash
6. Rock
7. Handle
8. Glass door with door handle

OPERATION

This oven is suitable for roasting, baking and toasting. Temperature, function and time are easily adjustable using the knobs at the front of the oven. The supplied rock and roasting tin allow you to create the ideal oven for your home.

USING FOR THE FIRST TIME

• Remove all packaging from the appliance.
  Clean the appliance. See Cleaning and
  Maintenance
• Leave the oven to warm up at a temperature of 230^ C
  for about 15 minutes in the . position, any manufacturing arms.
  A small amount of smoke may be released from the
  applience whilst it is warming up. This is normal and
  does not indicate a problem with the ap
  Make sure there is sufficient ventilation.
• Continue with the procedure set out in 'Using the appliance'.

USING THE APPLIANCE

• Choose the most suitable surface for the preparation
  of your product:
  Rock: dry foodstuffs such as bread and pizza.
  Roasting foodstuffs that release fat, such as
  meat and fish dishes. The roasting tin con also be
  placed underneath the rock to collect any fat that may be released by a pitta, for example.

TOMADO

Instruction manual TM-5531

TOMADO

Mode d'eploai TM-5531

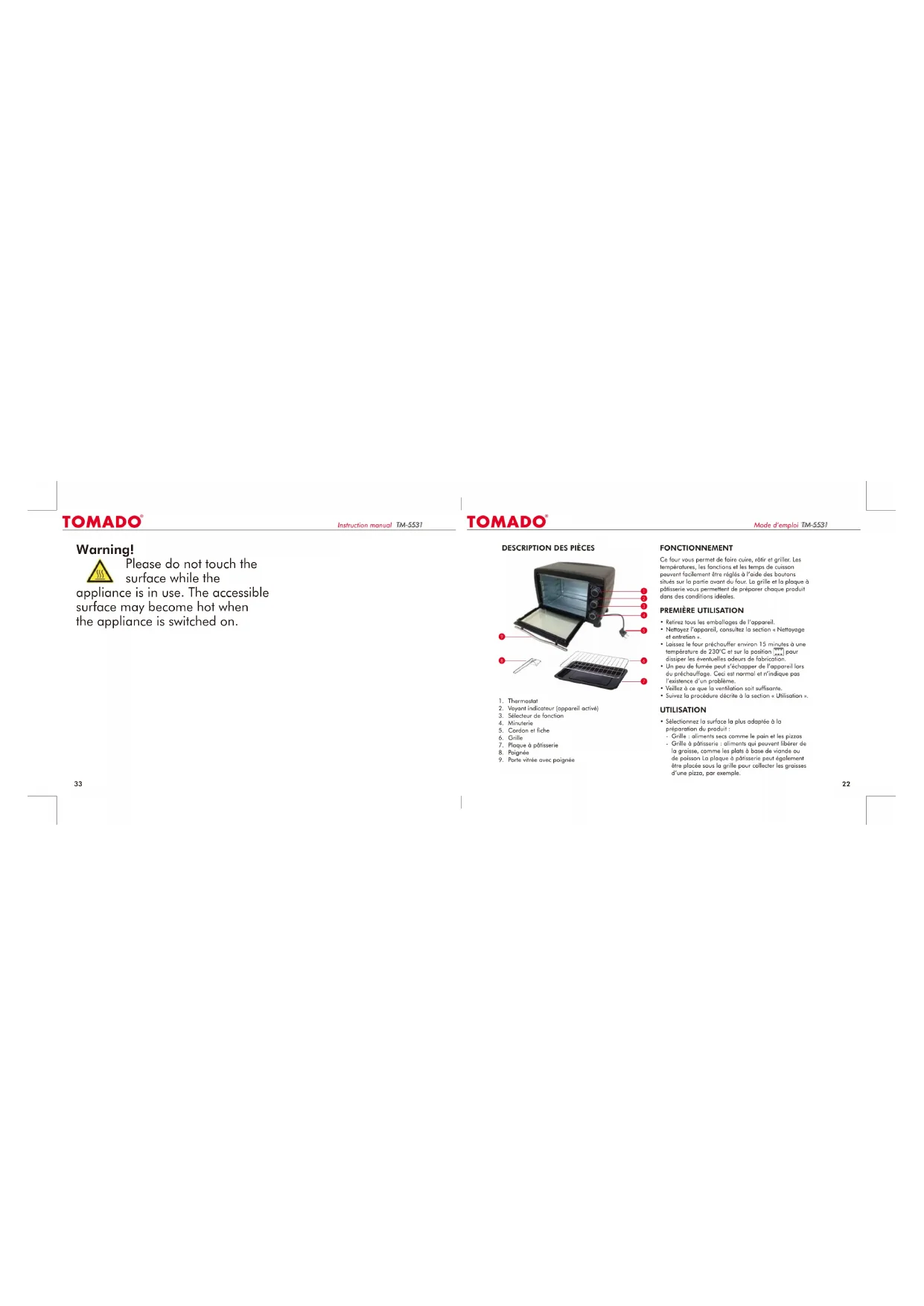

Warning!

Please do not touch the surface while the

appliance is in use. The accessible surface may become hot when the appliance is switched on.

cases, take the appliance to a qualified person for inspection and, if necessary, have it repaired.

• Never allow unsupervised children to use electrical household appliances. Children are unable to assess the dangers associated with the incorrect use of electrical appliances.
  Children who are close to the appliance or who are using it must always be kept under adult supervision.
• Never leave the appliance

unattended whilst it is in use.
- Use the oven only to roast, bake or toast foodstuffs.
- This appliance is not suitable for building-in.
- Keep the appliance clean, since it comes into direct contact with foodstuffs.
Only pick up the appliance by its handle, as certain parts of the appliance become hot during use. You may suffer a serious burn if you touch hot parts of the appliance.

TOMADO

Instruction manual TM-5531

outdoors or on wet surfaces, to avoid the risk of electric shock.
- Place the appliance on a stable, level surface from which it cannot fall onto the floor.
- Place the appliance on a heat-resistant surface and not, for example, on varnished furniture.
- Place the appliance at least 50 cm from a wall or inflammable materials (such as curtains, candles or cloths).
- Place the appliance on a stable

and flat surface, not too close to hot objects or naked flames (such as hobs or hotplates).

• Remove the plug from its socket when the appliance is not in use and for cleaning.
• Do not allow the power cord to hang over sharp edges, and keep it away from hot objects and naked flames.
• Never use the appliance if the power cord or plug shows any signs of damage, if the appliance has fallen on the ground or in the event of any other form of damage. In such

TOMADO

A. Repulsion
B. Electrical
C. Electrical
D. Electrical

pronounce outrement.

Les conditions de garanie outras que celles decrres ci dore ne pao rernn en TCHAP

aesssssees

Service

Tadssse kndn (on mnnr 4eep pae

TOMADO Consumerservice

A

P

m = 311 ;

TOMADO

Instruction manual 74-5531

off the appliance and do not use it again.

• Do not use the appliance in close proximity to hot objects such as a hob or oven.

Using the appliance

This appliance is intended for domestic and similar use, such as:

-in staff kitchens in shops, offices and other working environments
-on farms
-by hotel or motel guests or guests in other residential

settings

-in bed-and-breakfast establishments or similar environments.

The use of accessories not recommended by the manufacturer of the applico may result in personal inj
Only use this appliance indoors, in dry areas and away from water.
- Never immerse the appliance or the plug in water or any other liquid. This may result in a fatal electric shock!
- Do not use the appliance

TOMADO

Instruction manual TM-5531

the wall socket by pulling on the plug, not the power cord.
- Make sure the power cord does not come into contact with hot surfaces or steam.
Always remove the plug from the power socket before moving the appliance.
- Do not operate the appliance by means of an external time switch or a separate remote control system.
If an extension lead is required use a 10 amp power cord. Power cords with a lower amp rating may burn out. When

positioning the power cord, make sure that it cannot be pulled on or tripped over.

Avoid overloading by not connecting too many appliances to a group.
- Do not use any other high power appliances in the same group, to avoid overloading.
- Never immerse the appliance, the plug or the housing in water or other liquids, to avoid the risk of electric shock.
Do not touch the appliance if it has fallen into water. Remove the plug from its socket, turn

TOMADO

Instruction manual 74-5531

Dear Customer:

Congratulations on your purchase of this high-quality product. Read the instruction manual carefully to get the best results from this oven. These instructions give you all the necessary directions and advice for using, cleaning or maintaining your oven. Please use these instructions, you will always achieve excellent results. We hope that you will enjoy using this oven.

SAFETY INSTRUCTIONS

General Information

• Read these instructions carefully and keep them in a safe place.
• Only use the appliance as described in this instruction manual.
• Any damage caused by failure to observe this instruction

manual will immediately void the warranty. The manufacturer/ importer accepts no liability for damages caused by failure to observe this instruction manual, careless use of the appliance or use that is not in accordance with the instructions set out in this instruction manual.

• Keep the appliance out of the reach of children.
  This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities (including children), or anyone lacking sufficient

TOMADO

Instruction manual TM-5531

knowledge or expertise, unless supervised by or following instruction from someone responsible for their safety.

• Keep the appliance and its cord out of reach of children under 8 years of age.
  Children must be strictly supervised to prevent them from treating the appliance like a toy.
• Do not allow unsupervised children to clean or maintain this appliance.
  Always remove the plug from the plug socket and allow the

appliance to cool down:

• before moving the appliance
• before storing the appliance.
• before assembling or disassembling parts

• before cleaning the appliance
  or performing maintenance - after using the appliance
  Repairs may only be carried out by a qualified service centre*.

• Qualified service centre: the manufacturer's or importer's after-sales service department, which is authorised and

TOMADO

Instruction manual 7M-5S31

competent to perform such repairs so that any danger is avoided. In the event of any problems, please return the appliance to this department.

power cord is damaged. Have a damaged power cord replaced by a qualified service centre.

Electricity and heat

• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance.
  Always plug the appliance into an earthed plug socket.
  Regularly check the power cord for damage.
• Do not use the appliance if the - Always remove the plug from
