USER MANUAL HR1000 Winix

Line drawing of a white industrial water heater with 'WINIX' branding on top (no text or symbols on body)

Model

HR1000

Use & Care Guide

• Please read and follow all safety rules and instructions in this manual before operating.
• The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.

CONTENTS

5-Stage Air Purification 3

Controls

4

Set Up

Where to use 5

Installing the filters 6

Safety Instructions

Safety and Cautions 8

Operation

Initial Operation 9

Modes of Operation 10

Features and Settings 11

WINIX SMART Set Up 13

Care and Maintenance

Filter Care 14

Smart Sensor Care 18

Cleaning Care 19

Troubleshooting

Frequently Asked Questions 20

Unit Specifications 22

Product Warranty 24

French 25

Spanish 49

German 73

Italian 97

Nederlands 121

This product is suitable for 220 \~ 240V only.

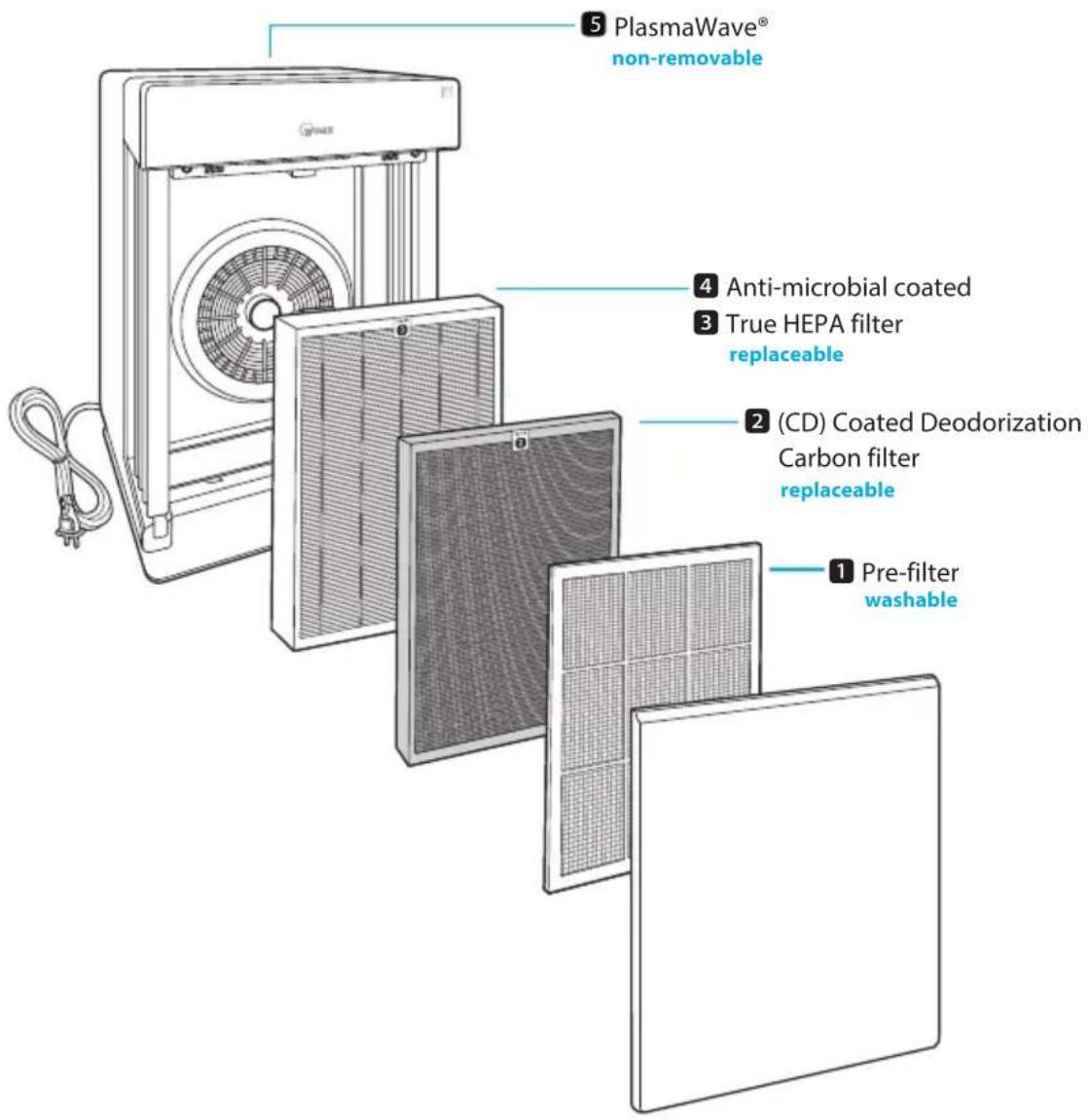

5-STAGE AIR PURIFICATION

5 PlasmaWave® non-removable 4 Anti-microbial coated 3 True HEPA filter replaceable 2 (CD) Coated Deodorization Carbon filter replaceable 1 Pre-filter washable

PACKAGE CONTENTS

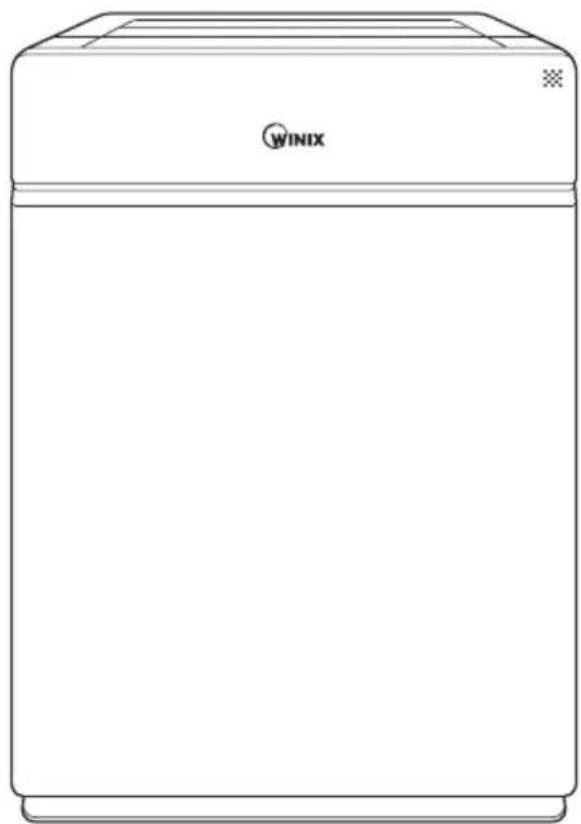

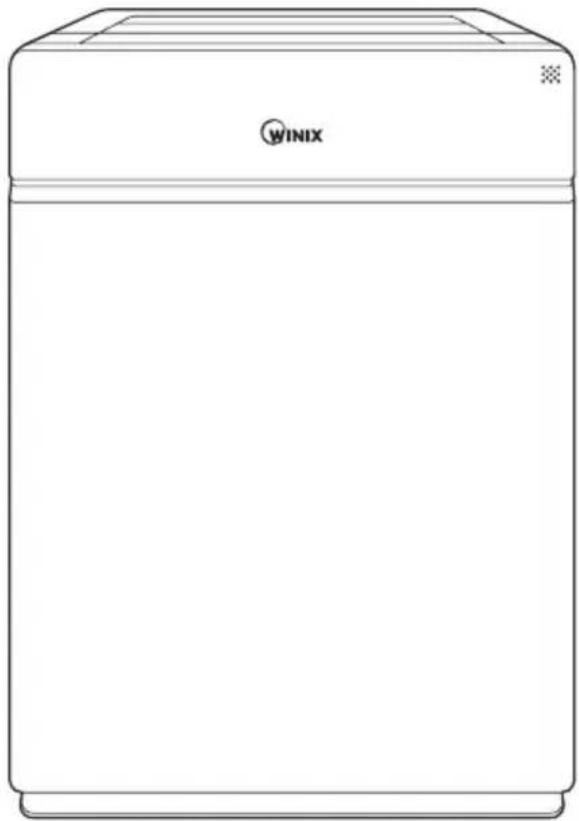

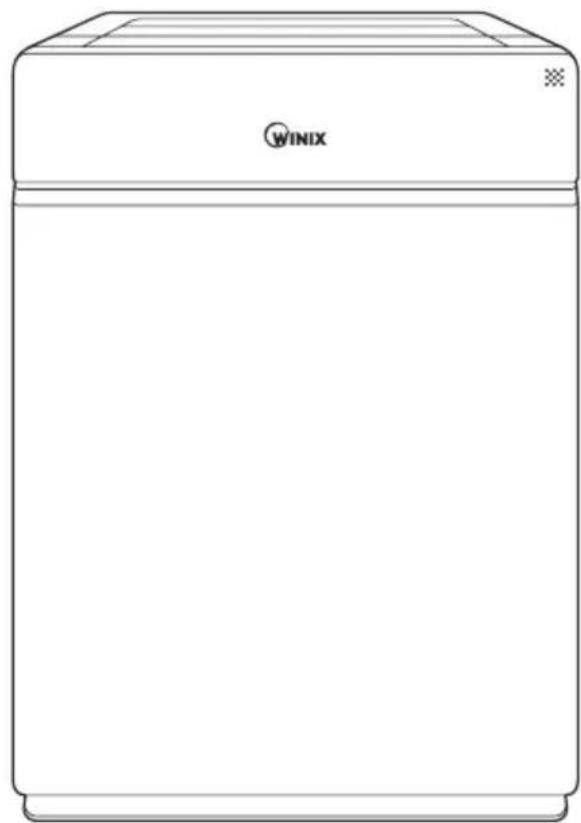

Line drawing of a rectangular kitchen appliance with a lid (no text or symbols)

Product

Stacked rectangular panels with grid patterns, no visible text or symbols

Pre-filter/CD Carbon Filter/Anti-microbial True HEPA filter (Included with the product.)

Power cord with plug

User Manual

CONTROLS

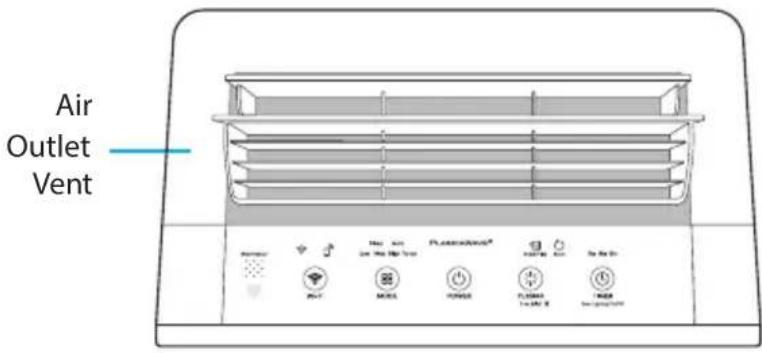

Air Outlet Vent

Light Sensor

Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators.

WINIX SMART Indicator

LED light indicates when WINIX SMART is active with your unit.

Check Filter Indicator

LED light indicates when it is time to change the filter.

Reset Button

After replacing a filter, press the RESET button for at least 5 seconds.

Smart Sensor

Automatically detects indoor air quality.

PlasmaWave® Indicator

Indicates whether PlasmaWave® is enabled or disabled.

Timer Indicator

If timer has been set, the LED light indicates the set time of operation.

    subgraph System
        B1["Wi-Fi: Enables or disables Wi-Fi function"]
        B2["MODE: Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)"]
        B3["POWER: Turns the unit on or off"]
        B4["PLASMA: Check Fiber, Reset, 3hr, 4hr, 8hr"]
        B5["TIMER: Timer, User Lighting On/Off"]
    end

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#fcc,stroke:#333
    style H fill:#ffc,stroke:#333

Wi-Fi Strength Indicator

Displays the strength of the Wi-Fi connection.

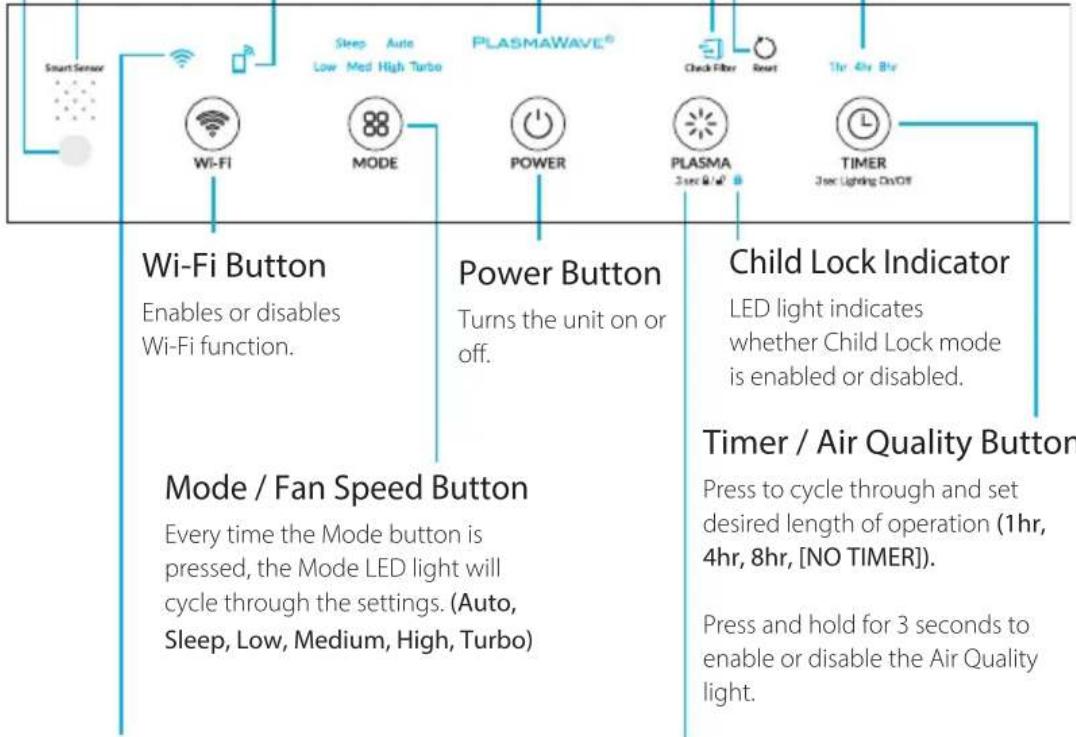

PlasmaWave® / Child Lock Button

Enables or disables PlasmaWave®. Press and hold for 3 seconds to enable or disable the Child Lock mode.

WHERE TO USE

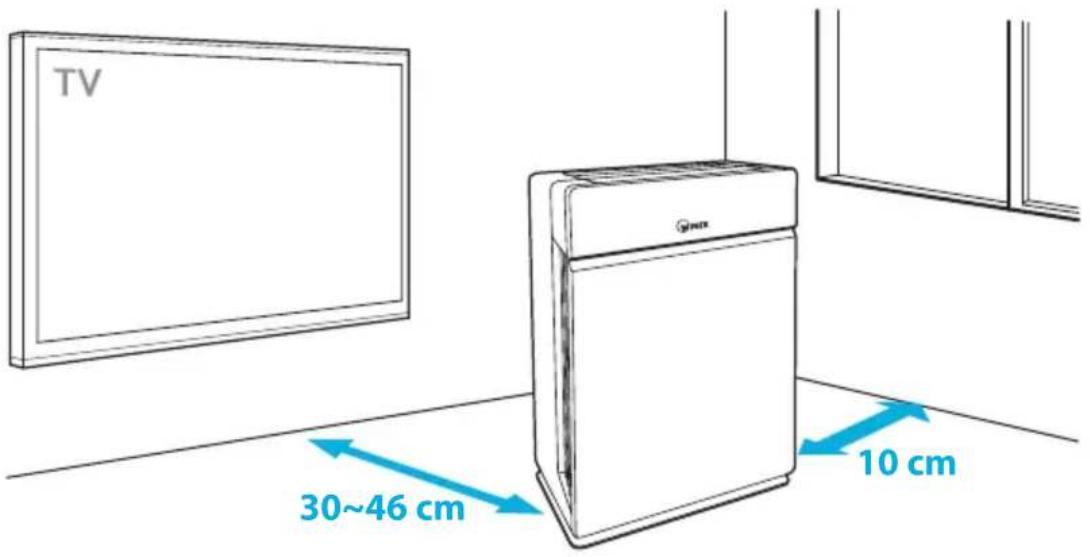

Allow 30 \~ 46 cm. of space between TVs, radios, and other electronic products

electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light

direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces

flimsy or slanted surfaces may result in abnormal noise and vibrations.

TV 30~46 cm 10 cm

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from industrial oil or around large quantities of metallic dust

Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)

Do not place near any flammable materials (aerosols, fuel, gases etc.)

Do not place below any electrical outlet

Do not place around heating elements

Do not place in an area with excessive amounts of noxious gases

Do not have unit facing into wind or draft

Do not place in excessively humid areas where unit may become wet

※ This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING THE FILTERS

This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use.

※ Operating the unit without removing the plastic wrap may result in product failure.
※ Unplug and make sure the unit is turned off before installing filters.
※ The unit will automatically power off when front panel is opened.

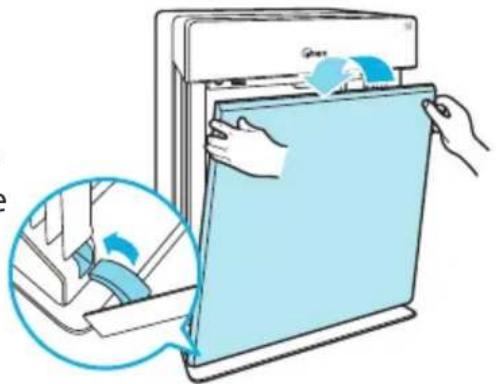

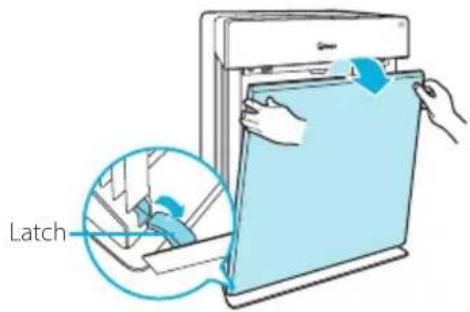

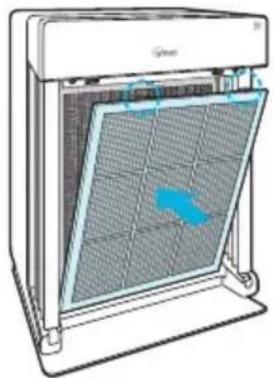

① Remove the front panel by grasping its upper edge and gently pulling towards yourself.

• To remove the front panel, the latch at the lower edge of the panel must be released from its position.

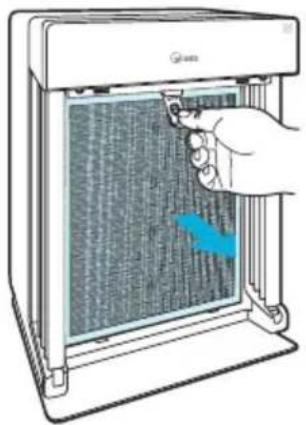

② Remove the filters from the unit, they are protected inside a plastic wrap.

Latch

Illustration of hands installing a blackboard with a blue cross symbol (no text or labels)

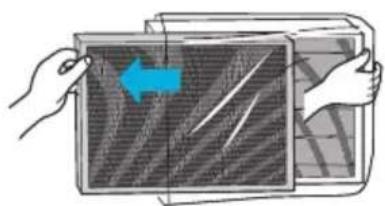

③ Remove filters from protective plastic wrap.

- Operating the unit without removing filters from plastic may cause abnormal noise, deformation, or fire as a result of overheating.

Illustration of hands holding a rectangular device with a blue arrow pointing to it, no text or symbols present.

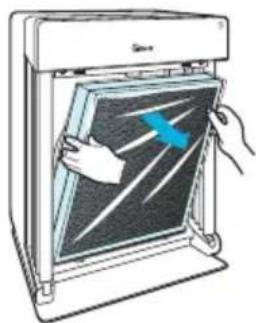

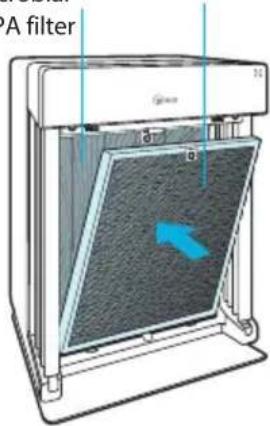

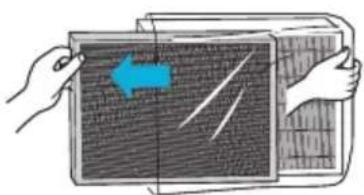

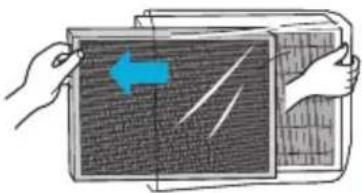

④ Install the filters until they fit securely in place.

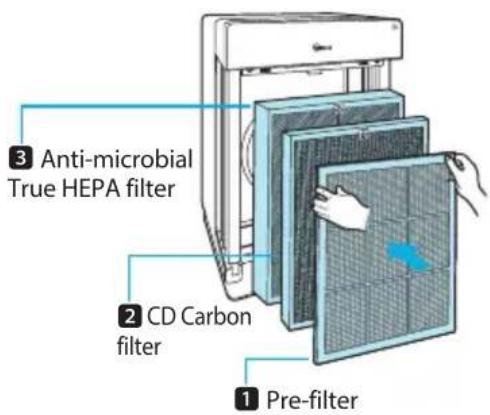

Filters must be installed in this order:

3 Anti-microbial True HEPA filter (rear)
2 CD Carbon filter (middle)
1 Pre-filter (front)

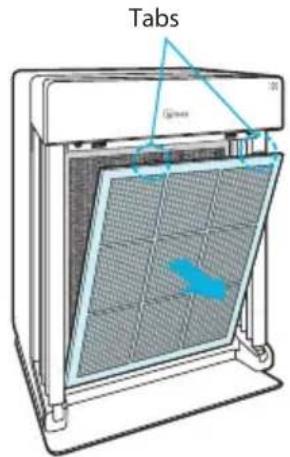

• To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

3 Anti-microbial True HEPA filter 2 CD Carbon filter 1 Pre-filter

INSTALLING THE FILTERS

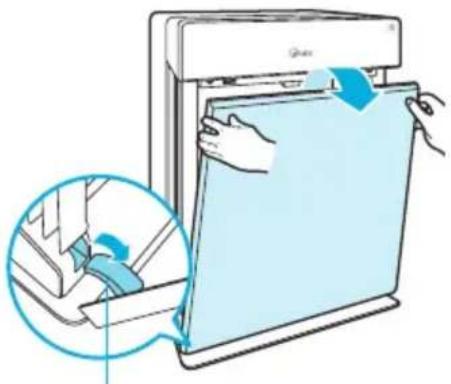

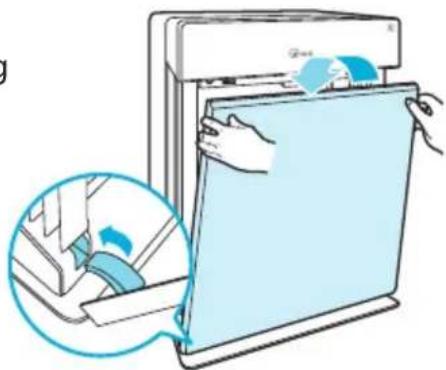

⑤ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

Diagram illustrating a hand inserting a device into a paper with a magnified view showing the process.

⑥ When to service and replace filters:

Filter Indicator Light		When to service	When to replace
1 Pre-filter	none	Clean once every 14 days	Permanent
2 CD Carbon filter	Check Filter	Can NOT be WASHED	Lasts up to 12 months
3 Anti-microbial True HEPA filter

※ Intervals between filter replacement may vary depending on environment.

※ For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

NOTE

Refer to pages 14-18 for detailed information on filter care and how to replace them.

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use.

Ensure filters are inserted before running unit

running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal temperatures causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it

personal injury may occur or product failure and deformation.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when unplugging the unit

If the unit becomes submerged in water, unplug it and contact customer service

Do not plug additional appliances into the same outlet or power supply

Unplug unit when not in operation for extended periods of time

Do not tie or knot power cord when unit is in operation

Do not unplug or move the unit while in operation

Do not touch the plug with wet hands

Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it

※ If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
※ This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
※ Children should be supervised to ensure that they do not play with the appliance.

INITIAL OPERATION

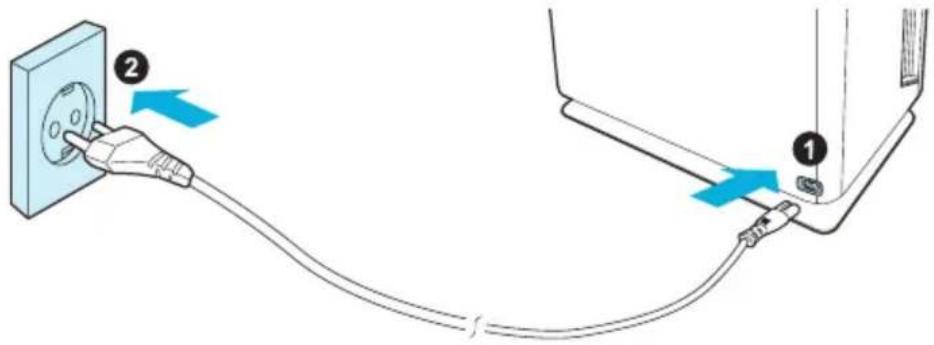

① Insert the unit plug into an electrical outlet.

• The Control Panel lights will turn on and off.

Diagram showing two connected electrical plugs with labeled parts, indicating connection or installation steps.

② Press the [Power] button.

During the first 4 minutes of power up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

POWER

③ By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave® enabled.

- When in Auto Mode the fan speed will be automatically adjusted according to the environments air quality.

PlasmaWave® works to remove harmful airborne contaminants.

Sleep Auto

PLASMAWAVE®

Low Med High Turbo

In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.

When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure. To disable PlasmaWave®, see page 11.

AUTO AND SLEEP

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

1. Auto Mode

Enables Auto operation based on the unit's air quality Smart Sensors.

① Press the Mode button to select Auto mode.

• The mode LED light will indicate when 'Auto' mode has been selected, and operation will begin.
  • Each time the Mode button is pressed, the modes will be cycled. (Auto, Sleep, Low, Medium, High, Turbo).

Simple line drawing of a hand pointing at a grid of four squares inside a circle (no text or symbols)

MODE

Sleep Auto

Low Med High Turbo

NOTE

When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan speed will automatically be increased.

When unit is first started, Auto Mode is enabled and set to Low fan speed.

2. Sleep Mode

① Press the Mode button to select Sleep mode.

- The mode LED light will indicate when 'Sleep' mode has been selected, and operation in that mode will begin.

Sleep Auto

Low Med High Turbo

NOTE

When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by pressing the Fan Speed (Mode) Button.

When Sleep Mode is enabled, the Air Quality light is disabled.

MODE

MANUAL MODE, TIMER AND PLASMAWAVE®

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

3. Manual Mode (setting fan speed)

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.

① Press the Mode button to select the desired fan speed.

- The mode LED light will indicate the selected fan speed, and operation will begin.

Sleep Auto

Low Med High Turbo

MODE

NOTE

When Manual Mode is in use, Auto and Sleep modes are automatically disabled.

4. Timer

The timer can be set for when you want the unit to run for a specified period of time.

① Select the desired period by pressing the Timer button.

• The Timer LED light will indicate the selected length of operation.
- Every time the Timer button is pressed the Timer LED light will cycle through the settings. (1hr, 4hr, 8hr, [NO TIMER]).

1hr 4hr 8hr

Simple line drawing of a hand pointing at a clock face (no text or symbols)

TIMER

3 sec Lighting On/Off

5. PlasmaWave®

By default, PlasmaWave ^® is enabled whenever the unit is powered on.

① Press the Plasma button when the power is on to enable or disable this feature.

PLASMA

3 sec /

PLASMAWAVE®

CHILD LOCK, AIR QUALITY LED

6. Child Lock

This feature prevents children from tampering with the control panel.

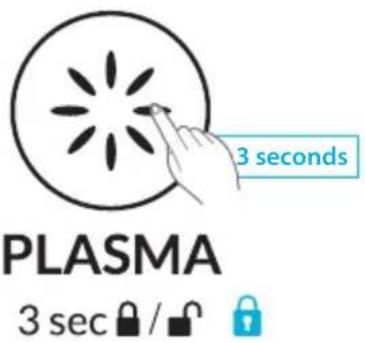

① Press and hold the Plasma/Child Lock button for 3 seconds to enable or disable the feature.

• When the Child Lock indicator is lit, the feature is enabled.
• When Child Lock is enabled, the control panel is locked and the settings cannot be changed.
  • To disable, press and hold the Child Lock button again for 3 seconds.

3 seconds PLASMA 3 sec /

7. Air Quality LED Light

The Air Quality LED light may be turned on or off.

① To turn the Air Quality LED light on or off, press and hold the Timer button for 3 seconds.

- When on, the LED light will indicate the current indoor air quality according to three levels BLUE (good), AMBER (fair), RED (poor)

TIMER 3 seconds 3 sec Lighting On/Off

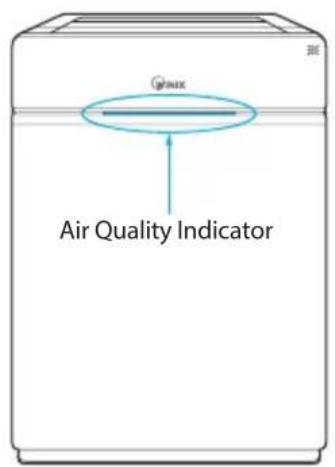

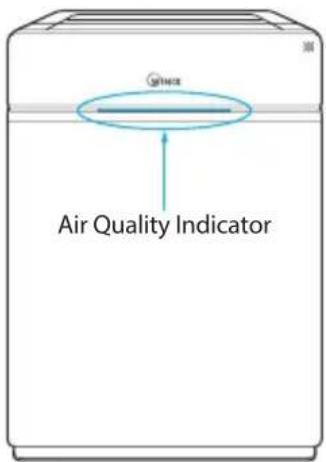

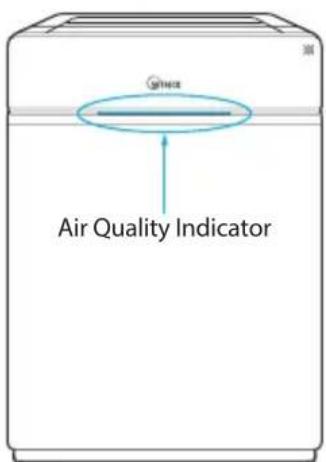

Air Quality Indicator

When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of ambient light in the room.
When Sleep Mode is activated, the Air Quality Indicator light is turned off.

WINIX SMART

8. Connecting to WINIX SMART

WINIX SMART allows you to conveniently control your air purifier from any location.

WINIX SMART is optimized for the following specifications. Depending on your smart phone capabilities and service parameters, some functions may not be supported.

ANDROID (ICS 4.12 Jellybean or later recommended) iOS (6.0 or later recommended - iPhone 4S or later)

※ Before connecting to Smart Home

• A Wi-Fi wireless router must be installed within range of the air purifier to use WINIX SMART.
• Ensure Wi-Fi router matches the following specifications; 802.11b/g/n 2.4GHz or for a dual-band wireless router (2.4GHz/5GHz), be sure to select 2.4GHz.
• Be sure to have the Wi-Fi password handy.
• During registration, please keep the air purifier, wireless router, and smart device within a 32 ft. radius.
• Obstacles between the air purifier, wireless router, and smart device may cause weak reception.
• Before connecting, users with a "Smart Network Switch" on their device should temporarily disable it.
• Once WINIX SMART has been connected, the "Smart Network Switch" on your device can be enabled.

Setup

① Download the WINIX SMART app on your device.

• available via Google Play store or iTunes App store

② Run the app and follow the setup guide to connect your device to the unit.

• Select "New Unit" and choose HR1000 to connect to this model.
• Read the notice and select "OK".
• Enter the password to your Wi-Fi network.
• Press and hold the Wi-Fi button on the unit's control panel until it beeps. *The Wi-Fi strength indicator will begin to blink*
• Connect to the WINIX SMART network via your device's network menu.
• Selecting "Next" will connect your unit to your device.
• Define the unit settings (Name and Location).
• When set up is complete, the WINIX SMART Indicator will light up.

The WINIX SMART Indicator will only light up when the app is in direct use. If the app is closed it will turn off, but will light up again when the app is re-opened.

The light will turn off if the app controls another Winix unit.

FILTER CARE

1. Changing Filters

When the Check Filter indicator LED is on, it is time to replace both the Anti-microbial True HEPA and CD Carbon filters.

Filter Indicator Light		When to service	When to replace
1 Pre-filter	-	Clean once every 14 days	Permanent
2 CD Carbon filter	Check Filter	Can NOT be WASHED	Lasts up to 12 months
3 Anti-microbial True HEPA filter

※ Intervals between filter replacement may vary depending on environment.
※ For optimal use Pre-filter can be cleaned every 14 days which can extend the life of other filters.

■ Removing Filters

Ensure the unit is turned off and unplugged before removing filters.

※ The unit will automatically power off when front panel is opened.

① Remove the front panel by grasping its upper edge and gently pulling towards yourself.

• To remove the front panel, the latch at the lower edge of the panel must be released from its position.

Diagram illustrating a hand inserting a document into a device, with an inset showing the process and a magnified view of the device's internal structure.

Latch

FILTER CARE

② Press the tabs on the top edge to remove the 1 Pre-filter.

Tabs

③ First remove the 2 CD Carbon filter and then the 3 Anti-microbial True HEPA filter by pulling on the numbered tags at the top of each filter.

Illustration of a hand opening a refrigerator with a blue arrow pointing to the interior panel (no text or symbols)

NOTICE

For optimal performance, only genuine Winix filters should be used with this unit.

FILTER CARE

2. Cleaning the Pre-filter

Intervals between filter cleanings may vary depending on the air quality.

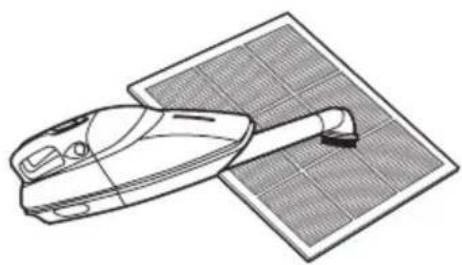

Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively dirty, wash with room temperature water.

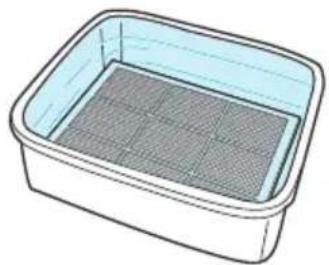

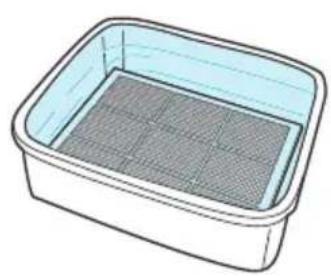

- Use only water, do not use volatile substances such as alcohol or acetone.

Line drawing of a washing machine next to a solar panel (no text or symbols)

Simple line drawing of a rectangular container with a mesh inside, no text or symbols present.

※ If the pre-filter becomes damaged or in any way needs replacement:

Please contact your local dealer

NOTICE

Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.

The Pre-filter is reusable after cleaning.

Do not use hot water over 104^ F or volatile fluids such as paint thinner.

After washing the pre-filter, allow it to dry completely in a well-ventilated area. Otherwise, it may develop a bad odor.

FILTER CARE

3. Filter Assembly and Replacement

Filters should be re-installed in the reverse order of their removal.

① Insert the replacement

3 Anti-microbial True HEPA filter (rear)
2 CD Carbon filter (middle)

- Remove the protective plastic wrap from new filters. Operating the unit without removing the protective plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

3 Anti-microbial True HEPA filter

2 CD Carbon filter

A filter 10 87 8

② Insert the 1 Pre-filter (front).

- To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

Diagram of a solar panel inside a washing machine, showing internal grid structure and blue placement (no text or symbols)

③ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

Diagram illustrating a device's internal processing with a magnified view showing blue fabric being inserted into a paper sheet.

SMART SENSOR CARE

④ After replacing the filters, power on the unit. Once the unit running, press and hold the RESET button for 5 seconds.

Reset 5 seconds

4. Cleaning the Dust Sensor

For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.

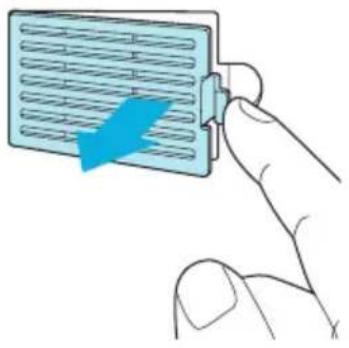

① Open the Dust Sensor cover.

Illustration of a hand inserting a card into a device (no text or symbols visible)

② Use a damp cotton swab to wipe the lens and intake area of the Dust Sensor.

• To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone.

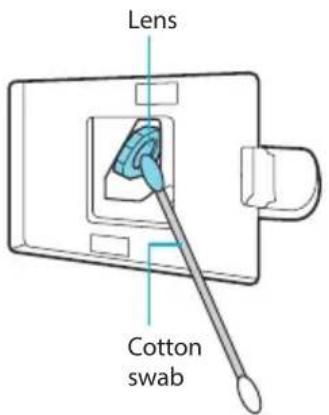

Lens Cotton swab

③ Wipe away any remaining moisture with a dry cotton swab.

Diagram of a switch inserted into a socket socket, with a tool extending from the socket (no text or symbols present)

CLEANING CARE

④ Close the Dust Sensor cover.

- The Dust Sensor cover may be cleaned using a vacuum cleaner.

Illustration of a heat exchanger with blue airflow direction indicated (no text or symbols)

5. Cleaning the exterior and interior

■ Cleaning the exterior

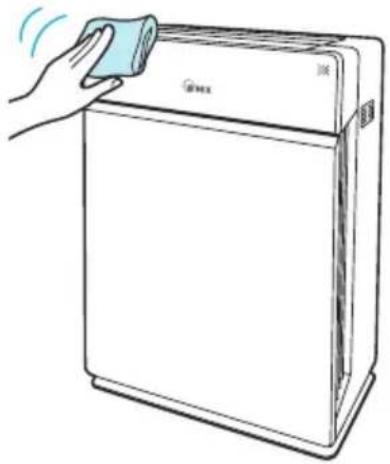

Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.

- For optimal performance, clean the front panel 1-2 times a month.

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

■ Cleaning the interior

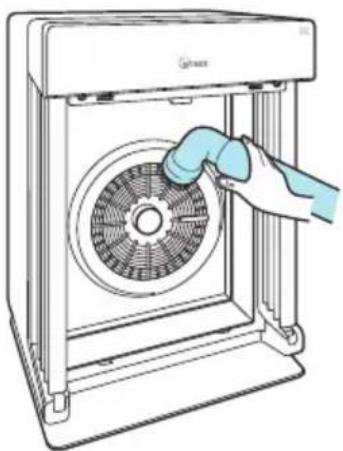

Open the front panel and clean the interior with a vacuum cleaner.

- For optimal performance, clean the interior 1-2 times a month.

Illustration of a hand cleaning a large air conditioner unit with a fan inside (no text or symbols)

NOTICE

When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled off.
Never disassemble, repair or modify this unit yourself
Do not use flammable sprays or liquid detergents
Do not allow children to clean or maintain the unit
Before cleaning or maintaining, ensure unit is off and unplugged

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take
It does not turn on at all.
	Is there a power outage?Check to see if other lights and electrical equipment are working and try again.
It doesn't work in Auto mode.
	Has Auto mode been selected?Press the Mode button until Auto mode is selected.Is the sensor blocked or clogged?Clear the sensor using a vacuum cleaner.view page 18
It vibrates and makes a lot of noise.
	Is it running on a slanted surface?Move the unit to a hard, flat area of the floor.

FREQUENTLY ASKED QUESTIONS

Problem Check / Actions to take
The power plug and outlet feel hot.	is the plug securely plugged in?Make sure the plug is properly plugged into the outlet.
There is a strange smell.	is it being used in a place with a lot of smoke, dust, or odors?Clean the air intakes on the front sides of the unit and clean the pre-filter.Contact customer service to confirm the exact cause.Replace the CD Carbon filter and Anti-microbial True HEPA filter.
The product is not purifying the air enough.	is the Check Filter indicator light on?Replace the filters as required.

UNIT SPECIFICATIONS

Model Name HR1000

Power Voltage	AC220 ~ 240V, 50Hz
Power Rate	90W
m, Capacity in Sq. M.	40 sq. m.
Weight	8.5 kg
Dimensions	415mm(W) x 245mm(D) x 600mm(H)

※ The exterior, design, and product specifications may be changed to improve product performance without prior notice.

PRODUCT WARRANTY

The terms of the warranty are as follows.

1. This product is manufactured under stringent quality control and inspections.
2. Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.
3. The warranty must be presented upon bringing the product for service.
4. Store the warranty in a safe place, as it cannot be reissued.
5. This warranty is valid only in the Europe.

Product Name		Air Purifier
Model Name		HR1000
Purchase Date
Warranty period		Two (2) years
Customer	Address
	Name
	Tel.

※ After purchase, be sure to complete all of the above information.

Independently Tested

Consumer Trusted.

160201 Rev.A

PURIFICATEUR D'AIR

WINIX

Line drawing of a white industrial water heater with 'WINIX' branding on top (no text or symbols on body)

Modèle

HR1000

Line drawing of a rectangular kitchen appliance with a lid (no text or symbols)

Produit

Stacked rectangular panels with grid patterns, no visible text or symbols

Illustration of a hand inserting a black tray into a white rack, with no visible text or symbols.

Illustration of hands holding a tablet with a blue arrow pointing to the screen (no text or symbols present)

Illustration showing a hand inserting a device into a paper with a magnified view of the component being removed.

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

SÉCURITÉ ET MISES EN GARDE

Diagram of a cable being inserted into a socket, showing two connected components (no text or symbols)

Simple line drawing of a hand pointing at a grid of four squares inside a circle (no text or symbols)

Sleep

Auto

Low Med High Turbo

MODE

NOTE

3 sec Lighting On/Off

9. PlasmaWave®

PLASMA 3 sec /

PLASMAWAVE®

VERROUILLAGE ENFANT, VOYANT LED QUALITÉ DE L'AIR

3 secondes PLASMA 3 sec /

3 sec Lighting On/Off

Air Quality Indicator

Diagram illustrating a device's internal processing with a magnified view of the component being inserted into a sheet.

Crochet

Illustration of a hand opening a refrigerator with a blue arrow pointing to the interior panel (no text or symbols)

NOTICE

Line drawing of a solar panel and its internal components (no text or symbols)

Illustration of a rectangular container filled with a mesh tray (no text or symbols)

Diagram of a solar panel installation with cooling fins and ventilation grilles (no text or labels)

Diagram illustrating a device's internal processing with a magnified view showing the process and component placement.

ENTRETIEN DU CAPTEUR INTELLIGENT

Illustration of a hand inserting a card into a device (no text or symbols visible)

Diagram of a switch inserted into a socket, with a tool extending from the socket (no text or symbols present)

CONSIGNES D'ENTRETIEN

Illustration of a heat exchanger with blue airflow direction indicated (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

Line drawing of a hand cleaning a refrigerator with a fan inside (no text or symbols)

NOTICE

Independently Tested

Consumer Trusted.

160201 Rev.A

Line drawing of a white industrial water heater with 'WINIX' branding on top (no text or symbols on body)

Modelo

HR1000

Line drawing of a rectangular kitchen appliance with a lid (no text or symbols)

Producto

Stacked rectangular panels with a mesh pattern, no visible text or symbols

Illustration of hands inserting a device into a rack with a blue arrow (no text or symbols)

Illustration of hands holding a tablet with a blue arrow pointing to the screen (no text or symbols)

Illustration of a hand inserting a card into a device, showing the card being inserted (no text or symbols present)

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

Diagram showing cable installation with labeled components, including a plug and socket connection

Simple line drawing of a hand pointing at four squares inside a circle (no text or symbols)

Sleep

Auto

Low Med High Turbo

MODE

NOTE

Simple line drawing of a hand pointing at a clock face (no text or symbols)

TIMER

3 sec Lighting On/Off

9. PlasmaWave®

PLASMA 3 sec /

PLASMAWAVE®

3 seconds PLASMA 3 sec /

3 sec Lighting On/Off

Air Quality Indicator

Illustration of a hand opening a refrigerator with a blue arrow pointing to the interior panel (no text or symbols)

NOTICE

Line drawing of a solar panel and a handheld device (no text or symbols)

Illustration of a rectangular container filled with a mesh tray (no text or symbols)

Diagram of a solar panel installation with cooling fins and ventilation grilles (no text or labels)

Illustration of a hand inserting a document into a paper holder, with a magnified inset showing the mechanism (no text or symbols present)

Illustration of a hand holding a rectangular device with a blue arrow pointing to it, no text or symbols present.

Diagram of a wall-mounted electrical socket with a cable inserted, showing internal components and wiring (no text or symbols)

LIMPIEZA

Illustration of a heat exchanger with blue arrow indicating airflow direction (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

Illustration of a hand cleaning a large air conditioner unit with a fan inside (no text or symbols)

NOTICE

Independently Tested. Consumer Trusted.

160201 Rev.A

Line drawing of a white industrial water heater with 'WINIX' branding on top (no text or symbols on body)

Modell

HR1000

Line drawing of a rectangular kitchen refrigerator with lid and front panel (no text or symbols)

Produkt

Illustration of a grid-patterned panel or filter structure (no text or symbols visible)

Mode/Fan Speed-Taste

Timer/Air Quality-Taste

Illustration of a hand inserting a black screen into a device (no text or symbols visible)

Illustration of hands holding a rectangular device with a blue arrow pointing to it, no text or symbols present

Diagram illustrating a printer's paper folding process with labeled components and a magnified view of the printer's internal structure.

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

Diagram showing two connected electrical connectors with labeled parts and blue directional arrows indicating connection points.

Simple line drawing of a hand pointing at four squares inside a circle (no text or symbols)

Sleep

Auto

Low Med High Turbo

MODE

NOTE

3 sec Lighting On/Off

9. PlasmaWave®

PLASMA 3 sec /

PLASMAWAVE®

CHILD LOCK, AIR QUALITY-LED

10. Child Lock

3 seconds PLASMA 3 sec /

3 sec Lighting On/Off

Air Quality Indicator

NOTE

ANSOLED APP ON Google play

Available on the App Store

Diagram illustrating a device's internal processing with a magnified view showing the process and component details.

Riegel

PFLEGE DER FILTER

Illustration of a hand opening a refrigerator with a blue arrow pointing to the interior panel (no text or symbols)

NOTICE

Illustration of a vacuum cleaner next to a solar panel array (no text or symbols)

Illustration of a rectangular container filled with a mesh pattern (no text or symbols)

Diagram of a solar panel installation inside a rack unit (no text or symbols visible)

Illustration of a hand inserting a paper into a machine, showing the process with a magnified view of the mechanism (no text or symbols present)

SMART-SENSOR-PFLEGE

Illustration of a hand inserting a card into a device (no text or symbols visible)

Diagram of a switch inserted into a socket socket, with a tool extending from the socket (no text or symbols present)

Illustration of a blue arrow pointing to a grid-like structure inside a rectangular panel (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit with a fan inside (no text or symbols)

NOTICE

Independently Tested

Consumer Trusted.

160201 Rev.A

PURIFICATORE ARIA

WINIX

Line drawing of a white industrial air purifier unit labeled 'WINIX' (no additional text or symbols)

Modello

HR1000

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Prodotto

Stacked rectangular panels with grid patterns, no visible text or symbols

Illustration of hands inserting a card into a device (no text or symbols present)

Illustration of a computer monitor with a screen showing a blue lightning bolt (no text or symbols)

Illustration of hands interacting with a grid device, showing a blue arrow pointing to a specific area (no text or symbols present)

Illustration of a multi-tiered air conditioner unit with hands installing or adjusting the cover (no text or symbols visible)

Illustration showing a hand inserting a device into a paper with a magnified view of the device's internal structure.

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

SICUREZZA E PRECAUZIONI

Diagram showing two connected electrical connectors with labeled parts and blue directional arrows indicating connection points.

Simple line drawing of a hand pointing at a grid of four squares inside a circle (no text or symbols)

Sleep Auto

Low Med High Turbo

MODE

NOTE

3 sec Lighting On/Off

9. PlasmaWave®

PLASMA 3 sec /

PLASMAWAVE®

BLOCCO BAMBINI, LED QUALITÀ ARIA

10. Blocco bambini

3 seconds PLASMA 3 sec /

3 sec Lighting On/Off

Air Quality Indicator

12. Connessione a WINIX SMART

Illustration of a hand opening a refrigerator with a blue arrow pointing to the interior panel (no text or symbols)

NOTICE

Line drawing of a washing machine next to a solar panel (no text or symbols)

Illustration of a rectangular container filled with a mesh pattern (no text or symbols)

Diagram of a solar panel inside a clean air conditioner unit, showing internal grid structure and ventilation slots (no text or symbols)

Diagram illustrating a hand inserting a document into a paper holder, with a magnified inset showing the process.

CURA DEL SENSORE SMART

Illustration of a hand inserting a card into a clip (no text or symbols visible)

Diagram of a screwdriver inserted into a socket socket (no text or symbols)

PULIZIA

Illustration of a heat exchanger with blue arrow indicating airflow direction (no text or symbols)

5. Pulire le parti esterna e interna

■ Pulire la parte esterna

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

■ Pulire la parte interna

Line drawing of a hand cleaning a large air conditioner unit with a fan inside (no text or symbols)

NOTICE

Independently Tested Consumer Trusted.

160201 Rev.A

WINIX-LUCHTREINIGER

Line drawing of a white industrial water heater with 'WINIX' branding on top (no text or symbols on body)

Model

HR1000

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Product

Illustration of a multi-panel solar panel with grid patterns (no text or symbols)

HET APPARAAT PLAATSEN

Illustration of hands inserting a device into a screen (no text or symbols visible)

Illustration of hands holding a tablet with a blue arrow pointing to the screen (no text or symbols)

Diagram illustrating a device's internal processing with labeled components and directional arrows indicating flow or movement.

this unit is compatible with this WINIX filter ITEM: 117130 FILTER J

VEILIGHEIDSVOORSCHRIFTEN EN WAARSCHUWINGEN

Diagram showing two connected electrical plugs with labeled parts and blue directional arrows indicating connection points.

Hand pointing at a grid of four squares inside a circle (no text or symbols)

Sleep Auto

Low Med High Turbo

MODE

NOTE

3 sec Lighting On/Off

9. PlasmaWave®

PLASMA 3 sec /

PLASMAWAVE®

KINDERVERGRENDELING, LEDINDICATIE LUCHTKWALITEIT

10. Kindervergrendeling

3 secondes PLASMA 3 sec /

3 sec Lighting On/Off

AQI Air Quality Indicator

Illustration of a hand opening a refrigerator with a blue arrow indicating the interior panel (no text or symbols present)

NOTICE

Line drawing of a solar panel and its internal components (no text or symbols)

Illustration of a rectangular container filled with a mesh pattern (no text or symbols)

Diagram of a solar panel installation inside a washing machine (no text or symbols visible)

Diagram illustrating a device's internal processing with a magnified view showing the process and component placement.

CURA DEL SENSORE SMART

Illustration of a hand inserting a card into a device (no text or symbols visible)

Diagram of a wall-mounted switch with a blue plastic clip inserted, no text or symbols present

REINIGING

Illustration of a heat exchanger with blue arrow indicating airflow direction (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit (no text or symbols)

Line drawing of a hand cleaning a large air conditioner unit with a fan inside (no text or symbols)

NOTICE

Independently Tested

Consumer Trusted.

160201 Rev.A
