USER MANUAL T3 Alberello

Alberello T3 - 16 liter

Model: MDT3-16DMN3-QA3(T3-16L)

HANDLEIDING

MODE D'EMPLOI

GEBRAUCHSANLEITUNG

INSTRUCTION BOOKLET

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

2. Continue drainage

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

FOLLOW THE INSTRUCTIONS BELOW TO AVOID INJURY TO THE USER OR OTHER PERSONS AND DAMAGE TO PROPERTY .INCORRECT USE OF THE MACHINE AND NEGLECTING INSTRUCTIONS CAN CAUSE DAMAGE OR INJURY.

• Make sure that the electrical specifications listed on the machine (voltage, wattage,... see label on the back) are consistent with the electrical network and any intermediate pieces.
• Do not turn the machine on or off by pulling the plug out of the outlet.
• Do not damage the electrical cable.
• Do not adjust the length of or share the outlet to which the machine is connected with other devices.
• Do not plug the plug into the outlet or pull the plug out of the outlet with wet hands.
• Do not place the machine near a heat source. Plastic parts may melt and cause a fire.
• Unplug the machine if there are strange noises, smells or smoke coming from the machine.
• Do not try to take the machine apart or try to repair it yourself.
• Turn off the machine and pull the plug from the outlet before cleaning the machine.
• Do not use the machine near flammable gasses or combustible items such as gasoline, thinner, etc.
• Do not use or drink the water collected by the machine. This water may be contaminated and make you sick.

• Do not remove the water reservoir out of the machine during use.

• Do not use the machine in small rooms. A lack of ventilation can cause overheating and fire.

• Do not place the machine in a location where water can splash on the machine. The water may leak into the machine. This can cause electrical shock or fire.
• Place the machine on a flat, stable surface, so that it cannot fall over.
• Do not cover the openings in the machine (such as towels, hand towels,...). A lack of air circulation can cause overheating and fire.
• Be careful if the machine is being used in a room where babies, children or elderly people are present.
• Do not use the machine in an environment where chemicals are used.
• Never stick your fingers or foreign objects in the openings or grills of the machine, because this can lead to electric shock. Warn children of this danger.
• Do not put any heavy objects on the cord and make sure that the cord is not crushed.
• Do not climb or sit on the machine.
• Make sure that the filter is always in the correct position. Clean the filter every 2 weeks.
• If water runs into the machine, turn the machine off, pull the plug from the outlet and contact a qualified technician.
• Do not put vases or other water containers on the machine.

ELECTRICAL INFORMATION

• For electrical and technical information on the machine, consult the label on the back of the machine.
• Always connect the machine to an earthed outlet.
• Make sure that the outlet is still accessible after the machine is installed.
• Do not use extension cords or other adapter plugs with this machine. If you decide to use an extension cord out of necessity, use a splash resistant cable suitable for outdoor use.
• Always unplug the machine from the outlet before performing maintenance.

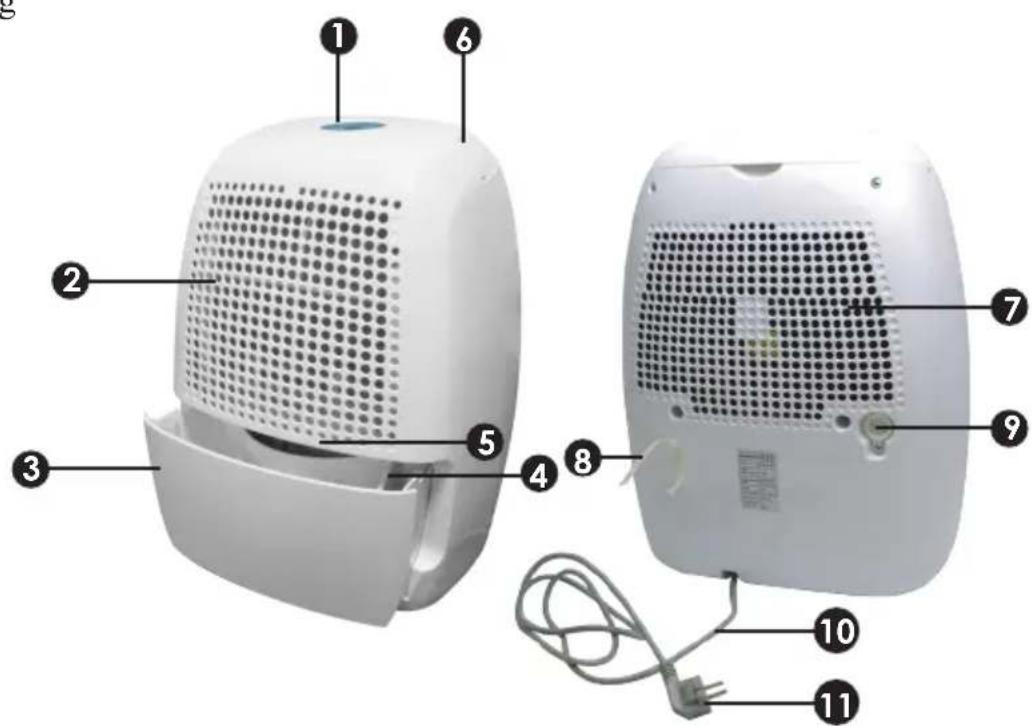

COMPONENTS

1. Control Panel
2. Grill Air Intake
3. Water Reservoir
4. Float (tells the machine that the water reservoir is full)
5. Air filter (behind the grill)
6. Handle
7. Grill Exhaust
8. Fastener band for the cord (only for storing the machine)
9. Outlet for the drainage hose
10. Cord
11. Plug

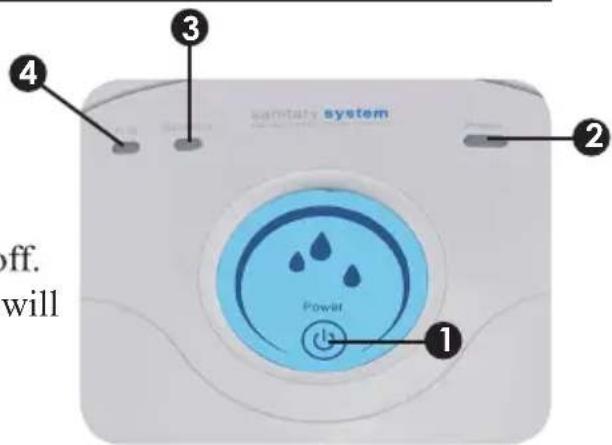

CONTROL PANEL

Buttons

1. On/Off Button

Press this button to turn the dehumidifier on and off. When you turn the machine on, the 'power' light will turn on

2. Power indicator light

The blue «power» light indicates that the machine is on.

3. Dehumidify operation on indicator light(blue)

The blue «working» light indicates that the machine is dehumidifying.

4. Bucket full indicator light(red)

The red «full» light indicates that the water reservoir of the machine is full and needs to be emptied.

EXTRA FUNCTIONS

Indication that the water reservoir is full.

When the water reservoir is full, of when it is not reset in the correct position this light will come on ("Full").

Automatic Defrost

When ice forms in the machine, the machine will automatically start to thaw itself.

Automatic Shut-Off

When the water reservoir is full, has been pulled out or is not in the correct position, the dehumidifier will shut off automatically. When the desired humidity degree has been reached, the machine will turn itself automatically.

Automatic Restart

If the machine is unexpectedly disconnected from the power, when the power is restored, the machine will turn back on automatically at the setting set before the power was disconnected.

Wait 3 minutes before restarting operation.

When the machine is stopped, it cannot be restarted for the first three minutes. This is to protect the machine. The machine will automatically restart after 3 minutes.

POSITIONING OF THE MACHINE

• Do not use the machine outside. This machine is only suitable for household use indoors. This air humidifier may not be used for commercial or industrial purposes.

• Place the dehumidifier on a flat, even surface which is strong enough to support the machine with a full water reservoir.

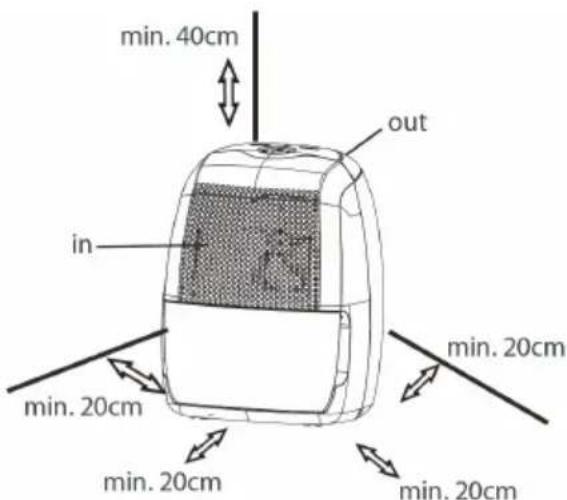

• Leave at least 20cm on each side of the machine to provide good air circulation.

• Place the machine in an environment

where the temperature will not fall below 5^ . The radiators may freeze, which will reduce the machine's performance.

• Do not place the machine near a dryer, heater or radiator.
• Use the machine to avoid moisture damage.
• To be as efficient as possible, the dehumidifier should be used in a closed room. Close all the doors, windows or other openings to the outside in the room.
• The wheels can only move forward and backward. Do not force the wheels to roll over the carpet, or move the machine with water in the water reservoir. The machine may fall over and water may spill.

USE

Let the machine run for 24 hours when you use it for the first time.

• The machine is designed to work in an environment with a temperature between 5^ and 35^ .
• If the machine is turned off and turned on again quickly, give the machine approximately 3 minutes to restart correctly.
• Do not connect the dehumidifier to a shared outlet which is used for other devices.
• Choose a suitable location with an easily accessible outlet.
• Connect the machine to an earthed outlet, where the voltage is consistent with the voltage listed on the machine.
• Make sure that the water reservoir is in the correct position, otherwise it will not work properly.

REMOVING THE WATER IN THE WATER RESERVOIR

There are two ways to remove the water from the reservoir.

1. Use of the Water Reservoir

1. When the machine is full, it will stop automatically and the 'full' light will turn on.
2. Slowly remove the water reservoir from the machine. Hold it securely by the handles on the left and right and pull the reservoir slowly out straight, so that no water is spilled.
3. Pour the water out and place the reservoir back in the machine. The reservoir must be placed correctly back in the machine so that the dehumidifier will work properly.
4. The machine will resume functioning when the water reservoir is replaced correctly in position.

2. Continual Drainage

The water reservoir can be automatically emptied via a drain by connecting a water hose to the machine. (circumference: 12mm , not included).

The outlet for the drain is located on the back of the machine.

1. Pull the rubber stopper out of the opening.
2. Insert the water hose through the opening into the machine. Connect the hose tightly to the drainage outlet and make sure that the connection is tight and that no water can leak out.
3. Lead the hose to the location to which the water is destined, such as a floor drain. Make sure that this point is lower than the drainageoutlet.

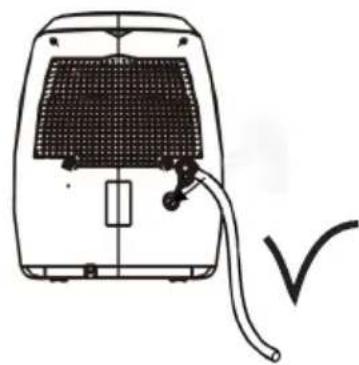

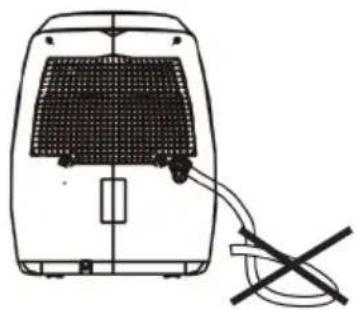

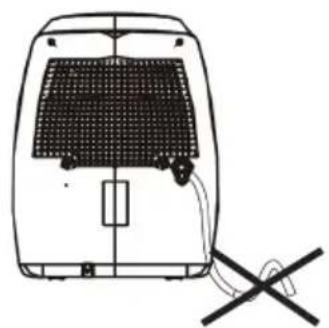

4. Make sure that the hose runs vertically, so that the water can drain quickly. In other words, there should be no kinks in the hose. (see figures)

NOTE: when this continual drainage is not used, make sure that the rubber stopper is not in the drainage hole.

MAINTENANCE AND CLEANING

Turn off the machine and pull the plug from the outlet before cleaning the machine.

1. Grill and Housing

Use water and a mild detergent to wipe the grills and the housing clean. Do not use bleach water or abrasive agents.

Do not pour or spill water directly onto the machine. This can cause electrical shock, damage to the insulation or rust on the machine.

The grills where the air enters and exits can easily become soiled. Use a vacuum cleaner accessory or a brush to clean it.

2. Water Reservoir

Clean the water reservoir regularly to prevent the growth of mould and bacteria.
Partially fill the water reservoir with clean water and add a bit of mild detergent. Rinse the reservoir with this solution, pour the solution out, and rinse the reservoir.

After cleaning, the reservoir must be replaced correctly into the dehumidifier so that the machine will function.

NOTE: do not use a dishwasher to clean the reservoir.

3. Air Filter

The air filter behind the front grill grate should be checked and cleaned every 30 days. NOTE: Do not put the filter into the dishwasher.

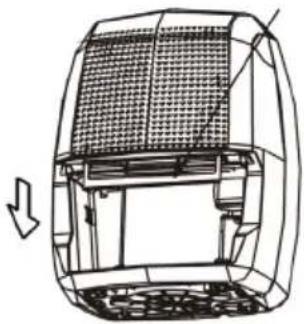

To remove the filter:

Remove the water reservoir from the machine.

Pull the filter down.

Clean the filter with warm soapy water. Rinse the filter and let it dry before putting it back. Do not clean the filter in the dishwasher!

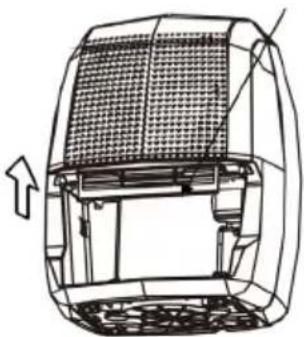

To replace the filter:

Put the filter back into the space behind the grill grate and push the filter up.

NOTE: never use the dehumidifier without a filter. The machine may get clogged by dirt and dust which will negatively affect its performance.

4. When the machine has not been used for a long time

1. Turn the machine off and wait a day before emptying the water reservoir. This gives the machine a chance to drain and there will be as little residual moisture in the machine as possible.
2. Clean the machine, the water reservoir and the air filter.
3. Roll up the cord and attach it to the machine with the attachment band behind the machine.
4. Cover the machine with a plastic sack.
5. Store the machine upright in a dry, well ventilated place.

WHAT TO DO IF THERE ARE PROBLEMS:

Before contacting the repair service, you can check the following things yourself.

PROBLEM CHECK:
The machine does not start up.	Make sure that the plug is fully inserted into the outlet.
	Check the fuse in the fusebox in your home.
	The dehumidifier has reached the set humidity level or the water reservoir is full.
	The water reservoir is not in the correct position in the machine.
The dehumidifier is not drying the air as it should.	The machine has not stood long enough.
	Make sure that there are no curtains, blinds or furniture blocking the front or back of the dehumidifier.
	The desired humidity percentage may be set too low.
	Check that all of the doors, windows and other openings in the room are closed.
	The temperature in the room is too low (under 5°C).
	There is a kerosene heater or another object producing steam in the room.
The machine is making too much noise when it is in operation.	The air filter is clogged.
	The machine is not standing evenly as it should.
	The floor is not even.
There is frost on the radiators.	This is normal. The machine has an automatic thaw function.
There is water on the floor.	The water hose for drainage is not correctly attached to the machine.
	The rubber stopper is not in the drain opening behind the machine when the continual drainage is not in use.
The ‘power’ light blinks 5 times per second.	Temperature or humidity sensor error. Pull the plug out of the outlet and plug it back in. If the error message repeats, contact the service centre.

PRECAUCIONES IMPORTANTES

Para guitar el filtro:

1. The appliance is under guarantee for a period of two years from the delivery date. This date is given on the receipt/invoice, unless the purchaser proves that the delivery took place later.
2. Should the product have a defect before the expiry of this guarantee, KEBO guarantees its repair or replacement unless one of these two solutions is out of proportion to the actual defect. The purchaser has the duty of notifying the non-conformity to the vendor within two months of discovering the defect.
3. The guarantee does not cover for any defective parts owing to inattentive or careless use, non-observation of the operating instructions, incorrect installation, maintenance carried out by unauthorised staff, normal wear and tear, damage due to transport, or circumstances that cannot be caused by manufacturing defects.
4. The guarantee also excludes any cases of improper use or unprofessional use of the appliance.
5. KEBO cannot be held responsible for any damage directly or indirectly deriving from people, pets or items following the non-observance of any of the descriptions in the "Manual of instructions and warnings", regarding product installation, use and maintenance.
6. The aforesaid conditions do not affect the guarantee agreements made directly with the shop where the appliance is bought.

SERVICE

The appliance must be repaired at a KEBO Service Center. The defective appliance, if under guarantee, must be brought to the Service Center for replacements/repairs with a receipt/invoice that confirms the date of sale or purchase.

After the warranty period, the repair will be charged. A handling charge of 60 Euros will be made in addition to the repair and material costs.
