Product Type	Photoelectric Smoke Detector
Power Supply	3 lithium 3V batteries (included)
Battery Life	Up to 5 years
Alarm Sound Level	85 dB
Detection Type	Photoelectric (smoke particles)
Visual Indicator	Red LED flashes every minute
Test Button	Yes
Operating Temperature	0°C to +40°C
Maximum Humidity	< 85%
Detector Warranty	5 years
Battery Warranty	Not specified (batteries included)
Installation	On ceiling, on mounting bracket
Cleaning	Monthly vacuuming of detection chamber
Battery Replacement	Daily “beep” sound for 30 days
Recommended Lifespan	10 years maximum
Anti-fall Function	Not specified
Certifications	Not specified
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - PSE514 Profile

How to install the PSE514 smoke detector?

Remove the mounting bracket by turning counterclockwise. Fix the bracket to the ceiling using screws and wall plugs. Remove the plastic film from the battery, connect it, then turn the detector onto the bracket clockwise. Test operation by pressing the test button for a few seconds.

Where to install the smoke detector?

Install the detector in the center of the ceiling, at least 60 cm from walls and more than 7.5 m from risk areas. Place one on each floor and within 3 m of bedrooms. Avoid bathrooms, kitchens, garages, and areas with drafts or extreme temperatures.

How to test the smoke detector?

Press the test button until the alarm sounds. Release the button to stop the signal. The red LED flashes every minute in normal operation. Test the device at least once a month and after a prolonged absence. Never test with fire.

What to do if the alarm sounds for no reason?

Check if there is smoke or steam (kitchen, shower). If none, test the detector. A periodic beep indicates a low battery to be replaced. Regular cleaning can prevent false alarms due to dust.

How to change the detector battery?

Unscrew the detector from the bracket. Hold the test button pressed for 10 seconds. Replace the battery with a 3V lithium battery respecting polarity. Screw the detector back. Never remove the battery without a valid reason.

What does the periodic beep of the detector mean?

A daily beep of about 1 minute for 30 days indicates that the battery is low and must be replaced quickly. If the beep persists after replacement, contact customer service.

How to clean the smoke detector?

Use a vacuum cleaner with a soft brush to vacuum the detection chamber and sides. Clean once a month. Do not use any detergent or chemicals. Neglected cleaning can lead to malfunction.

What is the warranty of the PSE514 detector?

The detector (except battery) is guaranteed 5 years against material or manufacturing defects under normal use. The warranty does not cover damage due to misuse. Keep the receipt.

Can I paint the smoke detector?

No, never paint the detector. Paint can obstruct the openings and prevent smoke from entering, making the device ineffective.

How long does the detector battery last?

Under normal conditions, the 3V lithium battery can last up to 5 years. A daily beep will signal it needs replacement. It is recommended to replace the detector every 10 years.

USER MANUAL PSE514 Profile

Circular light green device with ventilation slots and a small circular button, no visible text or symbols.

Ref.566025002

PSE-514

Profile

www.profile.eu

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE

Close-up of hands holding a white circular device with a black curved line and arrow pointing to its side (no text or symbols visible)

Close-up of hands holding a white circular object with a blue pen, no visible text or symbols

Close-up of hands using a tool to apply material to a small white container (no text or symbols visible)

Close-up of hands holding a circular mechanical component with internal components and a black arrow pointing to a green component (no text or symbols visible)

Close-up of hands holding a white circular object with a black arrow pointing to it, no visible text or symbols

Dead air space Best location Acceptable locations

Hand pressing a white smokestack on a circular base (no text or symbols visible)

Close-up of a hand holding a black tool interacting with a white circular device (no visible text or symbols)

Hand holding a mechanical component with four circular holes and a screwdriver inserted (no visible text or symbols)

Hand pointing at a white circular device with indicator lights (no text or symbols visible)

1134-CPR-111Smoke alarm devicesKD-128AEN 14604:2005/AC:2008DoP No. 566025002-001CPR

1134Intended for Fire Safety and installed in buildingsEssential characteristic 1:passEssential characteristic 2:passEssential characteristic 3:passEssential characteristic 4:passEssential characteristic 5:passEssential characteristic 6:passEssential characteristic 7:passEssential characteristic 8:pass

ELTRA NV

Pachtgoedstraat 2

9140 Temse

www.profile.eu

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE

Close-up of hands holding a circular device with a black arrow pointing to the edge (no text or symbols visible)

Close-up of hands painting a white circular object with a blue pencil (no text or symbols visible)

Close-up of hands using a tool to adjust or repair a small object on a white surface (no text or symbols visible)

Close-up of hands holding a mechanical component with a small red and green knob, no visible text or symbols

Close-up of hands holding a small white container with a black arrow pointing to the lid (no visible text or symbols)

Dead air space Best location Acceptable locations

Hand touching a white smokestack with a handle, no visible text or symbols

Close-up of a hand holding a black tool interacting with a white circular device (no visible text or symbols)

Close-up of a hand holding a circular mechanical component with three white circular holes and a green indicator light, no visible text or symbols.

Hand pointing at a white circular device with a plus symbol, no visible text or labels

1134-CPR-111Smoke alarm devicesKD-128AEN 14604:2005/AC:2008DoP No. 566025002-001CPR	1134	Intended for Fire Safety and installed in buildingsEssential characteristic 1:passEssential characteristic 2:passEssential characteristic 3:passEssential characteristic 4:passEssential characteristic 5:passEssential characteristic 6:passEssential characteristic 7:passEssential characteristic 8:pass
	14

ELTRA NV

Pachtgoedstraat 2

9140 Temse

www.profile.eu

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE

Close-up of hands holding a circular device with a black arrow pointing to it, no visible text or symbols

Close-up of hands holding a white circular object with a blue pen inserted, no visible text or symbols

Close-up of hands using a tool to apply material to a small white container (no text or symbols visible)

Close-up of hands holding a mechanical component with a red arrow pointing to a green and black mark (no visible text or symbols)

Close-up of hands adjusting a white circular device with a black curved line and arrow (no visible text or symbols)

3D floor plan of a modern residential apartment with visible rooms, furniture, and a swimming pool (no text or labels)

Mindestschutz:

Dead air space Best location Acceptable locations

Hand pressing a white circular device with a plus button, no visible text or symbols

Close-up of a hand holding a black object over a white circular device with a plus sign (no visible text or symbols)

Close-up of a hand holding a circular mechanical component with three white circular holes and a green indicator light, being handled by a tool (no visible text or symbols)

Hand touching a white smokestack with a plus button (no text or symbols visible)

1134-CPR-111Smoke alarm devicesKD-128AEN 14604:2005/AC:2008DoP No. 566025002-001CPR	1134	Intended for Fire Safety and installed in buildingsEssential characteristic 1:passEssential characteristic 2:passEssential characteristic 3:passEssential characteristic 4:passEssential characteristic 5:passEssential characteristic 6:passEssential characteristic 7:passEssential characteristic 8:pass
	14

ELTRA NV

Pachtgoedstraat 2

9140 Temse

www.profile.eu

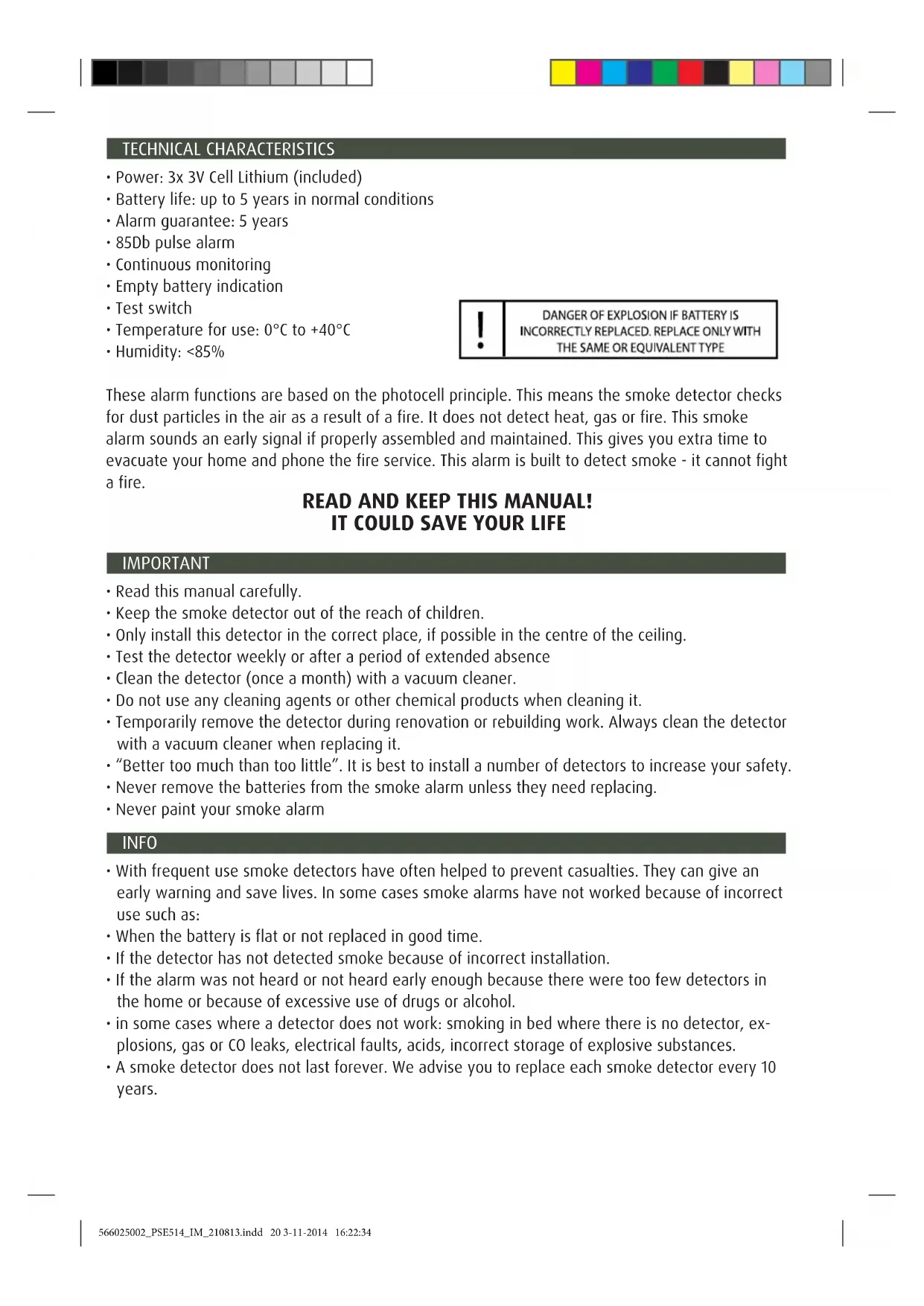

• Power: 3x 3V Cell Lithium (included)
- Battery life: up to 5 years in normal conditions
• Alarm guarantee: 5 years
- 85Db pulse alarm
• Continuous monitoring
• Empty battery indication
- Test switch
• Temperature for use: 0°C to +40°C
- Humidity: < 85%

!

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE

These alarm functions are based on the photocell principle. This means the smoke detector checks for dust particles in the air as a result of a fire. It does not detect heat, gas or fire. This smoke alarm sounds an early signal if properly assembled and maintained. This gives you extra time to evacuate your home and phone the fire service. This alarm is built to detect smoke - it cannot fight a fire.

READ AND KEEP THIS MANUAL! IT COULD SAVE YOUR LIFE

IMPORTANT

• Read this manual carefully.
• Keep the smoke detector out of the reach of children.
• Only install this detector in the correct place, if possible in the centre of the ceiling.
• Test the detector weekly or after a period of extended absence
• Clean the detector (once a month) with a vacuum cleaner.
• Do not use any cleaning agents or other chemical products when cleaning it.
• Temporarily remove the detector during renovation or rebuilding work. Always clean the detector with a vacuum cleaner when replacing it.
• "Better too much than too little". It is best to install a number of detectors to increase your safety.
• Never remove the batteries from the smoke alarm unless they need replacing.
• Never paint your smoke alarm

INFO

• With frequent use smoke detectors have often helped to prevent casualties. They can give an early warning and save lives. In some cases smoke alarms have not worked because of incorrect use such as:
• When the battery is flat or not replaced in good time.
• If the detector has not detected smoke because of incorrect installation.
• If the alarm was not heard or not heard early enough because there were too few detectors in the home or because of excessive use of drugs or alcohol.
• in some cases where a detector does not work: smoking in bed where there is no detector, explosions, gas or CO leaks, electrical faults, acids, incorrect storage of explosive substances.
• A smoke detector does not last forever. We advise you to replace each smoke detector every 10 years.

INSTALLATION OF YOUR SMOKE DETECTOR

Close-up of hands holding a white circular device with a black curved line and arrow pointing to its edge (no text or symbols visible)

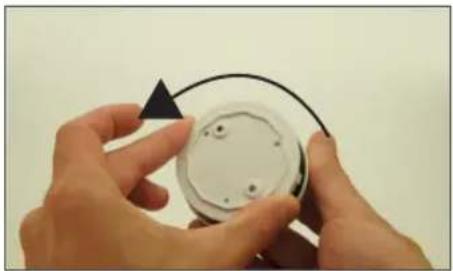

Remove the mounting bracket by turning it anticlockwise (to the left). This bracket must be assembled on the ceiling.

Close-up of hands holding a white circular object with a blue pen, no visible text or symbols

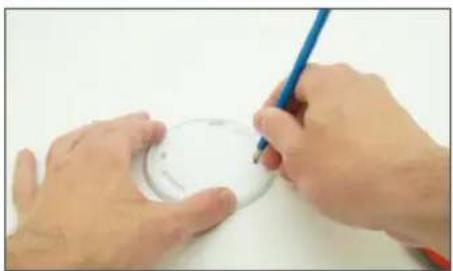

Use a pencil to mark the drill holes through the mounting bracket on your ceiling. Drill the holes and insert the plugs if necessary.

Close-up of hands using a tool to apply material to a small white object (no text or symbols visible)

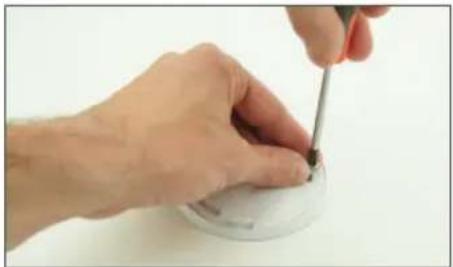

Screw the bottom plate tight on the ceiling. Make sure that the bottom plate is tight against the ceiling so no air can circulate above the smoke detector and impede smoke detection. If necessary seal this opening with mastic.

Close-up of hands assembling a mechanical component with a black arrow pointing to a red-green part (no text or symbols visible)

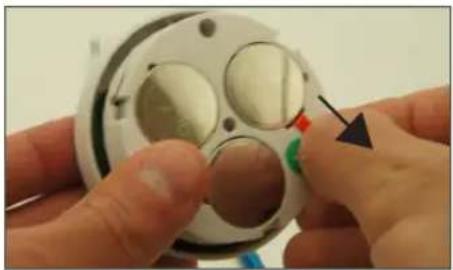

Take the battery out of the compartment and remove the plastic cover. Insert the battery in the detector.

Close-up of hands holding a white circular object with a black arrow pointing to it, no visible text or symbols

TIP: check the detector for correct operation. Press the test button on the top of the detector for several seconds. If the detector sounds a loud signal it is working perfectly. Fit the batteries correctly. If they are not inserted correctly the product cannot work or there is a risk of explosion (with lithium batteries).

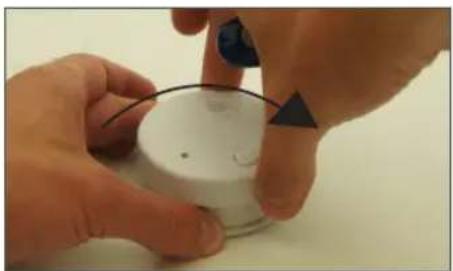

Fit the smoke detector on the bottom plate and turn it clockwise (to the right).

CAUTION: a smoke detector without battery CANNOT be fitted on the bottom plate.

UK

WHERE TO FIT A SMOKE DETECTOR

Before the detector responds a certain amount of smoke will first have to enter the device. The detector must be installed within 10 paces of the seat of a fire to be able to respond, and in such a way that the sound of the alarm will reach you anywhere in the home, even if you are asleep. A single smoke detector in your home gives some protection providing it is fitted in the correct place, but two or more smoke detectors in your home ensure better safety in warning you in good time. It is best to install smoke detectors in all spaces where a fire could originate, and certainly in children's rooms.

Min inst floor • W a • W Max inst (ex

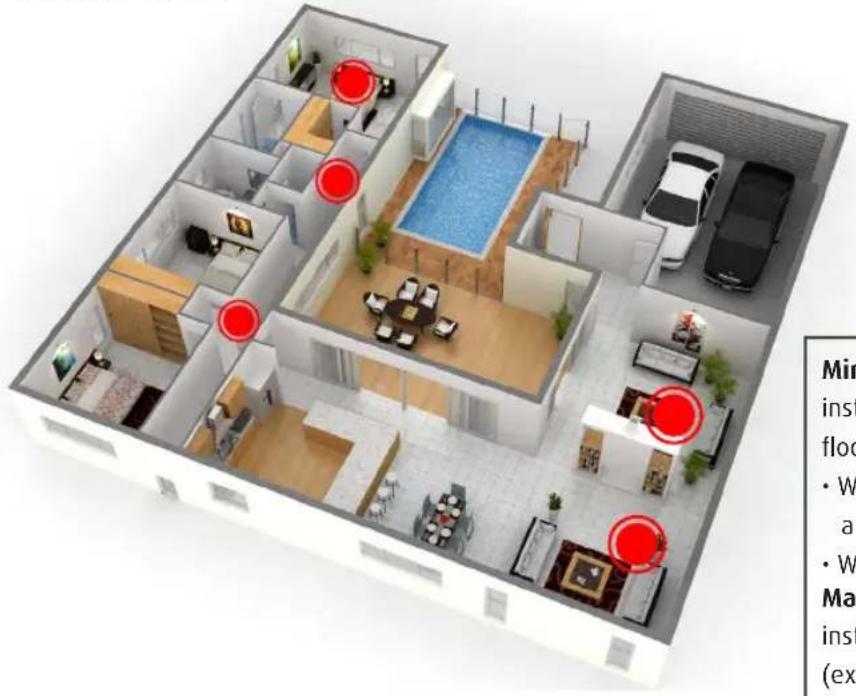

Minimum protection:

install a smoke detector on each floor.

• Within 7.5 metres of spaces where a fire can occur.
  • Within 3 metres of bedrooms.

Maximum protection:

install a smoke detector in all rooms (except bathroom and kitchen).

It is important to fit the alarm in a passageway or hallway between the living room and bedrooms. Fit it as near as possible to the living room, but make sure you could still clearly hear the alarm in your bedroom (see figure 1). If it is a large home with a passageway or hallway longer than 15 metres, one smoke detector is not sufficient. The distance to a possible seat of fire can then be more than 7.5 metres, which is too long. In a home with more than one sleeping part it is recommended to fit smoke detectors between all bedrooms and the living room.

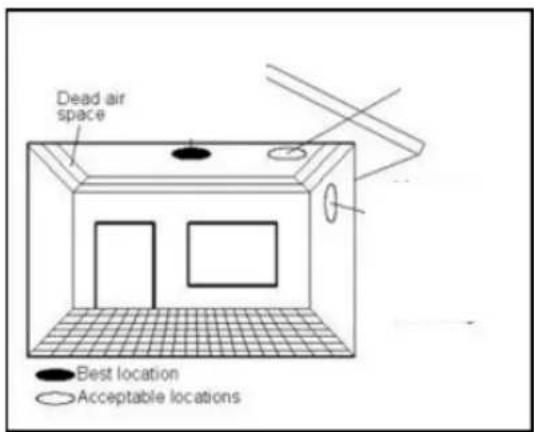

Dead air space Best location Acceptable locations

• Fit the smoke detector in the middle of the ceiling but not in the neighbourhood of draughts or other air flows
  • Always at least 60 cm from the wall.
• It is particularly important to not fit the detector in the apex of a roof because fumes cannot usually reach corners.
• When ceiling assembly is not possible, you can install the smoke detector 30 cm from the ceiling on the wall.

NEVER FIT A SMOKE DETECTOR:

• In bathrooms, kitchens, showers, garages, etc. In places where it can sound a false alarm due to condensation, normal smoke or gases. Fit a smoke alarm at least 5 metres from such sources of smoke.
• Places where the temperature can rise to above 40^ C or fall to below 0^ C .
• In the vicinity of decorative objects, doors, electrical boxes, lamps, fittings, windows, wall fans, etc. that can prevent smoke from reaching the smoke detector.
• Fit the detector at least 50cm away from an object.
• Surfaces that are normally warmer or colder than the rest of the space. Temperature variations can impede smoke from reaching the detector.
• Next to or directly above heaters.
  • In places that are very difficult to reach.
  • In very dusty places. Dust can prevent smoke from reaching the smoke chamber.
• Within one metre of dimmers and wiring. Some dimmers can affect the working of a smoke detector.
• Within 1.5m of fluorescent lighting. Electrical pulses can affect the working of the detector.
• Outdoor or indoor spaces where there may be many insects. Small insects in the smoke chamber can affect the working of the detector.

UK

TESTING YOUR SMOKE DETECTOR

Hand pressing a white circular device with plus signs, no visible text or symbols on the device itself

This smoke detector has a test function. Press until the alarm signal sounds to be sure of correct operation. The signal stops when you release the button. The smoke detector has a red LED that lights up once a minute with normal operation.

TIP!

• To check proper operation test the detector at least once a month. It is best to do this once a week, and certainly after a prolonged absence.
• Do not test with fire!!!

CLEANING YOUR SMOKE DETECTOR

Close-up of a hand holding a black tool interacting with a white circular device (no visible text or symbols)

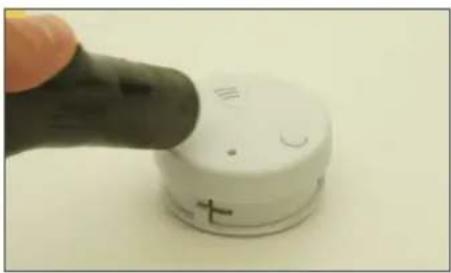

Clean your detector regularly (e.g. once a month) depending on the location. Vacuum clean the detector near the detector chamber and on the sides. This can be done with your vacuum cleaner's soft brush.

CAUTION: not cleaning your detector can result in poor operation of the detector.

REPLACING THE BATTERIES

Close-up of a hand holding a circular mechanical component with three white circular holes and a green indicator light, being handled by a tool (no visible text or symbols)

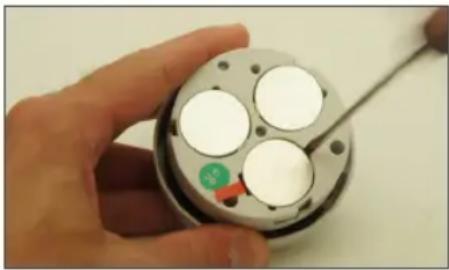

This smoke detector works on 3V lithium Cell batteries. When the battery must be replaced the detector sounds an audible 'beep' signal. This signal sounds every minute for approximately 30 days.

Replace the battery as soon as possible. Turn the detector anticlockwise on the mounting bracket. Press the test button for ten seconds before fitting the new batteries. Then insert the new batteries. ENSURE CORRECT POLARITY.

Hand pointing at a white smokestack with indicator lights (no text or symbols visible)

CAUTION: treat your used batteries as chemical waste. Hand them in at your recycling centre or throw them in a waste container for that purpose.

TIPS

HOW TO AVOID A FIRE

• Always safely store flammable substances in a fire-safe place.
- Keep matches out of the reach of children.
- Never leave candles to burn unattended.
- Never throw the contents of an ash tray in the rubbish bin without checking that everything has extinguished.
- Make sure your metal fire guard is always properly in front of your fireplace, and have your chimney cleaned regularly.
• Always use fuses with the stipulated capacity for the protection of your mains.
- Never experiment with fuses.
- Make sure that your electrical installation is in good condition and never overload it.
- Do not smoke in bed.
- Only buy electrical installations or appliances of approved quality.

BE ALERT

• Plan two escape routes: choose the most suitable windows to escape through. Place a ladder if the window is too high. At night close your bedroom door to slow the spread of fire. Use other firefighting equipment and make sure that you know how to use it.
• Test your escape routes with your family. Make a game of it if necessary.
  • Always agree a meeting place outside the home.
• When evacuating close as many doors as possible to slow the spread of the fire.
• Never open a warm door. Then choose your alternative route.
• With much smoke formation crawl as close as possible to the ground. Only breathe through a damp cloth or hold your breath as much as possible. Smoke is also very hot and toxic. Smoke is the main cause of fatalities in fires, not fire itself.
• Only phone the fire service when you are outdoors or with the neighbours.
• Never go back into a burning home

TIP: The local fire department can provide you with more information about fire prevention

LIMITED GUARANTEE

Eltra nv guarantees that this product (excluding the battery) is free of material and manufacturing defects, with a five-year guarantee with normal use and maintenance. This period starts on the original purchase date. Eltra nv is not bound to replace or repair the product in the case of damage due to poor maintenance, improper use or modifications or changes made after the purchase date. Neither can Eltra nv be held responsible for any damage or losses suffered, including accidents or resulting damage that is directly or indirectly the consequence of a defect in this product. Never repair this product yourself if it appears faulty. The guarantee then becomes invalid. If the product becomes defective in the period mentioned it will be replaced free of charge.

INFO

1134-CPR-111Smoke alarm devicesKD-128AEN 14604:2005/AC:2008DoP No. 566025002-001CPR	1134	Intended for Fire Safety and installed in buildingsEssential characteristic 1:passEssential characteristic 2:passEssential characteristic 3:passEssential characteristic 4:passEssential characteristic 5:passEssential characteristic 6:passEssential characteristic 7:passEssential characteristic 8:pass
	14

ELTRA NV

Pachtgoedstraat 2

9140 Temse

www.profile.eu

The product should not be mixed with general household waste. Please inform yourself about how electrical and electronic products in your region are separated and collected.

GUARANTEE

STICK YOUR RECEIPT HERE AND ALWAYS KEEP THIS MANUAL AT HAND
