Product type	Wired headset
Brand	SilverCrest
Model	SKH 60 B1
Impedance	60 Ω
Sensitivity	115 dB at 1 kHz
Frequency response	20 Hz - 20 kHz
Connector	Gold-plated 3.5 mm jack
Cable length	1.5 m
WBCV recognition voltage	≥ 75 mV
Storage temperature	0 - 45 °C
Maximum humidity	85%
Minimum distance from pacemakers	10 cm
Cleaning	Soft, dry cloth; avoid acidic detergents
Repairs	Do not repair yourself; contact customer service
Safe use	Do not use while driving vehicles or operating machinery
Weight	Approximately 200 g (estimate)
Dimensions	Approximately 20 x 18 x 8 cm (estimate)

Frequently Asked Questions - SKH 60 B1 SILVERCREST

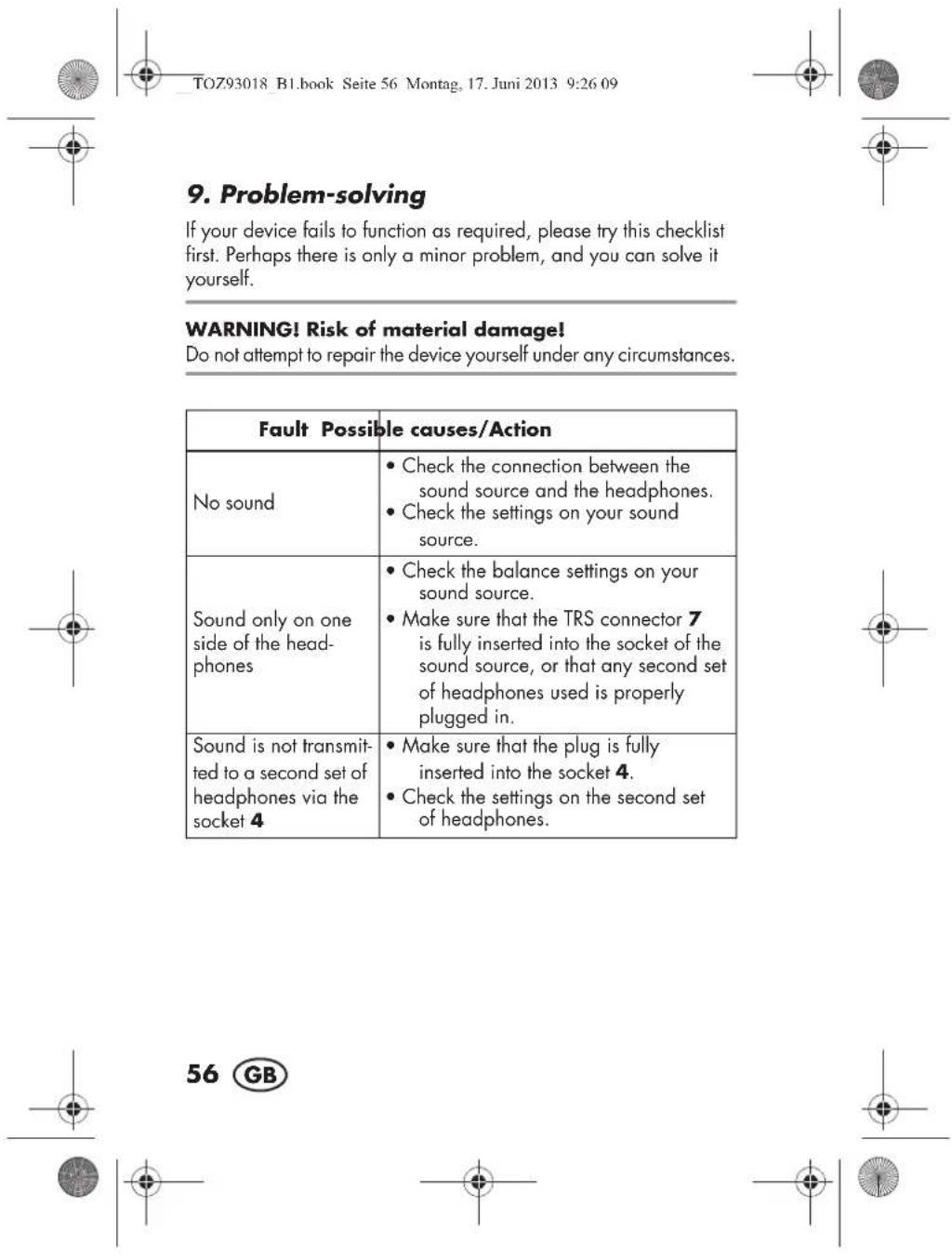

Why is there no sound in my headphones?

First check that the cable is properly connected to the audio source. Make sure the source volume is set to an audible level. If the problem persists, test with another device.

Sound only comes from one side, what should I do?

Check the balance setting on your audio source. Make sure the jack plug is fully inserted. If you are using a second headset, check its connection.

How to clean the SKH 60 B1 headset?

Use a soft, dry cloth. Do not use any acidic or abrasive detergents to avoid damaging the materials.

Can I use this headset with a pacemaker?

Maintain a distance of at least 10 cm between the headset and the pacemaker to avoid interference.

What is the length of the supplied cable?

The cable is 1.5 meters long and ends with a gold-plated 3.5 mm jack plug.

Is this headset compatible with all devices with a 3.5 mm jack?

Yes, it is compatible with any device with a standard 3.5 mm jack output: smartphones, computers, audio players, etc.

What to do if the cable is damaged?

Do not attempt to repair the cable yourself. Contact customer service for information on replacement.

Can I replace the headset cable?

The manual does not mention a possible cable replacement. If the cable is damaged, please contact customer service.

Is the SKH 60 B1 headset foldable?

The manual does not specify if the headset is foldable. For more information, contact customer service.

What is the warranty of this product?

Warranty information is not included in the manual. Please refer to the warranty document provided with the product or contact the retailer.

USER MANUAL SKH 60 B1 SILVERCREST

Operating instructions

FR CH

CASQUE

Mode d'emploi

NL

HOOFDTELEFOON

Gebruksaanwijzing

IAN 93018

FR NL BE

DE AT CH

13/14

GB

DANGER of accidents due to impaired perception

• Never use the headphones during activities when you must be attentively aware of your surroundings, particularly when operating machinery or vehicles in traffic (this also applies to bicycles). You must also comply with the legal provisions and regulations of the country in which you are using the device.

DANGER of affecting cardiac pacemakers

• The magnetic fields generated by the headphones may impair the functioning of cardiac pacemakers and implanted defibrillators. You must therefore maintain a minimum distance of 10cm between the headphones and the cardiac pacemaker / defibrillator.

WARNING! Risk of hearing damage

• Set a low volume on the playback device before you connect the headphones to the sound source.
• Avoid excessive volumes, particularly over extended periods or in the case of frequent use. Excessive volume can result in permanent hearing damage.

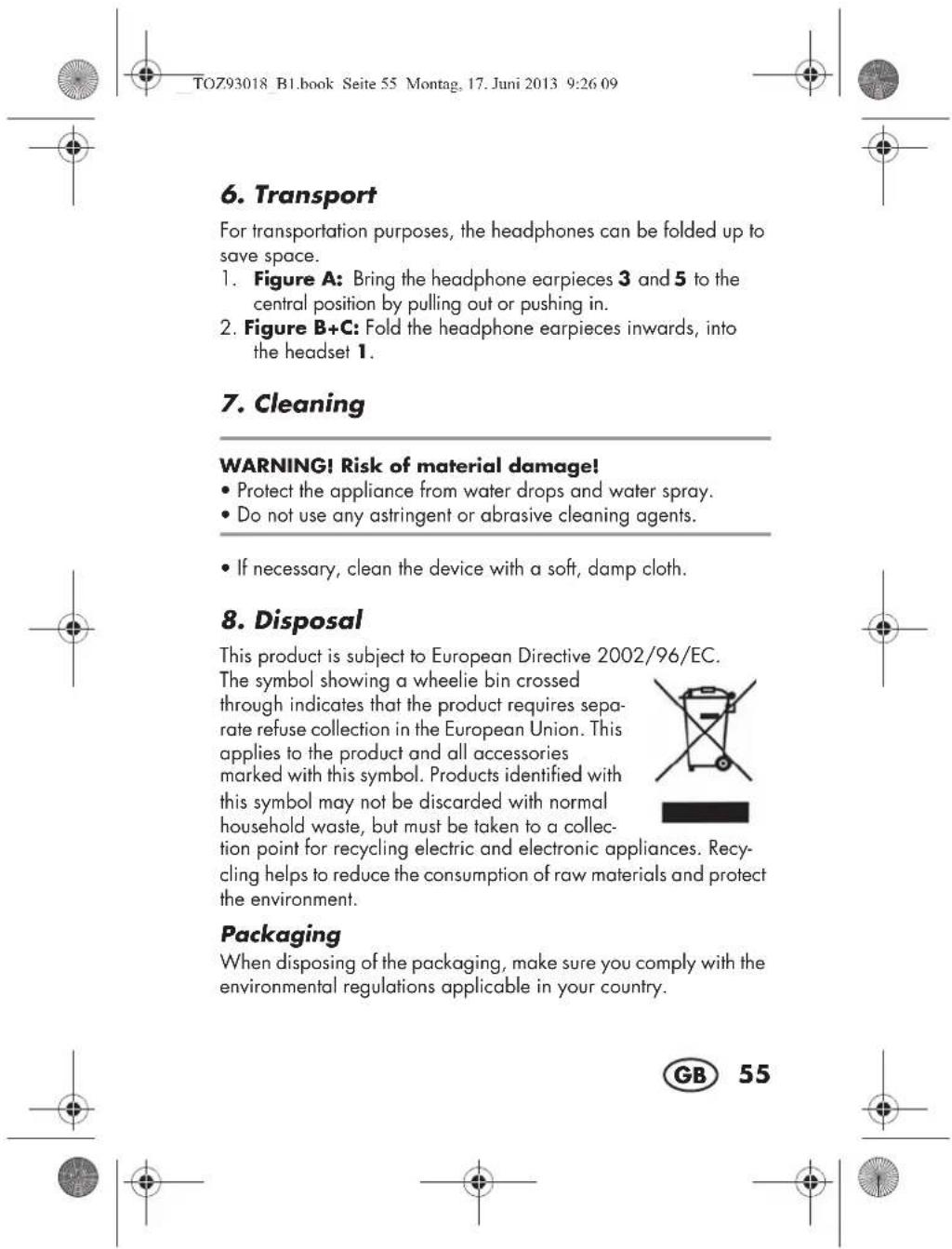

WARNING! Risk of material damage

• Protect the device against damage, e.g. from:

• Drips and splashes of water

• Heat, direct sunlight and open flames

• Impacts and similar violent effects

• Protect the cable against damage, e.g. from:

• sha r p e d g e s
  hot places

• clamping or crushing

• Do not use any astringent or abrasive cleaning agents.

10. Technical specifications

Model: SKH 60 B1
Resistance: 60 Ω +/- 4 Ω
Broadband ID voltage (WBCV): ≥ 75 mV
Sensitivity: 115 dB +/- 10% at 1 kHz
Transmission range: 20 Hz - 20 kHz
Plug: 3.5 mm TPS connector, gold-plated
Socket: 3.5 mm TPS connector
Cable length: 1.5 m
Storage temperature: 0 - 45 °C
Maximum humidity: 85%

Subject to technical modification.

Declaration of conformity

A complete declaration of conformity can be requested from

HOYER Handel GmbH, see service centres.

GB

57
