RF6H34 - Battery Digipower - Free user manual and instructions

Product Type	Rechargeable external battery for camera
Brand	Digipower
Model	RF6H34 (RF-12H34, RF-24H34)
Battery Capacity	3200 mAh
Input Voltage	5 V DC, 1.0 A
Output Voltage	5 V DC
Approximate Charging Time	3.5 hours
Dimensions	32 x 56 x 66 mm
Weight	76 g
Protection Rating	IP68 (waterproof up to 40 m, more than 3 h)
Compatibility	GoPro Hero4, Hero3+ and Hero3 (with compatible housing)
LED Indicators	3 LEDs for charging status and battery level
Special Feature	Shake to check battery level
Use without internal battery	Possible (if internal battery present, must be partially charged)
Wall charger included	No (model RF-6H34; included for RF-12H34 and RF-24H34)
Warranty	1 year
Manufacturer	Mizco International, Inc.
Memory card recommendation	Class 10 minimum, class 6 recommended
Operating temperature	Prolonged use: may become hot, handle with care

Frequently Asked Questions - RF6H34 Digipower

How to charge the Action Pack battery pack?

Connect the included micro USB cable to a USB wall charger. The LED indicators light up to show charging.

How to check remaining charge level?

Gently shake the battery pack once. The LED indicators show the level: 1 LED on = 5-32%, 2 LEDs = 33-66%, 3 LEDs = more than 66%.

How long does it take for a full charge?

Approximately 3.5 hours for the RF-6H34 model with a 5V 1A input.

Can I use the battery pack without the internal camera battery?

Yes, it's possible. However, if an internal battery is present, it must be at least partially charged for the camera to function.

What is the waterproof rating of the Action Pack?

The battery pack is certified IP68, meaning it is completely dust-tight and waterproof up to 40 meters depth for more than 3 hours.

Which GoPro models are compatible?

The battery pack is compatible with GoPro Hero4, Hero3+ and Hero3. For the Hero3, a Hero3+/4 waterproof housing is required.

What do the LED indicators mean during charging?

During charging: 1 LED blinks (<30%), 1 solid + 1 blinks (30-65%), 2 solid + 1 blinks (66-99%), 3 solid (100%). LEDs turn off when charging is complete.

What memory card is recommended for optimal performance?

A Class 10 memory card is recommended for optimal performance and battery life. A Class 6 card is the minimum requirement.

Is the wall charger included with the RF-6H34 model?

No, the wall charger is only included with the RF-12H34 and RF-24H34 models. For the RF-6H34, use a standard USB charger (5V 1A).

What to do if the LEDs do not light up?

Check the USB cable and charger connection. If the issue persists, try another cable or charger. Make sure the battery pack is not completely depleted (plug it in for a few minutes). If nothing works, contact technical support.

USER MANUAL RF6H34 Digipower

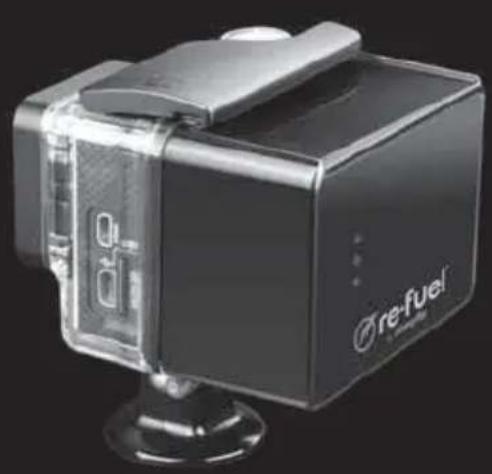

High capacity power for GoPro Hero4, Hero3+ & Hero3

ENGLISH

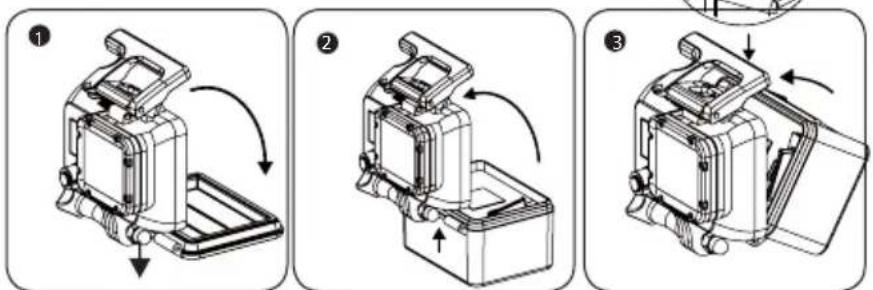

USING THE ACTION PACK IN 3 EASY STEPS

1. Open the GoPro housing so that the back is at a 90 degree angle to the camera body. Pull straight down to remove it.

2. Attach the ACTION PACK to the case at a 90 degree angle to the camera body. Gently snap it in place.

3. Close and latch the Actian Parbody of the camera case.

Important note for Hero 3 users:

The waterproof housing for the Hero3 is larger than it is for the Hero3+/4. The waterproof housing from the Hero3+/4 is required to use the Action Pack.

ENGLISH

Connect the micro USB cable from the ACTION PACK to the USB wall charger. The LEDs (located on the back of the case) will turn on to indicate the pack is being charged.

CHARGING STATUS INDICATOR

STATUS DISPLAY STATE CHARGE STATUS
One LED is blinking Below 30%
One LED is on, next LED is blinking 30% - 65%
Two LEDs are on, last LED is blinking	66% - 99%
All three LEDs are on 100%

When the ACTION PACK is fully charged the LEDs will turn off.

To check the charge level shake the ACTION PACK once.

ENGLISH

CHECKING THE BATTERY POWER LEVEL

This battery has a built in shake switch, shake once to check the battery level status. The LEDs will turn off after 3 seconds.

BATTERY LEVEL INDICATOR

STATUS DISPLAY STATE BATTERY LEVEL
One LED is blinking < 5% charge	remaining
One LED is on 5% - 32%
Two LEDs are on 33% - 66%
Three LEDs are on >66%

When the pack is connected to the camera and the camera is turned on the LEDs will remain lit to indicate the remaining power level. When the pack runs out of power the last LED will blink rapidly 3 times then shutoff.

Important note: For the most accurate reading of how much power remains in the ACTION PACK do not reference the LCD display on the camera. For remaining capacity check the LEDs on the ACTION PACK.

ENGLISH

Please Note:

1. A Class 10 video card will provide the best performance and run times, a minimum of class 6 is required. Look for a number inside the letter C on the front of the card.
2. Shooting at higher resolutions like 4K video will result in less run time because it uses more power.
3. The ActionPack can be used without the internal camera battery installed but if the internal battery is installed it must have some charge or the camera will not turn on.
4. The ActionPack and the camera itself can get hot when used for long periods of time, use care when handling.
5. All models of the ACTION PACK have been tested and approved to IEC standard IP68 for water and dust ingress. It is completely dust proof and is waterproof to depth of 40 meter for over 3 hours of continuous use.

Item No.	Battery Capacity	Input Charging	Battery output	Approx. time to fully charge the battery	Dimensions in inches	Dimensions in millimeters	Weight in ounces	Weight in grams
RF-6H34 3	200mAh 5V	DC 1.0A 5V	DC 3.5hrs	1.2x2.2x2.6 32x56	x66 2.68 76
RF-12H34	4800mAh 5V	DC 1.5A 5V	DC 3.8hrs	1.4x2.2x2.6 35x5	6x66 3.77 107
RF-24H34	9600mAh 5V	DC 1.5A 5V	DC 7.5hrs	2.3x2.2x2.6 58x5	6x66 6.84 19			4

ENGLISH

Wall charger specifications

(Included in the RF-12H34 and RF-24H34 only)

Input: 100 - 240 V~0.5A 50/60Hz
Output:5V DC 2.1A
Over current protection, over voltage protection, short circuit protection.

Visit:

www.re-fuel.com for more information.

Year Warranty

2015 Mizco International, Inc. Avenel, New Jersey.

All rights reserved.

tel: [phone]

email: [e-mail]

DigiPower is a registered trademark of

Mizco International, Inc.

re-fuel

by DIGIPower
