USER MANUAL UKL 12 A1 ULTIMATE SPEED

CAR AIR PURIFIER UKL 12 A1

GBIE

CAR AIR PURIFIER

Operating instructions

FR BE

PURIFICATEUR D'AIR POUR VOITURE

Mode d'emploi

DE AT CH

AUTO-LUFTREINIGER

Bedienungsanleitung

IAN 106748

DK

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

Intended use 2
Warnings 3

Safety instructions 4

Initial operation 6

Check the items supplied 6

Controls 7

Handling and operation 7

Functionality and effect of the vehicle air cleaner . 9

Maintenance 9

Replacing the fuse 9

Cleaning and storage 1 1

Disposal 12

Appendix 13

Impor ter 13

Technical details 13

Notes on the Declaration of Conformity 14

Warranty 14

Service 16

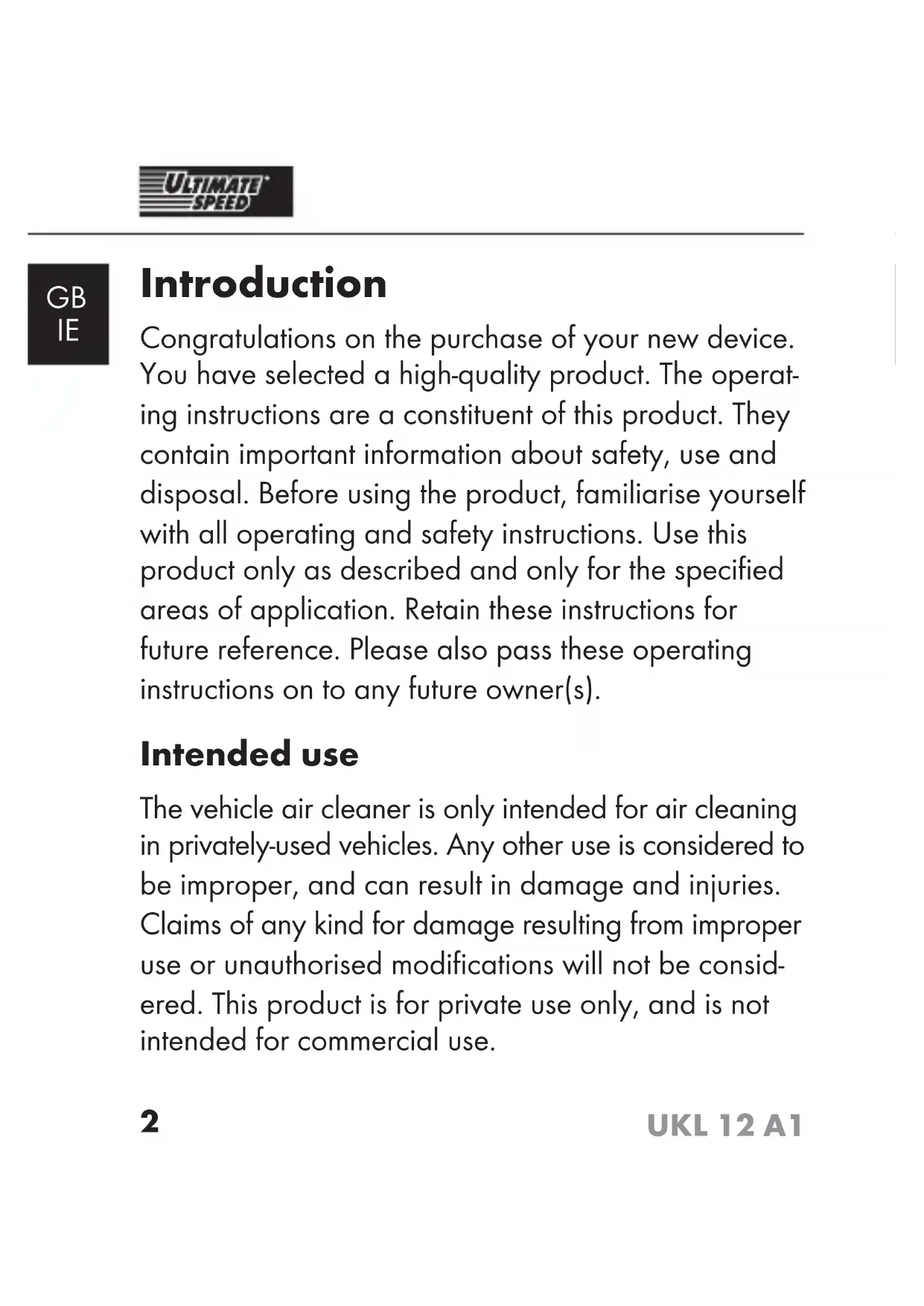

Introduction

Congratulations on the purchase of your new device. You have selected a high-quality product. The operating instructions are a constituent of this product. They contain important information about safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Intended use

The vehicle air cleaner is only intended for air cleaning in privately-used vehicles. Any other use is considered to be improper, and can result in damage and injuries. Claims of any kind for damage resulting from improper use or unauthorised modifications will not be considered. This product is for private use only, and is not intended for commercial use.

Warnings

The following warnings are used in these operating instructions:

DANGER

A warning at this risk level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could lead to death or serious physical injury.

Follow the instructions in this warning to avoid a fatality or serious personal injury.

CAUTION

A warning of this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

Follow the instructions in this warning to prevent damage to property.

NOTE

A note indicates additional information that will assist you in handling the device.

Safety instructions

• Check the device for any visible external damage before use. Do not use an device that has been damaged or dropped.
• Protect the device from penetration by moisture and liquids.
• Never subject the device to extreme heat or humidity. This applies especially when storing in a car. Extreme temperatures can occur in car interiors and glove compartments during long periods of immobilisation. Remove electrical

and electronic devices from the vehicle.

This device may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
- Do not operate the device whilst steering a car or any other vehicle. This is hazardous to other road users.
- Do not cover the ventilation slots.

Initial operation

Check the items supplied

This device is supplied with the following components as standard:

• Vehicle air cleaner
  This operating manual

NOTE

Before starting to use the device, check that all items are present and undamaged. If any items are missing or damaged due to defective packaging or transportation, please contact the Service Hotline (see chapter "Service").

Remove all parts from the packaging, and then remove all packaging material from the device.

Controls

Vehicle plug
Indicator lamp
3 Ventilation slots
4 On/Off switch

Handling and operation

Insert the vehicle plug ① into the 12 ~V power socket of your car. As a rule this is the cigarette lighter socket in the dashboard of your vehicle.

NOTE

The main unit with the ventilation slots ③ can be continuously rotated through 90^ . The ventilation slots ③ must be free and should be pointing towards the middle of the vehicle interior.

Rotate the main unit with the ventilation slots 3 into the required position.

Switch the device on by sliding the On/Off switch 4 to the "ON" position. The indicator lamp 2 illuminates and signals that the vehicle air cleaner is operating. Depending on the vehicle type it is possible that the ignition has to be switched on first.

To switch the device off, set the On/Off switch 4 to the "OFF" position. The indicator lamp 2 goes out.

CAUTION

The device also consumes power in standby mode and therefore must be disconnected from the on-board power supply after use! Otherwise the battery will discharge when the engine is not running.

Functionality and effect of the vehicle air cleaner

The device continuously emits negative ions during operation. The negative ions the attach themselves to pollutants, bacteria and germs and make them harmless by means of their electrical charge. Both scientific investigations and practical experience have shown show that enriching the air with negative ions has a positive effect on human capabilities.

Maintenance

Replacing the fuse

There is a fuse in the 12 V vehicle air cleaner for protecting the vehicle's on-board power supply. If the device no longer works, check the fuse and replace if necessary.

Firstly, disconnect the device from the 12V connection.

Open the 12 ~V vehicle air cleaner by carefully unscrewing the fluted screw insert anticlockwise (using pliers if necessary) and removing it.
Remove the plug tip from the fuse and take out the fuse.
Now insert a new fuse of type F1AL 250 V into the 12 ~V vehicle connector, fit the plug tip to the slightly protruding end of the fuse and screw the previously removed screw insert back in.

NOTE

If the device still does not work or the fuse blows again immediately, the device is defective. In this case, please contact the Service Hotline (see chapter "Service").

Cleaning and storage

CAUTION

• Disconnect the device before cleaning and when not in use from the 12 ~V connection to avoid the risk of an electric shock.
  The temperatures inside a vehicle can reach extreme values in summer and winter. Damage should therefore be avoided by not storing the device in the vehicle.
  Clean the device with a soft, dry cloth.
  Store the device in a location that is clean, dry, dust-free and not in direct sunlight.

Disposal

Under no circumstances must the device be disposed of in the normal domestic waste. This product is subject to the provisions of the European 2012/19/EU WEEE Directive (Waste Electrical and Electronic Equipment).

Dispose of the device via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt.

ispose of all packaging materials in an environmentally friendly manner.

Appendix Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Technical details

Model UKL 12 A1
Input voltage, current 12 V	/22 mA=
Fuse F1AL/250 V
Protection class	III/◇
Operating temperature 5°C up to +45°C
Relative humidity	≤75% (no condensation)
Dimensions	approx. 15.7×4.0×3.9 cm
Weight approx. 65 g

Notes on the Declaration of Conformity

With regard to correspondence with the basic requirements and other relevant regulations, this device complies with EMC directive 2004/108/EC and RoHS directive 2011/65/EU.

The full original Declaration of Conformity is available from the importer.

Warranty

The warranty provided for this device is 3 years from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or batteries.

This device is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications which were not carried out by one of our authorised service centres. Your statutory rights are not restricted in any way by this warranty. The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts.

Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 106748

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 106748

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)
